OGBA-101 TOGAF Business Architecture Foundation Exam Questions and Answers

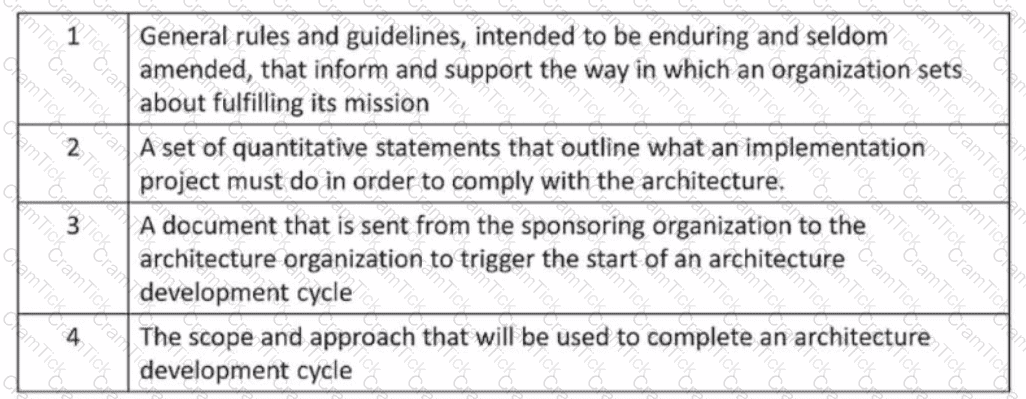

Architecture Principles in TOGAF govern the architecture process, influencing the development, maintenance, and use of the Enterprise Architecture. Here's a detailed explanation:

Definition:

Architecture Principles: These are the fundamental rules and guidelines that inform and support the way in which an organization sets about fulfilling its mission. They affect all phases of the architecture process.

Role in TOGAF:

Guidance and Governance: Architecture Principles provide the foundation for making architecture-related decisions. They guide the development, maintenance, and usage of all architecture artifacts.

Consistency and Alignment: They ensure that all architecture activities are consistent with the overall business strategy and objectives, providing alignment across different architecture domains.

TOGAF ADM Phases:

Preliminary Phase: This phase includes the establishment of architecture principles that will guide the entire architecture effort.

Phase A: Architecture Vision: During this phase, the architecture principles are used to create the vision and scope of the architecture project, ensuring it aligns with the organization's goals.

Examples of Architecture Principles:

Business Principles: These might include ensuring that business processes are customer-focused.

Data Principles: Principles ensuring data accuracy and availability.

Application Principles: Guidelines for application interoperability and usability.

Technology Principles: Standards for technology choices and infrastructure management.

In summary, architecture principles govern the architecture process, affecting its development, maintenance, and use, thereby ensuring alignment with business goals and consistency in architectural decisions.

Value Stream Mapping (VSM) is a powerful tool used to assess an organization's effectiveness at creating, capturing, and delivering value for different stakeholders. It involves mapping out the entire process of value creation from end to end, identifying each step involved, and analyzing how value is added at each stage. VSM helps in identifying bottlenecks, inefficiencies, and opportunities for improvement, ultimately aiming to optimize the value delivery process to better meet stakeholder needs.

A value stream is an approach to modeling business value that focuses on the end-to-end sequence of activities that an organization performs to deliver a product or service to the customer. This perspective is designed to help organizations understand the full lifecycle of value creation, from the initial customer demand to the final delivery of value. It provides a holistic view of the flow of value through the organization and is instrumental in identifying areas of waste and opportunities for improvement to enhance the overall customer experience. Value streams help in visualizing and optimizing the steps necessary to effect change in the business processes and systems that create value for the customers.

According to the TOGAF Series Guide to Value Streams (Version 1), a value stream stage is defined as “a distinct part of a value stream that represents a group of activities contributing to an overall result” 5. A value stream stage can be expressed as a noun phrase that indicates what outcome or state is achieved by completing the stage5. For example, some possible value stream stages are “Product Ordered”, “Payment Processed”, or “Customer Satisfied”. The example value stream shows how an online retailer creates and delivers value for its customers by performing five value stream stages: “Acquire Retail Product”, “Advertise Channels”, “Display Products”, “Enable Selection”, “Process Payment”, and “Deliver Product(s)” 5. Therefore, the value stream is decomposed into five value stream stages.

https://pubs.opengroup.org/togaf-standard/business-architecture/value-streams.html Table 1: Acquire Retail Product Value Stream Stages

In the TOGAF framework, the architecture domains considered as subsets of an overall enterprise architecture are Business, Technology, Application, and Data. Here’s a detailed explanation:

TOGAF Architecture Domains:

Business Architecture: Describes the business strategy, governance, organization, and key business processes.

Data Architecture: Defines the structure of an organization’s logical and physical data assets and data management resources.

Application Architecture: Provides a blueprint for the individual applications to be deployed, their interactions, and their relationships to the core business processes of the organization.

Technology Architecture: Describes the logical software and hardware capabilities that are required to support the deployment of business, data, and application services.

Importance of Each Domain:

Business Architecture: Aligns the architecture with the business strategy and goals.

Data Architecture: Ensures that data is structured and managed to support business processes and decisions.

Application Architecture: Ensures that applications are designed and integrated to support business processes.

Technology Architecture: Provides the technology infrastructure needed to support applications and data management.

TOGAF References:

Phase B: Business Architecture: Focuses on developing the Business Architecture.

Phase C: Information Systems Architectures: This phase includes both Data Architecture and Application Architecture.

Phase D: Technology Architecture: Focuses on developing the Technology Architecture.

In summary, the TOGAF standard considers Business, Technology, Application, and Data as the architecture domains that are subsets of an overall enterprise architecture.

A business model describes how an organization creates, delivers, and captures value for its stakeholders3. A business architecture breaks a business model down into the core functional elements that describe how the business works, such as the value proposition, the customer segments, the channels, the revenue streams, the cost structure, the key resources, the key activities, and the key partnerships3.

The relationship between business models and business architecture is that while business models provide a high-level description of business elements such as customers, markets, and the economic rationale of the business, the business architecture takes this model and breaks it down into more detailed descriptions. It identifies the core functional components and their relationships, which describe how the business operates, the roles involved, the information flowing through the business, and the technology supporting business activities.

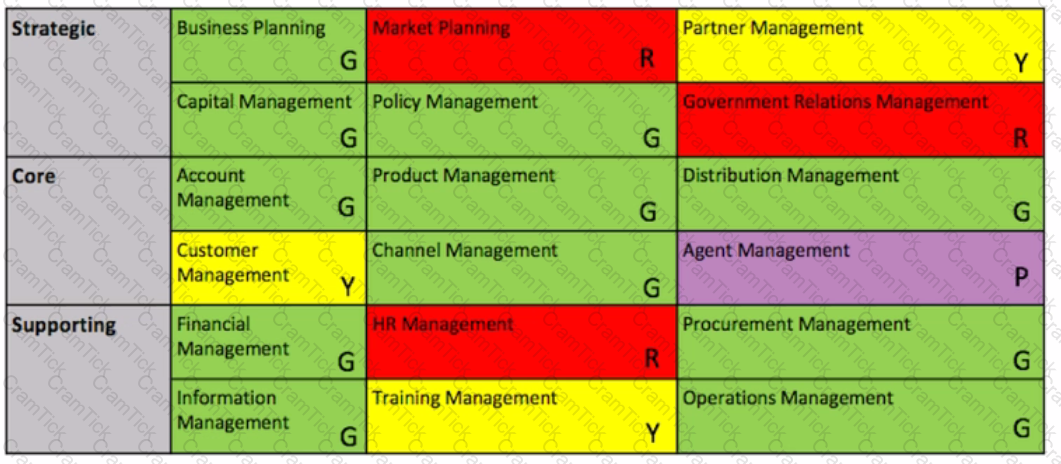

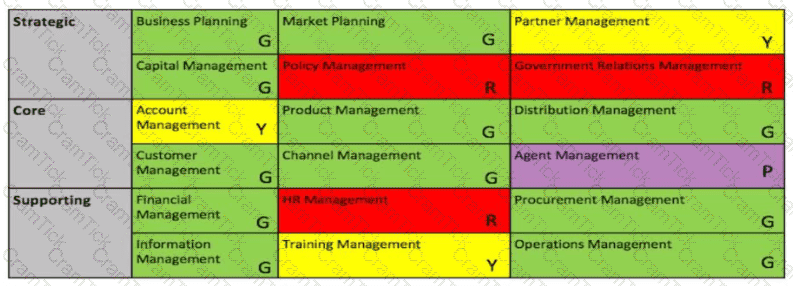

A business capability map is a comprehensive representation that showcases an organization's abilities in a structured manner. It identifies and illustrates the various business capabilities that allow the enterprise to function and deliver value. These capabilities are often defined independently of the organizational structure, processes, or technology, focusing instead on what the business does and can do. This map encompasses the end-to-end value delivery and how different capabilities interrelate and support one another, thus providing a holistic view of the business's functional abilities.

Risk Management is the discipline that addresses the identification, assessment, and prioritization of risks followed by coordinated application of resources to minimize, control, andmonitor the impact of unfortunate events or to maximize the realization of opportunities. It is about striking a balance between the positive outcomes of opportunities and the negative outcomes of risks, ensuring that the enterprise can achieve its objectives while keeping potential threats under control.

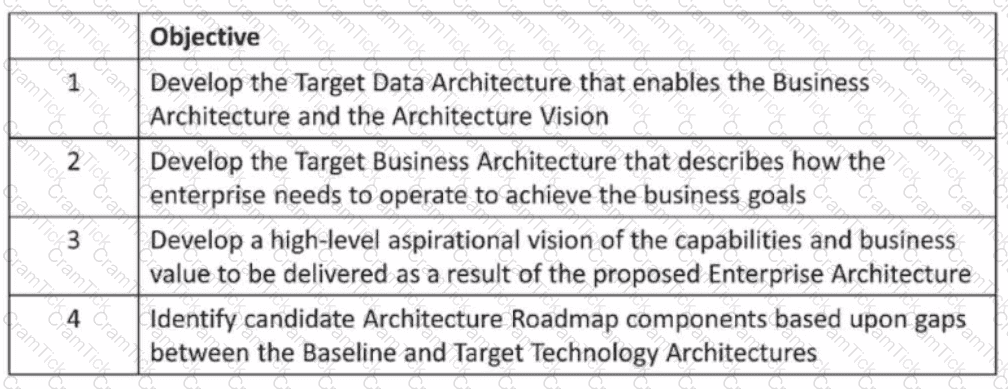

Phase A of the TOGAF ADM (Architecture Development Method), also known as the Architecture Vision phase, focuses on defining the problem to be solved, identifying stakeholders, their concerns, and requirements. Here’s a detailed explanation:

Phase A: Architecture Vision:

Objective: The primary objective of Phase A is to establish a high-level vision of the architecture project, including defining the scope and identifying key stakeholders and their concerns.

Problem Definition: This phase involves clearly defining the business problem or opportunity that the architecture project seeks to address. This sets the stage for all subsequent architecture work.

Stakeholder Identification:

Identification and Analysis: Stakeholders are identified and their concerns and requirements are gathered. This includes business leaders, IT leaders, end-users, and other relevant parties.

Understanding Needs: Understanding the needs and expectations of stakeholders is crucial for ensuring that the architecture aligns with business objectives and addresses key concerns.

Requirements Gathering:

High-Level Requirements: In Phase A, high-level requirements are identified and documented. These requirements guide the development of the architecture vision and provide a basis for more detailed requirements in later phases.

Requirements Management: A requirements management process is established to ensure that stakeholder needs are continuously captured, analyzed, and addressed throughout the architecture development process.

TOGAF References:

Deliverables: Key deliverables of Phase A include the Architecture Vision document, stakeholder map, and high-level requirements.

ADM Guidelines: TOGAF provides guidelines and techniques for conducting Phase A, including methods for stakeholder analysis, problem definition, and developing the architecture vision.

In summary, Phase A of the TOGAF ADM focuses on defining the problem to be solved, identifying stakeholders, understanding their concerns and requirements, and developing a high-level architecture vision that aligns with business objectives.

In developing an Architecture Vision within TOGAF, the architect should examine and search for foundational Business Architecture concepts to ensure that the enterprise architecture is aligned with the organization’s strategy and delivers value to stakeholders. Here’s a detailed breakdown of the relevant Business Architecture concepts that need to be examined in this context:

Business CapabilitiesBusiness Capabilities represent the core abilities or capacities of an organization that allow it to achieve specific purposes or outcomes. In TOGAF, identifying and analyzing Business Capabilities helps architects understand the organization’s functional strengths and gaps. This examination provides insight into which capabilities are critical for achieving strategic goals and how they may need to evolve to support the target architecture.

Value StreamsValue Streams depict the end-to-end processes that deliver value to customers, stakeholders, or end users. By identifying Value Streams, the architect can understand how value is created and delivered, ensuring that architecture decisions support these value-generating processes. Value Streams in TOGAF are integral to identifying areas where improvements, efficiencies, or innovations can be applied, enhancing the organization’s ability to meet its strategic objectives.

Organization MapsOrganization Maps outline the relationships between various entities within the enterprise, including internal departments, partners, and stakeholders. These maps provide a structural overview, showing the formal and informal relationships that influence how work is conducted across the organization. In the Architecture Vision phase, Organization Maps help architects understand organizational dependencies, stakeholder concerns, and potential alignment issues between business units.

Application in the Architecture Vision Phase:By examining these concepts—Business Capabilities, Value Streams, and Organization Maps—the architect can gain a comprehensive understanding of the current state of the business and how it is structured to deliver value. This analysis is essential for setting a realistic and strategically aligned vision that addresses core business needs and prepares the organization for future growth and transformation.

TOGAF References:

TOGAF Standard, Architecture Vision Phase

TOGAF Business Architecture guidelines on Business Capabilities, Value Streams, and Organization Mapping

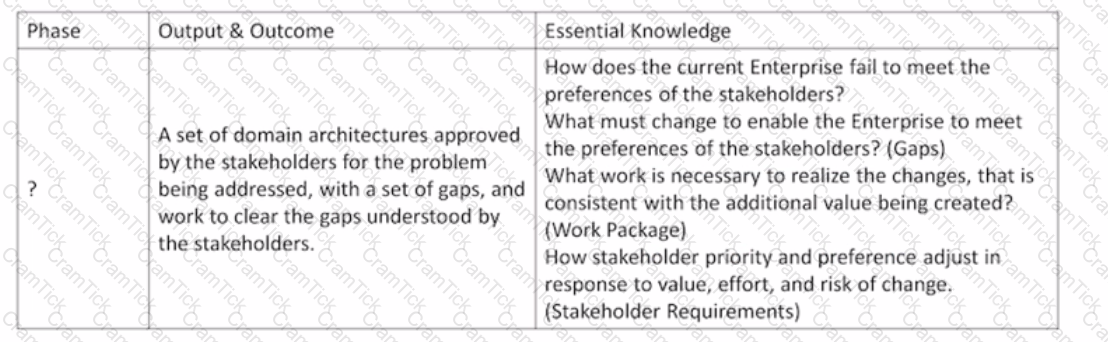

The table describes the steps involved in Phase B (Business Architecture), Phase C (Information Systems Architectures), and Phase D (Technology Architecture) of the TOGAF ADM5. These phases are responsible for developing the target architectures for each domain and identifying the gaps between the baseline and target architectures. The table shows the outputs and outcomes of each phase, as well as the essential knowledge required for each phase.

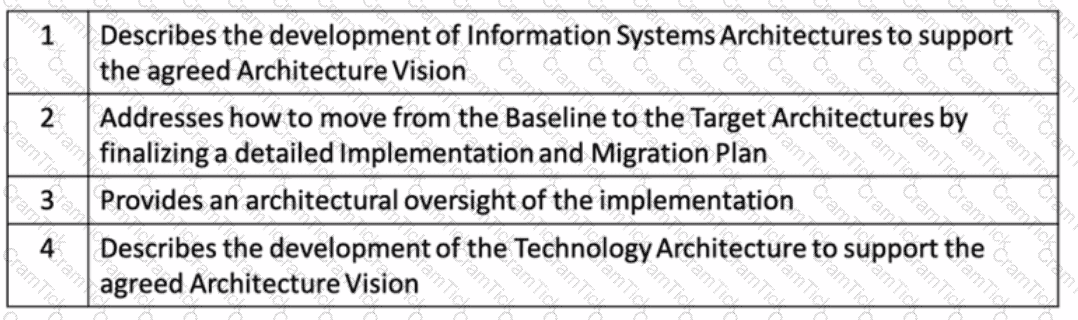

The table describes the iterative cycle of defining requirements, identifying gaps, and creating solutions that occurs throughout thearchitecture development phasesof the TOGAF ADM. This cycle is most prominent in:

Phase B (Business Architecture):

Develop the Business Architecture, identifying gaps between the baseline and desired business capabilities, processes, and information flows.

Define work packages to address these gaps and realize the target business architecture.

Phase C (Information Systems Architectures):

Develop the Data and Application Architectures to support the Business Architecture.

Identify gaps between the baseline and target information systems architectures.

Define work packages to address these gaps and realize the target data and application architectures.

Phase D (Technology Architecture):

Develop the Technology Architecture to support the Data and Application Architectures.

Identify gaps between the baseline and target technology architectures.

Define work packages to address these gaps and realize the target technology architecture.

Organization mapping is a technique used to represent the structure and relationships within an organization. Here’s a detailed explanation of its benefits, particularly for strategic planning:

Organization Mapping:

Organization maps visually represent the hierarchical structure of an organization, including departments, teams, and reporting relationships. They provide insights into how the organization is structured and how different parts interact.

Benefits for Strategic Planning:

Alignment with Strategy: An organization map helps in aligning organizational structure with strategic goals. By understanding how the organization is structured, leaders can ensure that resources are allocated efficiently and that the organizational design supports the strategic objectives.

Identifying Gaps and Overlaps: Organization maps highlight areas where there might be gaps or overlaps in roles and responsibilities. This information is crucial for making strategic decisions about restructuring or reallocating resources.

Improving Communication: By clearly depicting the organizational structure, these maps improve communication and collaboration within the organization. This is particularly important for strategic planning, as it ensures that all parts of the organization are aligned and working towards the same goals.

TOGAF References:

Phase B: Business Architecture: Organization mapping is a key activity in this phase, where the current organizational structure is analyzed to ensure it supports the business strategy and architecture vision.

Strategic Planning: TOGAF emphasizes the importance of aligning the business architecture with strategic planning. Organization maps are tools that facilitate this alignment by providing a clear representation of the organizational structure.

In summary, organization mapping improves strategic planning by providing a clear, visual representation of the organizational structure, helping to align resources and design with strategic goals.

Presenting differentalternatives and trade-offsto stakeholders is a crucial technique in TOGAF for eliciting valuable feedback and refining the Target Architecture. This approach encourages stakeholders to actively participate in the architecture development process and express their preferences and concerns.

Here's why this approach is effective:

Reveals hidden agendas:By presenting different options with varying implications, stakeholders may reveal priorities or concerns that were not explicitly stated before. This helps architects uncover hidden agendas that could influence the architecture's success.

Uncovers underlying principles:Stakeholder reactions to different alternatives can reveal their underlying principles and values, providing insights into what they consider important in the architecture.

Identifies unspoken requirements:Through discussions and comparisons of alternatives, stakeholders may express needs or requirements that were not captured during initial requirements gathering.

One of the reasons that supports the need to govern Enterprise Architecture is that best practice governance enables the organization to control value realization6. Value realization is the process of ensuring that the expected benefits from implementing an Enterprise Architecture are achieved and sustained over time6. Best practice governance provides a framework and mechanisms for monitoring and evaluating the performance and outcomes of Enterprise Architecture initiatives, as well as ensuring alignment with strategic objectives and stakeholder expectations.

https://pubs.opengroup.org/togaf-standard/adm-practitioners/adm-practitioners_15.html In short, the implementation team is directed to create changes with intentional value-based outcomes. Best practice governance enables the organization to control value realization.

While both organization maps and organization charts visualize organizational structures, they have key differences:

Organization Chart:Focuses on formal reporting structures and hierarchies within an organization. It typically shows departments, roles, and lines of authority.

Organization Map:Provides a broader view of the organization, including relationships, interactions, and dependencies both within and outside the organization. It can highlight:

Informal relationships:Collaborations, communication channels, and networks that are not captured in the formal hierarchy.

External relationships:Connections with customers, suppliers, partners, and other stakeholders.

Alignment with business architecture:How well the organizational structure supports the business architecture and stakeholder concerns.

By visualizing these broader relationships, an organization map can reveal areas where the business architecture may not be effectively addressing stakeholder needs. This could be due to:

Misalignment between structure and strategy:The organizational structure may not be optimized to support the business strategy and value streams.

Communication gaps:There may be inadequate communication or coordination between different parts of the organization.

Lack of clarity in roles and responsibilities:Overlapping or unclear roles can lead to confusion and inefficiencies.

In TOGAF and business architecture practices,information mappingis a technique used to organize, visualize, and analyze key information assets within an organization. One of the primary benefits of information mapping is that it provides a structured view of information flows, dependencies, and requirements across various parts of the organization, supporting decision-making at multiple levels. By clearly mapping how information is generated, used, and shared, decision-makers can make more informed choices, ensuring alignment with strategic goals and effective use of resources.

Each option can contribute to the business architecture, butOption Dis the most accurate for the benefit of information mapping:

Option A(Improved business process integration) describes a benefit of process mapping rather than information mapping, although structured information can support process integration indirectly.

Option B(Framework for effective business requirements analysis) is not the primary benefit of information mapping. While information mapping helps clarify information needs, the analysis of business requirements is more focused on requirements engineering practices.

Option C(Highlights information requirements not addressed) is incorrect because while information mapping can reveal gaps in information needs, its primary function is not to identify gaps but to provide a clear view of information assets and flows.

Therefore,Option Daccurately reflects the main benefit of information mapping: supporting effective, informed decision-making across the business.

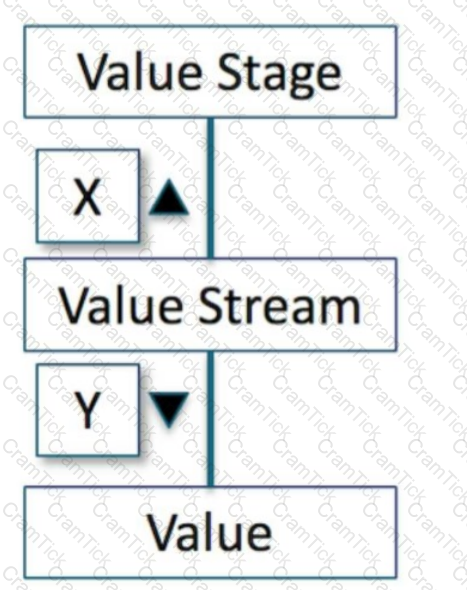

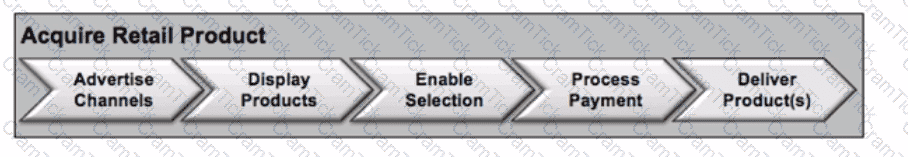

In the context of a value stream within TOGAF, a value stream stage represents a segment of the overall process that delivers value to stakeholders. Each stage has specific characteristics and elements that help define its progress and completion. The "exit criteria" is a key element that describes the end state condition, denoting the completion of a value stream stage. Here’s how TOGAF defines and uses these concepts:

Value Stream Definition:

A value stream represents an end-to-end collection of activities that create a result for a customer, stakeholder, or end-user. It provides a visual representation of how value is delivered.

Value Stream Stages:

Each value stream consists of multiple stages, each contributing to the overall value delivery. These stages need to be clearly defined to ensure the value stream can be effectively managed and improved.

Exit Criteria:

Definition: Exit criteria are the conditions that must be met to signify the completion of a value stream stage. These criteria ensure that all necessary tasks have been completed and that the output meets the required quality and performance standards.

Purpose: By defining exit criteria, organizations can ensure that each stage of the value stream is completed before moving to the next, maintaining quality and consistency across the process.

TOGAF References:

Phase B: Business Architecture: In this phase, value streams and their stages are modeled. Defining exit criteria for each stage helps in managing transitions and ensuring that each part of the value stream is delivering the intended value.

In summary, the exit criteria define the end state condition of a value stream stage, ensuring that all necessary tasks are completed and quality standards are met before proceeding to the next stage.

Role of Information Maps in TOGAFInformation maps are used to define and structure the key information concepts necessary for an organization’s operations. They organize information in a way thataligns with the organization’s business needs and are crucial for creating a robust information architecture.

Relationship Between Information Maps and Stakeholder MapsIn TOGAF and enterprise architecture practices, stakeholder maps play an essential role in defining information concepts because they identify the various stakeholders involved in or affected by the business operations. Understanding stakeholders and their interactions helps architects determine the types of information that are valuable to each stakeholder group. This understanding aids in structuring the information map to meet the specific needs and requirements of each stakeholder.

As per TOGAF guidance, if an organization already has a stakeholder map, it can serve as a valuable tool for identifying the information concepts required by different stakeholders. This allows architects to tailor the information architecture to align with the interests, roles, and responsibilities of stakeholders, which directly impacts the organization’s information needs.

Why Stakeholder Map is the Correct Answer

Stakeholder maps provide insights into the information needs of various stakeholders, helping to define information concepts within the information map.

By referencing a stakeholder map, architects can identify the key information flows, data requirements, and access needs of each stakeholder, ensuring that the information map is comprehensive and aligned with actual usage.

This alignment with stakeholder needs ensures that the information architecture supports the organization’s objectives by delivering relevant information to each party involved.

Why Other Options are Less Suitable:

Option B (Value Streams):Value streams focus on the high-level flow of activities that deliver value but do not directly inform the structure of information concepts.

Option C (Statement of Business Goals and Drivers):While business goals and drivers provide strategic direction, they do not specifically define information concepts in the same way that understanding stakeholder needs does.

Option D (Organization Map):An organization map helps in understanding roles and responsibilities within the enterprise but does not directly influence the definition of information concepts in the same manner as a stakeholder map.

Conclusion:

The correct answer isA. Stakeholder Mapbecause it directly helps define information concepts in an information map by clarifying the information needs of each stakeholder group.

References:

TOGAF® Standard, Version 9.2, Stakeholder Mapping and Information Mapping Techniques

TOGAF Business Architecture Guide, sections on Information Maps and Stakeholder Maps

The TOGAF Architecture Repository is a key resource for managing architectural artifacts and information. It's structured to hold different types of architectural assets, and the Solutions Landscape plays a specific role within it.

Here's why option C is correct:

Solutions Landscape Definition:This component of the repository specifically houses the Solution Building Blocks (SBBs). SBBs are reusable components that represent a specific function or capability. They can be combined and configured to deliver solutions that meet business needs.

Supporting the Architecture Landscape:The Architecture Landscape provides a broad view of the organization's architecture at specific points in time. The Solutions Landscape supports this by showing how SBBs are deployed or planned to realize the architectures defined in the Architecture Landscape.

Visual Representation:The Solutions Landscape offers a visual representation of the relationships between SBBs and how they contribute to the overall architecture. This helps stakeholders understand the implementation of the architecture.

Phase A (Architecture Vision) of the TOGAF ADM builds out initial organizational maps to understand high-level organizational needs and link them to architecture goals. This step provides foundational insight that informs subsequent phases, particularly for stakeholder alignment.

References: TOGAF ADM Phase A.

In TOGAF, Phase A (Architecture Vision) is where the organization map is developed in detail and linked to overviews to understand the organizational needs. This phase focuses on:

Defining the scope of the architecture:This includes identifying the parts of the organization that will be affected by the architecture and the timeframe for the architecture development.

Identifying stakeholders and their concerns:Understanding the needs and expectations of different stakeholders is crucial for developing an architecture that meets their requirements.

Creating a high-level architecture vision:This vision outlines the desired future state of the architecture and how it will support the organization's strategic goals.

In the context of the TOGAF ADM (Architecture Development Method), the phase labeled as item 1, which conducts implementation planning for the architecture defined in previous phases, corresponds toPhase E: Opportunities and Solutions. Here’s a detailed explanation:

Phase E: Opportunities and Solutions:

Objective: This phase focuses on identifying delivery vehicles (projects, programs, or portfolios) that can deliver the target architecture identified in previous phases. It bridges the gap between the architecture vision and the detailed implementation.

Implementation Planning: In this phase, the architect develops the detailed Implementation and Migration Plan. This includes identifying work packages, sequencing activities, and preparing for the transition to the target architecture.

Key Activities:

Identify Opportunities and Solutions: This involves identifying potential solutions that address the gaps identified during the architecture definition phases (Phases B, C, and D).

Work Package Definition: Work packages are defined, which include specific projects or initiatives required to implement the architecture.

Transition Planning: Detailed plans for transitioning from the baseline to the target architecture are developed, ensuring that all necessary steps and resources are accounted for.

TOGAF References:

Phase E Deliverables: Key deliverables of this phase include the Implementation and Migration Plan, project charters, and work package descriptions.

Alignment with Business Strategy: This phase ensures that the implementation plans are aligned with the business strategy and objectives, providing a clear path for executing the architecture vision.

Benefits:

Structured Implementation: Conducting implementation planning ensures that the architecture is implemented in a structured and controlled manner, reducing risks and enhancing the likelihood of success.

Resource Allocation: It helps in efficient allocation of resources by identifying the specific projects and initiatives needed to achieve the target architecture.

In summary, Phase E of the TOGAF ADM focuses on conducting implementation planning for the architecture defined in previous phases, ensuring a structured and controlled approach to executing the architecture vision and achieving the desired business outcomes.

An information map, in the context of TOGAF and Enterprise Architecture, serves as a visual representation of how information is structured, stored, and accessed within an organization. It essentially provides a map of the information landscape of the enterprise. This includes:

Identifying key information assets:This involves pinpointing critical data entities, such as customer data, product information, financial records, etc.

Locating information:The map shows where this information resides, whether it's in databases, applications, file systems, or other repositories.

Illustrating information flows:It may also depict how information moves between different parts of the organization, highlighting dependencies and relationships.

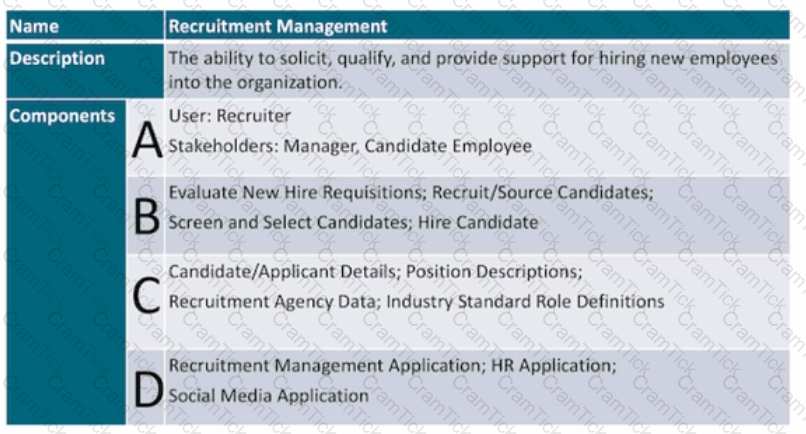

A business capability is a conceptual representation that reflects the core abilities or capacities of a business. It is defined as an intrinsic ability that an organization possesses or can develop to consistently deliver a specific outcome or set of outcomes. Business capabilities abstract away from the organizational structure, processes, and technology to focus on the 'what' the business can do, rather than the 'how' it does it. This concept is fundamental in business architecture as it helps in aligning strategic objectives with operational efficiency.

The diagram of an architecture development cycle shows three phases of the TOGAF ADM. The correct phase names corresponding to the labels 1, 2 and 3 are Requirements Management, Implementation Governance, and Preliminary respectively3. These phases are described as follows:

Requirements Management (label 1): This phase provides a process for managing architecture requirements throughout the ADM cycle3. It ensures that requirements are captured, stored, prioritized, and addressed by relevant ADM phases3. It also ensures that requirements are validated and updated as necessary3.

Implementation Governance (label 2): This phase provides a process for ensuring that the implementation projects conform to the defined architecture3. It involves establishing an implementation governance model, defining architecture contracts and compliance reviews, and monitoring and supporting the implementation projects3.

Preliminary (label 3): This phase provides a process for preparing and planning the architecture project3. It involves defining the scope and vision of the project, customizing the ADM process and content framework, defining principles and governance structures, and evaluating the enterprise architecture maturity and readiness3.

A TOGAF business scenario is a technique that can be used to fully understand the requirements of information technology and align it with business needs1. It is not a business case, which is a document that provides justification for a proposed project or initiative6. It is not a method to develop a business model, which is a description of how an organization creates, delivers, and captures value for its stakeholders7. It is not a use-case, which is a description of how a system interacts with external actors to achieve a specific goal.

A TOGAF business scenario is a technique that helps to derive architecture requirements by describing a business process, application, or set of activities. It includes detailing the actors, roles, goals, business policies, business processes, and the environment in which the scenario takes place. Business scenarios are used within TOGAF to ensure that the architecture has a clear link to the business requirements.

The Architecture Requirements Repository within the TOGAF Architecture Repository holds the architecture requirements that have been agreed with the Architecture Board. Here’s a detailed explanation:

Architecture Requirements Repository:

This repository is a part of the larger Architecture Repository in TOGAF, which is used to store and manage all the artifacts related to the architecture.

Content of the Repository:

Agreed Requirements: It includes the architecture requirements that have been formally reviewed and agreed upon by the Architecture Board. These requirements are essential for guiding the development and implementation of the architecture.

Governance and Compliance: The repository ensures that these requirements are accessible and can be used to enforce governance and compliance throughout the architecture development process.

TOGAF ADM Phases:

Phase A: Architecture Vision: Initial requirements are identified and refined.

Phase B, C, D: Requirements are further detailed and agreed upon.

Architecture Governance: Throughout these phases, the agreed requirements are stored in the repository to ensure they guide the architecture work and are adhered to.

Purpose and Benefits:

Centralized Repository: Having a centralized repository for agreed requirements ensures that all stakeholders have access to the current and approved requirements, facilitating better coordination and compliance.

Traceability: It provides traceability of requirements throughout the architecture development lifecycle, ensuring that all decisions and designs are aligned with agreed requirements.

In summary, the Architecture Requirements Repository holds the architecture requirements that have been agreed with the Architecture Board, providing a centralized and authoritative source for guiding architecture development and ensuring compliance.

In the context of TOGAF and Business Architecture, the diagram depicts the relationship between a Value Stream, Value Stage, and Value.

Value Stream: Represents the end-to-end set of activities that create and deliver value to a stakeholder.

Value Stage: A distinct step or phase within the Value Stream.

Value: The benefit delivered to the stakeholder.

The relationship "X" indicates that a Value Stream is composed of multiple Value Stages.

Think of it like a journey (Value Stream) with multiple stops along the way (Value Stages). Each stage contributes to the overall value delivered at the end of the journey.

Business capabilities in TOGAF are defined as the ability of an organization to achieve a specific purpose or outcome. The components that make up a business capability typically include:

Roles: The responsibilities and positions within the organization that support the capability.

Processes: The activities and workflows that are essential to the functioning of the capability.

Information: The data and knowledge necessary for the capability to operate effectively.

Resources: The assets, such as people, technology, and materials, required to support the capability.

This comprehensive definition ensures that each capability is fully understood in terms of the resources and activities required to deliver its intended outcomes.

Risk is defined as the effect of uncertainty on objectives. It can be positive or negative depending on whether it enhances or hinders the achievement of objectives. Threat is a potential cause of risk that could have a negative impact on objectives. Continuity is the ability to maintain or resume normal operations after a disruption or disaster. Vulnerability is a weakness or exposure that could be exploited by a threat to cause harm or damage.
