MuleSoft-Integration-Architect-I Salesforce Certified MuleSoft Integration Architect 1 (SP24) Exam Questions and Answers

• JMS (Java Message Service): JMS is a robust messaging standard that supports reliable and asynchronous communication. It allows message producers and consumers to exchange messages via a common message broker.
• Transactions with Automatic Acknowledgements: Utilizing JMS transactions ensures that messages are processed reliably. The automatic acknowledgement mode means that once the consumer receives the message, it acknowledges the broker automatically, ensuring that no messages are lost.
• Performance and Reliability: JMS transactions offer both high performance and reliability. By enabling transactions, each message processing step can be committed or rolled back, ensuring data integrity.
• Cross-Cluster Messaging: For a stock trading company dealing with millions of trades, using JMS transactions allows for consistent and reliable message delivery across different clusters in their network. This approach is more suitable compared to non-transactional or VM queues due to the scale and reliability requirements.
• Event-Driven APIs: The APIs can leverage the transactional nature of JMS to ensure that messages exchanged between different services are reliable and can recover gracefully from failures.

References:

• MuleSoft Documentation on JMS Connector: MuleSoft JMS Connector
• JMS 2.0 Specification: Oracle JMS 2.0

When a Mule application using VM queues is deployed to a customer-hosted cluster or multiple CloudHub v1.0 workers/replicas, messages are consumed in a non-deterministic way. This means that any of the nodes in the cluster or any of the workers can consume the messages from the VM queues, but there is no guaranteed order or specific pattern (such as round-robin or sequential processing).

This non-deterministic message consumption helps in distributing the load and handling messages more efficiently across multiple nodes or workers, improving the scalability and reliability of the application.

References

• MuleSoft Documentation on VM Queues and Clustering
• Best Practices for Deploying Mule Applications in Clusters

To ensure that the Java Invoke static connector in a Mule 4 application can access a static method in a dependency jar file, you need to make the dependency visible to the connector's class loader. Here are the two effective methods to achieve this:

• Using Maven Command:

com.example example-library 1.0.0

• uk.co.certification.simulator.questionpool.PList@1ce57060

mvn clean package

• Configuring Dependency as a Shared Library:

xml

com.example example-library 1.0.0 provided

• Steps for Java Invoke Configuration:
• Benefits:

References:

• MuleSoft Documentation on Java Module
• Maven Documentation on Dependency Management

Explanation

* Option B shouldn't be used unless extremely needed, if RAML is changed, client needs to accommodate changes. Question is about minimizing impact on Client. So this is not a valid choice.

* Option C isn't valid as Business can't stop for consumers acknowledgment.

* Option D again needs Client to accommodate changes and isn't viable option.

* Best choice is A where RAML definition isn't changed and underlined functionality is changed without any dependency on client and without impacting client.

To support the company's goals of unlocking key systems and data, quickly deploying scalable APIs, and connecting to on-premises systems, while also preparing for future migrations, the best runtime deployment option is using Runtime Fabric on self-managed Kubernetes. Here's why:

• Scalability: Kubernetes is designed to scale applications easily and efficiently. By deploying Mule runtimes on a self-managed Kubernetes cluster, the company can dynamically scale its APIs based on demand, ensuring performance and reliability.
• Flexibility: Running on self-managed Kubernetes allows the company to have control over the infrastructure. They can customize the environment to meet their specific needs, integrate with existing on-premises systems, and support their microservices architecture running in Docker containers.
• Future-Proofing: Kubernetes supports hybrid and multi-cloud deployments, making it easier to migrate workloads between different environments as needed. This aligns with the company's goal of being able to migrate their systems as part of their strategic approach.
• Efficiency: By leveraging Kubernetes, the company can automate deployment, scaling, and management of containerized applications, reducing the burden on IT and DevOps teams.

References:

• MuleSoft Documentation on Runtime Fabric: https://docs.mulesoft.com/runtime-fabric/1.9/
• Kubernetes Documentation: https://kubernetes.io/docs/home/

Explanation

Correct answer is Perform all communication involving service S synchronously from within the For Each scope, so objects in RESP are in the exact same order as request objects in REQU Explanation : Using Anypoint MQ, you can create two types of queues: Standard queue These queues don’t guarantee a specific message order. Standard queues are the best fit for applications in which messages must be delivered quickly. FIFO (first in, first out) queue These queues ensure that your messages arrive in order. FIFO queues are the best fit for applications requiring strict message ordering and exactly-once delivery, but in which message delivery speed is of less importance Use of FIFO queue is no where in the option and also it decreased throughput. Similarly persistent object store is not the preferred solution approach when you maximizing message throughput. This rules out one of the options. Scatter Gather does not support ObjectStore. This rules out one of the options. Standard Anypoint MQ queues don’t guarantee a specific message order hence using another for each block to collect response wont work as requirement here is to ensure the order. Hence considering all the above factors the feasible approach is Perform all communication involving service S synchronously from within the For Each scope, so objects in RESP are in the exact same order as request objects in REQU

• Requirement Analysis: The Mule application needs secure access to both an on-premises database and a Kafka cluster in AWS VPC.
• Solution: Setting up Anypoint VPN for the on-premises corporate data center and VPC peering with AWS VPC ensures secure and seamless connectivity.
• Implementation Steps:
• Advantages:

References

• MuleSoft Documentation on Anypoint VPN
• AWS Documentation on VPC Peering

During the API implementation phase, the integration team should use the API specification to build the MuleSoft application. This involves leveraging the defined API contract to guide the development of the API’s actual implementation. By adhering to the specification, developers ensure that the API meets the agreed-upon requirements and behaviors. This phase includes coding, integrating with backend systems, and ensuring that the implementation aligns with the design and functional requirements outlined in the API specification.

References:

• API-led Connectivity Best Practices
• API Lifecycle Management

Explanation

Every Mule application deployed to CloudHub receives a DNS entry pointing to the CloudHub. The DNS entry is a CNAME for the CloudHub Shared Load Balancer in the region to which the Mule application is deployed. When we deploy the application on CloudHub, we get a generic url to access the endpoints. Generic URL looks as below:

..cloudhub.io is the deployed application name which is unique across all the MuleSoft clients. is the region name in which an application is deployed.

The public CloudHub (shared) load balancer already redirects these requests, where myApp is the name of the Mule application deployment to CloudHub: HTTP requests to http://myApp. .cloudhub.io redirects to

http://mule-worker-myApp. .cloudhub.io:8081

HTTPS traffic to https://myApp. .cloudhub.io redirects to

https://mule-worker-myApp. .cloudhub.io:8082

Explanation

Correct answer is It is not possible to store logs for 2 years in CloudHub deployment. External log management system is required. CloudHub has a specific log retention policy, as described in the documentation: the platform stores logs of up to 100 MB per app & per worker or for up to 30 days, whichever limit is hit first. Once this limit has been reached, the oldest log information is deleted in chunks and is irretrievably lost. The recommended approach is to persist your logs to a external logging system of your choice (such as Splunk, for instance) using a log appender. Please note that this solution results in the logs no longer being stored on our platform, so any support cases you lodge will require for you to provide the appropriate logs for review and case resolution

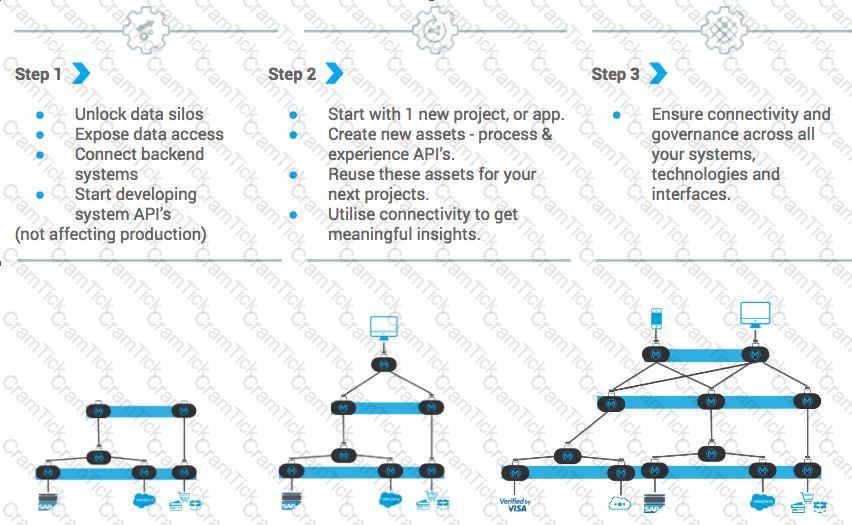

A major distinguishing characteristic of an application network, according to MuleSoft, is that it is built for change and self-service. An application network connects applications, data, and devices with APIs, enabling self-service access and reuse of assets. This architecture allows organizations to rapidly adapt to changing business needs, fosters innovation, and reduces time to market by empowering different teams to access and integrate systems independently without waiting for centralized IT.

References:

• Application Networks: The Future of Integration
• MuleSoft's Approach to Building Application Networks

When a Mule application using VM (Virtual Machine) queues is deployed to a customer-hosted cluster or multiple CloudHub workers, the messages are consumed by the Mule engine in a non-deterministic way. Here’s an in-depth explanation:

• VM Queues Overview:
• Deployment in Clusters or Multiple Workers:
• Non-Deterministic Message Consumption:
• Advantages:
• Considerations:

References:

• MuleSoft Documentation on VM Connector
• MuleSoft Documentation on High Availability Clustering
• MuleSoft Documentation on Deploying to CloudHub

To conduct performance testing in a non-production environment where rate limits are enforced, the most cost-effective approach is:

C. Create a Mocking service that replicates the back-end system's production performance characteristics. Then configure the API implementation to use the mocking service and conduct the performance test.

• Mocking Service: Develop a mock service that emulates the performance characteristics of the production back-end system. This service should mimic the response times, data formats, and any relevant behavior of the actual back-end system without imposing rate limits.
• Configuration: Modify the API implementation to route requests to the mocking service instead of the actual back-end system. This ensures that the performance tests are not impacted by the rate limits imposed in the non-production environment.
• Performance Testing: Conduct the performance tests using the API implementation configured with the mocking service. This approach allows you to assess the performance under expected production load conditions without being constrained by non-production rate limits.

This method ensures that performance testing is accurate and reflective of the production environment without additional costs or constraints due to rate limiting in staging environments.

References:

• MuleSoft Documentation: Mocking Services
• MuleSoft Documentation: Performance Testing

Explanation

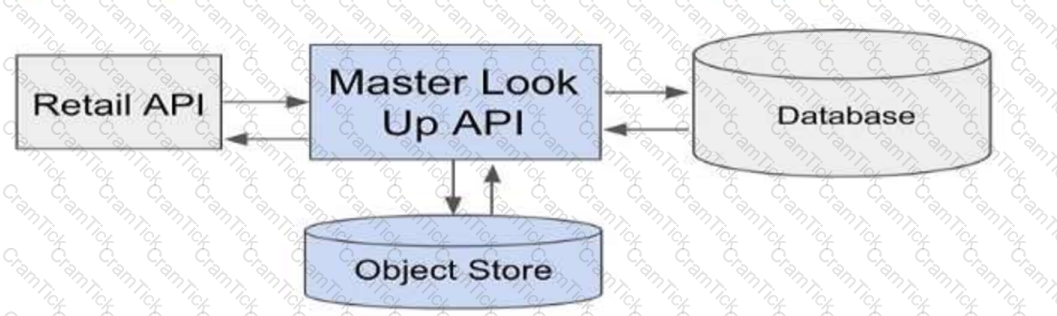

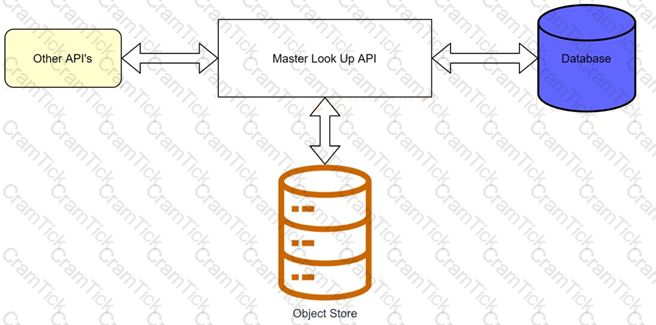

Object Store Connector is a Mule component that allows for simple key-value storage. Although it can serve a wide variety of use cases, it is mainly design for: - Storing synchronization information, such as watermarks. - Storing temporal information such as access tokens. - Storing user information. Additionally, Mule Runtime uses Object Stores to support some of its own components, for example: - The Cache module uses an Object Store to maintain all of the cached data. - The OAuth module (and every OAuth enabled connector) uses Object Stores to store the access and refresh tokens. Object Store data is in the same region as the worker where the app is initially deployed. For example, if you deploy to the Singapore region, the object store persists in the Singapore region. MuleSoft Reference : https://docs.mulesoft.com/object-store-connector/1.1/ Data can be shared between different instances of the Mule application. This is not recommended for Inter Mule app communication. Coming to the question, object store cannot be used to share cached data if it is deployed as separate Mule applications or deployed under separate Business Groups. Hence correct answer is When there is one CloudHub deployment of the API implementation to three workers that must share the cache state.

Explanation

JMX Management Java Management Extensions (JMX) is a simple and standard way to manage applications, devices, services, and other resources. JMX is dynamic, so you can use it to monitor and manage resources as they are created, installed, and implemented. You can also use JMX to monitor and manage the Java Virtual Machine (JVM). Each resource is instrumented by one or more Managed Beans, or MBeans. All MBeans are registered in an MBean Server. The JMX server agent consists of an MBean Server and a set of services for handling Mbeans. There are several agents provided with Mule for JMX support. The easiest way to configure JMX is to use the default JMX support agent. Log4J Agent The log4j agent exposes the configuration of the Log4J instance used by Mule for JMX management. You enable the Log4J agent using the element. It does not take any additional properties MuleSoft Reference: https://docs.mulesoft.com/mule-runtime/3.9/jmx-management

https://help.mulesoft.com/s/feed/0D52T000055pzgsSAA .

To monitor Mule applications deployed to different customer-hosted Mule runtimes using Anypoint Monitoring, follow these steps:

• Install Anypoint Monitoring Agent: Install an Anypoint Monitoring agent on each Mule runtime. This agent is responsible for collecting monitoring data from the Mule applications running on that runtime.
• Data Transmission: Each Anypoint Monitoring agent sends the collected monitoring data directly to Anypoint Monitoring. This ensures that performance metrics, logs, and other relevant data are available for analysis and monitoring within the Anypoint Platform.

By using the Anypoint Monitoring agent, organizations can effectively monitor their Mule applications across various environments, ensuring visibility and operational efficiency.

References

• MuleSoft Documentation on Anypoint Monitoring
• Installing and Configuring Anypoint Monitoring Agent

Explanation

* As per definition of API by Mulesoft , it is Application Programming Interface using HTTP-based protocols. Non-HTTP-based programmatic interfaces are not APIs.

* HTTP-based programmatic interfaces are APIs even if they don’t use REST or JSON. Hence implementation based on Java RMI, CORBA/IIOP, raw TCP/IP interfaces are not API's as they are not using HTTP.

* One more thing to note is FTP was not built to be secure. It is generally considered to be an insecure protocol because it relies on clear-text usernames and passwords for authentication and does not use encryption.

* Data sent via FTP is vulnerable to sniffing, spoofing, and brute force attacks, among other basic attack methods.

Considering the above points only correct option is

-XML over ActiveMQ

- XML over SFTP

- XML/REST over HTTPS

Explanation

Correct answer is Only MuleSoft provided certificates can be used for server side certificate

* The CloudHub Shared Load Balancer terminates TLS connections and uses its own server-side certificate.

* You would need to use dedicated load balancer which can enable you to define SSL configurations to provide custom certificates and optionally enforce two-way SSL client authentication.

* To use a dedicated load balancer in your environment, you must first create an Anypoint VPC. Because you can associate multiple environments with the same Anypoint VPC, you can use the same dedicated load balancer for your different environments.

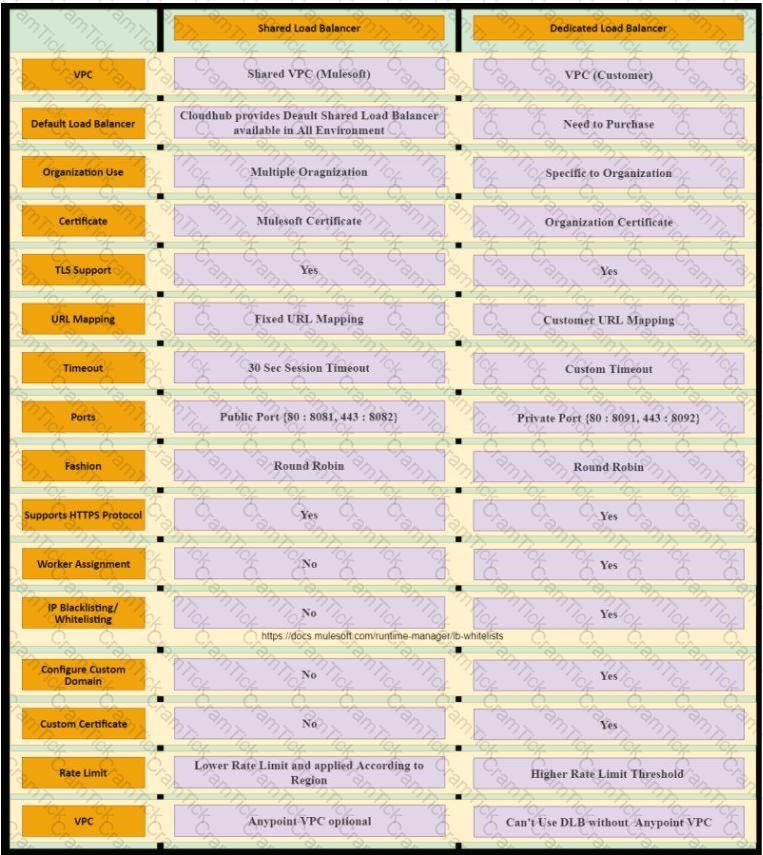

Additional Info on SLB Vs DLB:

Table Description automatically generated

Explanation

Before we answer this question , we need to understand what median (50th percentile) and 80th percentile means. If the 50th percentile (median) of a response time is 500ms that means that 50% of my transactions are either as fast or faster than 500ms.

If the 90th percentile of the same transaction is at 1000ms it means that 90% are as fast or faster and only 10% are slower. Now as per upstream SLA , 99th percentile is 800 ms which means 99% of the incoming requests should have response time less than or equal to 800 ms. But as per one of the backend API , their 95th percentile is 1000 ms which means that backend API will take 1000 ms or less than that for 95% of. requests. As there are three API invocation from upstream API , we can not conclude a timeout that can be set to meet the desired SLA as backend SLA's do not support it.

Let see why other answers are not correct.

1) Do not set a timeout --> This can potentially violate SLA's of upstream API

2) Set a timeout of 100 ms; ---> This will not work as backend API has 100 ms as median meaning only 50% requests will be answered in this time and we will get timeout for 50% of the requests. Important thing to note here is, All APIs need to be executed sequentially, so if you get timeout in first API, there is no use of going to second and third API. As a service provider you wouldn't want to keep 50% of your consumers dissatisfied. So not the best option to go with.

*To quote an example: Let's assume you have built an API to update customer contact details.

- First API is fetching customer number based on login credentials

- Second API is fetching Info in 1 table and returning unique key

- Third API, using unique key provided in second API as primary key, updating remaining details

* Now consider, if API times out in first API and can't fetch customer number, in this case, it's useless to call API 2 and 3 and that is why question mentions specifically that all APIs need to be executed sequentially.

3) Set a timeout of 50 ms --> Again not possible due to the same reason as above Hence correct answer is No timeout is possible to meet the upstream API's desired SLA; a different SLA must be negotiated with the first downstream API or invoke an alternative API

The most performant way to handle intermittent network issues with vendor applications and ensure successful transaction reprocessing is to use a combination of the Scatter-Gather scope and the Until-Successful scope. Here’s how it works:

• Scatter-Gather Scope: This scope allows you to send requests to multiple endpoints (in this case, the two vendor applications) simultaneously. This ensures that both vendors are queried at the same time, reducing overall processing time.
• Until-Successful Scope: This scope is used to implement a retry mechanism. By wrapping each route to the vendor applications with an Until-Successful scope, the flow can automatically retry the request if a timeout error occurs. This scope retries the request until it succeeds or until a specified number of retries is reached.

Implementation Steps:

• Configure a Scatter-Gather scope in your Mule application.
• Inside each route of the Scatter-Gather scope, place an Until-Successful scope.
• Configure the Until-Successful scope with appropriate retry policies, such as retry count and delay between retries.
• Inside the Until-Successful scope, configure the HTTP request to the vendor application.

This approach ensures that:

• Both vendor applications are queried in parallel.
• Each request is retried upon timeout errors, ensuring eventual success without manual intervention.

References:

• MuleSoft Documentation: Scatter-Gather
• MuleSoft Documentation: Until-Successful Scope

To automate the API lifecycle in a CI/CD pipeline efficiently, leveraging Anypoint Platform's capabilities is crucial. Anypoint CLI (Command Line Interface) and Anypoint Platform REST APIs provide robust tools for managing various aspects of the API lifecycle, such as publishing, sharing, discovering, registering, applying policies, and deploying APIs. By using these tools with a scripting language like Groovy, you can script and automate these tasks to reduce manual intervention, ensuring consistency and efficiency.

Anypoint CLI allows you to interact with the Anypoint Platform from the command line, enabling automated deployments, management of APIs, and configuration of policies. The Anypoint Platform REST APIs provide comprehensive programmatic access to the platform’s functionalities, allowing for seamless integration into CI/CD pipelines. By combining these with a scripting language, you can create scripts that automate repetitive tasks, streamline processes, and ensure that your API lifecycle management is both efficient and reliable.

References:

• MuleSoft Documentation on Anypoint CLI
• MuleSoft Documentation on Anypoint Platform REST APIs

Both Service Oriented Architecture (SOA) and API-led connectivity emphasize the principle of service reusability. This principle involves designing services and APIs in a way that they can be reused across different applications and use cases, reducing redundancy and improving efficiency. By creating reusable services, organizations can accelerate development, maintain consistency, and reduce costs associated with developing and maintaining multiple similar services.

References:

• MuleSoft's API-led Connectivity Approach
• Service-Oriented Architecture (SOA) Principles

In a typical MuleSoft integration project, the role primarily responsible for building API implementations is the API Developer. The API Developer focuses on writing the code that implements the logic, data transformations, and business processes defined in the API specifications. They use tools like Anypoint Studio to develop and test Mule applications, ensuring that the APIs function as required and integrate seamlessly with other systems and services.

While the API Designer is responsible for defining the API specifications and the Integration Architect for designing the overall integration solution, the API Developer translates these designs into working software. The Operations team typically manages the deployment, monitoring, and maintenance of the APIs in production environments.

References

• MuleSoft Documentation on Roles and Responsibilities
• Anypoint Platform Development Best Practices

A core pillar of the MuleSoft Catalyst delivery approach is focusing on business outcomes. This approach ensures that the integration and API strategies are aligned with the organization’s overall business objectives. By emphasizing business outcomes, MuleSoft Catalyst helps organizations realize measurable benefits such as increased efficiency, faster time to market, and improved customer experiences. This outcome-driven methodology ensures that IT initiatives deliver tangible value to the business.

References:

• MuleSoft Catalyst: Methodology Overview
• Business Outcomes with MuleSof

Explanation

* Any change in the application will require a restart except when the issue outside the app. For below situations , you would need to redeploy the code after doing necessary changes

-- One of the stored procedures being called by the Mule application has been renamed. In this case, in the Mule application you will have to do changes to accommodate the new stored procedure name.

-- Required redesign of Mule applications to follow microservice architecture principles. As code is changed, deployment is must

-- If the credentials changed and you need to update the connector or the properties.

-- The credentials for accessing the database have been updated and the previous credentials are no longer valid. In this situation you need to restart or redeploy depending on how credentials are configured in Mule application.

* So Correct answer is The database server was unavailable for four hours due to a major outage but is now fully operational again as this is the only external issue to application.

Explanation

As the question says that data needs to be sent across multiple sftp serves , we cannot use non-repeatable streams. The non-repeatable strategy disables repeatable streams, which enables you to read an input stream only once.

You cant use in memory storage because with 0.2 vcore you will get only 1 GB of heap memory. Hence application will error out for file more than 1 GB.

Hence the correct option is file base repeatable stream

Explanation

•Scatter Gather: When running within a transaction, Scatter Gather does not execute in parallel. This means that the second route is executed after the first one is processed, the third after the second one, etc. In case of error, all routes will be rolled back

Explanation

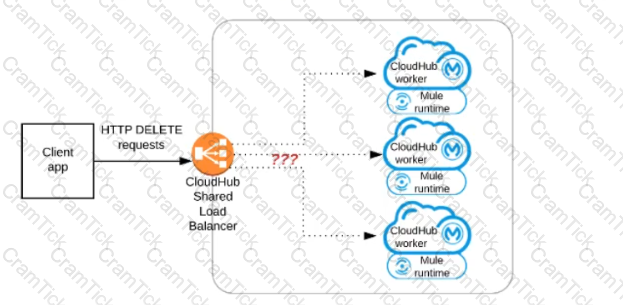

Correct behavior is Each request is routed to ONE ARBITRARY CloudHub worker out of ALL three CloudHub workers

Explanation

As the Anypoint Platform organization administrator, you can configure identity management in Anypoint Platform to set up users for single sign-on (SSO).

Configure identity management using one of the following single sign-on standards:

1) OpenID Connect: End user identity verification by an authorization server including SSO

2) SAML 2.0: Web-based authorization including cross-domain SSO

MuleSoft customers often favor a MuleSoft-hosted Anypoint Platform runtime plane over a customer-hosted runtime for the following reasons:

• Reduced time-to-market for the first application (C): Using a MuleSoft-hosted runtime plane accelerates the deployment process because MuleSoft manages the infrastructure, allowing customers to focus on developing and deploying their applications quickly. This leads to faster time-to-market for the initial application and subsequent updates.
• Reduced IT operations effort (E): By leveraging a MuleSoft-hosted environment, customers offload the operational responsibilities, such as infrastructure maintenance, updates, and scalability management, to MuleSoft. This reduces the IT operations workload and allows internal teams to focus on more strategic initiatives.

In contrast, other options like reduced application latency and increased application throughput are not directly influenced by whether the runtime plane is MuleSoft-hosted or customer-hosted.

References

• MuleSoft Anypoint Platform Documentation
• MuleSoft Hosted vs. Customer Hosted Deployment Guides

To minimize the risk of exposing sensitive data such as credit card information while still allowing it to be converted back to its original value when necessary, tokenization is the most effective approach. Tokenization replaces sensitive data with a non-sensitive equivalent, called a token, which has no exploitable value. This method ensures that the original sensitive data is stored securely and only accessible through a secure tokenization system.

In this scenario, applying a tokenization policy at the API Gateway ensures that sensitive information is replaced with tokens before the data leaves the trusted boundary. This minimizes the risk of matching sensitive data to the original. When the original data is needed, the tokenization system can detokenize the token back to its original value securely.

References:

• MuleSoft Documentation on Tokenization

An Enterprise Architect would use a single enterprise-wide canonical data model (CDM) when designing an integration solution to achieve the following benefits:

• Reduced Dependencies: By standardizing on a single data model, it simplifies the integration process between multiple systems that may use different data formats. This eliminates the need for numerous point-to-point transformations.
• Consistency and Reusability: A CDM ensures consistent data representation across the enterprise, which promotes data integrity and reusability of integration components.
• Simplified Maintenance: Having a single data model reduces the complexity of maintaining and updating integration solutions, as changes need to be made in only one place.

The CDM acts as an abstraction layer that decouples systems, facilitating easier integration and reducing the potential for errors.

References

• MuleSoft Documentation on Canonical Data Models
• Best Practices for Data Integration with MuleSoft

Explanation

Correct answer is VM VM support Transactional Type. When an exception occur, The transaction rolls back to its original state for reprocessing. This feature is not supported by other connectors.

Here is additional information about Transaction management:

Table Description automatically generated

• Requirement Analysis: The security team requires any external API call to be restricted by an IP include list. This ensures that only specified IP addresses can access the third-party API.
• Design Plan: To fulfill this requirement, implementing a proxy for the third-party API is the best approach. This proxy can enforce the IP include list policy.
• Implementation Steps:
• Advantages:

References

• MuleSoft Documentation on API Proxies
• MuleSoft Documentation on IP Whitelist Policy

REST (Representational State Transfer) is an architectural style for designing networked applications. It supports multiple content types, including XML and JSON, making it suitable for APIs that need to handle requests from clients in both formats. RESTful APIs use standard HTTP methods (GET, POST, PUT, DELETE) and are designed to be stateless and scalable. REST's flexibility and wide adoption make it an appropriate choice for the integration architect’s requirements.

References:

• REST API Design
• Understanding RESTful API Design

Explanation

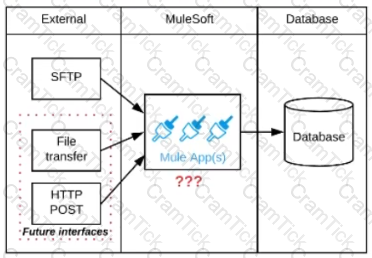

* Scatter-Gather is used for parallel processing, to improve performance. In this scenario, input files are coming from different vendors so mostly at different times. Goal here is to minimize the impact of future change. So scatter Gather is not the correct choice.

* If we use 1 API to receive all files from different Vendors, any new vendor addition will need changes to that 1 API to accommodate new requirements. So Option A and C are also ruled out.

* Correct answer is Create an API that receives the file and invokes a Process API with the data contained in the file, then have the Process API process the data using a MuleSoft Batch Job and other System APIs as needed. Answer to this question lies in the API led connectivity approach.

* API-led connectivity is a methodical way to connect data to applications through a series of reusable and purposeful modern APIs that are each developed to play a specific role – unlock data from systems, compose data into processes, or deliver an experience. System API : System API tier, which provides consistent, managed, and secure access to backend systems. Process APIs : Process APIs take core assets and combines them with some business logic to create a higher level of value. Experience APIs : These are designed specifically for consumption by a specific end-user app or device.

So in case of any future plans , organization can only add experience API on addition of new Vendors, which reuse the already existing process API. It will keep impact minimal.

Diagram Description automatically generated

Explanation

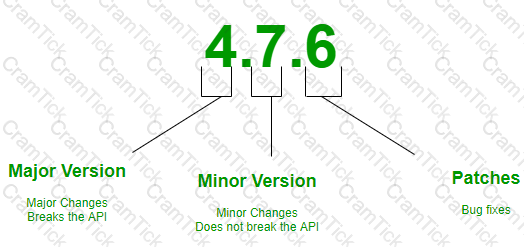

* Semantic Versioning is a 3-component number in the format of X.Y.Z, where :

X stands for a major version.

Y stands for a minor version:

Z stands for a patch.

So, SemVer is of the form Major.Minor.Patch Coming to our question , minor version of the API has been changed which is backward compatible. Hence there is no change required on API client end. If they want to make use of new featured that have been added as a part of minor version change they may need to change code at their end. Hence correct answer is The API client code ONLY needs to be changed if it needs to take advantage of new features.

Diagram Description automatically generated

A Center for Enablement (C4E) provides significant benefits to an enterprise and its lines of business by accelerating self-service capabilities. A C4E is a cross-functional team that promotes the use of best practices, reusable assets, and consistent methodologies across the organization. By enabling lines of business to access and use shared resources, tools, and knowledge independently, a C4E empowers these units to deliver projects faster and more efficiently. This self-service model reduces reliance on central IT for every initiative, fosters innovation, and enhances the overall agility of the organization.

References

• MuleSoft Center for Enablement (C4E) Overview
• Best Practices for Implementing a C4E on Anypoint Platform

A Center for Enablement (C4E) provides significant benefits by accelerating self-service capabilities for lines of business. Here’s how:

• Self-Service Enablement: C4E empowers lines of business to access, use, and create integrations and APIs independently, without relying heavily on central IT teams.
• Guidelines and Standards: The C4E establishes best practices, standards, and reusable frameworks, ensuring that lines of business can develop solutions efficiently and consistently.
• Faster Time-to-Market: By enabling self-service, lines of business can rapidly develop and deploy solutions to meet their specific needs, resulting in faster time-to-market for new initiatives.
• Reduced Bottlenecks: Self-service reduces dependency on central IT, alleviating potential bottlenecks and allowing IT to focus on governance, security, and strategic projects.

The C4E model thus accelerates innovation and responsiveness within the enterprise.

References:

• Center for Enablement (C4E)
• Benefits of a C4E

https://docs.mulesoft.com/runtime-manager/dedicated-load-balancer-tutorial

The File Transfer Protocol (FTP) uses the Transmission Control Protocol (TCP) for reliable communication. TCP is one of the core protocols of the Internet Protocol Suite and provides reliable, ordered, and error-checked delivery of a stream of data between applications running on hosts communicating via an IP network. FTP relies on TCP to ensure that all data packets are delivered accurately and in the correct sequence, which is essential for the reliable transfer of files between a client and server.

References

• IETF RFC 959 - File Transfer Protocol (FTP)
• TCP/IP Protocol Suite Documentation

Explanation

* XA transaction add tremendous latency so "Reduce Latency" is incorrect option XA transactions define "All or No" commit protocol.

* Each local XA resource manager supports the A.C.I.D properties (Atomicity, Consistency, Isolation, and Durability).

---------------------------------------------------------------------------------------------------------------------

So correct choice is "Ensure consistency"

The MuleSoft-recommended best practice for sharing the connector and configuration information among multiple APIs is to use a Mule domain project. The steps are:

• Create a Mule domain project.
• Add the Database connector and its configuration to the domain project.
• Reference this domain project from each System API that needs to use the Database connector and configuration.

By using a domain project, you centralize the configuration and reuse it across multiple APIs. This approach ensures consistency, reduces duplication, and simplifies maintenance and updates to the connector configuration.

References

• MuleSoft Documentation on Domain Projects
• Best Practices for Reusable Configuration in MuleSoft

Explanation

* HTTP/1.1 keeps all requests and responses in plain text format.

* HTTP/2 uses the binary framing layer to encapsulate all messages in binary format, while still maintaining HTTP semantics, such as verbs, methods, and headers. It came into use in 2015, and offers several methods to decrease latency, especially when dealing with mobile platforms and server-intensive graphics and videos

* Currently, Mule application can have API policies only for Mule application that accepts requests over HTTP/1x

AnTo resolve performance issues with the Master Look Up API, the following methods can be applied:

• Implement the HTTP caching policy for all GET endpoints for the Master Look Up API: This caching policy helps reduce the number of database queries by storing frequently accessed data in cache, thus improving response times for subsequent requests.
• Upgrade the vCore size from 0.1 vCore to 0.2 vCore: Increasing the vCore size can provide more computational resources, which can improve the processing power and overall performance of the API, particularly under high load conditions.

References:

• HTTP Caching Policy
• Scaling and Performance

swer: A

A. Implement HTTP caching policy for all GET endpoints for the master lookup API and implement locking to synchronize access to object store

Comprehensive Detailed Step by Step ExplanationTo resolve the performance issue observed during the performance testing of the Master lookup API, the best approach involves caching and synchronization:

• HTTP Caching Policy:
• Object Store Locking:

By implementing these two strategies, the response time of the Master lookup API will be significantly improved, and the performance issue will be resolved.

References

• MuleSoft HTTP Caching Policy
• MuleSoft Object Store Connector

When multiple Mule applications need to listen on the same port (e.g., port 443), configuring them individually will cause a conflict because only one application can bind to a specific port on a server at a time. To resolve this, you can use a Mule domain project, which allows multiple Mule applications to share configurations, including HTTP listeners. Here’s how you can do it:

• Create a Mule Domain Project:
• Configure the Shared HTTP Listener:

• Reference the Shared HTTP Listener in Mule Applications:

• Deploy the Domain Project and Applications:

By using a domain project to centralize the HTTP listener configuration, you ensure that both APIs can listen on port 443 without conflicts, allowing customers to access both APIs through the same port.

References

• MuleSoft Documentation: Domain Projects
• MuleSoft Documentation: HTTP Listener Configuration

In a typical REST request, the order of interaction is:

• API Client: The client initiates the request to access data or functionality exposed by the API.
• API Interface: This represents the contract or the definition of the API, often specified in OpenAPI or RAML. It defines the endpoints, request/response formats, and other API details.
• API Implementation: This is the actual backend logic that processes the request and returns the response. It interacts with databases, other services, or performs business logic to fulfill the request.

References:

• Understanding REST APIs
• API Design and Implementation

Explanation

Correct answer is "Compile, package, unit test, validate unit test coverage, deploy" Explanation : Anypoint Platform supports continuous integration and continuous delivery using industry standard tools Mule Maven Plugin The Mule Maven plugin can automate building, packaging and deployment of Mule applications from source projects Using the Mule Maven plugin, you can automate your Mule application deployment to CloudHub, to Anypoint Runtime Fabric, or on-premises, using any of the following deployment strategies • CloudHub deployment • Runtime Fabric deployment • Runtime Manager REST API deployment • Runtime Manager agent deployment MUnit Maven Plugin The MUnit Maven plugin can automate test execution, and ties in with the Mule Maven plugin. It provides a full suite of integration and unit test capabilities, and is fully integrated with Maven and Surefire for integration with your continuous deployment environment. Since MUnit 2.x, the coverage report goal is integrated with the maven reporting section. Coverage Reports are generated during Maven’s site lifecycle, during the coverage-report goal. One of the features of MUnit Coverage is to fail the build if a certain coverage level is not reached. MUnit is not used for integration testing Also publishing to Anypoint Exchange or to create associated API instances in API Manager is not a part of CICD pipeline which can ne achieved using mulesoft provided maven plugin

Explanation

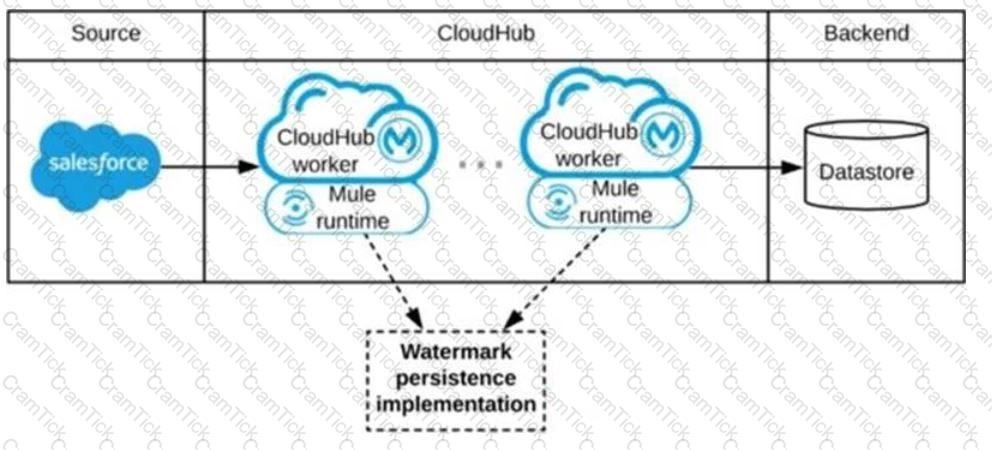

Architecture mentioned in the question can be diagrammatically put as below. Persistent Object Store is the correct answer .

* Mule Object Stores: An object store is a facility for storing objects in or across Mule applications. Mule uses object stores to persist data for eventual retrieval.

Mule provides two types of object stores:

1) In-memory store – stores objects in local Mule runtime memory. Objects are lost on shutdown of the Mule runtime. So we cant use in memory store in our scenario as we want to share watermark within all cloudhub workers

2) Persistent store – Mule persists data when an object store is explicitly configured to be persistent. Hence this watermark will be available even any of the worker goes down

Diagram Description automatically generated

To migrate Mule applications from CloudHub to Runtime Fabric (RTF) while maintaining the same deployment strategy using CI/CD, follow these steps:

• POM.xml Modification: Update the POM.xml file of each Mule application to include runtimeFabric deployment configurations. This ensures that the applications are packaged and prepared correctly for deployment to RTF.
• CI/CD Script Adjustments: Modify the existing CI/CD scripts to accommodate RTF-specific deployment commands and configurations. This includes updating the deployment targets and parameters to match the RTF environment.
• Deployment Strategy: Ensure that the CI/CD pipeline remains consistent with the organization’s existing strategy, but with the necessary changes to support RTF. This might involve using Anypoint CLI or API to interact with RTF.

By updating the POM.xml and CI/CD scripts, you can ensure a smooth transition from CloudHub to RTF while retaining the automated deployment process.

References:

• MuleSoft Runtime Fabric
• Mule Maven Plugin

Explanation

The API consumer creates an API client which sends API invocations to an API such that they are processed by an API implementation

This is based on below definitions API client • An application component • that accesses a service • by invoking an API of that service - by definition of the term API over HTTP API consumer • A business role, which is often assigned to an individual • that develops API clients, i.e., performs the activities necessary for enabling an API client to invoke APIs API implementation • An application component • that implements the functionality

• MUnit and Test Recorder:
• Core Consideration:
• Error Handling in MUnit:

References:

• MuleSoft Documentation on MUnit: MUnit Documentation
• MuleSoft Blog on MUnit Test Recorder: MUnit Test Recorder

Explanation

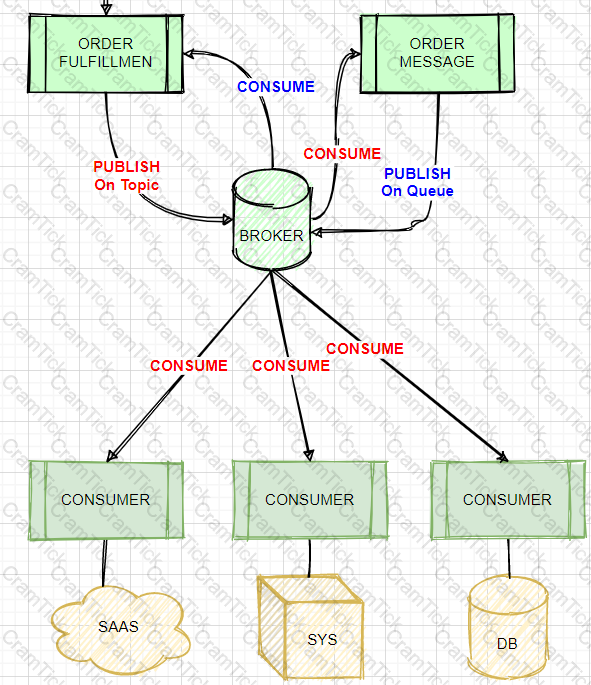

* If you need to scale a JMS provider/ message broker, - add nodes to scale it horizontally or - add memory to scale it vertically * Cons of adding another JMS provider/ message broker: - adds cost. - adds complexity to use two JMS brokers - adds Operational overhead if we use two brokers, say, ActiveMQ and IBM MQ * So Two options that mention to use two brokers are not best choice. * It's mentioned that "The Fulfillment microservice consumes Order messages, fulfills the order described therein, and then publishes an OrderFulfilled message. Each OrderFulfilled message can be consumed by any interested Mule application." - When you publish a message on a topic, it goes to all the subscribers who are interested - so zero to many subscribers will receive a copy of the message. - When you send a message on a queue, it will be received by exactly one consumer. * As we need multiple consumers to consume the message below option is not valid choice: "Order messages are sent to an Anypoint MQ exchange. OrderFulfilled messages are sent to an Anypoint MQ queue. Both microservices interact with Anypoint MQ as the message broker, which must therefore scale to support the load of both microservices" * Order messages are only consumed by one Mule application, the Fulfillment microservice, so we will publish it on queue and OrderFulfilled message can be consumed by any interested Mule application so it need to be published on Topic using same broker. * Correct Answer: Best choice in this scenario is: "Order messages are sent to a JMS queue. OrderFulfilled messages are sent to a JMS topic. Both microservices interact with the same JMS provider (message broker) instance, which must therefore scale to support the load of both microservices" Tried to depict scenario in diagram:

Diagram Description automatically generated

When a Mule application uses batch job scope to process large datasets and is deployed on multiple CloudHub workers without persistence queues enabled, the following scenario occurs if a worker crashes:

• Batch Job Scope: Batch jobs are designed to handle large datasets by splitting the work into records and processing them in parallel.
• Non-Persistent Queues: When persistence is not enabled, the state of the batch processing is not stored persistently. This means that if a worker crashes, the state of the in-progress batch job is lost.
• Worker Crash Consequence:

This behavior can cause issues such as duplicate data in Salesforce CRM and inefficiencies in processing.

References

• MuleSoft Batch Processing
• MuleSoft CloudHub Workers

In MuleSoft's Anypoint Exchange, a complete API specification in RAML (RESTful API Modeling Language) or OAS (OpenAPI Specification) format is represented as a "REST API". This asset type provides a comprehensive description of the API, including endpoints, methods, request/response structures, and other relevant details. It serves as the blueprint for implementing and consuming the API, ensuring that all stakeholders have a clear understanding of its functionality and design.

Other asset types like connectors, API spec fragments, and SOAP APIs represent different components or partial specifications, but only REST APIs provide the full specification in the mentioned formats.

References

• MuleSoft Anypoint Exchange Documentation
• API Specification Documentation on RAML and OAS

When a RAML definition is updated and a new version is published to Anypoint Exchange, the client applications that consume the API need to be updated to utilize the new operations. Here’s how the Mule application team can achieve this:

• Access Anypoint Exchange:
• Update the REST Connector:
• Regenerate Client Code (If Necessary):
• Test New Operations:

References

• MuleSoft Documentation: API Development
• Anypoint Studio Documentation: Using Connectors

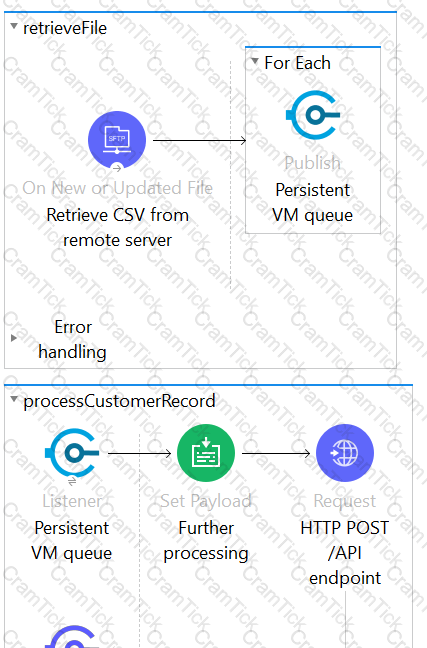

• Requirements:
• Persistent VM Queues:
• MuleSoft Best Practices:
• Configuration in Runtime Manager:

References:

• MuleSoft Documentation on VM Queues: VM Queues
• MuleSoft Best Practices: MuleSoft Best Practices
• CloudHub Deployment Guide: CloudHub Deployment

Explanation

* Roles are business group specific. Configure identity management in the Anypoint Platform master organization. As the Anypoint Platform organization administrator, you can configure identity management in Anypoint Platform to set up users for single sign-on (SSO). * Roles and permissions can be set up at business group and organization level also. But Identity Management setup is only done at Organization level * Business groups are self-contained resource groups that contain Anypoint Platform resources such as applications and APIs. Business groups provide a way to separate and control access to Anypoint Platform resources because users have access only to the busine

MUnit is the testing framework component of Anypoint Platform that provides test automation capabilities for customers to use in their CI/CD pipelines. MUnit allows developers to write, run, and automate unit and integration tests for Mule applications. It supports creating repeatable tests for various scenarios, ensuring that the application functions correctly and adheres to specified requirements. MUnit integrates seamlessly with Anypoint Studio, enabling efficient test creation and execution as part of the development lifecycle.

References:

• MUnit Overview
• Testing with MUnit

Anypoint MQ is a cloud-based messaging service provided by MuleSoft, and it cannot be deployed on-premises. If there is a requirement for the messaging broker to be deployed on-premises, Anypoint MQ would not be suitable. Other considerations such as payload format (XML), encryption, and point-to-point messaging are supported by Anypoint MQ, but the deployment environment requirement is a critical constraint.

References

• MuleSoft Anypoint MQ Documentation
• Cloud vs. On-Premises Messaging Solutions

Explanation

Correct choice is: "The external API reported an error with the HTTP request that was received from the outbound HTTP Request operation of the Mule application"

Understanding HTTP 4XX Client Error Response Codes : A 4XX Error is an error that arises in cases where there is a problem with the user’s request, and not with the server.

Such cases usually arise when a user’s access to a webpage is restricted, the user misspells the URL, or when a webpage is nonexistent or removed from the public’s view.

In short, it is an error that occurs because of a mismatch between what a user is trying to access, and its availability to the user — either because the user does not have the right to access it, or because what the user is trying to access simply does not exist. Some of the examples of 4XX errors are

400 Bad Request The server could not understand the request due to invalid syntax. 401 Unauthorized Although the HTTP standard specifies "unauthorized", semantically this response means "unauthenticated". That is, the client must authenticate itself to get the requested response. 403 Forbidden The client does not have access rights to the content; that is, it is unauthorized, so the server is refusing to give the requested resource. Unlike 401, the client's identity is known to the server. 404 Not Found The server can not find the requested resource. In the browser, this means the URL is not recognized. In an API, this can also mean that the endpoint is valid but the resource itself does not exist. Servers may also send this response instead of 403 to hide the existence of a resource from an unauthorized client. This response code is probably the most famous one due to its frequent occurrence on the web. 405 Method Not Allowed The request method is known by the server but has been disabled and cannot be used. For example, an API may forbid DELETE-ing a resource. The two mandatory methods, GET and HEAD, must never be disabled and should not return this error code. 406 Not Acceptable This response is sent when the web server, after performing server-driven content negotiation, doesn't find any content that conforms to the criteria given by the user agent. The external API reported that the API implementation has moved to a different external endpoint cannot be the correct answer as in this situation 301 Moved Permanently The URL of the requested resource has been changed permanently. The new URL is given in the response. ----------------------------------------------------------------------------------------------------------------------------------------------- In Lay man's term the scenario would be: API CLIENT —> MuleSoft API - HTTP request “Hey, API.. process this” —> External API API CLIENT <– MuleSoft API - http response "I'm sorry Client.. something is wrong with that request" <– (4XX) External API

When migrating from an on-premises cluster to a Runtime Fabric (RTF) cluster, and needing to enable Mule applications to store and share data across application replicas and restarts, the use of Anypoint Object Store V2 is the most suitable option. Here’s why and how to implement it:

• Understanding Object Store V2:
• Setting Up Anypoint Object Store V2:
• Configuration Steps:

xml

• uk.co.certification.simulator.questionpool.PList@1ce549c0

xml

• Deploying on RTF:
• Benefits:

References:

• MuleSoft Documentation on Object Store V2
• MuleSoft Documentation on Runtime Fabric

When deploying to Runtime Fabric, there are several tools available within the Anypoint Platform ecosystem that facilitate the deployment process. These include:

• AnypointCLI: This command-line interface tool provides comprehensive capabilities for deploying applications to Runtime Fabric. Using AnypointCLI, you can script and automate deployments, which is useful for integrating into CI/CD pipelines.
• Anypoint Platform REST APIs: These APIs allow for programmatic deployment and management of applications on Runtime Fabric. They provide flexibility for integrating deployment processes with other systems and tools.
• Mule Maven Plugin: This plugin can be used within a Maven project to package and deploy Mule applications to Runtime Fabric as part of a build process.

However, directly uploading a JAR file from the Runtime Manager is not a supported method for deploying to Runtime Fabric.

References:

• Anypoint CLI Documentation
• Mule Maven Plugin Documentation

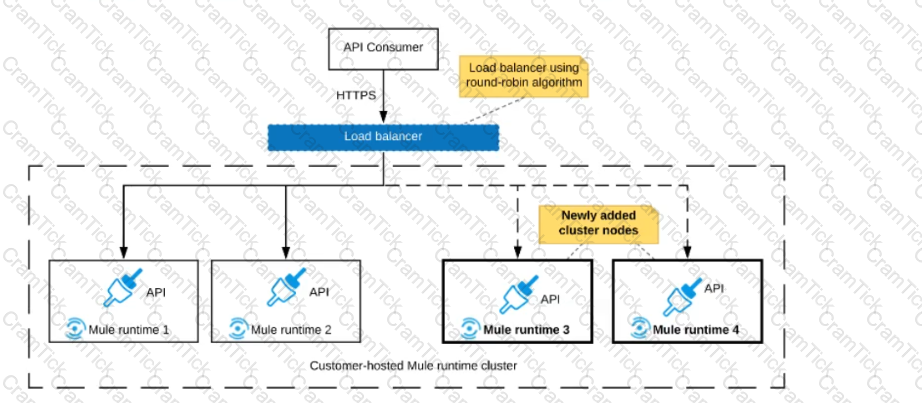

Explanation

* Organization can continue using existing load balancer even if backend application changes are there. So option A is ruled out.

* As Mule runtime is within their datacenter, this model is RTF and not PCE. So option C is ruled out.

Mule runtime deployment model within their datacenter, so each Mule runtime hosts several Mule applications -- This mean PCE or Hybird not RTF - Also mentioned in Question is that - Mule runtime is hosting several Mule Application, so that also rules out RTF and as for hosting multiple Application it will have Domain project which need redesign to make it microservice architecture

---------------------------------------------------------------------------------------------------------------

Correct Answer: Required redesign of Mule applications to follow microservice architecture principles

Explanation

* "Create a Mule domain project that maintains the credentials as Mule domain-shared resources" is wrong as domain project is not supported in Cloudhub * We should Avoid Creating duplicates in each Mule application but below two options cause duplication of credentials - Store the credentials in properties files in a shared folder within the organization’s data center. Have the Mule applications load properties files from this shared location at startup - Segregate the credentials for each backend system into environment-specific properties files. Package these properties files in each Mule application, from where they are loaded at startup So these are also wrong choices * Credentials service is the best approach in this scenario. Mule domain projects are not supported on CloudHub. Also its is not recommended to have multiple copies of configuration values as this makes difficult to maintain Use the Mule Credentials Vault to encrypt data in a .properties file. (In the context of this document, we refer to the .properties file simply as the properties file.) The properties file in Mule stores data as key-value pairs which may contain information such as usernames, first and last names, and credit card numbers. A Mule application may access this data as it processes messages, for example, to acquire login credentials for an external Web service. However, though this sensitive, private data must be stored in a properties file for Mule to access, it must also be protected against unauthorized – and potentially malicious – use by anyone with access to the Mule application

Explanation

3xx HTTP status codes indicate a redirection that the user agent (a web browser or a crawler) needs to take further action when trying to access a particular resource.

Explanation

Correct answer is Application A accesses the persistent object store via the Object Store REST API Application B uses the Object Store connector to access a persistent object * Object Store v2 lets CloudHub applications store data and states across batch processes, Mule components and applications, from within an application or by using the Object Store REST API. * On-premise Mule applications cannot use Object Store v2. * You can select Object Store v2 as the implementation for Mule 3 and Mule 4 in CloudHub by checking the Object Store V2 checkbox in Runtime Manager at deployment time. * CloudHub Mule applications can use Object Store connector to write to the object store * The only way on-premises Mule applications can access Object Store v2 is via the Object Store REST API. * You can configure a Mule app to use the Object Store REST API to store and retrieve values from an object store in another Mule app.

Explanation

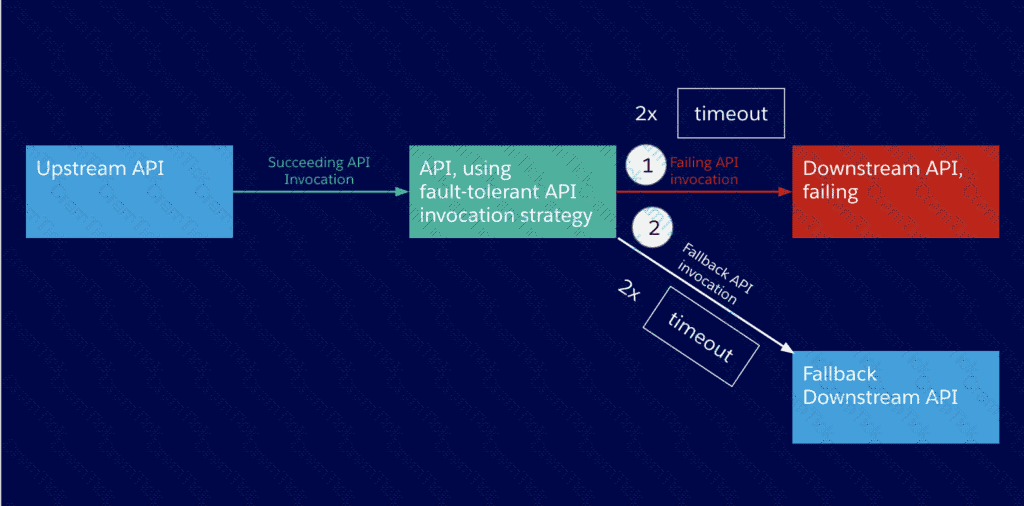

* Resilience testing is a type of software testing that observes how applications act under stress. It's meant to ensure the product's ability to perform in chaotic conditions without a loss of core functions or data; it ensures a quick recovery after unforeseen, uncontrollable events.

* In case an API invocation fails — even after a certain number of retries — it might be adequate to invoke a different API as a fallback. A fallback API, by definition, will never be ideal for the purpose of the API client, otherwise it would be the primary API.

* Here are some examples for fallback APIs:

- An old, deprecated version of the same API.

- An alternative endpoint of the same API and version (e.g. API in another CloudHub region).

- An API doing more than required, and therefore not as performant as the primary API.

- An API doing less than required and therefore forcing the API Client to offer a degraded service, which is still better than no service at all.

* API clients implemented as Mule applications offer the ‘Until Successful Scope and Exception’ strategies at their disposal, which together allow configuring fallback actions such as a fallback API invocation.

* All HTTP response status codes within the 3xx category are considered redirection messages. These codes indicate to the user agent (i.e. your web browser) that an additional action is required in order to complete the request and access the desired resource

Diagram Description automatically generated

Hence correct answer is Redirect client requests through an HTTP 303 temporary redirect status code to the fallback API whenever the Order API is unavailable

In the given scenario, a rate limiting policy has been applied to the SOAP API and a global error handler is configured to handle HTTP:RETRY_EXHAUSTED errors with a 429 status code. The rate limiting policy will trigger when the client exceeds the allowed quota of API calls. Since the HTTP:RETRY_EXHAUSTED error specifically catches quota exhaustion errors and the error handler is configured to return a 429 status code, the expected HTTP status returned to the client when the quota is exceeded will be 429. This error code indicates that the user has sent too many requests in a given amount of time ("rate limiting").

References:

• MuleSoft Documentation on Error Handling
• HTTP Status Codes

• Try-Catch Scope for Data Fetching:
• Async Scope for Inserting Records into Audit Database:
• Ensuring Better Throughput:

References:

• MuleSoft Documentation on Async Scope
• Best practices for Error Handling in MuleSoft

According to MuleSoft’s recommended REST conventions, the HTTP method GET should be used to specify how API clients can request data from a specified resource. The GET method is designed to retrieve data from a server at the specified resource. It is one of the most common HTTP methods used in RESTful APIs, ensuring that data retrieval is performed without any side effects on the server or resource.

References:

• MuleSoft REST API Design Best Practices
• HTTP Methods in RESTful Services

Explanation

1 way SSL : The server presents its certificate to the client and the client adds it to its list of trusted certificate. And so, the client can talk to the server.

2-way SSL:  The same principle but both ways. i.e. both the client and the server has to establish trust between themselves using a trusted certificate. In this way of a digital handshake, the server needs to present a certificate to authenticate itself to client and client has to present its certificate to server.

* TLS is a cryptographic protocol that provides communications security for your Mule app.

* TLS offers many different ways of exchanging keys for authentication, encrypting data, and guaranteeing message integrity Keystores and Truststores Truststore and keystore contents differ depending on whether they are used for clients or servers:

For servers: the truststore contains certificates of the trusted clients, the keystore contains the private and public key of the server. For clients: the truststore contains certificates of the trusted servers, the keystore contains the private and public key of the client.

Adding both a keystore and a truststore to the configuration implements two-way TLS authentication also known as mutual authentication.

* in this case, correct answer is Support for TLS mutual (two-way) authentication with HTTP clients.

According to the MuleSoft Catalyst framework, an Integration Architect plays a crucial role in defining and achieving business outcomes. One of their key responsibilities is to agree upon Key Performance Indicators (KPIs) and help develop an overall success plan. This involves working with stakeholders to identify measurable goals and ensure that the integration initiatives align with the organization’s strategic objectives.

KPIs are critical for tracking progress, measuring success, and making data-driven decisions. By agreeing on KPIs and developing a success plan, the Integration Architect ensures that the organization can objectively measure the impact of its integration efforts and adjust strategies as needed to achieve desired business outcomes.

References:

• MuleSoft Catalyst Knowledge Hub
