Controlling Traffic Within a Tenant's Network:

The requirement is to limit access to specific traffic types within a tenant’s network without routing all tenant traffic through a firewall. This requires a selective method that can direct specific types of traffic to different paths based on the nature of the traffic.

Filter-Based Forwarding (FBF):

FBF is a technique that allows for routing decisions based on filters applied to the traffic, such as matching on source IP addresses, destination IP addresses, or even specific application types (like HTTP or FTP). This allows specific types of traffic to be forwardedto a specific next hop (e.g., a firewall) without affecting the entire traffic flow within the tenant's network.

Conclusion:

Option B:Correct—Filter-based forwarding allows for granular control of traffic, ensuring that only specific types of traffic within the tenant's network are redirected through a firewall, satisfying the requirement.

Scenario Overview:

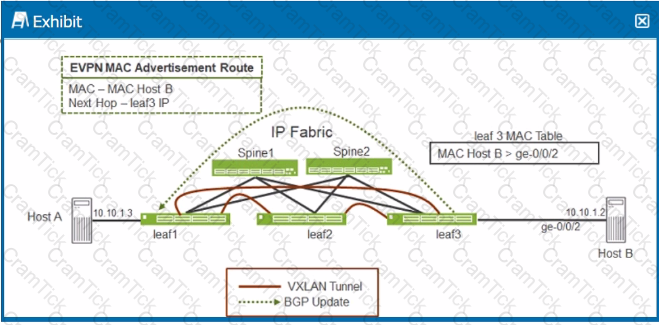

In the exhibit, Host A is trying to resolve Host B's IP address (10.10.1.2) through ARP (Address Resolution Protocol). Normally, an ARP request would be broadcasted over the network, and the host owning the IP address (Host B) would respond.

Role of Proxy ARP:

Option A:Proxy ARPallows a router or switch (in this case, leaf1) to respond to ARP requests on behalf of another host. Leaf1, knowing the MAC address of Host B through the EVPN MAC advertisement, can reply to Host A's ARP request directly without broadcasting the request across the entire network fabric. This feature reduces unnecessary traffic and increases network efficiency.

Conclusion:

Option A:Correct—Proxy ARP enables leaf1 to respond to Host A's ARP request for Host B's IP without broadcasting over the IP fabric, thus providing the ARP response locally.

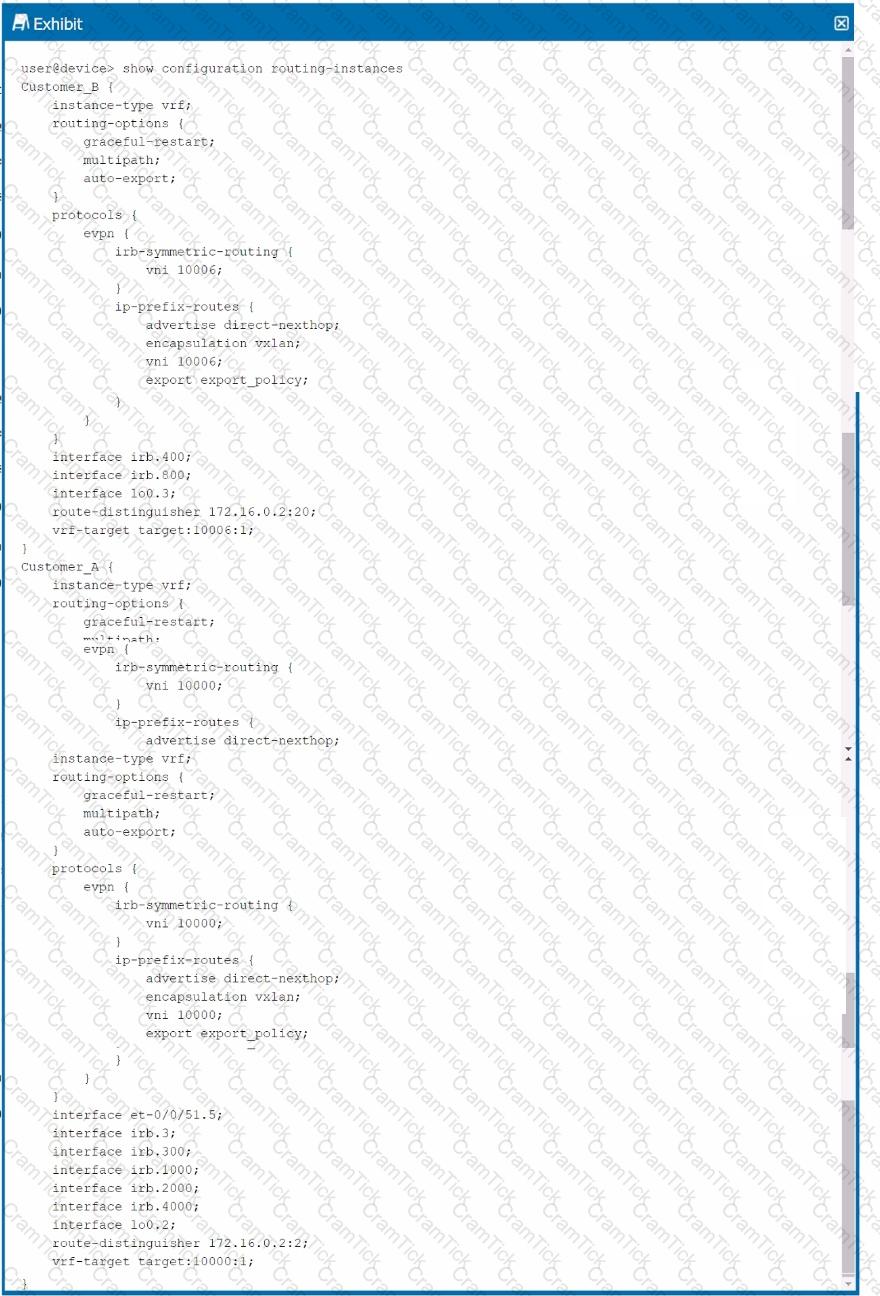

Symmetric IRB Routing with EVPN Type 2 Routes:

Symmetric Routing: In symmetric IRB (Integrated Routing and Bridging), routing occurs in both directions at the ingress and egress leaf nodes using the same routing logic. This is contrasted with asymmetric routing, where different routing logic is used depending on the direction of the traffic.

Required Components:

Option A:An L3 IRB interface is necessary for each VLAN that participates in routing, as it handles the Layer 3 processing for the VLAN.

Option B:MAC-VRF is required for symmetric routing to maintain a mapping of MAC addresses to the appropriate VRF, ensuring correct forwarding within the EVPN.

Option D:A transit VNI (Virtual Network Identifier) is required for each VRF to encapsulate the Layer 3 traffic as it traverses the network, allowing the IP traffic to be appropriately forwarded.

Conclusion:

Option A:Correct—Each local VLAN needs an IRB interface for L3 processing.

Option B:Correct—MAC-VRF is necessary for handling MAC address resolution in symmetric routing.

Option D:Correct—Transit VNIs are required for routing VRF-specific traffic across the network.

OptionsCandEare incorrect because:

C:Symmetric routing can work with various VLAN models, including single or multiple VLANs within an EVPN instance.

E:Symmetric routing is generally more efficient than asymmetric routing as it uses consistent routing logic in both directions.
