JN0-280 Data Center, Associate (JNCIA-DC) Questions and Answers

Bidirectional Forwarding Detection (BFD)is a network protocol used to detect failures in the network path between two devices quickly.

Step-by-Step Breakdown:

Path Failure Detection:BFD provides a low-overhead mechanism for detecting failures in forwarding paths across Layer 3 networks. It is much faster than traditional routing protocol timers and can detect failures within milliseconds.

BFD in Routing:BFD can be integrated with routing protocols like OSPF, BGP, or IS-IS to trigger a faster convergence when a network path goes down.

Juniper Reference:

BFD Configuration: Juniper devices use BFD to monitor network paths and ensure fast failure detection, enhancing network resilience.

When advertisingOSPF routesintoBGP, the appropriaterouting policyshould be applied as anexport policyin BGP.

Step-by-Step Breakdown:

OSPF to BGP Route Advertisement:Routes learned via OSPF (a dynamic IGP) need to be exported into BGP to be advertised to external BGP peers. In Junos OS, this is done usingexport policies.

Export Policies in BGP:An export policy controls which routes are advertised out of a BGP session. In this scenario, the routing policy must be applied toBGP as an export policyto export the OSPF-learned routes to external BGP peers.

Policy Configuration:Example configuration:

set policy-options policy-statement EXPORT_OSPF term 1 from protocol ospf

set policy-options policy-statement EXPORT_OSPF term 1 then accept

set protocols bgp group export EXPORT_OSPF

This policy ensures that only OSPF routes are exported into BGP.

Juniper Reference:

Routing Policy: Export policies are used in BGP to control route advertisements to peers, including those learned via OSPF.

Aggregate routesandgenerated routesare used to create summarized routes in Junos, but they behave differently in terms of forwarding.

Step-by-Step Breakdown:

Aggregate Routes:

Anaggregate routesummarizes a set of more specific routes, but it does not have a direct forwarding next hop. Instead, it points to the more specific routes for actual packet forwarding.

Generated Routes:

Agenerated routealso summarizes specific routes, but it has aforwarding next hopthat is determined based on the availability of contributing routes. The generated route can be used to directly forward traffic.

Juniper Reference:

Aggregate and Generated Routes: In Junos, aggregate routes rely on more specific routes for forwarding, while generated routes can forward traffic directly based on their next-hop information.

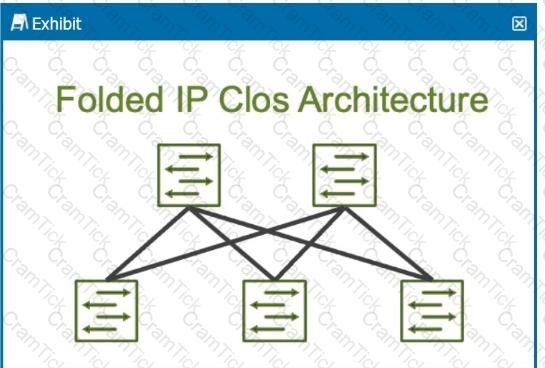

The exhibit shows aFolded IP Clos Architecture, which is also referred to as a3-stage Closnetwork design. This architecture typically consists of two layers of switches:

Spine Layer: The top row of switches.

Leaf Layer: The bottom row of switches.

Step-by-Step Breakdown:

Clos Architecture:A 3-stage Clos network has two types of devices: spine and leaf. In this design, each leaf switch connects to every spine switch, providing a high level of redundancy and load balancing.

Stage Explanation:

Stage 1: The first set of leaf switches.

Stage 2: The spine switches.

Stage 3: The second set of leaf switches.

TheFolded Closarchitecture shown here effectively "folds" the 3-stage design by combining the ingress and egress leaf layers into one, reducing it to two visible layers, but still maintaining the overall3-stage architecture.

Juniper Reference:

IP Clos Architecture: The 3-stage Clos design is commonly used in modern data centers for high availability, redundancy, and scalability.

AMAC address of FF-FF-FF-FF-FF-FFis the Ethernetbroadcast address. When a switch receives a frame with this destination MAC address, it is required to forward the frame to all interfaces except the one it was received on.

Step-by-Step Breakdown:

Broadcast Frame Handling:When a frame with the broadcast MAC address is received, the switch will flood it out of all active ports that belong to the same VLAN as the incoming frame. The broadcast frame is not sent back out of the ingress interface (the interface where the frame was originally received).

Purpose of Flooding:Broadcasting is used to ensure that the frame reaches all devices within the broadcast domain (all devices within the same VLAN), which may not have a specific entry for the MAC address in their MAC address table.

Juniper Reference:

Layer 2 Frame Forwarding: Juniper switches flood broadcast frames to all ports in the same VLAN, except the port the frame was received on.

When an OSPF (Open Shortest Path First) neighborship is stuck in the ExStart state, it usually points to a mismatch in Maximum Transmission Unit (MTU) settings between two routers trying to establish the adjacency. The ExStart state is where OSPF routers negotiate the master-slave relationship and exchange DBD (Database Description) packets.

Step-by-Step Breakdown:

OSPF Neighbor States: OSPF goes through several states to establish an adjacency with a neighbor:

Down: No hello packets have been received.

Init: Hello packets are received, but bidirectional communication isn't confirmed.

2-Way: Bidirectional communication is established.

ExStart: The routers are negotiating who will be the master and who will be the slave, and begin to exchange DBD packets.

Exchange: The routers start exchanging the database information.

Loading: The routers process the Link-State Advertisements (LSAs).

Full: The adjacency is fully established.

MTU Mismatch Issue:During the ExStart state, both OSPF routers must agree on their MTU values. If there is an MTU mismatch between the two routers, OSPF neighbors will fail to move from the ExStart to the Exchange state. The router with the larger MTU setting will not accept DBD packets from the router with a smaller MTU because the packets may exceed the smaller MTU size.

In Juniper devices, this behavior can be identified by examining the MTU settings using the show interfaces command and ensuring both routers have matching MTU configurations. To resolve this issue, either match the MTU settings on both routers or configure OSPF to ignore MTU mismatches using the command set protocols ospf ignore-mtu.

Juniper Reference:

Junos Command: show ospf neighbor helps diagnose neighbor states.

MTU Adjustment: set interfaces mtu can be used to set the MTU values correctly.

Inlegacy hierarchical network design, three key layers are used to create a scalable and structured network:

Step-by-Step Breakdown:

Access Layer:

The access layer is where end devices, such as computers and IP phones, connect to the network. It typically involves switches that provide connectivity for devices at the edge of the network.

Aggregation Layer (Distribution Layer):

The aggregation layer (also called the distribution layer) aggregates traffic from multiple access layer devices and applies policies such as filtering and QoS. It also provides redundancy and load balancing.

Core Layer:

The core layer provides high-speed connectivity between aggregation layer devices and facilitates traffic within the data center or between different network segments.

Juniper Reference:

Legacy Hierarchical Design: Juniper networks often follow the traditional three-layer design (Access, Aggregation, and Core) to ensure scalability and high performance.

In Layer 2 switching, switches learn MAC addresses based on thesource MAC addressof incoming frames and forward frames based on thedestination MAC address.

Step-by-Step Breakdown:

MAC Learning:When a switch receives a frame, it records thesource MAC addressand the port on which it arrived. This allows the switch to know where to send traffic destined for that MAC address.

Forwarding Based on Destination:The switch then looks at thedestination MAC addressand forwards the frame out of the port associated with that MAC address. If the MAC is unknown, the switch floods the frame to all ports.

Juniper Reference:

Layer 2 Switching: Juniper switches use source MAC addresses to build MAC tables and forward traffic based on the destination MAC address.

Agenerated routein Junos OS is configured under the[edit routing-options]hierarchy.

Step-by-Step Breakdown:

Generated Routes:A generated route is created based on the presence of more specific routes in the routing table. It acts as a summary route and is generated when any of its contributing routes are active. This is commonly used to create aggregate routes in OSPF, BGP, or other protocols.

Configuration Hierarchy:The configuration for generated routes is placed under[edit routing-options], where other static and routing policies are also defined.

Command Example:

set routing-options generate route 10.10.0.0/16

Juniper Reference:

Routing Options: Juniper routers use the routing-options hierarchy to configure generated routes and other static routing behaviors.

EVPN-VXLANis an overlay technology used in data center networks to extend Layer 2 services over a Layer 3 network.

Step-by-Step Breakdown:

BGP Control Plane:BGP (Border Gateway Protocol)is used as the control plane for EVPN-VXLAN. BGP advertises MAC addresses and IP address reachability information across the VXLAN network, enabling efficient multi-tenant Layer 2 connectivity over a Layer 3 infrastructure.

Encapsulation:VXLAN (Virtual Extensible LAN)encapsulates Layer 2 frames into Layer 3 packets. This encapsulation allows Layer 2 traffic to be transported across a Layer 3 network, effectively creating a tunnel for Ethernet frames.

Juniper Reference:

EVPN-VXLAN Configuration: Juniper supports EVPN-VXLAN with BGP as the control plane, allowing scalable Layer 2 connectivity over a routed infrastructure in modern data centers.

To display themapping between VLAN IDs and portson a Juniper switch, the show vlans command is used.

Step-by-Step Breakdown:

VLAN Information:The show vlans command displays detailed information about VLAN configurations, including the VLAN ID, associated interfaces (ports), and VLAN membership.

Command Example:

show vlans

This command will provide an output listing each VLAN, its ID, and the interfacesassociated with the VLAN, enabling network engineers to quickly verify VLAN to port mappings.

Juniper Reference:

VLAN Verification: Use the show vlans command to verify which VLANs are configured on the switch and the ports that are members of those VLANs.

To verify that your router islearning routes from a remote BGP peerat a specific IP address (e.g., 10.10.100.1), the correct command to use is show route receive-protocol bgp.

Step-by-Step Breakdown:

BGP Route Learning:The show route receive-protocol bgp command displays the routes that have been received from a specified BGP peer. This helps in confirming that the remote peer is sending routes correctly and that your router is receiving them.

Command Example:

show route receive-protocol bgp 10.10.100.1

This will show all routes that have been received from the BGP peer with IP address 10.10.100.1.

Juniper Reference:

BGP Route Verification: Use this command to troubleshoot and verify that routes from a specific BGP peer are being received.

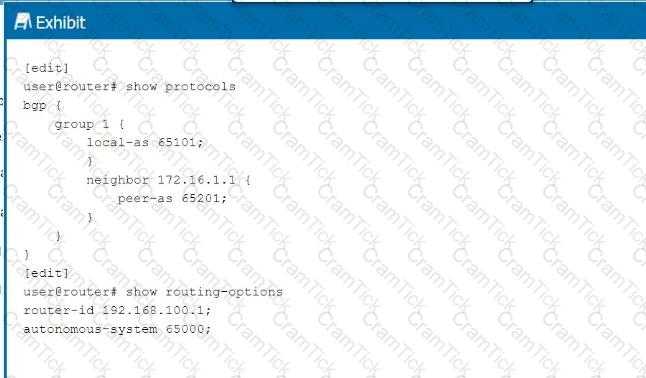

In the exhibit, BGP is configured withlocal AS 65101and a neighbor at172.16.1.1inpeer AS 65201. This setup involves two different Autonomous Systems (AS), indicating anExternal BGP (EBGP)configuration.

Step-by-Step Breakdown:

EBGP vs. IBGP:

EBGPis used between routers in different ASes. In this case, the local AS is65101and the peer AS is65201, meaning the BGP session isEBGP.

IBGPis used between routers within the same AS, which is not applicable here as the AS numbers are different.

BGP Group Configuration:

The configuration does not require a type external parameter because Junos OSautomatically recognizes the session asEBGPwhen the local and peer AS numbers are different.

The BGP session will operate as EBGP, and the configuration will commit successfully.

Juniper Reference:

BGP Configuration: In Juniper, EBGP is automatically recognized when the local and peer AS numbers differ, without needing to specify type external.

The BGPAS (Autonomous System) pathattribute is crucial in path selection and loop prevention. Each BGP router appends itslocal AS numberto the beginning of the AS path when it advertises a route to an external BGP (eBGP) peer.

Step-by-Step Breakdown:

AS Path Attribute:The AS path is a sequence of AS numbers that a route has traversed to reach a destination. Each AS adds its number to the front of the path, allowing BGP to track the route’s history.

Why the Local AS is Added at the Beginning:When advertising a route to an eBGP neighbor, a BGP router adds its own AS number to the beginning of the AS path. This ensures that the AS path reflects the route's journey accurately from the origin to the destination, and prevents loops in BGP. If the route returns to the same AS, the router will detect its AS number in the path and reject the route, preventing routing loops.

Order of the AS Path:The order is significant because BGP uses it to select the best path. A shorter AS path is preferred, as it indicates fewer hops between the source and destination.

Juniper Reference:

AS Path Attribute: Junos devices append the local AS at the start of the AS path before advertising the route to an external peer.

Thesource MAC addressin the Ethernet header is used to populate thebridging table(also called the MAC address table) on a switch. When a frame arrives at a switch, the switch examines the source MAC address and records it along with the ingress port in its MAC address table.

Step-by-Step Breakdown:

Learning Process:When an Ethernet frame arrives on a switch port, the switch looks at thesource MAC addressand adds this MAC address to the MAC table along with the port it was received on. This process is calledMAC learning.

Purpose:The switch uses this information to determine the correct port to send frames destined for that MAC address in future transmissions, thus ensuring efficient Layer 2 forwarding.

Juniper Reference:

Ethernet Switching: Juniper switches use source MAC addresses to build and maintain the MAC address table, which is essential for Layer 2 switching.

Comprehensive Detailed Step by Step Explanation with all Juniper Data Center References

Layer 2 interfaces on a switch operate in two key modes:AccessandTrunk.

Step-by-Step Breakdown:

Access Mode:

Access portsare used to connect end devices, like PCs or servers, and they are assigned to a single VLAN. These interfaces handle untagged traffic and do not pass VLAN tags.

Example: A port assigned to VLAN 10 will only handle traffic for that VLAN.

Trunk Mode:

Trunk portsare used to connect switches or other networking devices that need to handle traffic from multiple VLANs. Trunk interfaces carry tagged traffic, allowing multiple VLANs to traverse the same physical link.

Trunk ports typically use802.1QVLAN tagging to differentiate between VLANs.

Juniper Reference:

Access and Trunk Ports: Juniper switches use these modes to manage VLAN traffic at Layer 2, with access ports handling untagged traffic and trunk ports handling tagged traffic from multiple VLANs.
