D-PVM-OE-01 Dell PowerMax Operate v.2 Questions and Answers

We need to terminate a clone session for the storage group named "DATA" in the Unisphere for PowerMax simulator.

Here's a step-by-step guide on how to do this, based on typical Unisphere functionality and the context of the question:

Steps:

1. Launch the Simulator and Navigate to the TimeFinder/Clone Section

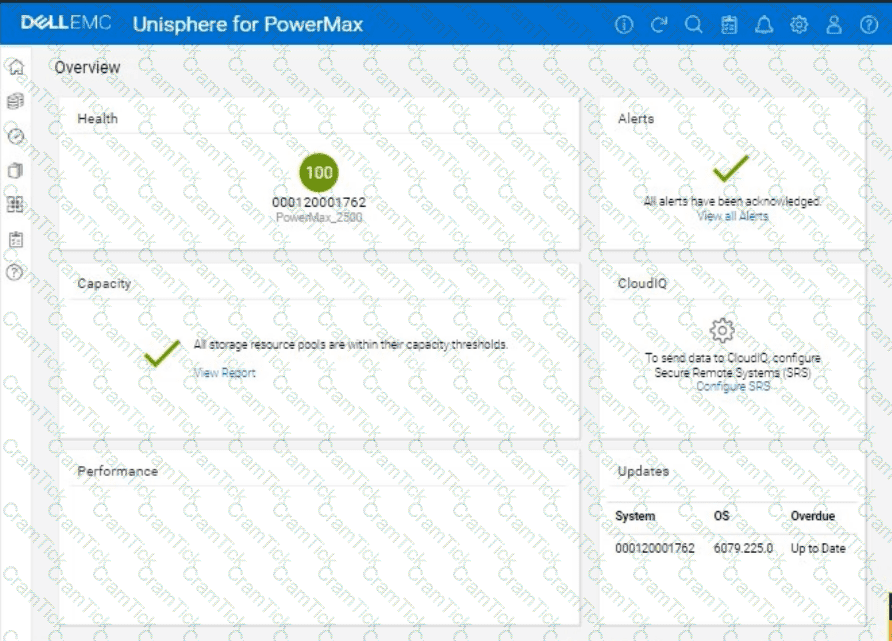

Open Unisphere for PowerMax in your web browser.

Log in to the simulator (you should already be logged in with the array SID 1762 selected, based on the provided image).

In the left-hand navigation pane, locate the section related to TimeFinder operations. This is usually found under:

Data Protection

Local Protection

TimeFinder

Expand the relevant sections and click onTimeFinder SnapVXorTimeFinder Clone(the exact wording might vary slightly in the simulator). The goal is to get to the view where you can manage clone sessions.

2. Locate the Clone Session for the "DATA" Storage Group

The TimeFinder/Clone view will display a list of existing clone sessions.

You need to find the session associated with the "DATA" storage group. Look for the following:

Storage Group Name:The "DATA" storage group should be listed as the source of the clone session.

Session Type/Mode:Verify that it's a Clone session (not a SnapVX snapshot or another type of session).

3. Select the Clone Session

Once you've found the correct clone session for the "DATA" storage group, select it.

You can usually do this by:

Clicking a checkbox next to the session.

Clicking on the session itself (if the interface allows it).

4. Terminate the Clone Session

After selecting the clone session, look for an action button or menu option to terminate it. This might be labeled:

"Terminate"

"Delete"

"Remove"

"Fracture"(in some older versions)

"Stop"

Click the appropriate button to initiate the termination process.

Confirmation:You will likely be prompted with a confirmation message to ensure you want to terminate the selected clone session. Verify that you have selected the correct session (the one for the "DATA" storage group) and confirm the termination.

Step by Step Comprehensive Detailed Explanation:

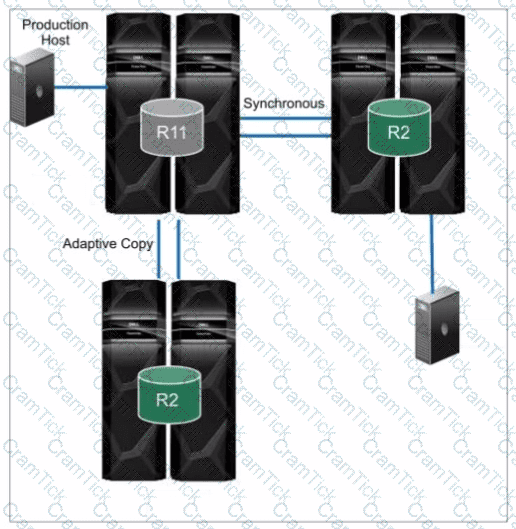

The topology shown in the exhibit depictsCascaded SRDF. This SRDF configuration involves three storage arrays (or sites) connected in a chained or cascaded manner.

Here's how it works:

Primary Site (R1):The production host is connected to the primary storage array (R1).

Intermediate Site (R2):The primary array (R1) synchronously replicates data to an intermediate array (R2).

Remote Site (R2):The intermediate array (R2) then asynchronously replicates data to a remote array (also labeled R2 in the diagram).

This cascading setup provides a multi-hop disaster recovery solution, where data is first replicated synchronously to a nearby site for high availability and then asynchronously replicated to a further remote site for disaster recovery.

Why other options are incorrect:

B. SRDF/Star:SRDF/Star involves a central array replicating to multiple remote arrays in a star-like pattern.

C. SRDF/Metro:SRDF/Metro is designed for synchronous replication over short distances, typically within a metropolitan area.

D. Concurrent SRDF:Concurrent SRDF allows multiple SRDF relationships to exist simultaneously for the same device.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 SRDF Family CLI User Guide:This guide provides detailed information about different SRDF configurations, including Cascaded SRDF. You can find this document on the Dell Support website by searching for "Solutions Enabler SRDF Family CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a comprehensive overview of SRDF and its functionalities, including various topologies and use cases.

We need to create a secure snapshot named "Stor1" from the storage group "StorGroup1" in the Unisphere for PowerMax simulator, and the snapshot should be protected from deletion for two days.

Here's a step-by-step guide on how to do this, based on typical Unisphere functionality:

Steps:

1. Launch the Simulator and Navigate to the Storage Groups Section

Open Unisphere for PowerMax in your web browser.

Log in to the simulator (you should already be logged in with the array SID 1762 selected).

In the left-hand navigation pane, click onStorageand then selectStorage Groups.

2. Locate and Select "StorGroup1"

In the Storage Groups view, you'll see a list of all storage groups on the array.

Find the storage group named "StorGroup1".

Click on the name "StorGroup1" to open its details view.

3. Initiate the Snapshot Creation Process

Within the "StorGroup1" details view, look for an option related to creating snapshots or protecting the storage group. This might be a button labeled:

"Protect"

"Create Snapshot"

"SnapVX"

Or an icon representing snapshot creation.

Click the appropriate button or icon to start the snapshot creation process.

4. Configure Snapshot Settings

A new window or panel will appear, allowing you to configure the snapshot settings.

Snapshot Name:Enter Stor1 as the snapshot name.

Snapshot Technology:SelectSnapVX(or a similar option) as the snapshot technology.

Secure Snapshot:This is crucial. Look for an option labeled "Secure Snapshot," "Enable Secure Snap," "Secure Snap," or something similar.Check this option.

Retention/Expiration:You need to set the retention period for the secure snapshot. This will define how long the snapshot cannot be deleted. There are usually a few ways to configure this:

Expiration Time:Set an explicit expiration date and time that is two days from now.

Retention Period:Specify a retention period of 2 days.

No Expiry:This option is not what we want here. We want the snap to be secure for 2 days.

Choose the appropriate option to make the snapshot undeletable for two days.

Other Settings:Review any other available settings. You might be able to choose between creating a new snapshot or linking to an existing one. Select the option to create anew snapshot.

5. Create the Snapshot

After configuring all the snapshot settings, review them carefully to ensure they are correct.

Click the button to create the snapshot. This button might be labeled:

"Run Now"

"OK"

"Create"

"Finish"

6. Verify Snapshot Creation (Optional)

After the snapshot creation operation completes, you can verify that the snapshot was created successfully:

Go back to the "StorGroup1" details view.

Look for a tab or section related to snapshots (e.g., "Snapshots," "TimeFinder," "Local Replication").

You should see the "Stor1" snapshot listed there, and its status should indicate that it's a secure snapshot with the correct retention period (2 days).

Step by Step Comprehensive Detailed Explanation:

In SRDF (Symmetrix Remote Data Facility), a "Restore" operation is used to resynchronize the source (R1) and target (R2) devices after a situation where the target device might have been modified independently. This typically occurs after a failover scenario where the target device becomes the primary and undergoes changes.

During an SRDF Restore operation:

R2 Changes Discarded:Any changes made to the target (R2) device since the last synchronization are discarded.

R1 Changes Propagated:The current data on the source (R1) device is copied over to the target (R2), overwriting any existing data on the target.

This effectively restores the target device to a state consistent with the source device, ensuring data integrity and consistency.

Why other options are incorrect:

B. Resumes normal SRDF mirroring and host access:While a Restore operation can be part of the failback process, it's not the only step involved. Failback might involve additional actions like reversing replication direction and restoring host access.

C. Changes made to the R2 are propagated to the R1. Changes made to the R1 are discarded:This describes an "Update" operation, not a "Restore."

D. Enables access to both the R1 and R2 devices for their hosts:This describes a "Split" operation, where both devices are made accessible independently.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 SRDF Family CLI User Guide:This guide provides detailed information about SRDF commands and operations, including the symrdf restore command. You can find this document on the Dell Support website by searching for "Solutions Enabler SRDF Family CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a comprehensive overview of SRDF and its functionalities, including disaster recovery scenarios and the use of the "Restore" operation.

Step by Step Comprehensive Detailed Explanation:

Both the PowerMax 2500 and 8500 utilize NVMe over Fabrics (NVMe-oF) for high-speed data transfer. However, they differ in their internal fabric architecture:

PowerMax 2500:Uses a direct NVMe/PCIe connection between the compute nodes and the Dynamic Media Enclosures (DMEs).

PowerMax 8500:Employs a fully switched InfiniBand (IB) fabric for all NVMe-oF traffic. This means that the compute nodes and DMEs are interconnected through InfiniBand switches, providing a high-performance, low-latency, and scalable fabric for data transfer.

Therefore, the use of InfiniBand switches is a feature unique to the PowerMax 8500 compared to the PowerMax 2500.

Why other options are incorrect:

A. Persistent Memory:Both PowerMax 2500 and 8500 utilize Storage Class Memory (SCM), which is a type of persistent memory.

B. Mainframe Connectivity:Both models support mainframe connectivity.

C. Storage Class Memory:As mentioned above, both models use SCM.

References and documents of Dell's public documentation for PowerMax Operate v.2:

PowerMax 2500 and 8500 Dynamic Fabric—A High-Performance Clustered Architecture for Enterprise Storage:This white paper provides a detailed comparison of the Dynamic Fabric architecture in both models, highlighting the use of InfiniBand switches in the PowerMax 8500. You can find this document on the Dell Technologies Info Hub.

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a general overview of the PowerMax family, including the 2500 and 8500 models. It may provide context for understanding the differences in their architecture and features.

Step by Step Comprehensive Detailed Explanation:

SnapVX Linked Targets:SnapVX is a snapshot technology used in Dell PowerMax storage arrays. A linked target is a volume that provides read/write access to a specific point-in-time copy (snapshot) of a source volume.

Read/Write Access:Unlike traditional snapshots, which are typically read-only, SnapVX linked targets allow modifications. This makes them suitable for use cases like testing, development, and data analysis where changes need to be made to a copy of the data without affecting the original source.

Secure Snapshots:SnapVX offers the capability to create "secure snapshots." These snapshots are write-protected and prevent any modifications or deletion, ensuring data integrity and protection against accidental or malicious changes.

Why other options are incorrect:

B. They support a maximum of 1024 snaps per volume:This is partially correct. While a source volume can have up to 1024 snapshots, this limit includes all types of snapshots (manual, automated, and legacy), not just linked targets.

B. They cannot send data to SRDF:This is incorrect. SnapVX linked targets can participate in SRDF (Symmetrix Remote Data Facility) replication, allowing for disaster recovery and data mobility.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell Solutions Enabler 10.0.0 TimeFinder SnapVX CLI User Guide:This guide provides detailed information about SnapVX features and commands, including how to create, link, and manage snapshots. It confirms the read/write capability of linked targets and the ability to create secure snapshots. You can find this document on the Dell Support website by searching for "Solutions Enabler TimeFinder SnapVX CLI User Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a comprehensive overview of PowerMax technologies, including SnapVX. It highlights the benefits of SnapVX linked targets for various use cases. You can find this document on the Dell Support website by searching for "PowerMax Family Essentials and Best Practices Guide."

Okay, I understand. The task is to verify the completion of Non-Disruptive Migrations (NDM) and then remove the migration environment using the Unisphere for PowerMax simulator.

Here's a step-by-step guide on how to do this, based on typical Unisphere functionality and the context of the question:

Steps:

1. Launch the Simulator and Navigate to the Migration Section

Open Unisphere for PowerMax in your web browser.

Log in to the simulator.

In the left-hand navigation pane, locate the section related to migrations. This is usually under either:

Data Mobility

Migration

Expand the relevant section and click onMigrations(or a similar option like "Local Migrations" or "NDM"). This will take you to the view where you can manage Non-Disruptive Migrations.

2. Verify Migration Session Status

The Migrations view will list all current and past migration sessions.

Look for the following status indicators to confirm that the migrations have completed successfully:

Status:The status should typically be "Completed," "Cutover Complete," or a similar status indicating successful completion.

Progress:If a progress bar or percentage is shown, it should be at 100% or show that all data has been synchronized.

Important:If any sessions are still in a "Running," "Synchronizing," or other non-completed state, do not proceed with removing the migration environment. Wait for them to complete.

3. Select Completed Migrations for Removal

Once you've verified that all relevant migration sessions are successfully completed, select the sessions that you want to remove.

You can usually select sessions by:

Clicking a checkbox next to each session.

Clicking on the session itself (if the interface allows it).

4. Remove the Migration Environment

After selecting the completed migration sessions, look for an action button or menu option to remove them. This might be labeled:

"Remove"

"Delete"

"Cleanup"

"Remove Session"

Click the appropriate button to initiate the removal process.

Confirmation:You will likely be prompted with a confirmation message to make sure you want to remove the selected migration sessions. Verify that you have selected the correct sessions and confirm the removal.

5. Verify Removal (Optional)

After the removal operation completes, the Migrations view should refresh.

Verify that the migration sessions you removed are no longer listed.

Step by Step Comprehensive Detailed Explanation:

The Dell PowerMax 2500 is a mid-range storage array designed for enterprise environments. It offers a balance of performance, capacity, and scalability.

Scalability:The PowerMax 2500 scales from a single node pair to a maximum of two node pairs. This allows for increased performance and capacity as needed. Each node pair provides processing power, cache memory, and connectivity.

Why other options are incorrect:

A. Supports up to 16 nodes:This is incorrect. The PowerMax 8500, the higher-end model, supports up to 16 nodes.

B. Supports up to 15 PB of effective capacity:While the PowerMax 2500 offers significant capacity, its maximum effective capacity is lower than 15 PB.

D. Uses Storage Class Memory:Both the PowerMax 2500 and 8500 utilize Storage Class Memory (SCM) for enhanced performance.

References and documents of Dell's public documentation for PowerMax Operate v.2:

Dell PowerMax 2500 Hardware Information Guide:This guide provides detailed technical specifications for the PowerMax 2500, including its scalability options, node configurations, and capacity limits. You can find this document on the Dell Support website by searching for "PowerMax 2500 Hardware Information Guide."

Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a general overview of the PowerMax family, including the 2500 and 8500 models. It highlights the key differences in scalability and performance between the two models.
