4A0-112 Nokia IS-IS Routing Protocol Questions and Answers

When a link-state update reaches its maximum age, it isremovedfrom the router’s link-state database, not flooded to its neighbors. This prevents outdated information from continuing to affect the routing decisions. The router does not flood the aged update; instead, it will typically request a new link-state advertisement from the original source router if the information is still needed.

In IS-IS, the Designated Intermediate System (DIS) is responsible for certain tasks on broadcast networks, such as generating link-state advertisements and acting as the central point for flooding information.

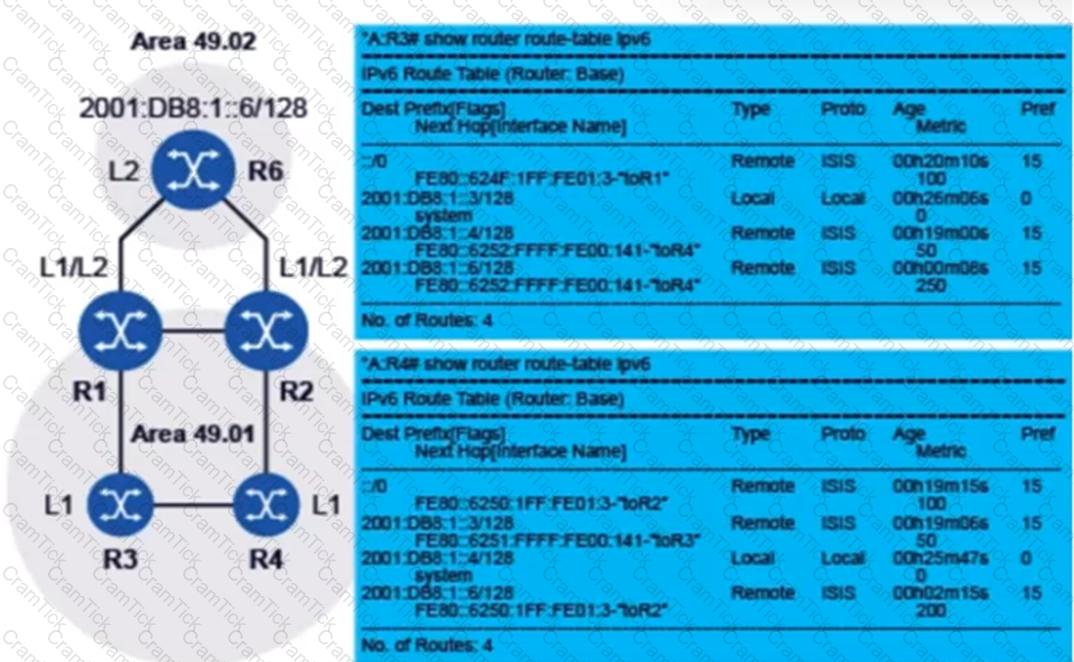

Based on theIPv6 route tableoutput forR3andR4, we can see that the routers have remote routes listed as"Remote ISIS", indicating that the route is being advertised from a different area (area 49.01 or 49.02). This is a sign ofroute leaking, where routes from one area are being shared across areas.

TheroutesfromR3(level-1 router) are being advertised toR4(level-1 router), and vice versa, withISISas the protocol. This implies that there is route leaking configured to allow information to pass between areas.

When a router performs the SPF (Shortest Path First) calculation, it uses itself as the root of the shortest path tree (SPT). This router computes the shortest paths to all other routers in the network, treating itself as the origin and calculating the paths based on its view of the network.

Typically, interfaces on a Nokia 7750 SR router are not configured in pairs on the same subnet for redundancy. Instead, redundancy is achieved through mechanisms like Virtual Router Redundancy Protocol (VRRP) or other high availability protocols, not by simply using interfaces in pairs on the same subnet.

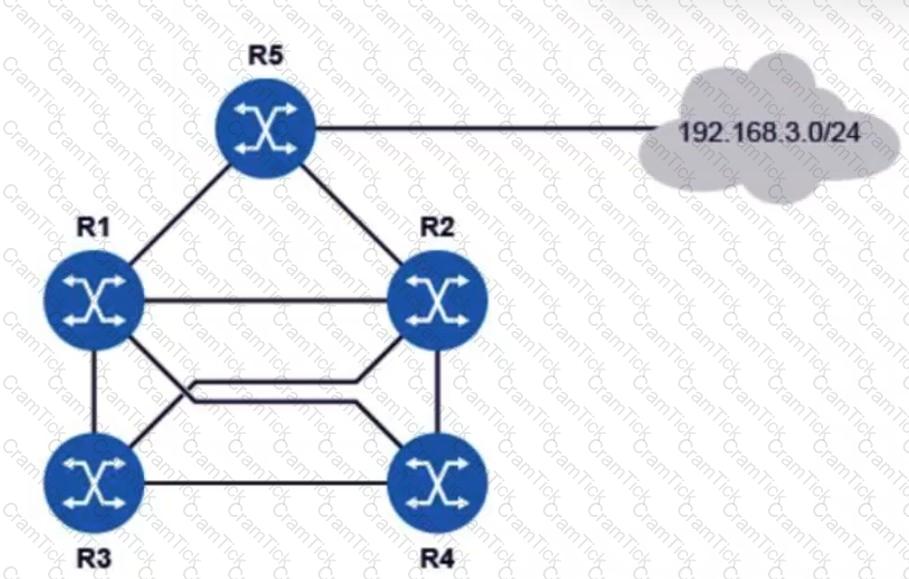

In this scenario, the routers are configured with an Equal-Cost Multi-Path (ECMP) value of 4, meaning they can utilize up to 4 equal-cost paths to reach a destination. Since Router R5 is advertising the 192.168.3.0/24 prefix and all links have the same cost, router R3 will receive multiple routes to reach this destination.

Given that all the routers (R1, R2, R3, R4, and R5) are connected in a way that can support multiple equal-cost paths, and assuming ECMP is set to 4, the routing table on Router R3 will have up to 4 entries for the prefix 192.168.3.0/24.

Thus, Router R3's routing table will contain4 entriesfor the prefix 192.168.3.0/24.

ARP for IPv4 and Neighbor Discovery Protocol (NDP) for IPv6 are both used to map a device's IP address to its MAC address. This is essential for communication within a local network.

ARP is used in IPv4 networks, and NDP performs a similar function in IPv6 networks, ensuring devices can communicate effectively on the same network segment.

Dividing a domain into areas typically does not reduce the number of routers needed to handle traffic. It is more focused on improving scalability, reducing the size of routing tables, and limiting the scope of SPF calculations, but it doesn't inherently reduce the number of routers required.
