The semantics of MOF elements are typically provided in the specification as natural language descriptions1. This approach allows for a clear and understandable explanation of the elements and their intended use within the framework.

In UML 2.5, a NamedElement can have anameattribute, which is a string representing the element's name, and anameExpressionattribute, which is a ValueSpecification used to specify the element's name in a more dynamic way. The presentation of the name of a NamedElement in a tool that conforms to the OMG specification could either be the literal name (as specified in thenameattribute) or the evaluated expression from thenameExpressionproperty. Therefore, a tool may choose to present either the simple name or the evaluated expression or allow toggling between the two. The specification does not mandate a single fixed presentation, allowing for flexibility in how tools display the name. This conforms to the OMG's UML 2.5 specification, which describes the properties of NamedElement and their presentations within tools.

In UML, profiles are mechanisms to extend the UML for a specific domain or purpose. The UML specification allows for one profile to reuse or import elements from another profile. This enables modularity and encourages reusability of profile elements across different domains. Additionally, one profile may extend the stereotypes or metaclasses defined in another profile, which allows for the creation of layered profiles where each layer adds its own specificities. This is a common practice in software and systems modeling to cater to different aspects of a system within separate profiles, which are then integrated to form a comprehensive model. The capability to reuse and extend profiles is defined in the UML 2.x Superstructure Specification, which gives guidelines on how to define and use profiles within UML.

The execution semantics of Alf (Action Language for Foundational UML) are defined by mapping the concrete syntax of Alf to the abstract syntax of fUML3. Alf provides a textual surface representation for a subset of UML model elements, and its main benefit is an execution semantics that allows for the generation of executable code out of Alf specifications4. This mapping ensures that Alf can be used to specify behavior in a way that is directly executable in the context of an fUML model.

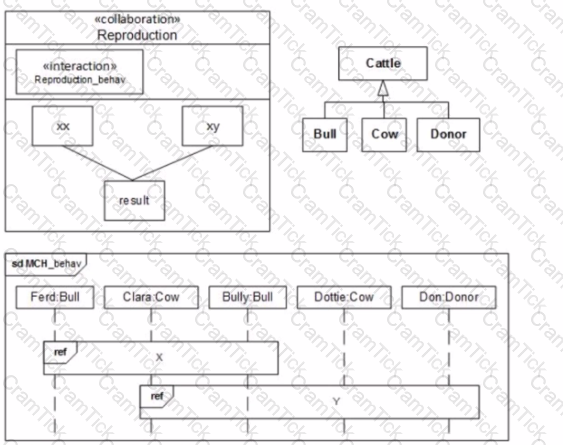

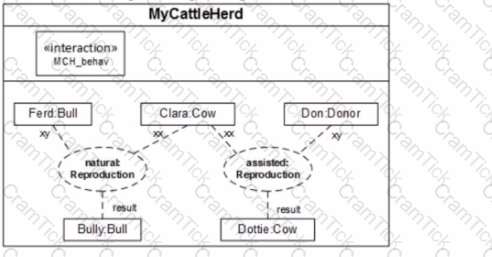

The question is about identifying the correct placeholders X and Y in a UML diagram fragment related to cattle reproduction behavior. The correct answer is option E, where X is “natural::Reproduction_behav” and Y is “assisted::Reproduction_behav”. In UML, the “::” notation is used to indicate a namespace or a package. In this context, it separates the types of reproduction behaviors (natural and assisted) from the behavior itself (Reproduction_behav). This naming convention aligns with UML naming standards for clarity and specificity.

In UML, a template is a parameterizable element, and the parameters for a template are typically classes or other classifiers. According to the UML 2.x Superstructure Specification, all subclasses of Classifier can potentially be used as template parameters. This includes classes, components, datatypes, interfaces, signals, and more. The specification provides the flexibility to define template parameters that are specialized types, allowing for powerful and reusable designs. The ability to parameterize these elements is foundational to creating generic and reusable model elements, which is a core capability of the UML's templating mechanism.

StateMachine Redefinition in UML allows for the specialization of a StateMachine by a derived Classifier. This is crucial as it ties into the broader capability of UML to specialize behaviors and classifiers:

• Ais incorrect; UML does discuss StateMachine Redefinition.
• Bdescribes one aspect of redefinition but is too narrow as it omits that redefinition can also redefine transitions and internal behaviors, not just states or events.
• Cdescribes more of an error correction or revision process, which is not specifically what StateMachine Redefinition is about.
• Dcaptures the essence of StateMachine Redefinition, emphasizing that it is a necessary extension of UML's capabilities to allow for specialization and refinement of classifiers and their behaviors.

References:

• UML Specification, Section on StateMachines
• StateMachine Redefinition is further elaborated in UML 2.5 Documentation under the Behavior StateMachines sections.

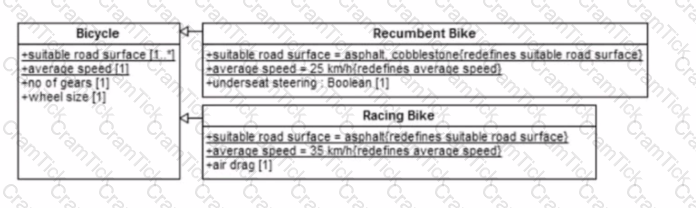

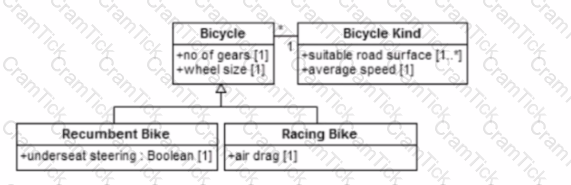

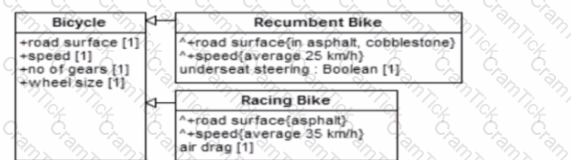

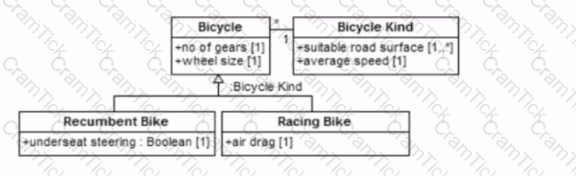

In Option C, the propertiessuitable road surfaceandaverage speedhave been redefined in the subclassesRecumbent BikeandRacing Bike. The use of the{redefines}keyword in UML signifies that the subclass will provide its own specific values for these properties, overriding the general ones provided by the superclassBicycle. This is the correct way to enforce that each specialization ofBicyclehas a unique set of values for these attributes, as redefinition allows for the customization of inherited properties on a per-subclass basis. The use of{redefines}is specified in the UML 2.x Superstructure Specification, which describes how properties inherited from a superclass can be customized by subclasses.

The Profile mechanism in UML provides the capability to adapt existing metamodel elements for specific purposes. Profiles allow modelers to extend the standard UML metamodel with additional semantics by defining stereotypes, tagged values, and constraints that are specific to a particular domain, platform, or methodology. This means that profiles tailor the existing UML metamodel elements to create domain-specific models without changing the underlying metamodel itself. This adaptation mechanism is described in the UML 2.x Superstructure and Infrastructure Specifications, which detail how profiles can be used to customize the UML for particular domains or purposes.

The Model-Driven Architecture (MDA) approach is a design methodology that covers the entire software development lifecycle, from requirements to technology implementation. It emphasizes the use of models as the primary artifacts in the development process, allowing for a more abstract and high-level approach to software design. MDA supports the transformation of models from platform-independent models (PIMs) to platform-specific models (PSMs) and ultimately to code, ensuring that the initial requirements are accurately reflected in the final technology implementation.

MDA is not limited to Meta Data Aspects (A) or Design and Architectural Models (B) alone, nor is it primarily about deriving models from Artificial Intelligence Systems (D). Instead, it provides a comprehensive framework that facilitates the creation of software systems by bridging the gap between business requirements and technology solutions.

References:

• An MDA Approach Based on UML and ODM Standards to Support Big Data Analytics1
• Improving Automatic UML2 Profile Generation for MDA Industrial Development2
• Applying 4+1 View Architecture with UML 2

State Machine Events in UML are triggers for transitions and do not classify as objects or classifiers; thus they do not inherently have features:

• A.Incorrect, because State Machine Events are not treated as classifiers with features.
• B.Incorrect, though it hints at an extended use case, State Machine Events do not extend classifiers in standard UML usage.
• C.Correct, State Machine Events are not Classifiers and therefore cannot have features such as properties or operations.
• D.Incorrect, because UML State Machines certainly have an Event concept, but these Events are not classified as having features.

References:

• UML Specification: State Machine chapter, specifically sections discussing the nature of events and triggers.
• Further insights can be found in the event and trigger management sections of the UML 2.5 Documentation.

In UML, the{subsets}keyword is used to indicate that one property is a subset of another property. In the provided diagram fragment, the association end-b {subsets part}indicates that the propertybon classAis a subset of the propertyparton classB. This means that the elements associated withAthroughbare contained within the larger set associated withBthroughpart. This kind of relationship is typically used in more complex class models where a part-whole hierarchy is represented, and it allows the model to show that certain associations are more specific subsets of a more general association. This usage is explained in the UML 2.x Superstructure Specification, where the semantics of association subsets are defined.

To provide the ability to specify CORBA physical components within a UML tool, the most appropriate approach is to create a UML profile that includes stereotypes, tagged values, and constraints that reflect the characteristics and requirements of CORBA components. Applying this profile to a UML model would extend the semantics of UML to support CORBA-specific concepts without modifying the UML metamodel itself. This approach allows the modeler to leverage the existing UML tooling while incorporating the additional semantics required for CORBA components. This practice is supported by the extensibility mechanisms provided by UML, as described in the UML 2.x Superstructure Specification, which outlines how to create and apply profiles.

The capability that enables the discovery and manipulation of metaobjects and metadata is Reflection. In the context of the Meta-Object Facility (MOF), reflection allows you to examine and interact with the structure and semantics of metamodels, models, and their elements. It provides a way to introspect and dynamically access information about the modeling constructs, such as classes, attributes, relationships, and constraints.

A minimal reflexive metamodel is a metamodel that is expressed using itself, meaning it can be used to describe its own structure and semantics. This concept is akin to a self-describing system. In the domain of metamodeling, this allows for a consistent and coherent definition of the metamodel that is both the subject and the tool of its own description2. This reflexivity is a key property that enables the metamodel to be used in a variety of contexts, ensuring that it remains consistent with its own definitions.

In UML, theisSubstitutableproperty of a generalization relationship indicates whether instances of the child classifier can be used wherever instances of the parent classifier are expected, that is, whether the subclass is substitutable for the superclass. When this property is set to false, it means that the child classifier cannot be substituted for the parent classifier. This property is part of the UML metamodel for generalization and affects how inheritance is interpreted in terms of substitutability, as described in the UML 2.x Superstructure Specification.

The scope of fUML (Foundational UML) is to define execution semantics for a subset of the UML 2 metamodel that provides a shared foundation for higher-level UML modeling concepts. This includes the precise definition of the execution semantics of that subset, which is intended to be used by a wide range of system types, including physically distributed and concurrent systems without assumptions about global synchronization1.

A UML profile can define several different elements to extend the UML for a specific domain, platform, or purpose. Besides stereotypes, a profile can define DataTypes and Enumerations, which can be used within Stereotypes to type the tagged values. A profile can also define Classes, which can be used as base classes for stereotypes. However, a profile does not typically define instances of elements, such as Objects, nor does it define composite structures, such as Components. The intent of a profile is to adapt existing metamodel elements through the use of stereotypes, tag definitions, and constraints rather than to create instances or define system architectures. This definition and use of a profile are aligned with the guidelines in the UML 2.x Superstructure Specification, which outlines what elements a profile can define within the UML framework.

The compiled model resulting from the Action Language for Foundational UML (fUML) must have the equivalent effect as a model resulting from the mapping to fUML. In other words, the compiled model should behave in the same way as if it were directly executed using the fUML execution semantics

The concept of Extent in MOF serves the purpose of defining a set of Tags that can be associated with any number of model elements. These tags provide additional information or metadata about the elements. Extent allows you to annotate model elements with relevant information beyond their intrinsic properties. It provides a context for identifying and managing these annotations independently from the element’s actual values.

A MOF (Meta Object Facility) 2.x Model is not always a valid UML (Unified Modeling Language) 2.x Model. The MOF 2.x and UML 2.x serve different purposes and have different scopes of application. While UML is a general-purpose modeling language used to define software systems, MOF is a language for defining metamodels, which can include UML itself1.

The MOF 2.x specification provides the basis for metamodel definition in OMG’s (Object Management Group’s) family of modeling languages, which includes UML. However, it is based on a simplification of UML 2’s class modeling capabilities1. MOF is designed to be simpler, directly implementable, and provides a set of CORBA interfaces for manipulating meta objects2. In contrast, UML is used as a general-purpose modeling language with potentially many implementation targets2.

Therefore, a MOF 2.x Model can be a valid UML 2.x Model when certain limitations are observed, such as adhering to the simplified class modeling capabilities that MOF is based on. This means that while a MOF model can resemble a UML model in terms of visual representation, it is fundamentally a MOF model, and its validity as a UML model depends on the extent to which it conforms to the UML specifications

In the MOF class hierarchy, the class ‘Element’ sits at the top. It is the superclass of all classes defined in MOF and is an implicit superclass of all metaclasses defined using MOF1. This superclass relationship to ‘Element’ does not need to be explicitly declared in the metamodels.

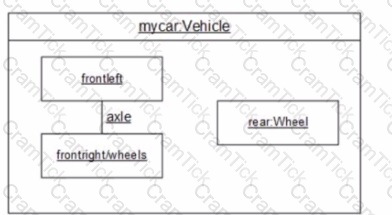

In the diagram, "mycarVehicle" represents a class that likely encapsulates the concept of a vehicle within the system being modeled. The elements within "mycarVehicle" are properties that represent different parts of the car. The term "wheels" is not explicitly shown in the diagram, but based on UML conventions and the context provided, it would be a property of the Vehicle class. This property would likely be associated with the "frontleft" and "frontrightwheels" parts of the car. In UML, properties represent structural features of a class that hold data values or references to other objects. The correctness of this answer is consistent with the principles found in the UML 2.x Superstructure Specification regarding the structural features of classes.

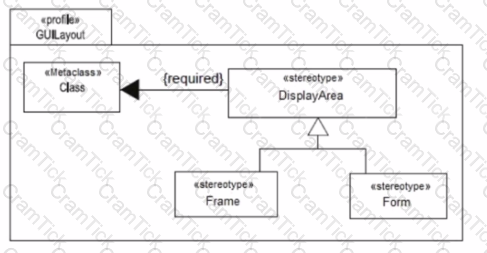

The UML diagram fragment provided shows a UML profile with a required extension from the metaclassClassto the stereotypeDisplayArea, which in turn has two subclassesFrameandForm. The use of{required}indicates that whenever an instance ofClassis extended by theDisplayAreastereotype, it becomes mandatory to do so. However, this does not enforce that every instance ofClassmust be linked toDisplayAreaor its subclasses (FrameorForm). It only means that if theDisplayAreastereotype is applied, it is required. Therefore, there is no obligation for every instance ofClassor its subclasses to be stereotyped asDisplayArea,Frame, orForm. It's also worth noting that the last option (E) could be considered true in some interpretations of UML, but given the options provided and common UML practices, option D is more accurate.
