MCPA-Level-1-Maintenance MuleSoft Certified Platform Architect - Level 1 MAINTENANCE Questions and Answers

Explanation

Correct Answer: The test runs immediately after the Mule application has been compiled and packaged

*****************************************

>> Integration tests are the last layer of tests we need to add to be fully covered.

>> These tests actually run against Mule running with your full configuration in place and are tested from external source as they work in PROD.

>> These tests exercise the application as a whole with actual transports enabled. So, external systems are affected when these tests run.

So, these tests do NOT run immediately after the Mule application has been compiled and packaged.

FYI... Unit Tests are the one that run immediately after the Mule application has been compiled and packaged.

Correct Answer: Persistent Object Store

*****************************************

>> Redis distributed cache is performant but NOT out-of-the-box solution in Anypoint Platform

>> File-storage is neither performant nor out-of-the-box solution in Anypoint Platform

>> java.util.WeakHashMap needs a completely custom implementation of cache from scratch using Java code and is limited to the JVM where it is running. Which means the state in the cache is not worker aware when running on multiple workers. This type of cache is local to the worker. So, this is neither out-of-the-box nor worker-aware among multiple workers on cloudhub. https://www.baeldung.com/java-weakhashmap

>> Persistent Object Store is an out-of-the-box solution provided by Anypoint Platform which is performant as well as worker aware among multiple workers running on CloudHub. https://docs.mulesoft.com/object-store/

So, Persistent Object Store is the right answer.

Explanation

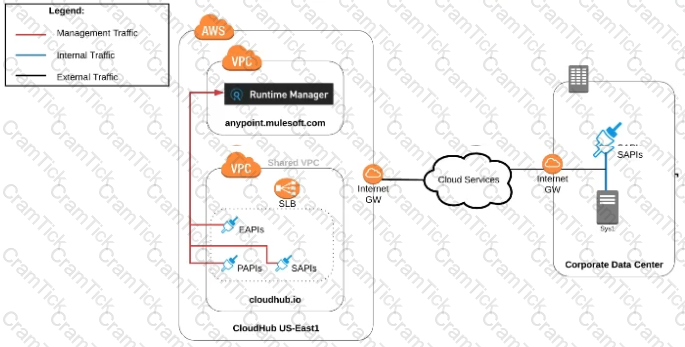

Correct Answer: 8082

*****************************************

>> 8091 and 8092 ports are to be used when keeping your HTTP and HTTPS app private to the LOCAL VPC respectively.

>> Above TWO ports are not for Shared AWS VPC/ Shared Worker Cloud.

>> 8081 is to be used when exposing your HTTP endpoint app to the internet through Shared LB

>> 8082 is to be used when exposing your HTTPS endpoint app to the internet through Shared LB

So, API invocations should be sent to port 8082 when calling this HTTPS based app.

References:

https://docs.mulesoft.com/runtime-manager/cloudhub-networking-guide

https://help.mulesoft.com/s/article/Configure-Cloudhub-Application-to-Send-a-HTTPS-Request-Directly-to-Another-Cloudhub-Application

https://help.mulesoft.com/s/question/0D52T00004mXXULSA4/multiple-http-listerners-on-cloudhub-one-with-port-9090

Explanation

Correct Answer: Spike control

*****************************************

>> First things first, HTTP Caching policy is for purposes different than avoiding the backend system from overloading. So this is OUT.

>> Rate Limiting and Throttling/ Spike Control policies are designed to limit API access, but have different intentions.

>> Rate limiting protects an API by applying a hard limit on its access.

>> Throttling/ Spike Control shapes API access by smoothing spikes in traffic.

That is why, Spike Control is the right option.

Explanation

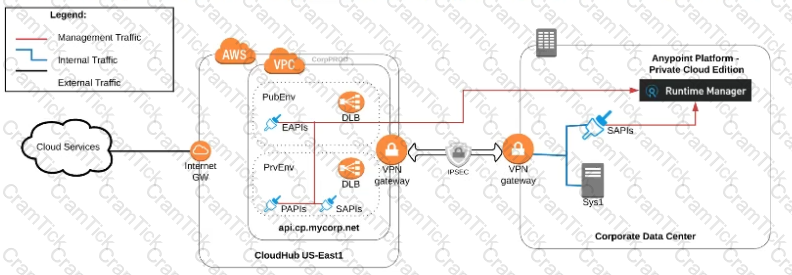

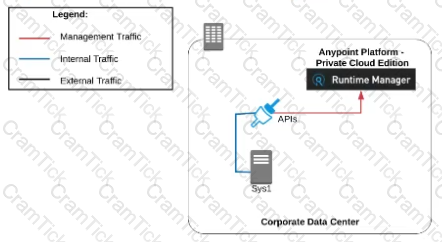

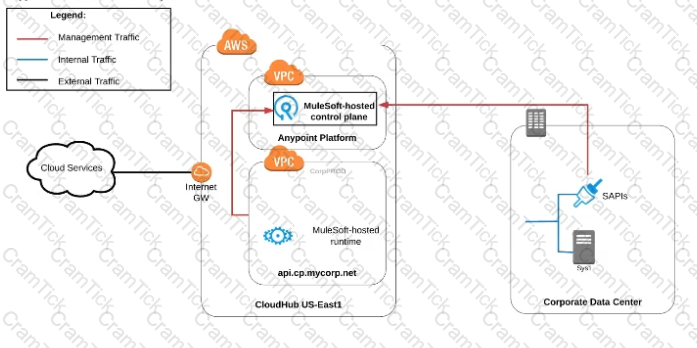

Correct Answer: Use a combination of CloudHub-deployed and manually provisioned on-premises Mule runtimes managed by the MuleSoft-hosted Platform control plane.

*****************************************

Key details to be taken from the given scenario:

>> Organization uses BOTH cloud-based and on-premises systems

>> On-premises systems can only be accessed from within the organization's intranet

Let us evaluate the given choices based on above key details:

>> CloudHub-deployed Mule runtimes can ONLY be controlled using MuleSoft-hosted control plane. We CANNOT use Private Cloud Edition's control plane to control CloudHub Mule Runtimes. So, option suggesting this is INVALID

>> Using CloudHub-deployed Mule runtimes in the shared worker cloud managed by the MuleSoft-hosted Anypoint Platform is completely IRRELEVANT to given scenario and silly choice. So, option suggesting this is INVALID

>> Using an on-premises installation of Mule runtimes that are completely isolated with NO external network access, managed by the Anypoint Platform Private Cloud Edition control plane would work for On-premises integrations. However, with NO external access, integrations cannot be done to SaaS-based apps. Moreover CloudHub-hosted apps are best-fit for integrating with SaaS-based applications. So, option suggesting this is BEST WAY.

The best way to configure and use Anypoint Platform to support these mixed/hybrid integrations is to use a combination of CloudHub-deployed and manually provisioned on-premises Mule runtimes managed by the MuleSoft-hosted Platform control plane.

Explanation

Correct Answer: The remaining capacity allowed by the API implementation.

*****************************************

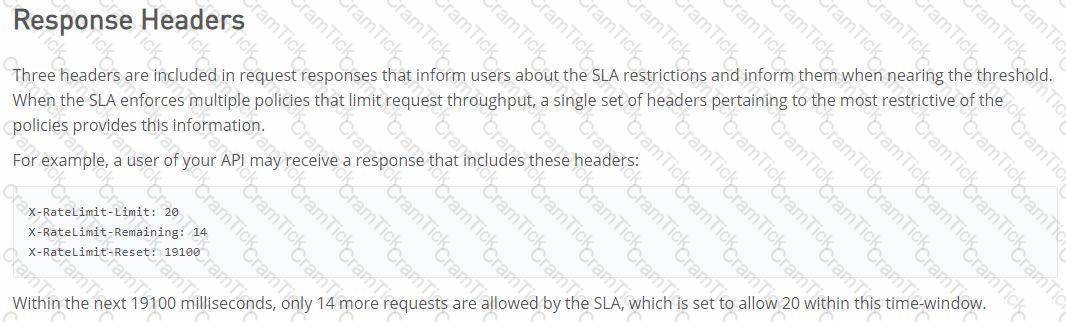

>> Reference: https://docs.mulesoft.com/api-manager/2.x/rate-limiting-and-throttling-sla-based-policies#response-headers

Explanation

Correct Answer: At the API proxy

*****************************************

>> API Policies can be enforced at two places in Mule platform.

>> One - As an Embedded Policy enforcement in the same Mule Runtime where API implementation is running.

>> Two - On an API Proxy sitting in front of the Mule Runtime where API implementation is running.

>> As the deployment scenario in the question has API Proxy involved, the policies will be enforced at the API Proxy.

Explanation

Correct Answer: Process Layer

*****************************************

>> Experience layer is dedicated for enrichment of end user experience. This layer is to meet the needs of different API clients/ consumers.

>> System layer is dedicated to APIs which are modular in nature and implement/ expose various individual functionalities of backend systems

>> Process layer is the place where simple or complex business orchestration logic is written by invoking one or many System layer modular APIs

So, Process Layer is the right answer.
