MCIA-Level-1 MuleSoft Certified Integration Architect - Level 1 Questions and Answers

To ensure the high availability and reliability of critical APIs, it is essential to monitor their liveliness and readiness. Anypoint Monitoring provides comprehensive monitoring capabilities for Mule applications. Here’s how it can be implemented:

• Application Monitoring: Enable monitoring for each individual Mule application. This allows for real-time visibility into the performance and health of each API.
• Custom Dashboards: Create custom dashboards in Anypoint Monitoring to track key metrics such as response time, error rates, and throughput.
• Alerts and Notifications: Configure alerts based on specific failure conditions or performance thresholds. These alerts can notify the Ops team immediately when an outage or performance degradation is detected.
• Proactive Management: With detailed insights and proactive alerts, the Ops team can quickly respond to issues, ensuring that the APIs remain available and meet the defined SLAs.

References:

• Anypoint Monitoring
• Configuring Alerts

To determine when permissions were last changed for an Anypoint Platform user, the system administrator should use the Audit Logging component. Audit Logging in Anypoint Platform captures detailed logs of various activities, including changes to user permissions, login attempts, and other significant actions. These logs provide a historical record that administrators can review to track changes and ensure compliance with security policies.

Other components like Anypoint Monitoring, Anypoint Studio, and Mule Stack Traces are used for monitoring application performance, development, and debugging, respectively, but they do not provide specific information about user permission changes.

References

• MuleSoft Documentation on Audit Logging
• Anypoint Platform User Management

Explanation

JMX Management Java Management Extensions (JMX) is a simple and standard way to manage applications, devices, services, and other resources. JMX is dynamic, so you can use it to monitor and manage resources as they are created, installed, and implemented. You can also use JMX to monitor and manage the Java Virtual Machine (JVM). Each resource is instrumented by one or more Managed Beans, or MBeans. All MBeans are registered in an MBean Server. The JMX server agent consists of an MBean Server and a set of services for handling Mbeans. There are several agents provided with Mule for JMX support. The easiest way to configure JMX is to use the default JMX support agent. Log4J Agent The log4j agent exposes the configuration of the Log4J instance used by Mule for JMX management. You enable the Log4J agent using the element. It does not take any additional properties MuleSoft Reference: https://docs.mulesoft.com/mule-runtime/3.9/jmx-management

Explanation

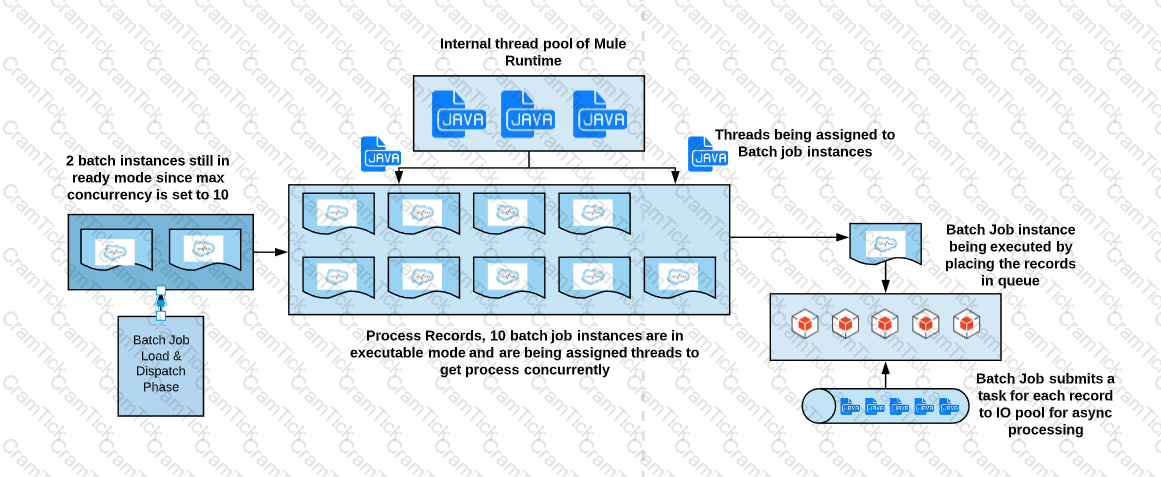

Correct answer is Batch-triggered ETL Within a Mule application, batch processing provides a construct for asynchronously processing larger-than-memory data sets that are split into individual records. Batch jobs allow for the description of a reliable process that automatically splits up source data and stores it into persistent queues, which makes it possible to process large data sets while providing reliability. In the event that the application is redeployed or Mule crashes, the job execution is able to resume at the point it stopped.

Customer Relationship Management (CRM) systems are designed to manage a company’s interactions with current and potential customers. They provide capabilities for tracking prospect data, managing customer interactions, and analyzing customer information to improve cross-selling opportunities. By using a CRM system, organizations can consolidate customer information, enhance customer relationships, and leverage data analytics to drive sales and marketing efforts.

References:

• What is CRM?
• Benefits of CRM Systems

• Digital Transformation Goals:
• CloudHub Runtimes:
• Suitability for Digital Transformation:

References:

• MuleSoft Documentation on CloudHub: CloudHub
• MuleSoft Digital Transformation Insights: MuleSoft Digital Transformation

Explanation

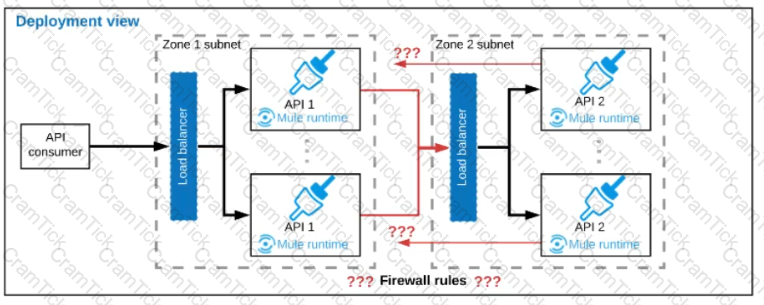

* If your API implementation involves putting a load balancer in front of your APIkit application, configure the load balancer to redirect URLs that reference the baseUri of the application directly. If the load balancer does not redirect URLs, any calls that reach the load balancer looking for the application do not reach their destination.

* When you receive incoming traffic through the load balancer, the responses will go out the same way. However, traffic that is originating from your instance will not pass through the load balancer. Instead, it is sent directly from the public IP address of your instance out to the Internet. The ELB is not involved in that scenario.

* The question says “each API is deployed to multiple redundant Mule runtimes”, that seems to be a hint for self hosted Mule runtime cluster. Set Inbound allowed for the LB, outbound allowed for runtime to request out.

* Hence correct way is to enable communication from each API’s Mule Runtimes and Network zone to the load balancer of the other API. Because communication is asynchronous one

Explanation

3xx HTTP status codes indicate a redirection that the user agent (a web browser or a crawler) needs to take further action when trying to access a particular resource.

A core pillar of the MuleSoft Catalyst delivery approach is focusing on business outcomes. This approach ensures that the integration and API strategies are aligned with the organization’s overall business objectives. By emphasizing business outcomes, MuleSoft Catalyst helps organizations realize measurable benefits such as increased efficiency, faster time to market, and improved customer experiences. This outcome-driven methodology ensures that IT initiatives deliver tangible value to the business.

References:

• MuleSoft Catalyst: Methodology Overview
• Business Outcomes with MuleSof

Explanation

* Object Store and VM Store is used for sharing data inter or intra mule applications in same setup. Can't be used with external Business Partner

* Also File connector will not be useful as the two companies currently have no shared IT infrastructure. It's specific for local use.

* Correct answer is SFTP connector. The SFTP Connector implements a secure file transport channel so that your Mule application can exchange files with external resources. SFTP uses the SSH security protocol to transfer messages. You can implement the SFTP endpoint as an inbound endpoint with a one-way exchange pattern, or as an outbound endpoint configured for either a one-way or request-response exchange pattern.

MuleSoft's IT delivery and operating model suggests adopting an approach that decouples core IT projects from the innovation within each line of business. This approach, often referred to as API-led connectivity, allows different lines of business to innovate and deliver projects independently by using reusable APIs that provide access to core systems and data. This decoupling enhances agility, speeds up delivery, and ensures that core IT maintains control over critical systems and data while enabling rapid innovation.

References:

• API-led Connectivity: Build Your Digital Platform for Change
• MuleSoft's API-led Connectivity Approach

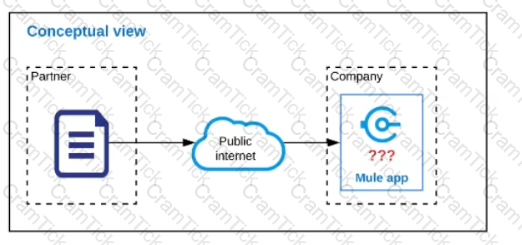

To securely consume compressed and digitally signed files from a partner's FTPS server, the following inputs are required:

• PGP Public Key of the Partner:
• PGP Private Key for the Company:
• FTP Username and Password:

By using these inputs, the Mule application can securely connect to the FTPS server, verify the integrity and authenticity of the files using PGP, and decrypt the contents for further processing.

References

• MuleSoft FTPS Connector
• MuleSoft PGP Module

For an organization migrating its Mule applications and load balancer to CloudHub while preserving its public URL, the most straightforward and cost-effective approach involves leveraging CloudHub's shared load balancer (SLB). Here’s how to do it:

• Deploying Mule Applications to CloudHub:
• DNS Configuration:
• Configuring Shared Load Balancer (SLB):
• Steps to Apply Mapping Rules:
• Benefits of Using SLB:

References:

• MuleSoft Documentation on CloudHub Deployment
• MuleSoft Documentation on Shared Load Balancer

By following these steps, the organization can effectively migrate its applications to CloudHub, ensuring minimal disruption and preserving the existing public URL structure.

Explanation

High availability is about up-time of your application

A) High availability can be achieved only in CloudHub isn't correct statement. It can be achieved in customer hosted runtime planes as well

B) An object store is a facility for storing objects in or across Mule applications. Mule runtime engine (Mule) uses object stores to persist data for eventual retrieval. It can be used for disaster recovery but not for High Availability. Using object store can't guarantee that all instances won't go down at once. So not an appropriate choice.

Explanation

Correct answer is Depending on the Listener operation configuration, either all messages are consumed by ONLY the primary cluster node or else EACH message is consumed by ANY ONE cluster node

For applications running in clusters, you have to keep in mind the concept of primary node and how the connector will behave. When running in a cluster, the JMS listener default behavior will be to receive messages only in the primary node, no matter what kind of destination you are consuming from. In case of consuming messages from a Queue, you’ll want to change this configuration to receive messages in all the nodes of the cluster, not just the primary.

This can be done with the primaryNodeOnly parameter:

Explanation

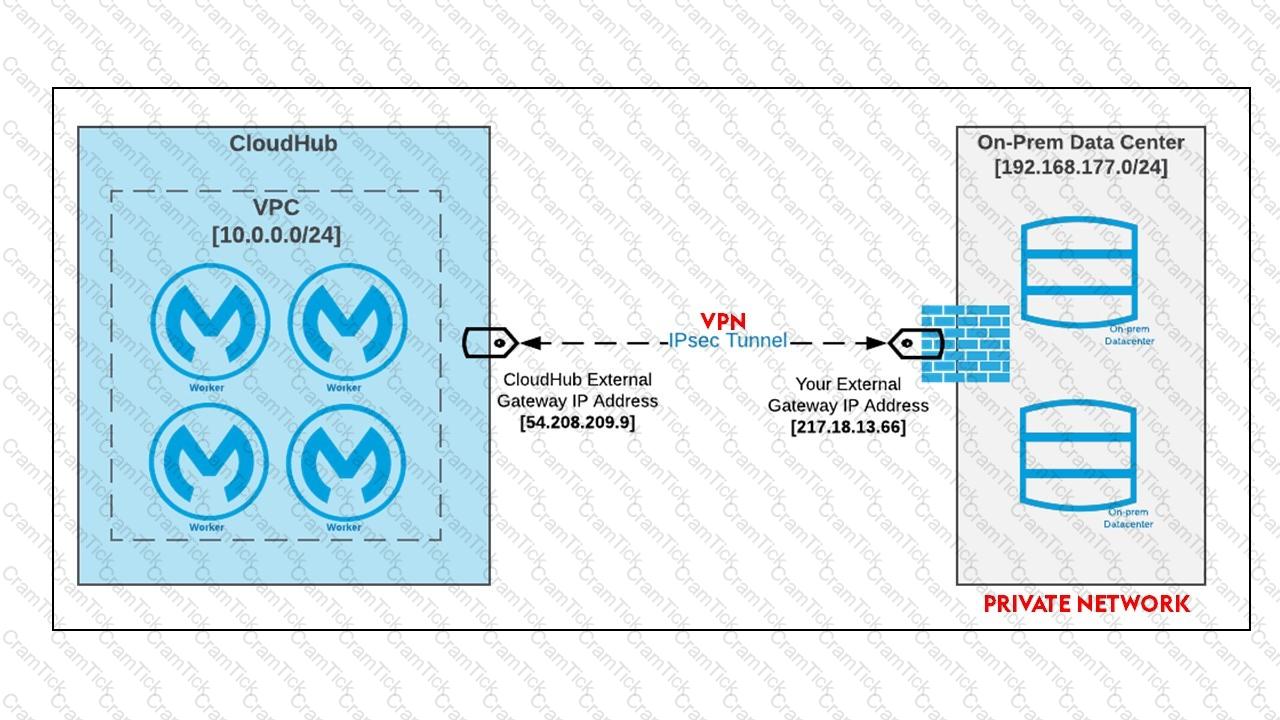

Correct answer is: Add a Mulesoft hosted Anypoint VPC configured and with VPC Peering to the AWS VPC * Connecting to your Anypoint VPC extends your corporate network and allows CloudHub workers to access resources behind your corporate firewall.

* You can connect on-premises data centers through a secured VPN tunnel, or a private AWS VPC through VPC peering, or by using AWS Direct Connect.

MuleSoft Doc Reference : https://docs.mulesoft.com/runtime-manager/virtual-private-cloud

Explanation

Correct answer is Untill Successful scope can be implemented while calling backend API's The Until Successful scope repeatedly triggers the scope's components (including flow references) until they all succeed or until a maximum number of retries is exceeded The scope provides option to control the max number of retries and the interval between retries The scope can execute any sequence of processors that may fail for whatever reason and may succeed upon retry

When migrating from an on-premises cluster to a Runtime Fabric (RTF) cluster, and needing to enable Mule applications to store and share data across application replicas and restarts, the use of Anypoint Object Store V2 is the most suitable option. Here’s why and how to implement it:

• Understanding Object Store V2:
• Setting Up Anypoint Object Store V2:
• Configuration Steps:

xml

• uk.co.certification.simulator.questionpool.PList@18be5ce0

xml

• Deploying on RTF:
• Benefits:

References:

• MuleSoft Documentation on Object Store V2
• MuleSoft Documentation on Runtime Fabric

Explanation

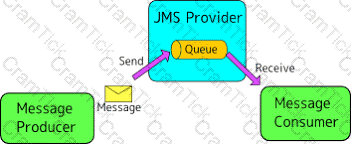

* To send message or receive JMS (Java Message Service) message no separate network connection need to be established. So option A, C and D are ruled out.

Correct Answer: The JMS connector supports both sending and receiving of JMS messages over the protocol determined by the JMS provider.

* JMS Connector enables sending and receiving messages to queues and topics for any message service that implements the JMS specification.

* JMS is a widely used API for message-oriented middleware.

* It enables the communication between different components of a distributed application to be loosely coupled, reliable, and asynchronous.

MuleSoft Doc Reference: https://docs.mulesoft.com/jms-connector/1.7/

Diagram, text Description automatically generated

According to MuleSoft's IT delivery and operating model, one effective approach to reduce the frequency of IT project delivery failures is to decouple central IT projects from the innovation that happens within each line of business. This approach allows individual business units to innovate and develop solutions tailored to their specific needs while the central IT team focuses on providing core services and governance. By decentralizing innovation, organizations can increase agility, reduce bottlenecks, and foster a more responsive IT environment that can quickly adapt to changing business requirements.

References

• MuleSoft IT Operating Model Guidelines
• Anypoint Platform Documentation on Decoupling IT Projects

Explanation

Correct answer is Application A accesses the persistent object store via the Object Store REST API Application B uses the Object Store connector to access a persistent object * Object Store v2 lets CloudHub applications store data and states across batch processes, Mule components and applications, from within an application or by using the Object Store REST API. * On-premise Mule applications cannot use Object Store v2. * You can select Object Store v2 as the implementation for Mule 3 and Mule 4 in CloudHub by checking the Object Store V2 checkbox in Runtime Manager at deployment time. * CloudHub Mule applications can use Object Store connector to write to the object store * The only way on-premises Mule applications can access Object Store v2 is via the Object Store REST API. * You can configure a Mule app to use the Object Store REST API to store and retrieve values from an object store in another Mule app.

Explanation

By default, CloudHub replaces a Mule application's log4j2.xml file with a CloudHub log4j2.xml file. In CloudHub, you can disable the CloudHub provided Mule application log4j2 file. This allows integrating Mule application logs with custom or third-party log management systems

To address the reliability and scalability issues faced by the insurance provider, adding a load balancer and configuring additional servers in a cluster configuration is the optimal solution. Here's why:

• Load Balancing: Implementing a load balancer will help distribute incoming API requests evenly across multiple servers. This prevents any single server from becoming a bottleneck, thereby improving the overall performance and reliability of the system.
• Cluster Configuration: By setting up a cluster configuration, you ensure that multiple servers work together as a single unit. This provides several benefits:
• Maintenance: With a cluster configuration, servers can be taken offline for maintenance one at a time without affecting the overall availability of the applications, as the load balancer can redirect traffic to the remaining servers.
• VM Queues and Object Stores: In a clustered environment, the use of VM queues and object stores can be more efficiently managed as these resources are distributed across multiple servers, reducing the risk of contention and improving throughput.

References:

• MuleSoft Documentation on Clustering: https://docs.mulesoft.com/mule-runtime/4.3/clustering
• Best Practices for Scaling Mule Applications: https://blogs.mulesoft.com/dev/mule-dev/mule-4-scaling-applications/

SOAP API specifications are provided as WSDL. Design center doesn't provide the functionality to create WSDL file. Hence WSDL needs to be created using XML editor

Explanation

Correct answer is Federated Identity Management As the Anypoint Platform organization administrator, you can configure identity management in Anypoint Platform to set up users for single sign-on (SSO). Configure identity management using one of the following single sign-on standards: OpenID Connect: End user identity verification by an authorization server including SSO SAML 2.0: Web-based authorization including cross-domain SSO Where as Client Management is where Anypoint Platform acts as a client provider by default, but you can also configure external client providers to authorize client applications. As an API owner, you can apply an OAuth 2.0 policy to authorize client applications that try to access your API. You need an OAuth 2.0 provider to use an OAuth 2.0 policy

Before API developers implement the API specification, it is crucial for the API designer to publish the API specification to Anypoint Exchange and solicit feedback from the API's consumers. This step aligns with MuleSoft's recommended approach to full lifecycle API development, which emphasizes collaboration and feedback to ensure the API meets the needs and expectations of its consumers.

Generating test cases, creating an API portal, and versioning the API specification are important steps in the development lifecycle, but soliciting feedback ensures that any potential issues or improvements are identified early in the process. This collaborative approach helps in building a more effective and consumer-friendly API.

References

• MuleSoft API Design Best Practices
• Anypoint Platform Documentation on API Development Lifecycle

Explanation

* "The existence of a public Anypoint Exchange portal to which the asset has been published" - question does not mention anything about the public portal. Beside the public portal is open to the internet, to anyone. * If you cannot find an asset in the current business group scopes, search in other scopes. In the left navigation bar click All assets (assets provided by MuleSoft and your own master organization), Provided by MuleSoft, or a business group scope. User belonging to one Business Group can see assets related to his group only Reference: https://docs.mulesoft.com/exchange/to-find-info https://docs.mulesoft.com/exchange/asset-details Correct answer is The business groups to which the user belongs

Explanation

Mule 4 is built to:

•Minimize the need for custom code.

•Avoid the need for you to know or understand Java.

However, some advanced uses cases require integration with custom Java code, such as:

•Reuse of a library, such as a tax calculation library.

•Reuse of a canonical object model that is standard in the organization.

•Execution of custom logic using Java.

Mule ref doc : https://docs.mulesoft.com/java-module/1.2/

When processing files synchronously from an FTPS server to a back-end database using VM intermediary queues for load balancing VM events on CloudHub, reliability is critical. CloudHub persistent queues should be used for FTPS file processing to ensure that no data is lost in case of worker failure or restarts. These queues provide durability and reliability since they store messages persistently.

For the batch job scope, it is not necessary to configure additional VM queues. By default, batch jobs on CloudHub use the worker's disk for VM queueing, which is reliable for handling medium-rate records processing from a source to a target system. This approach ensures that both FTPS file processing and batch job processing meet reliability requirements without additional configuration for batch job scope.

References

• MuleSoft Documentation on CloudHub and VM Queues
• Anypoint Platform Best Practices

A MuleSoft developer should use API Designer to create an API specification prior to building the API implementation. API Designer is a component of Anypoint Platform that provides a web-based interface for designing and documenting APIs. It supports API modeling languages such as RAML and OAS, enabling developers to define the structure, resources, and operations of an API before proceeding with implementation. This approach aligns with the design-first methodology, ensuring a well-defined contract for the API.

References:

• Anypoint API Designer
• API Design Best Practices

Explanation

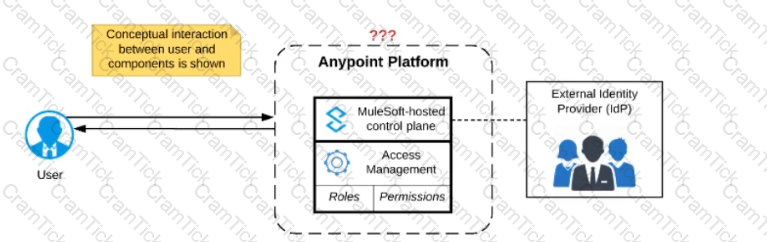

* By default, Anypoint Platform performs its own user management

– For user management, one external IdP can be integrated with the Anypoint Platform organization (note: not at business group level)

– Permissions and access control are still enforced inside Anypoint Platform and CANNOT be controlled via the external Identity Provider * As the Anypoint Platform organization administrator, you can configure identity management in Anypoint Platform to set up users for single sign-on (SSO). * You can map users in a federated organization’s group to a role which also gives the flexibility of controlling the business group within Anypoint Platform to which the user belongs to. Also user can nbe removed from external identity management system when they no longer work for the organization. So they wont be able to authenticate using SSO to login to Anypoint Platform. * Using external identity we can no change permissions of a particular role in Mulesoft Anypoint platform.

* So Correct answer is Assigning Anypoint Platform permissions to a role

When a batch job instance running on a runtime fabric environment with two cluster replicas encounters an unexpected failure, the following sequence of events occurs:

• Failure Detection: The runtime fabric environment detects the failure of the replica running the batch job.
• Replica Replacement: A new replica is provisioned to replace the failed one.
• Batch Job State Recovery: MuleSoft’s batch processing mechanism ensures that the state of the batch job is periodically saved (checkpointing). This allows the new replica to resume processing from the last saved state.
• Resumption of Processing: The new replica takes over the batch job, continuing from where the previous one left off, thus processing the remaining 99,000 records without starting from scratch or causing duplicate processing.

References:

• MuleSoft Documentation on Batch Processing
• Runtime Fabric Guide

=======================

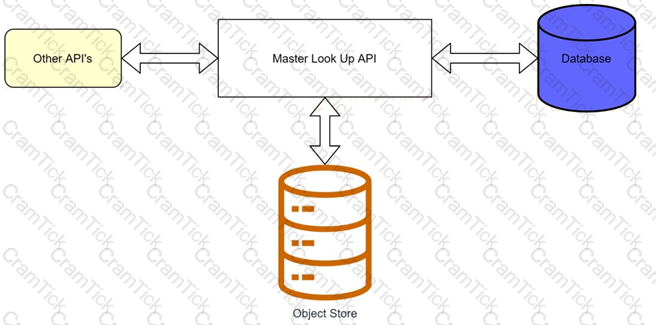

A. Implement HTTP caching policy for all GET endpoints for the master lookup API and implement locking to synchronize access to object store

Comprehensive Detailed Step by Step ExplanationTo resolve the performance issue observed during the performance testing of the Master lookup API, the best approach involves caching and synchronization:

• HTTP Caching Policy:
• Object Store Locking:

By implementing these two strategies, the response time of the Master lookup API will be significantly improved, and the performance issue will be resolved.

References

• MuleSoft HTTP Caching Policy
• MuleSoft Object Store Connector

* "100% increase in the throughput of the API" might look correct, as the number of requests processed per second might increase, but is it guaranteed to increase by 100%? Using 4 nodes will definitely increase throughput of system. But it is cant be precisely said if there would be 100% increase in throughput as it depends on many other factors. Also it is nowhere mentioned in the description that all nodes have same CPU/memory assigned. The question is about the guaranteed behavior * Increasing number of nodes will have no impact on response time as we are scaling application horizontally and not vertically. Similarly there is no change in JVM heap memory usage. * So Correct answer is 50% reduction in the number of requests being received by each node This is because of the two reasons. 1) API is mentioned as stateless 2) Load Balancer is used

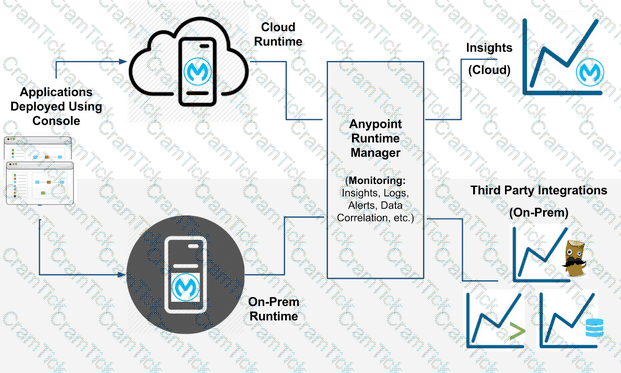

To monitor Mule applications deployed on customer-hosted Mule runtimes from Anypoint Platform, you need to enable monitoring for each application within the Runtime Manager's application settings. This step ensures that the Runtime Manager Agent, which is already part of the Mule runtime, will collect and send monitoring data to Anypoint Monitoring.

The Runtime Manager Agent acts as the intermediary, collecting metrics and operational data from the Mule applications and transmitting this data to Anypoint Monitoring for analysis and visualization. This setup provides real-time insights and allows for effective monitoring and management of Mule applications.

References:

• MuleSoft Documentation on Anypoint Monitoring

According to MuleSoft's surveys of global IT leaders, a common cause of IT project failure is a lack of alignment around business outcomes. When IT projects do not have clear business objectives or fail to align with the strategic goals of the organization, they are more likely to face challenges and fail to deliver value. Ensuring that IT initiatives are closely tied to business goals and have stakeholder buy-in is crucial for their success.

References:

• Why IT Projects Fail
• Aligning IT and Business Strategies

• Parallel Execution:
• Transaction Management:
• Error Handling and Rollback:

References:

• MuleSoft Documentation on Scatter-Gather
• Transaction management in MuleSoft

=========================

To track the entire lifecycle of each request across different microservices, the DevOps team should consider adopting tracing. Distributed tracing allows teams to follow a request as it travels through the various microservices, providing visibility into how long each part of the request lifecycle takes and where any bottlenecks or failures occur. Tools like Zipkin, Jaeger, and AWS X-Ray are commonly used for this purpose. Tracing complements metrics and logging by providing detailed insights into the interactions and dependencies between services.

References:

• Distributed Tracing in Microservices
• What is Distributed Tracing?

Explanation

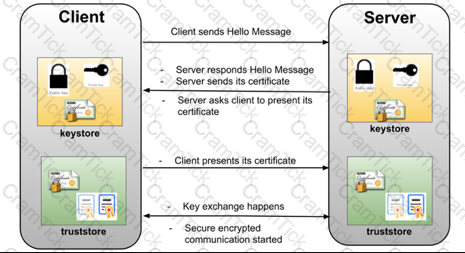

* An X.509 certificate is a vital safeguard against malicious network impersonators. Without x.509 server authentication, man-in-the-middle attacks can be initiated by malicious access points, compromised routers, etc.

* X.509 is most used for SSL/TLS connections to ensure that the client (e.g., a web browser) is not fooled by a malicious impersonator pretending to be a known, trustworthy website.

* Coming to the question , we can not use SLB here as SLB does not allow to define vanity domain names. * Hence we need to use DLB and add certificate in there

---------------------------------------------------------------------------------------------------------------------

Hence correct answer is Add the X 509 certificate to the cloudhub Dedicated Load Balancer (DLB), not the Mule application. Create the CNAME for api.acme.com pointing to the DLB’s record

Explanation

Explanation

* It's mentioned that the API is governed by a Client ID Enforcement policy in all environments.

* Client ID Enforcement policy allows only authorized applications to access the deployed API implementation.

* Each authorized application is configured with credentials: client_id and client_secret.

* At runtime, authorized applications provide the credentials with each request to the API implementation.

MuleSoft Reference: https://docs.mulesoft.com/api-manager/2.x/polic y-mule3-client-id-based-policies

Explanation

* Shared load balancers don’t allow you to configure custom SSL certificates or proxy rules

* Dedicated Load Balancer are optional but you need to purchase them additionally if needed.

* TLS is a cryptographic protocol that provides communications security for your Mule app. TLS offers many different ways of exchanging keys for authentication, encrypting data, and guaranteeing message integrity.

* The CloudHub Shared Load Balancer terminates TLS connections and uses its own server-side certificate.

* Only a DLB allows the configuration of a custom TLS server certificate

* DLB enables you to define SSL configurations to provide custom certificates and optionally enforce two-way SSL client authentication.

* To use a DLB in your environment, you must first create an Anypoint VPC. Because you can associate multiple environments with the same Anypoint VPC, you can use the same dedicated load balancer for your different environments.

* MuleSoft Reference: https://docs.mulesoft.com/runtime-manager/dedicated-load-balancer-tutorial

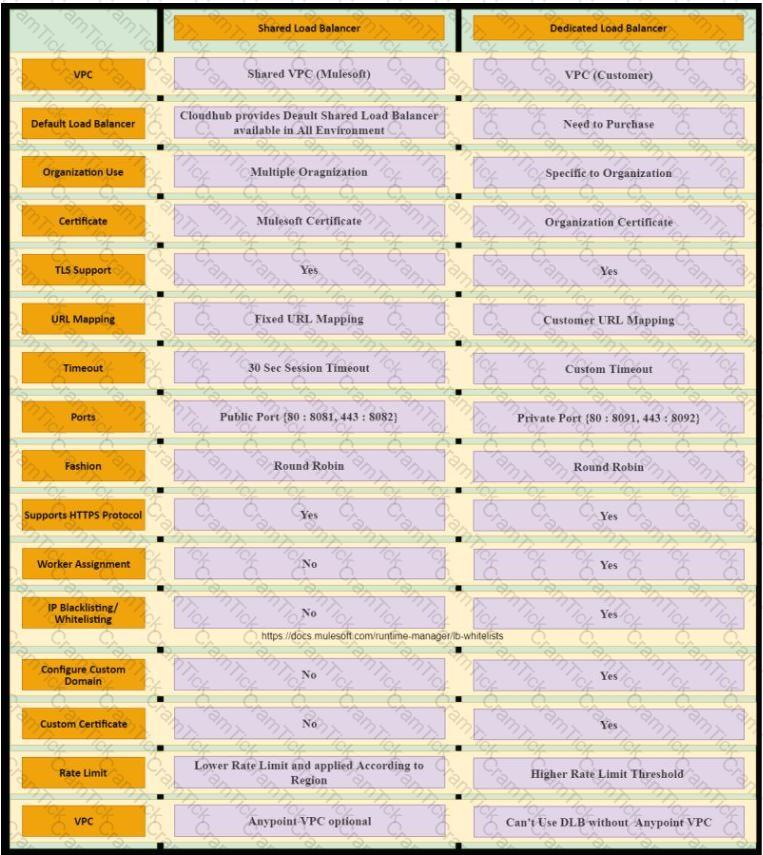

Additional Info on SLB Vs DLB:

Table Description automatically generated

Explanation

* As per definition of API by Mulesoft , it is Application Programming Interface using HTTP-based protocols. Non-HTTP-based programmatic interfaces are not APIs.

* HTTP-based programmatic interfaces are APIs even if they don’t use REST or JSON. Hence implementation based on Java RMI, CORBA/IIOP, raw TCP/IP interfaces are not API's as they are not using HTTP.

* One more thing to note is FTP was not built to be secure. It is generally considered to be an insecure protocol because it relies on clear-text usernames and passwords for authentication and does not use encryption.

* Data sent via FTP is vulnerable to sniffing, spoofing, and brute force attacks, among other basic attack methods.

Considering the above points only correct option is

-XML over ActiveMQ

- XML over SFTP

- XML/REST over HTTPS

To improve delivery quality, a MuleSoft integration team should adopt automated testing with MUnit. MUnit is MuleSoft's testing framework that allows developers to create, design, and run unit and integration tests on their Mule applications. Automated testing with MUnit ensures that each part of the Mule application is tested for correctness and performance, catching issues early in the development cycle. This practice leads to higher quality code, reduced defects, and more reliable integrations.

Other practices mentioned, such as continuous design with API Designer and passive monitoring with Anypoint Monitoring, are important but do not directly address the need for rigorous and automated testing to ensure quality.

References

• MuleSoft Documentation on MUnit
• Best Practices for Automated Testing with MUnit

According to MuleSoft, the term "interface" describes the method, format, and protocol used for communication between two systems. An interface defines how systems interact, specifying the data formats (e.g., JSON, XML), protocols (e.g., HTTP, FTP), and methods (e.g., GET, POST) that are used to exchange information. Properly designed interfaces ensure compatibility and seamless communication between integrated systems.

References:

• MuleSoft Glossary of Integration Terms
• System Interfaces and APIs

Explanation

● Option A says "Perform EACH DB insert in a SEPARATE DB transaction". In this case if first DB insert is successful and second one fails then first insert won't be rolled back causing inconsistency. This option is ruled out.

● Option D says Perform BOTH DB inserts in ONE DB transaction.

Rule of thumb is when one or more DB connections are required we must use XA transaction as local transactions support only one resource. So this option is also ruled out.

● Option B acknowledges the before DB processing, so message is removed from the queue. In case of system failure at later point, message can't be retrieved.

● Option C is Valid: Though it says "do not ack JMS message", message will be auto acknowledged at the end of transaction. Here is how we can ensure all components are part of XA transaction: https://docs.mulesoft.com/jms-connector/1.7/jms-transactions

Additional Information about transactions:

● XA Transactions - You can use an XA transaction to group together a series of operations from multiple transactional resources, such as JMS, VM or JDBC resources, into a single, very reliable, global transaction.

● The XA (eXtended Architecture) standard is an X/Open group standard which specifies the interface between a global transaction manager and local transactional resource managers.

The XA protocol defines a 2-phase commit protocol which can be used to more reliably coordinate and sequence a series of "all or nothing" operations across multiple servers, even servers of different types

● Use JMS ack if

– Acknowledgment should occur eventually, perhaps asynchronously

– The performance of the message receipt is paramount

– The message processing is idempotent

– For the choreography portion of the SAGA pattern

● Use JMS transactions

– For all other times in the integration you want to perform an atomic unit of work

– When the unit of work comprises more than the receipt of a single message

– To simply and unify the programming model (begin/commit/rollback)

Explanation

* Any change in the application will require a restart except when the issue outside the app. For below situations , you would need to redeploy the code after doing necessary changes

-- One of the stored procedures being called by the Mule application has been renamed. In this case, in the Mule application you will have to do changes to accommodate the new stored procedure name.

-- Required redesign of Mule applications to follow microservice architecture principles. As code is changed, deployment is must

-- If the credentials changed and you need to update the connector or the properties.

-- The credentials for accessing the database have been updated and the previous credentials are no longer valid. In this situation you need to restart or redeploy depending on how credentials are configured in Mule application.

* So Correct answer is The database server was unavailable for four hours due to a major outage but is now fully operational again as this is the only external issue to application.

Explanation

1 way SSL : The server presents its certificate to the client and the client adds it to its list of trusted certificate. And so, the client can talk to the server.

2-way SSL:  The same principle but both ways. i.e. both the client and the server has to establish trust between themselves using a trusted certificate. In this way of a digital handshake, the server needs to present a certificate to authenticate itself to client and client has to present its certificate to server.

* TLS is a cryptographic protocol that provides communications security for your Mule app.

* TLS offers many different ways of exchanging keys for authentication, encrypting data, and guaranteeing message integrity Keystores and Truststores Truststore and keystore contents differ depending on whether they are used for clients or servers:

For servers: the truststore contains certificates of the trusted clients, the keystore contains the private and public key of the server. For clients: the truststore contains certificates of the trusted servers, the keystore contains the private and public key of the client.

Adding both a keystore and a truststore to the configuration implements two-way TLS authentication also known as mutual authentication.

* in this case, correct answer is Support for TLS mutual (two-way) authentication with HTTP clients.

Explanation

Correct answer is Consistency as XA transactions are implemented to achieve this. XA transactions are added in the implementation to achieve goal of ACID properties. In the context of transaction processing, the acronym ACID refers to the four key properties of a transaction: atomicity, consistency, isolation, and durability. Atomicity : All changes to data are performed as if they are a single operation. That is, all the changes are performed, or none of them are. For example, in an application that transfers funds from one account to another, the atomicity property ensures that, if a debit is made successfully from one account, the corresponding credit is made to the other account. Consistency : Data is in a consistent state when a transaction starts and when it ends.For example, in an application that transfers funds from one account to another, the consistency property ensures that the total value of funds in both the accounts is the same at the start and end of each transaction. Isolation : The intermediate state of a transaction is invisible to other transactions. As a result, transactions that run concurrently appear to be serialized. For example, in an application that transfers funds from one account to another, the isolation property ensures that another transaction sees the transferred funds in one account or the other, but not in both, nor in neither. Durability : After a transaction successfully completes, changes to data persist and are not undone, even in the event of a system failure. For example, in an application that transfers funds from one account to another, the durability property ensures that the changes made to each account will not be reversed. MuleSoft reference: https://docs.mulesoft.com/mule-runtime/4.3/xa-transactions

According to MuleSoft’s recommended REST conventions, the HTTP method GET should be used to specify how API clients can request data from a specified resource. The GET method is designed to retrieve data from a server at the specified resource. It is one of the most common HTTP methods used in RESTful APIs, ensuring that data retrieval is performed without any side effects on the server or resource.

References:

• MuleSoft REST API Design Best Practices
• HTTP Methods in RESTful Services

After completing the build and test activities for a Mule application that implements a System API, the team should use Runtime Manager to both deploy and monitor the System API implementation. Runtime Manager is a component of Anypoint Platform that provides capabilities for deploying, managing, and monitoring Mule applications and APIs. It allows teams to manage applications and APIs across various environments, ensuring they operate correctly and efficiently.

References:

• Anypoint Runtime Manager
• Deploying and Managing Applications with Runtime Manager

Explanation

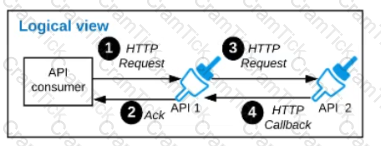

The API consumer creates an API client which sends API invocations to an API such that they are processed by an API implementation

This is based on below definitions API client • An application component • that accesses a service • by invoking an API of that service - by definition of the term API over HTTP API consumer • A business role, which is often assigned to an individual • that develops API clients, i.e., performs the activities necessary for enabling an API client to invoke APIs API implementation • An application component • that implements the functionality

• Timeout Attribute:
• Transaction Management:
• Implications of Timeout:

References:

• MuleSoft Documentation on JMS Connector
• Understanding XA Transactions

Explanation

Every Mule application deployed to CloudHub receives a DNS entry pointing to the CloudHub. The DNS entry is a CNAME for the CloudHub Shared Load Balancer in the region to which the Mule application is deployed. When we deploy the application on CloudHub, we get a generic url to access the endpoints. Generic URL looks as below:

..cloudhub.io is the deployed application name which is unique across all the MuleSoft clients. is the region name in which an application is deployed.

The public CloudHub (shared) load balancer already redirects these requests, where myApp is the name of the Mule application deployment to CloudHub: HTTP requests to http://myApp. .cloudhub.io redirects to

http://mule-worker-myApp. .cloudhub.io:8081

HTTPS traffic to https://myApp. .cloudhub.io redirects to

https://mule-worker-myApp. .cloudhub.io:8082

* Each Batch Job uses SEVERAL THREADS for the Batch Steps

* Each Batch Step instance receives ONE record at a time as the payload. It's not received in a block, as it does not wait for multiple records to be completed before moving to next batch step. (So Option D is out of choice)

* RECORDS are processed IN PARALLEL within and between the two Batch Steps.

* RECORDS are not processed in order. Let's say if second record completes batch_step_1 before record 1, then it moves to batch_step_2 before record 1. (So option C and D are out of choice)

* A batch job is the scope element in an application in which Mule processes a message payload as a batch of records. The term batch job is inclusive of all three phases of processing: Load and Dispatch, Process, and On Complete.

* A batch job instance is an occurrence in a Mule application whenever a Mule flow executes a batch job. Mule creates the batch job instance in the Load and Dispatch phase. Every batch job instance is identified internally using a unique String known as batch job instance id.

Explanation

Correct answer is Workers are randomly distributed across available AZs within that region. This ensure high availability for deployed mule applications Mulesoft documentation reference :

https://docs.mulesoft.com/runtime-manager/cloudhub-hadr

To automate the API lifecycle in a CI/CD pipeline efficiently, leveraging Anypoint Platform's capabilities is crucial. Anypoint CLI (Command Line Interface) and Anypoint Platform REST APIs provide robust tools for managing various aspects of the API lifecycle, such as publishing, sharing, discovering, registering, applying policies, and deploying APIs. By using these tools with a scripting language like Groovy, you can script and automate these tasks to reduce manual intervention, ensuring consistency and efficiency.

Anypoint CLI allows you to interact with the Anypoint Platform from the command line, enabling automated deployments, management of APIs, and configuration of policies. The Anypoint Platform REST APIs provide comprehensive programmatic access to the platform’s functionalities, allowing for seamless integration into CI/CD pipelines. By combining these with a scripting language, you can create scripts that automate repetitive tasks, streamline processes, and ensure that your API lifecycle management is both efficient and reliable.

References:

• MuleSoft Documentation on Anypoint CLI
• MuleSoft Documentation on Anypoint Platform REST APIs

The Salesforce API used to deploy, retrieve, create, update, or delete customization information, such as custom object definitions, using Mule Salesforce Connectors in a Mule application, is the Metadata API. The Metadata API enables programmatic access to the metadata of Salesforce organizations, allowing developers to manage customizations and configurations programmatically.

Using the Metadata API, Mule applications can automate the deployment and management of Salesforce customizations, facilitating continuous integration and deployment processes within Salesforce environments.

References

• MuleSoft Documentation on Salesforce Connectors
• Salesforce Metadata API Developer Guide

MuleSoft's API development best practices emphasize a design-first approach, which starts with writing and approving an API contract before any implementation begins. This approach ensures that the API's interface is agreed upon and understood by all stakeholders before the backend is built. It involves creating an API specification using tools like RAML or OpenAPI, which serves as a blueprint for development. This method promotes better planning, communication, and alignment between different teams and stakeholders, leading to more efficient and predictable API development processes.

References:

• API Design Best Practices
• MuleSoft's Approach to API Development

Anypoint MQ is a cloud-based messaging service provided by MuleSoft, and it cannot be deployed on-premises. If there is a requirement for the messaging broker to be deployed on-premises, Anypoint MQ would not be suitable. Other considerations such as payload format (XML), encryption, and point-to-point messaging are supported by Anypoint MQ, but the deployment environment requirement is a critical constraint.

References

• MuleSoft Anypoint MQ Documentation
• Cloud vs. On-Premises Messaging Solutions

• Mule Tracing Module and MDC:
• Set Logging Variable Operations:
• Configuring log4j2.xml:
• Improving Throughput and Lowering Latency:

References:

• MuleSoft Documentation on Mule Tracing: Mule Tracing Module
• Log4j2 Documentation on MDC: Log4j2 MDC

During the API implementation phase, the integration team should use the API specification to build the MuleSoft application. This involves leveraging the defined API contract to guide the development of the API’s actual implementation. By adhering to the specification, developers ensure that the API meets the agreed-upon requirements and behaviors. This phase includes coding, integrating with backend systems, and ensuring that the implementation aligns with the design and functional requirements outlined in the API specification.

References:

• API-led Connectivity Best Practices
• API Lifecycle Management

Explanation

An SLA for the upstream API CANNOT be provided.

To meet the reliability requirements for Mule applications deployed to a Runtime Fabric (RTF) cluster, where data needs to be shared across application replicas and persist through restarts, the best approach is to use Anypoint Object Store v2. This service is designed to provide persistent storage that can be shared among different application instances and across restarts. Steps include:

• Configure Object Store v2: Set up Anypoint Object Store v2 in the Mule application to handle data storage needs.
• Persistent Data Handling: Ensure that the configuration allows data to be shared and persist, meeting the requirements for reliability and consistency.

This solution leverages MuleSoft's cloud-based storage service optimized for these use cases, ensuring data integrity and availability.

References

• MuleSoft Documentation on Object Store v2
• Configuring Persistent Data Storage in MuleSoft

Explanation

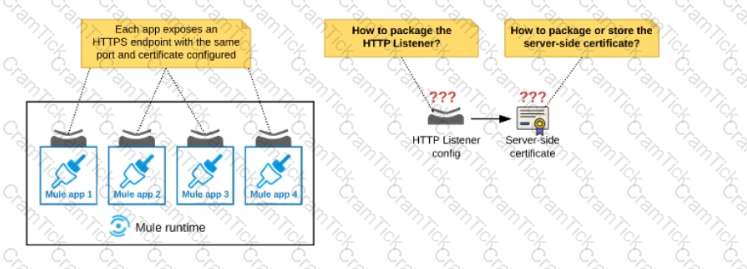

In this scenario, both A & C will work, but A is better as it does not require repackage to the domain project at all.

Correct answer is Package the HTTPS Listener configuration in a Mule DOMAIN project, referencing it from all Mule applications that need to expose an HTTPS endpoint. Store the server-side certificate in a shared filesystem location in the Mule runtime’s classpath, OUTSIDE the Mule DOMAIN or any Mule APPLICATION.

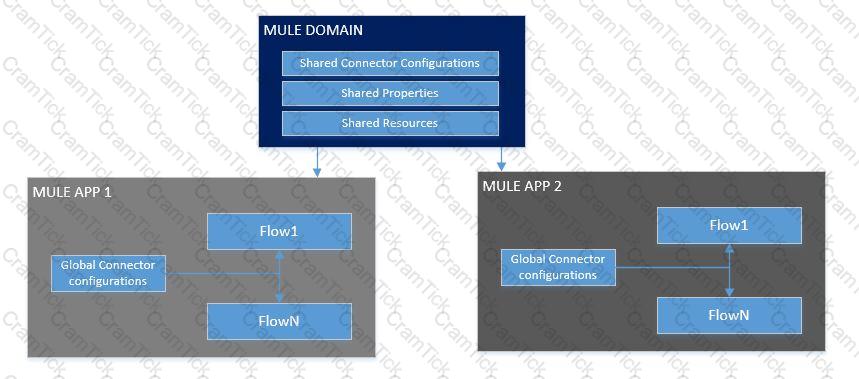

What is Mule Domain Project?

* A Mule Domain Project is implemented to configure the resources that are shared among different projects. These resources can be used by all the projects associated with this domain. Mule applications can be associated with only one domain, but a domain can be associated with multiple projects. Shared resources allow multiple development teams to work in parallel using the same set of reusable connectors. Defining these connectors as shared resources at the domain level allows the team to: - Expose multiple services within the domain through the same port. - Share the connection to persistent storage. - Share services between apps through a well-defined interface. - Ensure consistency between apps upon any changes because the configuration is only set in one place.

* Use domains Project to share the same host and port among multiple projects. You can declare the http connector within a domain project and associate the domain project with other projects. Doing this also allows to control thread settings, keystore configurations, time outs for all the requests made within multiple applications. You may think that one can also achieve this by duplicating the http connector configuration across all the applications. But, doing this may pose a nightmare if you have to make a change and redeploy all the applications.

* If you use connector configuration in the domain and let all the applications use the new domain instead of a default domain, you will maintain only one copy of the http connector configuration. Any changes will require only the domain to the redeployed instead of all the applications.

You can start using domains in only three steps:

1) Create a Mule Domain project

2) Create the global connector configurations which needs to be shared across the applications inside the Mule Domain project

3) Modify the value of domain in mule-deploy.properties file of the applications

Graphical user interface Description automatically generated

Use a certificate defined in already deployed Mule domain Configure the certificate in the domain so that the API proxy HTTPS Listener references it, and then deploy the secure API proxy to the target Runtime Fabric, or on-premises target. (CloudHub is not supported with this approach because it does not support Mule domains.)

Explanation

Security Assertion Markup Language (SAML) is an open standard that allows identity providers (IdP) to pass authorization credentials to service providers (SP).

SAML transactions use Extensible Markup Language (XML) for standardized communications between the identity provider and service providers.

SAML is the link between the authentication of a user’s identity and the authorization to use a service.

WS-Security is the key extension that supports many authentication models including: basic username/password credentials, SAML, OAuth and more.

A common way that SOAP API’s are authenticated is via SAML Single Sign On (SSO). SAML works by facilitating the exchange of authentication and authorization credentials across applications. However, there is no specification that describes how to add SAML to REST web services.

Reference : https://www.oasis-open.org/committees/download.php/16768/wss-v1.1-spec-os-SAMLTokenProfile.pdf

Explanation

* "Relocation of the database systems to a DMZ in the on-premises network, with Mule applications deployed to the CloudHub Shared Worker Cloud connecting only to the DMZ" is not a feasible option

* "Static IP addresses for the Mule applications deployed to the CloudHub Shared Worker Cloud, plus matching firewall rules and IP whitelisting in the on-premises network" - It is risk for sensitive data. - Even if you whitelist the database IP on your app, your app wont be able to connect to the database so this is also not a feasible option

* "An Anypoint VPC with one Dedicated Load Balancer fronting each on-premises database system, plus matching IP whitelisting in the load balancer and firewall rules in the VPC and on-premises network" Adding one VPC with a DLB for each backend system also makes no sense, is way too much work. Why would you add a LB for one system.

* Correct answer: "An Anypoint VPC connected to the on-premises network using an IPsec tunnel or AWS DirectConnect, plus matching firewall rules in the VPC and on-premises network"

IPsec Tunnel You can use an IPsec tunnel with network-to-network configuration to connect your on-premises data centers to your Anypoint VPC. An IPsec VPN tunnel is generally the recommended solution for VPC to on-premises connectivity, as it provides a standardized, secure way to connect. This method also integrates well with existing IT infrastructure such as routers and appliances. Reference: https://docs.mulesoft.com/runtime-manager/vpc-connectivity-methods-concept

Diagram Description automatically generated

For handling millions of requests per day with high performance and reliability, JMS (Java Message Service) transactions are the most suitable method. JMS transactions ensure that messages are processed reliably and can be rolled back in case of failures, providing transactional integrity. This is crucial for a trading company where reliable message processing is critical.

Using JMS transactions within Mule clusters allows for the decoupling of message producers and consumers, improving scalability and fault tolerance. JMS provides built-in mechanisms for handling transactional messaging, ensuring that messages are processed once and only once, even in the event of system failures.

References:

• MuleSoft Documentation on JMS

To close the IT delivery gap, MuleSoft recommends that IT organizations make their technology assets easily discoverable via a central repository. This approach ensures that existing assets, such as APIs, connectors, templates, and other reusable components, are accessible to all teams within the organization. By having a central repository, teams can quickly find and leverage these assets, reducing duplication of effort, speeding up project delivery, and fostering a culture of reuse and collaboration. This strategy aligns with the principles of an API-led connectivity approach, where reusable assets and APIs form the foundation for scalable and efficient IT delivery.

References

• MuleSoft Documentation on API-led Connectivity
• Anypoint Platform Best Practices for Asset Management

Explanation

Correct answer is An HTTP Load Balancer.

Key thing to note here is that we are deploying application to customer hosted Mule runtime. This means we will need load balancer to route the requests to different instances of the cluster.

Rest all options are distractors and their requirement depends on project use case.

Explanation

Correct answer is Anypoint Runtime Manager

MuleSoft Anypoint Runtime Manager (ARM) provides connectivity to Mule Runtime engines deployed across your organization to provide centralized management, monitoring and analytics reporting. However, most enterprise customers find it necessary for these on-premises runtimes to integrate with their existing non MuleSoft analytics / monitoring systems such as Splunk and ELK to support a single pane of glass view across the infrastructure.

* You can configure the Runtime Manager agent to export data to external analytics tools.

Using either the Runtime Manager cloud console or Anypoint Platform Private Cloud Edition, you can:

--> Send Mule event notifications, including flow executions and exceptions, to Splunk or ELK.

--> Send API Analytics to Splunk or ELK. Sending data to third-party tools is not supported for applications deployed on CloudHub.

You can use the CloudHub custom log appender to integrate with your logging system. Reference: https://docs.mulesoft.com/runtime-manager/ https://docs.mulesoft.com/release-notes/runtime-manager-agent/runtime-manager-agent-release-notes

Diagram Description automatically generated

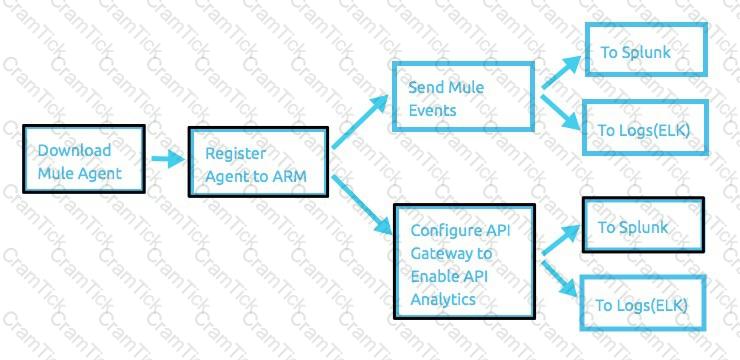

Additional Info:

It can be achieved in 3 steps:

1) register an agent to a runtime manager,

2) configure a gateway to enable API analytics to be sent to non MuleSoft analytics platform (Splunk for ex.) – as highlighted in the following diagram and

3) setup dashboards.

Diagram Description automatically generated

Explanation

Correct answer is When server-side load-balanced TLS mutual authentication is required between API implementations and API clients CloudHub dedicated load balancers (DLBs) are an optional component of Anypoint Platform that enable you to route external HTTP and HTTPS traffic to multiple Mule applications deployed to CloudHub workers in a Virtual Private Cloud (VPC). Dedicated load balancers enable you to: * Handle load balancing among the different CloudHub workers that run your application. * Define SSL configurations to provide custom certificates and optionally enforce two-way SSL client authentication. * Configure proxy rules that map your applications to custom domains. This enables you to host your applications under a single domain

Explanation

* Mule Domain Project is ONLY available for customer-hosted Mule runtimes, but not for Anypoint Runtime Fabric

* Mule domain project is available for Hybrid and Private Cloud (PCE). Rest all provide application isolation and can't support domain project.

What is Mule Domain Project?

* A Mule Domain Project is implemented to configure the resources that are shared among different projects. These resources can be used by all the projects associated with this domain. Mule applications can be associated with only one domain, but a domain can be associated with multiple projects. Shared resources allow multiple development teams to work in parallel using the same set of reusable connectors. Defining these connectors as shared resources at the domain level allows the team to: - Expose multiple services within the domain through the same port. - Share the connection to persistent storage. - Share services between apps through a well-defined interface. - Ensure consistency between apps upon any changes because the configuration is only set in one place.

* Use domains Project to share the same host and port among multiple projects. You can declare the http connector within a domain project and associate the domain project with other projects. Doing this also allows to control thread settings, keystore configurations, time outs for all the requests made within multiple applications. You may think that one can also achieve this by duplicating the http connector configuration across all the applications. But, doing this may pose a nightmare if you have to make a change and redeploy all the applications.

* If you use connector configuration in the domain and let all the applications use the new domain instead of a default domain, you will maintain only one copy of the http connector configuration. Any changes will require only the domain to the redeployed instead of all the applications.

You can start using domains in only three steps:

1) Create a Mule Domain project

2) Create the global connector configurations which needs to be shared across the applications inside the Mule Domain project

3) Modify the value of domain in mule-deploy.properties file of the applications

Graphical user interface Description automatically generated

Explanation

Correct answer is For Each scope in the parent flow On Error Continue error handler in the child flow. You can extract below set of requirements from the question a) Records should be sent to downstream system in the same order that it was received in the array b) Any validation or communication failures should not prevent further processing of the remaining records First requirement can be met using For Each scope in the parent flow and second requirement can be met using On Error Continue scope in child flow so that error will be suppressed.
