JN0-637 Security, Professional (JNCIP-SEC) Questions and Answers

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References

Understanding the Problem:

The goal is to bypass IDP for traffic destined to social media sites using Application-Based Policy Routing (APBR).

Despite the configuration, IDP is still dropping the sessions.

Need to identify two reasons why this is happening.

Key Concepts:

Application-Based Policy Routing (APBR): Allows routing decisions based on the application identified in the traffic.

IDP (Intrusion Detection and Prevention): Monitors network traffic for malicious activity and can drop suspicious packets.

Bypassing IDP: To bypass IDP for certain traffic, specific configurations are required within the APBR rule.

Option A: IDP disable is not configured on the APBR rule.

Explanation:

To bypass IDP for specific traffic using APBR, you must explicitly configure the idp-disable option within the APBR rule.

Without this configuration, even if APBR redirects the traffic, IDP will still inspect and potentially drop the traffic.

In mixed mode, SRX devices can simultaneously handle Layer 2 switching and Layer 3 routing, but a reboot is required when configuring Layer 2 and Layer 3 interfaces to ensure the configuration takes effect. Layer 2 packets are switched within the defined bridge domain. Further guidance on SRX mixed mode can be found at Juniper Mixed Mode Documentation.

When an SRX Series device is configured in mixed mode, both Layer 2 switching and Layer 3 routing functionalities can be used on the same device. This enables the SRX to act as both a router and a switch for different interfaces. However, there are certain considerations:

Explanation of Answer C (Reboot Requirement):

After configuring the SRX to operate with at least one Layer 2 interface and one Layer 3 interface, the device needs to be rebooted. This is required to properly initialize the mixed mode configuration, as the SRX needs to switch between Layer 2 and Layer 3 processing modes.

Explanation of Answer D (Layer 2 Traffic Handling):

In mixed mode, traffic from Layer 2 interfaces is switched within the same bridge domain. A bridge domain defines a Layer 2 broadcast domain, and packets from Layer 2 interfaces are forwarded based on MAC addresses within that domain.

Juniper Security Reference:

Mixed Mode Overview: Juniper SRX devices can operate in mixed mode to handle both Layer 2 and Layer 3 traffic simultaneously. Reference: Juniper Mixed Mode Documentation.

==========

AutoVPN simplifies deployment by dynamically establishing tunnels from spokes to the hub. This architecture supports easy scaling with minimal configuration changes, ensuring spoke-to-spoke traffic flows through the hub. For more information, see Juniper AutoVPN Overview.

In this scenario, you need a VPN solution that ensures secure, dynamic connectivity between multiple sites, with the following conditions:

All sites must have secure reachability.

New spoke sites can be added without explicit configuration on the hub site.

Spoke-to-spoke communication must traverse the hub.

The correct technology to meet these requirements is AutoVPN. It simplifies VPN configurations by automating the setup between hub and spoke sites. Additionally, AutoVPN automatically establishes secure tunnels for new spoke sites without requiring manual configuration at the hub, and all spoke-to-spoke traffic is routed through the hub.

When using security profiles to limit system resources in Juniper logical systems:

No Resource Specification (Answer B): If a resource limit is not specified for a logical system, no specific amount of system resources is reserved for it. Instead, the logical system competes for resources along with others in the system, up to the maximum available. This allows flexible resource allocation, where logical systems can scale based on actual demand rather than predefined limits.

Multiple Logical Systems per Security Profile (Answer D): A single security profile can be applied to multiple logical systems. This allows administrators to define resource limits once in a profile and apply it across several logical systems, simplifying management and ensuring consistency across different environments.

These principles ensure efficient and flexible use of system resources within a multi-tenant or multi-logical-system environment.

==========

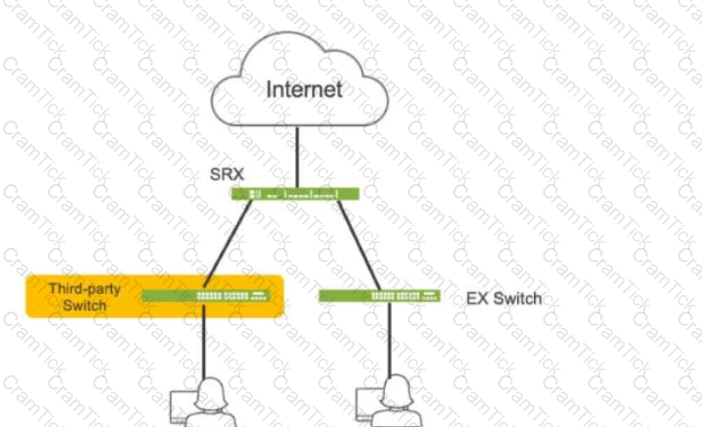

 A. Enroll the SRX Series device with Juniper ATP Cloud. This is essential for the SRX to receive threat intelligence from ATP Cloud, enabling it to identify infected hosts and take action.

 B. Use a third-party connector. In this specific scenario, a third-party connector is required to integrate the SRX with the third-party switch. While Juniper has native integration for its EX switches, a connector is necessary to communicate with and manage the third-party switch.

 C. Deploy Security Director with Policy Enforcer. Security Director orchestrates the automated response, and Policy Enforcer translates the policies into device-specific commands for the SRX and the third-party switch (via the connector).

==========

Here's why those elements are necessary for configuring a rule under an APBR profile:

B. Match condition: This defines the criteria for matching traffic to the APBR rule. It can include:

Applications: Match based on specific applications or application groups.

URL categories: Match based on URL categories provided by a web filtering service.

Other criteria: You can also match based on source/destination IP addresses, ports, protocols, etc.

C. Then action: This specifies the action to take when traffic matches the rule. The primary action in APBR is:

routing-instance: This redirects the matching traffic to a specific routing instance, allowing you to steer traffic through different paths based on the application or URL category.

Why other options are incorrect:

A. Instance type: While routing instances are used in APBR, the "instance type" itself is not configured within the APBR rule. You define the instance type separately when configuring the routing instance.

D. RIB group: RIB groups are used for route management and are not directly involved in APBR rule configuration.

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References

Understanding the Scenario:

Objective: Deploy OSPF over IPsec between an SRX Series device and a third-party device using GRE tunnels.

Components Involved:

GRE (Generic Routing Encapsulation): Encapsulates packets to allow routing protocols like OSPF to run over IPsec tunnels.

IPsec: Provides security for the GRE tunnels.

OSPF: Dynamic routing protocol used over the GRE tunnel.

Option A: The GRE interface should use lo0 as endpoints.

Explanation:

Using the loopback interface (lo0) as the source and destination endpoints for GRE tunnels is a common best practice.

Advantages:

Stability: Loopback interfaces are always up, ensuring the GRE tunnel remains operational even if physical interfaces fail.

Reachability: Provides consistent endpoint IP addresses for GRE tunnels.

Configuration:

Assign IP addresses to lo0 interfaces on both devices.

Configure GRE tunnels to use these lo0 IP addresses as source and destination.

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References

Understanding the Exhibit:

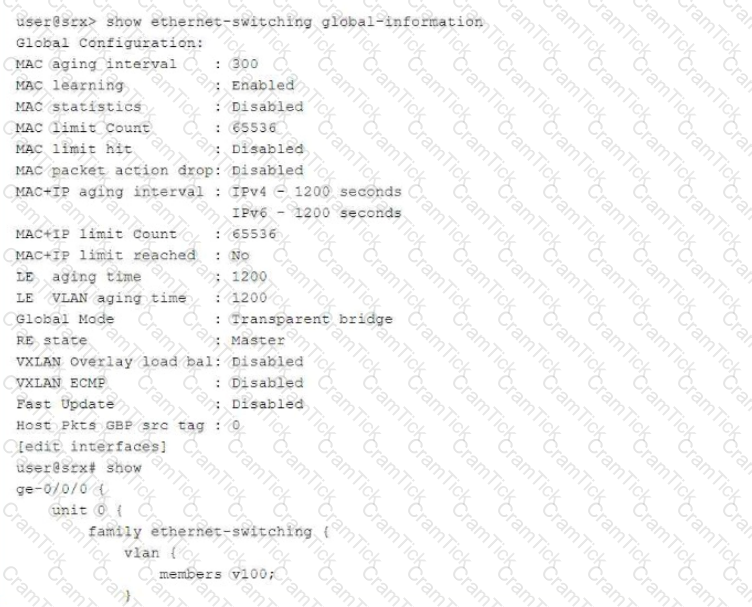

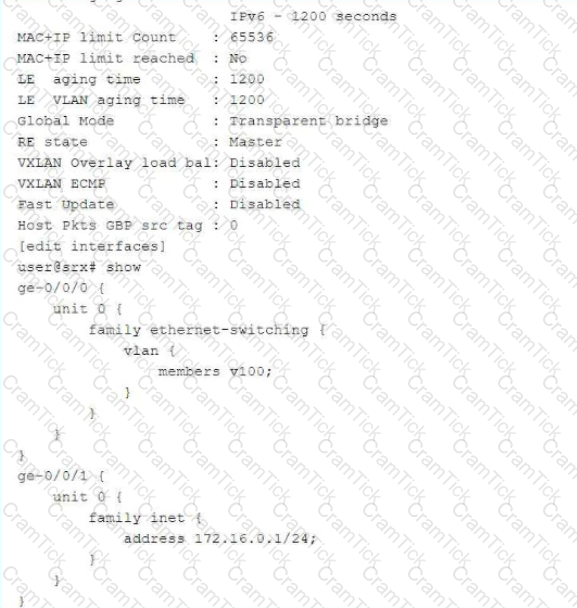

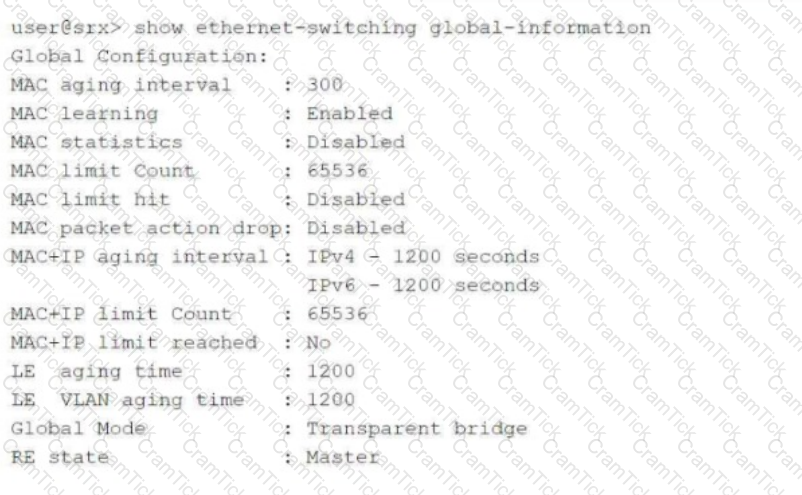

The SRX device is operating in Transparent Mode, as indicated by:

Global Mode : Transparent bridge

Transparent Mode on SRX Devices:

Transparent Mode (Layer 2 Mode):

The SRX device acts as a Layer 2 switch.

Does not perform routing functions.

Security policies can be applied to inter-VLAN (Layer 2) traffic but not intra-VLAN traffic.

Cannot handle Layer 3 traffic simultaneously.

Option A: You cannot secure intra-VLAN traffic with a security policy on this device.

True.

In Transparent Mode, intra-VLAN traffic is switched within the VLAN and does not pass through the SRX firewall processing engine.

Therefore, security policies cannot be applied to intra-VLAN traffic.

Option B: You can secure inter-VLAN traffic with a security policy on this device.

False.

In Transparent Mode, all interfaces are in the same VLAN (unless VLAN tagging is configured).

Inter-VLAN routing is not possible as the device does not perform Layer 3 functions.

Option C: The device can pass Layer 2 and Layer 3 traffic at the same time.

False.

In Transparent Mode, the SRX device operates exclusively at Layer 2.

It cannot process Layer 3 traffic simultaneously.

Option D: The device cannot pass Layer 2 and Layer 3 traffic at the same time.

True.

The SRX device in Transparent Mode cannot handle both Layer 2 and Layer 3 traffic concurrently.

Key Points:

Intra-VLAN Traffic:

Traffic within the same VLAN.

In Transparent Mode, this traffic is switched and does not go through the firewall's security policies.

Inter-VLAN Traffic:

Traffic between different VLANs.

Requires routing capabilities (Layer 3).

In Transparent Mode, the SRX cannot perform routing functions.

Juniper Security References:

Juniper Networks Documentation:

"In transparent mode, the SRX Series device acts like a Layer 2 switch or bridge. Security policies cannot control intra-VLAN traffic because such traffic does not pass through the firewall."

Source: Understanding Transparent Mode

"The device cannot perform both Layer 2 switching and Layer 3 routing simultaneously in transparent mode."

Source: Transparent Mode Limitations

Conclusion:

Option A is correct because intra-VLAN traffic cannot be secured with security policies in Transparent Mode.

Option D is correct because the device cannot pass both Layer 2 and Layer 3 traffic at the same time when operating in Transparent Mode.

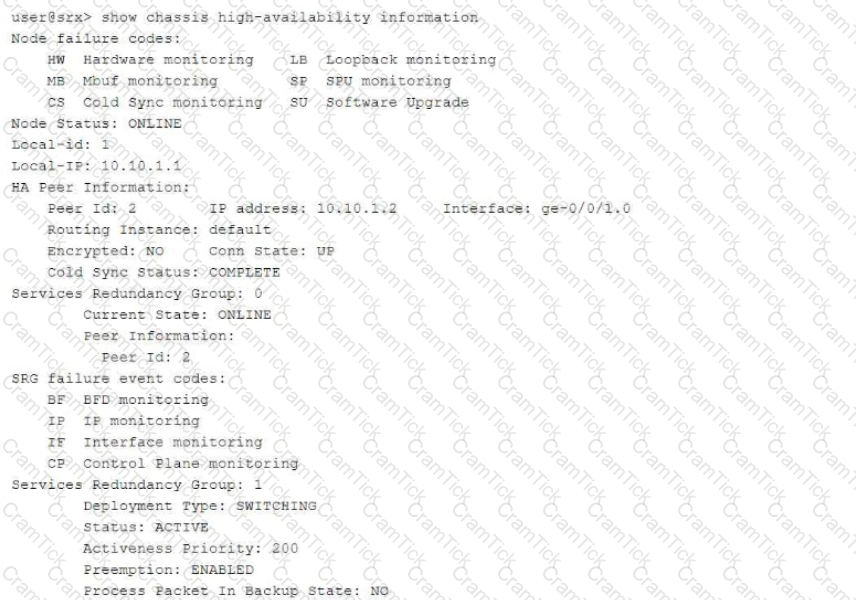

Referring to the exhibit for a multinode HA environment, we can conclude the following about the HA setup:

Two Services Redundancy Groups (Correct: Option A):The output shows the status of SRG 0 and SRG 1, confirming that there are two services redundancy groups in the HA configuration.

Node 1 Hosting SRG 1 (Correct: Option C):The exhibit indicates that Node 1 is currently active for SRG 1. According to the configuration, Node 1 will continue to host SRG 1 unless it becomes unavailable.

Session State Synchronization (Correct: Option D):In this HA setup, session state synchronization is enabled between the two nodes. This ensures that sessions remain active and seamless failover can occur if one node fails.

Juniper References:

Juniper HA Documentation: Provides details on multinode HA setups, SRG configurations, and session synchronization.

==========

Each tenant system maintains its own configuration database, isolating configurations from others, enhancing security and operational efficiency. Junos OS supports multiple concurrent commit operations across tenant systems. Further details are covered in the Juniper Tenant System Guide.

When configuring tenant systems on an SRX device, the following principles apply:

Tenant Systems Have Their Own Configuration Database (Answer C): Each tenant system has its own isolated configuration database, ensuring that changes made in one tenant system do not affect others. This allows for multi-tenant environments where different tenants can have independent configurations.

Commit Multiple Tenant Systems Simultaneously (Answer D): The system allows for multiple tenant systems to be committed at the same time, simplifying management when working with multiple tenants. This is particularly useful in large environments where multiple logical systems or tenants need updates simultaneously.

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References

Understanding the Scenario:

Multinode HA Default Mode Deployment:

In a chassis cluster, two SRX devices operate together to provide high availability.

ICL (Inter-Cluster Link) is Down:

The control and fabric links between the nodes are not operational.

Objective:

Determine how the SRX devices verify each other's activeness without the ICL.

Option A: Custom IP addresses may be configured for the activeness probe.

Explanation:

When the control link is down, SRX devices use an ICMP ping-based activeness probe to check the peer's status.

Custom IP addresses can be configured as probe targets to verify the peer's activeness.

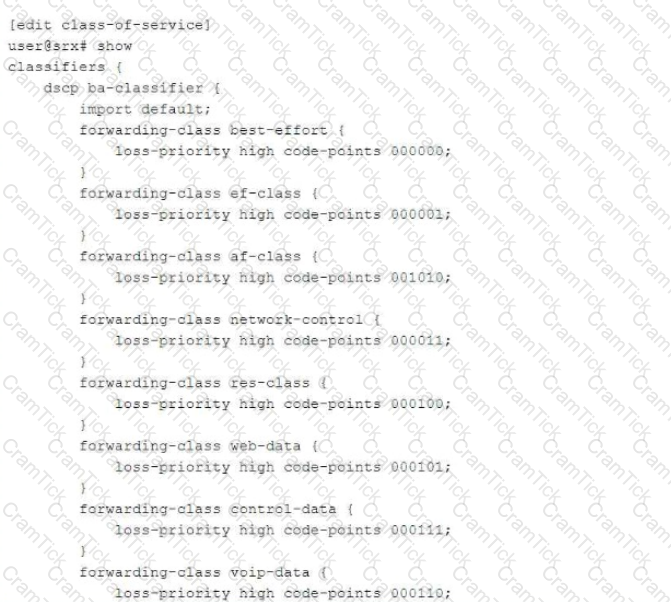

In the exhibit, the CoS-based VPN configuration is not functioning correctly due to an issue with the number of forwarding classes. The maximum number of forwarding classes supported for CoS-based VPNs with multiple SAs (security associations) is typically four forwarding classes. In this case, more than four forwarding classes are defined.

To solve the issue, one forwarding class must be deleted to ensure that the total number of forwarding classes is reduced to four or fewer.

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References

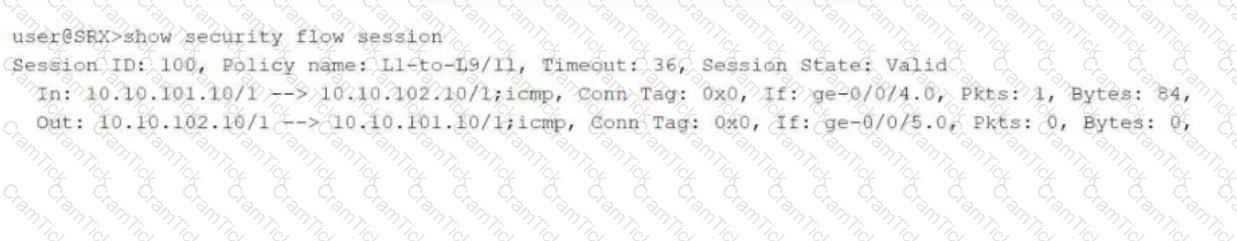

Understanding the Session Output:

Session State: Valid

Indicates that the session is active and permitted by security policies.

Policy Name: L1-to-L9/11

Shows the policy that allowed the session.

In Direction:

Source: 10.10.101.10

Destination: 10.10.102.10

Packets: 1

Bytes: 84

Out Direction:

Packets: 0

Bytes: 0

Indicates no return traffic.

Option A: The traffic is permitted.

Explanation:

The session state is Valid, and a policy name is specified.

This means the SRX device allowed the traffic.

==========

Security tags facilitate dynamic traffic management between cloud environments like Azure and AWS. Tags allow flexible policies that respond to cloud-native events or resource changes, ensuring secure inter-cloud communication. For more information, see Juniper Cloud Security Tags.

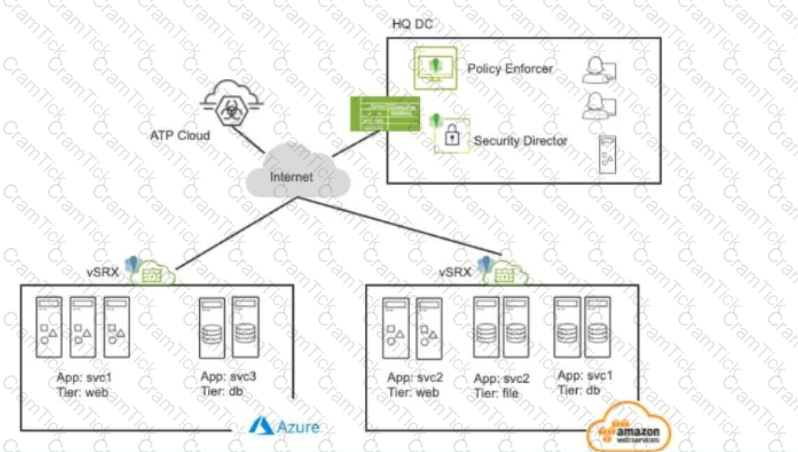

In the scenario depicted in the exhibit, where traffic needs to be dynamically secured between Azure and AWS clouds, the best method to achieve dynamic security is by using security tags in the security policies.

Explanation of Answer C (Security Tags in Security Policies):

Security tags allow dynamic enforcement of security policies based on metadata rather than static IP addresses or zones. This is crucial in cloud environments, where resources and IP addresses can change dynamically.

Using security tags in the security policies, you can associate traffic flows with specific applications, services, or virtual machines, regardless of their underlying IP addresses or network locations. This ensures that security policies are automatically updated as cloud resources change.

Juniper Security Reference:

Dynamic Security with Security Tags: This feature allows you to dynamically secure cloud-based traffic using metadata and tags, ensuring that security policies remain effective even in dynamic environments. Reference: Juniper Security Tags Documentation.

==========

Policy Enforcer receives these policies and translates them into device-specific commands. It then communicates with the third-party switches (using protocols like SNMP, RADIUS, or vendor-specific APIs) to enforce those commands, such as blocking the infected hosts' MAC addresses or port access.

Why Policy Enforcer is the Right Choice:

Centralized Enforcement: Policy Enforcer acts as the central point of enforcement for Security Director policies, ensuring consistent security across the network.

Multi-Vendor Support: It can interact with a wide range of network devices, including switches from different vendors.

Automation: Policy Enforcer automates the policy enforcement process, enabling rapid response to threats.

To enable Advanced Policy-Based Routing (APBR) on SRX Series devices, three key components are necessary: filter-based forwarding, routing instances, and APBR profiles. Filter-based forwarding is utilized to direct specific traffic flows to a routing instance based on criteria set by a policy. Routing instances allow the traffic to be managed independently of the main routing table, and APBR profiles define how and when traffic should be forwarded. These elements ensure that APBR is flexible and tailored to the network’s requirements. Refer to Juniper's APBR Documentation for more details.

Advanced policy-based routing (APBR) in Juniper's SRX devices allows the selection of different paths for traffic based on policies, rather than relying purely on routing tables. To enable APBR, the following core components are required:

Filter-based Forwarding (Answer A): Filter-based forwarding (FBF) is a technique used to forward traffic based on policies rather than the default routing table. It is essential for enabling APBR, as it helps match traffic based on filters and directs it to specific routes.

Configuration Example:

bash

set firewall family inet filter FBF match-term source-address 192.168.1.0/24

set firewall family inet filter FBF then routing-instance custom-routing-instance

Routing Instance (Answer C): A routing instance is required to define the separate routing table used by APBR. You can create multiple routing instances and assign traffic to these instances based on policies. The traffic will then use the routes defined within the specific routing instance.

Configuration Example:

bash

set routing-instances custom-routing-instance instance-type forwarding

set routing-instances custom-routing-instance routing-options static route 0.0.0.0/0 next-hop 10.10.10.1

APBR Profile (Answer D): The APBR profile defines the rules and policies for advanced policy-based routing. It allows you to set up conditions such as traffic type, source/destination address, and port, and then assign actions such as redirecting traffic to specific routing instances.

Configuration Example:

bash

set security forwarding-options advanced-policy-based-routing profile apbr-profile match application http

set security forwarding-options advanced-policy-based-routing profile apbr-profile then routing-instance custom-routing-instance

Other Components:

Routing Options (Answer B) are not a core component of APBR, as routing options define the general behavior of the routing table and protocols. However, APBR works by overriding these default routing behaviors using policies.

Policies (Answer E) are crucial in many network configurations but are not a core component of enabling APBR. APBR specifically relies on profiles rather than standard security policies.

Juniper Security Reference:

Advanced Policy-Based Routing (APBR): Juniper’s APBR is a powerful tool that allows routing based on specific traffic characteristics rather than relying on static routing tables. APBR ensures that specific types of traffic can take alternate paths based on business or network needs. Reference: Juniper Networks APBR Documentation.

==========

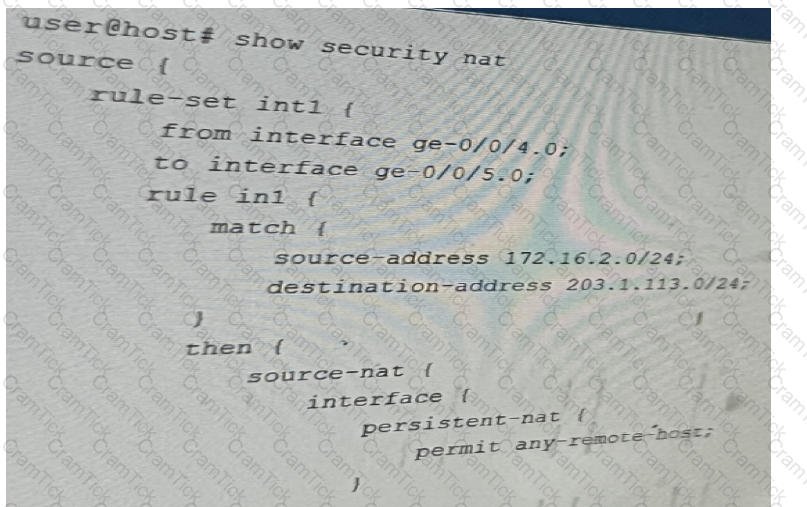

DNS doctoring modifies DNS responses for hosts behind NAT devices, allowing them to receive the correct public IP address for internal resources when queried from the public network. This prevents issues where private IPs are returned and are not reachable externally. For details, visit Juniper DNS Doctoring Documentation.

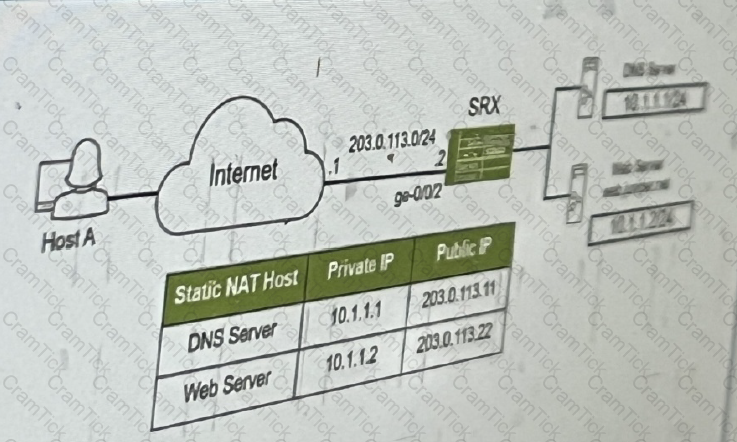

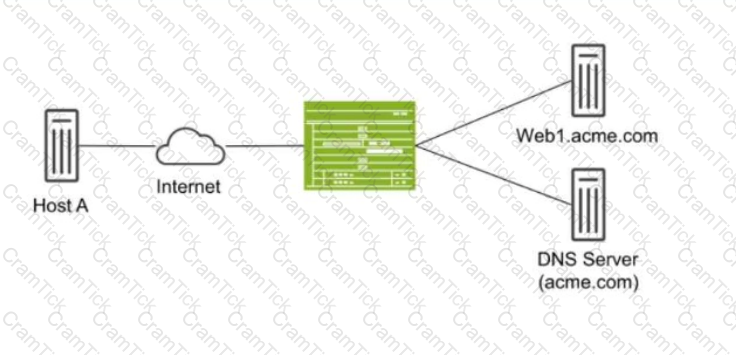

In this scenario, Host A is trying to resolve the domain name web.acme.com, but the DNS resolution returns the private IP address of the web server instead of its public IP. This is a common issue in networks where private addresses are used internally, but public addresses are required for external clients.

Explanation of Answer C (DNS Doctoring):

DNS doctoring is a feature that modifies DNS replies as they pass through the SRX device. In this case, DNS doctoring can be used to replace the private IP address returned in the DNS response with the correct public IP address for Host A. This allows external clients to reach internal resources without being aware of their private IP addresses.

Configuration Example:

bash

set security nat dns-doctoring from-zone untrust to-zone trust

Juniper Security Reference:

DNS Doctoring Overview: DNS doctoring is used to modify DNS responses so that external clients can access internal resources using public IP addresses. Reference: Juniper DNS Doctoring Documentation.

==========

==========

==========
