HPE0-J68 HPE Storage Solutions Questions and Answers

For a customer looking for a cost-effective storage solution with good performance, while also having a limited IT staff concerned about learning new technologies, recommending Ethernet switches, a Nimble iSCSI card, and dedicated NICs for servers (Option C) is the most appropriate choice.

This configuration is cost-effective and simplifies management by using familiar Ethernet networking technology, which most IT staff are already familiar with. The Nimble iSCSI card provides the necessary storage connectivity while leveraging Ethernet infrastructure, making it easier to deploy and manage compared to Fibre Channel solutions.

References:

HPE Nimble Storage Connectivity Options

HPE Networking Solutions

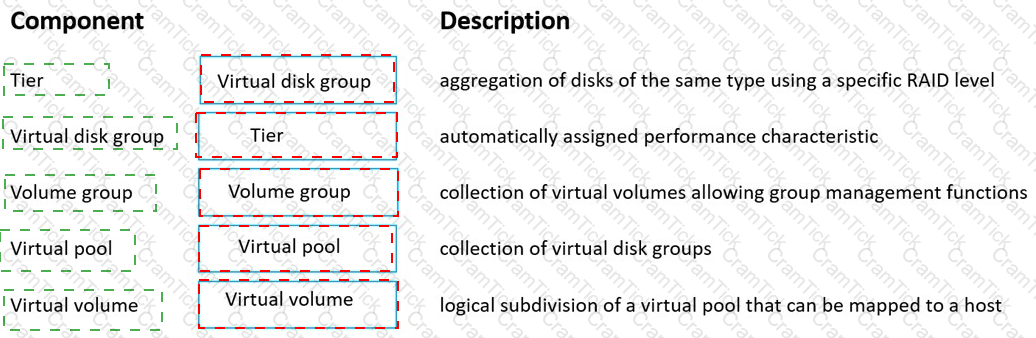

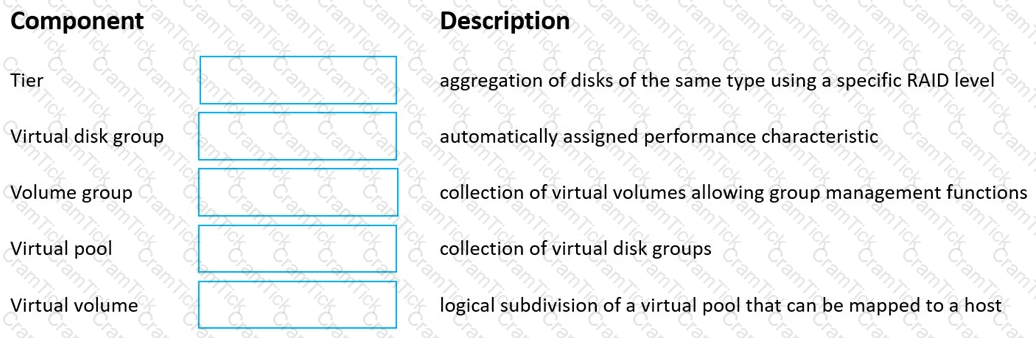

Virtual Disk group

Tier

Volume Group

Virtual pool

Virtual Volume

The typical protocol used to access data from object storage is HTTP (Option C). Object storage systems, such as those used in cloud environments, typically expose their data through RESTful APIs over HTTP. This allows for easy access and manipulation of data objects over the web. Unlike traditional block or file storage, object storage is designed for scalability and is commonly used for storing large amounts of unstructured data, such as media files, backups, and archives.

HTTP is the standard protocol for web communications, making it the ideal choice for accessing data in object storage environments, which are often cloud-based or designed for remote access.

References:

HPE Object Storage Overview

HPE Cloud and Object Storage Solutions

The issue of seeing multiple volumes after creating just a single volume on the MSA is likely due to a lack of zoning on the Fibre Channel switches. Zoning is a method used in Fibre Channel networks to segment a fabric into smaller, manageable zones, which helps in controlling access between devices. By enabling zoning on the SN3000B switches, the customer can isolate the connections and ensure that only the desired host can see specific volumes. This prevents the scenario where multiple volumes are visible to a host that should only have access to one.

References:

HPE MSA Storage Overview

HPE B-series SN3000B Switches

The exhibit refers to a configuration scenario where properties of a volume set, specifically VMwareDatastores-GF, are being verified. The question focuses on identifying the RAID level used on this volume.

RAID 5 is a common configuration in many storage arrays because it provides a balance of performance, capacity, and data protection. In RAID 5, data is striped across multiple disks with parity information distributed among the disks. This parity allows for the recovery of data in the event of a single disk failure, making it a preferred choice for environments that require efficient storage utilization with a degree of fault tolerance.

HPE storage solutions, such as HPE Nimble Storage and HPE 3PAR, often employ RAID 5 for use cases involving virtualized environments like VMware datastores. These solutions are optimized for high performance and data protection, ensuring that even with a single drive failure, the data remains accessible and the system can continue to operate without significant performance degradation.

References:

HPE Storage Products

HPE Flash and Hybrid Storage

HPE Nimble Storage

These resources provide comprehensive information on HPE's RAID configurations, data protection mechanisms, and how they integrate with enterprise storage environments.

When deploying a new StoreOnce VSA (Virtual Storage Appliance), expanding storage capacity can be done by the following methods:

Verify sufficient capacity LTUs are available: License to Use (LTU) is required to allocate more storage to the VSA. Ensuring that there are sufficient LTUs available is essential before increasing capacity.

Add a new virtual hard disk to the virtual machine: This is the process of physically increasing the storage allocated to the VSA. By adding a new virtual hard disk to the virtual machine, you expand the storage capacity that the VSA can utilize.

These steps are critical for correctly scaling the storage capacity of a StoreOnce VSA solution.

References:

HPE StoreOnce VSA Deployment

HPE StoreOnce Capacity Licensing

In an SAP HANA environment, the speed and latency of storage are critical for performance, especially when dealing with large datasets. While SAP HANA is designed to run entirely in memory, some customers may seek alternatives that offer a balance between performance and cost.

NVMe SCM (Storage Class Memory) is a cutting-edge storage technology that offers extremely low latency and high performance, making it an ideal alternative for environments like SAP HANA. NVMe SCM provides faster data access speeds than traditional SSDs and even NVMe SSDs, making it a perfect fit for workloads that demand high-speed data processing, such as SAP HANA.

References:

HPE Storage for SAP HANA

HPE NVMe Storage Solutions

When reviewing an installation plan for a new Primera storage array in an existing environment, the best resource to find appropriate installation and planning guides is SPOCK (Option D). SPOCK (Single Point of Connectivity Knowledge) provides detailed interoperability and configuration guides, ensuring that all components in the existing infrastructure (such as C7000s, Brocade switches, and 3PAR 7400) are compatible with the new Primera array.

SPOCK is an essential tool for ensuring that the installation process is seamless and that the environment will support the new storage solution without any compatibility issues.

References:

HPE SPOCK Compatibility Tool

HPE Installation and Planning Guides

In this scenario, the customer is looking to replace their existing environment, which includes servers, MSA storage arrays, and Fibre Channel switches. They are budget-conscious, have limited IT staff, and prefer to move away from Fibre Channel technology. The HPE Nimble dHCI (Option C) is the ideal solution to recommend.

HPE Nimble dHCI offers a converged infrastructure that simplifies management, making it easier for organizations with limited IT resources to maintain their environment. It is designed to be easy to deploy and manage, providing the benefits of both hyper-converged infrastructure (HCI) and traditional converged solutions. This solution integrates compute, storage, and networking with advanced data services, and it moves away from Fibre Channel by leveraging iSCSI or Ethernet-based connectivity. The Nimble dHCI also provides excellent performance and reliability at a lower cost, which aligns with the customer’s budget constraints.

References:

HPE Nimble Storage dHCI Overview

HPE Storage Solutions

Graphical user interface, text, application Description automatically generated

For a high-performance database environment, scale-out storage (Option A) is the recommended solution. Scale-out storage architectures allow for the expansion of storage capacity and performance by adding more nodes to the storage cluster. This approach provides linear scalability, enabling the environment to grow as the database's demands increase. It is particularly effective for high-performance workloads because it balances the load across multiple nodes, reducing bottlenecks and ensuring consistent performance.

Scale-out storage also supports high availability and resilience, which are critical for maintaining uptime and reliability in database environments that require rapid data access and processing.

References:

HPE Scale-Out Storage Solutions

HPE Storage Overview

==================

Given the customer's requirements for a storage solution in a VMware environment, with 20 TB of standard business data, 400 TB of video archive files, and a concern for cost, HPE MSA is the most cost-effective solution that meets these needs. HPE MSA offers affordable storage with enterprise features such as snapshots and replication. It supports iSCSI connectivity, which aligns with the customer’s 10 GB iSCSI requirements. Additionally, MSA provides a balance of performance and capacity, making it a suitable choice for environments where budget is a primary concern.

When replacing an existing LTO-6 tape library with a new HPE StoreEver MSL2024 tape library, and the customer wants to reuse their LTO-6 tape cartridges, LTO7 (Option D) is the latest tape drive technology that provides backward compatibility with LTO-6 tapes.

LTO7 drives can read and write to LTO-6 cartridges, making them the optimal choice for ensuring the customer's existing media can be utilized effectively while also providing the benefits of newer tape technology, such as higher capacity and faster data transfer rates.

References:

HPE StoreEver Tape Solutions

HPE LTO Tape Technology

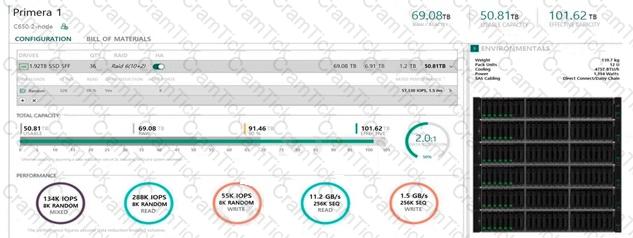

In the scenario presented, the customer requests an increase in Random Write IOPS for their HPE Primera solution. To achieve this, adding more disks of smaller capacity is the most effective approach (Option A). By increasing the number of disks, the storage system can distribute the write operations across more disks, thereby reducing the write latency and improving the overall Random Write IOPS performance. Smaller capacity disks typically allow for better IOPS performance per GB due to their higher spindle speed and lower data density, which reduces seek times.

This strategy also aligns with best practices in storage design, where increasing the number of spindles (disks) generally enhances the performance of random workloads, particularly in write-intensive environments.

References:

HPE Primera Overview

HPE Storage Products Overview

HPE Flash and Hybrid Storage Solutions

For monitoring the health and utilization of the HPE StoreEver MSL6480 Tape Library, StoreServ TapeAssure Advanced is the recommended software. TapeAssure Advanced provides detailed insights into the operational status of tape libraries, including health checks, utilization metrics, and predictive analytics. This tool is essential for ensuring the reliability and efficiency of tape storage environments.

References:

HPE StoreEver Tape Libraries

HPE TapeAssure Advanced

The HPE MSA 2050 comes with a base set of features, including the ability to create up to 64 snapshots. However, for customers who require more extensive snapshot capabilities as their data services grow, the Advanced Data Services Suite license is the appropriate solution. This license extends the functionality of the MSA, including an increase in the number of snapshots that can be created and managed, thus addressing the customer's concerns about future growth.

References:

HPE MSA 2050 Storage

HPE MSA Advanced Data Services

A picture containing diagram Description automatically generated

When a customer needs to create a full copy replica of a database for performance testing, the best technology to use is a clone. A clone creates an exact, independent copy of a volume, which can be used separately from the original. This is particularly useful for scenarios such as testing, development, or backup, where an exact copy of the data is required without affecting the production environment.

References:

HPE 3PAR and Primera Clone Technology

HPE Data Protection and Replication

When addressing a customer's concerns about data loss, the features of the HPE Nimble array that should be emphasized are the quick RAID rebuild (Option A) and triple parity (Option E).

Quick RAID Rebuild: This feature is crucial in reducing downtime and data loss risk after a disk failure. Nimble's RAID technology ensures that if a drive fails, the rebuild process is swift, minimizing the exposure time during which data is vulnerable.

Triple Parity: This feature provides an additional layer of protection against multiple simultaneous drive failures. Triple parity RAID allows the array to withstand up to three drive failures without data loss, which significantly enhances the reliability and durability of the storage system.

These features work together to provide a robust, resilient storage solution that mitigates the risk of data loss and ensures high availability, making them particularly important for customers who have experienced data loss in the past.

References:

HPE Nimble Storage Data Protection

HPE Storage Reliability and Resilience

When proposing a SimpliVity solution for a customer who has fully virtualized their datacenter with VMware, it is essential to highlight the features that will offer the most value in a virtualized environment.

Native Hypervisor Management Tools: SimpliVity integrates seamlessly with existing hypervisor management tools, such as VMware vCenter, allowing customers to manage their virtualized infrastructure using familiar interfaces. This integration simplifies operations and reduces the learning curve for IT staff.

Deduplication and Backup Capabilities: SimpliVity's built-in data efficiency features, including inline deduplication, compression, and optimization, significantly reduce the amount of data stored and transferred. This results in cost savings and improved backup performance, which are critical in a virtualized environment where storage efficiency is paramount.

These features directly address the needs of a virtualized datacenter, providing enhanced data protection, simplified management, and improved performance.

References:

HPE SimpliVity Overview

HPE SimpliVity for Virtualized Environments

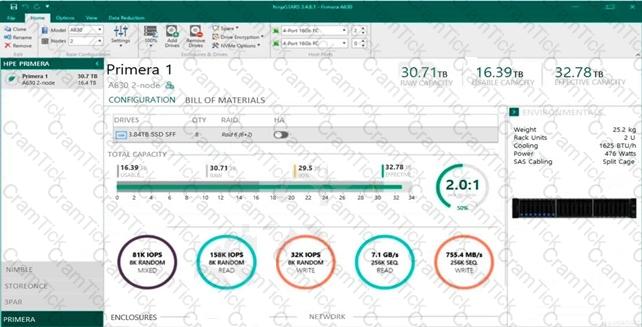

When managing HPE Primera arrays, it's important to assess the current compaction ratios to understand how effectively data is being stored.

NinjaStars is an HPE tool specifically designed to analyze and report on data reduction technologies, including deduplication and compression, on HPE storage arrays like Primera. It helps in determining the compaction ratios, providing insights into how efficiently the storage capacity is being utilized.

References:

HPE Primera Storage

HPE NinjaTools Suite

In StoreOnce Gen4 systems, certain features are included with the system software without requiring additional licenses:

Catalyst: HPE StoreOnce Catalyst is included and provides advanced data reduction and deduplication capabilities, as well as integration with backup software.

VTL/NAS replication: This feature allows replication of Virtual Tape Libraries (VTL) and NAS shares between StoreOnce systems, ensuring data protection and disaster recovery, and it comes standard with the system software.

These features enhance the StoreOnce system's functionality, providing value without additional costs.

References:

HPE StoreOnce Features

StoreOnce Gen4 Technical Specifications

When designing an HPE MSA iSCSI storage solution, two critical components that are typically part of the solution are Drives (Option A) and SFPs (Small Form-factor Pluggables) (Option B).

Drives: These are the storage devices (e.g., SSDs or HDDs) that provide the necessary capacity and performance for the MSA array. The choice of drives can be tailored based on the performance and capacity needs of the customer.

SFPs: These are essential for establishing iSCSI or Fibre Channel connectivity between the storage array and the network switches. They play a crucial role in ensuring that the storage solution can be integrated into the customer's existing network infrastructure.

The inclusion of these components ensures that the HPE MSA solution is fully functional and can meet the performance and connectivity requirements of the customer's environment.

References:

HPE MSA Storage Overview

HPE Storage Components

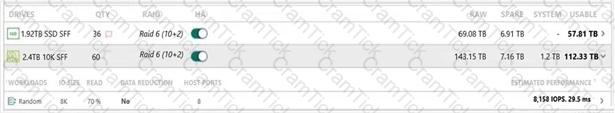

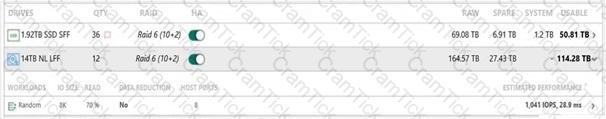

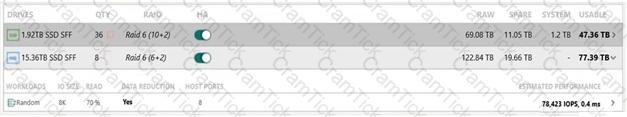

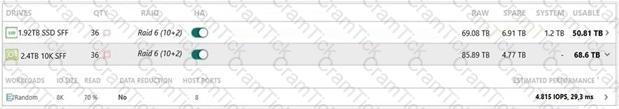

The exhibit shows various configurations for expanding an HPE Primera C6S0 array. The customer is planning to upgrade the system as older 3PAR arrays come off lease. Since the next 3PAR system to be replaced holds 100TB of VDI boot images for thousands of users, the recommended addition to the Primera array should focus on providing the necessary performance and capacity for VDI workloads.

Option A in the exhibit appears to include a configuration that balances SSD storage with high performance, making it suitable for VDI environments. This option would allow the customer to maintain a high level of performance while migrating and consolidating their VDI workloads onto the new Primera system.

References:

HPE Primera Storage Overview

HPE Storage for VDI

To make the integration of a Windows-based server with an all-flash Nimble array easier, HPE's Connection Manager (Option C) is the recommended tool. Connection Manager simplifies the configuration of iSCSI or Fibre Channel connections between the server and the Nimble storage array. It helps automate the setup process, ensuring that the best practices for connectivity are followed, which results in optimized performance and reliability.

This tool is particularly useful for administrators who may not be storage experts, as it streamlines the complex tasks associated with connecting servers to enterprise-grade storage systems.

References:

HPE Nimble Connection Manager

HPE Storage Integration Tools

HPE InfoSight Cross-Stack Analytics for VMware and Hyper-V provides a comprehensive view of the virtual environment, allowing users to monitor and analyze various aspects of their infrastructure. Two key actions that can be performed within this tool are finding noisy neighbors (Option B) and locating inactive VMs (Option C).

Find noisy neighbors: This feature helps identify virtual machines (VMs) that are consuming excessive resources and negatively impacting the performance of other VMs within the environment. By identifying these "noisy neighbors," administrators can take corrective action to optimize resource allocation and improve overall system performance.

Locate inactive VMs: This functionality allows administrators to detect VMs that are consuming resources but are not actively in use. Identifying and addressing these inactive VMs can help free up resources and improve the efficiency of the virtual environment.

These capabilities make InfoSight Cross-Stack Analytics a powerful tool for maintaining optimal performance in VMware and Hyper-V environments.

References:

HPE InfoSight for Servers

HPE Cross-Stack Analytics Overview

The HPE MSA 2052 storage array is typically configured using the Storage Management Utility (SMU) (Option B). SMU is a web-based interface that allows administrators to manage and configure their MSA storage arrays. It provides an intuitive platform for setting up volumes, managing RAID levels, and configuring network settings.

This tool is essential for efficiently managing the storage environment and ensuring that the system is optimized for the specific needs of the customer.

References:

HPE MSA 2052 Configuration

HPE Storage Management Tools

The most likely reason the 10GBase-T adapter installed in the StoreOnce 3620 is not configurable is that the customer failed to install a License to Use (LTU) for it (Option C). HPE StoreOnce systems require an LTU for certain hardware components and features. Without the appropriate license, the system will not recognize or allow configuration of the newly installed hardware.

Ensuring that the LTU is correctly installed would likely resolve the issue and allow the adapter to be fully operational.

References:

HPE StoreOnce Overview

HPE Licensing and Support

For a customer needing a centralized storage solution accessible by Windows-based laptops and other personal devices, file-oriented storage accessed over SMB (Option D) is the most appropriate recommendation. SMB (Server Message Block) is a network file sharing protocol that allows files to be shared among devices running on a Windows network.

File-oriented storage solutions, like HPE's StoreEasy or Nimble with file services, are designed to serve files over the network using SMB, providing easy and secure access to departmental data.

References:

HPE File Storage Solutions

HPE SMB File Sharing

Graphical user interface, text, application Description automatically generated

For accessing StoreOnce VTL (Virtual Tape Library) targets from Veeam, the recommended protocol is FC (Fibre Channel). FC provides the high throughput and low latency necessary for backup operations, making it ideal for environments where speed and reliability are critical. StoreOnce VTL supports FC as a primary protocol for integrating with backup applications like Veeam.

References:

HPE StoreOnce VTL

Veeam and HPE StoreOnce Integration

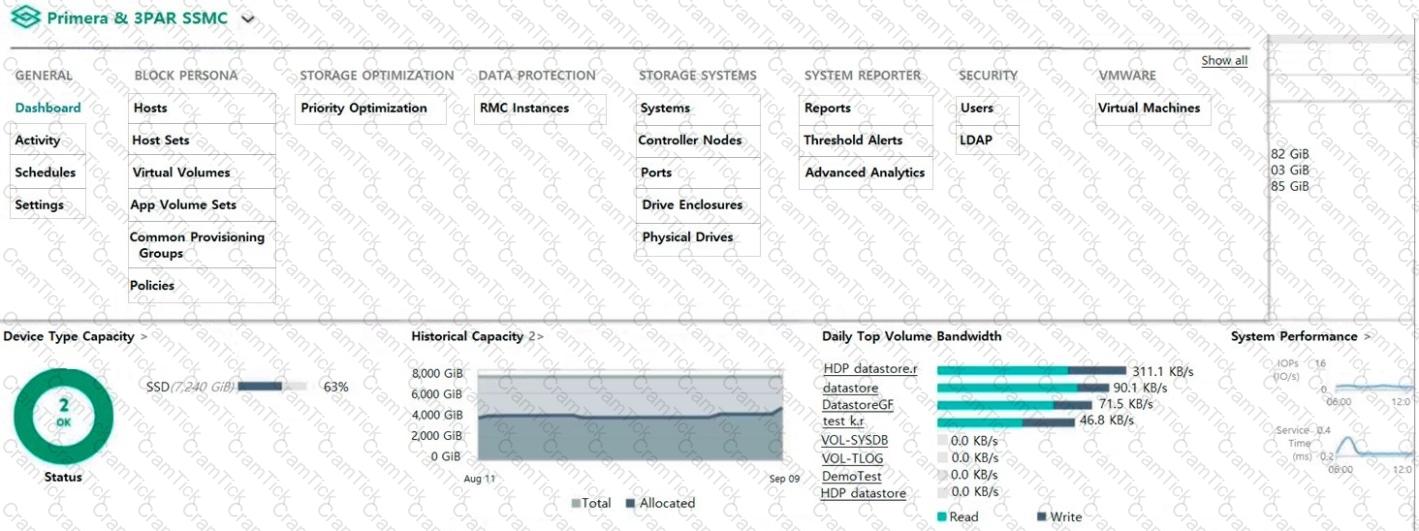

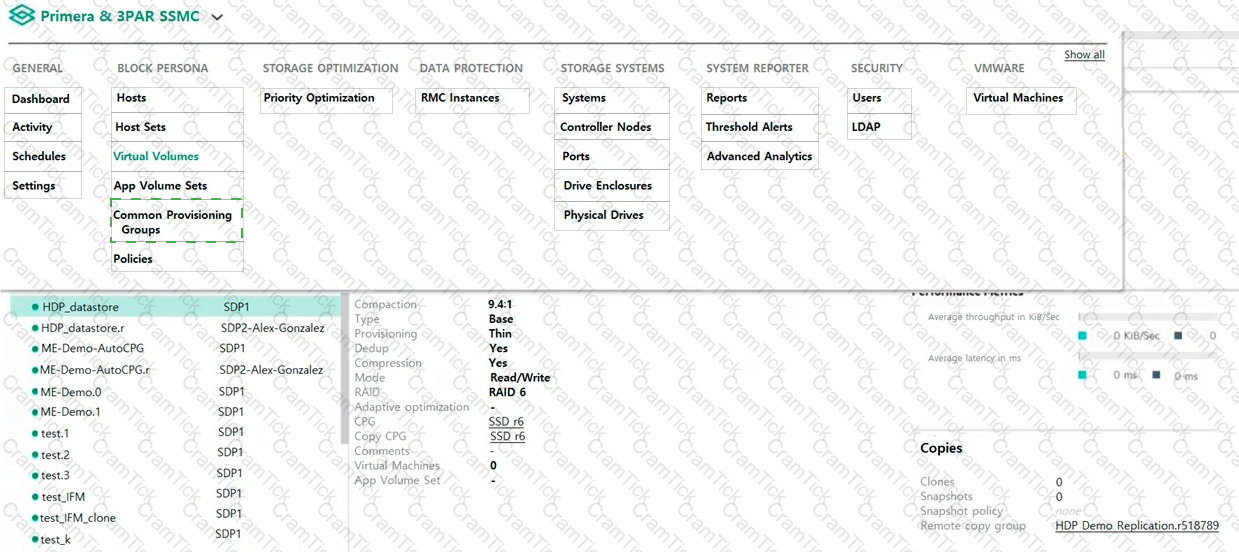

The StoreServ Management Console (SSMC) (Option D) is the tool used for centralized management of both HPE 3PAR and Primera arrays. SSMC provides a unified interface for managing storage arrays, enabling administrators to monitor, configure, and maintain their storage infrastructure from a single console. It offers advanced features for performance tuning, capacity planning, and data protection, making it an essential tool for organizations using these storage systems.

SSMC simplifies the management process and enhances the efficiency of storage operations, which is particularly beneficial in environments with complex storage requirements.

References:

HPE StoreServ Management Console

HPE SSMC Overview

When setting up a new HPE StoreOnce appliance for a customer who is using NetBackup and requires the highest performance setup, the best backup target type to recommend is VTL (Virtual Tape Library). VTLs are optimized for high-performance environments, particularly when connected via Fibre Channel (FC), which the customer has in their local setup. VTLs provide the speed and reliability of disk-based storage while emulating the tape systems that many backup solutions, like NetBackup, are designed to work with. This setup will ensure the highest throughput and performance for backup operations over FC.

References:

HPE StoreOnce Overview

HPE VTL Solutions

Graphical user interface, text Description automatically generated

HPE 3PAR Peer Motion is a feature built into the HPE 3PAR OS that allows users to move data and workloads between arrays without impacting applications, users, or services. This non-disruptive data migration capability is particularly useful during hardware refreshes, technology upgrades, or when balancing workloads across arrays. Peer Motion facilitates seamless, online data migration, ensuring continuity of operations and zero downtime during the process.

References:

HPE 3PAR Peer Motion

HPE Storage Migration Solutions

The Linear Tape File System (LTFS) provides an easy and intuitive way to manage files stored on tape cartridges. LTFS allows users to organize, browse, and access files directly from the tape as if they were on a disk. This file system presents tape as a drive letter on Windows or as a mount point on Linux, making it simpler to use tape for data archiving and management. This capability makes LTFS an attractive option for organizations that require long-term data storage with easy access.

For further details, visit:

HPE StoreEver LTFS

When adding a first 2140 4U All-Flash expansion shelf to an HPE Alletra 6000 array, it is crucial to ensure that the array model is at least Alletra 6030 and is running on Array OS version 6.2.0 or later. This requirement ensures compatibility between the expansion shelf and the existing array infrastructure, allowing for optimal performance and integration.

Failing to meet this requirement could result in incompatibility issues or reduced functionality of the expansion shelf.

For further details, refer to:

HPE Alletra Storage

NinjaCrawler is a storage sizing tool specifically designed for the HPE 3PAR StoreServ environment. It analyzes the customer's current data and provides insights into the expected deduplication ratio based on actual data patterns. This tool is crucial for accurately sizing storage solutions and optimizing capacity planning in environments that utilize deduplication features.

References:

HPE Storage Sizing Tools

NinjaCrawler for HPE 3PAR

Peer Motion is a storage feature supported by both HPE StoreVirtual and HPE 3PAR StoreServ storage systems. It is a key differentiator of HPE storage solutions because it allows for non-disruptive, federated data mobility across storage systems. Peer Motion enables customers to move volumes between storage arrays seamlessly without downtime, making it ideal for data migration, load balancing, and tiering across heterogeneous environments.

This feature enhances flexibility and simplifies storage management, allowing organizations to optimize their storage resources dynamically and reduce the complexity of managing multiple storage systems.

References:

HPE Peer Motion Overview

HPE 3PAR StoreServ and StoreVirtual

The Persistent Cache feature provides the benefit of automatic write cache mirroring in the event of a partner-node failure. This means that if one node in a high-availability setup fails, the write cache data is still protected and mirrored on the surviving node, ensuring data integrity and continuity. This feature is crucial for maintaining the high availability and reliability of storage systems in mission-critical environments.

For further details, refer to:

HPE Storage Solutions

For a customer who needs to store backups at a separate data center while requiring fast backups and quick restores, the best solution is to use HPE StoreServ 3PAR in the main data center and HPE StoreOnce in the secondary data center with Recovery Manager Central (RMC) integration. This setup provides efficient, fast backups and restores, leveraging HPE StoreOnce's advanced deduplication capabilities, while RMC ensures that backups are performed quickly with minimal impact on production workloads. This solution meets both industry regulations and application performance requirements.

References:

HPE StoreOnce Systems

HPE 3PAR and RMC

The Core-Edge SAN topology offers the highest centralized data access performance. In this topology, the core switch provides centralized connectivity, and the edge switches connect to the hosts and storage devices. This architecture is highly scalable and supports high-performance data access while maintaining low latency. It is ideal for large SAN environments where centralized data management and high throughput are crucial.

References:

HPE SAN Solutions

SAN Topology Guide

The HPE Alletra 6000 system can benefit from storage class memory (SCM) cards. SCM provides faster access times and lower latency compared to traditional flash storage, significantly improving the performance of applications that require high-speed data access. The integration of SCM into the HPE Alletra 6000 allows for better performance in latency-sensitive workloads, making it an ideal choice for demanding enterprise applications.

References:

HPE Alletra 6000 Overview

HPE Storage Class Memory

The HPE 3PAR StoreServ Persistent Port feature ensures transparent and uninterrupted failover during specific events such as firmware upgrades and node maintenance or failure. During a firmware upgrade, the persistent port feature allows data paths to automatically fail over to an alternate path, maintaining uninterrupted host connectivity. Similarly, in the event of node maintenance or failure, the persistent port feature seamlessly redirects I/O to another available node without disrupting the service, ensuring high availability and reliability.

References:

HPE 3PAR StoreServ All-Flash Arrays

HPE Storage Solutions

When using a federated storage approach with HPE 3PAR StoreServ systems, customers can benefit from:

Load Balancing: Federated storage enables the distribution of workloads across multiple storage systems, optimizing resource utilization and ensuring that no single system becomes a bottleneck. This load balancing improves performance and enhances overall system efficiency.

Easier Migration: Federation simplifies the process of migrating data between storage systems. With features like Peer Motion, data can be moved between systems non-disruptively, allowing for seamless upgrades or expansions without impacting ongoing operations. This capability is particularly beneficial in reducing downtime and maintaining business continuity during migrations.

References:

HPE 3PAR StoreServ Federation

HPE Peer Motion Technology

The HPE Alletra 9000 NVMe-oF 100 GbE 2-port host bus adapter (HBA) is a versatile component that can be used for multiple purposes. While it is primarily designed for high-speed host connectivity, it can also be used for connecting extra drive enclosures to the HPE Alletra 9000 storage array. This flexibility allows it to serve dual roles depending on the specific requirements of the deployment, either expanding storage capacity by connecting additional enclosures or providing high-speed connectivity to hosts.

References:

HPE Alletra 9000 Overview

HPE NVMe-oF Solutions

Zoning is a technology used in B-series SAN switches to control and prevent communication between unauthorized devices within a SAN fabric. By creating zones, administrators can define which devices (like servers and storage arrays) can communicate with each other, enhancing security and reducing the risk of unauthorized access. This approach is fundamental in maintaining secure and organized SAN environments.

HPE Storage References:

HPE B-Series SAN Switches

HPE SAN Solutions and Zoning

HPE Synergy is a composable infrastructure solution that provides flexibility and scalability for data centers. The benefits include:

Block Storage Services from HPE 3PAR: HPE Synergy can integrate with HPE 3PAR storage to present block storage services as part of its resource pool. This allows for a more unified and efficient management of storage resources across the infrastructure.

Composing and Reclaiming DAS Storage: HPE Synergy allows administrators to compose and reclaim direct-attached storage (DAS) as needed, optimizing the use of available storage resources and improving overall efficiency.

These features make HPE Synergy a powerful solution for modern data centers that require flexible, scalable, and efficient infrastructure management.

References:

HPE Synergy Overview

HPE 3PAR and Synergy Integration

When designing an Intelligent Resilient Framework (IRF) stack for a Nimble storage solution using HPE FlexFabric 5900CP switches with iSCSI connectivity, the IRF stack typically supports up to two switches for optimal performance and redundancy. This limitation ensures that the iSCSI traffic is managed effectively without overcomplicating the network topology, which could potentially introduce latency or complexity in managing the stack.

Utilizing more than two switches in an IRF stack when connecting to storage could result in diminished returns in performance or increased management overhead, which is why HPE typically recommends limiting the IRF stack to two switches in such configurations.

For further details, refer to:

HPE Nimble Storage Overview

HPE FlexFabric Switches

In HPE B-series Gen6 Fibre Channel switches, two key features that address the need for real-time monitoring and accelerated troubleshooting are MAPS (Monitoring and Alerting Policy Suite) and Fabric Vision.

MAPS provides proactive monitoring and alerting, allowing administrators to establish policies that automatically trigger alerts when performance thresholds are crossed, helping prevent issues before they impact the environment.

Fabric Vision is a comprehensive monitoring and diagnostics tool that enables administrators to visualize the health and performance of the SAN fabric, allowing for rapid identification and resolution of issues. Together, these features help maintain high performance and reliability in SAN environments.

References:

HPE B-series Gen6 Fibre Channel Switches

HPE Fabric Vision Technology

When demonstrating HPE 3PAR StoreServ 9450 array's File Persona features, creating a File Share and a Virtual File Server is essential. The File Persona feature extends the functionality of 3PAR storage arrays to include file-level storage, enabling the creation and management of file shares directly on the array. A Virtual File Server acts as a logical entity within the 3PAR system to manage these file shares and provide access to users.

This functionality allows organizations to consolidate their block and file storage needs into a single platform, simplifying storage management and reducing costs.

For additional details, visit:

HPE 3PAR File Persona

In a meshed fabric SAN topology, the E Port (Expansion Port) type is used on SAN switches. E Ports connect to other switches within the fabric, allowing for inter-switch links (ISLs) that enable communication between multiple switches in the SAN. This topology is essential for creating a scalable and resilient storage network, as it allows multiple paths for data to travel between different nodes in the SAN.

For more information, refer to:

HPE SAN Solutions

In the HPE GreenLake Platform, when a new company account is created, the individual who creates the account is automatically assigned the Account Administrator role. This role grants them the ability to manage users, assign roles, and control access within the HPE GreenLake environment, ensuring that they have full administrative control over the account from the outset.

References:

HPE GreenLake Management

HPE GreenLake Platform Overview

HPE 3PAR StoreServ systems support multiple front-end protocols to provide connectivity options suitable for various enterprise environments. The two primary protocols used in the front end by HPE 3PAR StoreServ systems are:

iSCSI (Internet Small Computer System Interface): A popular protocol for connecting storage devices over IP networks, iSCSI allows data to be transferred over long distances using existing network infrastructure. It is widely used in environments where cost-effective IP-based storage solutions are required.

FC (Fibre Channel): A high-speed network technology primarily used for storage networking. It provides a reliable and fast connection for block storage, making it ideal for high-performance environments requiring low latency and high throughput.

These protocols enable HPE 3PAR systems to integrate seamlessly into a wide range of IT infrastructures, providing flexibility and performance for various workloads.

References:

HPE 3PAR StoreServ Overview

HPE Storage Protocols

In an all-flash array like the HPE 3PAR StoreServ, the compaction ratio typically offers the highest efficiency. Compaction includes both deduplication and compression, which reduces the amount of physical storage needed by eliminating redundant data and compressing the data that is stored. The compaction ratio directly impacts storage efficiency, allowing for more effective utilization of the available flash storage, thereby reducing the total cost of ownership and improving performance.

References:

HPE 3PAR StoreServ All-Flash Arrays

HPE Storage Efficiency

HPE GreenLake Backup and Recovery is the recommended software stack for a backup platform that includes a pay-per-use model, supports virtualized workloads, and integrates with the HPE Data Services Cloud Console (DSCC). This solution offers low Recovery Point Objectives (RPOs) in minutes, supports HPE Alletra 9000, and provides the flexibility and scalability needed for modern backup environments. It is part of the HPE GreenLake ecosystem, which provides cloud-like agility and economics with on-premises control.

References:

HPE GreenLake Backup and Recovery

HPE Alletra 9000 Integration

Veeam Backup and Recovery is the recommended software stack for a backup platform change that supports on-premise deployment, direct backups from Linux and Windows systems, NAS protocol support for the backup repository, and integration with HPE StoreOnce. Veeam is widely recognized for its robust and versatile backup capabilities, including full support for NAS, seamless integration with HPE StoreOnce for efficient deduplication and storage, and the ability to directly back up physical and virtual environments running on both Linux and Windows.

References:

Veeam Backup and Recovery Overview

HPE StoreOnce Integration

Express Protect is a feature that allows data to be moved directly from a snapshot to backup storage independently of the backup server software. This feature is available in HPE's backup and recovery solutions, and it is designed to streamline the backup process, reduce load on the backup server, and improve overall backup efficiency.

References:

HPE Backup Solutions

HPE StoreOnce Express Protect

The topic of supporting 100G iSCSI connectivity is related to the HPE Alletra 9060. This model in the Alletra series supports high-performance networking options, including 100G iSCSI, which is ideal for environments that require extremely fast data transfer rates and low latency, such as in data-intensive applications or large-scale virtualization deployments.

For more information, refer to:

HPE Alletra 9000 Overview

The HPE Alletra dHCI solution uses the iSCSI protocol for data access between the storage and compute layers. iSCSI is a network protocol that enables the transport of SCSI commands over IP networks, allowing for efficient and scalable storage networking. This protocol is commonly used in hyper-converged and disaggregated hyper-converged infrastructure (dHCI) environments, providing flexibility and ease of integration.

References:

HPE Alletra dHCI Overview

HPE iSCSI Solutions

The red rectangle in the exhibit is likely asking for an iSCSI Qualified Name (IQN), which is a unique identifier used in iSCSI environments to address devices on a storage network. The format "iqn.2015-02.com.hpe

" follows the standard IQN naming convention, which is used to identify the iSCSI initiators and targets in an HPE storage environment.

HPE Storage References:

HPE Storage Networking

HPE iSCSI and SAN Solutions

Comprehensive Detailed Explanation with All HPE Storage ReferencesWhen adding a new host to an HPE 3PAR StoreServ system for a proof-of-concept, in addition to the host name, the minimum required information is the Host WWN (World Wide Name). The WWN is a unique identifier used in storage networks to address the host within the SAN. It is critical for ensuring the correct host is recognized by the storage system and is necessary for establishing the connection between the host and the storage volumes.

HPE Storage References:

HPE 3PAR StoreServ Host Configuration

HPE 3PAR StoreServ SAN Connectivity

Before expanding an HPE 3PAR StoreServ 8400 system with additional nodes and disk enclosures, it is essential to update the system to the latest supported OS. This ensures compatibility with the new hardware and access to the latest features and improvements. Running the latest OS version also mitigates potential issues during the hardware expansion process, providing a stable and supported environment for the new nodes and enclosures.

HPE Storage References:

HPE 3PAR StoreServ 8000 Series

HPE 3PAR OS and Firmware Updates

The HPE SN2410M switch is the best choice for a Top-of-Rack (ToR) network design that will use iSCSI or NVMe-oF-TCP storage, requiring a switch with a maximum of 48 ports and 10/25GB speed. This switch offers the required port density and supports both 10GbE and 25GbE speeds, making it ideal for high-performance storage networks that rely on fast and reliable connectivity.

For more information, refer to:

HPE SN2410M Switch

HPE CloudBank is a feature of the HPE StoreOnce system that enables cloud-based backup and disaster recovery (DR) solutions. It integrates with HPE 3PAR StoreServ and HPE StoreOnce systems to send backups securely to public cloud services like AWS, Azure, or private cloud environments. The primary benefit of CloudBank in the context of disaster recovery is that it ensures off-site storage of backups, protecting against site disasters by storing data in geographically dispersed locations.

By sending backups regularly to the cloud, CloudBank ensures that data is protected and can be restored in the event of a disaster, minimizing potential data loss and downtime.

References:

HPE StoreOnce with CloudBank

HPE StoreOnce Overview

The HPE 3PAR SSMC (StoreServ Management Console) System Reporter is the tool that should be used to generate and schedule high-resolution performance reports, including service time and I/O workload information. By configuring System Reporter to send daily email reports, both you and the customer can monitor the impact of changes made to the Adaptive Optimization (AO) configuration. This ensures that any latency issues or performance improvements are documented and can be analyzed regularly.

References:

HPE 3PAR SSMC System Reporter

HPE Performance Monitoring Tools

Recovery Time Objective (RTO) refers to the maximum amount of time that is allowed to elapse before the recovery of application processing is completed after a disaster or failure occurs. This metric is crucial for business continuity planning as it defines the acceptable downtime that the business can tolerate before the system is back online and fully functional.

For example, if an RTO is set to 2 hours, the business must ensure that the affected systems are restored and operational within that timeframe.

For more detailed information, see:

HPE Storage Solutions

To create a configuration including the sizing and performance values for a customer solution for Alletra MP, the recommended HPE tool is Ninja STARS. This tool is specifically designed for storage sizing and configuration, providing detailed insights into the performance requirements and helping to tailor the solution to meet the specific needs of the customer. Ninja STARS helps in accurately sizing the storage solution to ensure it meets both current and future demands.

For further details, refer to:

HPE Ninja STARS Tool
