When designing Isilon solutions, what issues should you pay special attention to?
Your customer's site uses an old X-Series cluster, and they are interested in consolidating their two primary workflows. iostat shows that one of the applications is sensitive to latency, while isi statistics indicates sensitivity to disk response times. There are approximately 1000 users accessing 70 TB of file data.
Which node type would you recommend?
An existing customer has two NAS systems providing NFS storage in their main datacenter - one is an Isilon cluster and the second is an array from another vendor. Both systems are four years old, and the customer would like to consolidate the storage into a single solution. According to the customer, both systems support identical workloads with similar performance and utilization, and they want the new solution to support 50% performance growth.
Which method can model the workload requirements, and what multiplier will capture the requirements for the new solution?
A company needs the ability to separate administrative rights from data access rights. Which Isilon feature enables this functionality?
When planning a new cluster using backend leaf-spine topology, what is the maximum number of nodes
supported when using two leaf switches and one spine switch?
When working with Isilon file pool policies, which file attribute can be applied as a filter?
Refer to the exhibit.
A large hospital chain has approached you to redesign their storage infrastructure. The head of IT believes their requirement is for 60 TB of RAW capacity. The following are the notes from meetings with the department heads.
Which is the minimum cluster configuration that meets the customer's requirements?
A potential customer is considering replacing a four year old, Linux-based NFS server with 40TB of usable capacity. The existing system supports home directories, an internal website, and a content repository for the customer's content management system. The customer is concerned about performance of any new solution because they expect to double workload in the content management system.
What tools can be used to collect performance data needed to size the new solution?
A customer wishes to back up their Isilon cluster via NDMP using a software package that supports NDMP
connectivity. The backup process will require the cluster to create a point-in-time copy of the directory to be
backed up.
Which OneFS feature(s) will need to be licensed?
Your customer uses an existing Isilon cluster consisting of five NL-Series nodes to source broadcast media files for playback and streaming.The customer reports that the playback pauses and stutters regularly. It has been confirmed that there are no network or playback system issues.
Which of the choices listed is the appropriate choice to address the playback issues?
Your customer is moving from a Restaurant/Bar business model to a Restaurant/Casino business model. You are helping architect the upgrade of a current 4-node X200 48 TB Isilon cluster, with 65% utilized for their video surveillance operations.
They wish to achieve the following:
Upgrade from 1280 x 720 resolution, with a 15 days retention policy, to 2048 x 1536 resolution with a 30 days retention policy.
What is the minimum number of nodes of the same type will you need to add in order to meet the required changes and not exceed 70% raw capacity?
-- Exhibit --

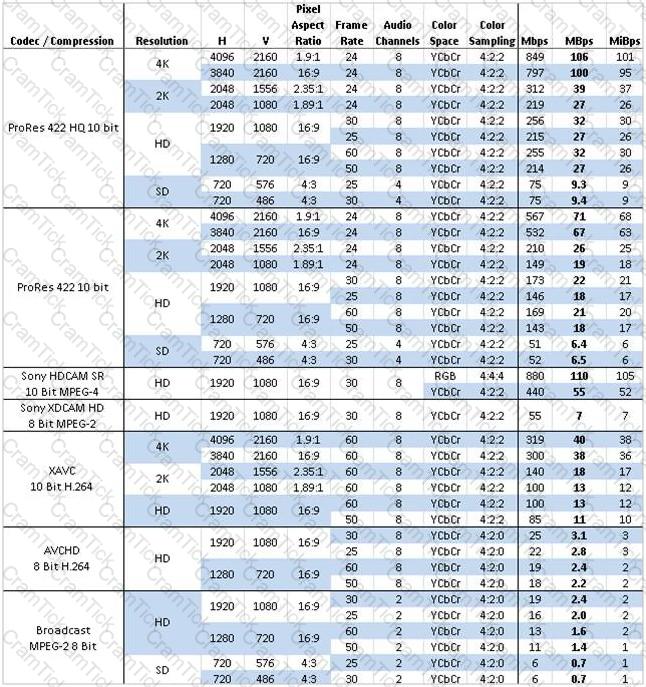

A European Sports TV network is considering Isilon for their Media Edit Storage for their editing workloads. They are also considering Isilon for near-line media archiving.
The network receives XDCAM HD footage which is loaded onto their existing Transcoding Storage platform. New footage that needs to be edited will be transferred from their Transcoding Storage platform to the proposed Media Edit Storage platform at the rate of ten simultaneous XDCAM HD files via FTP. Edited files will be transferred back to the Transcoding Storage platform at the rate of ten simultaneous XDCAM HD files via FTP.
The network currently has 15 Final Cut Pro edit stations, 15 Avid edit stations. Proxy software will be used to allow Isilon to act as the storage for the Final Cut Pro and Avid media. Three of those edit stations will be performing content compositing as needed.
The network expects 70 hours of new content per week, and 50 hours of edited content per week. They intend to keep the new and edited content on the proposed Media Edit Storage as a performance tier for 30 days. They would like to retain all new and edited footage proposed Media Edit Storage as a near-line tier for two years.
In addition to the current workloads, the network expects to implement a new Media Asset Management (MAM) solution and has requested the Isilon cluster be capable of supporting 120 MBps read and 120 MBps write to support the MAM requirements.
-- Exhibit --
Refer to the exhibit.
Based on the described use of the cluster, which node combination is the appropriate choice for the customer’s requirements?
A customer is making a decision between Isilon and a competitor’s offering. They currently have 100TB of usable capacity and are forecasting 100% growth per year for the next three years, which will require them to lease additional space in their co-located data center. The CFO finds ROI and TCO to be important decision criteria.
Which statement best emphasizes the value of Isilon for this customer?

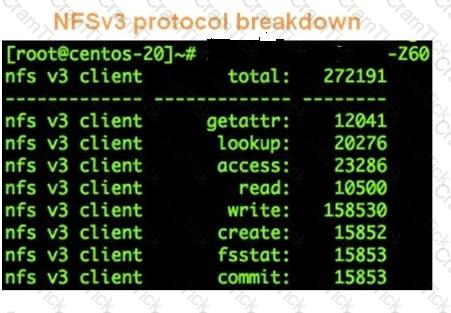

Refer to the exhibit.
Which tool was used to create this output and what is the most telling characteristic?
You have been invited to meet with the Social Media and Marketing Department and gather requirements for a potential File System Project. They primarily use CIFS and are considering deploying a Hadoop cluster to analyze customer demographic data. The Senior Systems Engineer thinks they will need 2PB of usable capacity.
What would you do to gain an understanding of the customer’s environment to qualify and develop the opportunity?
A customer is looking for a NAS solution to support their read-intensive application.
This solution must meet the following requirements:
The files are distributed evenly across 10 directories.
Which cluster configuration would best meet these requirements?
Which cache type contains data blocks from previous read and write transactions?
A cluster has user quotas configured for user’s home directories with hard limits and advisory limits set. What would the default setting be for calculating user quotas on the cluster?

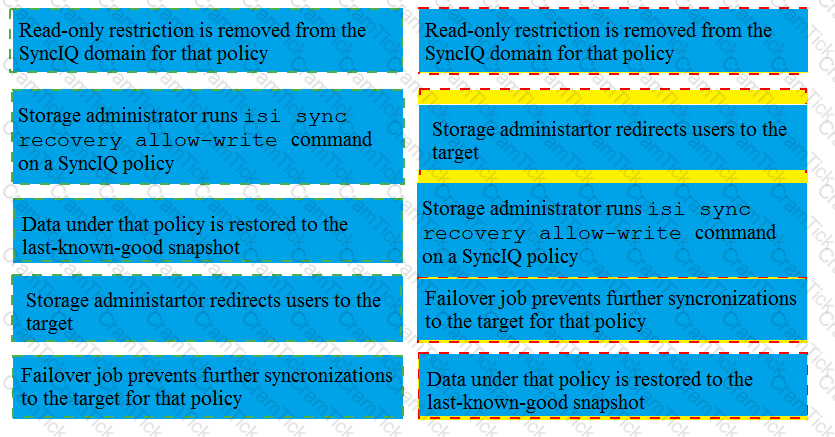

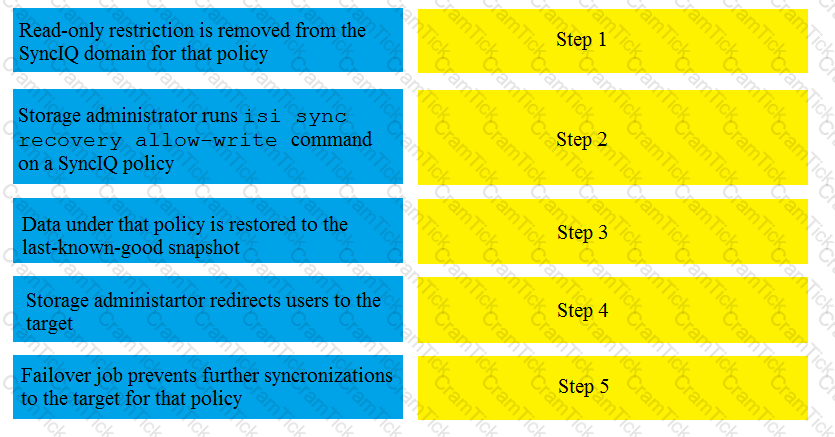

What is the correct sequence of events in a SyncIQ failover procedure after a failure occurs in the source Isilon cluster?
Your customer has several departments that want separate access to the cluster so they can use their individual authentication methods. Two of the departments will use NFS and two will use SMB to access the cluster.
What would you recommend?
Which Isilon OneFS job is responsible for examining the entire file system for inconsistencies and runs manually?
A customer plans to deploy N+2d:1n protection on a 5-node Isilon cluster. How much capacity will be used to store a 320 KiB file?
A customer is inquiring about expanding their primary cluster consisting of six S-Series nodes in order to improve performance. They have a second cluster with 11 X-Series nodes. Both clusters leverage 1GbE, but the customer recently installed a 10GbE network that can be utilized. They also have multiple Fibre Channel SAN arrays in their environment.
They have a variety of workloads on each cluster and are in the process of determining which workloads belong on which cluster. They have discovered that one of the workloads- a SQL database that resides on the X-Series node cluster - is experiencing timeouts due to latency. The database vendor has suggested limiting latency to 5ms or less to eliminate these timeouts.
How do you advise the customer?
How much space is consumed by a 4 KB file when the file data is written to the Isilon cluster?
A new customer is interested in an Isilon Gen 6 solution to replace their sprawling and outdated Linux
environment. Which client tool should you use to establish an estimate of the workload and pattern as an input to the sizing process?
In an Isilon cluster, what is the largest number of nodes that a single file can be striped across?
You get a call from a customer that has just added 200 user connections to the cluster. They want to know how fast they are writing data with these new users.
What tool would you use to gather this information?
You are designing a backup solution using an NDMP redirector and throttler. What is the default threshold
percentage of CPU resources that the throttler limits NDMP to?
Your customer is moving from a Restaurant/Bar business model to a Restaurant/Casino business model. You are helping architect the upgrade of a current 4-node X200 48 TB Isilon cluster, with 50% utilized for their video surveillance operations.
They want to upgrade from 15 FPS (NTSC) in H.264 codec, with a 15 days retention policy to 30 FPS (NTSC) in H.264 codec, with a 30 days retention policy.
How many nodes of the same type will you need to add in order to meet the required changes and not exceed 70% raw capacity?
What is a characteristic of predefined sets of privileges of OneFS built-in administrator roles?
You need to gather information in order to design an Isilon solution. What are included in the Top 10 qualification questions?
If Isilon SmartConnect is being configured in a customer environment, which records are required for a supported implementation?
A potential customer has 540TB Raw capacity of NetApp running in ONTAP 7-Mode. They are willing to let you gather some workload data. Their authentication sources are LDAP and Active Directory. Their users are primarily Windows Clients. They are very interested in Automated Tiering and Large Scale Archives. They are not certain about the workflows from the Marketing Department. The Content Team will only say they need to acquire 300 TB within 90 days. They do not know the average file size or the number of aggregates they are managing.
Which tool(s) would you use next to complete your sizing?
A customer wants to add Unix users to their cluster, and requires that NFS access be fault-tolerant.
What would you recommend?
-- Exhibit --
A large manufacturing company is an existing Isilon customer with a cluster consisting of four NL400 nodes with 4TB drives. The cluster is using N+2:1 protection level and the file system shows that it is 60% utilized. Home directories and file shares comprise 75% of the existing content and the remainder is inactive deep archive. The company has 1,000 employees using Windows and Mac clients participating in a single Active Directory (AD) forest.
During a meeting with the CIO and Director of IT you discuss the company’s recent acquisition – an engineering firm that specializes in Computer Aided Design (CAD). The engineering firm has 400 UNIX workstations that produce technical drawings which are currently stored on another vendor’s SAN solution. The all UNIX environment uses NIS for authentication and name resolution. They do not currently use DNS or LDAP. The engineering company has an old storage system that has been experiencing problems and the CIO would like you to migrate the data onto the Isilon cluster. The CIO would like to eliminate all tape and recover the data onto disk.
The CIO is concerned about security of the company’s intellectual property, especially with the rapid adoption of mobile devices and external cloud content sharing services such as DropBox, Egnyte, and SugarSync. They would like to implement an alternative that provides external file sharing and mobile device synchronization while maintaining security control over the company’s data.
The Director of IT reports that users are storing non-work related content on the Isilon cluster. They would like to limit the amount of capacity that each user can consume in their home directory and want to ensure you provide the capability to easily visualize which users are over their allotment.The company’s Windows users currently leverage Windows Shadow Copy to recover files that have been accidentally deleted. The IT department wants to ensure that Mac and incoming UNIX clients have the same functionality.
The Director of IT also mentions that users are reporting slow response times when browsing their home directories and shared folders. They are concerned that Isilon cannot scale to support their combined requirements.
-- Exhibit --
The CIO approaches you with a new requirement. They would like to reuse the tape library that was previously used for archiving to now be used to back up some of their data.
What do you recommend to the Director of IT as the best architecture to achieve this goal?

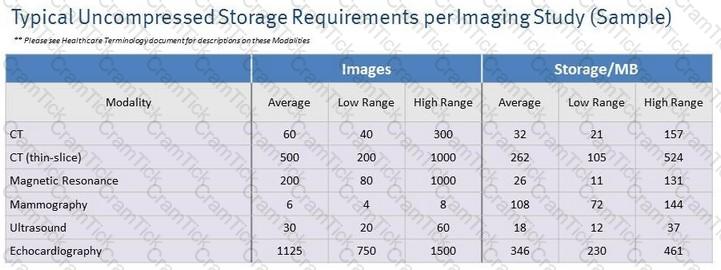

You are working with a healthcare company that is interested in replacing all the backend storage for their PACS system.
In general, how should the solution be presented to the customer?
You are reviewing an opportunity with a trusted advisor. You both discover gaps in the initial solution design.
Each iterative discussion with the customer helps you define the solution better. The documents produced capture the customer's requirements.
What else needs to occur to refine the sizing considerations?
While validating the value (VTV) with a large educational customer, they have decided they would like to add a Disaster Recovery (DR) site to their existing Isilon environment. The existing cluster contains six X-Series nodes. They plan to have all workflows replicated to the DR site and both clusters will have identical shares, exports, and user authentication. The customer would like to test DR failover every six months by running their production environment from the DR site.
What would you recommend for the DR solution?
-- Exhibit --
A large manufacturing company is an existing Isilon customer with a cluster consisting of four NL400 nodes with 4TB drives. The cluster is using N+2:1 protection level and the file system shows that it is 60% utilized. Home directories and file shares comprise 75% of the existing content and the remainder is inactive deep archive. The company has 1,000 employees using Windows and Mac clients participating in a single Active Directory (AD) forest.
During a meeting with the CIO and Director of IT you discuss the company’s recent acquisition – an engineering firm that specializes in Computer Aided Design (CAD). The engineering firm has 400 UNIX workstations that produce technical drawings which are currently stored on another vendor’s SAN solution. The all UNIX environment uses NIS for authentication and name resolution. They do not currently use DNS or LDAP. The engineering company has an old storage system that has been experiencing problems and the CIO would like you to migrate the data onto the Isilon cluster. The CIO would like to eliminate all tape and recover the data onto disk.
The CIO is concerned about security of the company’s intellectual property, especially with the rapid adoption of mobile devices and external cloud content sharing services such as DropBox, Egnyte, and SugarSync. They would like to implement an alternative that provides external file sharing and mobile device synchronization while maintaining security control over the company’s data.
The Director of IT reports that users are storing non-work related content on the Isilon cluster. They would like to limit the amount of capacity that each user can consume in their home directory and want to ensure you provide the capability to easily visualize which users are over their allotment.The company’s Windows users currently leverage Windows Shadow Copy to recover files that have been accidentally deleted. The IT department wants to ensure that Mac and incoming UNIX clients have the same functionality.
The Director of IT also mentions that users are reporting slow response times when browsing their home directories and shared folders. They are concerned that Isilon cannot scale to support their combined requirements.
-- Exhibit --
Based on the meeting with the customer, which Isilon cluster configuration would you recommend?
A customer is evaluating Isilon and Pure FlashBlade solutions. Which protocol is available for both solutions?
A customer is considering moving their NAS data over to Isilon systems. They want to know what limitations Isilon has regarding snapshot on the directory level.
What explanation can be provided to the customer?
A customer is considering the use of RBAC to centrally administer user accounts that can log into multiple Isilon clusters. What is a potential capability for the customer?
