D-PDD-DY-23 Dell PowerProtect DD Deploy 2023 Questions and Answers

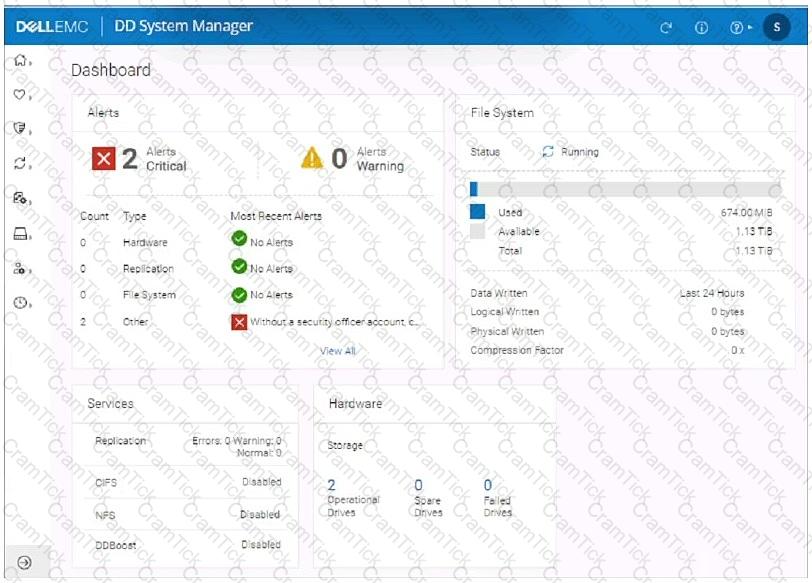

If backups are failing when using a dynamic interface group, one of the likely causes is that DD Boost is disabled. Since DD Boost is essential for optimized data transfer during backups, its disabled status would lead to backup failures even if other configurations appear correct.

If you need to verify this in the simulator:

Go to the Protocols section.

Check the status of DD Boost.

Ensure that DD Boost is enabled to allow backups to proceed successfully.

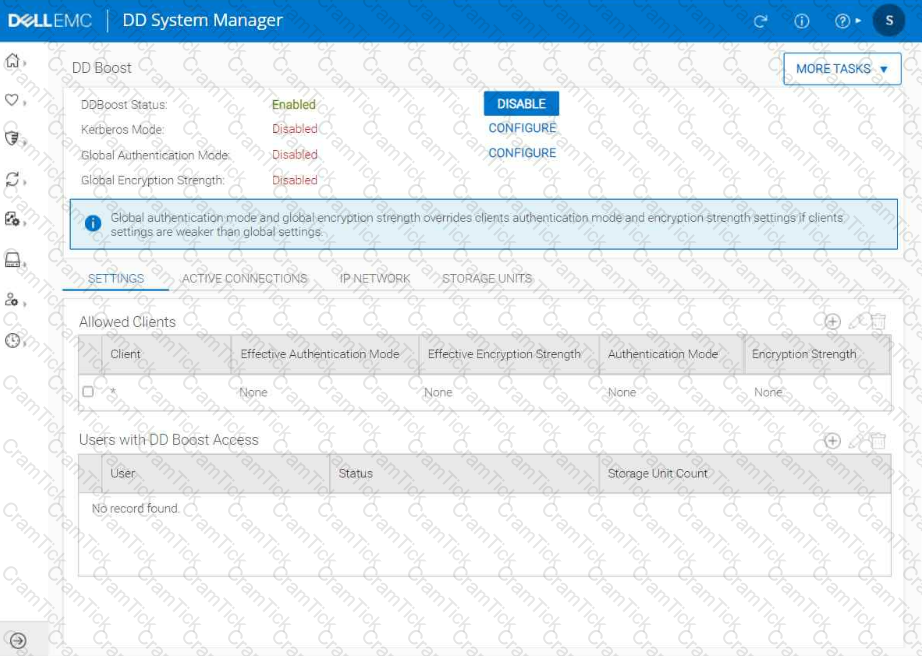

To configure DD Boost on the PowerProtect DD system and create the required user and storage unit, follow these steps:

Enable DD Boost:

Go to the DD System Manager.

Navigate to DD Boost Settings.

Click on Enable to activate DD Boost on the system.

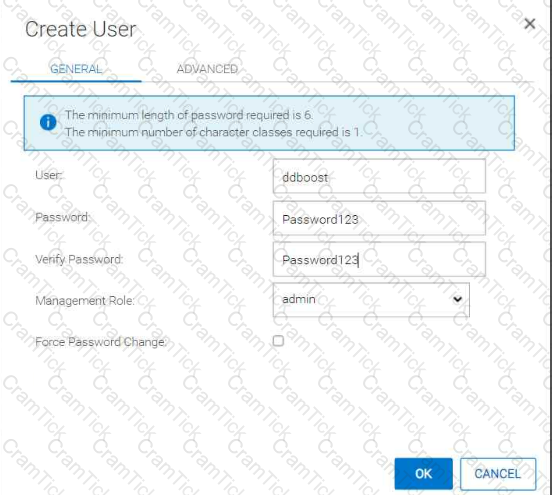

2. Create the User 'ddboost':

Go to Access Management > Local Users.

Click Create to add a new user.

Set the username to ddboost and the password to Password123.

Assign the user management role (the recommended permission for DD Boost users).

Click OK to create the user.

3. Create the Storage Unit 'SU1':

Go to Storage Units in the DD Boost section.

Click Create to add a new storage unit.

Name the storage unit SU1.

Assign the ddboost user to this storage unit for access.

Set any quota limits if required, or leave them as None if no restrictions are needed.

Click Create to finalize the storage unit creation.

After completing these steps, DD Boost will be enabled, and the ddboost user with appropriate permissions will have access to the newly created storage unit SU1.

To configure a new MTree with a specified path and size limit in PowerProtect DD, follow these steps:

Step 1: Access the MTree Management Section

In the DD System Manager interface, locate Data Management in the sidebar.

Select MTree from the dropdown menu to manage MTrees.

Step 2: Create a New MTree

Click on Create MTree or Add MTree (the exact button label may vary).

Set the Path for the MTree as /data/col1/oracle.

Step 3: Set the MTree Size Limit

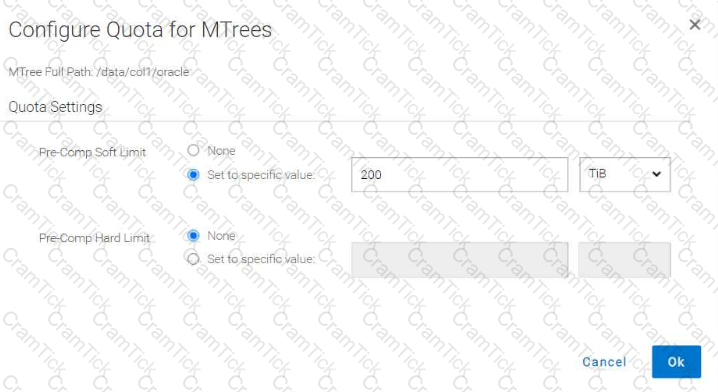

In the MTree creation dialog, look for an option to set a Quota or Size Limit for the MTree.

Set the Size Limit to 200 TiB to ensure the MTree does not exceed this capacity.

Step 4: Save the Configuration

Confirm and save your settings to create the MTree with the specified path and size restriction.

After these steps, you should have a new MTree at /data/col1/oracle with a maximum allowed size of 200 TiB. Let me know if further assistance is required!

A screenshot of a computer Description automatically generated

To create a new non-admin user and a storage unit for an Oracle department on PowerProtect DD, follow these steps:

Step 1: Create the User "DDBoostOracle"

Navigate to the User Management Section:

Look under Administration or Users in the sidebar (the exact location may vary by DD OS version).

Create New User:

Click on Add User or New User.

Enter Username: DDBoostOracle

Enter Password: Password123

Set Management Role to None.

Set Password Aging Policy:

Set Minimum Days: 0

Set Maximum Days: 180

Set Warn Days: 15

Assign the User to DD Boost Users Group:

Locate the option to assign the user to groups and select the ddboost users group.

Save User Configuration:

Confirm and save the settings to create the user.

Step 2: Create the Storage Unit "SU_Oracle"

Navigate to DD Boost Protocol:

Go to Protocols > DD Boost in the sidebar.

Create a New Storage Unit:

Find Storage Units and select Add Storage Unit.

Name the storage unit as SU_Oracle.

Assign the User to the Storage Unit:

During the creation process or in the access settings of the storage unit, assign DDBoostOracle as the user with access.

Save Storage Unit Configuration:

Confirm and save the configuration to ensure that the new user has access to the storage unit.

This completes the setup for a non-admin user with the specified password aging policy and a dedicated storage unit for the Oracle department. Let me know if additional steps are needed!

Verify the cleaning task is properly scheduled and is performing correctly.: It’s essential to ensure that the cleaning task, which is responsible for reclaiming space by removing obsolete data, is scheduled correctly and running as expected. If the cleaning task is not operating correctly, it will not free up space.

Use the disk show state command to verify the status of disks and replace any with a failed status.: Checking the health of the disks is crucial. If any disks are in a failed state, it could impact the system's ability to manage and reclaim storage efficiently. Identifying and replacing any failed disks is necessary for maintaining overall system performance.

Explanation: The filesys report command provides detailed compression statistics, essential for administrators to monitor storage efficiency over time. This insight into compression ratios aids in storage optimization and management planning on PowerProtect DD systems.

Explanation: Dell Cloud Tier is designed to extend storage to cloud environments while maintaining a single namespace for management simplicity. This feature enables seamless data management across local and cloud storage tiers, preserving data accessibility and integrity.

Explanation: Best practice for Fibre Channel zoning with PowerProtect DD is to use single-initiator single-target zoning, which enhances security and stability in data transfer by isolating connections between devices, minimizing potential interference.

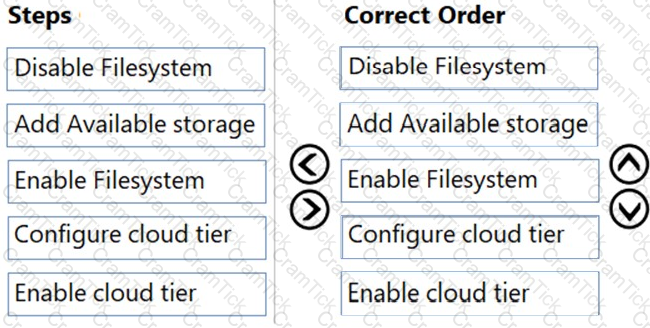

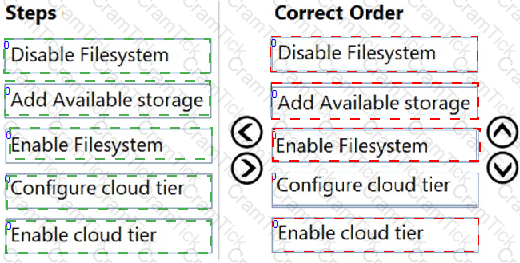

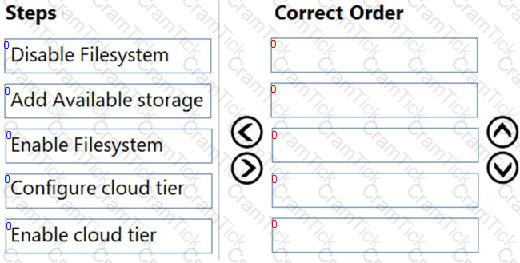

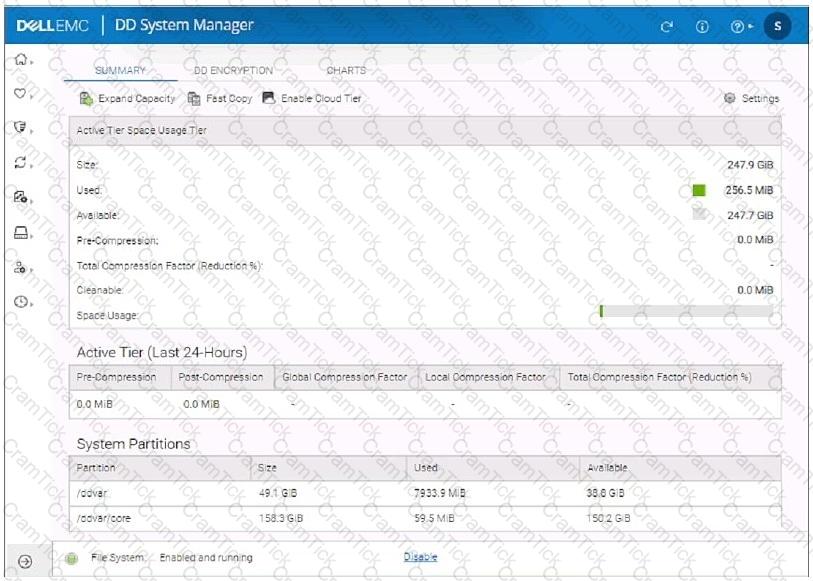

Disable Filesystem: This step ensures that any current filesystem operations are halted to safely modify the configuration.

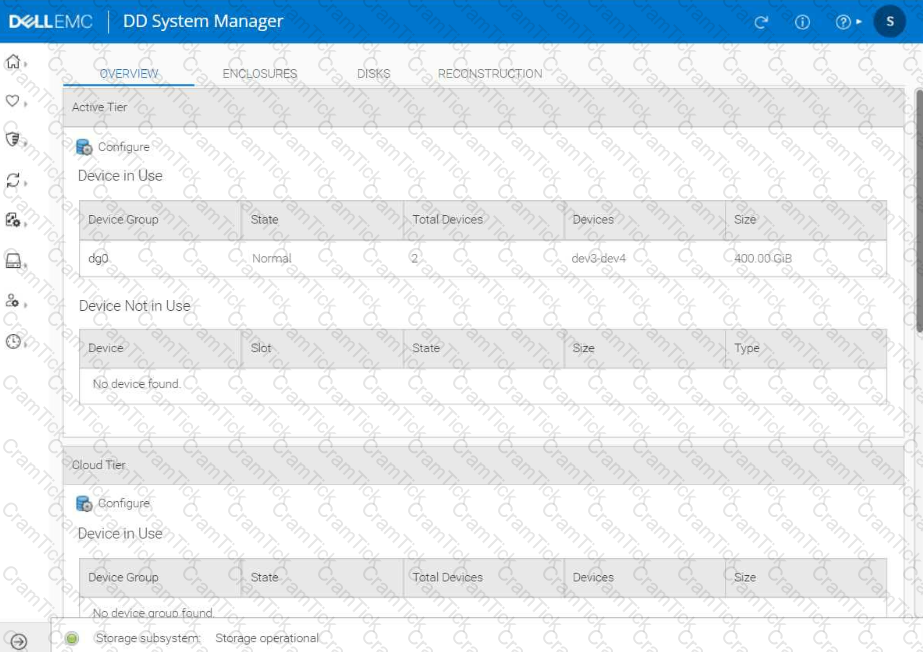

Add Available Storage: This involves allocating additional storage resources for the Cloud Tier functionality.

Enable Filesystem: After adding storage, the filesystem needs to be re-enabled to make the system operational again.

Configure Cloud Tier: Set up the necessary parameters and options for the Cloud Tier, specifying how it will interact with the cloud storage.

Enable Cloud Tier: Finally, this step activates the Cloud Tier, allowing data to be tiered to cloud storage according to the configured settings.

The nfs show clients command provides a list of clients that have access to the NFS (Network File System) shares exported by the PowerProtect DD appliance. This information is crucial for administrators to monitor and manage NFS client connections, ensuring proper access and resource allocation.

To resolve the issue and set up the cleaning schedule and manual cleaning on your PowerProtect DD system, follow these steps based on the information provided:

Access the Cleaning Schedule Settings:

Go to File System Settings.

Navigate to the Cleaning tab.

2. Set the Cleaning Schedule:

Frequency: Choose Weekly.

At: Set the cleaning to start every Tuesday at 6:00 AM.

Throttle: Set the throttle to 50% for scheduled cleaning.

3. Manually Start Cleaning:

After setting the schedule, initiate the cleaning manually from the File System settings.

Set the manual cleaning throttle to 30% to ensure system resources are not overused during the process.

The Global-Compression Factor quantifies how effectively the compression algorithms are reducing the size of the data stored on the system. It reflects the overall impact of compression on data size, helping administrators understand the efficiency of the compression techniques being applied.

To configure a user account for Retention Lock Compliance Edition with specific role and password policies on a PowerProtect DD system, follow these steps:

Step 1: Access the User Management Section

In the DD System Manager interface, go to Administration or Users (exact location may vary).

Look for an option to manage user accounts.

Step 2: Create or Verify the Account

If the account asterix1 already exists:

Select the user and edit the properties.

If the account does not exist:

Click on Add User or Create New User.

Enter the Username as asterix1.

Set the Password as password2.

Step 3: Assign the Compliance Role

Ensure that asterix1 is assigned the correct role, which is usually Security Officer or a similar role necessary for Retention Lock Compliance.

This role allows the user to manage and enforce compliance-related settings on the system.

Step 4: Set Password Expiration Policy

Configure the Password Aging Policy:

Set Password Expiration or Maximum Days to 180 days.

Ensure Minimum Days and Warning Days are set as needed or required by the compliance policy.

Step 5: Save and Verify

Save the changes and verify that the account asterix1 is now listed with the appropriate role and password settings.

This configuration ensures that the asterix1 account is in place with the correct permissions and that the password is set to expire after 180 days. Let me know if you need more assistance!

To configure DD Boost, enable it, create a new user, and set up a storage unit in the DD System Manager, follow these steps:

Enable DD Boost:

In the Protocols section on the left sidebar, locate DD Boost and click on it.

Inside the DD Boost settings, find the option to enable DD Boost if it's currently disabled.

Create a New User:

Go to Administration or Users (location varies based on version).

Select Add User or New User.

Set the username as ddboost and the password as Password123.

Assign the appropriate permissions, typically Admin or Read/Write access, based on best practice recommendations for DD Boost users.

Create a Storage Unit:

Return to the DD Boost section.

Look for an option labeled Storage Units or similar, and choose Add Storage Unit.

Name the storage unit SU1.

Ensure that the newly created ddboost user has access to this storage unit.

Save and Confirm:

After configuring, save all settings and confirm the changes.

Verify that DD Boost is enabled, the user ddboost exists with the specified permissions, and the storage unit SU1 is created and accessible by this user.

This completes the setup for DD Boost with a new user and storage unit on PowerProtect DD. Let me know if you need more assistance with any of these steps.

A screenshot of a computer Description automatically generated

A screenshot of a login form Description automatically generated

To flash an LED on a hard drive and bring a disk back online using the DD System Manager or DDOS CLI, follow these general steps:

Step 1: Identify the Disk

In DD System Manager:

Go to the Hardware section in the sidebar.

Locate the list of disks, and find Disk 1.5 (the offline disk).

In DDOS CLI (if using CLI):

Use the command to list disks and confirm the status of Disk 1.5.

Command example: disk show state or disk show summary.

Step 2: Flash the LED on the Disk

In DD System Manager:

In the Hardware section, select Disk 1.5.

Look for an option like Flash LED or Locate Drive to help identify the physical disk.

Activate the LED flash to identify the disk physically.

In DDOS CLI:

Use the command: disk locate 1.5 to flash the LED for Disk 1.5.

Step 3: Bring the Disk Back Online

In DD System Manager:

After identifying the disk, check for options to Bring Online or Reactivate Disk 1.5.

Select the option to return the disk to operation.

In DDOS CLI:

Use the command: disk unfail 1.5 to bring the disk back online.

Step 4: Verify the Disk Status

Confirm in DD System Manager or by using the disk show state command in CLI that Disk 1.5 is now online and functioning.

After completing these steps, the LED should flash to help locate the disk physically, and then Disk 1.5 will be returned to an operational state. Let me know if you need further guidance!

A screenshot of a computer Description automatically generated

For the PowerProtect DD HA feature to function effectively, a dual set of shared storage is necessary. This configuration provides redundancy and ensures that if one storage path fails, the other can maintain data availability. The dual shared storage setup enhances system resilience, allowing continuous operation and minimizing downtime in case of hardware failures or other issues.

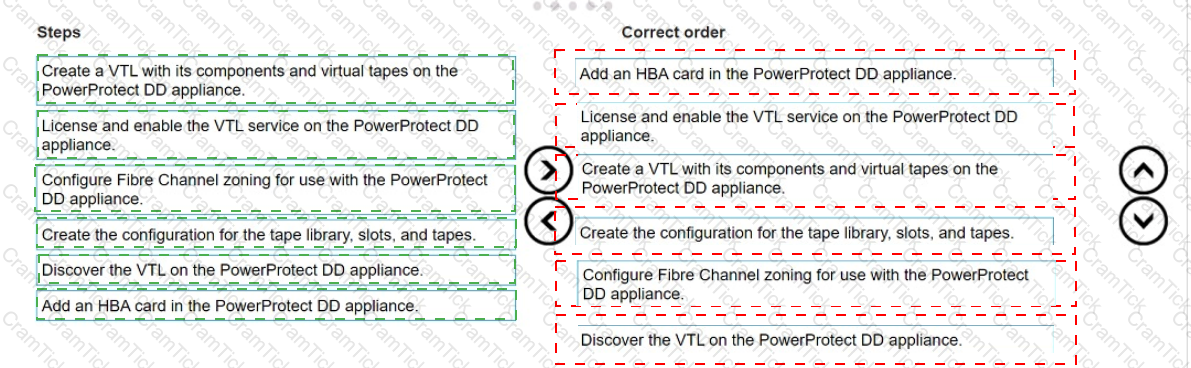

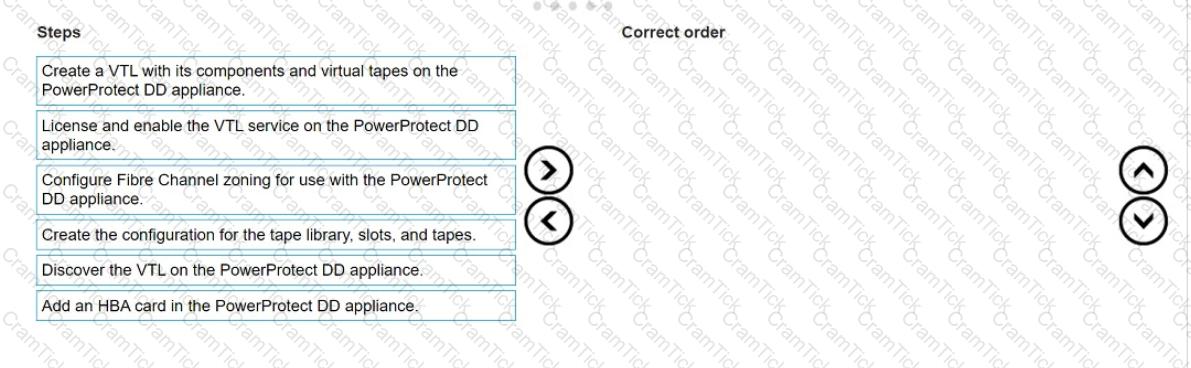

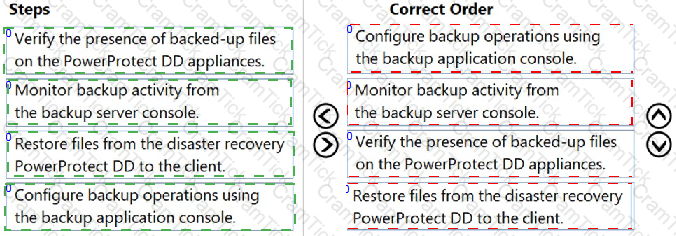

The correct order for implementing a Virtual Tape Library (VTL) environment on a PowerProtect DD appliance is as follows:

Add an HBA card in the PowerProtect DD appliance.

License and enable the VTL service on the PowerProtect DD appliance.

Create a VTL with its components and virtual tapes on the PowerProtect DD appliance.

Create the configuration for the tape library, slots, and tapes.

Configure Fibre Channel zoning for use with the PowerProtect DD appliance.

Discover the VTL on the PowerProtect DD appliance.

Add an HBA Card: The Host Bus Adapter (HBA) card is required to connect the PowerProtect DD appliance to the Fibre Channel network, which is essential for the VTL configuration.

License and Enable VTL Service: The VTL functionality needs to be licensed and enabled on the PowerProtect DD appliance to allow the configuration of virtual tape drives and libraries.

Create the VTL: This involves setting up the virtual tape library components and creating virtual tapes on the appliance, establishing a simulated tape environment.

Configure Tape Library Settings: Set up the logical structure of the tape library, including the number of slots, tape drives, and tapes, as this information is critical for the backup application.

Configure Fibre Channel Zoning: Proper zoning must be configured in the Fibre Channel environment to ensure the backup servers can access the virtual tape drives and libraries on the PowerProtect DD appliance.

Discover the VTL: After setting up the environment, discover the VTL on the PowerProtect DD appliance to make it available for backup operations.

This ordered process ensures a structured and functional VTL setup within the PowerProtect DD environment, enabling optimized data protection workflows.

Explanation: The standard port for syslog monitoring over UDP is 514. This protocol is widely used for logging and monitoring networked devices, including PowerProtect DD, facilitating real-time monitoring and alerts.

Explanation: When configuring a chain with ES40 SAS shelves and DS60 shelves in a PowerProtect DD environment, the maximum allowable number of shelves on that chain is three. This limitation is due to compatibility and bandwidth requirements for maintaining optimal performance and reliability across the SAS chain. Mixing different shelf models (ES40 and DS60) in a single chain affects the maximum supported configuration, and following this limitation ensures that the data transfer speeds and stability are not compromised.

Explanation: To add storage to either the active or cloud tier on a PowerProtect DD appliance, the command storage add disks is used. This command allows the administrator to add physical disks to expand storage capacity. By adding disks to the system, administrators can increase the available storage within the specified tier, whether it's for active (local) storage or cloud-integrated storage. This flexibility supports growth and scalability in data management operations.

Explanation: When implementing Link Aggregation Control Protocol (LACP) on a PowerProtect DD appliance, a virtual network interface is created to aggregate the physical interfaces into a single logical link. This configuration is essential to enable LACP functionality, as it allows the system to balance network traffic effectively across multiple physical connections, enhancing redundancy and throughput. By aggregating these physical interfaces, the appliance can better handle high data volumes, providing stable and efficient access to the underlying network resources.

The virtual network interface manages the logical grouping, ensuring seamless failover and load balancing between the physical links that comprise the aggregated connection.
