301b LTM Specialist: Maintain & Troubleshoot Questions and Answers

Which procedure should an LTM Specialist follow to move a configuration from a 1500 to a 1600 hardware platform during an upgrade?

-- Exhibit –

-- Exhibit --

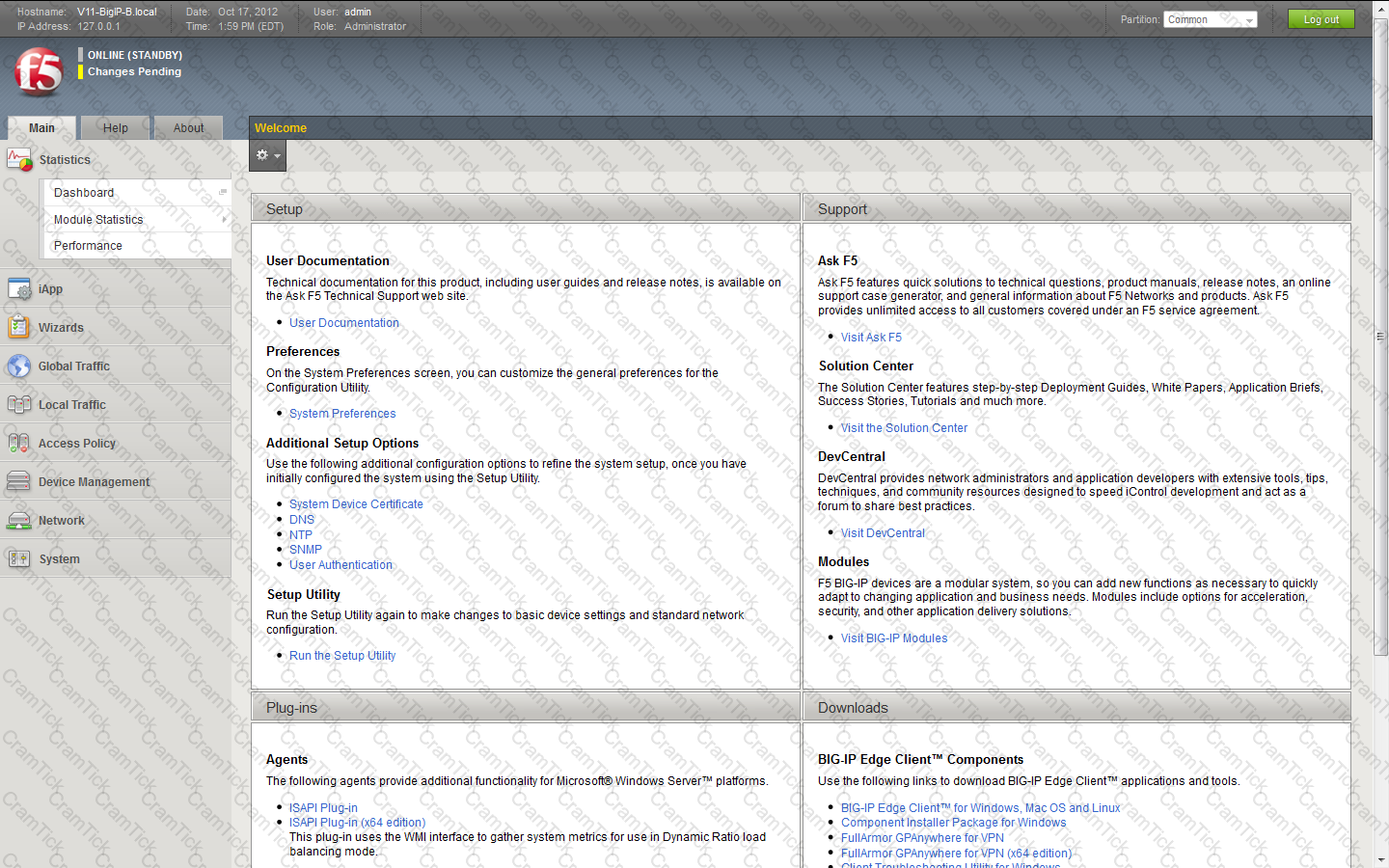

Refer to the exhibit.

Which step should an LTM Specialist take to utilize AVR?

-- Exhibit –

-- Exhibit --

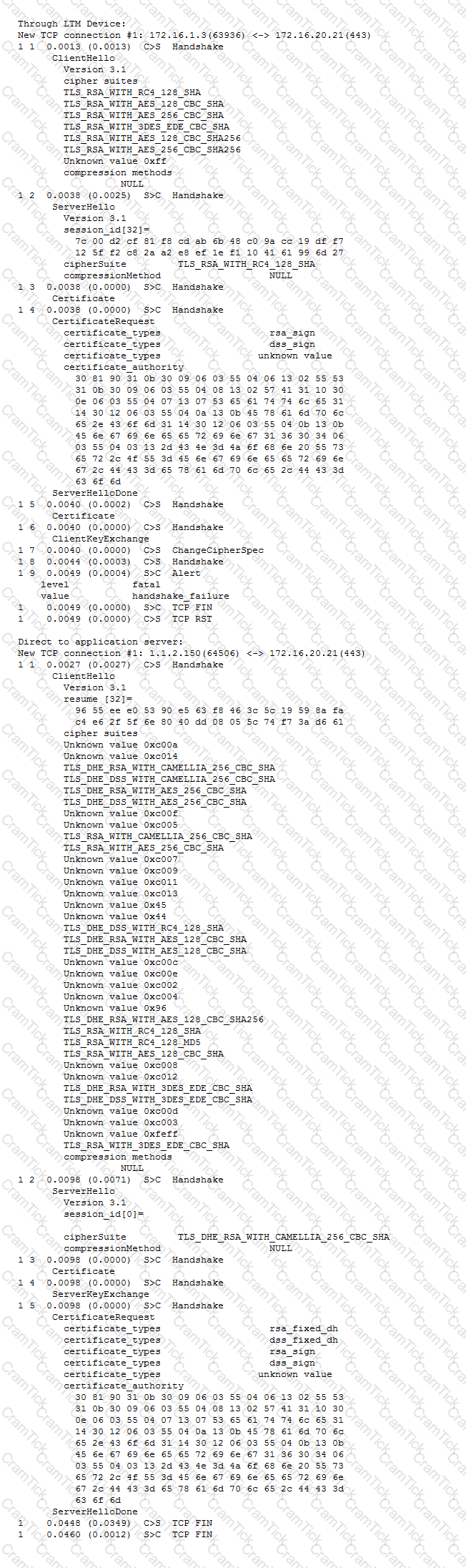

Refer to the exhibit.

A client attempts to connect from a Google Chrome browser to a virtual server on a BIG-IP LTM. The virtual server is SSL Offloaded. When the client connects, the client receives an SSL error. After trying Mozilla Firefox and Internet Explorer browsers, the client still receives the same errors.

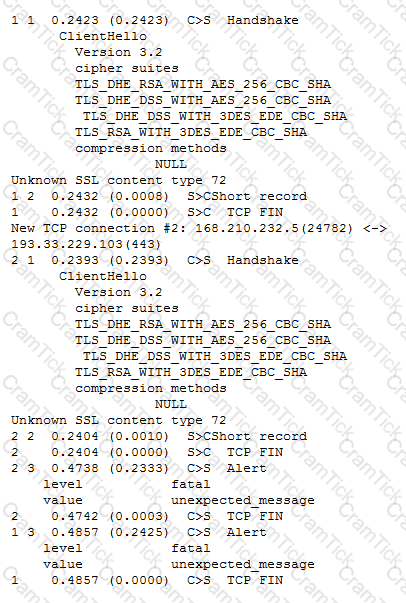

The LTM Specialist does an ssldump on the virtual server and receives the results as per the exhibit.

What is the problem?

-- Exhibit –

-- Exhibit --

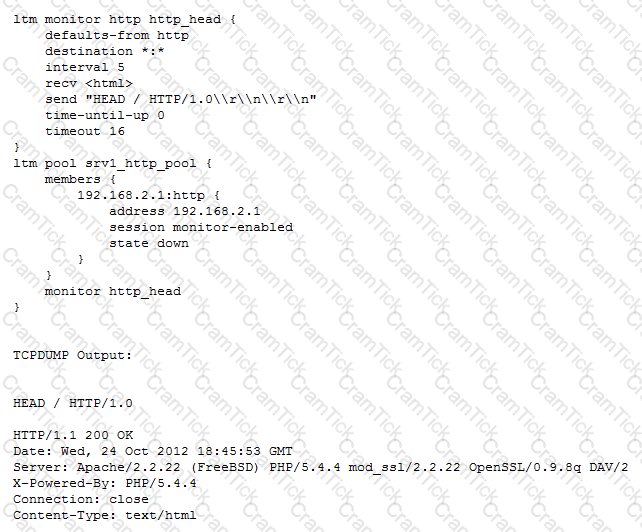

Refer to the exhibit.

An LTM Specialist is troubleshooting a new HTTP monitor on a pool. The pool member is functioning correctly when accessed directly through a browser. However, the monitor is marking the member as down. The LTM Specialist captures the monitor traffic via tcpdump.

What is the issue?

A web application is meant to log the URI of the resource that responded to the client's initial Request-URI.

Which HTTP header will supply this information?

-- Exhibit –

-- Exhibit --

Refer to the exhibit.

An administrator created a monitor to a pool member web server, which resulted in a pool member that is marked red. The administrator knows the web server is working when it is accessed from another computer.

What should the administrator do to correct the problem?

-- Exhibit –

-- Exhibit --

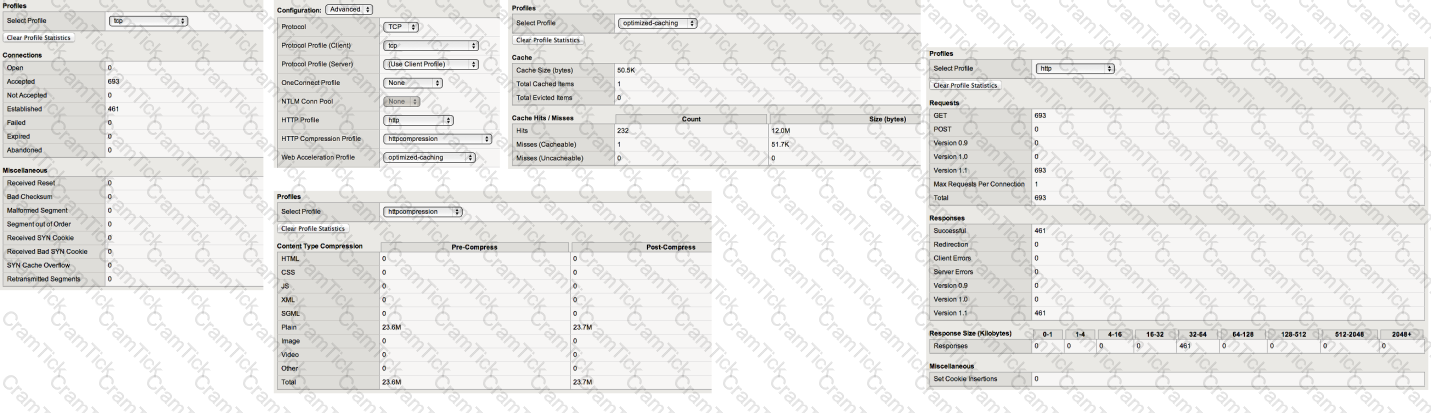

Refer to the exhibit.

Which profile could be removed or changed on this virtual server to reduce CPU load on the LTM device without increasing server side bandwidth usage?

An LTM HTTP pool has an associated monitor that sends a string equal to 'GET /test.html'.

Which two configurations could an LTM Specialist implement to allow server administrators to disable their pool member servers without logging into the LTM device? (Choose two.)

-- Exhibit –

-- Exhibit --

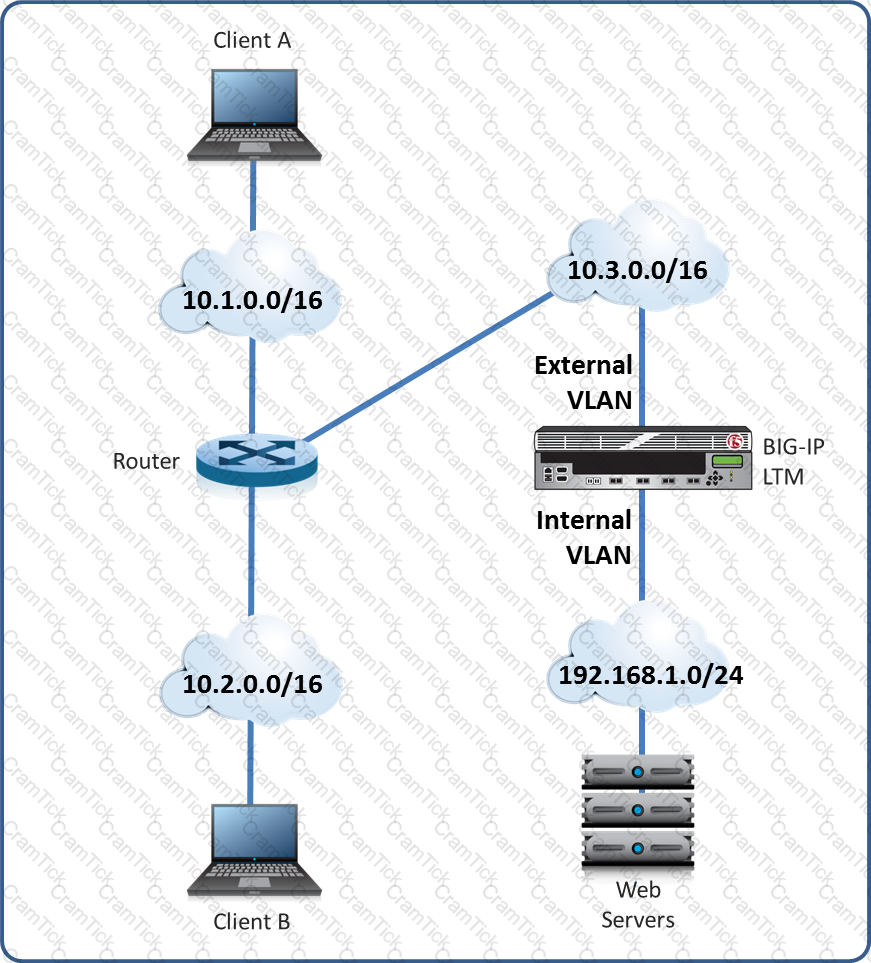

Refer to the exhibits.

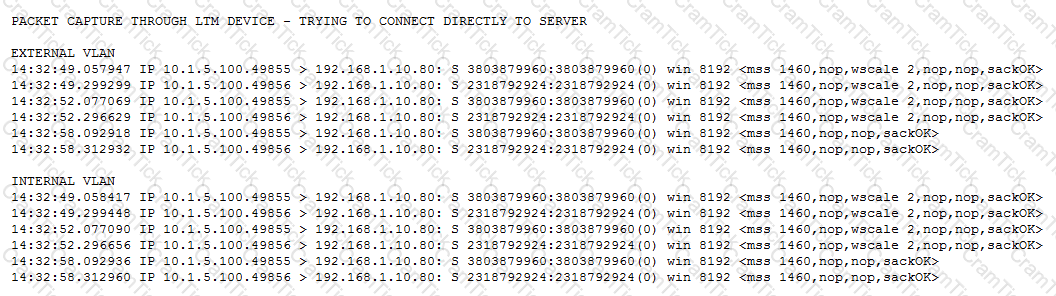

Users are able to access the application when connecting to the virtual server but are unsuccessful when connecting directly to the application servers. The LTM Specialist wants to allow direct access to the application servers.

Why are users unable to connect directly to the application servers?

-- Exhibit –

-- Exhibit --

Refer to the exhibit.

An LTM Specialist configures a virtual server to perform client-side encryption while allowing the server-side traffic to be unencrypted. Application owners report that images are failing to load through the virtual server; however, images load when going directly to the server.

What is the problem with the images loading through the virtual server?

Which command should an LTM Specialist use on the command line interface to show the health of RAID array hard drives?

-- Exhibit –

-- Exhibit --

Refer to the exhibit.

A company uses a complex piece of client software that connects to one or more virtual servers (VS) hosted on an LTM device. The client software is experiencing issues. An LTM Specialist is tasked with finding the cause of the problem.

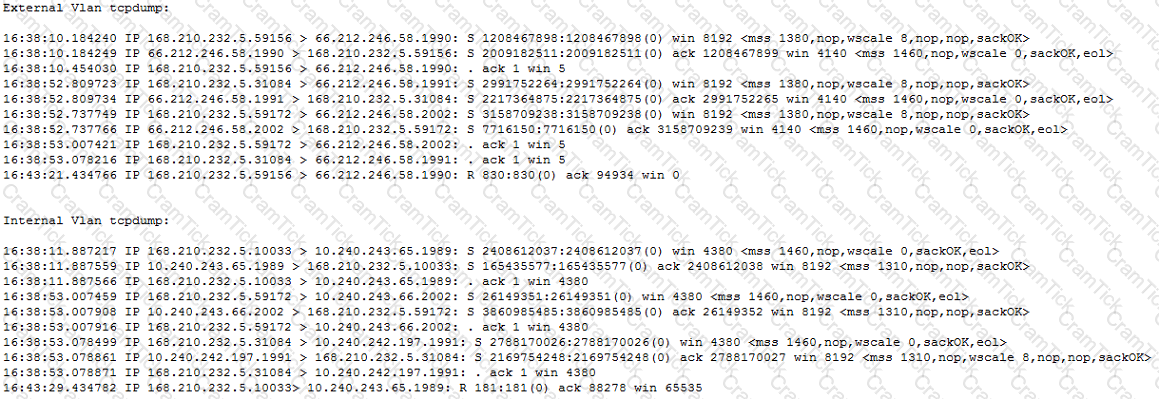

The LTM Specialist has the tcpdump extract and knows the client software has at least one connection to a VS on port 1990. However, when a tcpdump runs on the internal VLAN, there is no record of port 1990 in the tcpdump.

Why is there no record of port 1990 in the tcpdump?

-- Exhibit –

-- Exhibit --

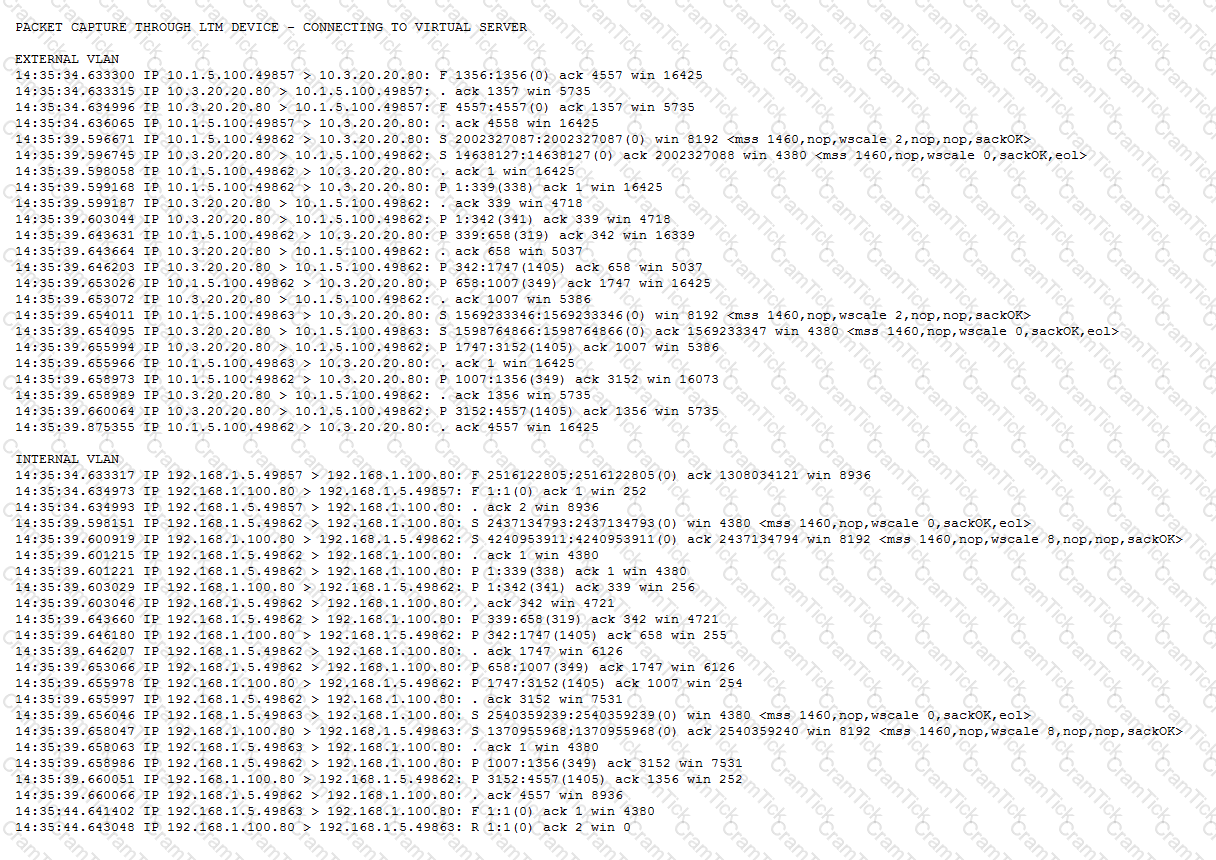

Refer to the exhibit.

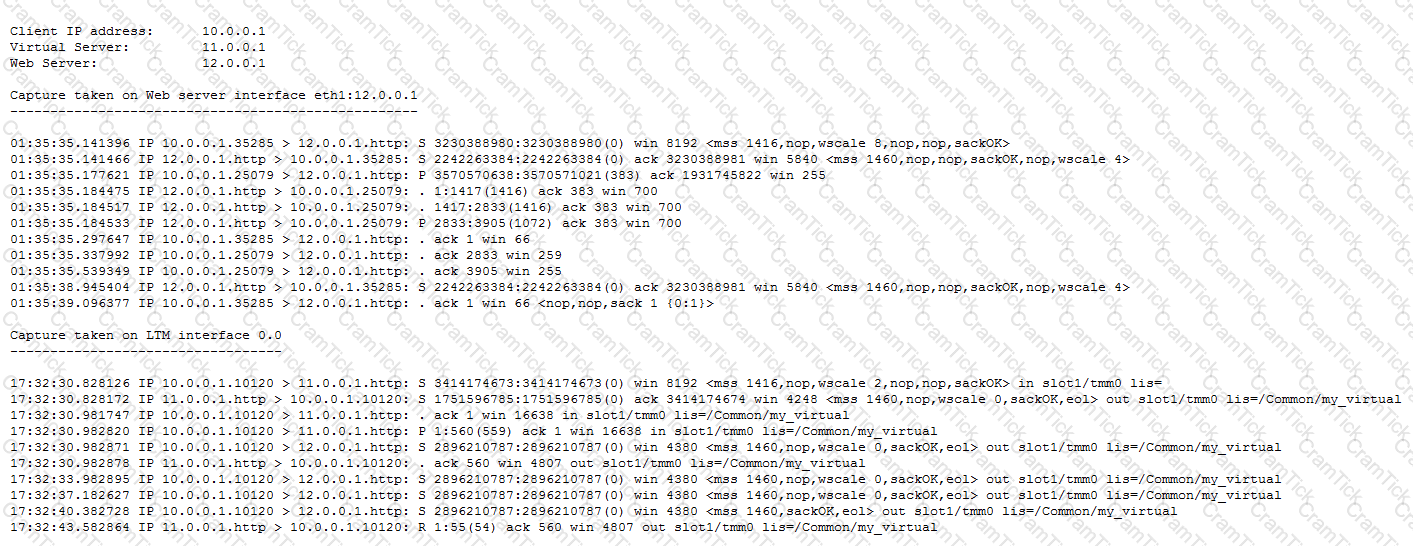

A pair of LTM devices are configured for HA. The LTM Specialist observes from a capture that there is a successful connection from a client directly to a web server and an unsuccessful connection from a client via the LTM device to the same web server.

Which two solutions will solve the configuration problem? (Choose two.)

-- Exhibit –

-- Exhibit --

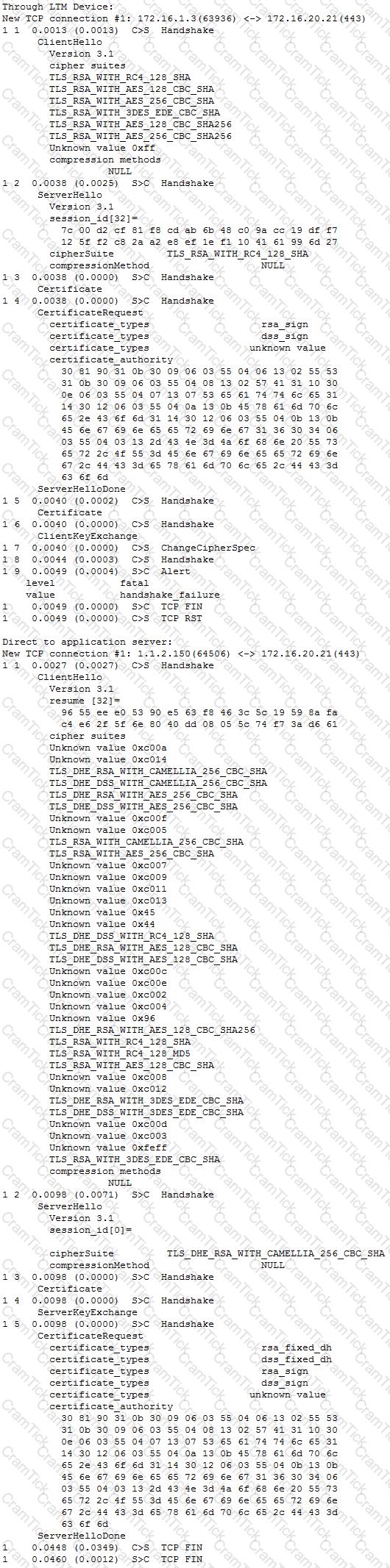

Refer to the exhibit.

An LTM Specialist creates a virtual server to load balance traffic to a pool of HTTPS servers. The servers use client certificates for user authentication. The virtual server has clientssl, serverssl, and http profiles enabled. Clients are unable to connect to the application through the virtual server, but they are able to connect to the application servers directly.

Which change to the LTM device configuration will resolve the problem?

-- Exhibit –

-- Exhibit --

Refer to the exhibit.

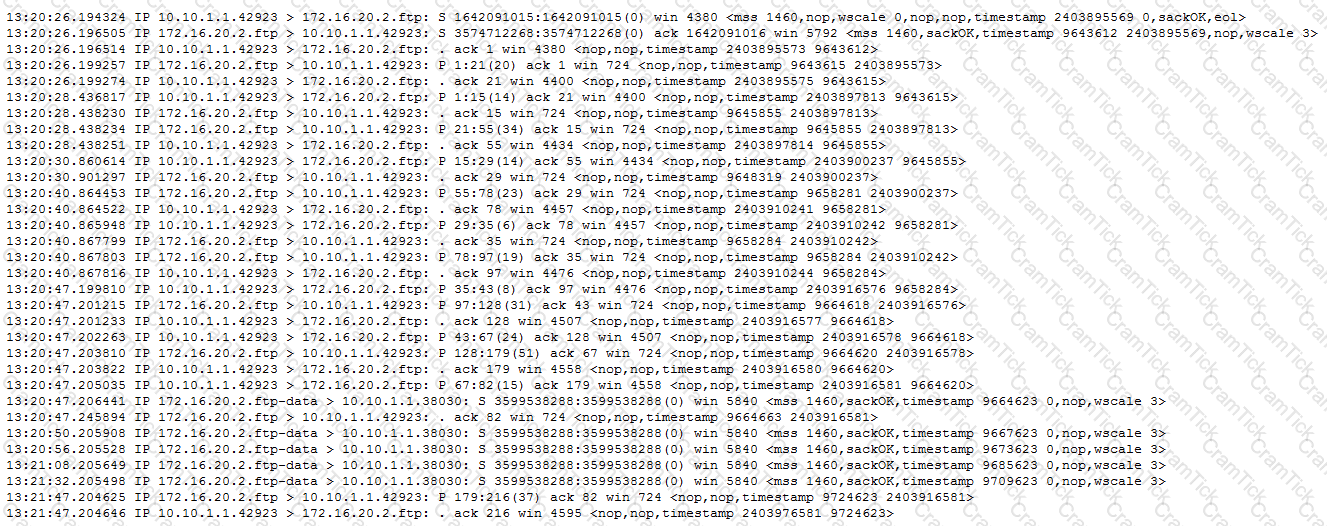

An LTM Specialist configures a virtual server to load balance to a pool of FTP servers. File transfers are failing. The virtual server is configured as follows:

ltm virtual ftp_vs {

destination 10.10.1.103:ftp

ip-protocol tcp

mask 255.255.255.255

pool ftp_pool

profiles {

tcp { }

}

vlans-disabled

}

Which change will resolve the problem?

What is the recommended procedure for upgrading a major TMOS release on a BIG-IP platform?

-- Exhibit –

-- Exhibit --

Refer to the exhibit.

A pair of LTM devices are deployed in a high-availability (HA) pair as the diagram shows. After inserting a new rule on the firewalls, the LTM devices become Standby. The rule drops all outbound sessions to the Internet. Only inbound connections are allowed from the Internet. There are no other changes to the environment.

What triggered the LTM device failover?

An LTM device pair is configured for failover and connection mirroring. The LTM devices are configured with virtual servers for HTTP, HTTPS with SSL offload, and SSH. An event occurs that causes a failover. HTTP and SSH sessions active at the time of failover remain active, but HTTPS sessions are dropped.

What is the root cause of this problem?

An LTM Specialist needs to rewrite text within an HTML response from a web server. A client is sending the following HTTP request:

GET / HTTP/1.1

Host: www.example.com

User-Agent: Mozilla/5.0 (Windows NT 6.1; WOW64; rv:16.0) Gecko/20100101 Firefox/16.0

Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8

Accept-LanguagE. en-US,en;q=0.5

Accept-EncodinG. gzip, deflate

Cache-Control: no-cache

Connection: keep-alive

CookiE. somecookie=1

HTTP/1.1 200 OK

Server: Apache/2.2.15 (Unix)

Last-ModifieD. Wed, 12 Aug 2009 00:00:30 GMT

Accept-Ranges: bytes

Content-LengtH. 1063

X-Cnection: close

Content-TypE. text/html; charset=UTF-8

Vary: Accept-Encoding

Content-EncodinG. gzip

Connection: Keep-Alive

Although a stream profile has been added to the virtual server, the content within the HTTP response is NOT being matched and therefore NOT modified.

Which header field is contributing to the issue?

An LTM Specialist must perform a packet capture on a virtual server with an applied standard FastL4 profile. The virtual server 10.0.0.1:443 resides on vlan301.

Which steps should the LTM Specialist take to capture the data payload successfully while ensuring no other virtual servers are affected?

What is the correct command to reset an LTM device to its default settings?

An LTM Specialist configures a new HTTP virtual server on an LTM device external VLAN. The web servers are connected to the LTM device internal VLAN. Clients trying to connect to the virtual server are unable to establish a connection. A packet capture shows an HTTP response from a web server to the client and then a reset from the client to the web server.

From which two locations could the packet capture have been collected? (Choose two.)

Which command will identify the active LTM device currently handling client traffic?

There is a fault with an LTM device load balanced trading application that resides on directly connected VLAN vlan-301. The application virtual server is 10.0.0.1:80 with trading application backend servers on subnet 192.168.0.0/25. The LTM Specialist wants to save a packet capture with complete payload for external analysis.

Which command should the LTM Specialist execute on the LTM device command line interface?

Which command line interface command will check if the BIG-IP platform contains a packet velocity ASIC (PVA)?

An IT administrator wants to log which server is being load balanced to by a user with IP address 10.10.10.25.

Which iRule should the LTM Specialist use to fulfill the request?

-- Exhibit –

-- Exhibit --

Refer to the exhibit.

An LTM Specialist has created a virtual server to load balance traffic to a pool of HTTPS servers. The servers use client certificates for user authentication. The virtual server has clientssl, serverssl, and http profiles enabled. Clients are unable to connect to the application through the virtual server. Clients are able to connect to the application servers directly.

What is the root cause of the problem?

Which iRule will instruct the client's browser to avoid caching HTML server responses?
