2V0-32.22 VMware Cloud Operations 8.x Professional Questions and Answers

When deploying vRealize Log Insight using vRealize Suite Lifecycle Manager (vRSLCM), VMware Identity Manager (vIDM) is not a mandatory requirement . While vIDM can be integrated with vRealize Log Insight for authentication and single sign-on, it's not essential for the initial deployment process through vRSLCM.

Here's why the other options are incorrect:

A. A DHCP address can be used for vRealize Log Insight worker nodes: vRealize Log Insight worker nodes require static IP addresses for proper cluster functionality and communication. DHCP addresses are not supported for worker nodes.

C. Federal Information Processing Standard (FIPS) is enabled by default: FIPS mode is not enabled by default in vRealize Log Insight deployments using vRSLCM. It can be enabled if required for compliance with specific security standards.

D. A cluster Virtual IP (VIP) address is a mandatory requirement: While a VIP address is recommended for clustered vRealize Log Insight deployments, it's not mandatory for the deployment process through vRSLCM. The integrated load balancer within the cluster can function without a VIP.

In vRealize Log Insight, when adding agents to an agent group, you can utilize various filters to organize and manage agents effectively. Three applicable filters include:

IP Address:

Filter by IP Address: You can filter agents based on their IP addresses, allowing you to group agents within specific network segments or assign configurations to agents in particular subnets.

Hostname:

Filter by Hostname: Filtering by hostname enables grouping of agents running on machines with specific naming conventions, facilitating targeted log collection and analysis.

Logging Protocol:

Filter by Logging Protocol: This filter allows you to group agents based on the logging protocol they use (e.g., syslog, cfapi), ensuring appropriate configurations are applied according to the protocol standards.

To troubleshoot the "Cluster shut down because one or more nodes were out of disk space" error in vRealize Operations (vROps), the correct sequence of actions is:

From the vROps Admin UI, locate the affected node and enable SSH

Log into each vROps Node as the root user

Run the df -h command to identify which volume is out of space

Run the ls -l command to identify which volume is out of space

 From the vROps Admin UI, locate the affected node and enable SSH:

Since SSH is typically disabled on hardened nodes, you must first enable SSH access via the vROps Admin UI.

 Log into each vROps Node as the root user:

Access each vROps node directly using SSH with the root user to troubleshoot disk space issues.

 Run the df -h command to identify which volume is out of space:

The df -h command displays the disk usage of all volumes on the node. It helps identify which filesystem is running out of space.

 Run the ls -l command to identify which volume is out of space:

Use the ls -l command to investigate large files or directories that may be consuming disk space on the identified volume.

VMware Skyline proactively identifies potential problems and helps improve resolution time by collecting, aggregating, and analyzing product usage data. 1 This allows it to provide recommendations and insights to avoid issues and optimize your environment. 2

A key use case for vRealize Operations in a hybrid cloud infrastructure is providing unified visibility across on-premises environments and public clouds . It can monitor and manage both on-premises vSphere environments and public cloud platforms like AWS and Azure, offering a centralized view of performance, capacity, and health across the entire hybrid infrastructure

When capturing content from a vRealize Operations endpoint in vRealize Lifecycle Manager, the following statements are correct regarding content sync:

A. An auto refresh of content list runs in the background every 15 minutes : vRealize Lifecycle Manager automatically refreshes the content list in the background every 15 minutes to ensure that the displayed content is up-to-date.

D. The UI retrieves the content from the endpoint when listing the content for the first time : When you initially access the content list for a vRealize Operations endpoint, vRealize Lifecycle Manager retrieves the content from the endpoint.

E. Select the "Get latest" content option to retrieve the content in between automatic sync timers : If you need to refresh the content list before the next automatic sync, you can manually retrieve the latest content by selecting the "Get latest" option.

The following statements are incorrect:

B. The UI retrieves the content every time from the endpoint when opening the endpoint: The UI only retrieves the content from the endpoint for the initial listing and subsequent automatic refreshes.

C. An auto refresh of content list runs in the background every 30 minutes: The automatic refresh occurs every 15 minutes, not 30 minutes.

F. Select the "Get latest" content option to retrieve the content, before the initial sync: The "Get latest" option is used to refresh the content after the initial sync has already occurred.

vRealize Log Insight supports various deployment architectures to meet scalability and high availability requirements. A six-node cluster with three nodes in each of two datacenters is a valid deployment model, offering both redundancy and load balancing across datacenters.

Key Considerations:

Cluster Composition:

A vRealize Log Insight cluster can include up to 12 nodes: one primary and multiple worker nodes.

Nodes within a cluster should be of the same size and located within the same data center to ensure optimal performance.

Integrated Load Balancer (ILB):

Utilizing the ILB ensures that incoming ingestion traffic is properly balanced across nodes, maintaining availability even if some nodes become unavailable.

Data Center Placement:

While nodes are typically deployed within the same data center, deploying across multiple data centers can provide disaster recovery capabilities.

Ensure that network latency between datacenters is minimal to prevent performance degradation.

When deploying vRealize Log Insight, selecting the appropriate disk provisioning format is crucial for optimal performance. The recommended disk format is Thick Provision Eager Zeroed.

Thick Provision Eager Zeroed:

Description: This disk type allocates the entire disk space at creation time and zeros out all blocks immediately.

Advantages:

Performance: Eliminates the need to zero blocks during write operations, resulting in better write performance.

Reliability: Reduces the risk of disk fragmentation and potential performance degradation over time.

Alternative Disk Formats:

Thick Provision Lazy Zeroed:

Allocates disk space at creation but zeros blocks on demand during write operations, which can introduce latency.

Thin Provisioned:

Allocates disk space incrementally as data is written. While it conserves storage initially, it can lead to performance issues due to dynamic space allocation and potential fragmentation.

Recommendation:

For production environments, VMware recommends using Thick Provision Eager Zeroed disks for vRealize Log Insight to ensure consistent and optimal performance.

References:

Deploy the vRealize Log Insight Virtual Appliance

Virtual Disk Size on Log Insight Virtual Appliance

To deploy VMware vRealize Suite Lifecycle Manager (vRSLCM) using the Easy Installer, the administrator should follow these high-level steps:

Download the vRealize Suite Lifecycle Manager Easy Installer:The administrator has already completed this step by downloading the installer from the VMware Customer Connect download page.

Mount and Run the Installer:Mount the downloaded ISO file and navigate to the appropriate installer executable based on the operating system (Windows, Linux, or Mac). Run the installer to launch the Easy Installer UI.

Specify vCenter Server Details:In the Appliance Deployment Target section, enter the vCenter Server hostname, HTTPS port (default is 443), and administrative credentials. This allows the installer to deploy the vRSLCM appliance to the specified vCenter Server.

Specify the Appliance Network Configuration:Provide network settings for the vRSLCM appliance, including IP address, subnet mask, gateway, DNS servers, and NTP servers. Accurate network configuration ensures proper communication within the environment.

Specify the vRSLCM Configuration Settings:Define settings such as the virtual machine name, root password, and other appliance-specific configurations. These settings are crucial for the initial setup and secure access to the vRSLCM appliance.

Review and Complete the Deployment:After specifying the necessary configurations, review the summary page to ensure all settings are correct. Click 'Submit' to initiate the deployment process. The installer will deploy the vRSLCM appliance based on the provided configurations.

By following these steps, the administrator can successfully deploy vRealize Suite Lifecycle Manager using the Easy Installer.

To ensure vRealize Suite Lifecycle Manager (vRSLCM) is upgraded to the correct version for a phased upgrade of the vRealize Suite, follow these steps:

C. Use the Online repository for the source of the upgrade files : Utilize the online repository within vRSLCM to access the available upgrade files. This ensures you have the latest versions and necessary components for the upgrade.

D. Download the vRealize Suite Lifecycle Manager Upgrade ISO : Download the specific vRSLCM Upgrade ISO that corresponds to the desired target version. This ISO contains the necessary files for the upgrade process.

F. Update to the latest Product Support Pack in vRSLCM : Before upgrading to a new version, ensure vRSLCM is updated to the latest Product Support Pack. This ensures compatibility and addresses any known issues.

The following options are not necessary or recommended:

A. Connect the ISO to the vRSLCM Appliance as a Virtual CD-ROM: While this was a common method in older versions, it's not the preferred approach for upgrading vRSLCM.

B. Use the CD-ROM repository for the source of the upgrade files: Using a CD-ROM repository is not as efficient or convenient as using the online repository.

E. Download the vRealize Suite Lifecycle Manager Easy installer ISO: The Easy Installer ISO is used for initial installation, not for upgrading vRSLCM.

To preserve customized content during a vRealize Operations upgrade, administrators should take the following actions:

B. Backup the customized content by cloning it : Cloning the customized content creates a copy that can be restored if needed. This ensures that any modifications made to alert definitions, symptom definitions, recommendations, or views are not lost during the upgrade process.

C. Select the checkbox 'Preserve Custom Content' when performing the upgrade : During the upgrade process, there is an option to preserve custom content. Selecting this checkbox instructs vRealize Operations to retain any customizations made to the default content, preventing them from being overwritten by the new version.

The other options are not relevant or recommended for preserving customized content:

A. Select the checkbox 'Reset Default Content' when performing the upgrade: This option would revert any customizations made to the default content, which is the opposite of what the administrator wants.

D. Import your custom content: While importing custom content is a valid way to add new content, it is not the primary method for preserving existing customizations during an upgrade.

E. Backup the customized content as a YAML file: While backing up content as a YAML file is possible, it is not the recommended method for preserving customizations during an upgrade. Cloning the content provides a more comprehensive backup.

vRealize Log Insight offers several key features that enhance log management and analysis:

A. Use of Remote Collectors [21]: vRealize Log Insight supports the deployment of remote collectors, which are lightweight agents that collect logs from various sources and forward them to the central Log Insight server. This distributed architecture allows for efficient log collection in large and complex environments.

C. Event Forwarding [22]: vRealize Log Insight enables event forwarding, allowing you to send log data to other systems or services for further analysis, archiving, or integration with security information and event management (SIEM) tools.

F. Interactive Analytics [23]: vRealize Log Insight provides interactive analytics capabilities, allowing you to explore and analyze log data in real-time. You can use various filtering, aggregation, and visualization tools to gain insights from your logs and troubleshoot issues effectively.

The following options are not features of vRealize Log Insight:

B. Application Discovery Dashboard: While vRealize Log Insight can analyze logs from applications, it does not have a dedicated application discovery dashboard.

D. Management Pack Marketplace: Management packs are primarily associated with vRealize Operations Manager, not vRealize Log Insight.

E. Machine Learning Analytics: While vRealize Log Insight may incorporate some machine learning algorithms for certain functionalities, it is not a primary feature of the product.

To replace the SSL certificate for a vRealize Log Insight (vRLI) deployment using vRealize Suite Lifecycle Manager (vRSLCM), the administrator must have the appropriate roles assigned within vRSLCM. The two roles that enable certificate management tasks are:

LCM Cloud Admin:

Description: This role grants administrative privileges within vRSLCM, including the ability to manage and replace SSL certificates for integrated products like vRLI.

Responsibilities:

Overseeing lifecycle operations for cloud management products.

Managing configurations and performing administrative tasks within vRSLCM.

Certificate Administrator:

Description: This role specifically focuses on certificate management within vRSLCM, allowing the user to import, export, and replace SSL certificates for managed products.

Responsibilities:

Handling certificate-related operations, including replacements and renewals.

Ensuring that all managed products have up-to-date and valid SSL certificates.

Without these roles, the administrator may lack the necessary permissions to access the certificate management features in vRSLCM, thereby hindering the SSL certificate replacement process for vRLI.

References:

For detailed information on role assignments and permissions in vRSLCM, refer to VMware's official documentation:

Change Certificate for vRealize Suite Lifecycle Manager

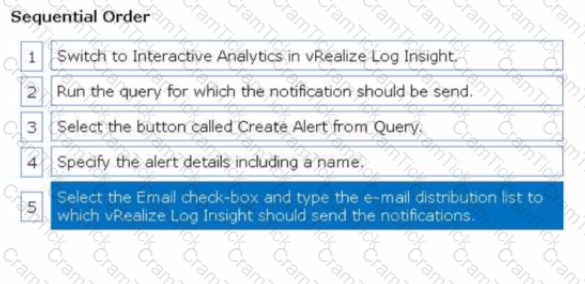

 Switch to Interactive Analytics in vRealize Log Insight:

Start in the Interactive Analytics tab, where you can create queries to analyze log data.

 Run the query for which the notification should be sent:

Input the desired query to filter the log data that will trigger the alert.

 Select the button called Create Alert from Query:

Once the query produces the desired results, click the Create Alert from Query button to begin configuring the alert.

 Specify the alert details including a name:

Provide a meaningful name and details for the alert to identify its purpose.

 Select the Email check-box and type the e-mail distribution list to which vRealize Log Insight should send the notifications:

Enable email notifications, and enter the email addresses or distribution list where the alerts will be sent.

The administrator should deploy the vRealize Operations analytics cluster using vRealize Suite Lifecycle Manager (vRSLCM) . vRSLCM simplifies the deployment and management of vRealize Suite products, including vRealize Operations. It allows the administrator to deploy a 3-node High Availability cluster with custom CA-signed certificates in a streamlined manner.

Here's why the other options are not suitable:

A. Deploy 3 nodes independently, replace certificates and then form the 3-node cluster: This approach is more complex and prone to errors. It involves manual configuration and certificate replacement on each node.

B. Deploy a single node cluster at the beginning to further expand it to 3 nodes in the next step: While possible, this method is not as efficient as deploying a 3-node cluster directly using vRSLCM.

C. Deploy vRealize Operations analytics cluster using Command Line Interface: Deploying using the CLI requires more expertise and manual intervention compared to using vRSLCM.

vRSLCM provides a centralized platform for managing the entire lifecycle of vRealize Suite products, including deployment, configuration, and upgrades. It simplifies the process of deploying a 3-node High Availability cluster of vRealize Operations with custom CA-signed certificates, ensuring a secure and efficient deployment.
