UiPath-ADPv1 UiPath (ADPv1) Automation Developer Professional Exam Questions and Answers

When you close a remote debugging connection while a debugging execution is in progress, the execution is stopped gracefully on the remote robot and the connection is closed. This means that the robot will finish the current activity and then stop the execution, without throwing any exception or error. This is the recommended way to end a remote debugging session, as it ensures that the robot is in a consistent state and ready for the next execution. References: [Remote Debugging]

To ensure the Queue Items are processed in the correct order, the Postpone property of the Add Queue Item activity should be used. The Postpone property allows you to specify the date and time after which the queue item can be processed. This property can be used to prioritize the queue items based on the order of the emails received. For example, if the email was received at 10:00 AM, the Postpone property can be set to 10:00 AM or later, so that the queue item will not be processed before that time. The Postpone property can be set to a DateTime value, a variable, or an expression that returns a DateTime value. For example, the following expression sets the Postpone property to the current date and time plus one hour:

VB DateTime.Now.AddHours(1)

When installing UiPath Studio, the action that requires administrator privileges is installing the robot in service mode. Service mode is a type of robot installation that allows the robot to run unattended automations in the background, without requiring a user to be logged in. Service mode requires administrator privileges because it involves installing the robot as a Windows service and registering it to the UiPathOrchestrator.msi file. Installing the robot in user mode does not require administrator privileges, because it involves installing the robot as a Windows application and registering it to the UiPathAssistant.msi file. User mode is a type of robot installation that allows the robot to run attended automations in the foreground, requiring a user to be logged in. Installing UiPath Studio itself does not require administrator privileges, because it involves installing the Studio as a Windows application and registering it to the UiPathStudio.msi file. References: [Robot Installation Modes], [Installing the Robot], [Installing Studio]

A background process is a type of automation that can run in parallel with one foreground process on the same robot, without requiring user interaction. A foreground process is a type of automation that requires user interaction and runs on the visible desktop. A background process can transition to foreground by using the Use Foreground activity, which moves the current background process into the foreground, executing all the activities it contains. After the execution is complete, the process is moved back into the background.

The other options are not activities that can be used to transition a background process to foreground. Option B, Activate, is an activity that activates a specified UI element by bringing it to the foreground. Option C, Maximize Window, is an activity that maximizes a specified window. Option D, Set Focus, is an activity that sets the keyboard focus to a specified UI element.

References: Activities - Use Foreground - UiPath Documentation Portal, Studio - Background Process - UiPath Documentation Portal, Background Process Automation - UiPath Documentation Portal

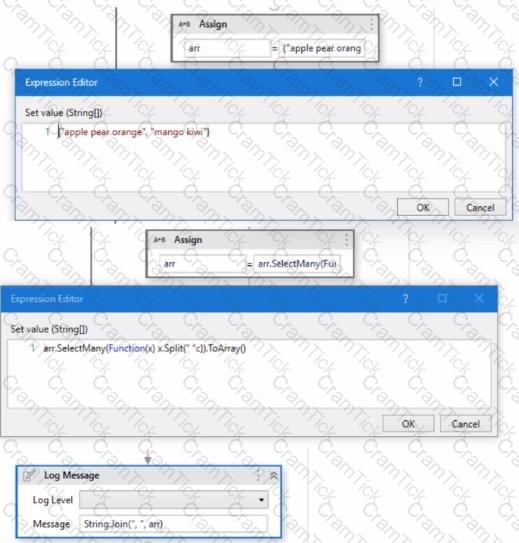

When the Split method is used on a String variable, the result is an array of substrings. However, accessing a specific element of this array (e.g., MyNumbers.Split("."c)(1)) returns a single substring, which is a String.

In the REFramework, best practices suggest storing sensitive information like email account credentials in an Orchestrator Credential asset. This asset is then referenced in the Config.xlsx file, specifically in the Assets sheet, ensuring secure and centralized management of credentials.

In the BDD (Behavioral-Driven Development) template structure, the "Setup" part of a test case supports the Surround with mock feature. This section is used to set up the testing environment, including mock configurations.

The behavior of the Type Into activity when executing the workflow is that the activity will remove a Single Line in Run mode and Multi Line in Debug mode. This is because the activity has the Empty field property set to NEmptyFieldMode.SingleLine, which means that the activity will delete the existing content in the field by sending Ctrl+A and Delete keystrokes before typing the text. However, the activity also has the Debug mode property set to NEmptyFieldMode.MultiLine, which means that the activity will delete the existing content in the field by sending Ctrl+A, Shift+Home, and Delete keystrokes before typing the text. The Debug mode property overrides the Empty field property when the workflow is executed in Debug mode. Therefore, the activity will use different keystrokes to empty the field depending on the mode of execution. References: [Type Into], [Empty Field], [Debug Mode]

The UiPath Integration Service supports two types of events: Generic and Predefined. Generic events are customizable, while Predefined events are specific to certain integrations and come with predefined configurations.

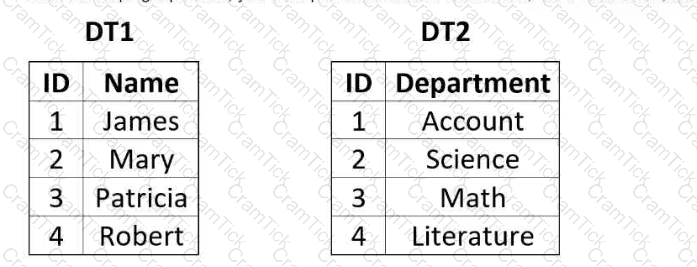

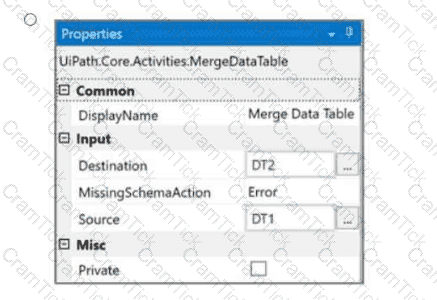

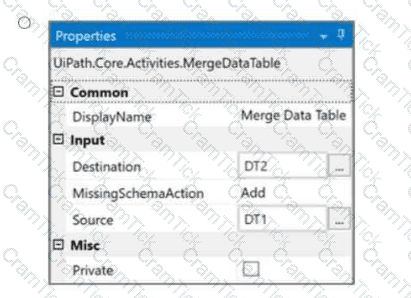

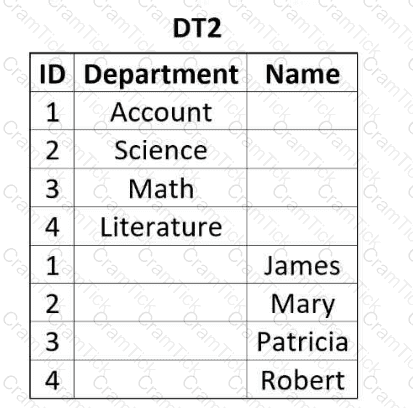

Given the two data tables DT1 and DT2, to achieve the desired result where DT2 contains both the department and the names, the Merge Data Table activity should be configured to merge DT1 into DT2. This configuration requires specifying DT1 as the source table and DT2 as the destination table. The MissingSchemaAction should be set to AddWithKey which ensures that if the source table (DT1) contains columns that are not found in the destination table (DT2), they will be added to the destination table with the primary key information preserved.

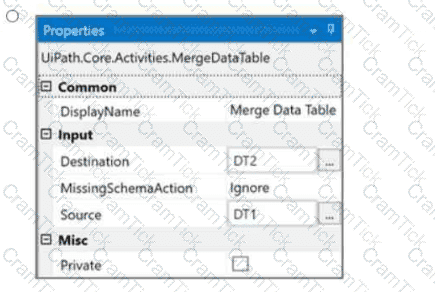

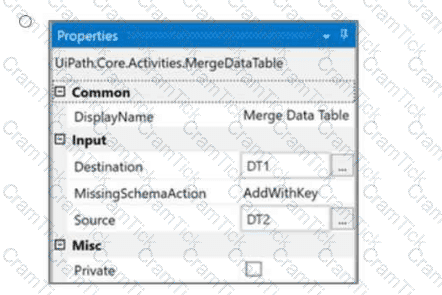

Option A shows the correct configuration for the Merge Data Table activity to achieve this result:

Destination: DT1

Source: DT2

MissingSchemaAction: AddWithKey

This setup correctly adds the "Name" column from DT1 to DT2 based on the shared "ID" column, which acts as the key. Since both tables have an "ID" column with matching values, the names will be added to the corresponding IDs in DT2, resulting in a merged table with ID, Department, and Name columns.

The Monitoring feature in UiPath Orchestrator is a solution that provides real-time metrics to help you keep an eye on the health and state of your system1. It enables you to check the status and performance of your Robots, Machines, Queues, and Jobs in either the last hour or last day1. You can also use the Monitoring feature to filter, sort, and search for specific resources, view detailed information and charts for each resource, and access the Error Feed widget to see the errors that occurred during execution1.

The other options are incorrect because:

Option A describes the purpose of the Source Control feature in UiPath Studio, which allows you to manage your automation projects using Git or TFS2.

Option C describes the purpose of the Processes feature in UiPath Orchestrator, which allows you to deploy, configure, and run automation workflows on Robots3.

Option D describes the purpose of the Logs feature in UiPath Orchestrator, which allows you to view and download event logs and records related to executed tasks and runtime anomalies.

References:

Orchestrator - About Monitoring - UiPath Documentation Portal

Studio - Source Control - UiPath Documentation Portal

Orchestrator - Processes - UiPath Documentation Portal

[Orchestrator - Logs - UiPath Documentation Portal]

The Monitoring pages in UiPath Orchestrator are pages that provide information and statistics about the performance and health of your robots, processes, queues, and jobs. You can access the Monitoring pages from the left menu in Orchestrator, under the Monitoring section.

The Include Subfolders filter in the Monitoring pages is a filter that allows you to select whether the contents of the selected folder’s subfolders are displayed in the Monitoring pages. This filter is available when a modern folder is selected from the Folder drop-down list. A modern folder is a type of folder in Orchestrator that supports dynamic and fine-grained permission management, as well as folder-level isolation of data, processes, and execution.

When the Include Subfolders filter is checked, the Monitoring pages display the data for the selected folder and all its subfolders. For example, if you select a modern folder called Sales and check the Include Subfolders filter, the Monitoring pages will show the data for the Sales folder and all its subfolders, such as Sales-East, Sales-West, Sales-North, and Sales-South. This way, you can get a comprehensive view of the performance and health of your robots, processes, queues, and jobs across multiple subfolders.

When the Include Subfolders filter is unchecked, the Monitoring pages display the data only for the selected folder. For example, if you select a modern folder called Sales and uncheck the Include Subfolders filter, the Monitoring pages will show the data only for the Sales folder, excluding its subfolders. This way, you can get a focused view of the performance and health of your robots, processes, queues, and jobs within a specific folder.

The correct answer is B. It allows you to select whether the contents of the selected folder’s subfolders are displayed. This statement accurately describes the functionality of the Include Subfolders filter in the Monitoring pages when a modern folder is selected.

The other options are not correct statements. Option A is incorrect, because the Include Subfolders filter does not allow you to choose between background and foreground processes for the displayed data. Background and foreground processes are types of processes that run in the background or foreground of the robot machine, respectively. You can filter the displayed data by process type using the Process Type filter in the Monitoring pages. Option C is incorrect, because the Include Subfolders filter does not enable you to sort the displayed data based on job priorities. Job priorities are levels of importance that are assigned to jobs when they are created or triggered, such as High, Normal, or Low. You can sort the displayed data by job priority using the Sort By drop-down list in the Monitoring pages. Option D is incorrect, because the Include Subfolders filter does not allow you to allocate licenses per machine for the displayed data. Licenses are resources that are consumed by robots, processes, or users when they perform certain actions in Orchestrator. You can allocate licenses per machine using the License Allocation page in Orchestrator.

References: Orchestrator - Monitoring - UiPath Documentation Portal, Orchestrator - Modern Folders - UiPath Documentation Portal, Orchestrator - License Allocation - UiPath Documentation Portal

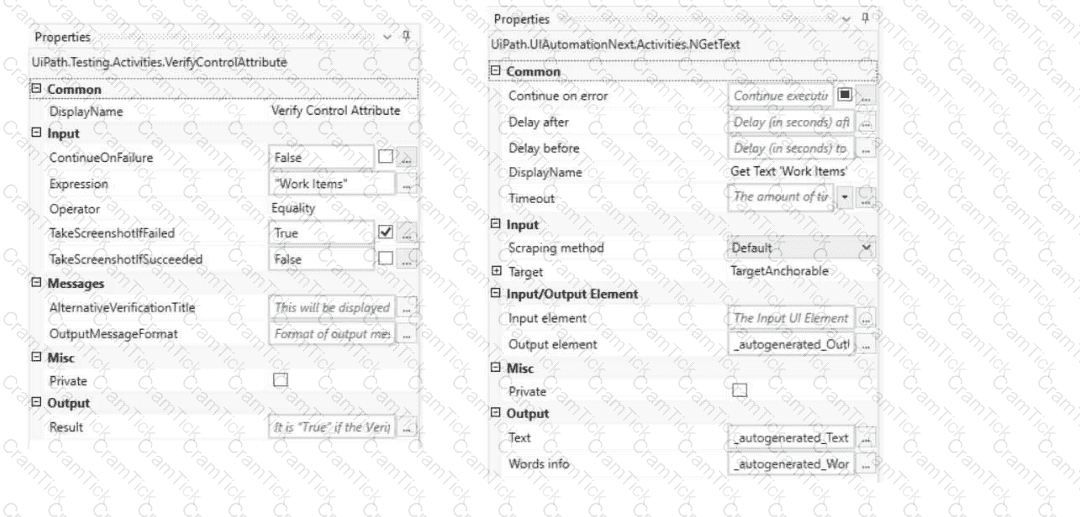

In UiPath Testing Activities, the "Verify Expression" activity is designed to evaluate expressions and can include other activities within its body. This feature is particularly useful in test cases where you need to assert the outcome of a specific expression or condition. By embedding other activities within the "Verify Expression" activity, users can execute additional actions or checks as part of the verification process, enhancing the flexibility and depth of testing scenarios within UiPath projects.References:

UiPath Documentation: Testing Activities Guide

Custom virtual channels, by default, are blocked in Citrix Virtual Apps and Desktops, which would prevent the UiPath Remote Runtime from functioning correctly. Therefore, adding the UiPath virtual channel to the allow list policy is necessary for proper automation interaction.

The Object Repository in UiPath organizes elements in a hierarchical structure that reflects the logical arrangement of user interfaces and elements as they are captured and used in automation projects.

The correct hierarchy for elements in the Object Repository tree structure is:

A. Version, Application, Screen, UI Element.

This hierarchy starts with the 'Version', which could refer to the specific version of the application you are automating. Under each version, there could be multiple 'Applications' that you have elements for. Within each application, you might have captured various 'Screens' or dialogs, and within each screen, there are individual 'UI Elements' like buttons, text fields, dropdown menus, etc., that the automation interacts with.

However, it's important to note that in practice, when you are working with UiPath Studio and its Object Repository, the hierarchy usually starts with the 'Application', then under it, you have different 'Screens' of the application, and under each screen, you have the 'UI Elements'. The 'Version' is typically managed separately and is not a level in the hierarchy tree but rather a property or attribute of the application or element. Therefore, the most practical answer reflecting the usage in UiPath Studio would be:

C. Application, Screen, UI Element, Version.

The 'Version' here would be understood not as a layer in the hierarchy but rather as an attribute that can be associated with the 'Application' or 'UI Element'.

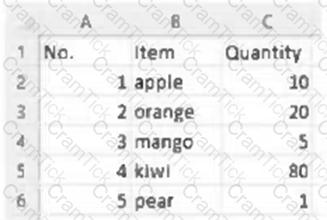

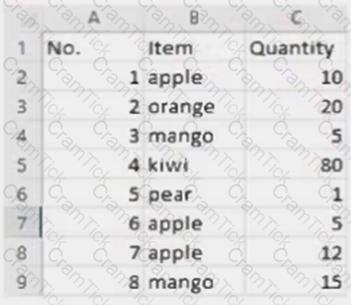

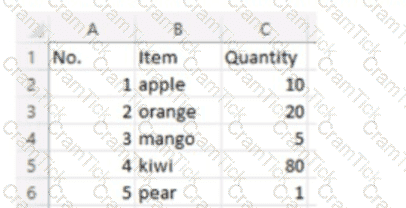

The LINQ query that can be used to return the maximum total Quantity from the attached table is dt.AsEnumerable. GroupBy(Function(x) x(“Item”).ToString). Max(Function(x) x.Sum(Function(y) Convert.ToInt32(y(“Quantity”).ToString))). This query uses the LINQ methods AsEnumerable, GroupBy, Max, and Sum to manipulate the data in the dt variable. The dt variable is a DataTable that contains the following data:

No.

Item

Quantity

1

apple

10

2

orange

20

3

mango

50

4

kiwi

80

5

pear

1

6

apple

5

7

mango

15

The AsEnumerable method converts the DataTable into an Enumerable collection of DataRow objects. The GroupBy method groups the elements of the collection by the value of the Item column, creating a collection of groups. Each group has a key, which is the Item name, and a list of elements, which are the DataRows that have the same Item value. The Max method returns the maximum value of the collection, based on a selector function. The selector function is a lambda expression that calculates the sum of the Quantity column for each group. The Sum method returns the sum of the elements in a collection, based on a selector function. The selector function is a lambda expression that converts the value of the Quantity column into an integer. Therefore, the query will group the DataRows by the Item name, calculate the total Quantity for each group, and return the maximum total Quantity among the groups. The maximum total Quantity is 80, which corresponds to the group with the key “kiwi”. References: [DataTable.AsEnumerable Method], [Enumerable.GroupBy Method], [Enumerable.Max Method], [Enumerable.Sum Method]

Logging a message with the "Info" level is appropriate every time data is read from external sources. This helps in tracking the flow of data and understanding the sequence of operations in the automation process.

AI Computer Vision is a feature of UiPath that enables the automation of remote applications or desktops, such as Citrix Virtual Apps, Windows Remote Desktop, or VMware Horizon, by using native selectors. Native selectors are expressions that identify UI elements reliably and accurately, without relying on OCR or image recognition activities1. AI Computer Vision uses a mix of AI, OCR, text fuzzy-matching, and an anchoring system to visually locate elements on the screen and interact with them via UiPath Robots, simulating human interaction2. AI Computer Vision is especially useful for scenarios where the UI elements have low quality or scaling issues, which make them difficult to recognize with traditional methods3.

Option A is an accurate example of using AI Computer Vision features in a UiPath project, because it involves identifying and interacting with UI elements in a remote desktop application, which is one of the main use cases of AI Computer Vision. By using the Computer Vision activities, such as CV Screen Scope, CV Click, CV Get Text, etc., you can automate tasks in a remote desktop application without using selectors, OCR, or image recognition activities4.

The other options are not accurate examples of using AI Computer Vision features in a UiPath project, because they involve tasks that are not related to the automation of remote applications or desktops, or that do not use the Computer Vision activities. For example:

Option B involves training a custom machine learning model, which is not a feature of AI Computer Vision, but of the UiPath AI Fabric, a platform that enables you to deploy, consume, and improve machine learning models in UiPath.

Option C involves extracting plain text from a scanned PDF document, which is not a feature of AI Computer Vision, but of the UiPath Document Understanding, a framework that enables you to classify, extract, and validate data from various types of documents.

Option D involves performing sentiment analysis on a text string, which is not a feature of AI Computer Vision, but of the UiPath Text Analysis, a set of activities that enable you to analyze the sentiment, key phrases, and language of a text using pre-trained machine learning models.

References:

1: Studio - About Selectors - UiPath Documentation Portal 2: AI Computer Vision - Introduction - UiPath Documentation Portal 3: The New UiPath AI Computer Vision Is Now in Public Preview 4: Activities - Computer Vision activities - UiPath Documentation Portal : [AI Fabric - Overview - UiPath Documentation Portal] : [Document Understanding - Overview - UiPath Documentation Portal] : [Text Analysis - UiPath Activities]

A mock file is a copy of a workflow file that is used for testing purposes, where some activities are replaced by mock activities that simulate the expected behavior1. A mock file can be created by selecting Mock workflow under test in the Create Test Case window2. The mock file is stored in the Project > Mocks folder, and it has the same name as the original workflow file, with the suffix “_mock” added2. For example, if the original workflow file is named “MySequence.xaml”, the mock file will be named “MySequence_mock.xaml”.

When a mock file is created, the changes made in the original workflow file are automatically applied to the mock file when the project is saved2. This means that any new activities or modifications in the original workflow file are reflected in the mock file, except for the activities that are surrounded by mock activities2. The mock activities are not affected by the changes in the original workflow file, and they can only be edited within the mock file2.

Therefore, if you update “MySequence” and add a Log Message activity and a Verify Expression activity, and then save the project, the changes will be applied to the mock file, assuming that the file is closed. This means that the mock file will also have the Log Message activity and the Verify Expression activity added, unless they are inside a mock activity

This is the correct method to check how many resources are utilized in a personal workspace in UiPath Orchestrator. You can see the number of runtimes, licenses, and storage used by the workspace, as well as the available quota for each resource type. You can also adjust the quota allocation for the workspace if needed. For more information, please refer to Managing Personal Workspaces in the UiPath Documentation Portal.

Based on the provided screenshot of the Object Repository tree structure in UiPath, the correct hierarchy and count of elements are as follows:

There is one Application, which is "ACME 1.0.0".

Within this application, there are two Screens: "Dashboard" and "Login".

Under the "Dashboard" screen, there are three UI Elements: "User Options", "Users Data".

Under the "Login" screen, there are two UI Elements: "LoginButton", "Password", "Username".

Therefore, the correct option regarding the tree structure displayed would be:

C. One Application Two Screens Five UI Elements

This option correctly identifies one application (ACME 1.0.0), two screens (Dashboard, Login), and five UI elements (User Options, Users Data, LoginButton, Password, Username).

The output type returned when using a Get Test Data Queue Item activity is QueueItem. The Get Test Data Queue Item activity is an activity that allows the developer to retrieve a test data queue item from a test data queue in Orchestrator. A test data queue is a special type of queue that is used to store and manage test data for automation testing purposes. A test data queue item is a data object that contains the test data and the expected results for a test case. The Get Test Data Queue Item activity has an output property called TestDataQueueItem, which returns the test data queue item as a QueueItem type. The QueueItem type is a class that represents a queue item in Orchestrator. The QueueItem type has various properties and methods that allow the developer to access and manipulate the data and the status of the queue item. References: [Get Test Data Queue Item], [QueueItem Class]

o retrieve all Outlook emails with the word “UiPath” in the subject, the developer should use the Filter property and the filter schema “@SQL=”“urn:schemas:httpmail:subject”" like ‘%UiPath%’“. The Filter property allows the developer to specify a condition for retrieving the emails based on the email properties. The filter schema is a string that follows the SQL syntax and uses the urn:schemas:httpmail namespace to access the email properties. The subject property is accessed by using “urn:schemas:httpmail:subject”. The like operator is used to match the value of the subject property with a pattern that contains the word “UiPath”. The percent sign (%) is a wildcard that matches any sequence of characters. Therefore, the filter schema “@SQL=”“urn:schemas:httpmail:subject”” like ‘%UiPath%’" will match any email that has the word “UiPath” anywhere in the subject. References: Get Outlook Mail Messages

UiPath Orchestrator provides proactive monitoring and alerting features. These are designed to identify and notify about potential issues before they escalate into critical problems, enabling timely intervention and resolution.

The Connector Builder for Integration Service is a feature that enables the user to quickly add custom connectors to the tenant catalog in a no-code environment. The custom connectors can wrap any RESTful API and provide rich and scalable functionality on top of the original API1. The Connector Builder supports the following features:

REST APIs with JSON payload: The Connector Builder can connect to external systems that expose their API documentation as REST-compliant and both accept and return JSON2.

Various authentication types including OAuth 2.0 and API Key: The Connector Builder supports different types of authentication methods for the API calls, such as OAuth 2.0, Basic, Personal Access Token (PAT), API Key, etc3.

Building a connector from an API definition or from scratch: The Connector Builder allows the user to start building a connector from an existing API definition, such as a Swagger file, a Postman collection, or a URL, or from scratch by manually adding the API resources and methods4.

Option C is the correct answer, as it lists the features that the Connector Builder supports as defined in the documentation1. Option A is incorrect, because the Connector Builder does not support SOAP APIs or XML payloads, and it can build a connector from other sources besides a Swagger definition. Option B is incorrect, because the Connector Builder supports other authentication types besides OAuth 2.0 and Basic, and it can build a connector from other sources besides a Postman collection. Option D is incorrect, because the Connector Builder does not support SOAP APIs or XML payloads, and it supports other authentication types besides OAuth 2.0.

References: 1: Integration Service - About Connector Builder 2: Integration Service - Building your first connector 3: Integration Service - Authentication types 4: Integration Service - Create a connector from an API definition : [Integration Service - Create a connector from scratch]

The command in the UiPath installation folder that configures the UIPath.RemoteDebugging.Agent utility on a Windows robot to accept remote debugging requests from Studio is UiPath-RemoteDebugging.Agent.exe enable -port -password -verbose. This command enables the remote debugging agent on the robot machine and sets the port number and the password that are required for the connection. The verbose option enables the logging of the agent activity to the console. The remote debugging agent is a utility that allows you to debug workflows on a remote robot from Studio, by using the Remote Debugging feature. This feature enables you to connect to a remote robot, run the workflow, and inspect the variables and arguments in real time. To use this feature, you need to install the remote debugging agent on the robot machine and configure it with the same port number and password that you use in Studio. References: [Remote Debugging], [Remote Debugging Agent]

The service mode is recommended for running unattended automations in UiPath. This mode allows robots to run without needing a user to be logged in, making it ideal for unattended scenarios.

The best practice for creating a repetitive process in the REFramework and defending against potential robot crashes such as “out of memory” is to mark all “Invoke Workflow File” activities from the Main.xaml file with the Isolated option. The Isolated option enables the workflow to run in a separate process, which reduces the memory consumption and the risk of memory leaks. It also improves the stability and the performance of the robot, as it isolates the errors and the exceptions that might occur in the invoked workflow. The Isolated option can be found in the Properties panel of the “Invoke Workflow File” activity, under the Options category. By marking all the invoked workflows as Isolated, the developer can ensure that the robot can handle a large number of transactions without crashing or slowing down

The Today property of the DateTime structure returns the current date with the time component set to zero1. The Subtract method of the DateTime structure returns a new DateTime object that is the result of subtracting a specified time interval from this instance2. The TimeSpan structure represents a time interval that can be expressed in days, hours, minutes, seconds, and milliseconds3.

Option D is the correct way to subtract a specific TimeSpan from Today in VB.NET. For example, the following code snippet subtracts one day and two hours from the current date and displays the result:

Dim ts As New TimeSpan (1, 2, 0, 0) ' One day and two hours

Dim result As DateTime = Today.Subtract (ts) ' Subtract from Today

Console.WriteLine (result.ToString ("d")) ' Display the result

Option A is not valid, because there is no SubtractSpanFrom method in the DateTime structure. Option B is not correct, because it subtracts the TimeSpan from the current date and time, not just the date. Option C is not valid, because there is no SubtractUsingDate method in the DateTime structure.

References: 1: DateTime.Today Property (System) 2: DateTime.Subtract Method (System) 3: TimeSpan Structure (System)

The Descriptor Coverage sub-panel in the Test Explorer provides Selector coverage information. This coverage data is crucial for understanding how well the selectors in a project are being tested.

In UiPath Studio, the Verify Execution property is available in the Click activity. This property, when enabled, ensures that the click action has been successfully executed on the specified UI element.

A linear process in UiPath is a type of process that is executed only once and does not involve any looping or branching logic. It is suitable for simple scenarios where the input data is fixed and the output is predictable. A linear process can be designed using a Sequence or a Flowchart diagram, but it does not use any Flow Decision, Switch, While, Do While, or For Each activity. If the process needs to process additional data, then the automation must be executed again with the new data as input. References: Framework for linear process or single transaction, How to modify ReFramework to Linear Process, Workflow Design, Difference between Linear process and Transactional process

A screenshot of a computer program Description automatically generated

To align with UiPath's best practices when updating the REFramework template for use with Orchestrator queues, the sequence of steps should ensure proper setup of the queues in Orchestrator, configuration of the project to interact with these queues, and implementation of the business logic to process items from the queues.

Here's how the steps should be sequenced:

Step 1: Create the queue in Orchestrator and set its Auto Retry value as required by the process documentation.This step ensures that the queue is available in Orchestrator with the correct settings before the automation attempts to interact with it.

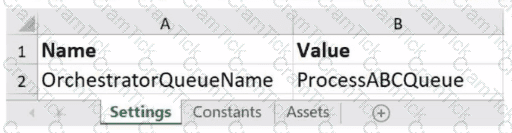

Step 2: Edit the project's configuration file (Data/Config.xlsx) and configure parameters OrchestratorQueueName and OrchestratorQueueFolder.Once the queue is created, the next step is to ensure that the automation project is configured to reference the correct queue and folder within Orchestrator.

Step 3: Edit GetTransactionData.xaml workflow and assign a proper value for the out_TransactionID argument.This configuration allows the workflow to correctly fetch transaction items from the Orchestrator queue for processing.

Step 4: Edit workflow Process.xaml and implement the logic to process each TransactionItem.Finally, the core processing logic that operates on each queue item is implemented, allowing the automation to perform the necessary actions for each transaction.

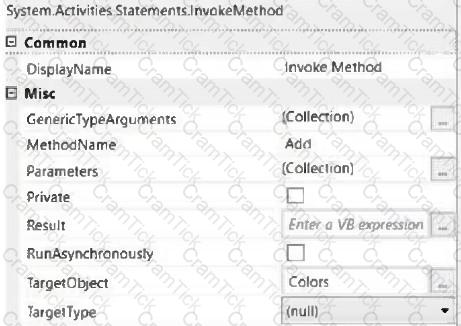

The Invoke Method activity is used to invoke a method of a class or an object. In this case, the developer wants to add items to a list of strings using the Invoke Method activity. The list is declared as follows:

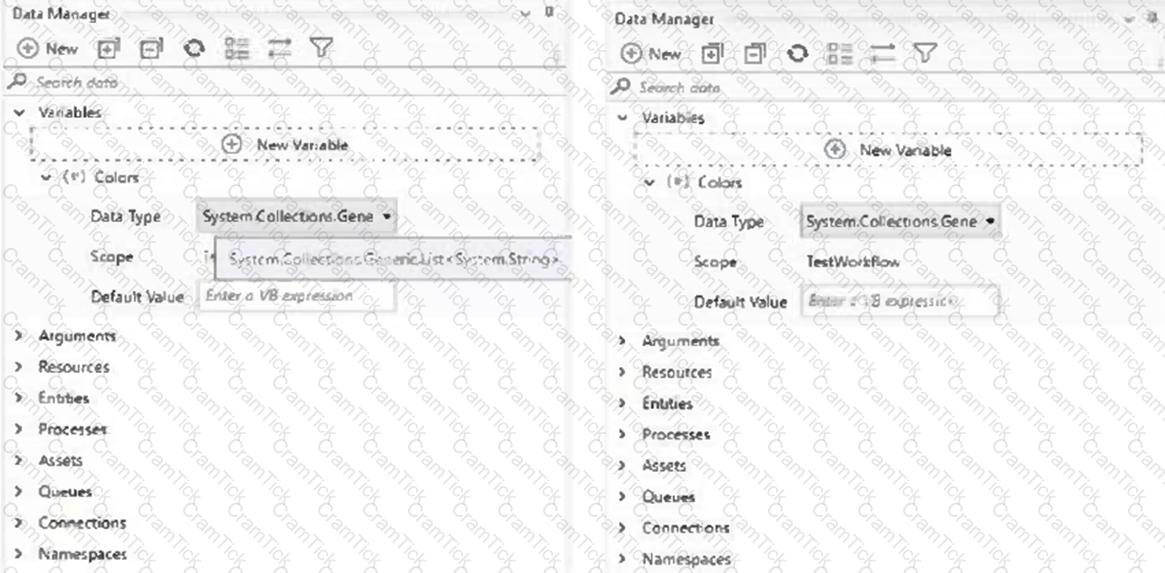

Dim Colors As New List(Of String)

This means that the list is named Colors and it can store strings. The Invoke Method activity has the following properties:

TargetType: System.Collections.Generic.List`1[System.String]. This means that the target type is a generic list of strings.

TargetObject: Colors. This means that the target object is the list named Colors.

MethodName: Add. This means that the method name is Add, which is a method of the list class that adds an item to the end of the list.

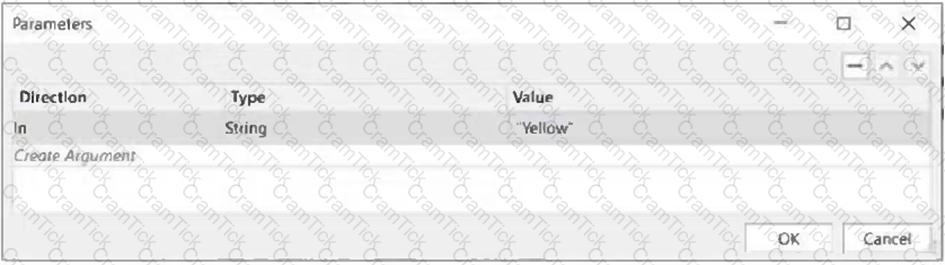

Parameters: In, String, Yellow. This means that the parameter direction is In, which means that the value is passed to the method. The parameter type is String, which means that the value is a string. The parameter value is Yellow, which means that the value is the string “Yellow”.

Based on the information shown in the exhibits, the outcome of the Invoke Method activity is that Colors will contain an item with the value “Yellow”. This is because the Invoke Method activity will add “Yellow” to the list of strings declared as Colors.

Click activity has the following properties:

•ClickType: Single

•MouseButton: Left

•Target.Timeout: 30000 ms (30 seconds)

•Target.WaitForReady: Interactive

The Target.Timeout property specifies the amount of time (in milliseconds) to wait for the activity to run before the SelectorNotFoundException error is thrown1. The default value is 30000 milliseconds (30 seconds)2.

The Target.WaitForReady property determines how long the activity should wait for the target UI element to be ready before performing the action1. The following options are available:

•None: Does not wait for anything except the target UI element to exist before executing the action1.

•Interactive: Waits until only a part of the app is loaded1.

•Complete: Waits for the entire app to be loaded1.

The default value is Interactive2, which means that the activity will wait until the UI element is visible and can be interacted with3.

Therefore, based on these properties, the Click activity will wait for the element indicated by the selector to be loaded and clickable within 30 seconds. If the element is loaded before the timeout, the activity will click it and continue to the next activity. If the element is not loaded within the timeout, the activity will throw an error and stop the execution. The animation on the web page does not affect the Click activity, as long as the target element is loaded and visible. Hence, the correct answer is A. Element is clicked once the element is fully loaded.

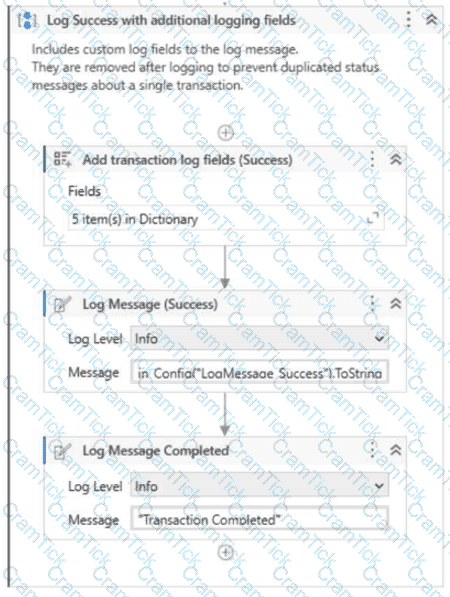

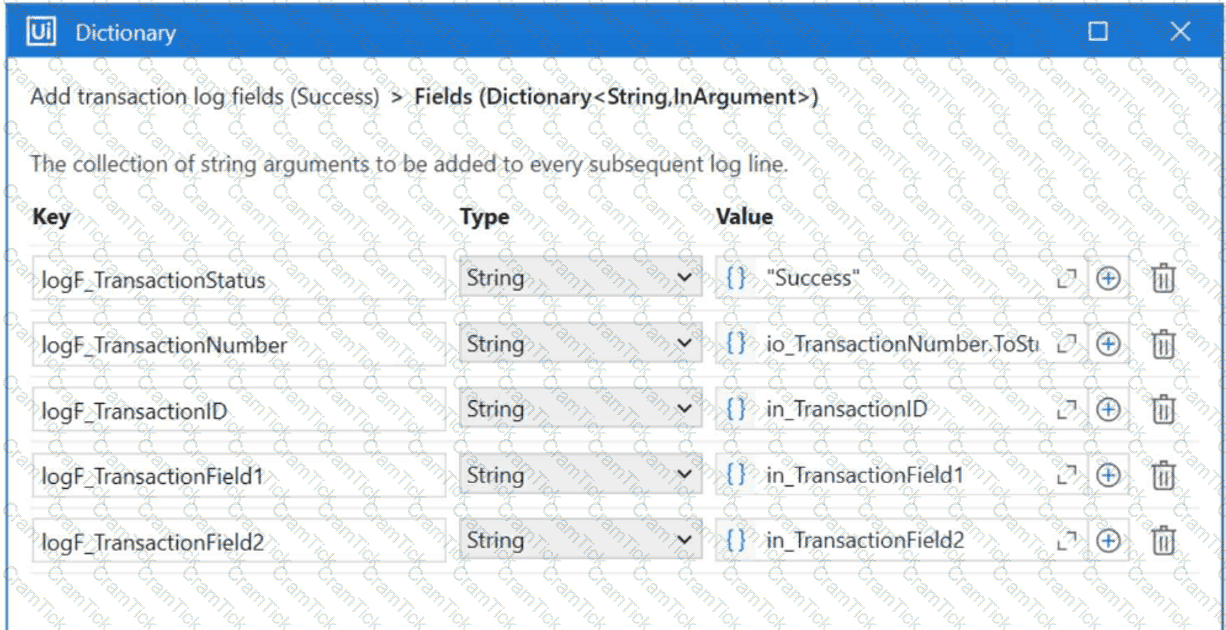

In the REFramework, the Add Log Fields activity is used to append additional information to the log messages. This information is stored in the form of custom fields. In this scenario, Add Log Fields (Success) activity is adding several fields with the transaction details whenever a transaction is successful.

The Remove Log Fields activity is then used to delete these custom fields to prevent them from appearing in subsequent log messages. This is important to ensure that only relevant information is logged for each transaction and to avoid cluttering the logs with outdated information.

When the Log Message Completed activity is executed after the Remove Log Fields activity, it should log the message without the additional fields that were added by the Add Log Fields activity since they have been removed. This means that the log message should only include the standard fields like message, level, logType, timeStamp, fileName, processVersion, jobId, robotName, and machineId, without the custom fields like logF_TransactionStatus, logF_TransactionNumber, etc.

Based on the options provided and the understanding of the REFramework's logging mechanism, the correct answer should be:

D. { "message": "Transaction Completed", "level": "Information", "logType": "User", "timeStamp": "10:30:19", "fileName": "SetTransactionStatus", "processVersion": "1.0.0", "jobId": "f8a36a46-8ebc-40df-8f71-26b39087ebee", "robotName": "test.robot", "machineId": 0, "logF_BusinessProcessName": "Framework" }

This option is correct because it shows a log message after the removal of custom fields, retaining only the logF_BusinessProcessName field, which wasn't specified to be removed according to the provided information.

The Set Transaction Status activity in UiPath Studio is used to set the status of an Orchestrator queue item to Failed or Successful. This activity is usually placed at the end of the Process Transaction state in the REFramework template, after the Try Catch block. The status of the queue item determines whether it will be retried or not.

To retry a queue item, the status needs to be set to Failed. This means that the transaction was not completed successfully, and it needs to be processed again. The number of retries for a queue item depends on the MaxRetryNumber parameter in the Config file of the REFramework. By default, it is set to 2, which means that each queue item can be retried twice before it is marked as permanently failed.

The other options are not valid statuses for the Set Transaction Status activity. Option A is incorrect, because Retried is not a status, but a property of a queue item that indicates whether it has been retried or not. Option C is incorrect, because Abandoned is a status that is automatically assigned by Orchestrator to a queue item that has been in progress for more than 24 hours, and it cannot be retried. Option D is incorrect, because Postponed is a status that is automatically assigned by Orchestrator to a queue item that has a specific start date in the future, and it cannot be retried until that date is reached.

References: Activities - Set Transaction Status - UiPath Documentation Portal, REFramework documentation - UiPath Documentation Portal, Set Transaction Status - Help - UiPath Community Forum, [Set Transaction Status - Orchestrator - UiPath Community Forum]

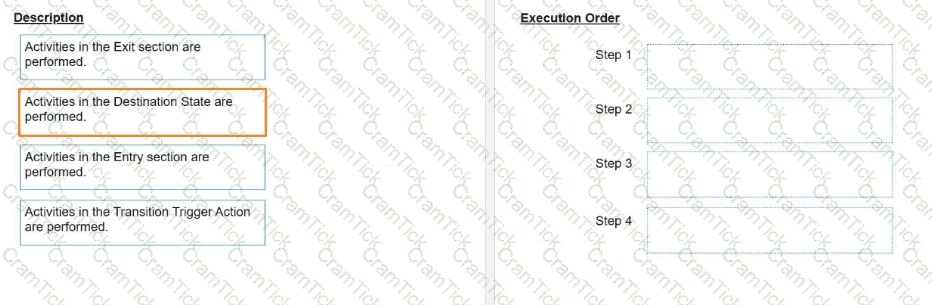

The Exit action in a state is an activity or a sequence of activities that are executed when the state is exited, before the transition to the next state occurs1. The purpose of the Exit action is to perform any final actions of the current state, such as closing applications, releasing resources, logging information, etc. The Exit action is executed even if the state transitions back to the same state2.

Option A is incorrect, because the Exit action does not stop the state machine’s execution, but rather prepares the state for the next transition. Option C is incorrect, because the Exit action does not revoke any entry actions, but rather complements them with any necessary exit actions. Option D is incorrect, because the Exit action does not define the conditions for the state transition, but rather executes after the conditions are evaluated.

References: 1: State 2: State Machines - Exit workflow and Trigger

The correct syntax for using the Vb.Net If operator is If(condition1, valueIfTrue, valueIfFalse). The If operator is a ternary operator that returns one of two values, depending on whether the condition is true or false. The condition must be a Boolean expression or a data type that can be implicitly converted to Boolean. The valueIfTrue and valueIfFalse arguments can be any data type, but they must be the same or implicitly convertible to a common type. The If operator uses short-circuit evaluation, which means that it only evaluates the argument that corresponds to the result of the condition. For example, the following expression returns “Positive” if the variable number is greater than or equal to zero, and “Negative” otherwise:

VB Dim result As String = If(number >= 0, “Positive”, “Negative”) References: [If Operator], [Ternary Operator]

 UiPath handles different dependency versions for multiple running processes that run at the same time by using the concept of isolation. This means that each running process uses its own required version of the dependency, without affecting or being affected by other processes. This ensures that the processes run smoothly and consistently, regardless of the dependency versions. The isolation is achieved by using the NuGet protocol, which allows the robot to download and store the dependencies in a local cache folder. The robot then loads the dependencies from the cache folder into separate application domains for each process, creating isolated environments for each process. References: [Managing Dependencies], [About the NuGet Protocol]

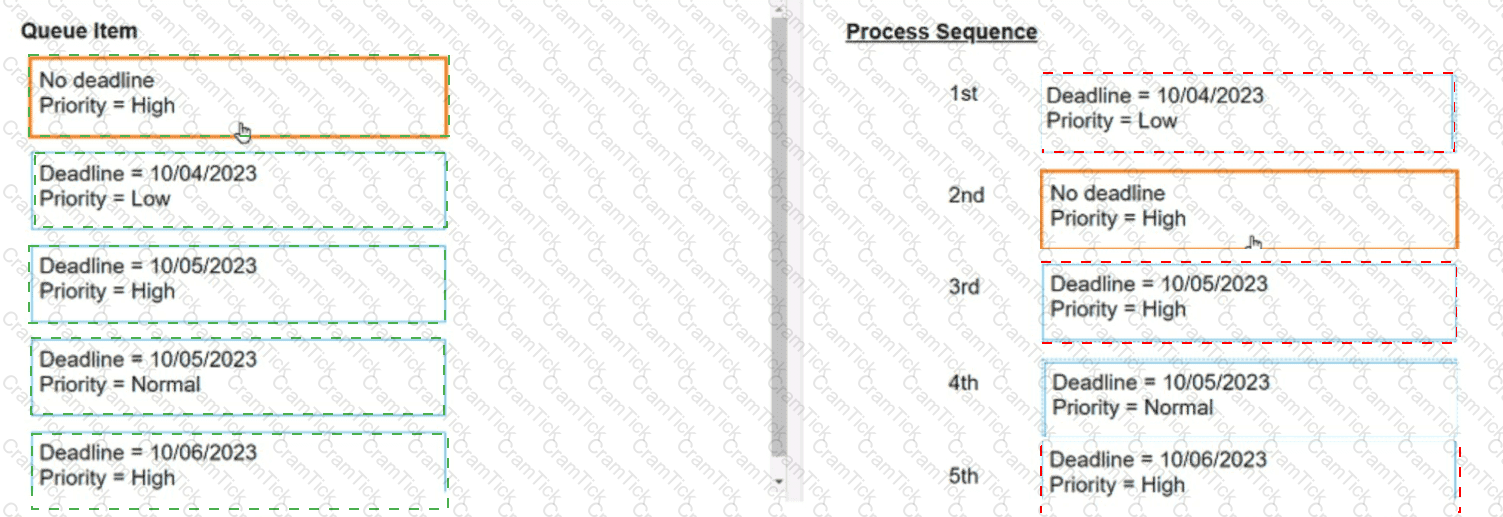

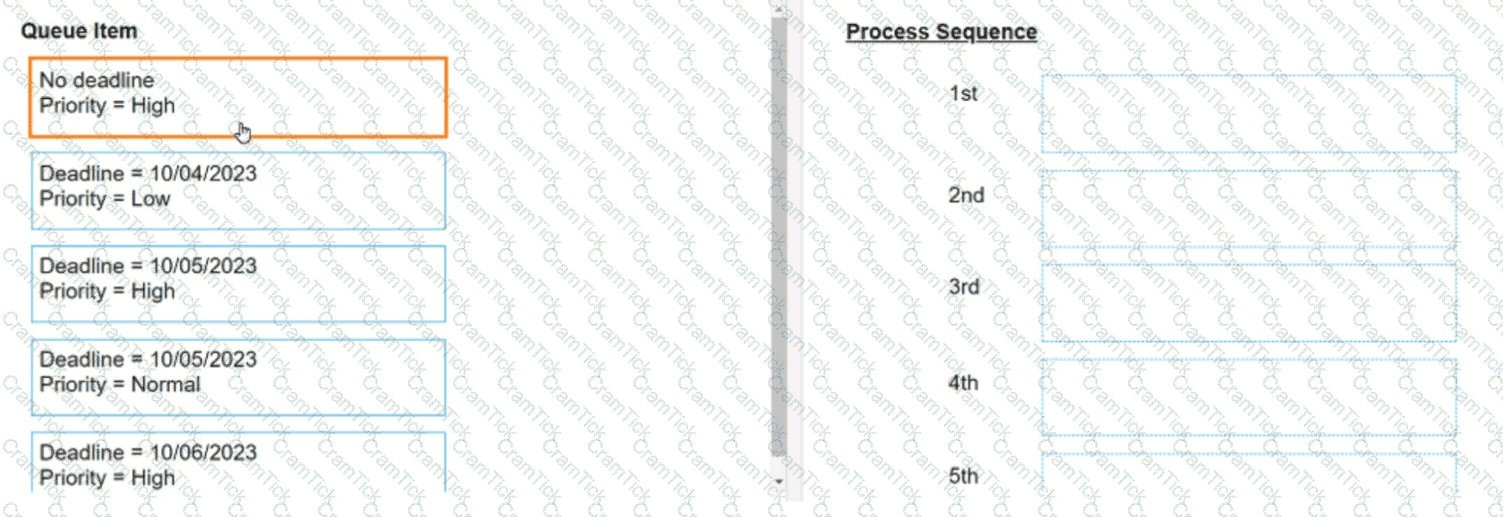

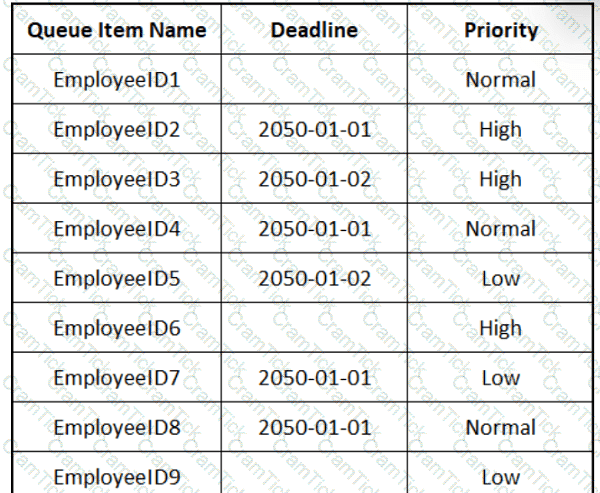

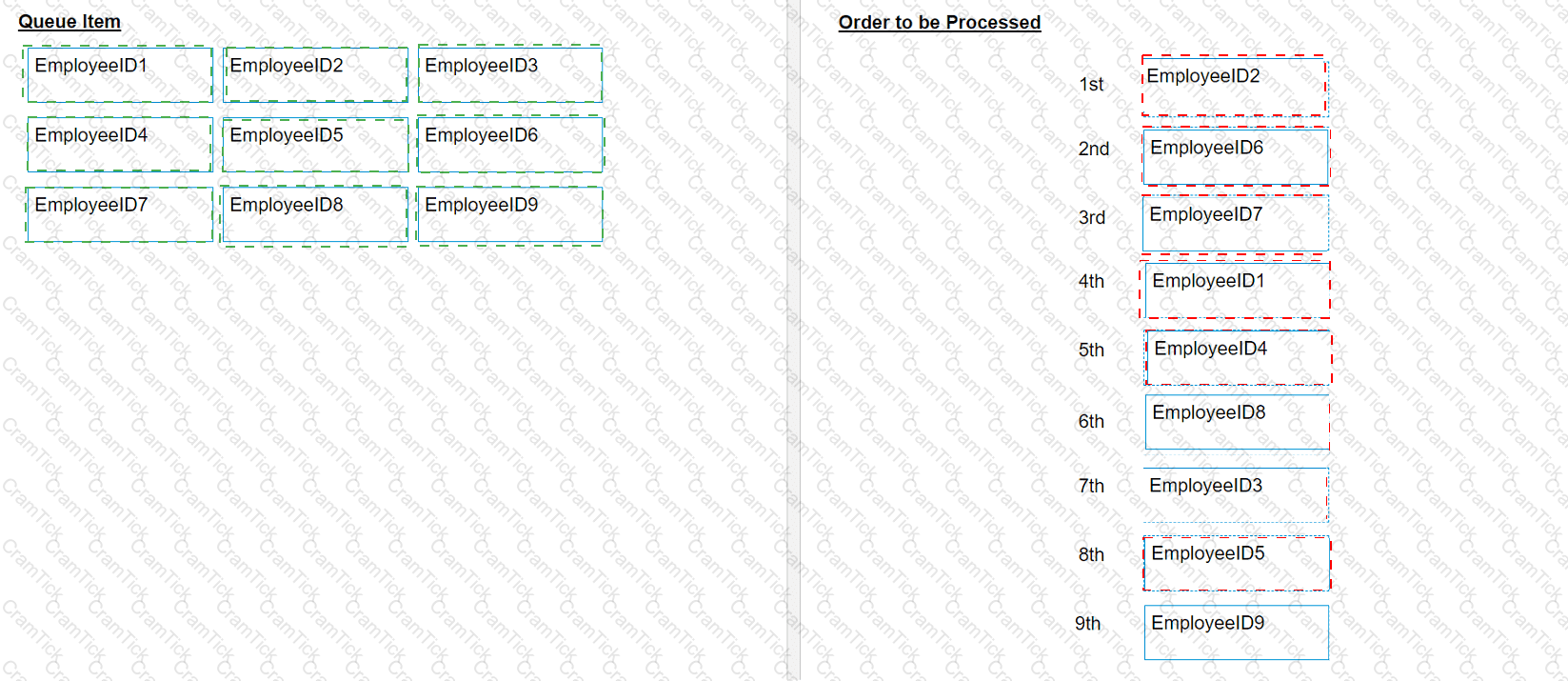

The processing sequence for queue items in UiPath Orchestrator is determined primarily by the deadline and priority of each item. Items with an earlier deadline are processed first. If multiple items have the same deadline, then priority determines the order: High, Normal, then Low.

Following this logic, the processing sequence would be:

1st: Deadline = 10/04/2023 Priority = LowSince this is the only item with the deadline of the current day (assuming today is 10/04/2023), it should be processed first regardless of its priority.

2nd: No deadline Priority = HighAlthough this item has no deadline, its high priority places it next in the sequence after items with a deadline for the current day.

3rd: Deadline = 10/05/2023 Priority = HighThis item is next due to its combination of an imminent deadline and high priority.

4th: Deadline = 10/05/2023 Priority = NormalThis item has the same deadline as the third but a lower priority, so it comes next.

5th: Deadline = 10/06/2023 Priority = HighThis item, while high priority, has the latest deadline, so it is processed last.

So the order would be:

1st: Deadline = 10/04/2023 Priority = Low2nd: No deadline Priority = High3rd: Deadline = 10/05/2023 Priority = High4th: Deadline = 10/05/2023 Priority = Normal5th: Deadline = 10/06/2023 Priority = High

LINQ stands for Language-Integrated Query, which is a set of features that allows you to query data from different sources using a common syntax1. In UiPath, you can use LINQ to query data from collections, such as lists, arrays, or dictionaries, or from data tables, such as Excel or CSV files2.

Option D is an accurate example of using LINQ for querying data in a UiPath process, because it uses the Where method to filter a list of strings based on a condition, and returns the result as a new list. The condition is that the string must be equal to “UiPath”, which is specified by the lambda expression Function(x) x = "UiPath". The ToList method converts the query result into a list type3.

The other options are not accurate examples of using LINQ for querying data in a UiPath process, because they either use methods that are not part of LINQ, or use LINQ for purposes other than querying data. For example:

Option A uses a custom method FindDuplicates, which is not a standard LINQ method, and does not specify a lambda expression to define the query criteria4.

Option B uses LINQ to sort data table rows, which is not a querying operation, and does not use the Field method to access the column values5.

Option C uses the Merge method, which is a data table method, not a LINQ method, and does not use any query expression at all.

References:

1: What is LINQ? - C# | Microsoft Docs 2: LINQ - UiPath Activities 3: Enumerable.Where Method (System.Linq) | Microsoft Docs 4: How to find duplicates in a list using LINQ - Stack Overflow 5: How to use LINQ on a DataTable in Uipath - Stack Overflow : DataTable.Merge Method (System.Data) | Microsoft Docs

A State Machine is a type of automation that uses a finite number of states in its execution. It can go into a state when it is triggered by an activity, and it exits that state when another activity is triggered. A State Machine consists of four primary components:

•States: These are the nodes that represent the possible situations or conditions of the automation. Each state can have one or more activities inside it that define the behavior of the automation in that state. There are two types of states: State and Final State. A State Machine must have one initial state and one or more final states.

•Triggers: These are the events or conditions that cause the automation to enter a state. A trigger can be an activity, a variable, or an argument that is executed or evaluated before entering a state. For example, a Click activity can be a trigger for entering a state that performs some actions after clicking a button.

•Transitions: These are the arrows or branches that connect the states and define the flow of the automation. A transition can have a condition that determines whether the automation can move from one state to another. For example, a Boolean expression can be a condition for a transition that checks if a certain condition is true or false before moving to the next state.

•Actions: These are the activities or sequences that are executed when the automation moves from one state to another. An action can be performed before or after the transition, depending on the type of the transition. For example, a Log Message activity can be an action that logs a message when the automation exits a state.

You can find out more about state machines on the Studio - State Machines - UiPath Documentation Portal or in the official Workflow Foundation documentation.

References: Studio - State Machines - UiPath Documentation Portal, [Activities - State Machine - UiPath Documentation Portal], State Machine Activity Designer - Microsoft Docs

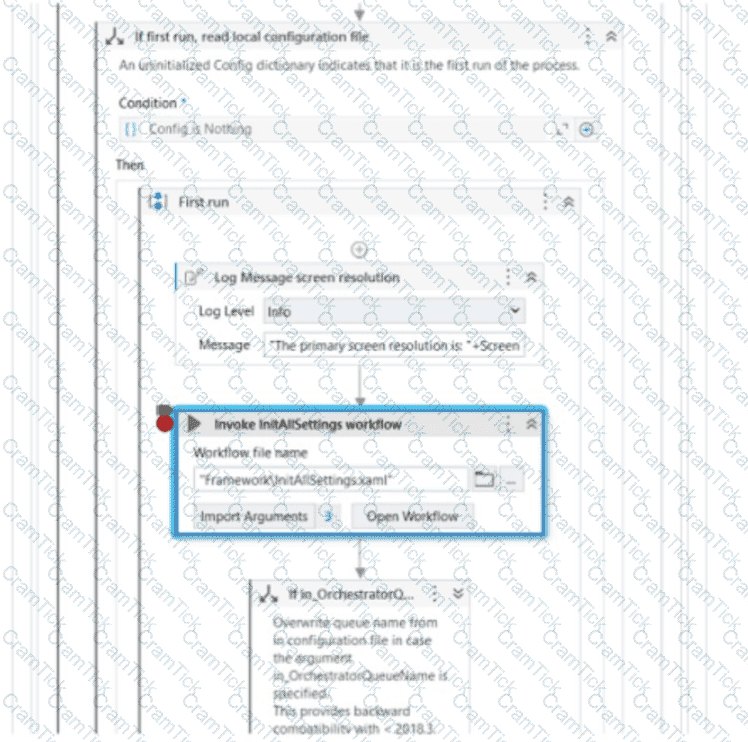

In the REFramework (Robotic Enterprise Framework), the initialization of all required applications should ideally be done in the 'InitAllApplications.xaml' file. This helps in keeping the project organized and maintains a standard structure.

The purpose of the Interval filter in the Orchestrator’s Monitoring page is to allow you to control the granularity of the displayed data and check the health of your system in either the last day or the last hour. The Monitoring page provides various metrics and charts that show the status and performance of your robots, processes, queues, and transactions. The Interval filter lets you choose the time frame for the data that you want to see. You can select either the last day or the last hour as the interval. The data will be updated accordingly and show you the trends and changes in your system over the selected period. This can help you identify any issues or anomalies and take corrective actions if needed.

The default URL of the OCR server that runs the Computer Vision service is https://cv.uipath.com/. The Computer Vision service is a cloud-based service that provides OCR and AI capabilities for UiPath automation projects. The service can be accessed by using the Computer Vision activities in UiPath Studio, such as CV Screen Scope, CV Click, CV Type Into, and more. The service requires an API key and a URL to connect to the OCR server. The default URL is https://cv.uipath.com/, but it can be changed to a custom URL if the developer has a self-hosted OCR server. The API key can be obtained from the UiPath Automation Cloud portal or from the UiPath Marketplace. References: [About Computer Vision], [Computer Vision Activities]

The correct order of actions in the Get Transaction Data state is:

Remove the Get Transaction Item activity from the GetTransactionData workflow.

Add a Read Range activity in the GetTransactionData workflow to read the data from a local Excel file.

Add the logic required to read the data source only one time.

Add the logic required to retrieve only one row from read data each time.

Add the logic required to check if all rows/transaction items from the read data have been processed.

This sequence ensures that the data is read once, processed row by row, and checks for completion.

The type of error that should be thrown according to best practices for queue items that contain partial numbers is Business Exception. A Business Exception is an exception that occurs due to an incorrect or incomplete input data or an expected business rule violation. A Business Exception indicates that the transaction item cannot be processed successfully and should be marked as failed in the queue. A Business Exception can be thrown by using the Throw activity in UiPath Studio, with the exception type set to UiPath.Core.BusinessRuleException. Alternatively, a Business Exception can be thrown by using the Set Transaction Status activity in the REFramework, with the status set to Failed and the exception type set to Business Exception. References: [Business Exception vs Application Exception], [Throw], [Set Transaction Status]

A pre-requisite for running functional test cases in REFramework is to invoke the InitAIISettings XAML file. This file is responsible for initializing the AI Fabric settings and connecting to the Orchestrator. It also checks if the AI Fabric environment is ready and if the ML skills are deployed and available. Without invoking this file, the functional test cases that use AI Fabric features will not work properly. References: [REFramework for AI Fabric]

In UiPath, the four job types according to the place of execution and robot impersonation are Foreground unattended, Background unattended, Attended, and Development. These job types differentiate the automation tasks based on whether they require user interaction (Attended), can run in the background without user intervention (Background unattended), are designed for development and testing purposes (Development), or are unattended tasks that require a virtual environment (Foreground unattended).References:

UiPath Orchestrator Guide: Job Types

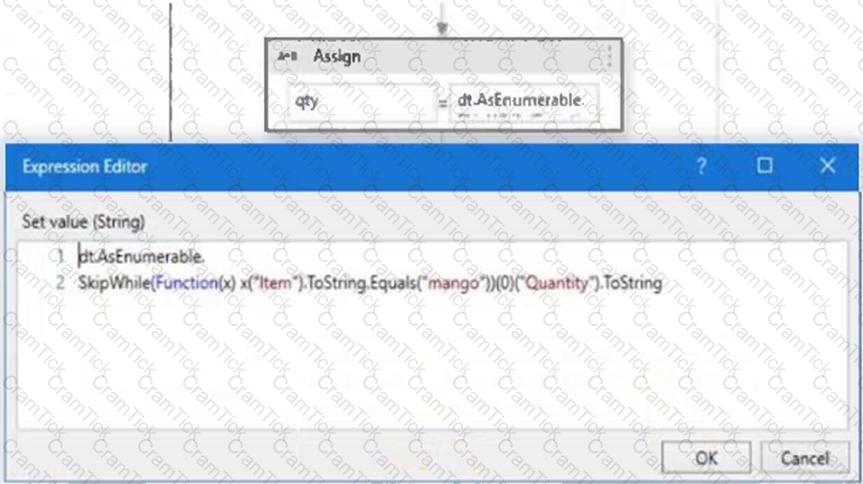

The value of the qty variable will be 80 after executing the Assign activity. This is because the expression in the Assign activity is using the LINQ methods AsEnumerable, SkipWhile, and Item to access the data in the dt variable. The dt variable is a DataTable that contains the following data:

Item

Quantity

apple

5

banana

10

mango

20

orange

80

grape

40

The AsEnumerable method converts the DataTable into an Enumerable collection of DataRow objects. The SkipWhile method skips the elements of the collection until the condition is false. The condition is a lambda expression that checks if the value of the Item column is equal to “mango”. The (0) indexer returns the first element of the collection after skipping. The Item method accesses the value of the Quantity column of the DataRow. The ToString method converts the value into a string. Therefore, the expression will skip the first three rows of the DataTable and return the value of the Quantity column of the fourth row, which is 80. References: [DataTable.AsEnumerable Method], [Enumerable.SkipWhile Method], [DataRow.Item Property]

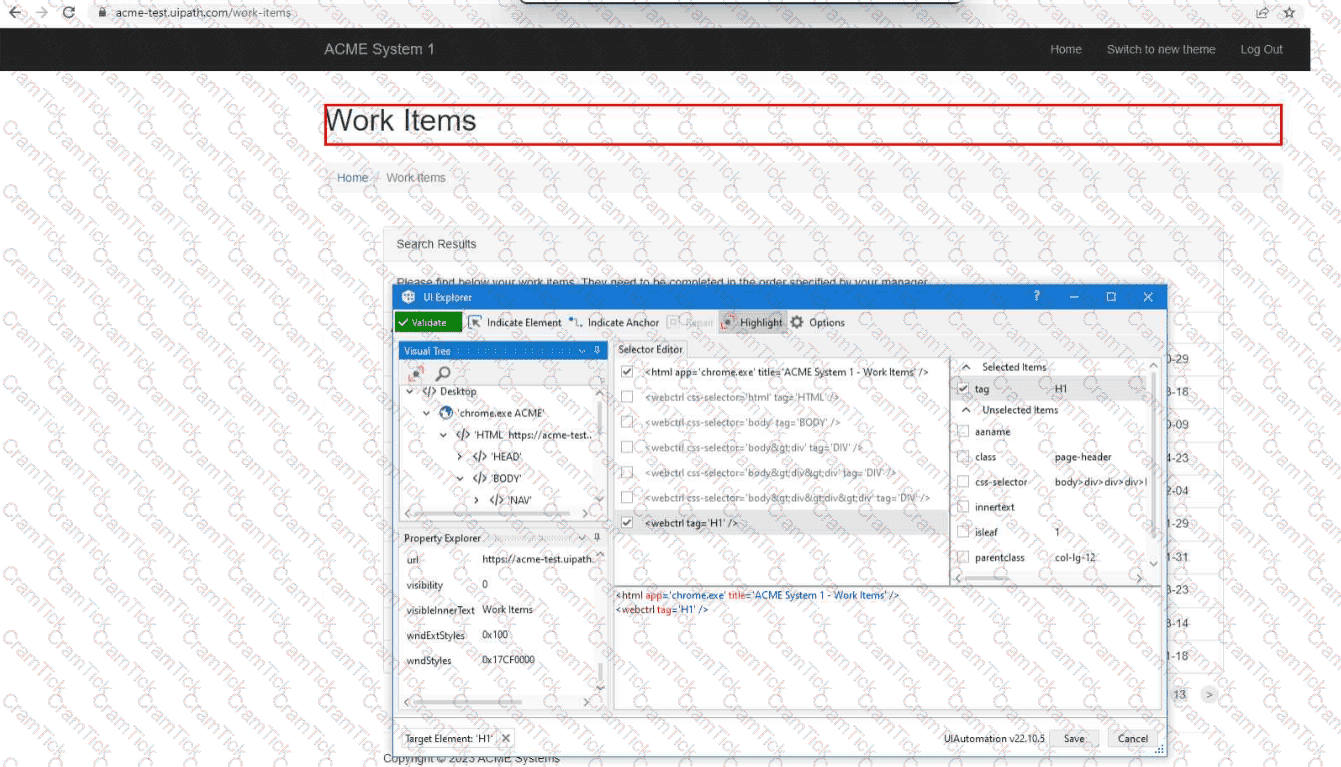

The workflow in question uses a 'Verify Control Attribute' activity to check if the text value of a UI element is equal to "Work Items". The Get Text activity is used to retrieve the text from the specified UI element, and the result of this activity is compared against the expected value "Work Items".

From the provided information, the 'Verify Control Attribute' activity has been set up with the Expression "Work Items" and the Operator set to Equality. The 'Get Text' activity is configured to extract the text from the UI element with the visible text "Work Items", as indicated by the selector shown in the image.

Since the actual value of the UI element's text is "Work Items" (which matches the expected value in the 'Verify Control Attribute' activity), and provided that the 'Get Text' activity successfully retrieves this value, the verification will pass. The configuration indicates that the activity should take a screenshot only if the verification fails (TakeScreenshotIfFailed is set to True), which will not be the case here.

Therefore, assuming that there are no other issues such as incorrect selectors or unexpected changes to the UI element at execution time, the result of the 'Verify Control Attribute' activity will be a pass.

References:

UiPath Documentation: Verify Control Attribute Activity
