UiPath-ADAv1 UiPath Automation Developer Associate v1 Exam Questions and Answers

A state in a State Machine is a set of actions that execute while the workflow is in a certain condition1. Each state has three components: Entry, Exit, and Transition Actions2. Entry Actions are executed when the state is entered, Exit Actions are executed when the state is exited, and Transition Actions are executed when a transition is triggered by a condition3.

References:

• State Machines in Studio course, Lesson 1: Introduction to State Machines, Topic: What is a State Machine?
• State Machine documentation, States section
• How does State Machine work? forum post, Answer by @aksh1yadav

During debugging, when the execution is paused, the "Locals" panel in UiPath Studio is the place to go to alter the characteristics of the ongoing flow and change the values of variables within the existing scope. The Locals panel shows the current state of all variables and arguments in the current scope and allows their values to be changed on-the-fly.

References:

UiPath Studio Guide: Debugging

The listOfMonthsByQuarter variable is a String array, which means it can store multiple values of type String. Each value in the array has an index, which is a number that indicates its position in the array. The index starts from 0, so the first value has index 0, the second value has index 1, and so on. To access a specific value in the array, we can use the syntax arrayName(index). For example, listOfMonthsByQuarter(0) will return the first value in the array, which is “1”. Similarly, listOfMonthsByQuarter(2) will return the third value in the array, which is “3”. Therefore, the data type of listOfMonthsByQuarter(2) is String, and the value is “3”. References: Arrays and Variables from UiPath documentation.

Dictionaries in UiPath, as in other .NET environments, allow for keys and values to be of different data types. Keys must be unique within a dictionary, but the values can be duplicates. Dictionaries do not provide automatic sorting; they are collections designed for quick lookup of values based on a key. Therefore, the correct answer is B.

References:

UiPath Studio Guide: The Dictionary Data Type

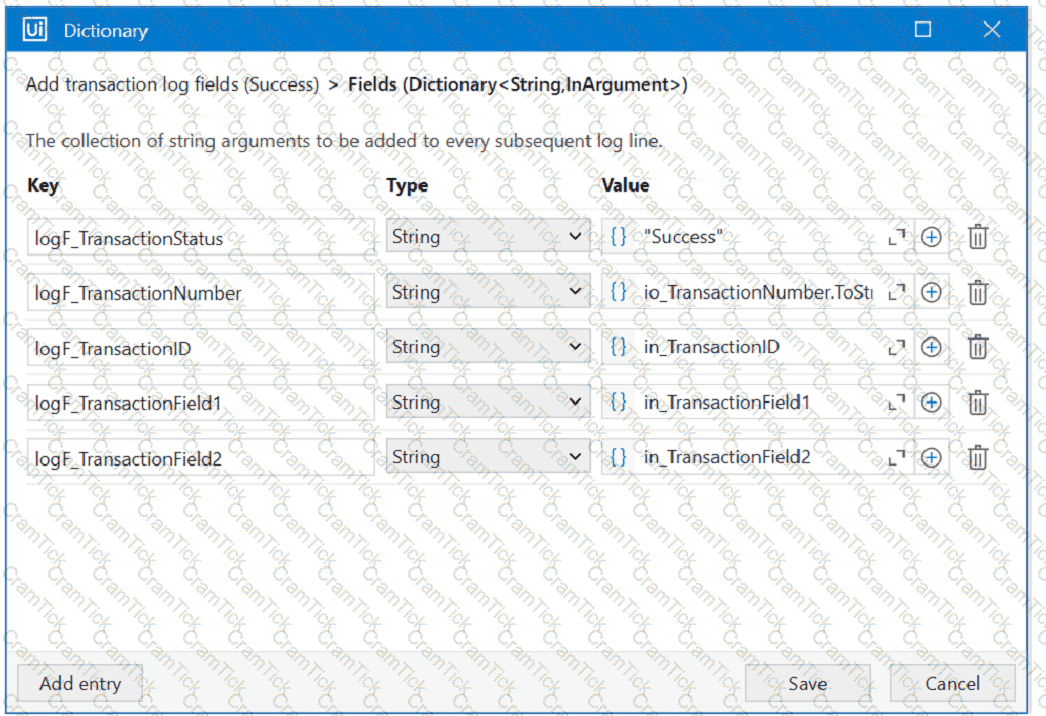

The Add Log Fields activity allows the developer to add custom information to the logs related to transactions for tracing purposes. The activity adds key-value pairs to the execution context, which are then included in all subsequent logs1. The custom information can be used for filtering, searching, or reporting purposes2.

To view the complete list of attributes for the targeted UI element after generating a selector, the developer should use the "Open in UI Explorer" option. UI Explorer is a tool that provides a detailed view of the UI elements' properties and their full selectors. It allows for editing, validating, and testing selectors for better accuracy and reliability. Therefore, the correct answer is B.

References:

UiPath Studio Guide: UI Explorer

The REFramework template is a robust and scalable framework for building RPA projects1. It uses a config file to store the settings and constants that are used throughout the project2. The config file has two sheets: Settings and Assets. The Settings sheet contains the key-value pairs that are read by the InitAllSettings workflow and stored in the config dictionary. The Assets sheet contains the names of the assets that are stored in Orchestrator and need to be retrieved by the InitAllApplications workflow. The OrchestratorQueueName key is used to specify the name of the queue that is used to store the transaction items for the process. If the OrchestratorQueueName key is present in both the Settings and Assets sheets, but an asset with the corresponding name is not present in Orchestrator, the behavior at run time will be as follows:

• The InitAllSettings workflow will read the value of the OrchestratorQueueName key from the Settings sheet and store it in the config dictionary.
• The InitAllApplications workflow will try to retrieve the asset with the name OrchestratorQueueName from Orchestrator using the Get Asset activity. Since the asset does not exist, the activity will throw an exception.
• The exception will be caught by a Try Catch block and handled by a Log Message activity with level Warning and message “Asset not found: OrchestratorQueueName”.
• The flow will continue with the next asset in the Assets sheet or move to the next state if there are no more assets.
• The flow will use the value of the OrchestratorQueueName key from the config dictionary whenever it needs to access or update the queue.

Therefore, option B is correct. Option A is incorrect because the exception is thrown in InitAllApplications workflow, not InitAllSettings workflow. Option C is incorrect because an empty string is not saved for the OrchestratorQueueName key in the config dictionary. Option D is incorrect because the OrchestratorQueueName key is added to the config dictionary and the flow does not throw in Get Transaction Data workflow.

References:

• How to Use Enhanced REFramework to Implement UiPath Projects article from UiPath
• Config.xlsx documentation from UiPath
• [InitAllSettings.xaml] documentation from UiPath
• [InitAllApplications.xaml] documentation from UiPath
• [TransactionItem Variable] documentation from UiPath

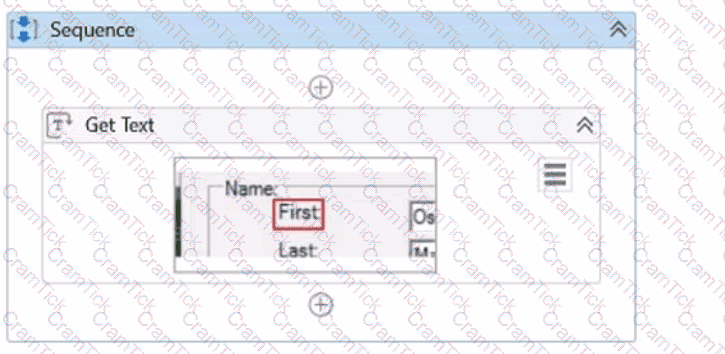

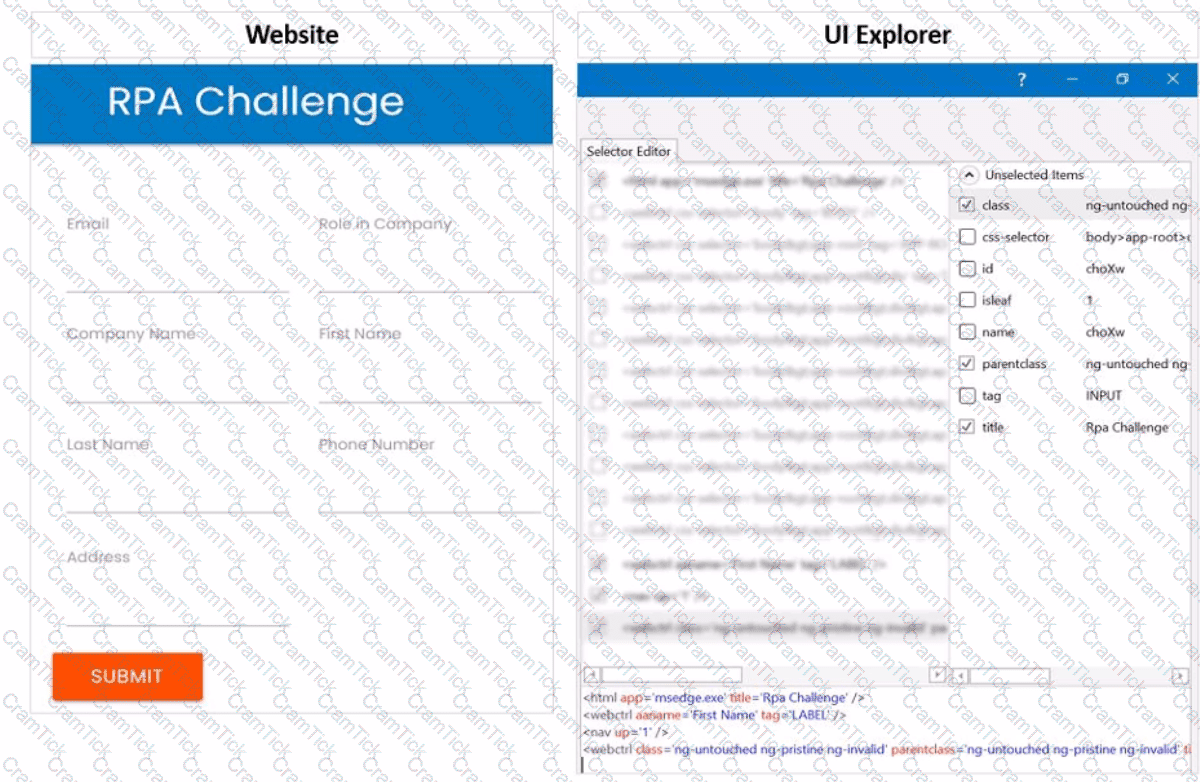

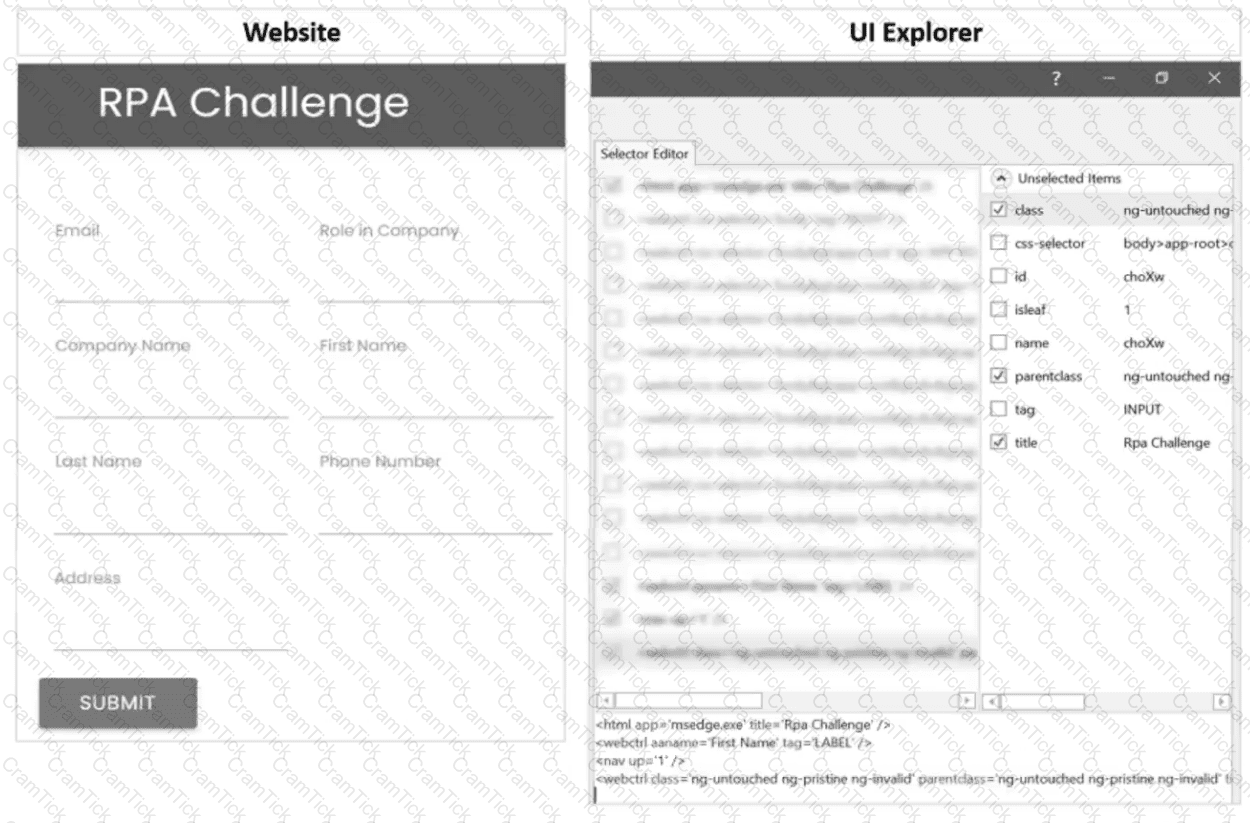

To ensure the selector targets only the First Name text field at runtime, you need to click the additional Property checkbox for ID in the UI Explorer Unselected Items column. This will add the ID attribute to the selector, which is a unique identifier for the text field element. The ID attribute has the value “firstname” for the First Name text field, as shown in the image. This will make the selector more reliable and specific, and avoid targeting the text label or other elements with the same class or tag.

https://docs.uipath.com/de/studio/standalone/2021.10/user-guide/uipath-explorer

Based on the information from the exhibits, the "Main.xaml" file has a variable Fruits with a default value "Pieces, Strawberries". This variable is passed as an in/out argument io_ShoppingBasket to the "SuperMarket.xaml" workflow. Inside the "SuperMarket.xaml" workflow, "Oranges" is appended to io_ShoppingBasket. Since io_ShoppingBasket is an in/out argument, the value of Fruits in the "Main.xaml" file will be updated to "Pieces, Strawberries, Oranges". Therefore, the output of the Write Line activity in the "Main.xaml" file will be "Pieces, Strawberries, Oranges".

References:

UiPath Studio Guide: Arguments

The Capture All Elements feature is a tool that lives inside Capture Elements from Object Repository, and it extracts all the elements of an application from multiple screens simultaneously using the Computer Vision technology. It adds them to your Object Repository library, so that you can use them in your automation projects without having to manually add them one by one1. This feature is available in Studio and Studio Pro, but not in StudioX2.

References:

• UiPath Community 2021.10 Stable Release - UIAutomation.
• Capture Elements for Object Repository - UiPath Community Forum.

To change the profile from UiPath Studio to UiPath StudioX, a user needs to go to Home, then Settings, select License and Profile, choose Change Profile, and click on the UiPath StudioX profile. After that, the user must confirm the profile change and agree to restart the application for the changes to take effect. Thus, the correct answer is C.

References:

UiPath Studio Guide: Switching Between Profiles

When a UiPath process is executed in unattended mode from a UiPath Robot, breakpoints set during the development phase do not affect the execution. The Robot ignores any breakpoints that have been left in the workflow, and execution proceeds as if the breakpoints were not there. Therefore, the correct answer is C. Breakpoints are meant for debugging purposes during development and do not cause crashes, pauses, or exceptions during unattended execution in a production environment.

References:

UiPath Orchestrator Guide: About Processes

The two parts that are included in an Anchor Base activity are Anchor and Action. The Anchor Base activity is a container that searches for a UI element by using other UI elements as anchors. This should be used when a reliable selector is not available. The Anchor Base activity has two sections: Anchor and Action. The Anchor section contains an activity that identifies the anchor element, such as Find Element or Find Image. The Action section contains an activity that performs an action on the target element, such as Click or Type Into. The Anchor Base activity also has a property called AnchorPosition, which specifies the relative position of the target element to the anchor element, such as left, right, top, or bottom2. For example, if the Anchor Base activity is used to click on a button that is always to the right of a label, the Anchor section can use the Find Element activity to find the label, the Action section can use the Click activity to click on the button, and the AnchorPosition property can be set to Right3.

References: Anchor Base and How to properly use AnchorBase activity? from UiPath documentation and forum.

The code is adding two items to the list, but since the list is initialized as an empty list, the count will be 0.

References:

• Data Manipulation with Lists and Dictionaries in Studio course, Lesson 2: Lists, Topic: Creating Lists
• How to initiate List? forum post, Answer by @VishalS

Variables can be created from different areas or panels in the UiPath Studio interface, such as the body of an activity, the properties panel, the expression editor, or the variables panel. However, the activities panel is the only one among the given options that is a valid area for creating variables. The activities panel contains a list of activities that can be dragged and dropped to the designer panel to build workflows. By right-clicking a field in an activity and selecting Create Variable from the context menu, or pressing Ctrl+K, a variable can be created and assigned to that field. The variable’s type and scope are automatically determined based on the activity and the container it is part of.

References:

• Create Variables Tutorial in Studio | UiPath
• Studio - Managing Variables - UiPath Documentation Portal
• Managing Variables - UiPath Studio

The Global Exception Handler is an error handling mechanism for a project. By default, it retries an activity that continually throws an error 3 times. The Global Exception Handler is a workflow that is executed when an exception occurs in the project. It allows the developer to define custom actions for handling different types of exceptions, such as logging, retrying, aborting, or continuing the execution1. When the Global Exception Handler encounters an exception, it logs the name of the activity which faulted and starts retrying the activity three times. If it encounters the same exception each time and the number of retries reaches 3, the execution is aborted at the level of the activity which threw the exception2. The number of retries can be modified by changing the value of the RetryCount variable in the Global Exception Handler workflow3. References: Global Exception Handler and Global Handler for Exceptions from UiPath documentation and Marketplace.

When creating a new project in UiPath Studio and you want to use .NET 6 with Windows support, you should select the "Windows" compatibility option. This option is designed to work with Windows-specific features and the newer .NET versions, including .NET 6. Hence, the correct answer is C.

References:

UiPath Studio Guide: Project Compatibility

To configure the Filter Data Table Wizard to keep all invoices with a Total value that is over 10 000 USD, you should choose the following options from the drop-down lists:

Column: Total Operation: > Value: 10000

The reason for choosing these options is to filter the data table based on the condition that the Total column value is greater than 10000. This will keep only the rows that satisfy this condition and remove the rest. You can learn more about the Filter Data Table activity and how to use it from the following sources:

• Four Ways to Filter Data Tables in UiPath Studio | UiPath
• How to Filter Data Table - Help - UiPath Community Forum
• Filter Data table with specific column - UiPath Community Forum

When a transaction item throws a Business Rule Exception, it means that the item does not meet the business requirements and cannot be processed further1. Therefore, the transaction item is marked as failed and not retried, regardless of the Max # of retries setting for the queue2. However, the process does not stop and continues with the remaining transaction items in the queue3.

References:

• Business Exception vs System Exception forum post, Answer by @loginerror
• RE Framework MaxRetryNumber and Orchestrator Queue Max # Rertry, again forum post, Answer by @Arpit_Kesharwani

The Get Test Data Queue Item activity is used to retrieve a test data queue item from Orchestrator and store it in a variable. The output type of the variable is Dictionary, which means that it is a collection of key-value pairs that can be accessed by using the key name. For example, if the test data queue item contains the fields Name, Age, and Gender, then the output variable can be used to get the values of these fields by using expressions like outputVar(“Name”), outputVar(“Age”), or outputVar(“Gender”). (UiPath Studio documentation1)

References:

• 1: Get Test Data Queue Item - UiPath Activities.

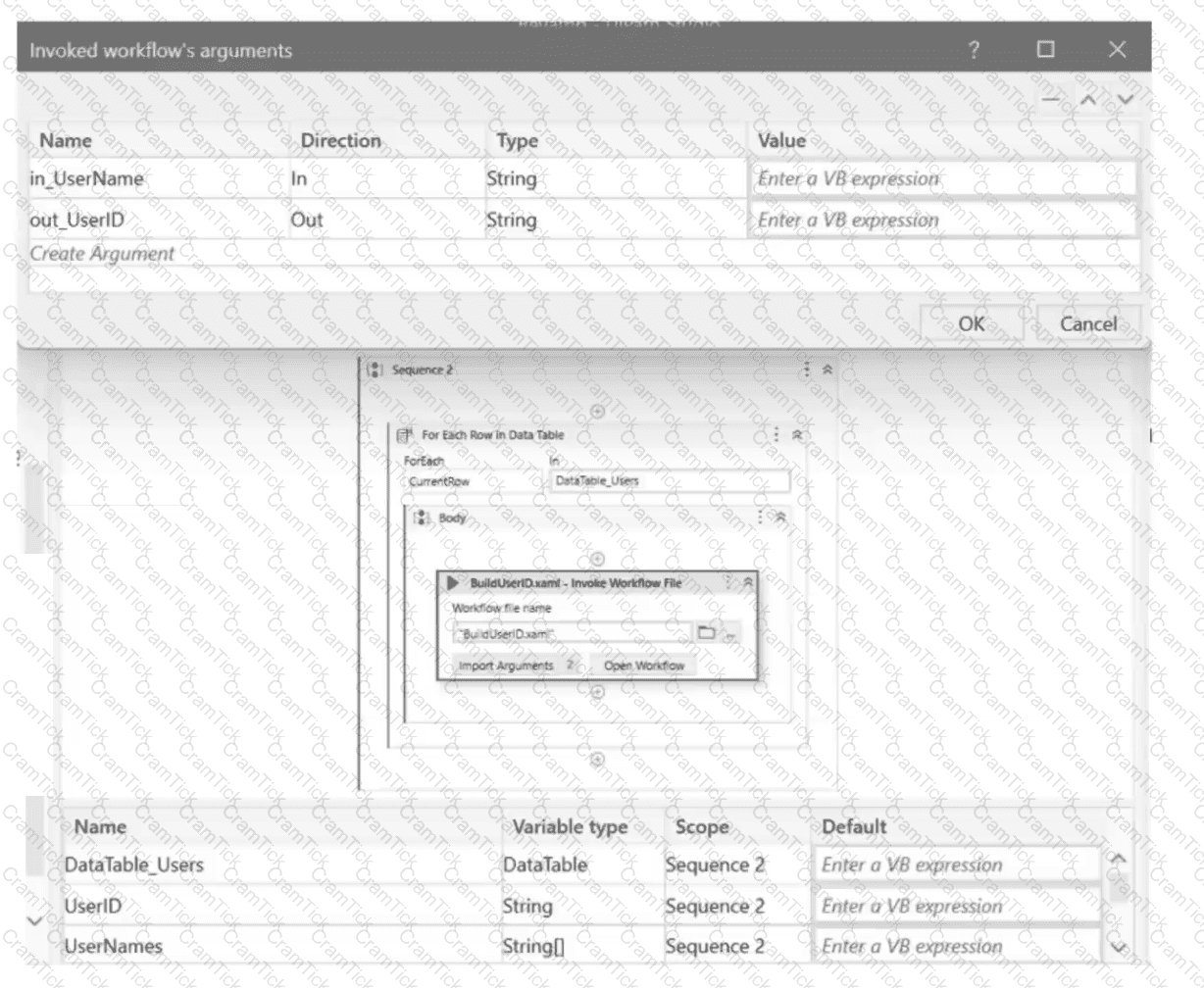

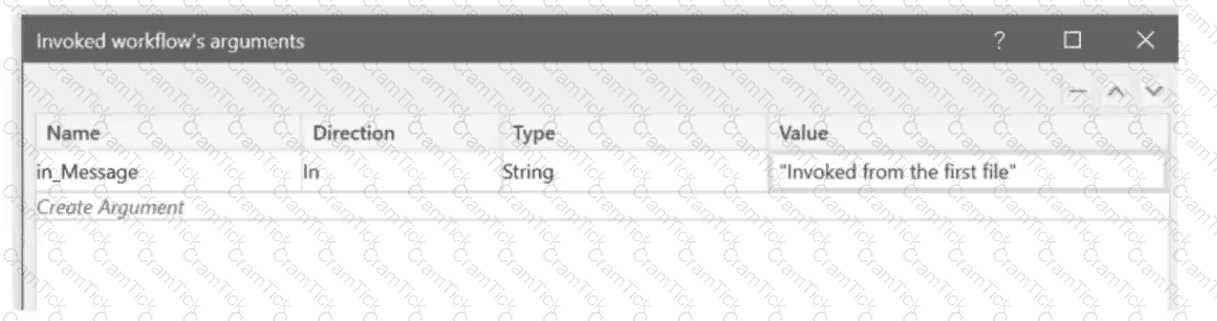

In the Invoked Workflow’s Arguments window, the Value can be configured for each argument as follows:

• In: Variable or Hard-coded value. An In argument is an argument that passes a value from the parent workflow to the child workflow. The Value of an In argument can be configured with a variable that holds the value to be passed, or a hard-coded value that is directly entered in the Value field3. For example, if the In argument is Name and the value to be passed is “John”, the Value can be configured with a variable that contains “John”, such as strName, or a hard-coded value, such as “John”.
• Out: Variable only. An Out argument is an argument that passes a value from the child workflow to the parent workflow. The Value of an Out argument can be configured only with a variable that receives the value from the child workflow4. For example, if the Out argument is Result and the value to be passed is the sum of two numbers, the Value can be configured only with a variable that stores the sum, such as intResult.
• In/Out: Variable only. An In/Out argument is an argument that passes a value from the parent workflow to the child workflow, and then passes the modified value back to the parent workflow. The Value of an In/Out argument can be configured only with a variable that holds the initial value and receives the modified value5. For example, if the In/Out argument is Counter and the value to be passed is a number that is incremented by one in the child workflow, the Value can be configured only with a variable that contains the initial number and stores the incremented number, such as intCounter.

References: Using Arguments and Arguments from UiPath documentation.

• STEP 1: Indicate the element "File" from the Menu Bar in Notepad.
• STEP 2: Select and right-click the File property of the name attribute.
• STEP 3: From the context menu, choose to "Use Variable" and specify the name for the new variable in the "Variable Name" field as MenuOption.
• STEP 4: Click the Validate button in the Selection Options window.

When using the "Get IMAP Mail Messages" activity, the minimum recommended properties to configure are: MailFolder (to specify the folder from which to retrieve the mails), Port (to specify the port used by the IMAP server), Server (the address of the IMAP server), Email (the email address to connect to), Password or SecurePassword (the password used to connect to the email account), and Messages (the output property where the retrieved emails will be stored).

References:

UiPath Activities Guide: Get IMAP Mail Messages Properties

The components of a process typically include "Inputs, Process Flows, Source Applications, Outputs". This refers to what the process takes as input (data/files), the sequence of steps or activities that define the process (process flows), the applications involved in the process (source applications), and what the process produces or affects (outputs).

References:

UiPath Studio Guide: Project Organization Best Practices

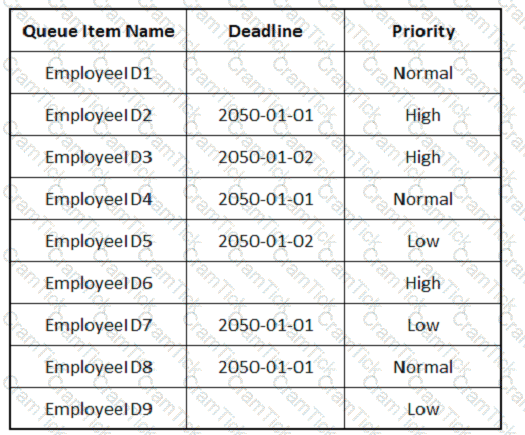

Job priorities in unattended automations are used to assign different levels of importance to the processes that are triggered by the Orchestrator1. The job priority can be set as High, Normal, or Low when creating or editing a trigger2. The Orchestrator will execute the jobs based on their priority and the availability of robots3. This feature helps to optimize the performance and efficiency of unattended automations.

https://forum.uipath.com/t/priority-levels-jobs-and-queue-items/273883

A process that is considered semi-automation is one where certain steps can be automated while others must remain manual. This may include actions such as validations or the use of physical security tokens that cannot be automated. Therefore, the best description of semi-automation is option D.

The percentages from the Test Explorer panel represent the coverage of the test cases, which is the ratio of the number of activities that are executed by the test cases to the total number of activities in the project. The higher the coverage, the more thorough the testing is. The coverage percentage is calculated for each test case, test set, and the entire project. You can view the coverage details in the Coverage sub-panel of the Test Explorer1.

References:

• Test Explorer documentation from UiPath

This expression is suitable for calculating the total number of boxes because it converts both strings to integers using the Convert.Tolnt32 method, which is a built-in method in .NET that can handle various formats of numeric strings1. Then, it multiplies the two integers to get the total number of boxes as an integer. The other expressions are not suitable because they either use incorrect syntax or methods that do not exist or are not reliable for converting strings to integers. References:

1: Convert.Tolnt32 Method

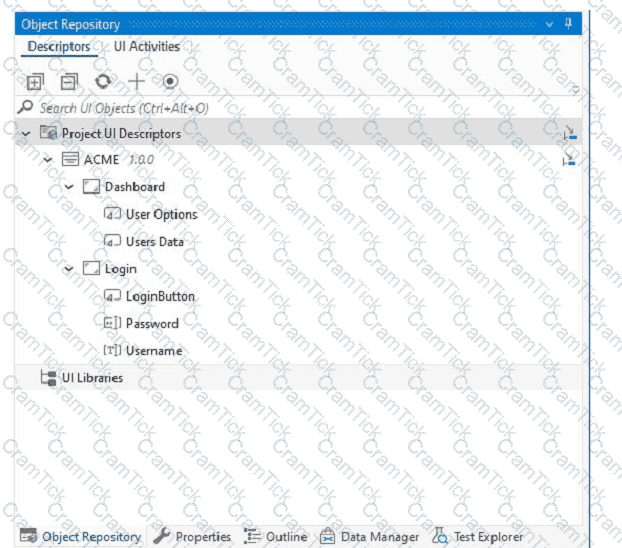

The Object Repository tree structure follows a hierarchical order that starts with the Application node, which represents the application or system that contains the UI elements to be automated. Under the Application node, there can be one or more Version nodes, which specify the version of the application or system. Each Version node can have one or more Screen nodes, which represent the different screens or windows of the application or system. Finally, each Screen node can have one or more UI Element nodes, which are the individual UI elements that can be used for automation. (UiPath Automation Developer study guide)

References:

• Object Repository Tree Structure
• Object Repository

In Orchestrator, when a Credential asset is created and the username value is changed, the password must also be changed to ensure that the credential set remains valid. The username and password are linked as they represent the credential pair used for authentication. Changing one without the other would result in mismatched credentials that cannot be used for logging in to the system that these credentials are associated with. Therefore, the correct answer is D.References:

• UiPath Orchestrator Guide: Managing Assets in Orchestrator

Logging Level “Information” is used to log general information about the process execution, such as the start and end of a transaction1. When an exception is caught in a Catch block, the developer should log a clear message with this level to indicate the type and source of the error, and the action taken to handle it2.

https://docs.uipath.com/studio/standalone/2023.4/user-guide/logging-levels

Frequent application changes are a process attribute that should be avoided when prioritizing automating several processes. This is because frequent application changes can cause the automation to break or malfunction, and require constant maintenance and updates. Processes that are stable and consistent are more suitable for automation, as they reduce the risk of errors and rework. References: Process Selection Criteria and Process Analysis from UiPath documentation.

The extension of the downloaded package from UiPath Orchestrator 2021.10 to use locally is .nupkg. A package is a file that contains the workflows and the dependencies of a project that is ready to be executed by a robot. A package can be created and published from UiPath Studio, or uploaded manually to UiPath Orchestrator. A package can also be downloaded from UiPath Orchestrator to use locally, such as for debugging or testing purposes. The extension of the package file is .nupkg, which is the standard extension for NuGet packages. NuGet is a package manager that is used to manage the dependencies of a project, such as libraries, frameworks, or components3. A .nupkg file is essentially a ZIP archive that contains the files and metadata of the package4. For example, if a package named Process1 is downloaded from UiPath Orchestrator, the file name and extension will be Process1.nupkg. The .nupkg file can be opened or extracted using a ZIP utility, such as 7-Zip or WinZip, or renamed to .zip and extracted using Windows Explorer5.

A process can be found in the UiPath Assistant after being published from UiPath Studio and deployed as an automation in Orchestrator. UiPath Assistant is a desktop tool that enables users to easily access, manage, and run automation workflows on their machines. It displays all the available automations that the user can run, either from Orchestrator or locally. To run an automation from Orchestrator, the user needs to connect the UiPath Assistant to Orchestrator and synchronize the automations and settings with the cloud. The user can also add automations to the launchpad for quick and easy access, create custom folders and sections to organize the automations, view the status and progress of the running automations, and access the help and feedback options.

References:

• Software Robot Assistant - Desktop Automation | UiPath
• Robot - About UiPath Assistant - UiPath Documentation Portal

A State Machine layout is a type of workflow that allows developers to create complex and dynamic automation processes that can branch based on user input or predefined conditions. A State Machine layout consists of states, transitions, and triggers. A state represents a specific step or action in the process, a transition defines the direction of the flow between states, and a trigger determines when a transition should occur. A State Machine layout can have only one initial state, which is the starting point of the process, and multiple final states, which are the possible end points of the process. (UiPath Automation Developer study guide)

References:

• State Machines
• State Machine Layout

Breakpoints are used in debugging to pause the execution of the project at specific activities, which may potentially cause execution issues, making option A correct. This allows developers to inspect the state of the application at that point, aiding in the identification and resolution of issues. Options B, C, and D do not accurately describe the purpose of breakpoints in the debugging process.

References:

UiPath Documentation: Debugging

"For Each Excel Row" is an activity that belongs to the Modern Excel Activities package in UiPath Studio. It is used to iterate through each row of an Excel file, allowing for operations to be performed on each row. This activity is part of the modern design experience and offers enhanced capabilities compared to classic Excel activities. Therefore, the correct answer is D.

References:

UiPath Activities Guide: For Each Excel Row

The Substring method is used to extract a part of a string based on a specified starting index and length. The syntax of the Substring method is:

string.Substring(startIndex, length)

where startIndex is the zero-based position of the first character in the substring, and length is the number of characters in the substring. For example, if the string is “Hello”, then string.Substring(1, 2) will return “el”, as it starts from the second character (index 1) and takes two characters.

To return four characters starting with the second character, the startIndex should be 1 and the length should be 4. Therefore, the expression should be:

StrVar.Substring(1, 4)

References: Substring and How to manipulate a part of string: Split, Trim, Substring, Replace, Remove, Left, Right from UiPath documentation and forum.

The Visible property of the Excel Application Scope activity determines whether the Excel file is opened in the foreground or in the background. If the Visible property is set to True (default value), the Excel file is opened and displayed on the screen. If the Visible property is set to False, the Excel file is opened and processed in the background, without showing the user interface. This can improve the performance and speed of the automation, as well as avoid any interference with the user’s work. Therefore, to create a process that runs in the background and uses Excel activities, the Visible property of the Excel Application Scope activity must be configured to False. References: Excel Application Scope from UiPath documentation.

To assign the first row of the “ID” column in the “DT” datatable to a String variable, the expression that should be added to the Value field of the Assign activity is:

DT.Rows(0).Item(“ID”)

This expression accesses the value of the “ID” column in the first row of the “DT” datatable using the Rows and Item properties. The Rows property returns a collection of DataRow objects that represent the rows in the datatable. The Item property returns or sets the value of the specified column in the DataRow object1. The expression uses the index 0 to refer to the first row in the Rows collection, and the column name “ID” to refer to the specific column in the Item property. The expression returns the value of the “ID” column in the first row as an Object type, which can be converted to a String type using the ToString method2. For example, if the “DT” datatable has the following values:

ID

Name

1

John

2

Mary

3

Bob

Then the expression DT.Rows(0).Item(“ID”) will return 1 as the value of the “ID” column in the first row.

References: DataTable.Rows Property and DataRow.Item Property from UiPath documentation.

Connections are the core component of the UiPath Integration Service. They enable you to create and manage tasks and exchanges between users and external applications using the authentication process of the API provider. Each connection is associated with a specific connector, which defines the actions and triggers that can be performed on the external application. You can create connections in the Integration Service page of the Automation Cloud portal, and use them in your automation projects in Studio, StudioX, Apps, or Assistant. You can also share connections with other users or groups in your organization using folders and permissions1.

References: Integration Service - Connections - UiPath Documentation Portal

The Flow Switch activity is a conditional node that provides branching for the flow of control based on a match criterion when more than two alternative branches are required. The Flow Switch activity has an Expression property that can be of any type, and a dictionary of Cases that consists of pairs of keys and activities. The Flow Switch activity evaluates the Expression and compares it against each of the keys in the Cases. If a match is found, the corresponding activity is executed. If no match is found, the Default case is executed, if it is defined. The Default case is an optional activity that serves as a fallback option when none of the cases match the expression. Therefore, the answer is D. Default case is executed if no cases match the expression. References: Flow Switch, About Control Flow

The Final State activity is used to indicate the end of a state machine’s execution, either successfully or with an error1. The Final State activity has only one section, Entry, where you can add activities to perform before exiting the state machine2. You can have more than one Final State in a state machine, but you can only create one Initial State3. The Final State activity should be used when you want to mark the completion or termination of a state machine’s execution, not when initiating the first state, handling complex logic, or having multiple transitions.

https://docs.uipath.com/activities/other/latest/workflow/final-state

The main difference between UiPath Studio and UiPath StudioX is their target audience and functionality. UiPath Studio is aimed at technical users and allows for complex automation development, including the ability to split automations into smaller workflows that can be invoked from within other workflows. On the other hand, StudioX is designed for non-technical business users to automate tasks without writing code, and while it does allow for simpler workflows, it does not have the same depth of functionality as Studio for modularizing workflows.

References:

UiPath Studio Guide: Introduction to StudioX

The output panel will display “Hello World” because the workflow is designed to first display “Hello” and then “World” in the output panel. The workflow starts with an Assign activity that initializes the Boolean flag to True. Then, the While activity checks if the flag is True. If it is, the workflow enters the Body section of the While activity. Inside the Body section, the workflow checks if the flag is True. If it is, the workflow enters the Then section of the If activity and displays “Hello” in the output panel. Then, the Assign activity sets the flag to False. Since the flag is now False, the workflow enters the Else section of the If activity and displays “World” in the output panel. Finally, the workflow exits the While activity since the flag is now False.

References:

• [Assign Activity - UiPath Activities]
• [While Activity - UiPath Activities]
• [If Activity - UiPath Activities]
• [Write Line Activity - UiPath Activities]

The workflow will pause the execution only once when it is executed in Debug mode with “Continue on Exception” enabled. Debug mode is a mode of execution that allows the developer to test and troubleshoot the workflow by using various debugging tools, such as breakpoints, step actions, and output messages4. “Continue on Exception” is a debugging option that enables the execution to continue even if an exception is encountered, without displaying the error message or stopping at the faulty activity5. In the workflow, there are two activities that can throw exceptions: the “Throw” activity, which throws a custom exception with the message “This is an exception”, and the “Write Line” activity, which writes the value of the “Var” variable to the Output panel. The “Var” variable is not initialized, so it has a null value by default. When the “Write Line” activity tries to write the null value, it throws a NullReferenceException, as explained in the previous question. However, since the “Continue on Exception” option is enabled, the execution does not stop at the “Write Line” activity, but continues to the next activity, which is the “Throw” activity. The “Throw” activity throws the custom exception, which is caught by the “Catch” section of the “Try Catch” activity. The “Catch” section contains a “Log Message” activity, which writes the exception message to the Output panel. The execution then moves to the “Finally” section, which contains a “Write Line” activity with the text “This is the end”. The workflow then ends successfully. The only time the execution pauses is when it reaches the breakpoint that is set at the “Throw” activity. A breakpoint is a debugging tool that allows the developer to pause the execution at a specific activity and inspect the values of the variables and arguments, as well as the output messages6. The developer can then resume the execution by using the step actions or the continue button7. Therefore, the workflow will pause the execution only once at the breakpoint, and not at the exceptions, as they are ignored by the “Continue on Exception” option. References: Debugging a Workflow, Debugging Actions, Breakpoints, and Continue on Exception from UiPath documentation.

When a developer starts a blank process in UiPath Studio, the following dependencies are automatically installed by default: UiPath.System.Activities, UiPath.Excel.Activities, UiPath.Mail.Activities, UiPath.UIAutomation.Activities and UiPath. Testing.Activities. These dependencies provide the basic activities and packages that are needed for most automation projects, such as working with data types, files, Excel, email, user interface, and testing. The developer can also add or remove other dependencies as needed, depending on the specific requirements of the automation project. References: Creating a Basic Process, Managing Dependencies.

A static selector is a selector that has fixed values for the attributes of the target element, such as name, id, class, etc. A static selector is appropriate to use when the target element’s attributes do not change during runtime, meaning they are always the same regardless of the state of the application or the environment. A static selector is more reliable and faster than a dynamic selector, as it does not require any variables or arguments to identify the target element. A static selector is not suitable for situations where the target element’s properties change frequently, such as when the element is generated dynamically, or when the automation requires high flexibility, such as when the element can have different names or ids depending on the input or output data. In those cases, a dynamic selector is preferred, as it can use variables or arguments to adjust the attribute values according to the changes in the target element. References: Dynamic Selectors, Selectors

The developer can load the Google Chrome extension from UiPath Studio by following these steps:

• Step 1 = Navigate to Home in UiPath Studio. This is the section where you can create, open, or manage your projects.
• Step 2 = Click Tools to see UiPath Extensions. This is the section where you can install or update various extensions for different applications or browsers.
• Step 3 = Select Chrome and then click Install. This will launch the Chrome browser and redirect you to the Chrome Web Store page for the UiPath extension.
• Step 4 = Click Enable extension in the Google Chrome confirmation pop-up. This will add the UiPath extension to your browser and allow you to use UI automation activities in Chrome.

The Surround activity with mock option is used to create a mock activity that wraps around the original activity in the workflow. The mock activity can have different properties and actions than the original activity, depending on the testing scenario. In this case, the MessageBox activity can be surrounded with a mock activity that has the LogMessage action. This will replace the functionality of the MessageBox with a LogMessage during mock testing, which can be useful for logging the test results without interrupting the workflow execution. (UiPath Studio documentation1)

References:

• 1: Configuring Activity Project Settings - UiPath Studio.

This is the correct option because it uses wildcards to replace the dynamic parts of the selector. Wildcards are symbols that enable you to replace zero or multiple characters in a string. They are useful when dealing with attributes that change dynamically in the selector. There are two types of wildcards: asterisk () and question mark (?). The asterisk () replaces zero or more characters, while the question mark (?) replaces a single character. In this case, the name attribute of the target element changes according to the month, but the day and the year remain constant. Therefore, the selector can be altered by replacing the month name with an asterisk () and the last two digits of the year with two question marks (??). This way, the selector will match any element that has the name starting with 15, followed by any characters, followed by 20, followed by any two characters. For example, the selector will match 15 March 2023, 15 April 2023, 15 May 2023, etc. The other options are incorrect because they either do not use wildcards, or they use them incorrectly. Option A does not replace the last two digits of the year, which may change in the future. Option C replaces too many characters with the asterisk (), which may cause ambiguity or false matches. Option D uses the question mark (?) incorrectly, as it should be used for single characters, not for spaces or multiple characters. References: Selectors With Wildcards

The Robotic Enterprise Framework (REF) is a template that provides a structured and consistent way to develop automation processes. The REF uses an Orchestrator queue to store and process the transaction items, which are the units of work for the process. The REF also handles different types of exceptions that may occur during the execution of the process, such as system exceptions and business exceptions. A system exception is an error that prevents the normal execution of the process, such as a network failure or an application crash. A business exception is an error that is related to the business logic or rules of the process, such as an invalid input or an incorrect output. The REF has different mechanisms to deal with these exceptions, such as retrying, logging, and updating the status of the transaction items.

The MaxRetryNumber from the “Config.xlsx” file is a parameter that specifies how many times the REF will retry a transaction item when a system exception occurs. The Max # of retries from the Queue settings from Orchestrator is a parameter that specifies how many times Orchestrator will retry a transaction item when it changes to Failed status due to any exception. These two parameters are independent of each other and have different effects on the retry mechanism.

In this case, the first transaction item throws a business exception, which means that there is something wrong with the data or the logic of the process. The REF will not retry a transaction item when a business exception occurs, because it assumes that retrying will not solve the problem. Instead, the REF will log the exception, update the status of the transaction item to Failed, and move on to the next transaction item. Orchestrator will also not retry a transaction item when it changes to Failed status due to a business exception, because it respects the decision of the REF. Therefore, the transaction will not be retried at all.

References:

• 1: Robotic Enterprise Framework Template - UiPath Studio.

The recommended method to ensure the selector identifies the correct PDF to use is to use the * wildcard character in place of the “X” in the title attribute value. The * wildcard character is a symbol that can replace zero or more characters in a string. It can be used to handle dynamic elements in a selector, such as the title of a PDF file that changes for each report2. For example, if the selector for the PDF file is:

Then the selector can be modified as:

This selector will match any PDF file that has a title starting with “Report” and ending with “PDF”, regardless of the number in between. This way, the selector can identify the correct PDF file to use, even if other PDF files are open on the desktop, as long as only one report is open at a time.

References: Selectors with Wildcards and Wildcards in selector from UiPath documentation and forum.

When a process is executed from the Start Job window in UiPath Orchestrator, the runtime value of an "In" argument in the "Main.xaml" file will be the value provided in Orchestrator if specified. If no value is provided in Orchestrator for this argument, then the default value specified in the "Main.xaml" file will be used, in this case, "String.Empty". Therefore, option C is correct. Arguments can be passed to the "Main.xaml" file from Orchestrator, and there is a mechanism to handle default values for arguments in case they are not provided at runtime.References:

• UiPath Orchestrator Guide: Starting a Job
• UiPath Studio Guide: Managing Arguments

The input method for the Click activity determines how the click is performed on the target element. The Send Window Message input method is fast and reliable, but it does not support hovering over elements. Therefore, the developer should use the Hardware Events input method, which simulates the real mouse and keyboard actions. The CursorMotionType property specifies how the cursor moves to the target element. The Smooth option makes the cursor move in a natural way, which can trigger the hover effect on the element. (UiPath Studio documentation12)

References:

• 1: Input Methods - UiPath Studio.
• 2: Click - UiPath Activities.

To create an array of folder names from the String variable FilePath, the method that will return an array of only the folder names is:

Split(FilePath,"").StringSplitOptions.RemoveEmptyEntries

This method uses the String.Split method, which returns an array of strings that are separated by a specified delimiter. The delimiter in this case is the backslash character ("") which is used to separate the folder names in the file path. The StringSplitOptions.RemoveEmptyEntries option is used to remove any empty entries from the resulting array, such as the one before the first backslash or after the last backslash1. For example, if the FilePath variable has the value:

FilePath = “C:\Users\UiPathRobot\Documents\Technologies”

Then the method Split(FilePath,"").StringSplitOptions.RemoveEmptyEntries will return an array of four strings:

{“C”, “Users”, “UiPathRobot”, “Documents”, “Technologies”}

These are the folder names in the file path, without any empty entries.

References: String.Split Method from UiPath documentation.

To extract hidden text from a pdf file, the output method that should be used is FullText only. The FullText output method is one of the options available in the Read PDF Text activity, which reads all the characters from a specified pdf file and stores them in a string variable3. The FullText output method extracts the text from the pdf file as it is, without keeping the formatting or the position of the text. The FullText output method can also extract the hidden text from the pdf file, which is the text that is not visible on the screen, but can be copied and pasted into another application4. For example, the hidden text can be the metadata, comments, or annotations of the pdf file. The FullText output method is suitable for extracting hidden text from a pdf file, as it does not depend on the visibility or the layout of the text. The other output methods, such as Native or OCR, are not suitable for extracting hidden text from a pdf file, as they rely on the appearance or the position of the text on the screen. The Native output method preserves the formatting and the position of the text, but it cannot extract the text that is not visible or selectable5. The OCR output method converts the text from the pdf file into an image and then extracts the text from the image, but it cannot extract the text that is not displayed or recognized by the OCR engine6.

References: Read PDF Text, Extracting Hidden Text from PDF, Native, and OCR from UiPath documentation and forum.

The Push option is used to provide local versions of files to the remote repository in a GIT version control system. Pushing is the process of uploading local repository updates to a remote repository. By pushing changes, other users who have access to the remote repository can view and collaborate on the project1. To push changes to a remote repository, the project must be committed locally first, and then the Push option can be selected from the context menu in UiPath Studio2. References: Pushing changes to a remote repository and Managing Projects with GIT from UiPath documentation.

The code in the Invoke Code activity is looping through an array of integers and checking if the current value is greater than the previous value. If it is, the current value is stored in the output variable. Since the last value in the array is 9, this will be the final value of the output variable. (UiPath Studio - Invoke Code - UiPath Academy)

References:

• Studio - Invoke Code - UiPath Documentation Portal
• UiPath Studio - Invoke Code - UiPath Academy

To check how many resources are utilized in a personal workspace in UiPath Orchestrator, you can use the See Usage option that displays the current consumption of resources for each workspace. You can also see the total number of resources allocated to all personal workspaces in your tenant. (Orchestrator - Personal Workspaces - UiPath Academy)

References:

• Orchestrator - Personal Workspaces - UiPath Documentation Portal
• Orchestrator - Personal Workspaces - UiPath Documentation Portal
• Difference Between Tenant and Personal Workspace - Studio - UiPath Forum
• Personal Workspace in UiPath Orchestrator - mumas
• UiPath Personal Workplaces in Orchestrator | UiPath Academy

DataRow

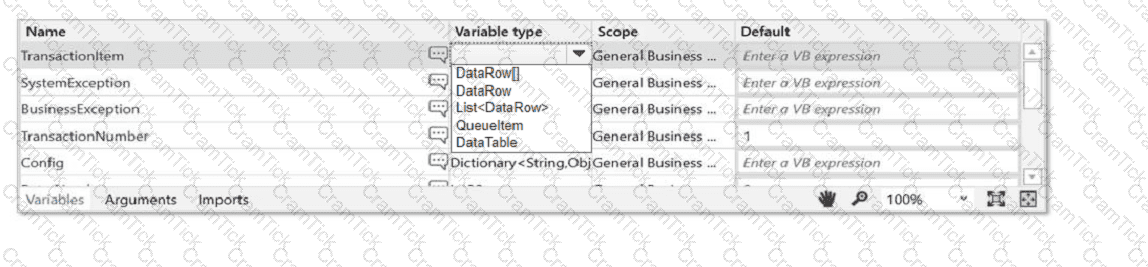

The REFramework is a template that provides a robust and scalable structure for building automation projects. It uses the concept of TransactionData and TransactionItem to handle the input data and process it in a loop1. The TransactionData is a collection of items that need to be processed, and the TransactionItem is a single item from that collection that is assigned to the robot in each iteration2.

The type of the TransactionItem variable depends on the type of the TransactionData variable. By default, the REFramework uses QueueItem as the type for both variables, assuming that the input data comes from an Orchestrator queue3. However, if the input data comes from a different source, such as an Excel file, a web page, or a SAP application, then the type of both variables needs to be changed accordingly4.

In your case, since the input data is a DataTable that contains vendor names and addresses, the appropriate type for the TransactionItem variable is DataRow. A DataRow represents a single row in a DataTable, and it can store multiple values in its columns. By using DataRow as the type for the TransactionItem variable, you can access and manipulate the vendor information in each iteration of the process.

References:

• REFramework Documentation - UiPath Documentation Portal.
• ReFramework - TransactionItem type - Help - UiPath Community Forum.
• ReFramework for Tabular Data - RPA Component - UiPath Marketplace.
• Transaction Item variable type - Studio - UiPath Community Forum.
• [DataRow Class (System.Data) | Microsoft Docs].

The Starts in Background option is a property of the process that indicates whether the process can run in parallel with other processes on the same machine. If this option is enabled, the process can run as a background process, meaning that it does not require user interaction or UI automation. This allows the process to run concurrently with another process that performs UI automation, such as the second process in the question. The Starts in Background option can be configured in the project settings of the process in UiPath Studio, or in the process settings in Orchestrator.

References:

• Background Process - UiPath Studio
• Background Process Automation - UiPath Robot
• Managing Processes - UiPath Orchestrator

A mock file is a copy of a workflow file that is used to simulate the behavior of the original workflow without affecting it1. When you create a mock file, the original workflow file is automatically added to the project dependencies, and the mock file is added to the test folder2. If you update the original workflow file, the changes are not reflected in the mock file, unless you manually update the mock file as well3. Therefore, if you add a Log Message activity and a Verify Expression activity to “MySequence” workflow file and save the project, the “MySequencemock” file will remain unchanged.

References:

• Mock Testing documentation from UiPath
• Create Mocks documentation from UiPath
• Feature request: Allow to rename Mock files forum post from UiPath Community

A business exception is an exception that occurs due to a fault in the business process logic or data, such as invalid input, incorrect format, missing information, etc. Business exceptions are usually predictable and can be handled gracefully by logging the error and moving to the next transaction. In this case, a queue item that contains a partial phone number is an example of a business exception, as it is caused by a human mistake and does not affect the functionality of the application or system. (UiPath Automation Developer study guide)

References:

• Business Exception vs System Exception
• Exception Handling

The "Get Attribute" activity can be used to get the state of a button (enabled/disabled). This activity retrieves the value of a specified attribute of a UI element, and the "enabled" attribute can be used to determine if a button is currently enabled or disabled.

References:

UiPath Activities Guide: Get Attribute

UiPath handles different dependency versions for multiple running processes that run at the same time by using a feature called Dependency Isolation. This feature ensures that each running process can use the specific version of the dependency that it needs, without affecting or being affected by other processes. This way, UiPath avoids conflicts and errors caused by incompatible or missing dependency versions. (UiPath Automation Developer study guide)

References:

• Dependency Isolation
• Managing Dependencies

The Verbose logging level includes all the information that is logged by the other levels, plus the values of the variables and arguments that are used in the process1. By default, the Verbose level includes the following log entries2:

• Execution Started
• Execution Ended
• Transaction Started
• Transaction Ended
• Activity Information
• Arguments and Variables Information

https://docs.uipath.com/robot/standalone/2023.4/user-guide/logging-and-log-levels

One of the important skills of an automation developer is to quickly understand the business processes that need to be automated. This involves identifying the inputs, outputs, and decision points of the processes, as well as the exceptions, rules, and dependencies. By doing so, the automation developer can design and develop the automation workflows and components that meet the business and technical requirements, as well as the best practices and standards. The automation developer can use various tools and methods to understand the business processes, such as process documentation, process diagrams, process mining, process analysis, and process simulation.

References:

• Automation Developer - Ui Path
• Process Analysis - UiPath Documentation Portal
• Process Mining - UiPath Documentation Portal

UiPath Orchestrator is a web application that enables you to deploy, monitor, and manage UiPath Robots and processes. When you publish a process from UiPath Studio to UiPath Orchestrator, you can define input and output arguments for the process. Input arguments are used to pass data from Orchestrator to the process, while output arguments are used to pass data from the process to Orchestrator. When you run a process from the Start Job window in Orchestrator, you can provide values for the input arguments in the Input section. If you do not provide any values, the default values of the input arguments are used. The default values are defined in UiPath Studio when you create the arguments. In this case, the process has one “In” argument of type String in the Main.xaml file with a default value of String.Empty. This means that when you run the process from Orchestrator, you can either provide a value for the argument in the Input section, or leave it blank. If you provide a value, that value will be used by the process. If you leave it blank, the default value of String.Empty will be used by the process. Therefore, the answer is C. Any input arguments provided in Orchestrator are used, otherwise the default value of String.Empty will be used. References: About Input and Output Arguments, Arguments

The Get Transaction Data state is responsible for retrieving the next transaction item to be processed from the queue in Orchestrator. The state will loop until there are no more items in the queue or an exception occurs. A linear process can be implemented with REFramework by using a single queue item that contains all the data required for the process. (UiPath ReFramework documentation1)

References:

• 1: Robotic Enterprise Framework Template - UiPath Studio.

In the Output property of all Get Mail activities, the supported variable type is List. The Output property is the property that stores the result of the activity in a variable. The Get Mail activities are the activities that retrieve email messages from various mail servers, such as POP3, IMAP, Outlook, or Exchange. The result of the Get Mail activities is a collection of email messages that match the specified criteria, such as the mail folder, the filter, or the top count. The collection of email messages is represented by the List type, which is a generic list that contains MailMessage objects. A MailMessage object is a class that represents an email message, with properties such as Subject, Body, Attachments, From, To, etc1. For example, if the Get Mail activity is used to retrieve the email messages from the Inbox folder of an Outlook account, the Output property can be configured with a variable of type List, such as mailList. The mailList variable will store the email messages as a list of MailMessage objects, which can then be accessed or manipulated using other activities, such as For Each, Save Attachments, or Send Mail2.

References: MailMessage Class and Get Outlook Mail Messages from UiPath documentation
