OMG-OCUP2-FOUND100 OMG Certified UML Professional 2 (OCUP 2) - Foundation Level Questions and Answers

In UML, visibility of an attribute is determined by the scope of the classifier it belongs to and its visibility markers. The attribute 'v' is marked with a '-' sign, indicating it is private. Being private, it would normally be visible only within the class it is defined in, which is 'S' in this case. However, since 'T' is a subclass of 'S' (as indicated by the generalization relationship, a line with a closed, unfilled arrowhead), it inherits the attribute 'v'. Therefore, 'v' is visible in both 'S' and 'T'.

Option A is incorrect because it does not consider inheritance. Option B is incorrect for the same reason. Option D is incorrect because a private attribute in a class is not visible to the entire package, only to the class itself and its subclasses.

The UML 2.5 specification states that a private member is only accessible within the namespace it is defined (section 7.5.3). Since 'T' is within the namespace of 'S' due to inheritance, 'v' is visible in both.

The most appropriate use of UML during software development is to capture the essential characteristics and design decisions of a planned or existing system. UML (Unified Modeling Language) is primarily utilized to visually represent the architecture, design, and behavior of a system, which includes detailing the components, relationships, and interactions within the system. This makes it a critical tool for understanding complex systems and making informed design decisions that align with project requirements and constraints. UML facilitates clear communication among development team members and stakeholders, ensuring that design decisions are well-understood and accurately implemented.

The diagram shows a UML Sequence Diagram where two messages are being exchanged between lifelines representing instances of objects:m(C)is being sent fromv1tov2, andm(D)is being sent back fromv2tov1.

In a sequence diagram, the vertical order of message arrows shows the sequence of interactions, with time proceeding down the page. Since the messagem(C)is shown abovem(D), this means thatm(C)occurs beforem(D). The receipt ofm(C)byv2[B]must therefore occur beforev2[B]can sendm(D)back tov1[B].

Therefore, the statement "Receivingm(C)must come before sendingm(D)" is always true in this diagram.

B, C, and D are not necessarily true based on the diagram alone: B) "Sending m(D) is the first occurrence of this scenario" is not depicted. C) "Receiving m(D) is the last occurrence of this scenario" is also not depicted. D) "All occurrences of v[1] will happen before all occurrences of v[3]" is not something we can infer from this diagram since v[3] is not involved in the interactions shown.

Therefore, the correct answer is:

A. Receiving m(C) must come before sending m(D).

The abstract syntax of UML is specified using the Meta-Object Facility (MOF) metamodel. MOF is a modeling language that provides a meta-meta-model at the top layer of the four-layer metadata architecture, which is used to define the metamodels, like the UML. The MOF specification defines the structure and semantics for constructing metamodels, including the UML. By using MOF, UML ensures that its structure is well-defined and can be processed by tools that understand MOF-based metamodels. The use of MOF to specify UML abstract syntax ensures a clear, structured, and standardized method of describing the semantics of UML components, enabling consistent interpretation and implementation across different modeling tools and environments.

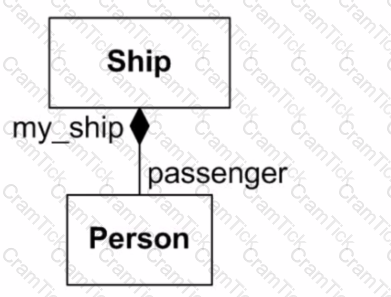

In UML, a filled diamond represents a composite aggregation, also known as a composition. It indicates a whole-part relationship with strong ownership and coincident lifetime of the parts with the whole. Here's what it means in relation to the options provided:

A. This is partially correct. A filled diamond indeed indicates that the Ship instance is responsible for the existence of the associated Person instances, but it is not complete as it does not explicitly state that the Person instances will be deleted when the Ship instance is deleted.

B. This option is the most accurate. A filled diamond represents a composite aggregation, which means that the existence of the Person instances (parts) isdependent on the Ship instance (whole). When the Ship instance is deleted, so are the Person instances it contains.

C. The filled diamond is not a placebo; it has a well-defined meaning in UML, indicating strong ownership and lifecycle dependency between the whole and the part.

D. While the filled diamond does indicate ownership, it specifies more than just an attribute relationship; it indicates that the Ship class has a composition relationship with the Person class. This means that the Ship object contains Person objects as parts of itself, not just as an attribute reference.

E. The filled diamond is connected to the Ship class, not the Person class, so this statement is incorrect. The composition relationship is from Ship to Person, not the other way around.

Based on the UML specification for composite aggregation, the most accurate statement isB: Class Person's existence depends on the ship. It will get deleted when the ship gets deleted. This aligns with the definition of composite aggregation, where the part's lifecycle is dependent on the whole's lifecycle.

An event occurrence in a UML Sequence Diagram refers to specific points in time where messages are sent or received. Each message send and each message receipt is counted as one event occurrence.

In the provided diagram for InteractionP, we have the following event occurrences:

• The send event ofm1().
• The receive event ofm1()by:Two.
• The send event ofm2().
• The receive event ofm2()by:One.

Counting these, we see that there are a total of 4 event occurrences specified in InteractionP.

Therefore, the correct answer is:

C. 4

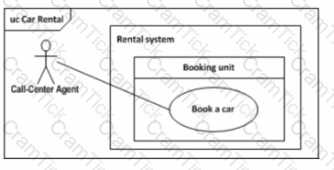

In the context of UML Use Case diagrams, the "owner" of a use case is the system or unit that provides the services of the use case. The use case "Book a car" is contained within the "Rental system" boundary, which is represented as a rectangle in the diagram. This indicates that "Book a car" is a function or service provided by the "Rental system."

The "Call-Center Agent" is an actor that interacts with the use case, but it does not own it. The "Car Rental" seems to be a higher-level packaging element (like a system name), but it is not the immediate container of the use case. The "Booking unit" is a part of the "Rental system" that is specifically responsible for the "Book a car" functionality, but in terms of UML semantics, the use case is owned by the system that contains it, which in this case is the "Rental system."

Therefore, the correct answer is:

C. Rental system

ML 2 Foundation concepts for activity diagrams, there are eight object nodes in total. Here's a breakdown of the elements:

Object Nodes:

• Order: This rectangle near the start of the diagram represents an object node.
• Cust Name: This rectangle following the "Get Customer Details" action is another object node.
• Order Details: This rectangle after the "Get Order Details" action is an object node as well.
• New Order: The rectangle positioned after the decision diamond (approved) is an object node.
• Repeat (text near the decision diamond): This is not an object node. It likely indicates a loopback or repetition, but it doesn't represent an object itself.
• Cust Order: The rectangle after the "Place Order" action is an object node.
• Invoice: The rectangle following the "Create Invoice" action is an object node.
• OrderAck: The rectangle at the end signifies another object node.

Counting the Nodes:

There are eight rectangles that represent object nodes in the diagram (Order, Cust Name, Order Details, New Order, Cust Order, Invoice, OrderAck).

References

• UML 2.5.1 Specification (Superstructure): Sections on Activity Diagrams and Object Nodes https://www.omg.org/spec/UML/2.5.1/

Modeling as part of the software analysis and design process offers several advantages, one of the primary being the reduction in the risk of inconsistent or improper implementations. By using models, developers can visualize the structure and behavior of the system before actual coding begins, allowing for the identification and correction of potential issues in the early stages of development. This practice helps ensure that all components of the software work together as intended, reducing the likelihood of bugs and inconsistencies that could arise if parts of the system were developed in isolation. UML, as a standardized modeling language, provides a coherent and universally understood set of diagrams and symbols, which facilitates clear communication among team members and stakeholders, further mitigating the risk of misunderstandings that could lead to improper implementations.

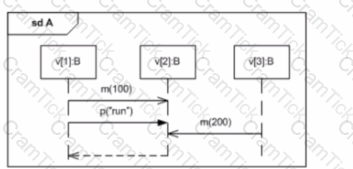

The diagram shown is a UML Sequence Diagram, which is used to depict the interaction and order of messages between objects.

In the given diagram, we can see two occurrences of the message 'm' with different parameters (100 and 200), and one occurrence of the message 'p' with the parameter "run".

To determine the minimum number of occurrences that must happen before the reception of 'm(200)', we look at the order of messages:

• The message 'm(100)' must occur.
• The message 'p("run")' must occur after 'm(100)' and before 'm(200)'.

These two occurrences are the minimum necessary before 'm(200)' can be received by the object. The dashed line represents a return message, which does not count as an occurrence for this purpose.

Therefore, the correct answer is:

B. 2

The correct answer is Option B based on its visual representation and alignment with the given scenario:

• Class Start Condition: Both diagrams (Option B and Option C) include a decision diamond labeled "10 Students Present?". This captures the condition for the class to start.
• Professor Arrival: Option B explicitly shows the arrival of the professor using an action rectangle labeled "Professor Arrives". This directly addresses the second part of the scenario where the professor's presence is required.
• Start Activity: Both Option B and C have a subsequent activity labeled "Start Class".

Why Option B is More Accurate:

While both Option B and Option C depict the 10 student condition, Option B goes a step further by including the professor's arrival as a separate action, making it a more precise representation of the two-part requirement for the class to start.

Other Options Analysis:

• Option A: This diagram lacks the "10 Students Present?" condition and the professor's arrival, making it unsuitable for the given scenario.
• Option D: This diagram entirely misses the concept of students or the professor, focusing on a different situation.

References

• UML 2.5.1 Specification (Superstructure): Sections on Activity Diagrams, Decisions, and Actions https://www.omg.org/spec/UML/2.5.1/

The correct answer is Option C based on the UML 2 Foundation concepts for activities and pre/postconditions.

Analysis of the Diagram in Option C:

• The diagram depicts an activity named "Withdraw Money".
• There are two diamonds preceding the activity, representing preconditions. Preconditions are conditions that must be true before the activity can be executed.
• The text within the first diamond indicates that "the amount of money to withdraw is entered".
• The text within the second diamond indicates that "the account has sufficient funds".
• This aligns with the scenario where the user must enter a withdrawal amount and the account must have enough money to cover the withdrawal before the "Withdraw Money" activity can proceed.
• Following the activity, there's a diamond labeled "postcondition," indicating a condition that becomes true after the activity is completed.
• The text within the postcondition diamond states that "the account balance is updated." This reflects the scenario where the account balance is updated after a successful withdrawal.

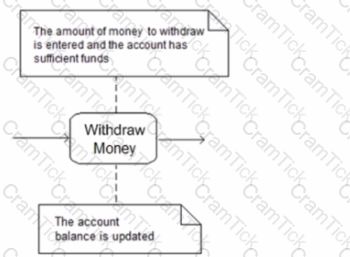

Comparison with Other Options:

• Option A, B, and D do not explicitly show preconditions and postconditions using the diamond notation, making them less suited to represent the scenario where certain conditions need to be met before and after the action.

References

• UML 2.5.1 Specification (Superstructure): Sections on Activity Diagrams and Pre/Postconditions https://www.omg.org/spec/UML/2.4/Superstructure/PDF

The correct answer is Option B. This diagram accurately depicts the scenario where activity Act1 is carried out first, followed by activity Act2, and then Act1 is performed again.

Here's why the other options are incorrect:

• Option A: This diagram shows Act1 followed by Act2, but Act1 is not repeated.
• Option C: Similar to Option A, this diagram depicts Act1 followed by Act2, without a repetition of Act1.
• Option D: This diagram has conditional branches, which is not part of the given scenario where the activities are carried out sequentially.

Following the logic from the prompt: Act1 -> Act2 -> Act1, Option B visually represents this sequence with arrows connecting the activities in the specified order.

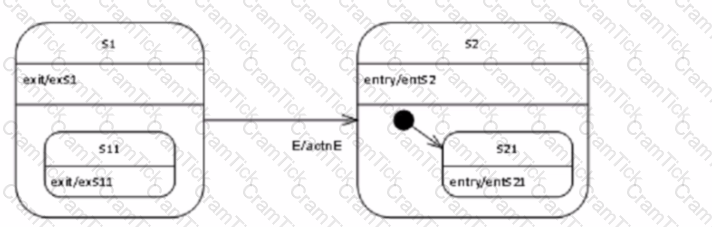

The image depicts a state machine with the following states:

• S1
• S2

The state machine transitions are labeled as follows:

• gxSH - This triggers the transition from the initial state to S1.
• E - This event triggers the transition from S11 to S21.
• exS1 - This signifies exiting state S1.
• exS11 - This signifies exiting state S11.
• entS2 - This signifies entering state S2.
• entS21 - This signifies entering state S21.
• actnE - This indicates an action associated with the E event.

Given the state machine is currently in state S11 and an event of type E occurs, here's the sequence of behavior executions:

• actnE: The action associated with event E is executed.
• exS11: The state machine exits state S11.
• exS1: Since S11 is nested within S1, exiting S11 also implicitly triggers exiting S1.
• entS2: The state machine enters state S2.
• entS21: The state machine enters the nested state S21.

Justification for excluding other options:

• Option A (actnE; exS1; exS11: entS21; entS2) has the order of entering S2 and S21 reversed.
• Option C (exS11; actnE; entS2) omits the execution of the action associated with event E.
• Option D (gxSH; exS1; actnE; entS2) includes the irrelevant initial transition trigger (gxSH).
• Option E (exS11; exS1; actnE; entS2; entS21) has an extra exiting of state S1, which is not part of the valid transition path.

Following the state transitions and action triggers depicted in the state machine diagram, option B accurately reflects the sequence of behaviors that occur when event E triggers a transition from state S11.

For projects involving complex and strategic systems, a key advantage of developing models before starting implementation is that models help to establish a consensus among all the project stakeholders. Creating UML models in the early stages of a project provides a visual and conceptual representation of the system that can be easily understood by various stakeholders, including developers, managers, and clients. This facilitates discussions and negotiations about the system’s design and functionality, helping to ensure that all parties have a shared understanding and agreement on the project’s objectives and solutions before significant resources are invested in implementation.

The sequence diagram provided shows two messages being sent:m2()andm1(). The vertical placement of messages on a sequence diagram typically indicates the order of message passing; however, if there is no horizontal line connecting the lifelines or an explicit ordering constraint provided, it suggests that the messages are asynchronous and there is no specified order between them.

In this diagram, there is no horizontal line connecting the lifelines foro2ando3, nor is there any other notation that would imply a strict ordering. This means that the messagesm2()andm1()can occur in any order, and the interaction is still considered valid.

Therefore, the correct answer is:

C. An execution of InteractionF can be valid no matter the order in which o2 and o3 receive their respective messages.

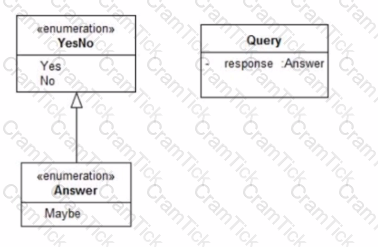

The second diagram fragment you provided includes two enumeration types, YesNo and Answer, where YesNo is a generalization of Answer. The class Query has an attribute 'response' of type Answer. Given that YesNo is a generalization of Answer, the possible values for 'response' include the literals of Answer plus those inherited from YesNo. Since Answer includes 'Maybe', and YesNo includes 'Yes' and 'No', all three are valid values for 'response'.

References:

• UML 2.x Superstructure Specification: Discusses attributes and their types, the concept of generalization, and how attributes of a generalized type can take on values from their own literals as well as those from their parent in the hierarchy.
• UML 2.x Infrastructure Specification: Explains the foundational modeling constructs related to enumeration, classes, and attributes, which provides the basis for determining the legal values of an attribute based on its type's enumeration literals.

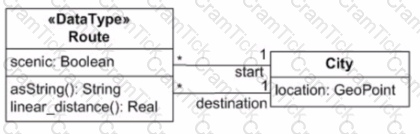

The provided diagram depicts aDataTypenamed Route with operations, attributes, and associations to aClassnamed City. In UML, aDataTypeis a type of classifier that specifiesthe values that do not have identity (i.e., are not distinguishable from other objects).DataTypesmay contain Attributes and Operations, so options B and C are incorrect.

However,DataTypesshould not have associations toClassesbecauseDataTypesare meant to be value types without identity, and associations typically imply a relationship between instances (which have identity). Thus, the presence of associations from Route to City is not consistent with the definition of aDataType.

References:

• UML 2.x Superstructure Specification: Sections on Classifiers and DataTypes provide definitions of what constitutes aDataTypeand what features they can have. They specifically mention thatDataTypesare kinds of classifiers that do not have identity and are often used to type attributes.
• UML 2.x Infrastructure Specification: This foundational document gives additional context on the semantics of different types of classifiers, includingDataTypes, and how they relate to other elements in a UML model.

In UML, the aggregation kind 'composite' is one of the two types of aggregation, shared and composite. Composite aggregation, also known as composition, implies that the composed objects do not have a separate lifecycle from the owner object and are parts of the whole. This is in contrast to shared aggregation (aggregation), where the parts can be shared with different owners and have their own lifecycle.

Let's look at the options:

A. Composite aggregation implies ownership and is related to, but not equivalent to namespace containment. Namespace containment is more about the scope for named elements rather than lifecycle management.

B. While it's true that instances of the composed object's type are often associated only with the composite object, the key aspect of composite aggregation is not just the exclusive context but the lifecycle dependency, which is not captured in this option.

C. This option is correct because, in UML, composite aggregation (composition) implies that the parts are existentially dependent on the whole. When the composite (whole) object is destroyed, so are all of its parts, indicating a strong lifecycle dependency between the composite object and its composed parts.

D. This option describes a relationship more akin to set theory than UML composition. In UML, composite aggregation doesn't deal with subsets and unions in the context of set theory.

Thus, the most accurate answer, according to the UML specification regarding composite aggregation, isC: When the Property's composite object ceases to exist, all of its composed objects also cease to exist.

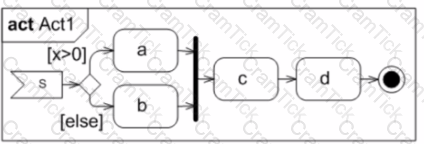

The provided image depicts a block diagram with a signal, decisions, and actions. Here's a breakdown of the elements and why answer choice A is the most accurate:

• Signal: Represented by a vertical arrow labeled "Signal", indicating an external stimulus that triggers the process.
• Decision Diamond labeled "x>0": This diamond represents a decision point based on the condition "x greater than 0". The flow splits into two paths based on whether the condition is True (Yes) or False (No).
• Paths from the Decision:
• Action c: This action is positioned below the decision diamond.

Analysis of Action c's Execution:

• Upon receiving a Signal, the decision point is evaluated.
• Depending on the value of x:
• In either case (True or False), after the corresponding action (a or b) finishes, action "c" is then executed once.

Other Answer Choices Analysis:

• B. Two or more Signals must be received... The diagram suggests execution upon receiving one Signal.
• C. Action c will get executed twice... The diagram indicates c executes only once after either a or b.
• D. Nothing can be said... The diagram conveys a clear sequence of actions based on the signal and the decision.

The image depicts a state machine with three states labeled "state1" and "state2". Three events,e1,e2, ande3, are shown triggering transitions.

Analyzing the diagram, we can observe that all three events (e1,e2, ande3) are required for the transition from state1 to state2. The events are arranged sequentially, implying a specific order for the transition to occur.

Here's a breakdown of the reasoning for excluding other options:

• Option A (When all of el. e2. and e3 occur in any order) is incorrect because the order of events matters.
• Option B (When any one of the events e1. e2. or e3 occurs) is incorrect because all three events are necessary for the transition.
• Option D (Never, because a transition cannot have more than one trigger) is incorrect because the state machine can transition with multiple triggers, but in this specific case, the order is crucial.

Therefore, based on the visual representation of the state machine, the correct answer is that the transition to state2 happens only when eventse1,e2, ande3occur in precisely the specified order

The diagram likely represents a UML activity diagram, which is used to model the workflow of a system. The correct answer is D because it reflects the behavior of decision nodes and concurrent flows in UML activity diagrams.

In UML, when an activity reaches a decision node (depicted as a diamond), it chooses one among several alternative flows. In this case, after the completion of action A, the flow must decide between B or D, but not both, which is a fundamental aspect of decision nodes in UML. This is supported by the UML 2.5 specification, which states that a decision node routes tokens to one of the available outgoing edges based on the conditions evaluated at runtime, ensuring that only one path is taken.

Furthermore, the UML specification explains that the notation for decision nodes and the semantics of token flows are such that they support the modeling of conditional and concurrent behaviors within an activity. This is essential for accurately capturing the logic of complex systems and their operations.

For a more in-depth understanding, you can refer to the UML 2.5.1 specification provided by the Object Management Group (OMG), which details the notation and semantics of activity diagrams, including decision nodes and flows. Additionally, studying the official OMG UML 2 Certification Guide can provide further clarification on these concepts.

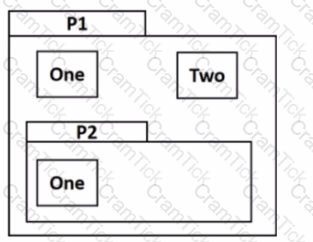

In UML, when you need to reference an element from another package while inside a different package, you use the qualified name. A qualified name includes the package name followed by two colons and then the element name. This ensures that the reference is clear and unambiguous, especially when different packages may have elements with the same name.

The correct syntax for referring to elementOneof PackageP1from inside PackageP2isP1::One, where::is the scope resolution operator used to separate the package name from the element name.

Therefore, the correct answer is:

D. P1::One

Pseudostates in UML state machines serve a different purpose than regular states. They are used as markers or waypoints to facilitate complex state transitions. Key distinctions include:

• Transient Nature: Pseudostates do not represent persistent states of an object. They are not associated with entry/exit actions or internal activities like regular states. The state machine immediately transitions through a pseudostate.
• Run-to-Completion Restrictions: A run-to-completion step (the sequence of states and transitions activated by a single event) cannot end in a pseudostate.

Let's analyze why the other options are incorrect:

• Option A (A pseudostate must have an outgoing transition):While most pseudostates have outgoing transitions to guide the flow of the state machine, this is not a strict requirement. For example, the 'terminate' pseudostate signifies the end of a statemachine and thus has no outgoing transitions.
• Option B (An outgoing transition from a pseudostate must always terminate on a regular state):While true in many cases, outgoing transitions can also target other pseudostates for more intricate state machine designs.
• Option D (The outgoing transitions of a pseudostate must have triggers that consist exclusively of guard conditions):Pseudostate transitions can have a mix of triggers, including events, timeouts, and guard conditions.

References:

• UML Specification (Superstructure) Version 2.5.1: Specifically, sections covering statemachines (Chapter 14), pseudostates (Section 14.2.3.8), and run-to-completion steps (Section 14.2.3.13). You can find it on the OMG website: https://www.omg.org/spec/UML/2.5.1
