OGEA-101 TOGAF Enterprise Architecture Part 1 Exam (English) Questions and Answers

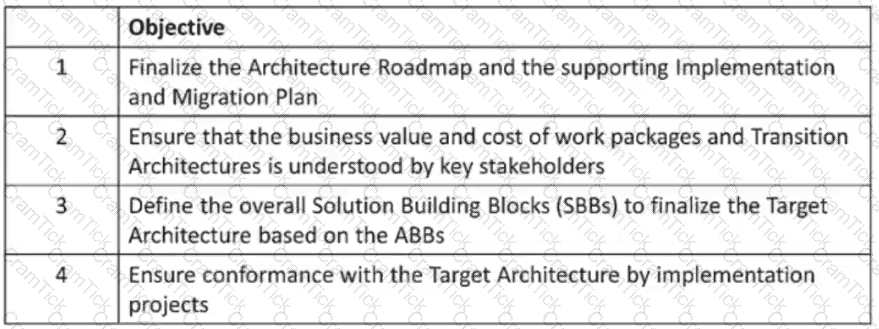

The objective of the ADM Implementation Governance Phase is to provide an architectural oversight of the implementation and to ensure conformance for the target architecture. This phase involves establishing procedures and processes to monitor and control the implementation projects and to verify that they comply with the defined architecture. Reference: The TOGAF® Standard | The Open Group Website, Section 3.2.7 Phase G: Implementation Governance.

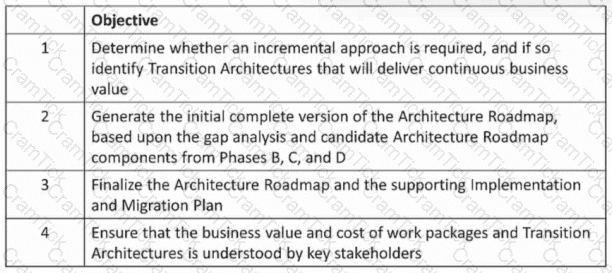

According to the TOGAF standard, the objectives of each ADM phase are as follows1:

•Phase E: Opportunities and Solutions

oDetermine whether an incremental approach is required, and if so identify Transition Architectures that will deliver continuous business value

oIdentify and group major work packages within the Architecture Roadmap

oIdentify and group major implementation projects to realize the Architecture Roadmap

oIdentify dependencies between increments and projects

oEstimate cost, benefit, and risk at a high level for each increment and project

oConduct initial prioritization and sequencing of the Architecture Roadmap and projects

•Phase F: Migration Planning

oGenerate the initial complete version of the Architecture Roadmap, based upon the gap analysis and candidate Architecture Roadmap components from Phases B, C, and D

oConfirm the Transition Architectures with relevant stakeholders

oCreate the Implementation and Migration Plan, including Transition Architectures, work packages, projects, and other activities

oConfirm and agree the Architecture Roadmap and Implementation and Migration Plan with relevant stakeholders

•Phase G: Implementation Governance

oFinalize the Architecture Roadmap and the supporting Implementation and Migration Plan

oEnsure conformance with the Target Architecture by implementation projects

oPerform appropriate Architecture Governance functions for the solution and any implementation-driven architecture Change Requests

oEnsure that the architecture lifecycle is maintained

oEnsure that the Architecture Governance Framework is executed

•Phase H: Architecture Change Management

oEnsure that the business value and cost of work packages and Transition Architectures is understood by key stakeholders

oManage risks and issues related to the Architecture Roadmap and Implementation and Migration Plan

oMonitor the implementation projects and Transition Architectures

oManage changes to the architecture baseline

oManage changes to the Architecture Capability

Therefore, the correct matching of the objectives and the phases is:

•1G: Determine whether an incremental approach is required, and if so identify Transition Architectures that will deliver continuous business value

•2E: Generate the initial complete version of the Architecture Roadmap, based upon the gap analysis and candidate Architecture Roadmap components from Phases B, C, and D

•3F: Finalize the Architecture Roadmap and the supporting Implementation and Migration Plan

•4F: Ensure that the business value and cost of work packages and Transition Architectures is understood by key stakeholders

This statement best supports the need to govern Enterprise Architecture. Best practice governance enables the organization to control value realization by ensuring that architectures are aligned with the enterprise’s strategy and objectives, meet the quality and performance requirements, and deliver the expected benefits and outcomes. The Architecture Project does not mandate the governance of the target architecture, but rather follows the governance framework established by the enterprise. The TOGAF standard can be used without executive governance, but it is recommended that executive sponsorship and support are obtained for successful architecture development and transition. The Stakeholders preferences may go beyond the architecture project scope and need control, but this is not the primary reason for governing Enterprise Architecture. Reference: The TOGAF® Standard | The Open Group Website, Section 3.3.6 Architecture Governance.

The Architecture Landscape is divided into levels known as Segment Strategic and Capability Architectures. These levels correspond to different scopes and purposes of architectures within an enterprise. Segment Architectures are architectures that address specific business units, functions, or processes within an enterprise. Strategic Architectures are architectures that provide a high-level view of the enterprise’s vision, goals, and direction. Capability Architectures are architectures that address specific business capabilities or services that span multiple segments or domains. Reference: The TOGAF® Standard | The Open Group Website, Section 2.4 Architecture Repository.

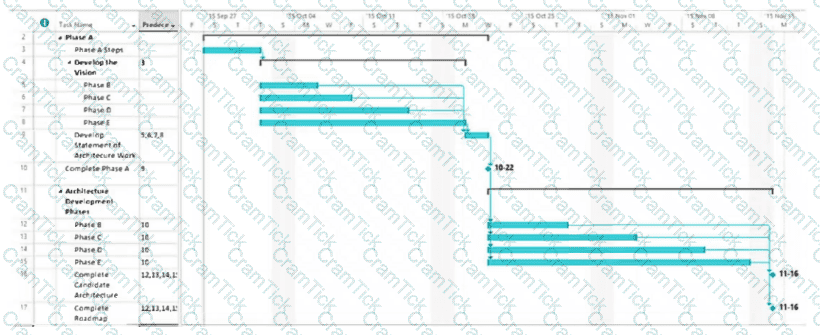

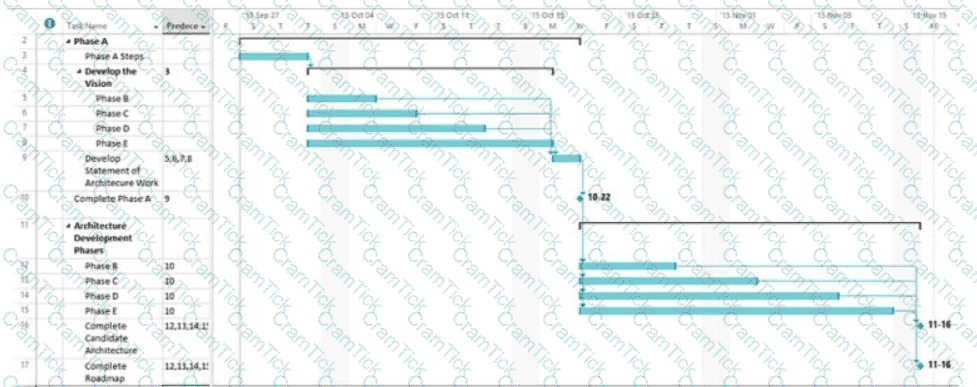

The chart shown is a Gantt chart, which is commonly used for project management to illustrate a project schedule. In the context of TOGAF (The Open Group Architecture Framework), which is a framework for enterprise architecture, this Gantt chart is demonstrating the sequenced approach to the Architecture Development Method (ADM). The ADM is the core process of TOGAF which provides a tested and repeatable process for developing architectures. The ADM is described as being iterative, over the whole process, between phases, and within phases. For each iteration of the ADM, a fresh decision must be taken about each of the parameters (scope, granularity, time period, and architecture assets).

The ADM consists of a number of phases that have to be followed in sequence:

Preliminary Phase: Framework and principles

Phase A: Architecture Vision

Phase B: Business Architecture

Phase C: Information Systems Architectures, including Data and Application Architectures

Phase D: Technology Architecture

Phase E: Opportunities and Solutions

Phase F: Migration Planning

Phase G: Implementation Governance

Phase H: Architecture Change Management

Requirements Management

Each phase is dependent on the outputs of the previous phase and the Requirements Management phase runs throughout. The Gantt chart clearly shows the dependency and sequence in which these phases occur, implying that a structured approach is followed to produce the enterprise architecture.

The TOGAF Standard, Version 9.2, a standard of The Open Group

The TOGAF documentation available at https://publications.opengroup.org/standards/architecture and https://publications.opengroup.org/guides/architecture

An Architecture Board is an executive-level group responsible for the review and maintenance of the strategic architecture and all of its sub-architectures1. It is a key element in a successful Architecture Governance strategy2.

An Architecture Board is typically made responsible, and accountable, for achieving some or all of the following goals2:

Providing the basis for all decision-making with regard to the architectures

Consistency between sub-architectures

Establishing targets for re-use of components

Flexibility of the Enterprise Architecture: To meet changing business needs To leverage new technologies

Enforcement of Architecture Compliance

Improving the maturity level of architecture discipline within the organization

Ensuring that the discipline of architecture-based development is adopted

Supporting a visible escalation capability for out-of-bounds decisions

Therefore, the correct answer is option D, which captures one of the goals of an Architecture Board as stated in the TOGAF Standard, Version 9.22.

Option A is incorrect, because conducting assessments of the maturity level of architecture discipline within the organization is not a direct responsibility of an Architecture Board, but rather a part of the Architecture Capability Framework3.

Option B is incorrect, because allocating resources for architecture projects is not a direct responsibility of an Architecture Board, but rather a part of the Architecture Governance Framework4.

Option C is incorrect, because creating the Statement of Architecture Work is not a direct responsibility of an Architecture Board, but rather a part of the Architecture Development Method5. References:

1: Architecture Board - The Open Group3

2: TOGAF Standard, Version 9.2 - Part VI: Architecture Governance Framework - Architecture Board

3: TOGAF Standard, Version 9.2 - Part VI: Architecture Governance Framework - Architecture Capability Framework

4: TOGAF Standard, Version 9.2 - Part VI: Architecture Governance Framework - Architecture Governance Framework

5: TOGAF Standard, Version 9.2 - Part II: Architecture Development Method - Phase A: Architecture Vision

This statement about Requirements Management is most correct because it reflects the central role of Requirements Management and stakeholder engagement in the ADM cycle. Requirements Management is not a step of all ADM Phases, but rather an ongoing process that ensures that all relevant requirements are elicited, analyzed, prioritized, and addressed throughout the architecture development and transition. Stakeholder engagement is also a continuous activity that involves identifying, communicating, and managing stakeholder expectations and concerns. Reference: The TOGAF® Standard | The Open Group Website, Section 3.1 Introduction to the ADM.

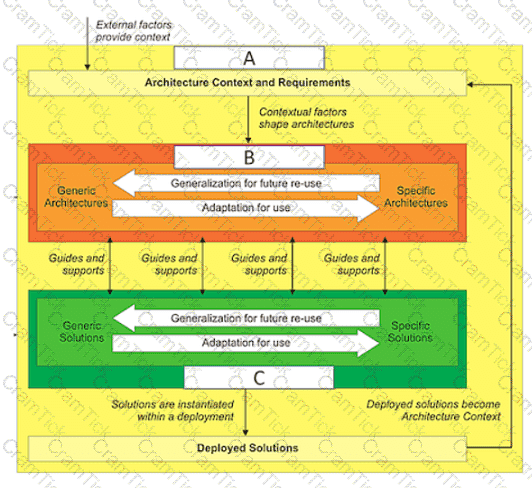

The illustration shows the relationship between the Enterprise Continuum, the Architecture Continuum, and the Solutions Continuum, which are key concepts in the TOGAF framework. The Enterprise Continuum is a view of the Architecture Repository that shows how generic foundation architectures can be leveraged and specialized to support the requirements of an individual organization. The Architecture Continuum specifies a structured classification for architectural artifacts, such as models, patterns, and descriptions, that can be reused and adapted across different domains and levels of abstraction. The Solutions Continuum identifies implemented solutions that support various stages of business and IT capability evolution, such as common systems, industry solutions, and organization-specific solutions. The illustration also shows how the architecture context and requirements are influenced by external factors, such as business drivers, stakeholders, and standards, and how they shape the generic and specific architectures and solutions. The illustration also shows how the deployed solutions become part of the architecture context for future iterations of the architecture development cycle. References:

•TOGAF Standard, 10th Edition, Part II: Architecture Development Method, Chapter 6: Architecture Repository, Section 6.2 Enterprise Continuum.

•TOGAF Standard, 10th Edition, Part IV: Architecture Content Framework, Chapter 35: Enterprise Continuum and Tools, Section 35.1 Introduction.

The Request for Architecture Work is a deliverable that is sent from the sponsor and triggers the start of an architecture development cycle. It defines the scope, budget, schedule, and deliverables for a specific architecture project. The Statement of Architecture Work is a deliverable that is produced by the architect and defines the approach and resources needed to complete an architecture project. It forms the basis of a contractual agreement between the sponsor and the architecture organization. The Architecture Principles are a deliverable that is produced by the architect and defines the general rules and guidelines for the architecture work. They reflect the business principles, business goals, and business drivers of the organization. The Architecture Requirements Specification is a deliverable that is produced by the architect and defines the requirements that govern the architecture work. It covers both functional and non-functional requirements as well as constraints and assumptions.

According to the TOGAF Standard, 10th Edition, architecture governance is “the practice by which enterprise architectures and other architectures are managed and controlled at an enterprise-wide level” 1. Architecture governance ensures that the architecture development and implementation are aligned with the strategic objectives, principles, standards, and requirements of the enterprise, and that they deliver the expected value and outcomes. Architecture governance also involves establishing and maintaining the architecture framework, repository, board, contracts, and compliance reviews 1. The other options are not correct, as they are not the term used by the TOGAF Standard to describe the practice by which the enterprise architecture is managed and controlled at an enterprise-wide level. Corporate governance is “the system by which an organization is directed and controlled” 2, and it covers aspects such as leadership, strategy, performance, accountability, and ethics. IT governance is “the system by which the current and future use of IT is directed and controlled” 2, and it covers aspects such as IT strategy, policies, standards, and services. Technology governance is “the system by which the technology decisions and investments are directed and controlled” 3, and it covers aspects such as technology selection, acquisition, deployment, and maintenance. References: 1: TOGAF Standard, 10th Edition, Part VI: Architecture Governance, Chapter 44: Introduction. 2: TOGAF Standard, 10th Edition, Part I: Introduction, Chapter 3: Definitions. 3: TOGAF Series Guide: Using the TOGAF Framework to Define and Govern Service-Oriented Architectures, Part II: Using the TOGAF Framework to Define and Govern Service-Oriented Architectures, Chapter 5: Technology Governance.

The purpose of the Preliminary Phase is to architect an Enterprise Architecture Capability that meets the needs and expectations of the enterprise’s stakeholders and supports and enables subsequent phases of architecture development and transition. This phase involves defining the scope, principles, framework, and governance for the Enterprise Architecture Capability. Reference: The TOGAF® Standard | The Open Group Website, Section 3.2 Preliminary Phase.

The objectives listed in the question correspond to the objectives of different phases of the TOGAF ADM (Architecture Development Method), which is a method for developing and managing an enterprise architecture1.

The ADM consists of nine phases, each with a specific purpose and output. The phases are1:

Preliminary Phase: To prepare and initiate the architecture development cycle, including defining the architecture framework, principles, and governance.

Phase A: Architecture Vision: To define the scope, vision, and stakeholders of the architecture initiative, and to obtain approval to proceed.

Phase B: Business Architecture: To describe the baseline and target business architecture, and to identify the gaps between them.

Phase C: Information Systems Architectures: To describe the baseline and target data and application architectures, and to identify the gaps between them.

Phase D: Technology Architecture: To describe the baseline and target technology architecture, and to identify the gaps between them.

Phase E: Opportunities and Solutions: To identify and evaluate the opportunities and solutions for implementing the target architecture, and to define the work packages and transition architectures.

Phase F: Migration Planning: To finalize the implementation and migration plan, and to ensure alignment with the enterprise portfolio and project management.

Phase G: Implementation Governance: To provide architecture oversight and guidance for the implementation projects, and to manage any architecture change requests.

Phase H: Architecture Change Management: To monitor the changes in the business and technology environment, and to assess the impact and performance of the architecture.

Based on the above definitions, we can match each objective with the corresponding phase as follows:

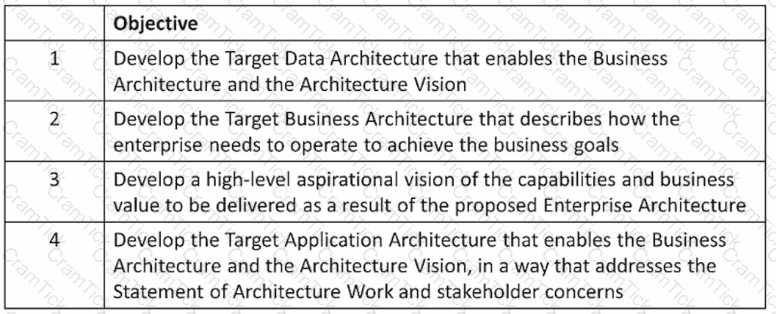

Objective 1: Develop the Target Data Architecture that enables the Business Architecture and the Architecture Vision. This objective is achieved in Phase C: Information Systems Architectures, where the data architecture is defined as a subset of the information systems architecture2.

Objective 2: Develop the Target Business Architecture that describes how the enterprise needs to operate to achieve the business goals. This objective is achieved in Phase B: Business Architecture, where the business architecture is defined as a subset of the enterprise architecture3.

Objective 3: Develop a high-level aspirational vision of the capabilities and business value to be delivered as a result of the proposed Enterprise Architecture. This objective is achieved in Phase A: Architecture Vision, where the architecture vision is defined as a high-level description of the target architecture and its benefits4.

Objective 4: Develop the Target Application Architecture that enables the Business Architecture and the Architecture Vision, in a way that addresses the Statement of Architecture Work and stakeholder concerns. This objective is achieved in Phase C: Information Systems Architectures, where the application architecture is defined as a subset of the information systems architecture2.

1: The TOGAF Standard, Version 9.2, Chapter 5: Architecture Development Method (ADM)

2: The TOGAF Standard, Version 9.2, Chapter 9: Phase C: Information Systems Architectures

3: The TOGAF Standard, Version 9.2, Chapter 8: Phase B: Business Architecture

4: The TOGAF Standard, Version 9.2, Chapter 7: Phase A: Architecture Vision

According to the TOGAF Standard, 10th Edition, the rationale section of the architecture principles template should highlight the business benefits of adhering to the principle, as well as the business risks of not adhering to it 1. The rationale section should explain the reasoning behind the principle, and provide evidence or arguments to support it. The rationale section should also link the principle to the business drivers, goals, and objectives of the enterprise, and show how the principle contributes to the value and success of the enterprise. The other options are not correct, as they have different purposes in the architecture principles template. The name section should provide a short and memorable name for the principle, such as “Information is an Asset” or “Business Continuity” 1. The statement section should provide a concise and formal statement of the principle, such as “The enterprise’s information is recognized as a core asset, and is managed accordingly” or “The enterprise’s ability to provide critical services and products must be maintained in the event of a disaster” 1. The implications section should identify the impact of the principle on the enterprise, such as the changes, costs, benefits, and risks that may result from applying or violating the principle 1. References: 1: TOGAF Standard, 10th Edition, Part III: ADM Guidelines and Techniques, Chapter 23: Architecture Principles, Section 23.3 Developing Architecture Principles.

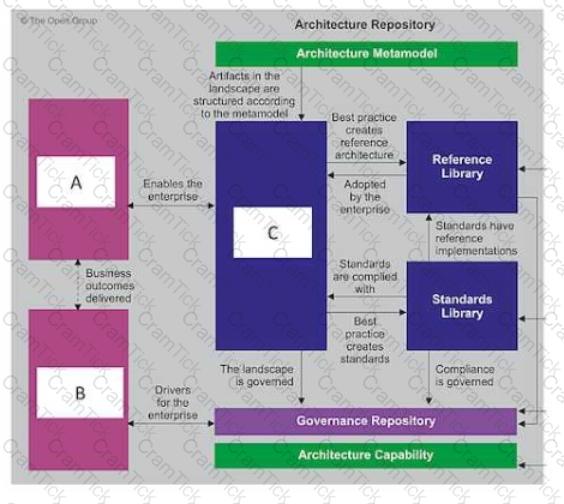

This aligns with the TOGAF Architecture Repository model where:

A (Architecture Requirements Repository) contains requirements that drive architecture work.

B (Solutions Repository) stores the building blocks or solutions that support the architecture.

C (Architecture Landscape) represents the architecture assets that depict the current, transition, and target architecture states across the enterprise

Business scenarios are a technique for capturing, clarifying, and communicating the functional and non-functional requirements of a system. Business scenarios describe the business environment, the actors involved, the desired outcomes, and the processes or rules that govern the behavior of the system. Business scenarios are useful for ensuring that the architecture addresses the real needs and concerns of the stakeholders, and for validating and testing the architecture against expected situations. Business scenarios are developed in Phase A: Architecture Vision of the ADM cycle, and refined and updated throughout the other phases3 References: 3: The TOGAF Standard, Version 9.2, Part III: ADM Guidelines and Techniques, Chapter 26: Business Scenarios : The TOGAF Standard, Version 9.2, Part II: Architecture Development Method (ADM), Chapter 18: Phase A: Architecture Vision

According to the TOGAF Standard, 10th Edition, the Preliminary Phase of the Architecture Development Method (ADM) has the purpose to develop an Enterprise Architecture Capability 1. An Enterprise Architecture Capability is the ability of the organization to perform the activities and tasks related to Enterprise Architecture, such as defining the scope, principles, vision, governance, and stakeholders of the architecture. The Preliminary Phase also establishes the architecture framework, the architecture repository, the architecture tools, and the architecture team 1. The other options are not correct, as they have different purposes in the ADM. Phase G: Implementation Governance has the purpose to ensure that the implementation projects conform to the target architecture 2. Phase A: Architecture Vision has the purpose to define the scope, stakeholders, business drivers, and objectives of the architecture project 3. Phase B: Business Architecture has the purpose to describe the baseline and target business architecture, and to identify the gaps between them . References: 1: TOGAF Standard, 10th Edition, Part II: Architecture Development Method, Chapter 6: Preliminary Phase. 2: TOGAF Standard, 10th Edition, Part II: Architecture Development Method, Chapter 18: Phase G: Implementation Governance. 3: TOGAF Standard, 10th Edition, Part II: Architecture Development Method, Chapter 12: Phase A: Architecture Vision. : TOGAF Standard, 10th Edition, Part II: Architecture Development Method, Chapter 13: Phase B: Business Architecture.

The Enterprise Continuum provides methods for classifying architecture artifacts as they evolve from generic architectures to Organization-Specific Architectures. Generic architectures are architectures that have been developed for use across a wide range of enterprises with similar characteristics. They provide common models, functions, and services that can be reused and adapted for specific purposes. Organization-Specific Architectures are architectures that have been tailored to meet the needs and requirements of a particular enterprise or a major organizational unit within an enterprise. They reflect the unique vision, goals, culture, structure, processes, systems, and technologies of that enterprise or unit. Reference: The TOGAF® Standard | The Open Group Website, Section 2.3 Enterprise Continuum.

(ADM Inputs/Outputs for early phases include Business Scenario/Architecture Vision content, with “Risks and issues” explicitly listed.) — “Business Scenario / Architecture Vision… Risks and issues …” www.opengroup.org

 In the ADM documents which are under development and have not undergone any formal review and approval process are called “draft”. This indicates that they are subject to change and refinement as the architecture development progresses. Reference: The TOGAF® Standard | The Open Group Website, Section 4.2.5 Architecture Deliverables.

An Architecture Contract is a deliverable that specifies the responsibilities and obligations of the parties involved in the implementation and governance of an architecture. It ensures a system of continuous monitoring to check integrity changes decision-making and audit of all architecture-related activities. Reference: The TOGAF® Standard | The Open Group Website, Section 3.3.4 Architecture Contracts.

A-Architecture Repository: This is a part of the Architecture Metamodel that contains artifacts structured according to the metamodel. It includes the Architecture Landscape which is adopted by the enterprise and governed by certain standards and practices.

B-Governing Board: The Governing Board ensures visibility and escalation, meaning it oversees and manages the capability of the architecture landscape. It plays a crucial role in governance.

C-Enterprise Capability: This refers to how well an enterprise can execute its mission, meet business objectives or satisfy its stakeholders’ needs and expectations. It’s influenced by both internal factors (like resources, processes) and external ones (like market trends).

TOGAF Version 9.1, Chapter 34: 1

The Architecture Requirements Repository stores all the requirements that are output of the architecture development cycle, as well as the requirements that are input to the architecture development cycle1. The Architecture Requirements Repository includes the following types of requirements1:

•Stakeholder Requirements: These are the high-level requirements and expectations of the stakeholders, derived from the business drivers, goals, and objectives. They are captured and refined in the Architecture Vision phase and the Requirements Management phase.

•Architecture Requirements: These are the detailed requirements that specify what the architecture must do or deliver to meet the stakeholder requirements. They are derived and refined in the Business, Information Systems, and Technology Architecture phases.

•Implementation and Migration Requirements: These are the detailed requirements that specify what the implementation and migration projects must do or deliver to realize the architecture. They are derived and refined in the Opportunities and Solutions and Migration Planning phases.

The Architecture Requirements Repository is used to manage the architecture requirements throughout the architecture lifecycle, ensuring their traceability, consistency, and compliance1. The Architecture Board is the authority that reviews and approves the architecture requirements, as well as the architecture deliverables and artifacts, as part of the architecture governance process2.

The TOGAF standard covers the development of four architecture domains: Business, Data, Technology and Application. These domains represent different aspects of an enterprise’s architecture and provide a consistent way of describing, analyzing, and designing them. Reference: The TOGAF® Standard | The Open Group Website, Section 2.2 Architecture Development Method (ADM).

“There are two levels of risk that should be considered namely: Initial Level of Risk [and] Residual Level of Risk.” archive.opengroup.org

“Other potential sources of gaps: People gaps (e.g., cross-training requirements); Process gaps… Tools gaps… Financial gaps…” Open Group Publications

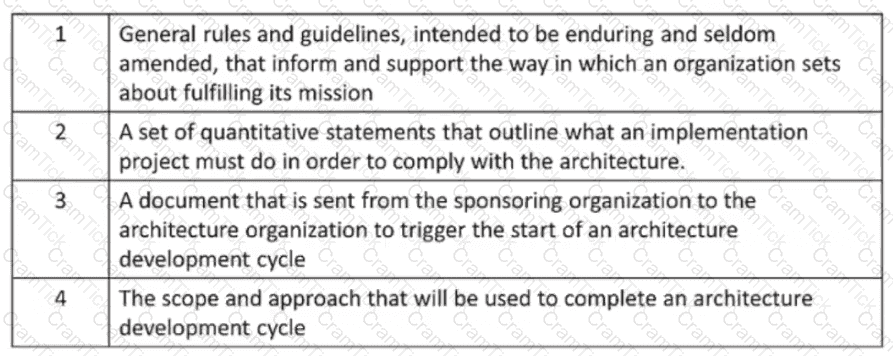

Architecture Requirements Specification: “provides a set of quantitative statements that outline what an implementation project must do in order to comply with the architecture.” Open Group Publications

Statement of Architecture Work (Phase A output): “The Statement of Architecture Work defines the scope and approach that will be used to complete an architecture project.” (Produced in Phase A per the Phase A outputs list.) Open Group Publications

Based on the illustration, the phase of the ADM labeled as item 2 is the Implementation Governance phase. This phase provides architectural oversight for the implementation. It ensures that the implementation project conforms to the architecture. It also provides a framework for monitoring and managing the implementation.

The Implementation Governance phase involves the following activities:

Finalizing the Architecture Roadmap and the supporting Implementation and Migration Plan

Assigning an Architecture Board to oversee the implementation

Establishing Architecture Contracts with the implementation partners

Reviewing and approving the implementation project plans and deliverables

Performing Architecture Compliance reviews to ensure alignment with the architecture

Performing Architecture Audit reviews to ensure quality and performance of the architecture

Resolving any architecture issues or change requests that arise during the implementation

Maintaining the architecture lifecycle and ensuring its continuity

The Implementation Governance phase is essential for ensuring that the architecture is realized as intended and that it delivers the expected business value and outcomes.

Implementation Governance

Architecture governance is the practice of ensuring compliance with the enterprise architecture and its principles, standards, and goals. Architecture governance provides the means to establish, monitor, and control the architecture development and implementation processes, and to resolve any issues or conflicts that may arise. Architecture governance also ensures that all stakeholders are represented and involved in the decision-making process, and that their interests and concerns are balanced and aligned. Statements 1 and 2 highlight the value and necessity for architecture governance to be adopted within organizations, as they emphasize the importance of responsibility, accountability, fairness, and transparency in the architectural activities. Statements 3 and 4 are more related to the benefits and outcomes of having a good enterprise architecture, rather than the governance aspect.

The TOGAF Standard, Version 9.2, Part VI: Architecture Capability Framework, Chapter 50: Architecture Governance : The TOGAF Standard, Version 9.2, Part III: ADM Guidelines and Techniques, Chapter 29: Architecture Governance
