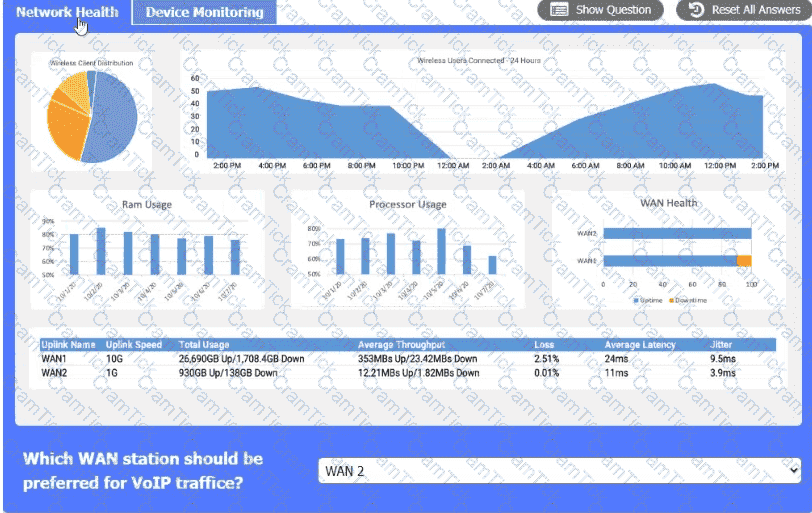

Network Health:

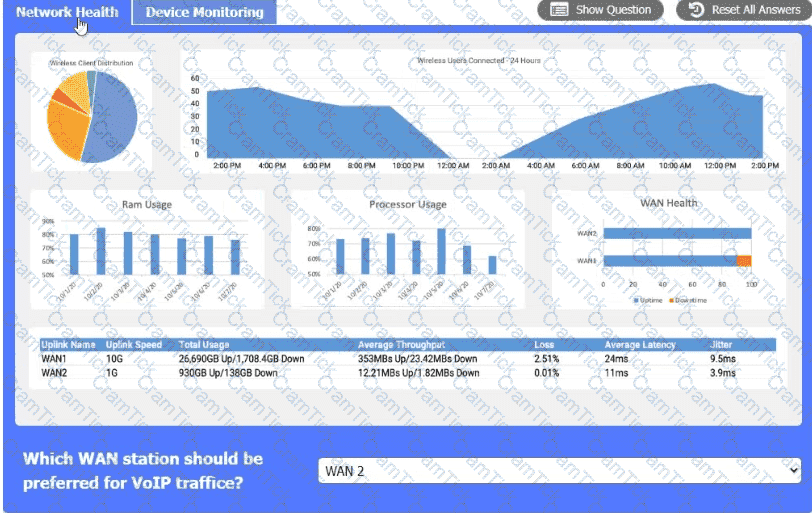

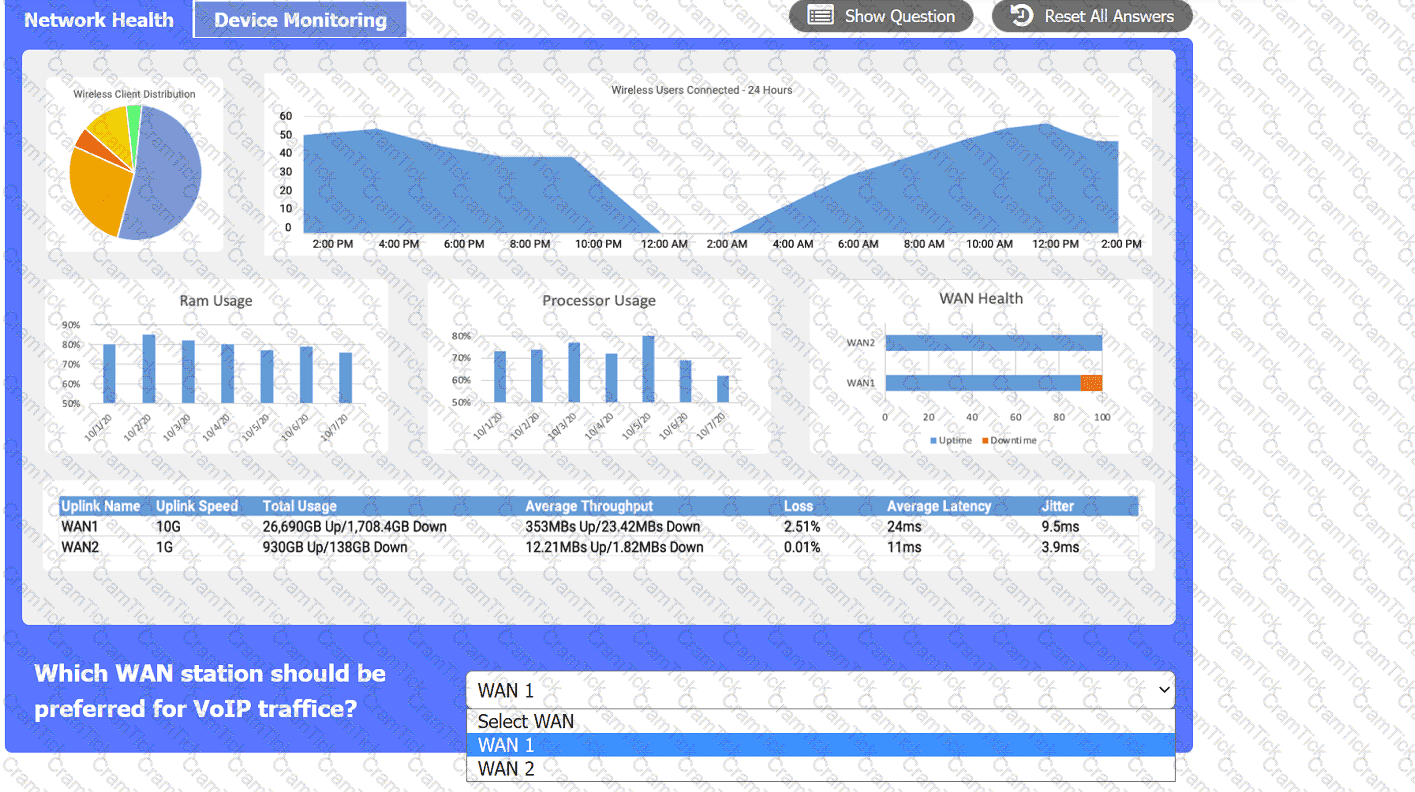

WAN 2 appears to have a lower average latency and loss percentage, which would make it the preferred WAN station for VoIP traffic. VoIP traffic requires low latency and packet loss to ensure good voice quality and reliability. WAN 1 seems to have higher RAM and processor usage, which could also affect the performance of VoIP traffic.

Here's the summary of the key metrics for WAN 1 and WAN 2 from the image provided:

WAN 1:

Uplink Speed: 10G

Total Usage: 26.969GB Up / 1.748GB Down

Average Throughput: 353MBps Up / 23.42MBps Down

Loss: 2.51%

Average Latency: 24ms

Jitter: 9.5ms

WAN 2:

Uplink Speed: 1G

Total Usage: 930GB Up / 138GB Down

Average Throughput: 12.21MBps Up / 1.82MBps Down

Loss: 0.01%

Average Latency: 11ms

Jitter: 3.9ms

For VoIP traffic, low latency and jitter are particularly important to ensure voice quality. While WAN 1 has higher bandwidth and throughput, it also has higher latency and jitter compared to WAN 2. However, WAN 2 has much lower loss, lower latency, and lower jitter, which are more favorable for VoIP traffic that is sensitive to delays and variation in packet arrival times.

Given this information, WAN 2 would generally be preferred for VoIP traffic due to its lower latency, lower jitter, and significantly lower loss percentage, despite its lower bandwidth compared to WAN 1. The high bandwidth of WAN 1 may be more suitable for other types of traffic that are less sensitive to latency and jitter, such as bulk data transfers.

Device Monitoring:

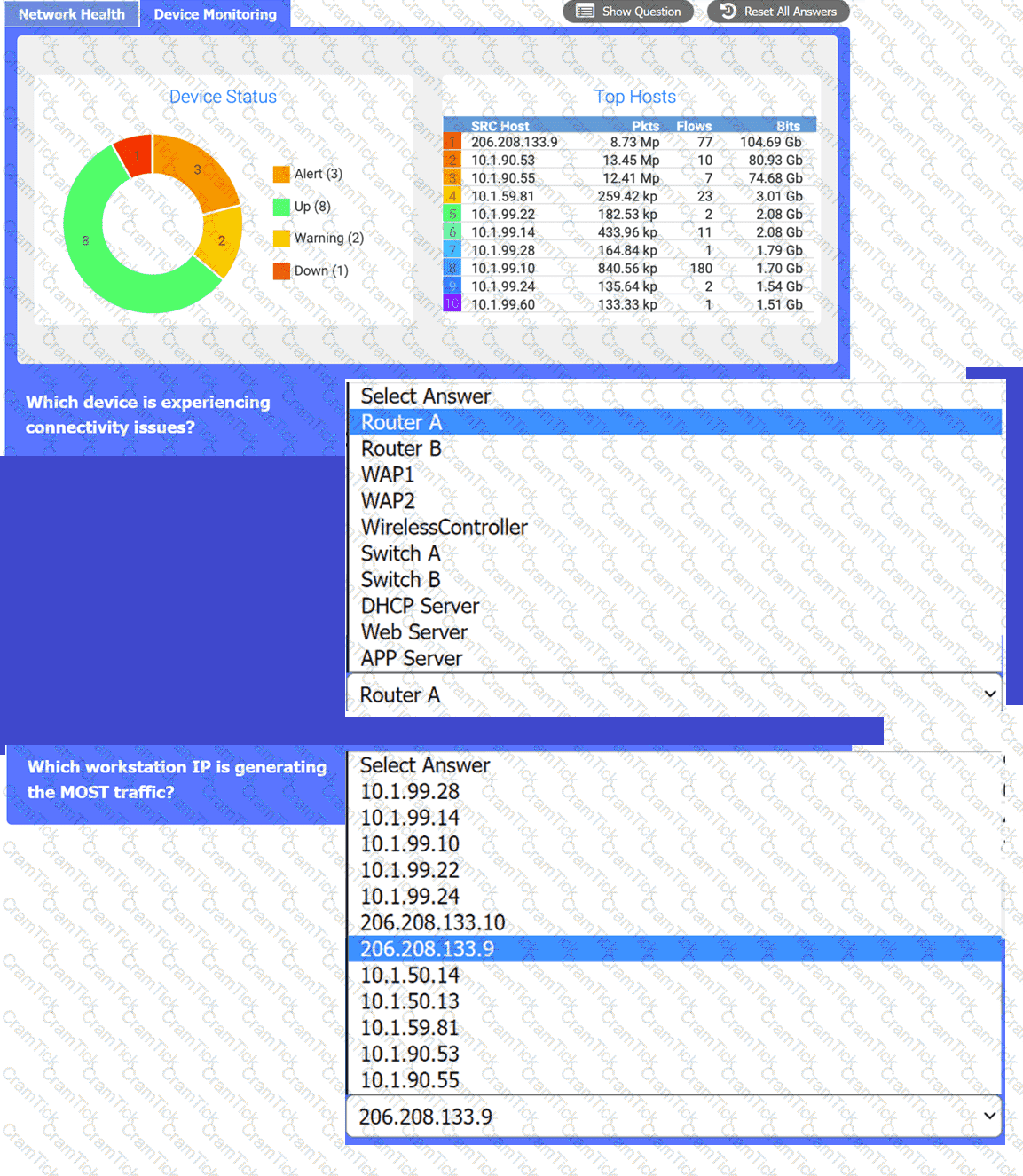

the device that is experiencing connectivity issues is the APP Server or Router 1, which has a status of Down. This means that the server is not responding to network requests or sending any data. You may want to check the physical connection, power supply, and configuration of the APP Server to troubleshoot the problem.

EIGRP (Enhanced Interior Gateway Routing Protocol) has a default administrative distance (AD) value of 90 for internal routes. The administrative distance is used to rate the trustworthiness of routing information received from different routing protocols. EIGRP, developed by Cisco, has an AD of 90, which is lower than that of RIP (120) and OSPF (110), making it more preferred if multiple protocols provide a route to the same destination.References: CompTIA Network+ study materials.

802.11ax, also known as Wi-Fi 6, is designed for high-density environments and improves device saturation and coverage compared to previous standards.

802.11ac: While it offers high throughput, it is not optimized for high-density environments as effectively as 802.11ax.

802.11ax (Wi-Fi 6): Introduces features like OFDMA, MU-MIMO, and BSS Coloring, which enhance performance in crowded environments, reduce latency, and increase the number of devices that can be connected simultaneously.

802.11g and 802.11n: Older standards that do not offer the same level of efficiency or support for high device density as 802.11ax.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Covers the 802.11 standards and their capabilities.

Cisco Networking Academy: Provides training on Wi-Fi technologies and best practices for high-density deployments.

Network+ Certification All-in-One Exam Guide: Discusses the various 802.11 standards and their applications in different environments.

Asymmetrical routing occurs when packets take different paths to and from the destination, leading to instability in network communication. The use of two different MPLS providers with OSPF can lead to this type of routing issue, especially if the paths aren't carefully configured and managed. This can cause unexpected routing behaviors and instability in a dual-WAN setup. (Reference: CompTIA Network+ Study Guide, Chapter on Network Routing)

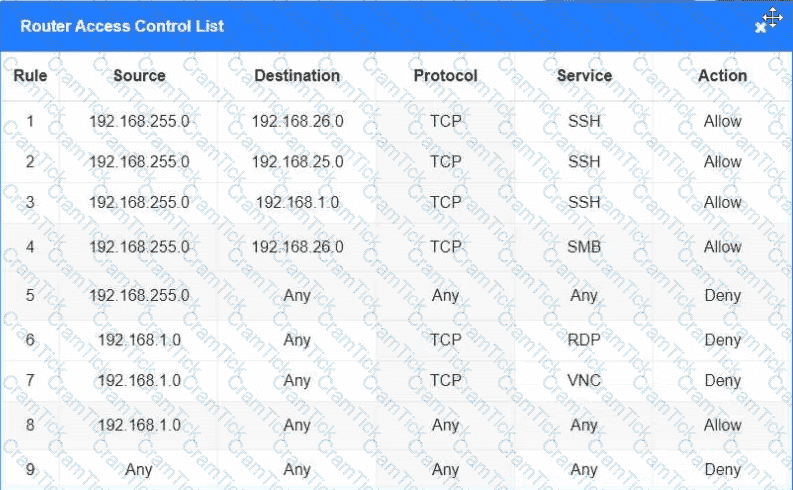

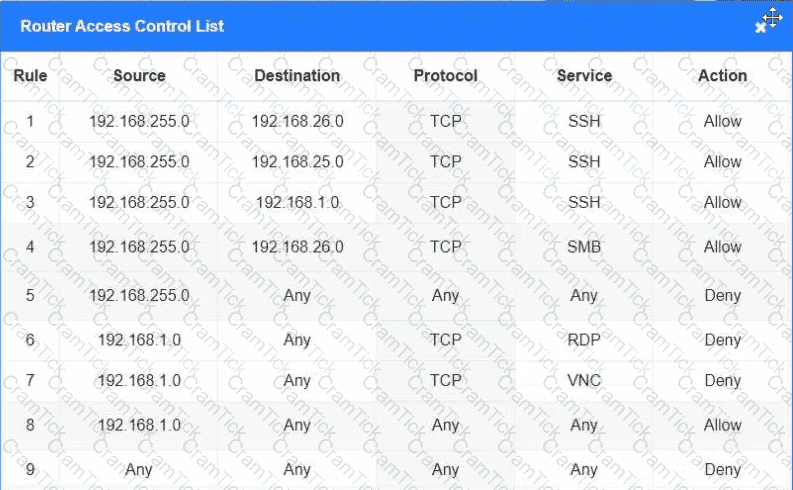

Understanding ACLs:

Access Control Lists (ACLs): A set of rules used to control network traffic and restrict access to network resources by filtering packets based on IP addresses, protocols, or ports.

Implementing Security Zones:

Defining Zones: ACLs can be used to create security zones by applying specific rules to different departments, ensuring that only authorized traffic is allowed between these zones.

Control Traffic: ACLs control inbound and outbound traffic at network boundaries, enforcing security policies and preventing unauthorized access.

Comparison with Other Options:

Port Security: Limits the number of devices that can connect to a switch port, preventing MAC address flooding attacks, but not used for defining security zones.

Content Filtering: Blocks or allows access to specific content based on predefined policies, typically used for web filtering rather than network segmentation.

NAC (Network Access Control): Controls access to the network based on the security posture of devices but does not define security zones.

Implementation Steps:

Define ACL rules based on the requirements of each department.

Apply these rules to the appropriate network interfaces or firewall policies to segment the network into security zones.

References:

CompTIA Network+ study materials on network security and access control methods.

In a data center that uses hot aisle/cold aisle ventilation, equipment is typically installed so that cool air enters from the cold aisle (front) and hot air is exhausted to the hot aisle (rear). This configuration maximizes cooling efficiency.

Explanation: MTTR (Mean Time to Repair) is the average time it takes to repair a system or service after a failure. It helps in measuring the downtime and planning recovery processes.

=================

Changing default admin passwords is a fundamental first step in device hardening to prevent unauthorized access.

Disabling unused ports prevents unauthorized access and reduces the attack surface by ensuring that no inactive or unmonitored entry points are available for exploitation. Changing default passwords is critical for security because default credentials are widely known and can easily be exploited by attackers. These techniques are fundamental steps in hardening devices against unauthorized access and ensuring network security. References: CompTIA Network+ Exam Objectives and official study guides.

The netstat command provides information about network connections, routing tables, interface statistics, masquerade connections, and multicast memberships. Running netstat on the server can help the administrator verify that the web server process is listening on the expected port (e.g., port 80 for HTTP or port 443 for HTTPS) and that there are no issues with network connections. This is a crucial first step in diagnosing why the web server is not accessible via a browser.References: CompTIA Network+ study materials. ​

Understanding Multicast:

Multicast IP Address Range: The multicast address range is from 224.0.0.0 to 239.255.255.255, designated for multicast traffic.

Multicast Applications:

Use Case: Multicast is used for one-to-many or many-to-many communication, suitable for applications like audio and video broadcasting where the same data is sent to multiple recipients simultaneously.

Appropriate Network Selection:

224.0.0.0/24 Network: This range is reserved for multicast addresses, making it the appropriate choice for setting up a multicast network.

Comparison with Other Options:

172.16.0.0/24: Part of the private IP address space, used for private networks, not designated for multicast.

192.168.0.0/24: Another private IP address range, also not for multicast.

240.0.0.0/24: Reserved for future use, not suitable for multicast.

References:

CompTIA Network+ study materials on IP address ranges and multicast.

The tracert (Traceroute) command is used to determine the path packets take from the source to the destination. It helps in identifying routing issues by showing each hop the packets pass through, along with the time taken for each hop. This command can pinpoint where the connection is failing or experiencing delays, making it an essential tool for troubleshooting routing issues.References: CompTIA Network+ study materials and common network troubleshooting commands. ​

At the transport layer, connectionless communication is typically handled using the User Datagram Protocol (UDP), which transmits data in units called datagrams. Unlike TCP, UDP does not establish a connection before sending data and does not guarantee delivery, making datagrams the correct term for the transmission format in this context. References: CompTIA Network+ Exam Objectives and official study guides.

GSM (Global System for Mobile communications) is the international standard that uses SIM cards to authenticate and connect phones to the cellular network. GSM allows users to place and receive calls while traveling globally, provided they have a SIM card. CDMA, on the other hand, does not use SIM cards in the same way and is primarily used in the United States. (Reference: CompTIA Network+ Study Guide, Chapter on Network Fundamentals)

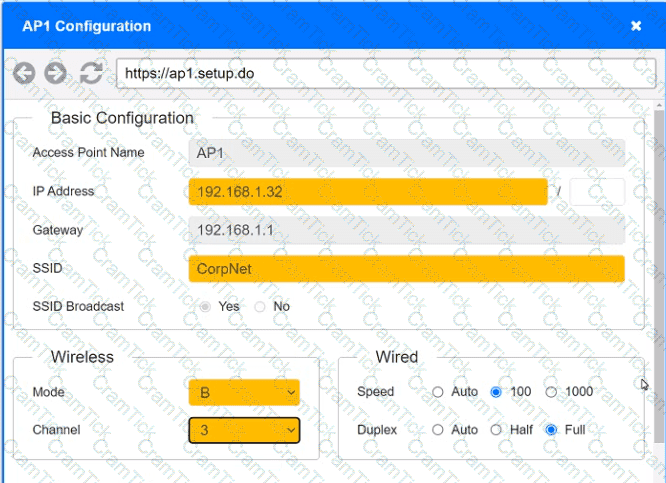

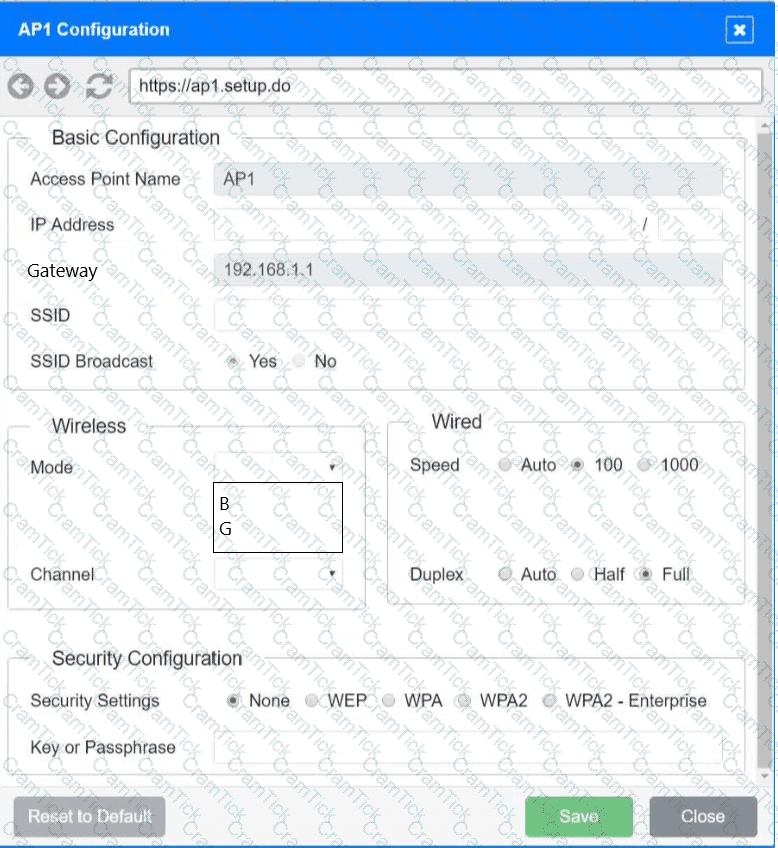

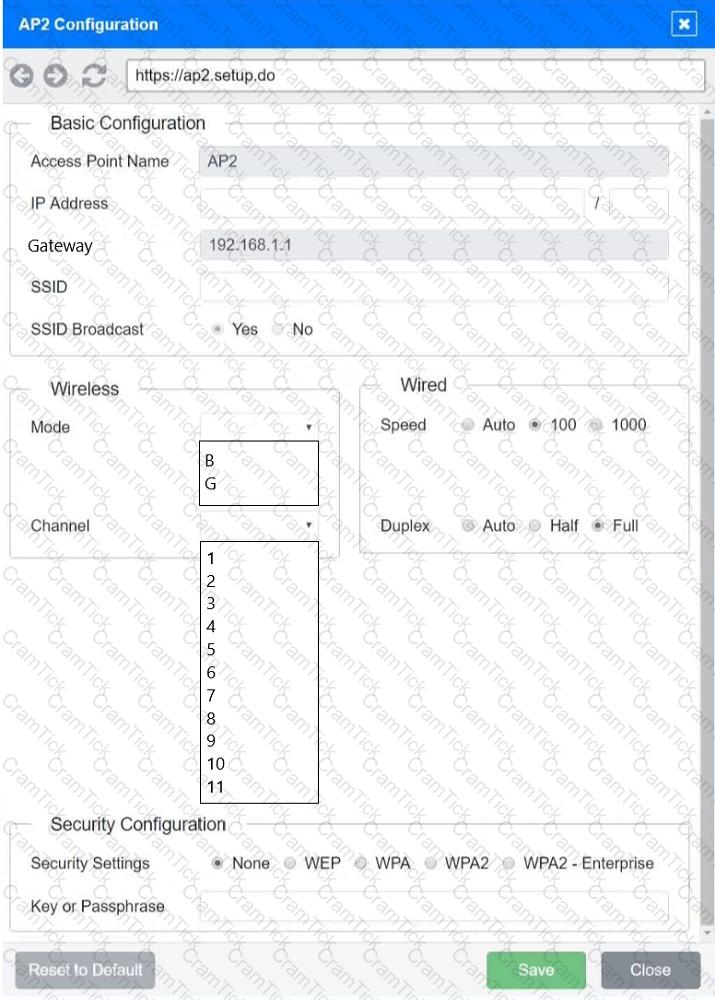

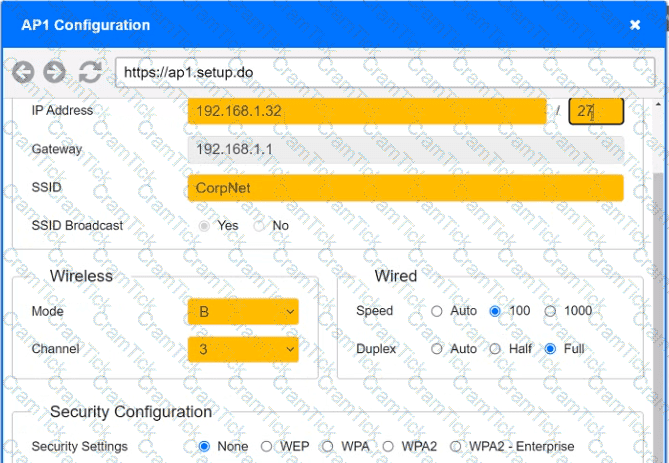

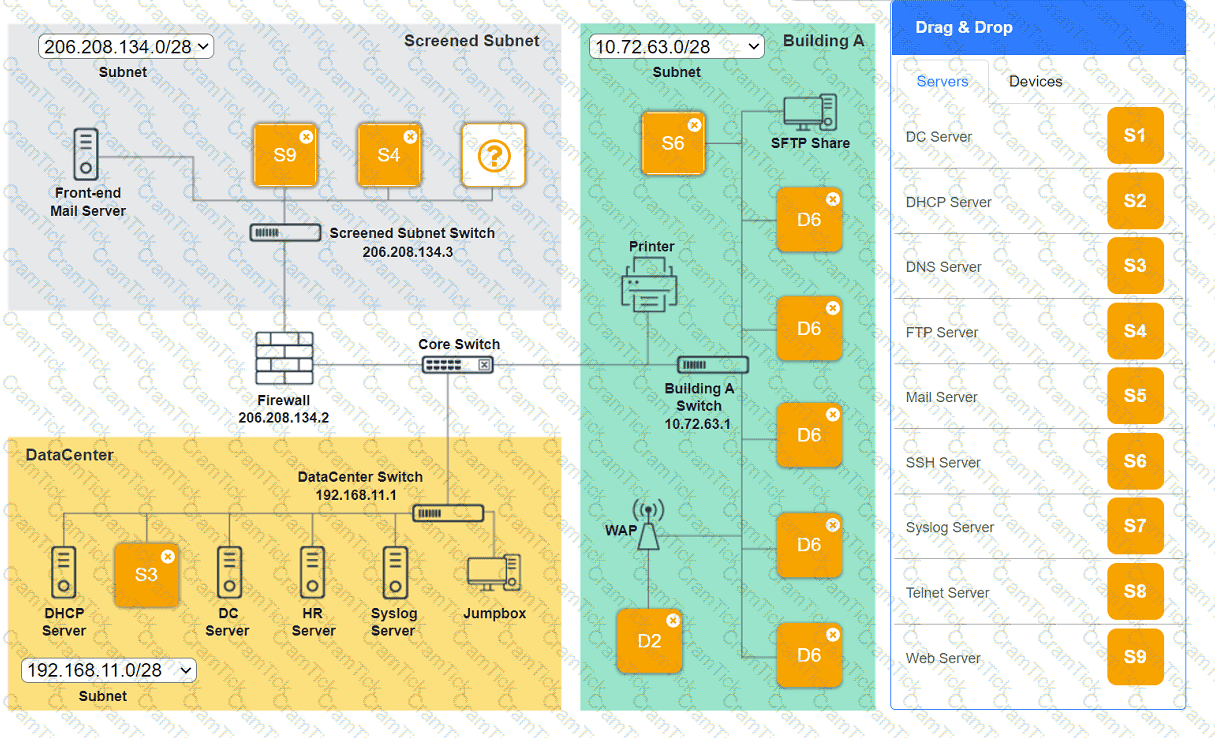

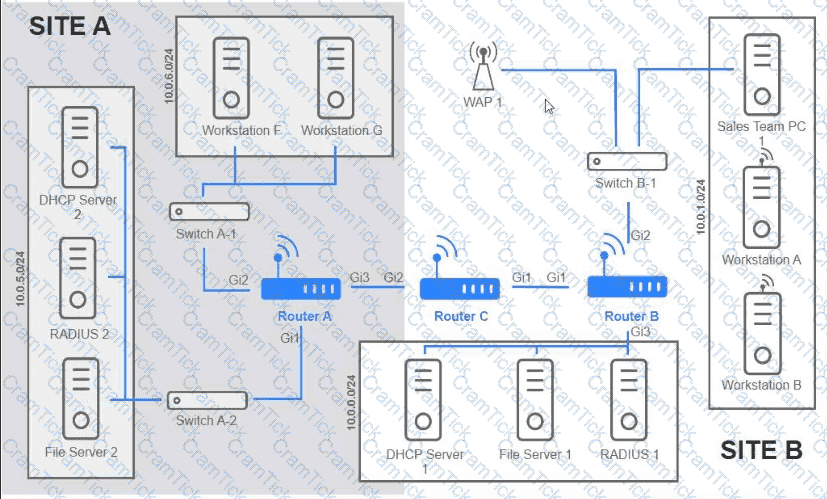

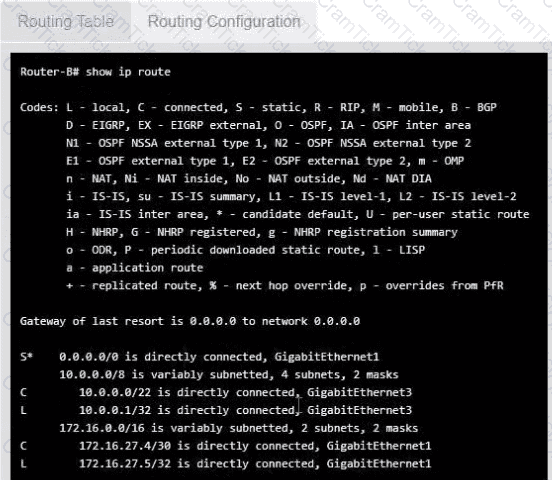

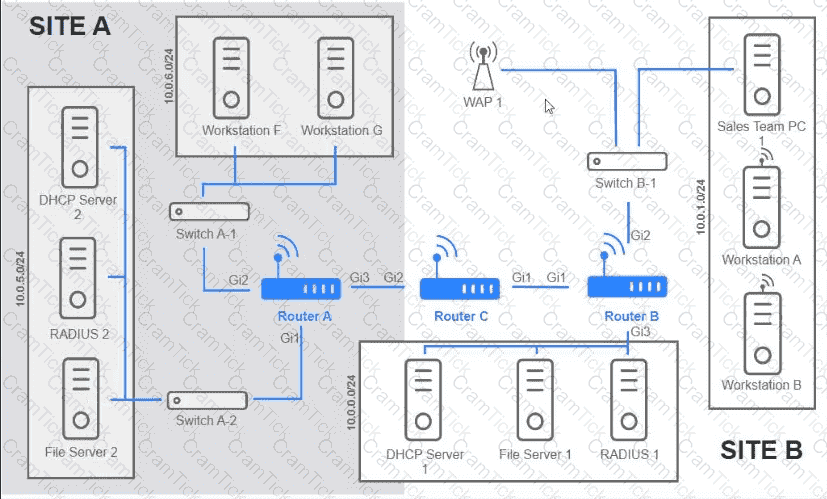

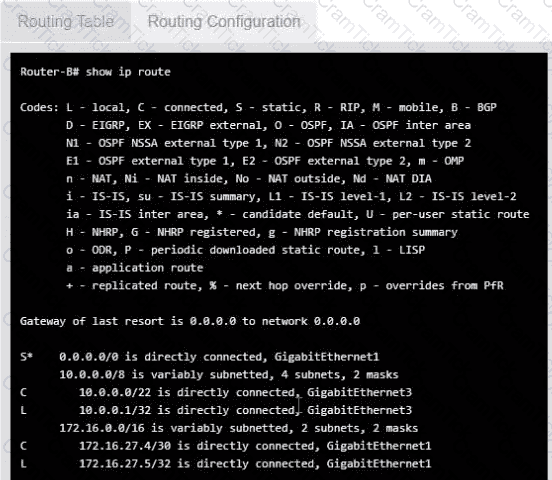

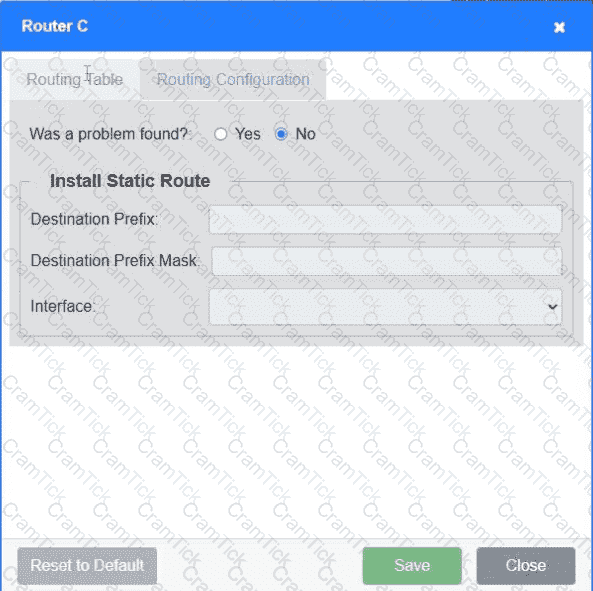

(Note: Ips will be change on each simulation task, so we have given example answer for the understanding)

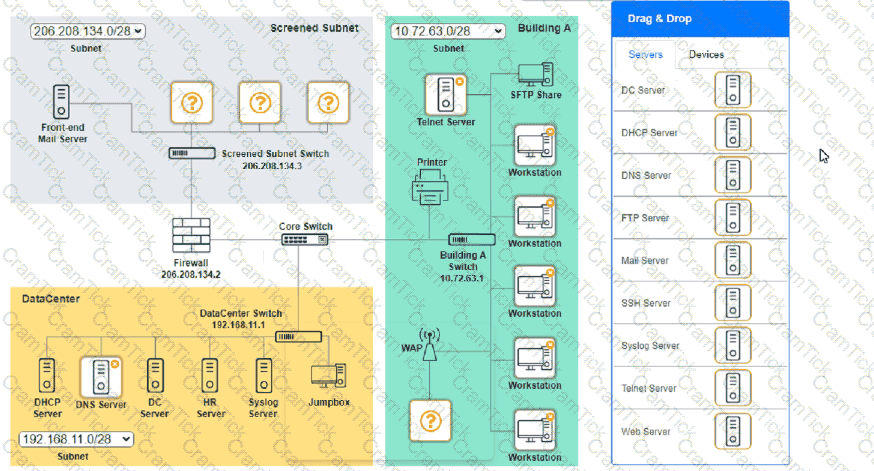

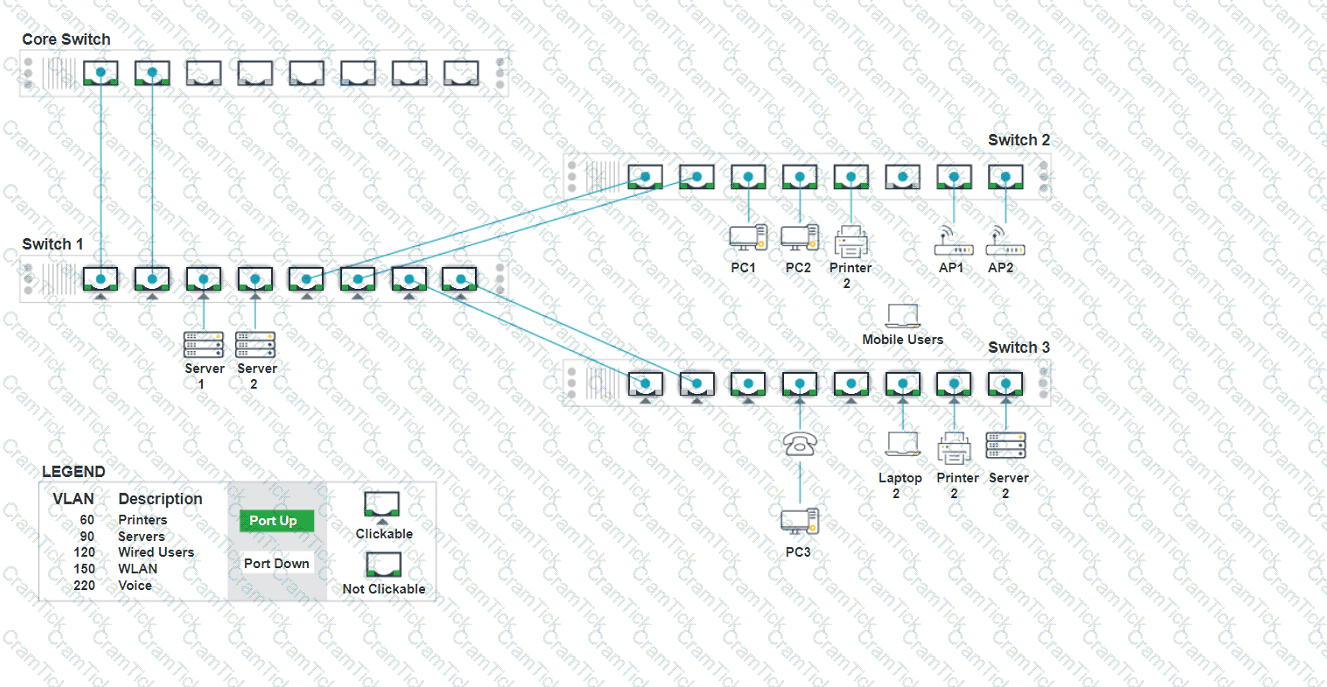

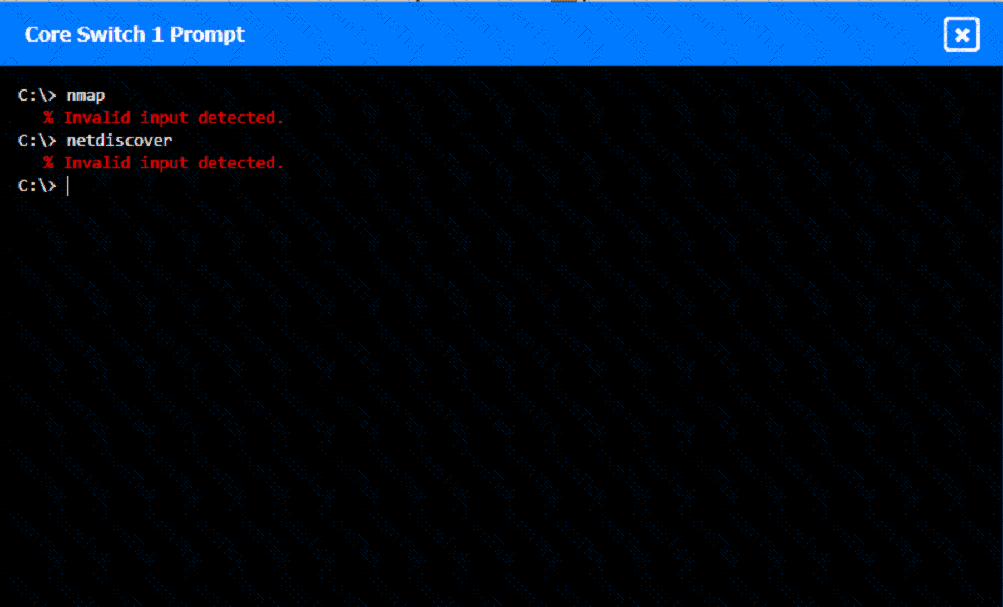

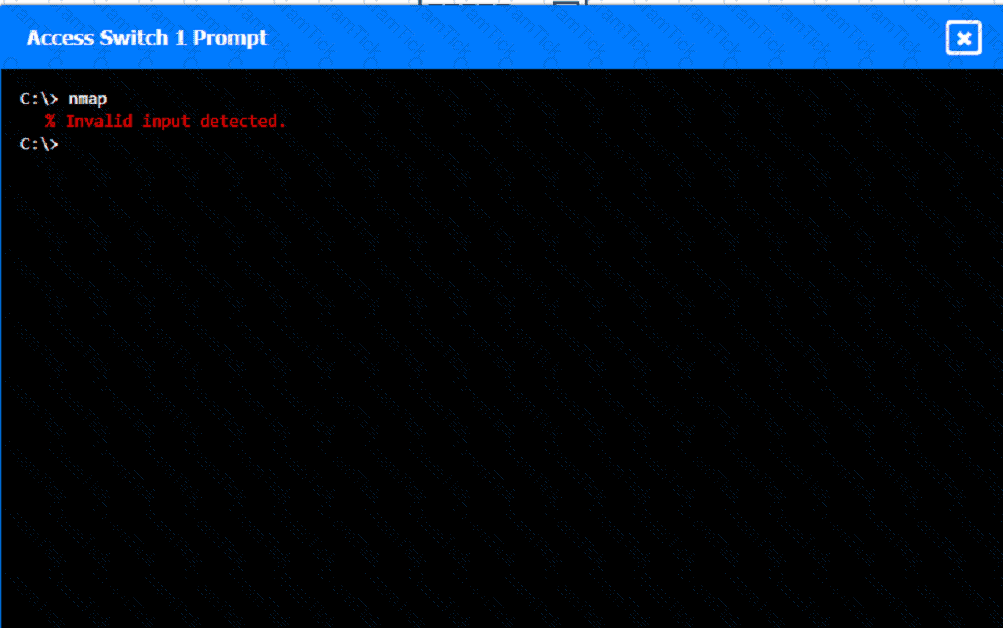

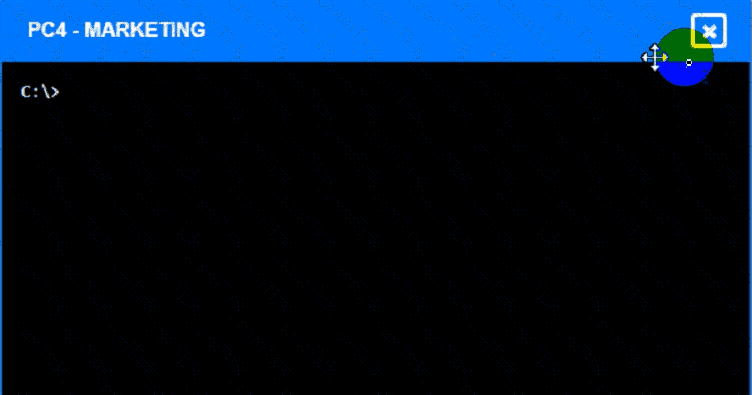

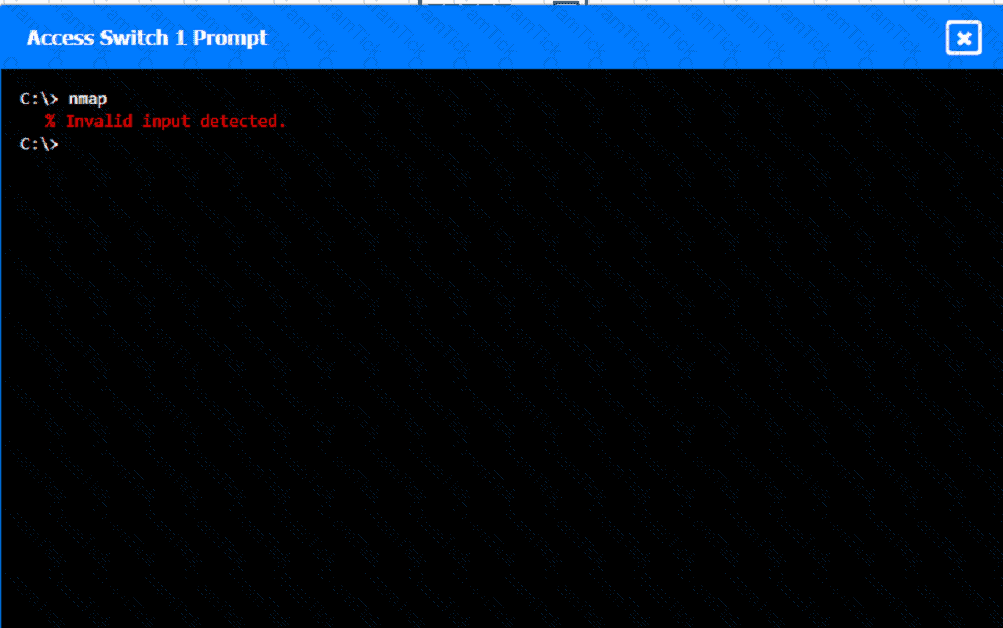

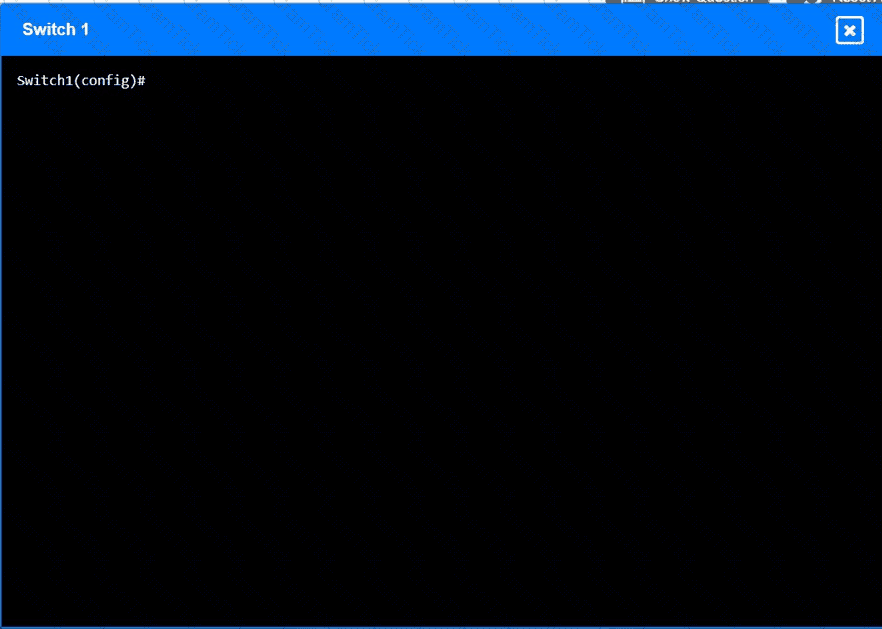

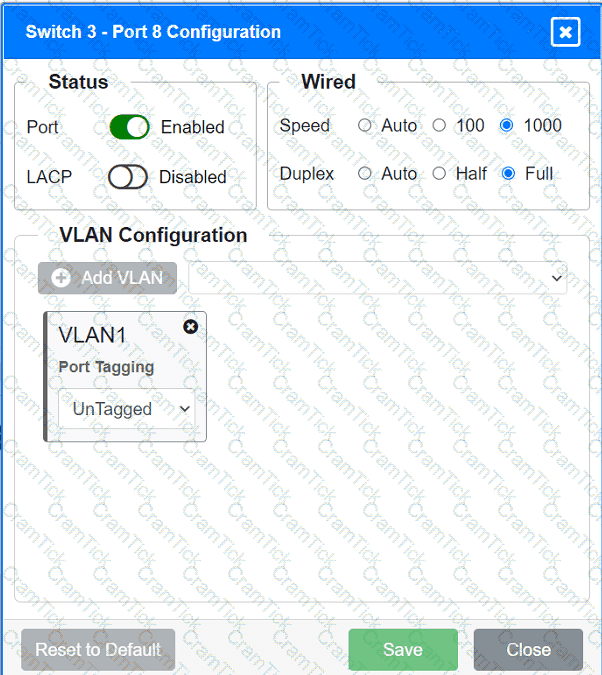

To perform a network discovery by entering commands into the terminal, you can use the following steps:

Click on each switch to open its terminal window.

Enter the command show ip interface brief to display the IP addresses and statuses of the switch interfaces.

Enter the command show vlan brief to display the VLAN configurations and assignments of the switch interfaces.

Enter the command show cdp neighbors to display the information about the neighboring devices that are connected to the switch.

Fill in the missing information in the diagram using the drop-down menus provided.

Here is an example of how to fill in the missing information for Core Switch 1:

The IP address of Core Switch 1 is 192.168.1.1.

The VLAN configuration of Core Switch 1 is VLAN 1: 192.168.1.0/24, VLAN 2: 192.168.2.0/24, VLAN 3: 192.168.3.0/24.

The neighboring devices of Core Switch 1 are Access Switch 1 and Access Switch 2.

The interfaces that connect Core Switch 1 to Access Switch 1 are GigabitEthernet0/1 and GigabitEthernet0/2.

The interfaces that connect Core Switch 1 to Access Switch 2 are GigabitEthernet0/3 and GigabitEthernet0/4.

You can use the same steps to fill in the missing information for Access Switch 1 and Access Switch 2.

Definition of Fiber Connector Types:

LC (Lucent Connector): A small form-factor fiber optic connector with a push-pull latching mechanism, commonly used for high-density applications.

SC (Subscriber Connector or Standard Connector): A larger form-factor connector with a push-pull latching mechanism, often used in datacom and telecom applications.

ST (Straight Tip): A bayonet-style connector, typically used in multimode fiber optic networks.

MPO (Multi-fiber Push On): A connector designed to support multiple fibers (typically 12 or 24 fibers), used in high-density cabling environments.

Common Usage:

LC Connectors: Due to their small size, LC connectors are widely used in network interface cards (NICs) and high-density environments such as data centers. They allow for more connections in a smaller space compared to SC and ST connectors.

SC and ST Connectors: These are larger and more commonly used in patch panels and older fiber installations but are less suitable for high-density applications.

MPO Connectors: Primarily used for trunk cables in data centers and high-density applications but not typically on individual network interface cards.

Selection Criteria:

The small form-factor and high-density capabilities of LC connectors make them the preferred choice for network interface cards, where space and connection density are critical considerations.

References:

CompTIA Network+ study materials on fiber optics and connector types.

Direct Connect refers to a dedicated network connection between an on-premises network and a cloud service provider (such as AWS Direct Connect). This link bypasses the public internet, providing a more reliable and higher-bandwidth connection. It may not inherently include encryption because it relies on the security measures of the dedicated physical connection itself. In contrast, other options like VPN typically involve encryption as they traverse the public internet.

Introduction to Subinterfaces:

Subinterfaces are logical interfaces created on a single physical interface. They are used to enable a router to support multiple networks on a single physical interface.

Use Case for Subinterfaces:

Subinterfaces are commonly used in scenarios where VLANs are implemented. A router with a single physical LAN port can be configured with multiple subinterfaces, each associated with a different VLAN.

This setup allows the router to route traffic between different VLANs.

Example Configuration:

Consider a router with a single physical interface GigabitEthernet0/0 and two VLANs, 10 and 20.

interface GigabitEthernet0/0.10

encapsulation dot1Q 10

ip address 192.168.10.1 255.255.255.0

!

interface GigabitEthernet0/0.20

encapsulation dot1Q 20

ip address 192.168.20.1 255.255.255.0

The encapsulation dot1Q command specifies the VLAN ID.

Explanation of the Options:

A. A router with only one available LAN port: This is correct. Subinterfaces allow a single physical interface to manage multiple networks, making it essential for routers with limited physical interfaces.

B. A firewall performing deep packet inspection: Firewalls can use subinterfaces, but it is not a requirement for deep packet inspection.

C. A hub utilizing jumbo frames: Hubs do not use subinterfaces as they operate at Layer 1 and do not manage IP addressing.

D. A switch using Spanning Tree Protocol: STP is a protocol for preventing loops in a network and does not require subinterfaces.

Conclusion:

Subinterfaces provide a practical solution for routing between multiple VLANs on a router with limited physical interfaces. They allow network administrators to optimize the use of available hardware resources efficiently.

References:

CompTIA Network+ guide detailing VLAN configurations and the use of subinterfaces (see page Ref 9†Basic Configuration Commands).

IPsec (Internet Protocol Security) is the most secure way to provide site-to-site connectivity. It provides robust security services, such as data integrity, authentication, and encryption, ensuring that data sent across the network is protected from interception and tampering. Unlike other options, IPsec operates at the network layer and can secure all traffic that crosses the IP network, making it the most comprehensive and secure choice for site-to-site VPNs.References: CompTIA Network+ study materials and NIST Special Publication 800-77.

Explanation: A Client-to-Site VPN allows a remote user to securely connect to a company's internal network, providing access as if they were physically on-site.

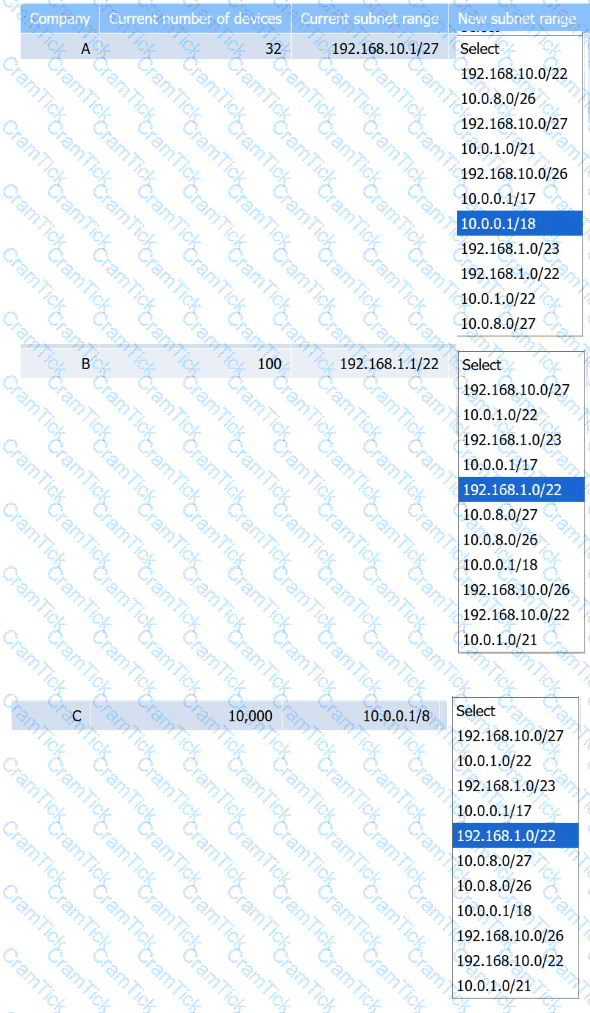

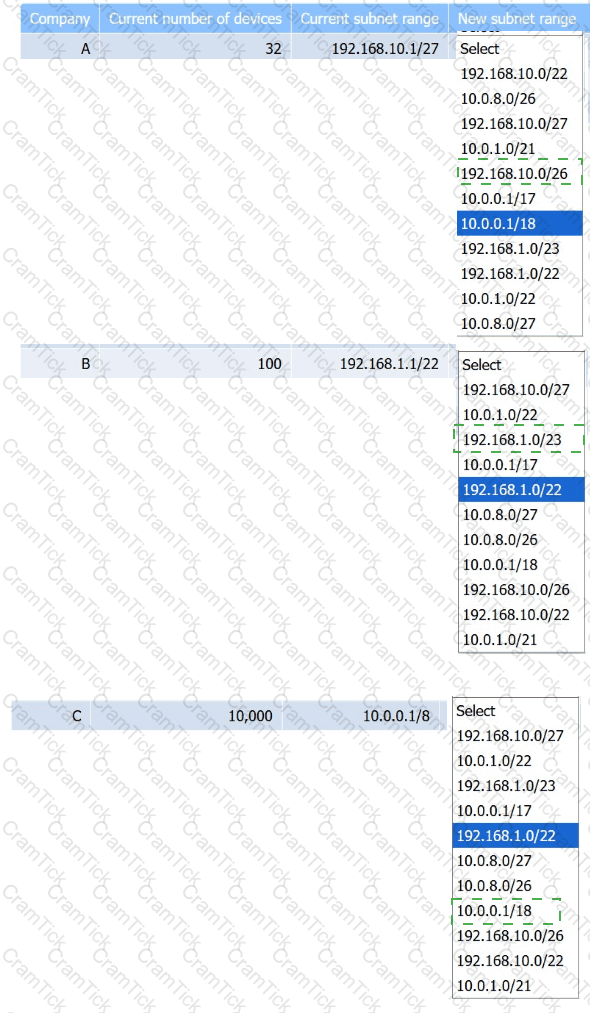

Understanding Subnetting:

Original Network: 192.168.1.0/24 has a subnet mask of 255.255.255.0, which allows for 256 IP addresses (including network and broadcast addresses).

Objective: Divide this network into two equal subnets.

Calculating Subnet Mask:

New Subnet Mask: To divide 192.168.1.0/24 into two equal halves, we need to borrow one bit from the host portion of the address, changing the subnet mask to 255.255.255.128 (/25).

Subnet Breakdown:

First Subnet: 192.168.1.0/25 (192.168.1.0 - 192.168.1.127)

Second Subnet: 192.168.1.128/25 (192.168.1.128 - 192.168.1.255)

Verification:

Each subnet now has 128 IP addresses (126 usable IP addresses, excluding the network and broadcast addresses).

Comparison with Other Options:

255.255.0.0 (/16): Provides a much larger network, not dividing the original /24 network.

255.255.254.0 (/23): Also creates a larger subnet, encompassing more than the original /24 network.

255.255.255.0 (/24): Maintains the original subnet size, not dividing it.

References:

CompTIA Network+ study materials on subnetting and IP addressing.

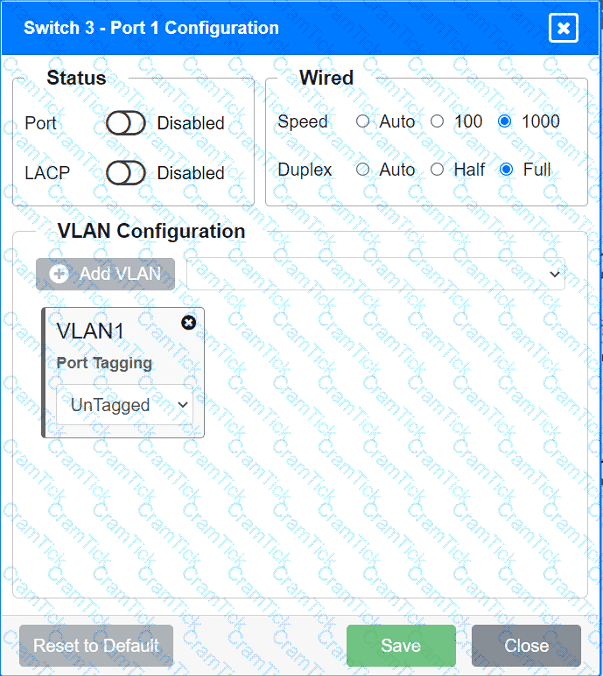

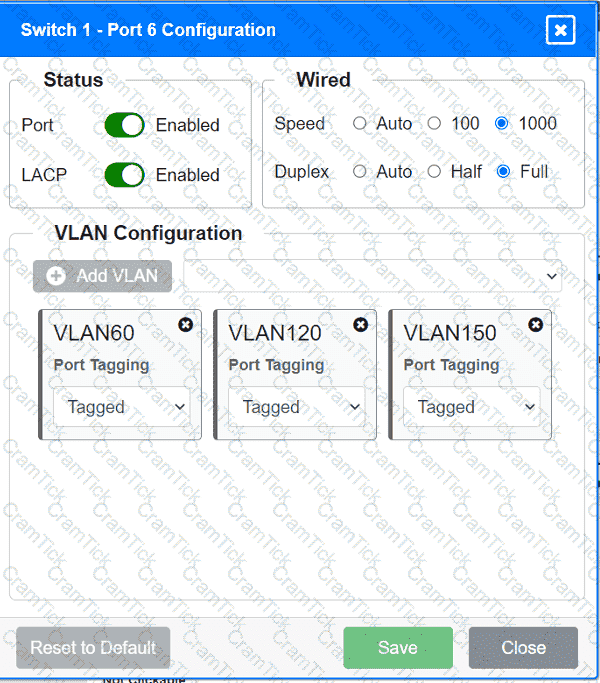

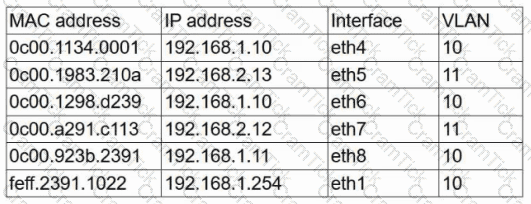

Explanation: It is common for an access port to have both a voice VLAN and a data VLAN. A voice VLAN separates voice traffic from regular data traffic, ensuring better quality and security for voice communications.

=================

Understanding Switches:

Layer 2 (Data Link Layer): Traditional switches operate primarily at Layer 2, where they use MAC addresses to forward frames within a local network.

Layer 3 (Network Layer): Layer 3 switches, also known as multilayer switches, can perform routing functions using IP addresses to forward packets between different networks.

Capabilities of Multilayer Switches:

VLANs and Inter-VLAN Routing: Multilayer switches can handle VLAN (Virtual Local Area Network) configurations and perform inter-VLAN routing, enabling communication between different VLANs.

Routing Protocols: They can run routing protocols like OSPF (Open Shortest Path First) and EIGRP (Enhanced Interior Gateway Routing Protocol) to manage traffic between networks.

Comparison with Other Devices:

Hub: Operates only at Layer 1 (Physical Layer) and simply repeats incoming signals to all ports.

Transceiver: Also operates at Layer 1, converting electrical signals to optical signals and vice versa.

Modem: Primarily operates at Layer 1 and Layer 2, modulating and demodulating signals for transmission over different types of media.

Practical Application:

Multilayer switches are commonly used in enterprise networks to optimize performance and manage complex routing and switching requirements within a single device.

References:

CompTIA Network+ study materials on network devices and the OSI model.

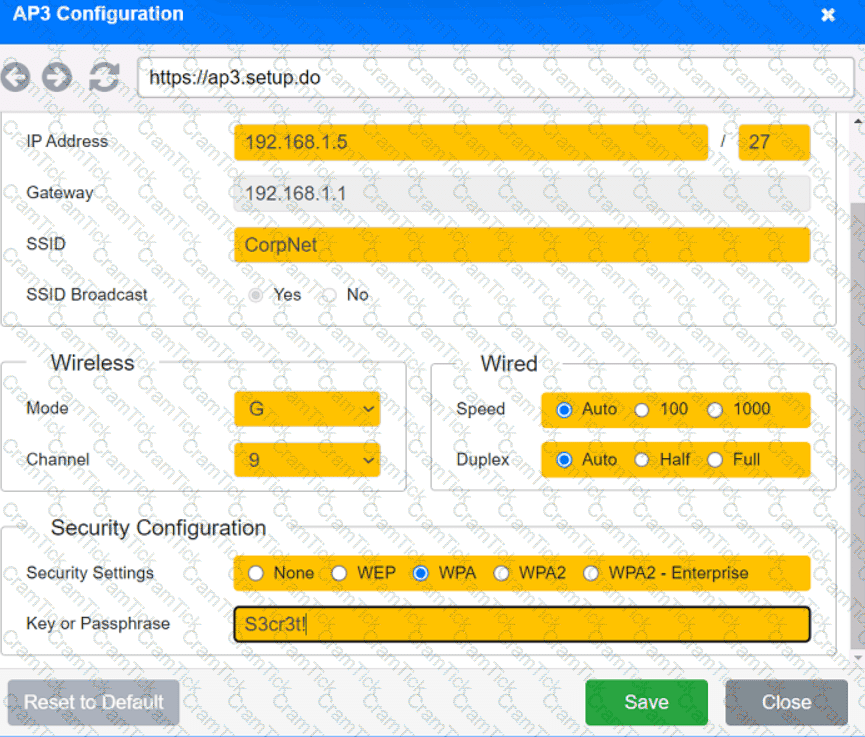

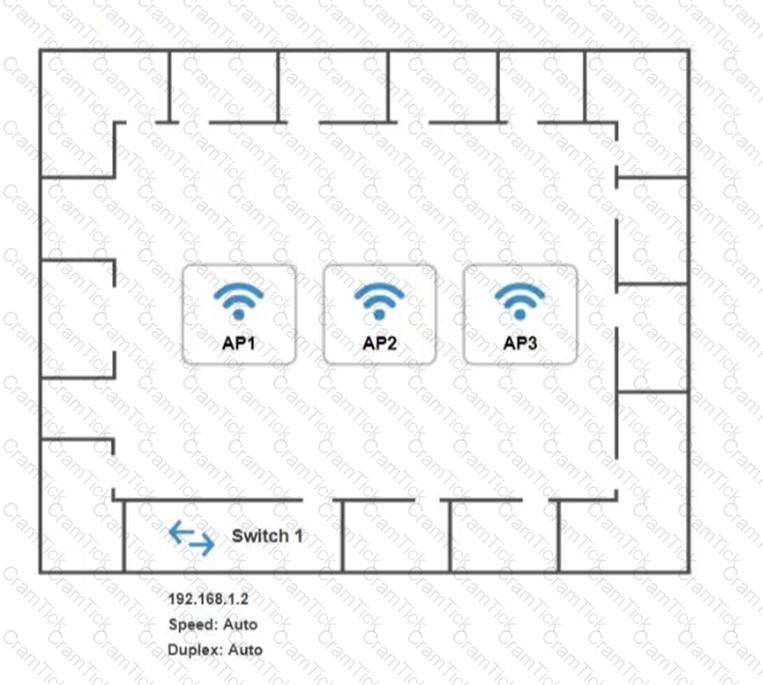

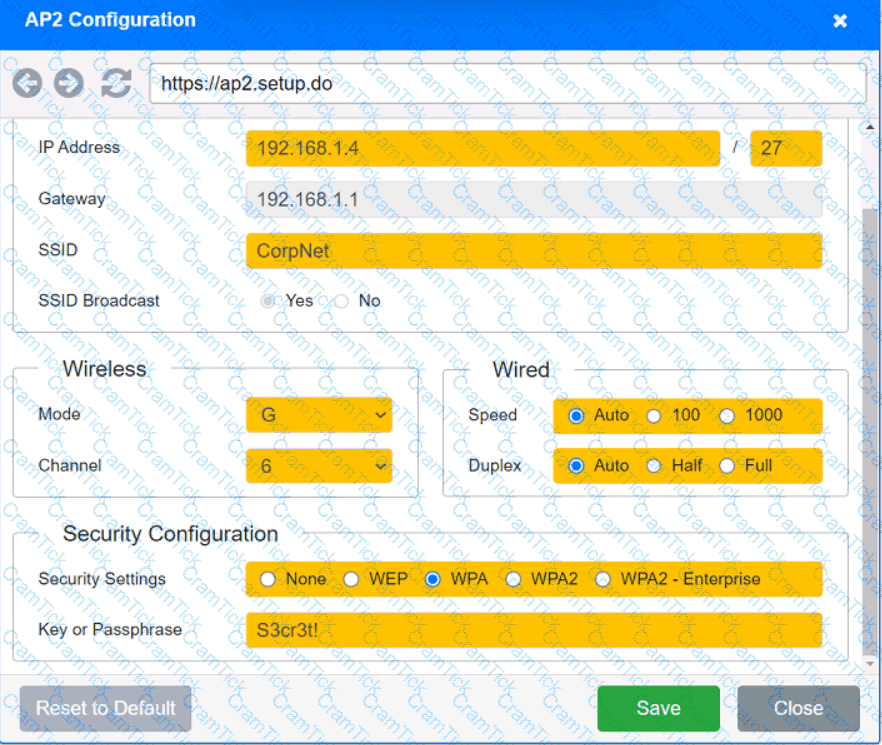

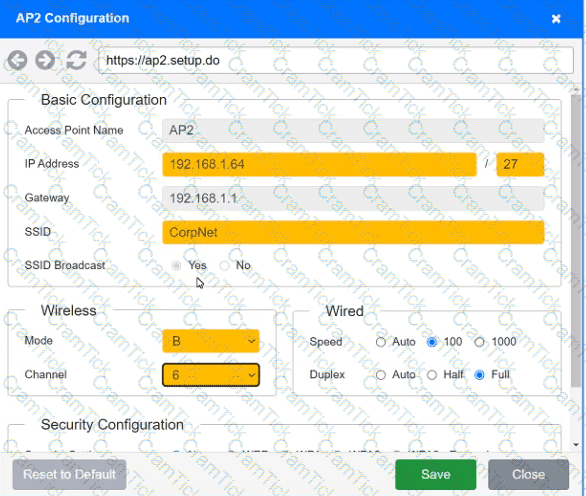

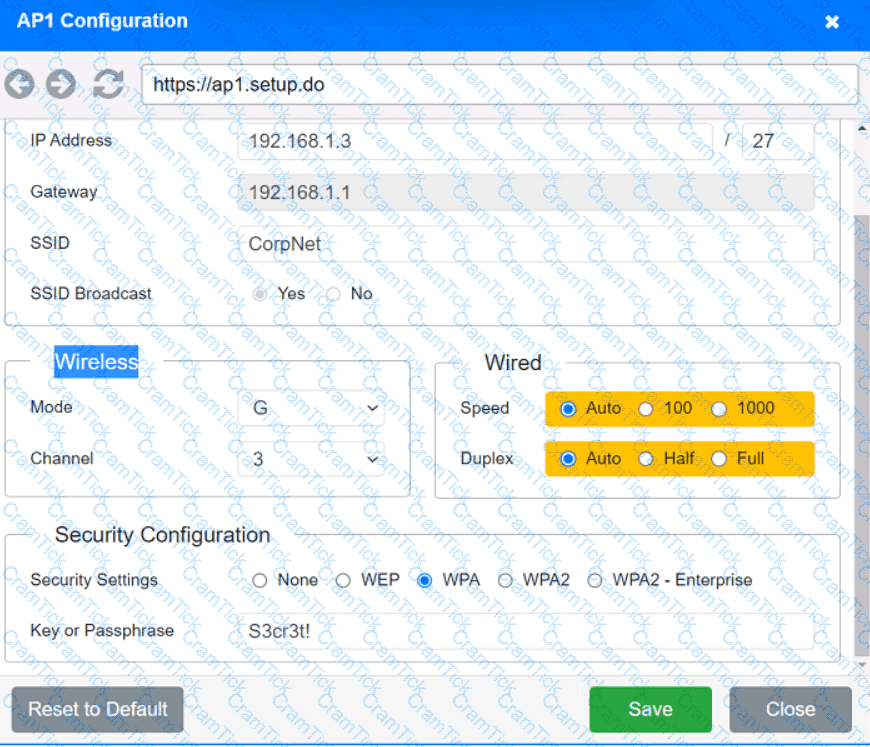

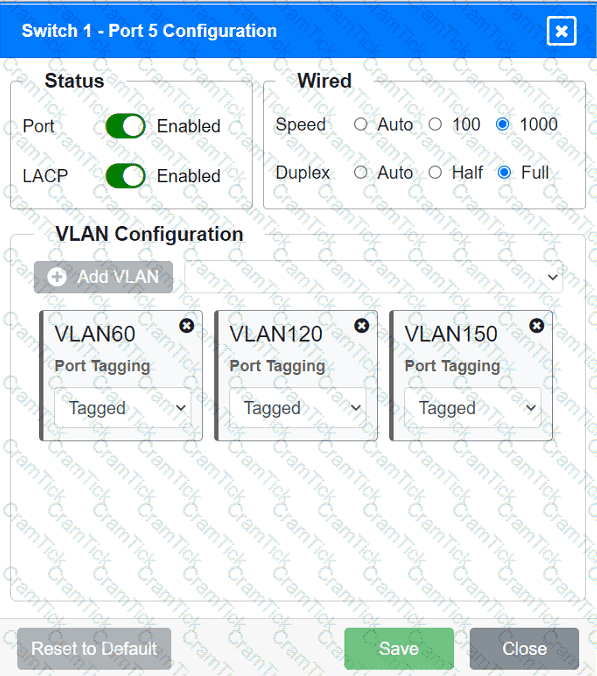

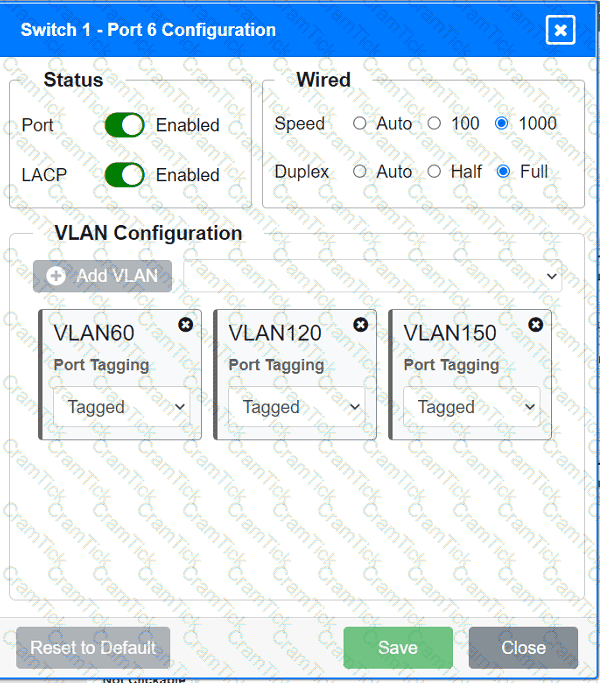

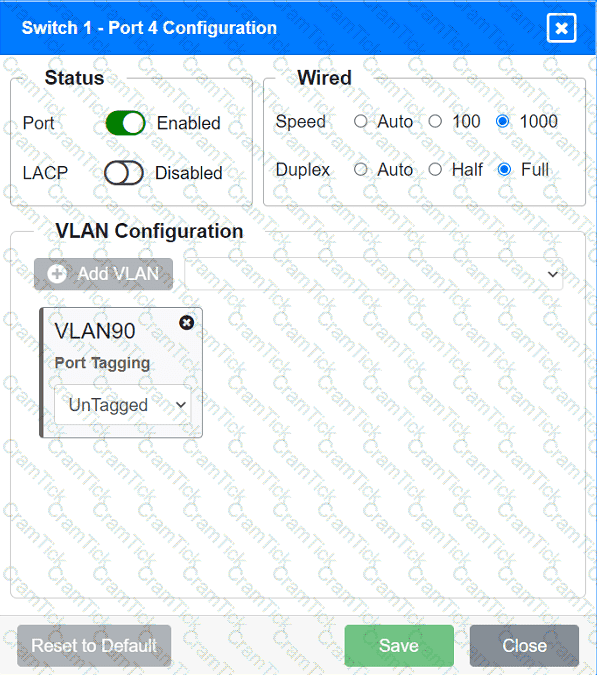

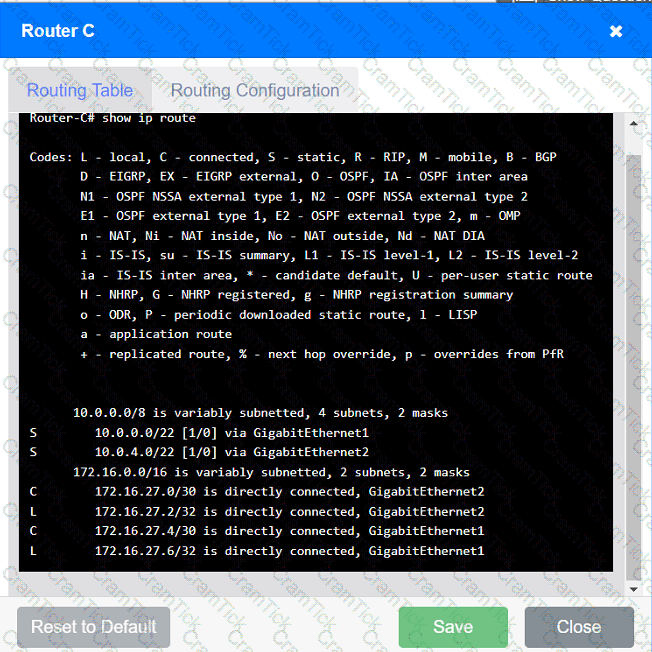

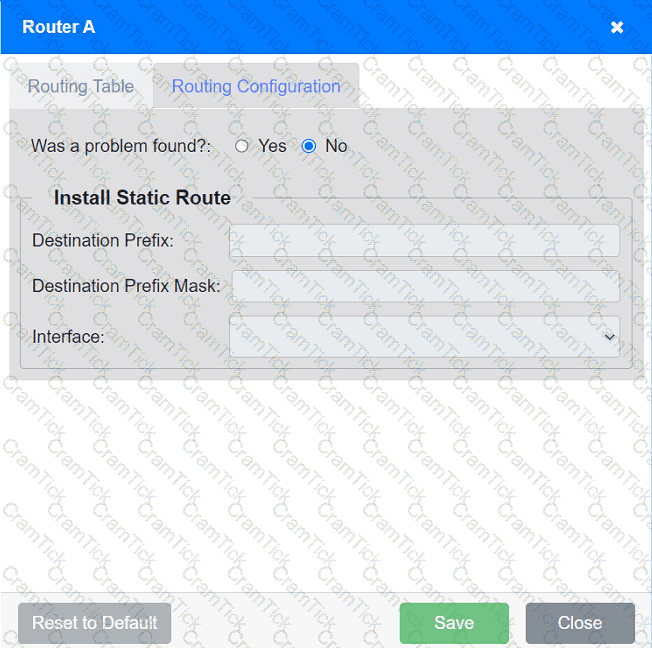

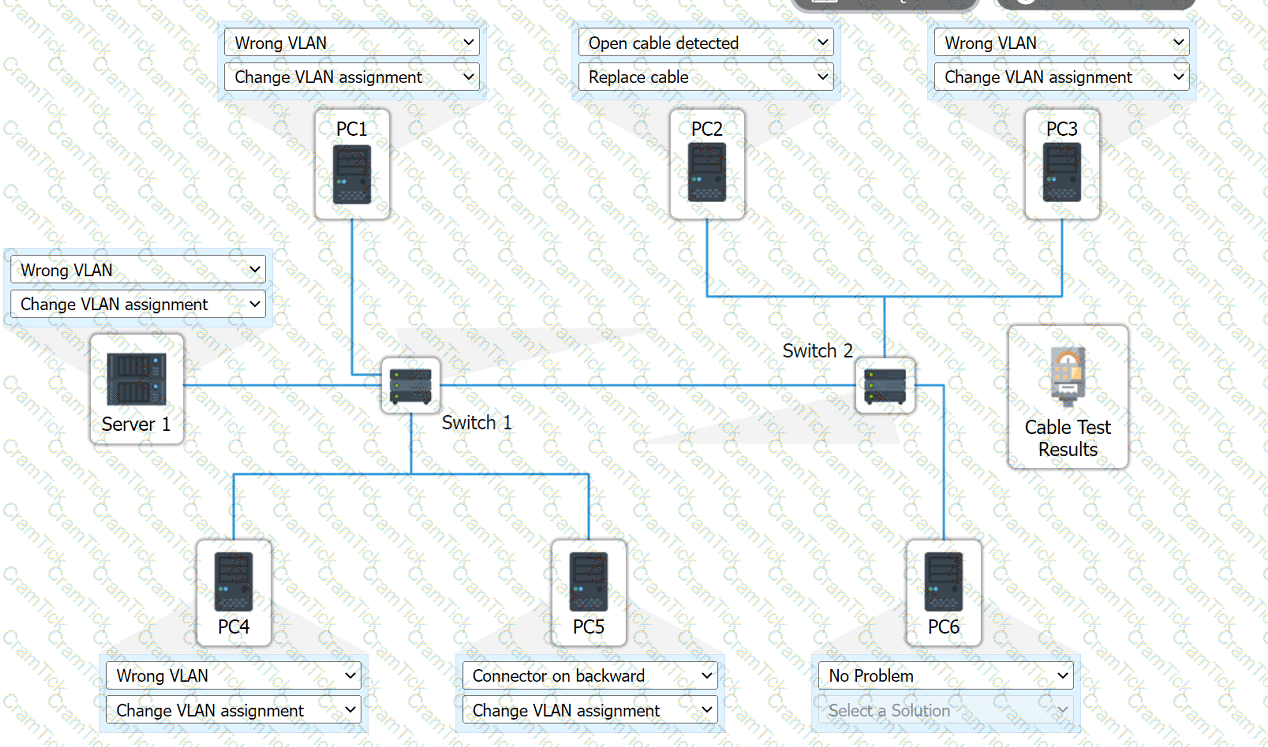

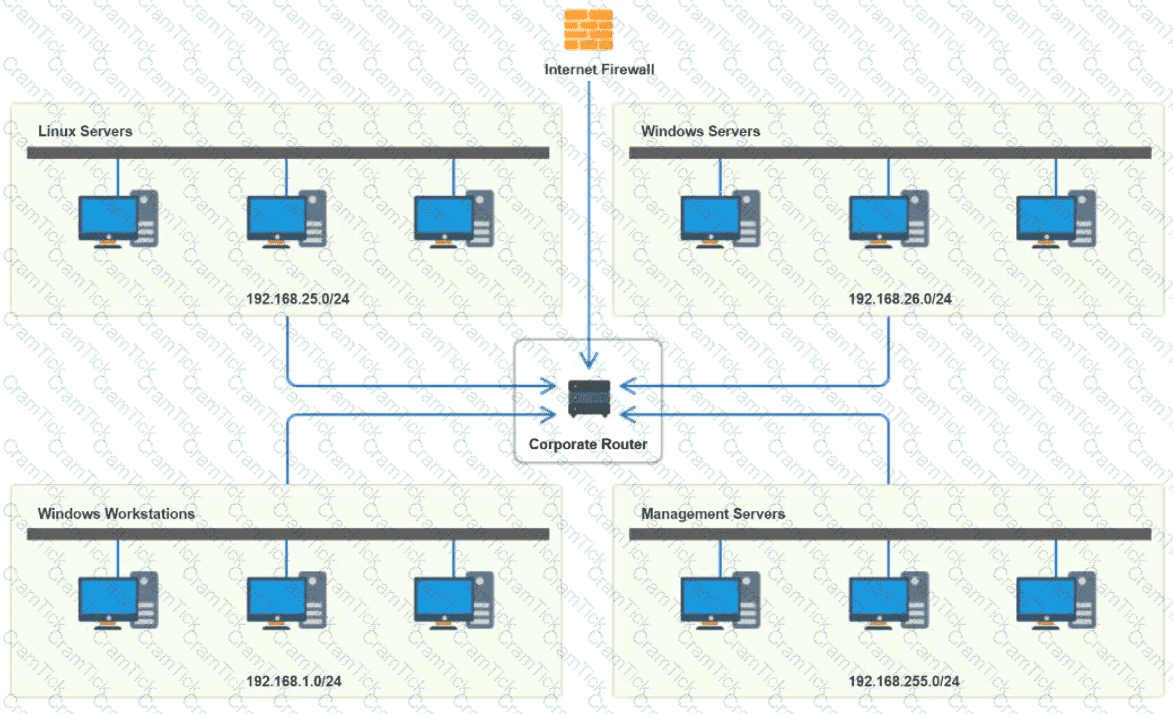

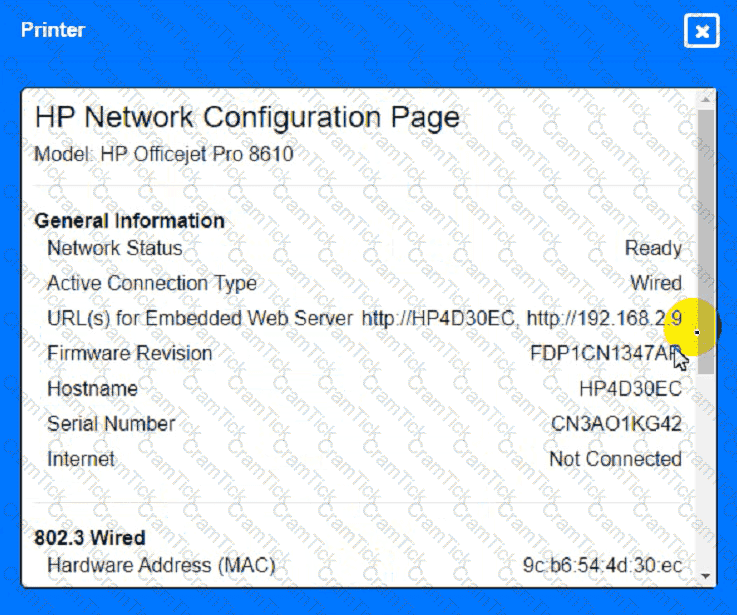

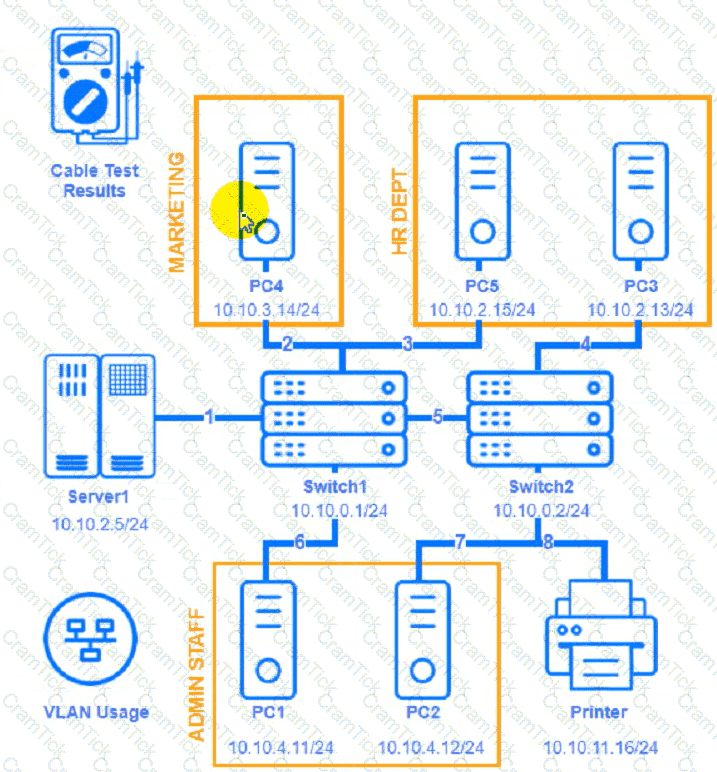

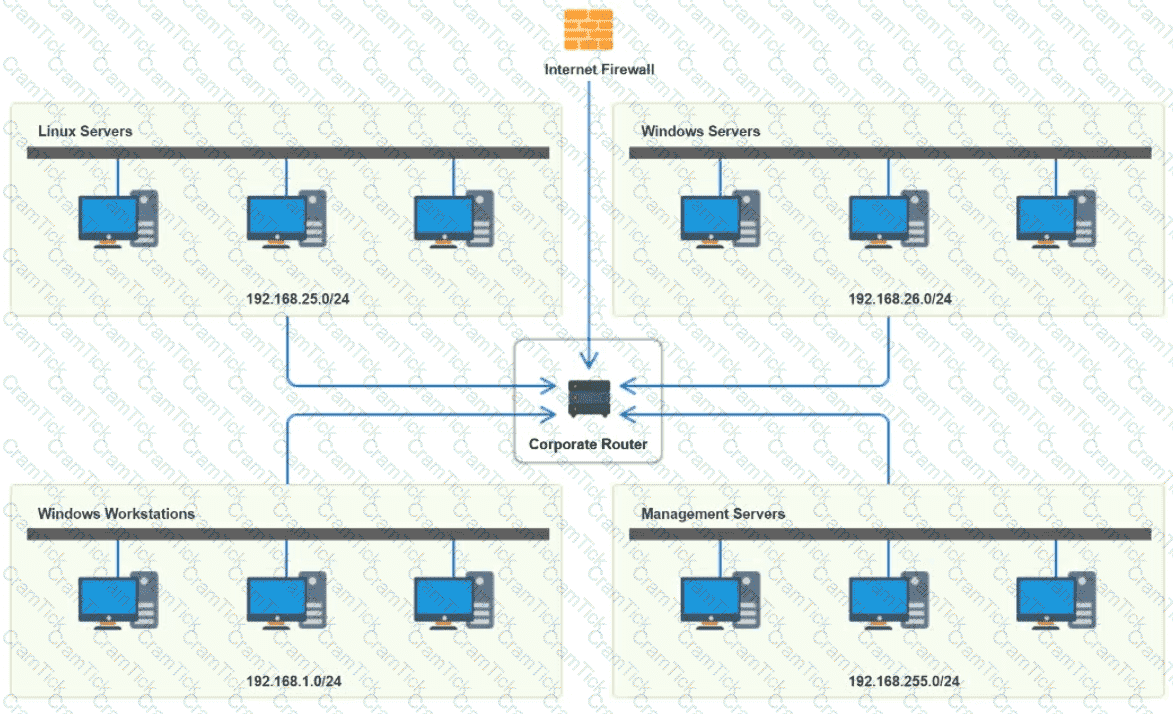

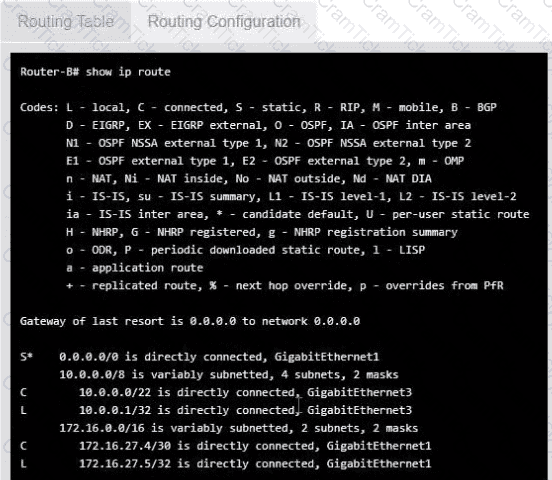

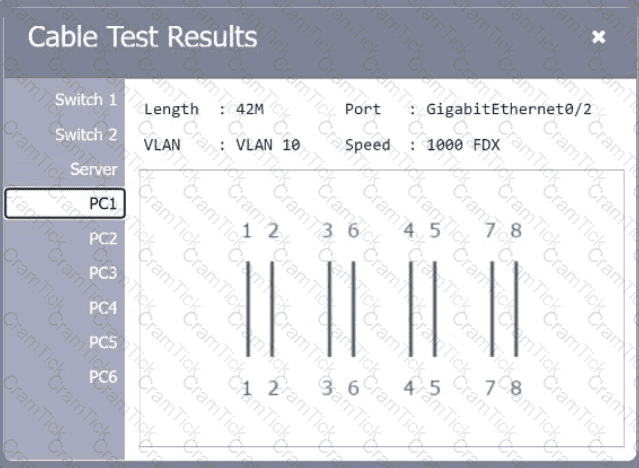

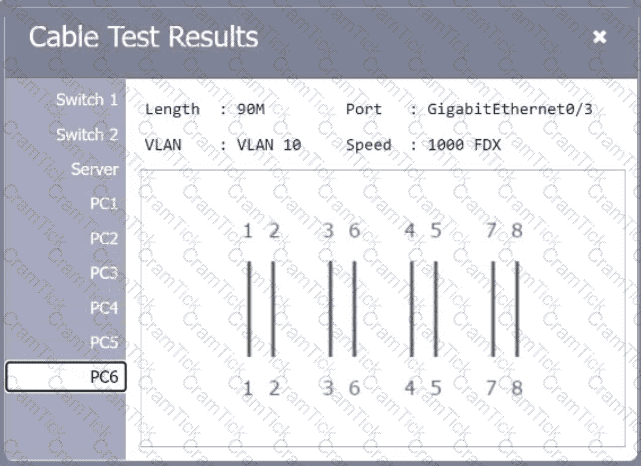

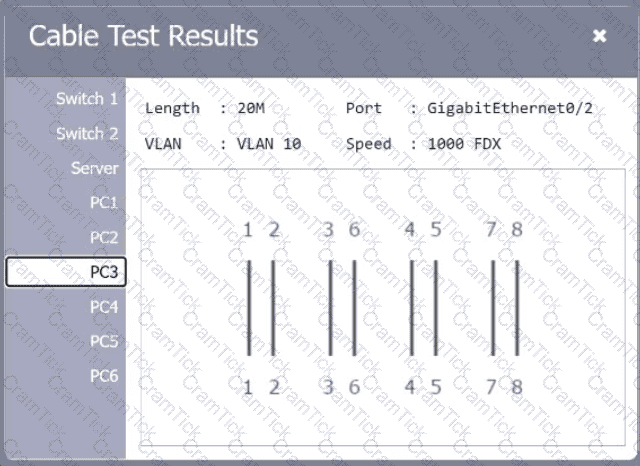

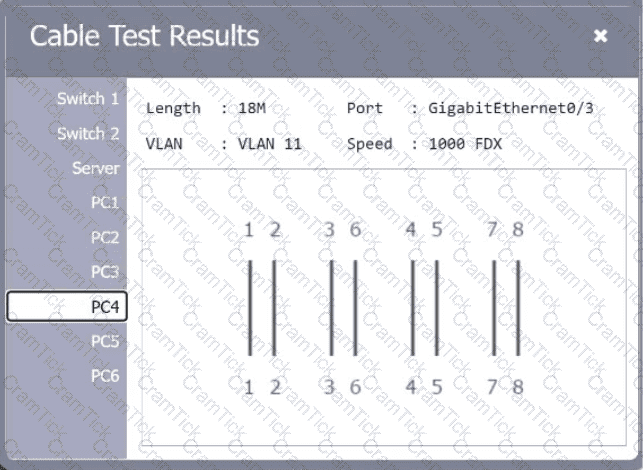

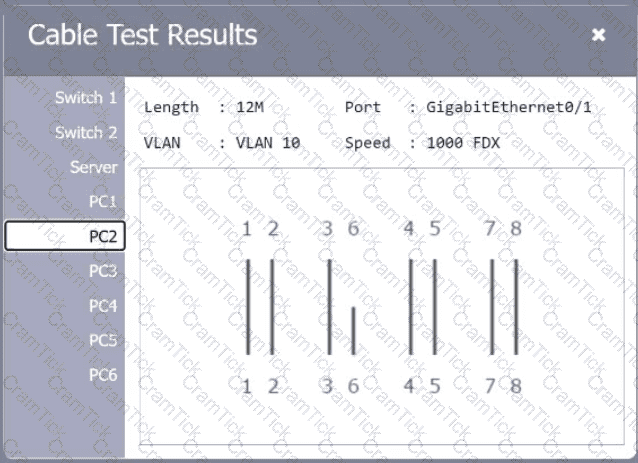

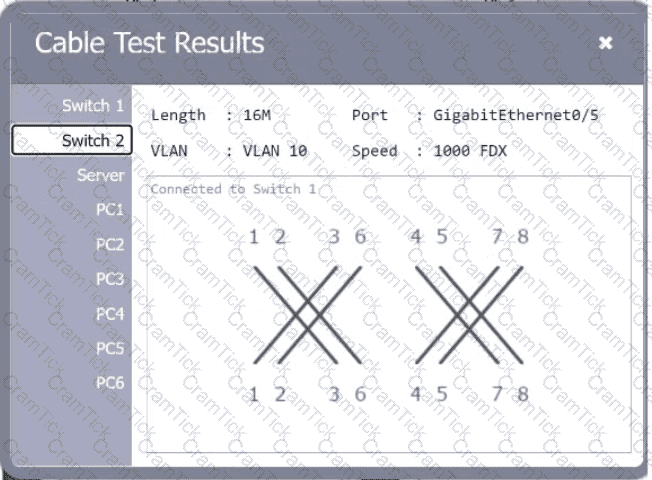

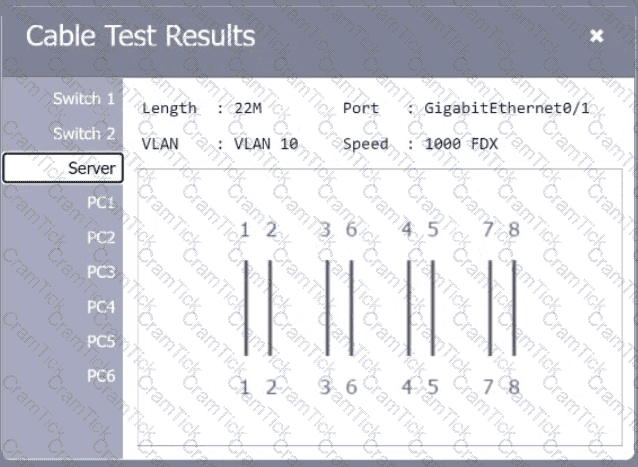

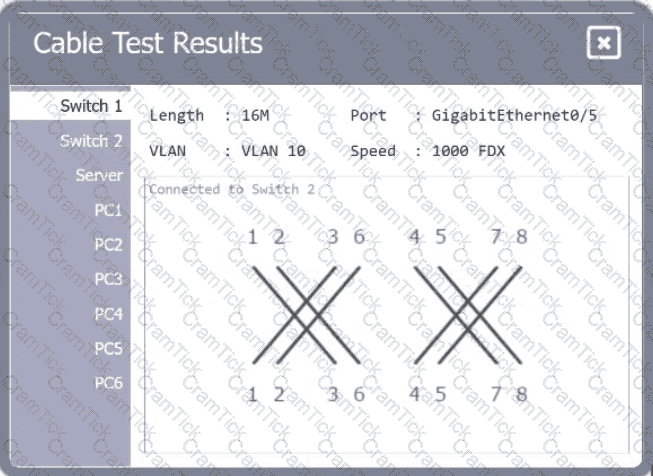

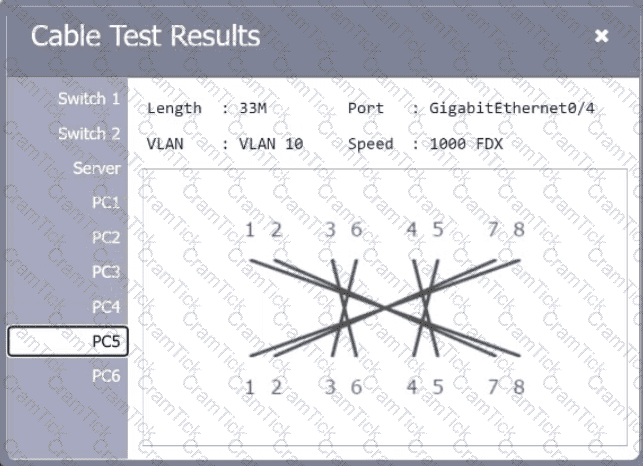

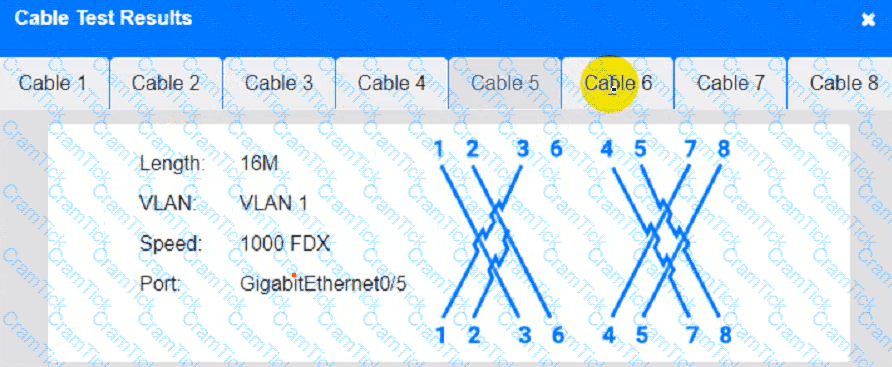

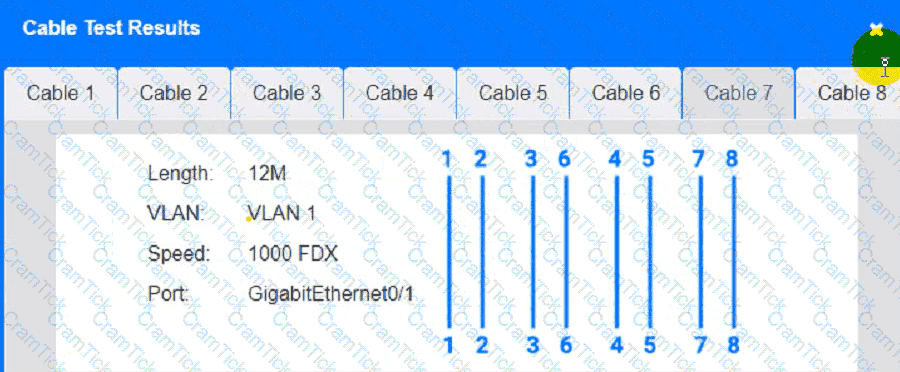

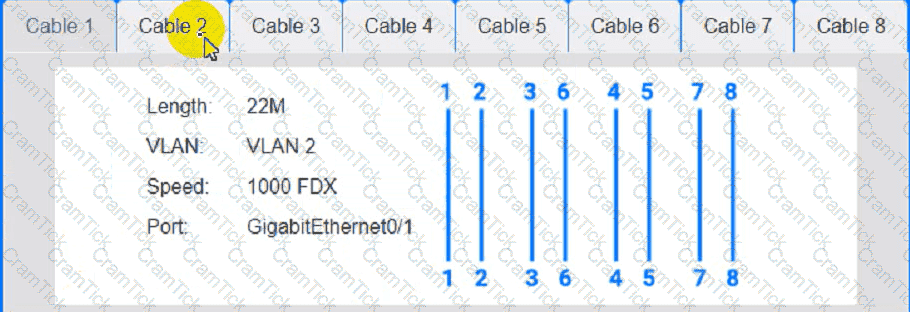

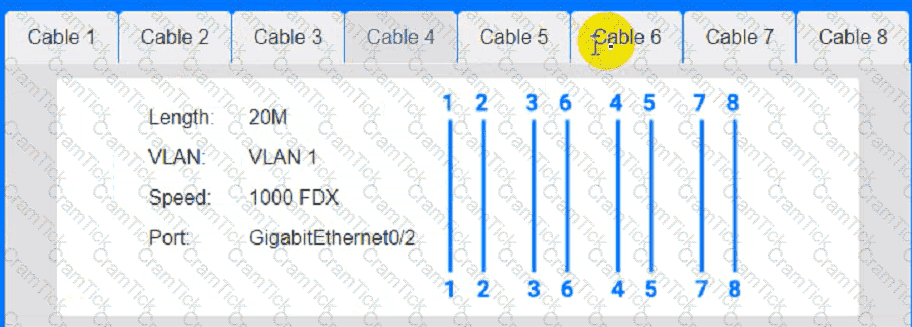

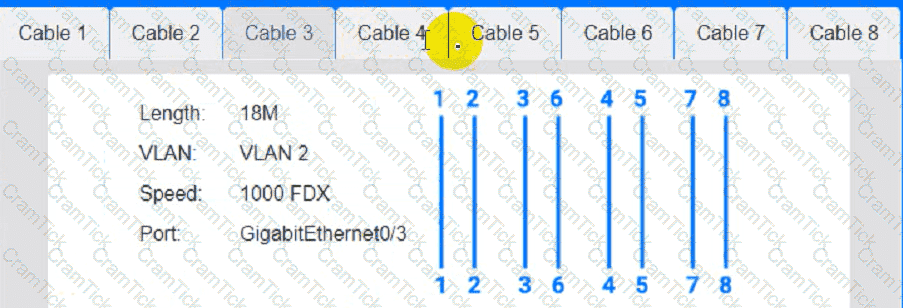

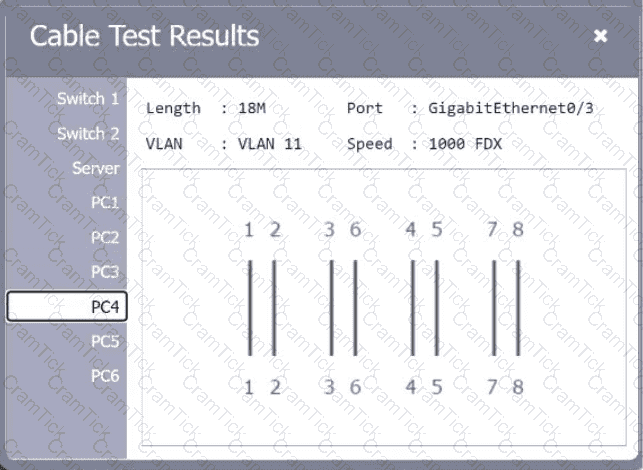

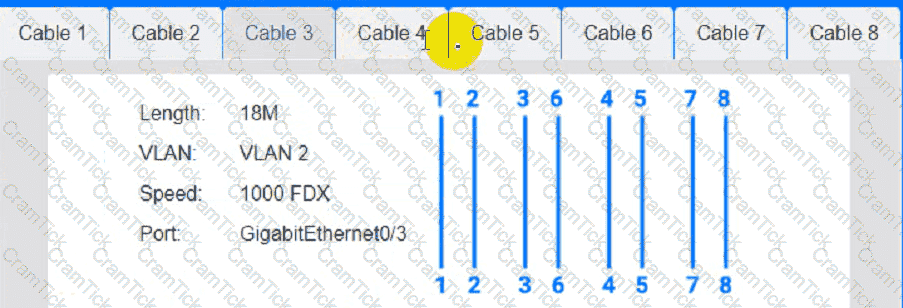

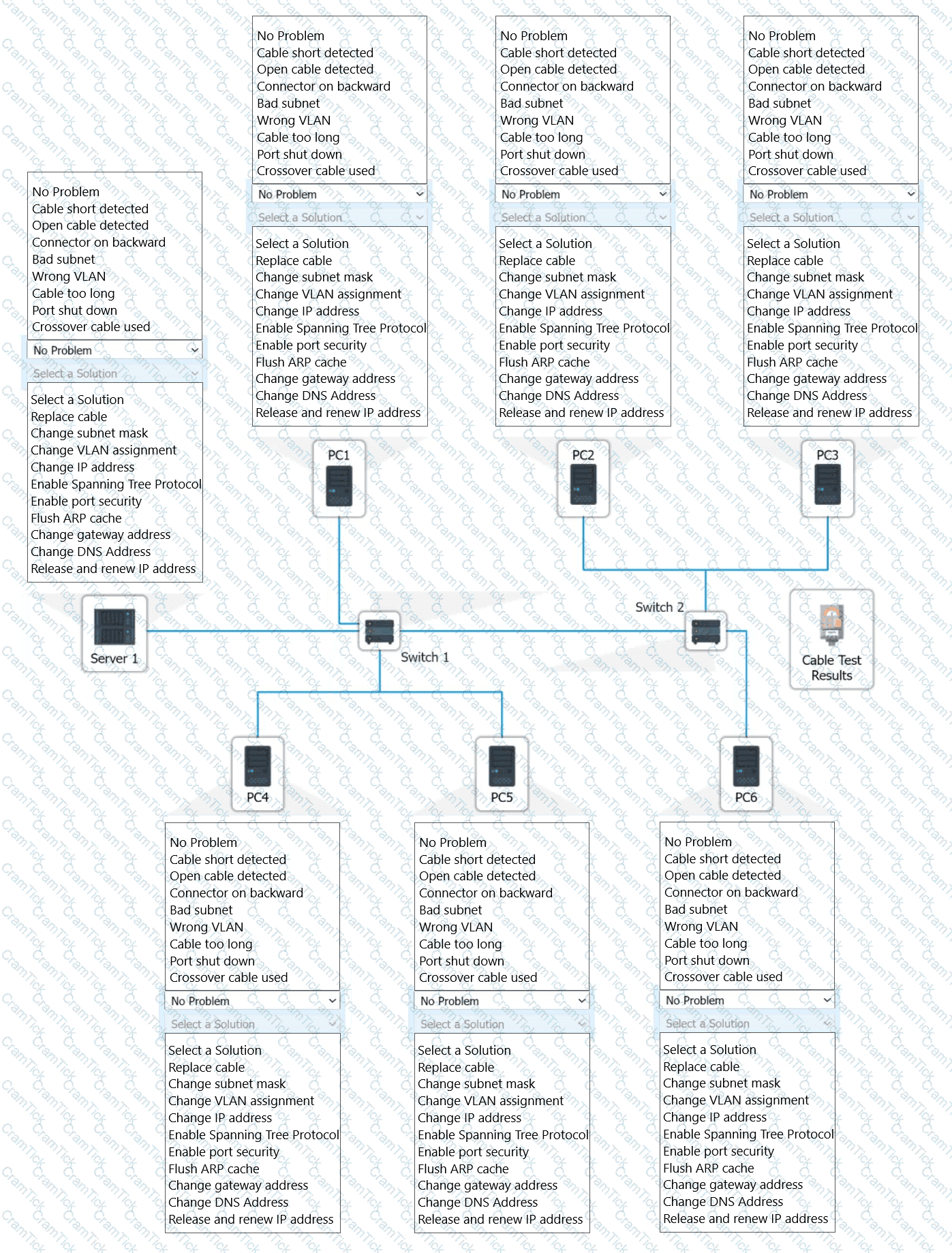

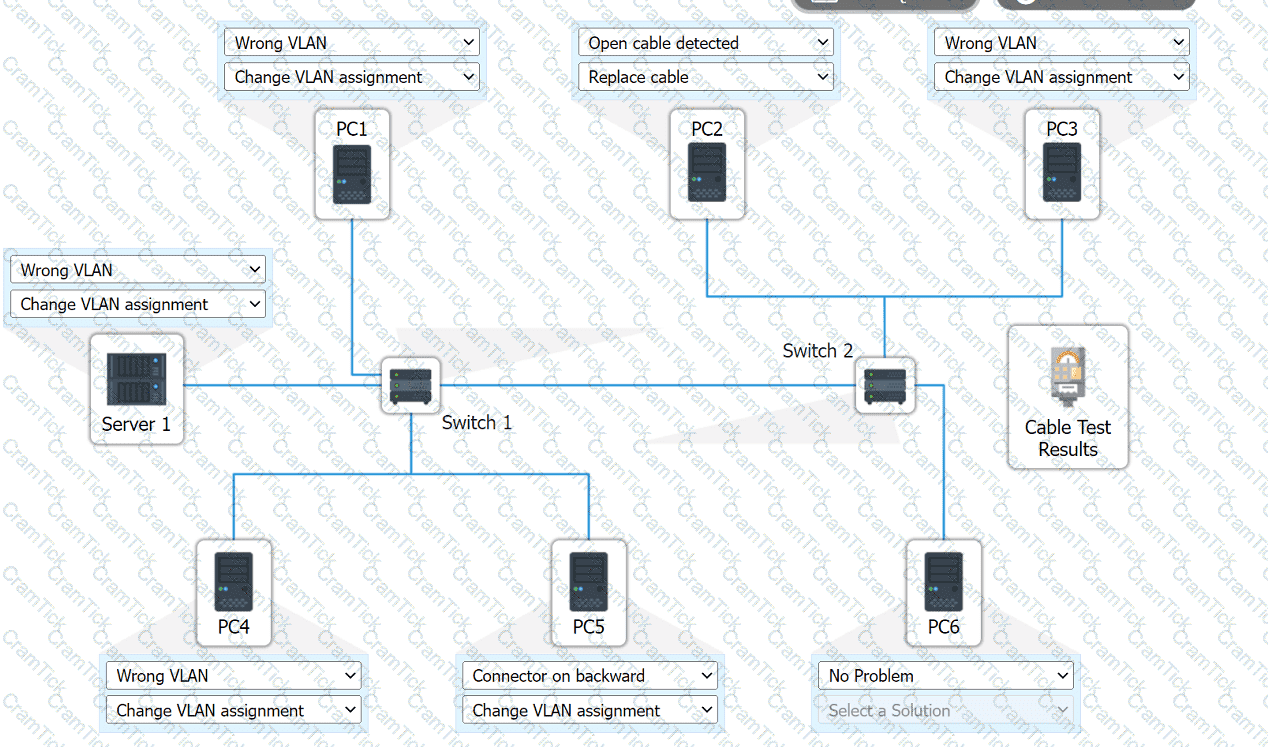

Explanation: A cable tester is a tool that can help identify issues with the physical cabling, such as breaks or improper terminations, which may prevent the access point from reaching the internet.

=================

An incorrect pinout on the patch cable could prevent network connectivity due to mismatched wiring. Even if the cables are the correct length and type, a pinout issue can cause continuity problems and prevent data transmission. Proper crimping with the correct pinout is essential for network cables to function. (Reference: CompTIA Network+ Study Guide, Chapter on Network Media and Topologies)

Understanding MTBF:

Mean Time Between Failures (MTBF): A reliability metric that estimates the average time between successive failures of a device or system.

Calculation and Importance:

Calculation: MTBF is calculated as the total operational time divided by the number of failures during that period.

Usage: Used by manufacturers and engineers to predict the lifespan and reliability of a device, helping in maintenance planning and lifecycle management.

Comparison with Other Metrics:

RTO (Recovery Time Objective): The maximum acceptable time to restore a system after a failure.

RPO (Recovery Point Objective): The maximum acceptable amount of data loss measured in time.

MTTR (Mean Time to Repair): The average time required to repair a device or system and return it to operational status.

Application:

MTBF is crucial for planning maintenance schedules, spare parts inventory, and improving the overall reliability of systems.

References:

CompTIA Network+ study materials on reliability and maintenance metrics.

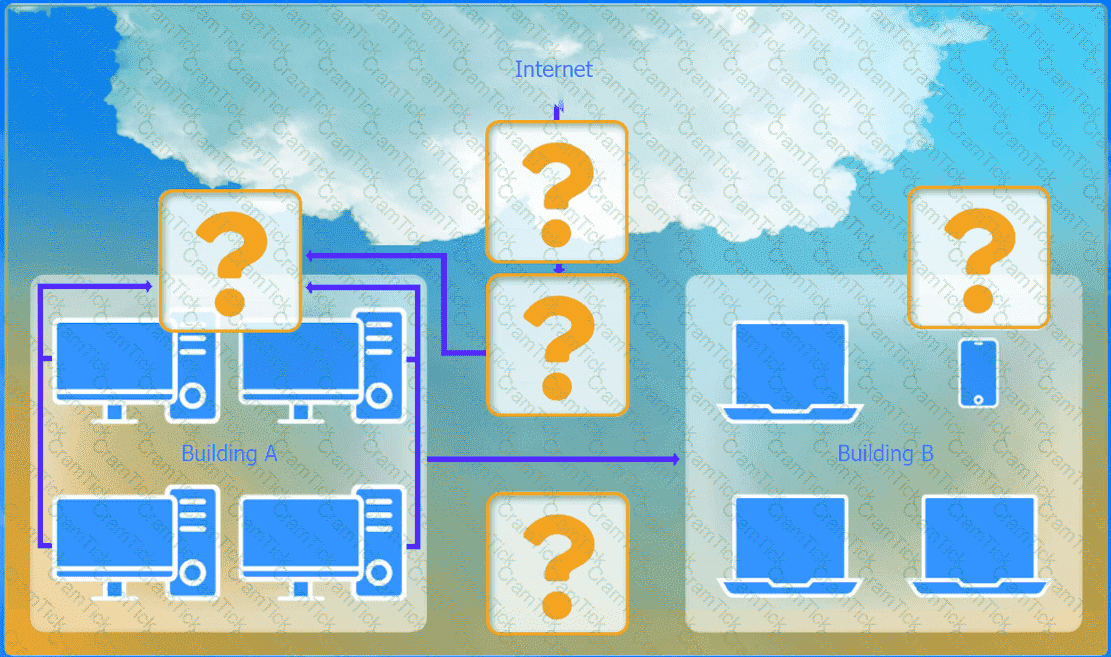

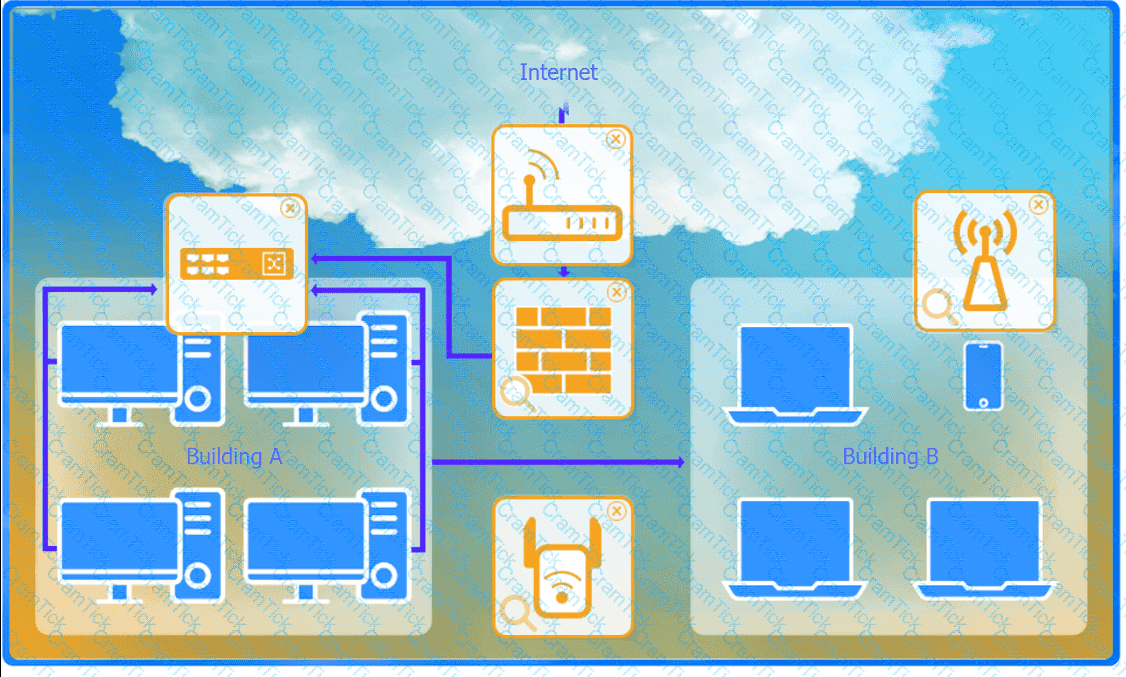

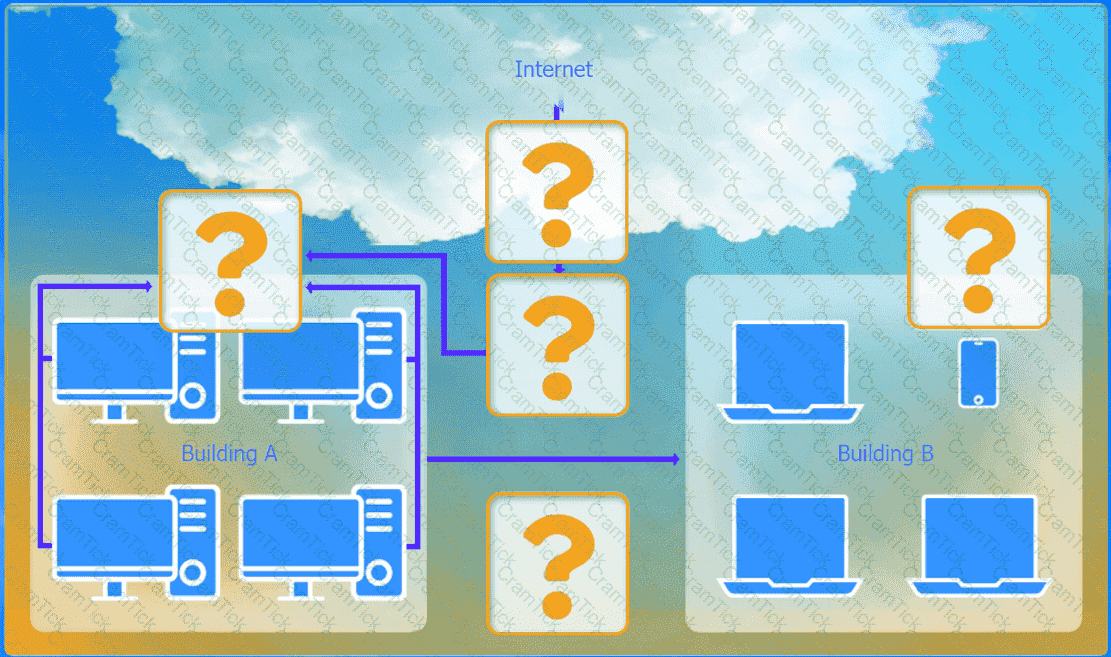

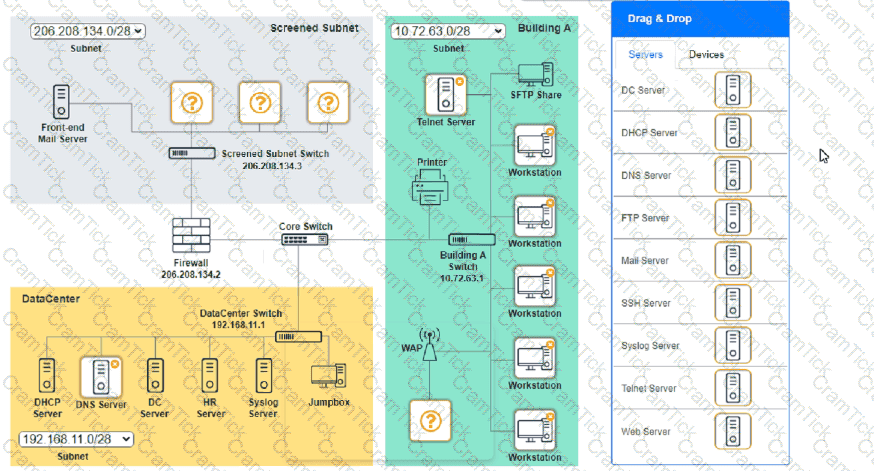

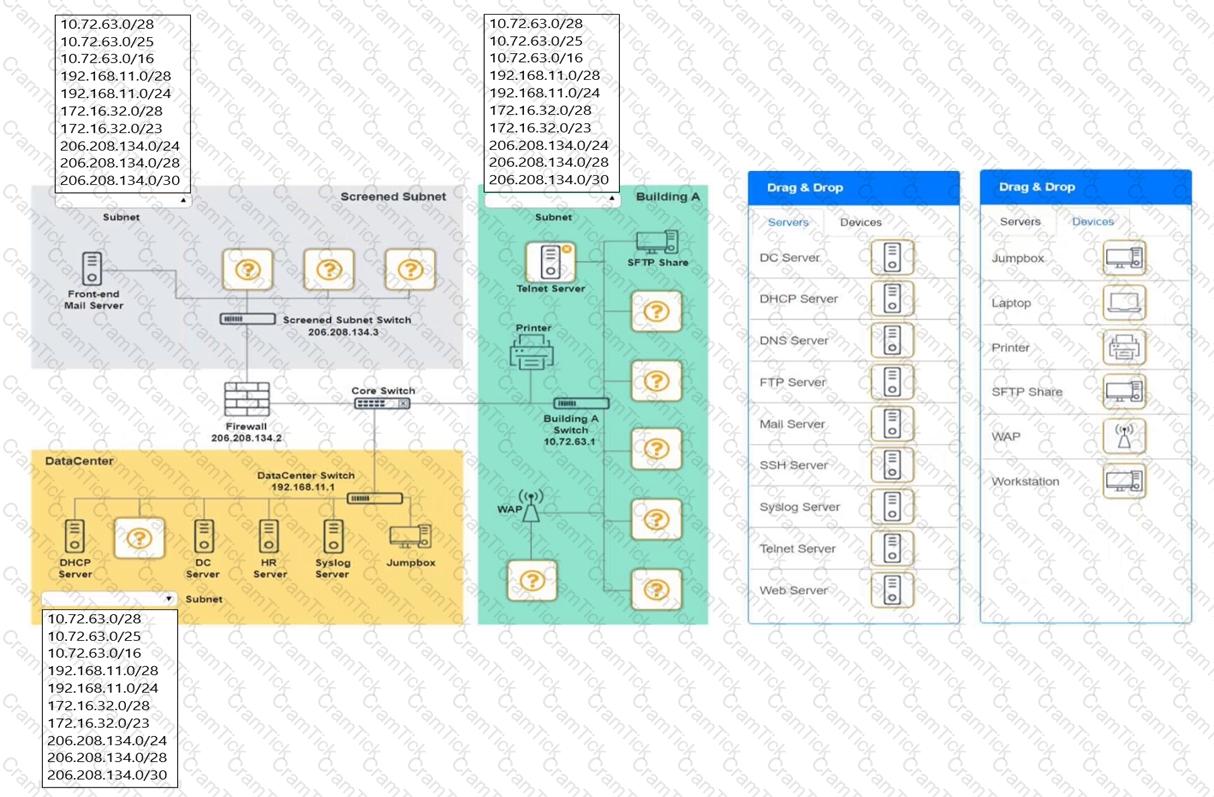

Devices in both buildings should be able to access the Internet.

Security insists that all Internet traffic be inspected before entering the network.

Desktops should not see traffic destined for other devices.

Here is the corrected layout with explanation:

Building A:

Switch: Correctly placed to connect all desktops.

Firewall: Correctly placed to inspect all incoming and outgoing traffic.

Building B:

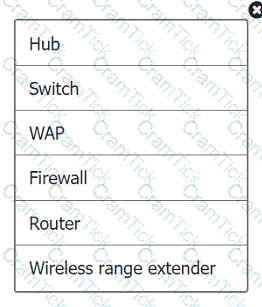

Switch: Not needed. Instead, place a Wireless Access Point (WAP) to provide wireless connectivity for laptops and mobile devices.

Between Buildings:

Wireless Range Extender: Correctly placed to provide connectivity between the buildings wirelessly.

Connection to the Internet:

Router: Correctly placed to connect to the Internet and route traffic between the buildings and the Internet.

Firewall: The firewall should be placed between the router and the internal network to inspect all traffic before it enters the network.

Corrected Setup:

Top-left (Building A): Switch

Bottom-left (Building A): Firewall (inspect traffic before it enters the network)

Top-middle (Internet connection): Router

Bottom-middle (between buildings): Wireless Range Extender

Top-right (Building B): Wireless Access Point (WAP)

In this corrected setup, the WAP in Building B will connect wirelessly to the Wireless Range Extender, which is connected to the Router. The Router is connected to the Firewall to ensure all traffic is inspected before it enters the network.

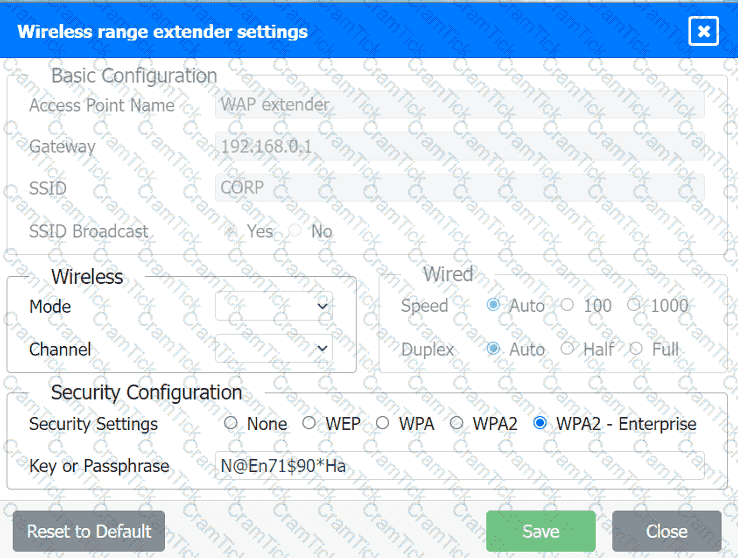

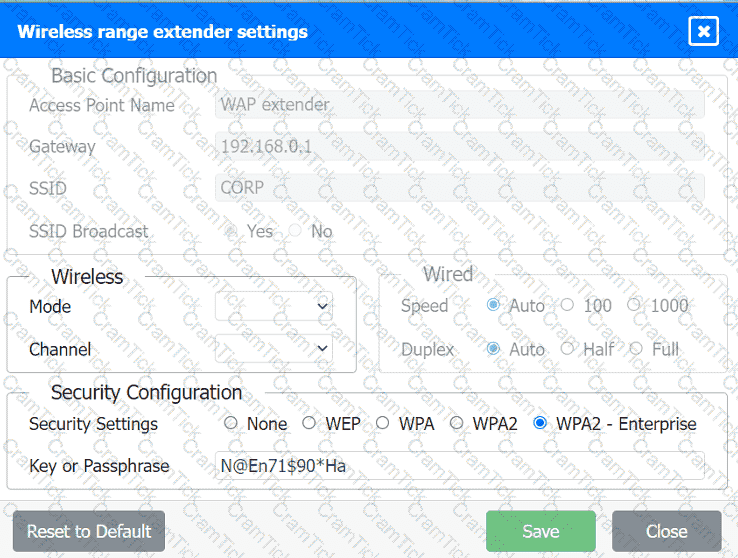

Configuration for Wireless Range Extender:

SSID: CORP

Security Settings: WPA2 or WPA2 - Enterprise

Key or Passphrase: [Enter a strong passphrase]

Mode: [Set based on your network plan]

Channel: [Set based on your network plan]

Speed: Auto

Duplex: Auto

With these settings, both buildings will have secure access to the Internet, and all traffic will be inspected by the firewall before entering the network. Desktops and other devices will not see traffic intended for others, maintaining the required security and privacy.

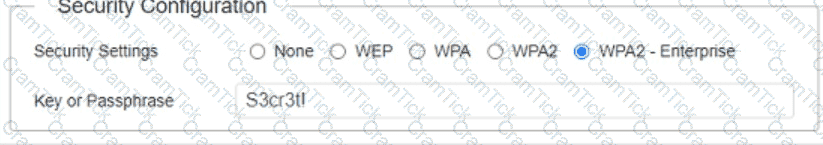

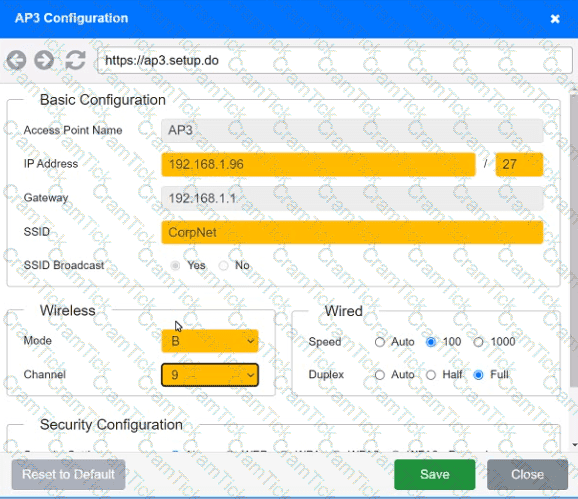

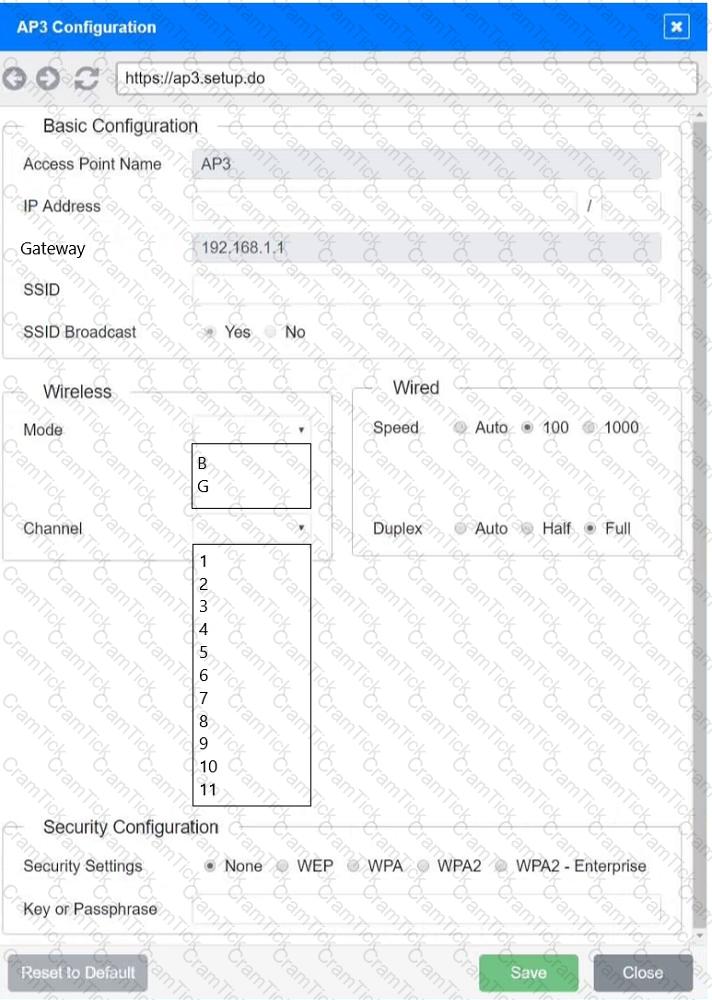

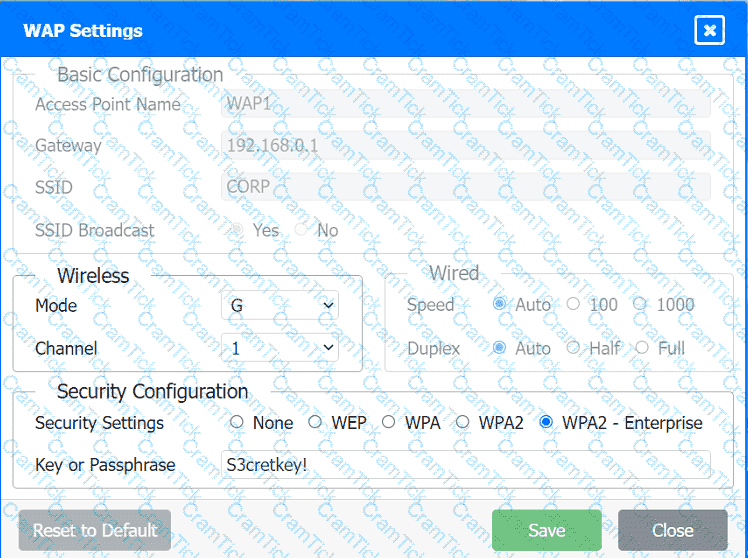

To configure the wireless range extender for security, follow these steps:

SSID (Service Set Identifier):

Ensure the SSID is set to "CORP" as shown in the exhibit.

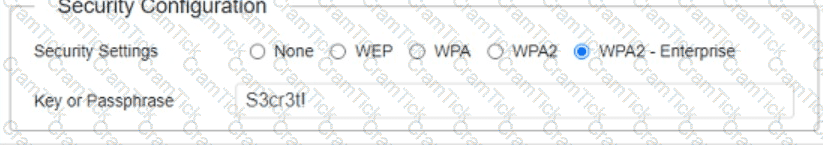

Security Settings:

WPA2 or WPA2 - Enterprise: Choose one of these options for stronger security. WPA2-Enterprise provides more robust security with centralized authentication, which is ideal for a corporate environment.

Key or Passphrase:

If you select WPA2, enter a strong passphrase in the "Key or Passphrase" field.

If you select WPA2 - Enterprise, you will need to configure additional settings for authentication servers, such as RADIUS, which is not shown in the exhibit.

Wireless Mode and Channel:

Set the appropriate mode and channel based on your network design and the environment to avoid interference. These settings are not specified in the exhibit, so set them according to your network plan.

Wired Speed and Duplex:

Set the speed to "Auto" unless you have specific requirements for 100 or 1000 Mbps.

Set the duplex to "Auto" unless you need to specify half or full duplex based on your network equipment.

Save Configuration:

After making the necessary changes, click the "Save" button to apply the settings.

Here is how the configuration should look after adjustments:

SSID: CORP

Security Settings: WPA2 or WPA2 - Enterprise

Key or Passphrase: [Enter a strong passphrase]

Mode: [Set based on your network plan]

Channel: [Set based on your network plan]

Speed: Auto

Duplex: Auto

Once these settings are configured, your wireless range extender will provide secure connectivity for devices in both buildings.

Firewall setting to to ensure complete compliance with the requirements and best security practices, consider the following adjustments and additions:

DNS Rule: This rule allows DNS traffic from the internal network to any destination, which is fine.

HTTPS Outbound: This rule allows HTTPS traffic from the internal network (assuming 192.169.0.1/24 is a typo and should be 192.168.0.1/24) to any destination, which is also good for secure web browsing.

Management: This rule allows SSH access to the firewall for management purposes, which is necessary for administrative tasks.

HTTPS Inbound: This rule denies inbound HTTPS traffic to the internal network, which is good unless you have a web server that needs to be accessible from the internet.

HTTP Inbound: This rule denies inbound HTTP traffic to the internal network, which is correct for security purposes.

Suggested Additional Settings:

Permit General Outbound Traffic: Allow general outbound traffic for web access, email, etc.

Block All Other Traffic: Ensure that all other traffic is blocked to prevent unauthorized access.

Firewall Configuration Adjustments:

Correct the Network Typo:

Ensure that the subnet 192.169.0.1/24 is corrected to 192.168.0.1/24.

Permit General Outbound Traffic:

Rule Name: General Outbound

Source: 192.168.0.1/24

Destination: ANY

Service: ANY

Action: PERMIT

Deny All Other Traffic:

Rule Name: Block All

Source: ANY

Destination: ANY

Service: ANY

Action: DENY

Here is how your updated firewall settings should look:

Rule Name

Source

Destination

Service

Action

DNS Rule

192.168.0.1/24

ANY

DNS

PERMIT

HTTPS Outbound

192.168.0.1/24

ANY

HTTPS

PERMIT

Management

ANY

192.168.0.1/24

SSH

PERMIT

HTTPS Inbound

ANY

192.168.0.1/24

HTTPS

DENY

HTTP Inbound

ANY

192.168.0.1/24

HTTP

DENY

General Outbound

192.168.0.1/24

ANY

ANY

PERMIT

Block All

ANY

ANY

ANY

DENY

These settings ensure that:

Internal devices can access DNS and HTTPS services externally.

Management access via SSH is permitted.

Inbound HTTP and HTTPS traffic is denied unless otherwise specified.

General outbound traffic is allowed.

All other traffic is blocked by default, ensuring a secure environment.

Make sure to save the settings after making these adjustments.

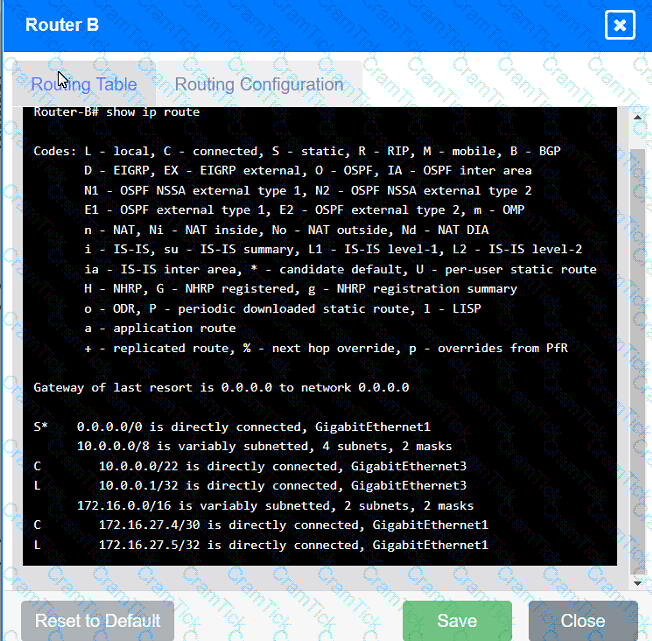

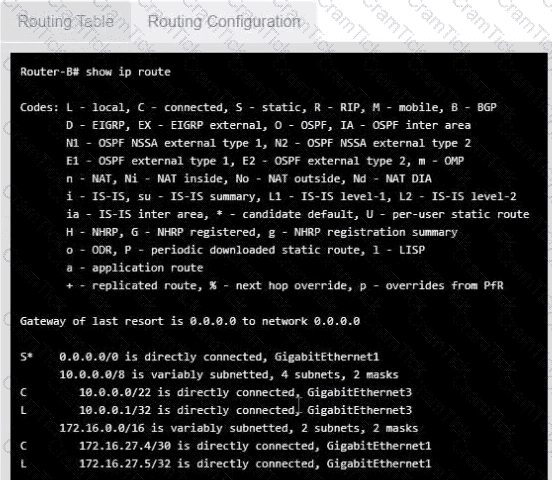

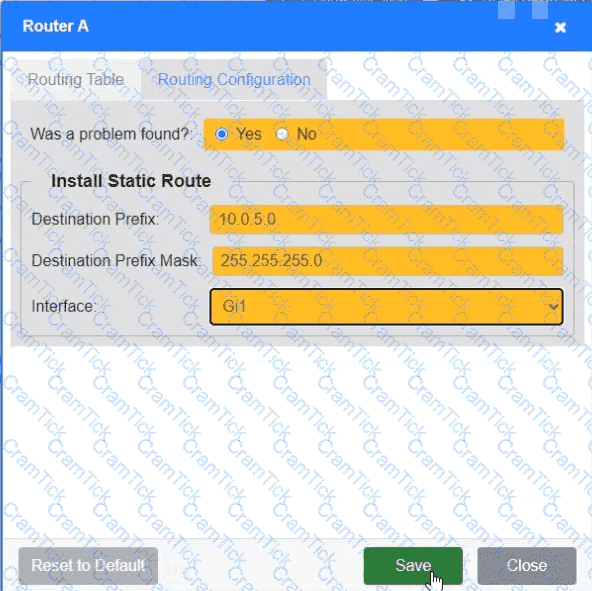

Introduction to Administrative Distance

Administrative distance (AD) is a value used by routers to rank routes from different routing protocols. AD represents the trustworthiness of the source of the route. Lower AD values are more preferred. If a router has multiple routes to a destination from different sources, it will choose the route with the lowest AD.

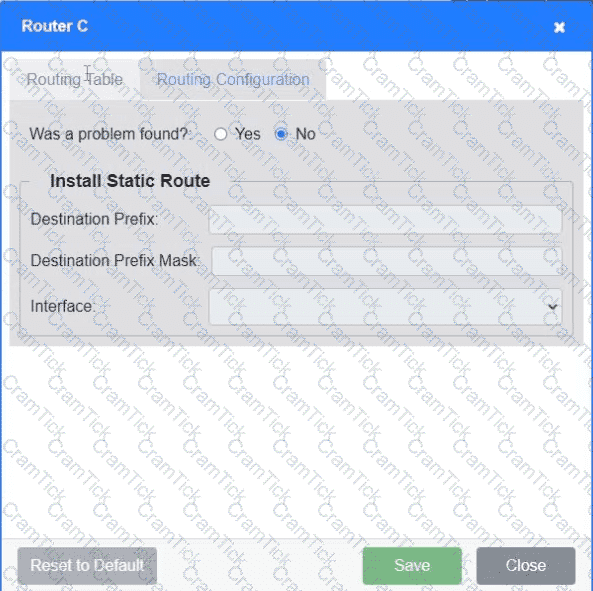

Static Routes and Backup Routes

When a dynamic routing protocol is not used, static routes can be employed. Static routes are manually configured routes. To ensure a backup route, multiple static routes to the same destination can be configured with different AD values.

Configuring Static Routes with Administrative Distance

The primary route is configured with a lower AD value, making it the preferred route. The backup route is configured with a higher AD value. In the event of the primary route failure, the router will then use the backup route.

Example Configuration:

plaintext

Copy code

ip route 192.168.1.0 255.255.255.0 10.0.0.1 1

ip route 192.168.1.0 255.255.255.0 10.0.0.2 10

In the above example, 192.168.1.0/24 is the destination network.

10.0.0.1 is the next-hop IP address for the primary route with an AD of 1.

10.0.0.2 is the next-hop IP address for the backup route with an AD of 10.

Verification:

After configuration, use the show ip route command to verify that the primary route is in use and the backup route is listed as a candidate for use if the primary route fails.

References:

CompTIA Network+ guide explains the concept of administrative distance and its use in static routing configuration (see page Ref 9†Basic Configuration Commands).

A split-tunnel VPN allows some traffic to be routed through the VPN while other traffic goes directly to the internet. This setup offers several advantages, with a primary one being cost-effectiveness due to cloud-based traffic not consuming company bandwidth.

Bandwidth Utilization: Split-tunnel VPNs reduce the amount of traffic passing through the company's network, freeing up bandwidth for other uses.

Performance: By allowing internet-bound traffic to bypass the VPN, it can reduce latency and improve the performance for users accessing cloud services directly.

Cost Savings: Reduced load on the company's VPN infrastructure can lead to lower costs in terms of both hardware and bandwidth.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Covers VPN types, including split-tunnel configurations and their advantages.

Cisco Networking Academy: Discusses VPN technologies and the benefits of split-tunneling.

Network+ Certification All-in-One Exam Guide: Provides detailed information on VPN setups, including the cost-effectiveness of split-tunnel VPNs.

By allowing cloud-based traffic to flow outside the company’s network, a split-tunnel VPN optimizes resource usage and enhances the overall network performance without incurring extra costs for bandwidth.

An access point (AP) provides users with an extended footprint that allows connections from multiple devices within a designated Wireless Local Area Network (WLAN).

Router: Typically used to connect different networks, not specifically for extending wireless coverage.

Switch: Used to connect devices within a wired network, not for providing wireless access.

Access Point (AP): Extends wireless network coverage, allowing multiple wireless devices to connect to the network.

Firewall: Primarily used for network security, controlling incoming and outgoing traffic based on security rules, not for providing wireless connectivity.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Explains the roles and functions of network appliances, including access points.

Cisco Networking Academy: Provides training on deploying and managing wireless networks with access points.

Network+ Certification All-in-One Exam Guide: Covers network devices and their roles in creating and managing networks.

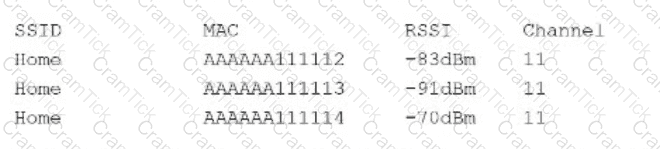

Microwaves are known to interfere with the 2.4GHz frequency, which is the same frequency used by many wireless networks. This can cause signal degradation and intermittent connectivity issues, especially if the WAP is placed near such devices.

=================

Understanding Subnetting:

The subnet mask 255.255.255.240 (or /28) indicates that each subnet has 16 IP addresses (14 usable addresses, 1 network address, and 1 broadcast address).

Calculating the Subnet Range:

Subnet Calculation: For the IP address 10.0.0.95 with a /28 subnet mask:

Network address: 10.0.0.80

Usable IP range: 10.0.0.81 to 10.0.0.94

Broadcast address: 10.0.0.95

Router Interface Configuration:

Broadcast Address Issue: The IP address 10.0.0.95 is the broadcast address for the subnet 10.0.0.80/28. Configuring a router interface with the broadcast address will cause routing issues as it is not a valid host address.

Comparison with Other Options:

The web server is in a different subnet: The web server (10.0.0.81) is within the same subnet range (10.0.0.80/28).

The IP address space is a class A network: While 10.0.0.0 is a Class A network, this does not explain the routing issue caused by the broadcast address.

The subnet is in a private address space: The private address space designation (RFC 1918) does not impact the routing issue related to the broadcast address configuration.

Resolution:

Reconfigure the router interface with a valid host IP address within the usable range, such as 10.0.0.94.

References:

CompTIA Network+ study materials on subnetting and IP address configuration.

802.1X is a port-based network access control (PNAC) protocol that provides an authentication mechanism to devices wishing to connect to a LAN or WLAN. It is widely used for secure network access, ensuring that only authenticated devices can access the network, whether they are connecting via wired or wireless means. 802.1X works in conjunction with an authentication server, such as RADIUS, to validate the credentials of devices trying to connect.References: CompTIA Network+ study materials.

Port mirroring, also known as SPAN (Switched Port Analyzer), is used to send a copy of network packets seen on one switch port (or an entire VLAN) to another port where the IDS is connected. This allows the IDS to passively inspect network traffic without interfering with the actual traffic flow. Port mirroring is an essential feature for implementing IDS in a network for traffic analysis and security monitoring.References: CompTIA Network+ study materials.

Role of the Hosts File:

The hosts file is a local file on a computer that maps hostnames to IP addresses. It can be used to override DNS resolution by providing a static mapping of a hostname to an IP address.

Common Issues with the Hosts File:

If an incorrect IP address is mapped to a hostname in the hosts file, it can cause the computer to resolve the hostname to the wrong IP address. This can lead to navigation issues for specific websites while other users, relying on DNS, do not face the same problem.

Why Other Options are Less Likely:

Self-signed certificate: Relates to SSL/TLS and would cause a security warning, not a navigation failure.

Nameserver record: Affects all users, not just one.

IP helper: Used to forward DHCP requests and is unrelated to DNS resolution issues.

Troubleshooting Steps:

Check the hosts file on the affected user's computer (C:\Windows\System32\drivers\etc\hosts on Windows or /etc/hosts on Unix/Linux).

Look for entries that map the problematic hostname to an incorrect IP address and correct or remove them.

References:

CompTIA Network+ study materials and system administration documentation.

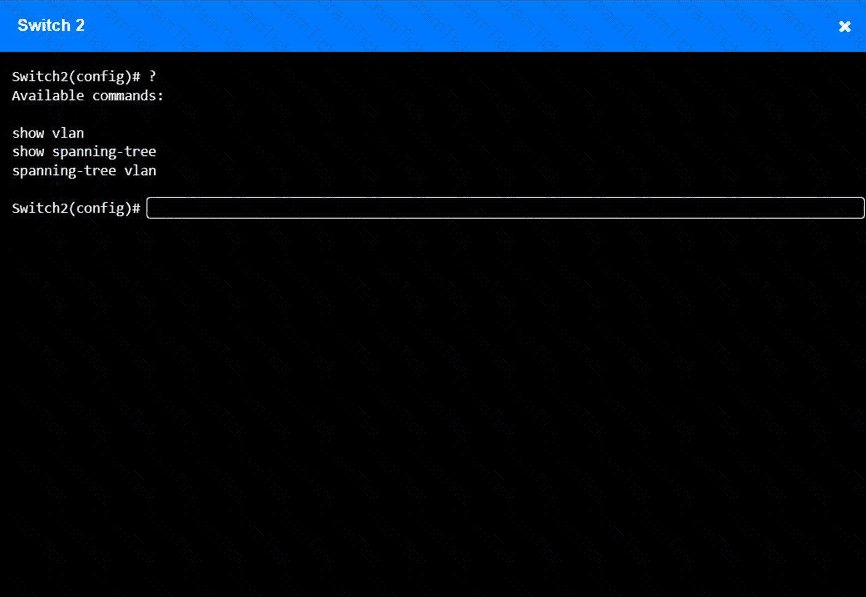

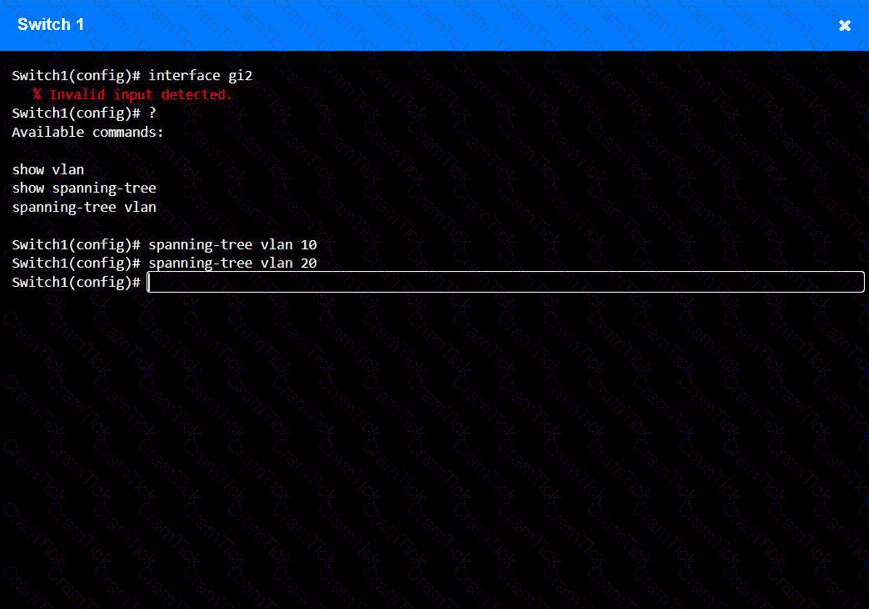

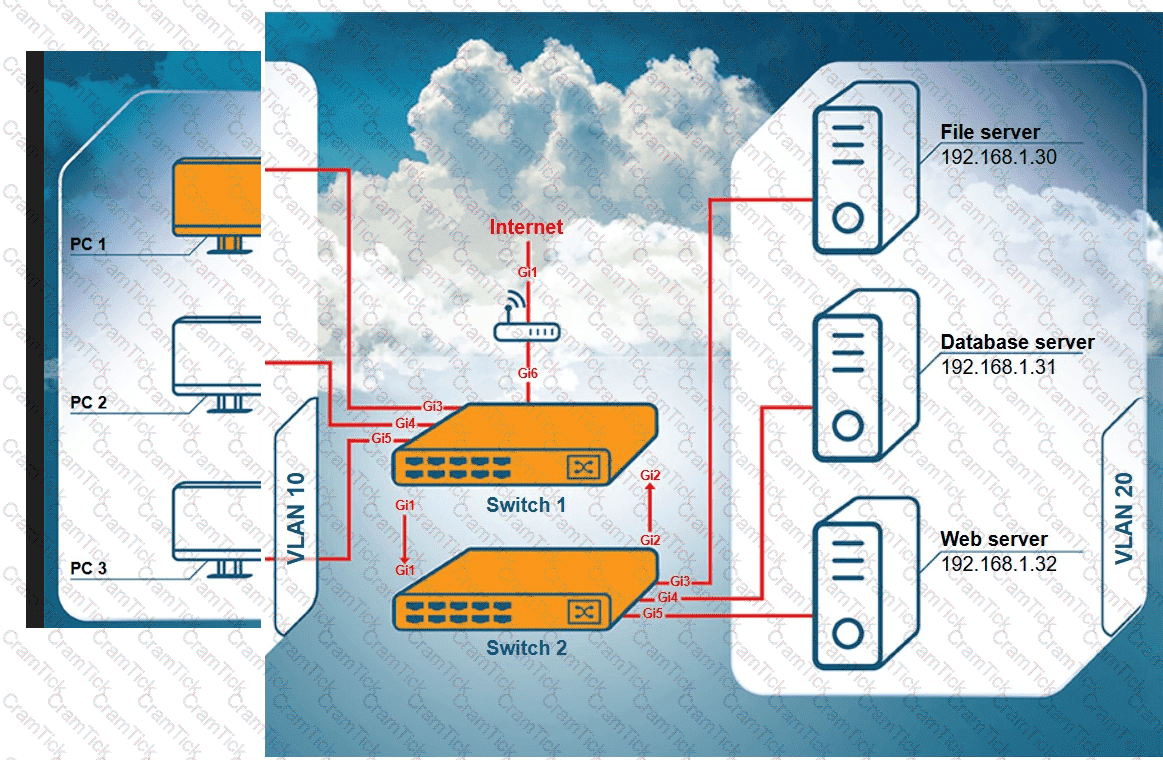

Explanation: The issue is that no root bridge has been identified. In STP, a root bridge is necessary to manage redundant paths and avoid loops in the network. Without a root bridge, all switches will assume they can forward traffic, causing a network loop and connectivity problems.

=================

Understanding the 169.254.x.x Address:

An IPv4 address in the range of 169.254.x.x is an Automatic Private IP Addressing (APIPA) address, assigned when a DHCP server is unavailable.

DHCP Server Offline:

APIPA Assignment: When a device cannot obtain an IP address from a DHCP server, it assigns itself an APIPA address to enable local network communication. This allows communication with other devices on the same local subnet but not with external networks.

Resolution: Ensure the DHCP server is operational. Check for connectivity issues between the virtual machine and the DHCP server, and verify the DHCP server settings.

Comparison with Other Options:

The subnet mask is incorrect: The subnet mask 255.255.0.0 is appropriate for the 169.254.x.x range and does not prevent external access by itself.

The IP address is an RFC1918 private address: RFC1918 addresses are private IP ranges (10.x.x.x, 172.16.x.x-172.31.x.x, 192.168.x.x) but 169.254.x.x is not one of them.

The DNS server is unreachable: While this could affect name resolution, it would not prevent the assignment of a non-APIPA address or local network communication.

Troubleshooting Steps:

Verify the DHCP server’s status and connectivity.

Restart the DHCP service if necessary.

Renew the IP lease on the virtual machine using commands such as ipconfig /renew (Windows) or dhclient (Linux).

References:

CompTIA Network+ study materials on IP addressing and DHCP troubleshooting.

An Extended Service Set Identifier (ESSID) allows multiple access points to share the same SSID, enabling seamless roaming for users. This means that users can move between different access points within the same ESSID without losing connection or having to reauthenticate. This provides a better user experience, especially in large environments such as office buildings or campuses.References: CompTIA Network+ study materials. ​

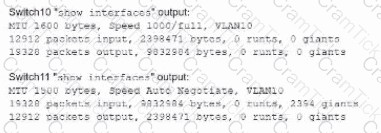

Jumbo frames are Ethernet frames with a payload greater than the standard maximum transmission unit (MTU) of 1500 bytes. Configuring jumbo frames can reduce overhead and increase efficiency in storage networks by allowing more data to be sent in each frame, thus reducing the number of frames needed to transmit the same amount of data.

Reduced Overhead: By sending larger frames, the relative overhead for headers and acknowledgments is reduced.

Increased Efficiency: Larger frames mean fewer packets to process, leading to better utilization of network bandwidth and improved performance in high-throughput environments like storage networks.

Configuration: Requires support from all devices in the network path, including switches and network interface cards (NICs).

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Explains jumbo frames and their benefits in reducing network overhead.

Cisco Networking Academy: Provides training on network optimization techniques, including the use of jumbo frames.

Network+ Certification All-in-One Exam Guide: Covers advanced Ethernet features, including jumbo frames and their configuration for improved network performance.

Troubleshooting Methodology:

Confirming the Root Cause: After testing and confirming the theory, the next logical step is to address the issue by implementing a solution.

Implementation of the Solution:

Resolve the Issue: Implement the identified solution to rectify the problem. This step involves making necessary changes to the network configuration, replacing faulty hardware, or applying software patches.

Documentation: Document the solution and the steps taken to resolve the issue to provide a reference for future troubleshooting.

Comparison with Other Steps:

Determine Resolution Steps: This is part of the implementation process where specific actions are outlined, but the actual next step after testing is to implement those steps.

Duplicate the Problem in a Lab: This step is typically done earlier in the troubleshooting process to understand the problem, not after confirming the root cause.

Present the Theory for Approval: In some scenarios, presenting the theory might be necessary for major changes, but generally, once the root cause is confirmed, the solution should be implemented.

Final Verification:

After implementing the solution, it is important to verify that the issue is resolved and that normal operations are restored. This may involve monitoring the network and testing to ensure no further issues arise.

References:

CompTIA Network+ study materials on troubleshooting methodologies and best practices.
