FCP_FMG_AD-7.4 FCP - FortiManager 7.4 Administrator Questions and Answers

To create and install a policy on a FortiGate device in an ADOM (Administrative Domain) that is in backup mode, the administrator must use a FortiManager script. This is because backup mode restricts direct configuration changes, and scripts can be used to push specific configuration changes without altering the ADOM mode.

Options A, C, and D are incorrect because:

A requires the ADOM to be in normal or advanced mode to create policies directly in the Policy & Objects section.

C suggests disabling offline mode, which is irrelevant to the backup mode configuration.

D implies changing the ADOM mode, which is unnecessary if using a script to perform the task.

FortiManager References:

Refer to FortiManager 7.4 Administrator Guide: Working with ADOMs and Using Scripts for managing policies in backup mode.

When a new policy package is created in a custom ADOM that already has a global policy package assigned, the global policy package is automatically assigned to the new policy package. This behavior ensures consistent policy enforcement across different ADOMs.

Options A, C, and D are incorrect because:

A and C incorrectly suggest that manual reassignment or reapplication is needed.

D implies optional assignment, whereas it is automatically done.

FortiManager References:

Refer to FortiManager 7.4 Administrator Guide: Working with Global and Custom ADOM Policy Packages

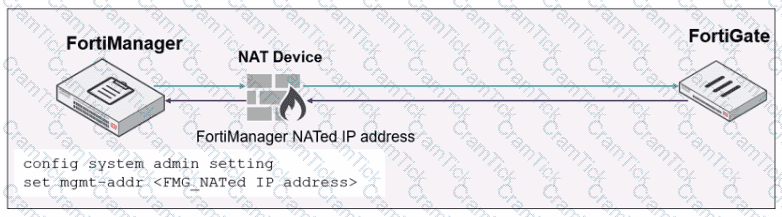

When push updates are failing on a FortiGate device behind a NAT device, the administrator should check:

A.That the override server IP address is set on FortiManager and the NAT device.

The override server IP should be configured to ensure that FortiManager uses the correct IP address that can traverse the NAT to reach the FortiGate device.

D.That the virtual IP address and correct ports are set on the NAT device.

The NAT device must have the correct virtual IP (VIP) configured to map the FortiGate's internal IP to an external address, along with the correct ports needed for communication.

Options B and C are incorrect because:

Bsuggests setting the external IP on the NAT device to DHCP, which is not relevant to solving the push update issue.

Cimplies configuring NAT device IP and ports on FortiManager, which is less likely needed compared to configuring the correct VIP and ports.

FortiManager References:

Refer to FortiManager 7.4 Administrator Guide: Device Management and NAT Configuration.

The FortiGate-FortiManager (FGFM) protocol is used for communication between a FortiGate device and FortiManager. Thekeepalive messagesare essential for maintaining communication and monitoring the health of the FortiGate devices connected to FortiManager. These messages provide important status information about the device.

Here are the items included in an FGFM keepalive message:

A. FortiGate IPS version

This isfalse. The IPS (Intrusion Prevention System) version is not included in the keepalive message. While IPS information can be part of other system syncs or monitoring processes, it is not part of the FGFM keepalive message.

B. FortiGate license information

This isfalse. The license information is not typically sent in the keepalive message. Licensing is checked and managed separately through other system operations and licensing checks.

C. FortiGate configuration checksum

This istrue. The configuration checksum is a critical part of the keepalive message, as it ensures that the configuration on the FortiGate matches the one managed by FortiManager. Any discrepancy would alert FortiManager to potential out-of-sync configurations.

D. FortiGate uptime

This istrue. The keepalive message includes the FortiGate's uptime, which allows FortiManager to track the health and stability of the connected FortiGate device.

When a FortiGate device, like the ISFW (Internal Segmentation Firewall), is moved from one ADOM to another in FortiManager, the status of the device in the new ADOM will temporarily show some level of inconsistency or unknown state until the ADOM fully syncs and integrates the device.

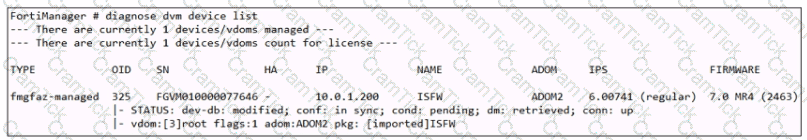

In the provided options, we are analyzing the FortiManager diagnose dvm device list output for the ISFW device.

Explanation of the Outputs:

Option A:

The output shows that the device has the following status:

dev-db: not modified

conf: in sync

cond: OK

dm: retrieved

The key part here is the pkg: [unknown]. This suggests that the configuration package for the ADOM in the new environment is still in anunknown state, which happens right after moving the device to a new ADOM. FortiManager needs time to process the device's configuration before syncing it properly.

Option B:

This output shows thepkg: [out-of-sync]. This occursaftersome configuration mismatch is identified, but it is not the immediate output after moving a device to a new ADOM.

Option C:

This output showspkg: [never-installed], which indicates that no package was ever installed on the device. This status typically appears when a device is newly added to FortiManager but not immediately after moving it between ADOMs.

Option D:

This output showspkg: [imported], which indicates that the device configuration has been successfully imported into the new ADOM. This would occur after the device is fully synced, but not immediately after moving the device to a new ADOM.

Conclusion:

The output that is displayedimmediately after movingthe ISFW device from one ADOM to another isOption A, where the package status is still unknown (pkg: [unknown]) because FortiManager has not yet fully synchronized the device's configuration in the new ADOM.

In the exhibit, the FortiManager CLI output displays the results of thetopcommand, which shows system processes, CPU usage, and memory (RAM) usage. We are specifically looking for the process responsible for downloading theweb and email filter databasesfrom the public FortiGuard servers. This process is typically handled by thefgdlinkdprocess.

Key information from the output:

Thefgdlinkdprocess is listed with aPID of 1463.

The%MEMcolumn shows that this process is using2.9%of the available RAM.

Evaluation of Options:

A. 2.9: This iscorrect. Thefgdlinkdprocess, which handles the web and email filter database downloads, is using2.9%of the available memory, as indicated in the%MEMcolumn.

B. 3.1: This is incorrect. The3.1%memory usage belongs to thefwmsvrdprocess, not the fgdlinkd process.

C. 1.5: This is incorrect. The1.5%memory usage belongs to thefclinkdprocess, not the fgdlinkd process.

D. 4.1: This is incorrect. The4.1%memory usage belongs to thefgdsvrprocess, not the fgdlinkd process.

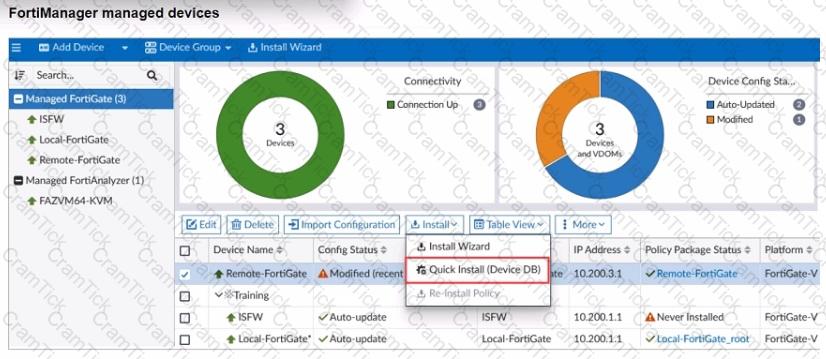

Option B: It provides the option to preview only the policy package changes before installing them.This is correct. The Quick Install option in FortiManager provides a preview of policy changes before they are applied, allowing administrators to review and confirm the changes.

Option D: It installs device-level changes on the FortiGate device without launching the Install Wizard.This is correct. Quick Install allows for the immediate installation of device-level changes, such as interface or routing configurations, directly onto the FortiGate without going through the full Install Wizard.

Explanation of Incorrect Options:

Option A: It installs provisioning template changes on the FortiGate deviceis incorrect because Quick Install does not specifically deal with provisioning templates.

Option C: It installs all the changes in the device database first and the administrator must reinstall the changes on the FortiGate deviceis incorrect because Quick Install directly applies changes to the FortiGate device, not requiring a separate reinstall step.

FortiManager References:

Refer to "FortiManager Administration Guide" for details on "Quick Install" functionality under "Device Management."
