D-VPX-OE-A-24 Dell VPLEX Operate Achievement Questions and Answers

In a VPLEX Metro cluster without a VPLEX Witness and with a static rule set to “cluster-2 detaches”, the result of a WAN COM failure would be as follows:

Delay Timer: Initially, VPLEX starts a delay timer upon detecting the WAN COM failure.This timer allows for a temporary network issue to be resolved without immediate impact on I/O operations1.

Suspension of I/O: While the delay timer is active, VPLEX suspends I/O to all distributed devices on both clusters to prevent data corruption and ensure data integrity1.

Resumption of I/O: If the WAN COM connectivity is not restored within the expiration period of the delay timer, VPLEX will resume I/O operations on Cluster-2, as per the static rule set.I/O will remain suspended on Cluster-1 to maintain a consistent data state and prevent a split-brain scenario1.

This process ensures that data remains consistent and available on at least one cluster in the event of a WAN COM failure, aligning with the predefined static rule set and maintaining the integrity of the VPLEX Metro cluster operations.

A VPLEX storage administrator can manage array-based attributes throughstorage tiers. This is part of the VPLEX’s ability to integrate with underlying storage arrays and leverage their native capabilities, such as tiering, to optimize performance and cost.

Here’s a detailed explanation:

Understanding Storage Tiers:Storage tiers are classifications of storage based on performance and cost. High-performance tiers use faster storage media like SSDs, while lower tiers might use traditional HDDs.

VPLEX Integration:VPLEX integrates with underlying storage arrays to manage these tiers. By doing so, it can place data on the appropriate tier based on performance requirements and other policies.

Managing Array-Based Attributes:Within the VPLEX, administrators can define policies that determine how data is placed across these tiers. This is done by managing array-based attributes that dictate tier placement.

Provisioning and Migration:Administrators can provision new volumes or migrate existing ones between tiers as needed, ensuring that the most frequently accessed data is on the highest-performing tiers.

Monitoring and Adjusting:VPLEX provides tools for monitoring performance and usage patterns, allowing administrators to adjust tiering policies and placements to optimize for current workloads.

Documentation and Training:For those seeking to understand the full capabilities and management procedures, Dell provides training and documentation, such as the VPLEX Operate Achievement, which covers these topics in detail123.

By managing storage tiers, VPLEX administrators can ensure that the storage infrastructure is used efficiently, balancing cost and performance effectively.

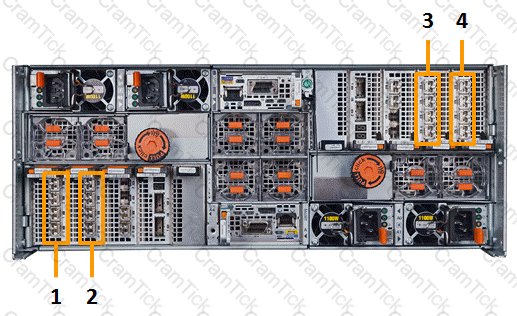

In the exhibit provided, the number that highlights the Director-B front-end ports is 4. Here’s the explanation:

Director-B Identification: In a VPLEX system, each director is a separate hardware component that manages data flow. Director-B is one of these components.

Front-End Ports: The front-end (FE) ports on a director are the interfaces through which the director communicates with hosts or other external devices.

Number 4 in the Exhibit: The exhibit shows a hardware component with various sections labeled with numbers. Number 4 is located at the upper right quadrant, which is typically where front-end ports are found on a director module.

VPLEX Documentation: The Dell EMC VPLEX documentation would provide diagrams and detailed descriptions of the hardware components, including the location of the Director-B front-end ports.

By understanding the layout of VPLEX hardware and referencing the official documentation, one can identify the correct number associated with the Director-B front-end ports in the exhibit.

Distributed virtual volumes are a key component of Dell VPLEX that enable active-active data center configurations. Here’s how they contribute to this capability:

Active-Active Data Centers: In an active-active data center setup, both data centers are actively running workloads and can take over for each other in case of a failure.This configuration requires a storage solution that can provide simultaneous access to the same data from multiple locations1.

Distributed Virtual Volumes: VPLEX creates distributed virtual volumes that span across two geographically separated clusters.These volumes can be accessed and written to simultaneously from both locations, which is essential for maintaining operations in an active-active environment1.

Cache Coherence: VPLEX uses a cache coherence algorithm to ensure that write operations are synchronized across both sites.This means that when data is written to a distributed virtual volume, it is updated in both locations at the same time, ensuring consistency1.

Application Support: Distributed virtual volumes support mission-critical applications that require high availability and continuous operations, such as Oracle RAC, by allowing them to operate in an active-active manner across data centers1.

VPLEX Metro: The VPLEX Metro product supports active-active data centers by allowing applications to simultaneously read and write on both sites, which increases resource utilization and provides infrastructure that is actively used rather than remaining idle2.

By leveraging distributed virtual volumes, VPLEX enables organizations to create highly available, geographically distributed virtual data centers that support continuous data access and mobility.

When preparing a host to access its storage from VPLEX, the best practice for zoning is to ensure that each host has at least one path to an A director and at least one path to a B director on each fabric. This setup provides redundancy and ensures continuous availability of data even if one path or director fails.

Redundant Paths: By having at least one path to an A director and one path to a B director, the host can maintain access to its storage even if one of the directors or paths becomes unavailable1.

Fabric Configuration: The use of dual fabrics provides an additional layer of redundancy.Each fabric acts as an independent network, and having paths on both fabrics ensures that the host can still access storage if one fabric experiences issues1.

Logical Paths: The total of four logical paths (two paths per fabric) allows for load balancing and failover capabilities.This configuration is crucial for environments that require high availability and resilience1.

Zoning Best Practices: Proper zoning practices are essential for maintaining a secure and efficient storage network.The recommended zoning configuration helps to isolate traffic and prevent disruptions1.

VPLEX Configuration: In a VPLEX environment, it is important to follow the recommended zoning practices to take full advantage of the system’s capabilities for data mobility and continuous availability1.

By following this zoning best practice, administrators can ensure that the host has reliable and resilient access to its storage volumes through the VPLEX system.

Before a host can detect the virtual volumes presented by VPLEX, it is necessary for the host to initiate a bus-scan of the Host Bus Adapters (HBAs). This process allows the host to recognize new storage devices that have been presented to it, such as the virtual volumes from VPLEX.

Here’s a detailed explanation:

Host Bus Adapters (HBAs): HBAs are the hardware interfaces that connect a host system to a network or storage device. In the context of VPLEX, they connect the host to the VPLEX storage system.

Bus-Scan: A bus-scan is a command that can be issued from the host to scan the storage network for any changes, such as newly added storage volumes. This is typically done using operating system-specific commands or utilities.

Virtual Volumes Detection: Once the bus-scan is complete, the host’s operating system can detect the virtual volumes presented by VPLEX and make them available for use by applications and services running on the host.

No RAID Requirement: The detection of virtual volumes does not require RAID configuration to be enabled for the volumes themselves, as this is managed within the VPLEX system.

No Reboot Necessary: It is not necessary to reboot the host to detect virtual volumes. A bus-scan can be performed while the system is running without requiring a restart.

No Wizard Required: The EZ Provisioning wizard is a tool used within the VPLEX system for provisioning storage, but it is not required to be run on the host for virtual volume detection.

By initiating a bus-scan of the HBAs, the host can detect and utilize the virtual volumes presented by VPLEX, allowing for flexible and dynamic storage management.

When using VPLEX Metro, the supported round trip time (RTT) between clusters is 5 milliseconds (ms). This is the maximum latency that is supported to ensure proper synchronization and performance of the VPLEX Metro system.

VPLEX Metro: VPLEX Metro is a storage virtualization solution that allows for the creation of distributed virtual volumes across two geographically separated clusters1.

Round Trip Time (RTT): RTT is the time it takes for a signal to travel from one cluster to another and back again.It is a critical factor in the performance of distributed systems like VPLEX Metro1.

5 ms Limitation: The 5 ms RTT limitation is set to ensure that the clusters can maintain synchronization without significant performance degradation.Latencies higher than this can lead to issues with data consistency and application performance1.

Network Considerations: When planning a VPLEX Metro deployment, it is important to consider the network infrastructure and ensure that the RTT between clusters does not exceed the 5 ms threshold1.

Performance Impact: Adhering to the 5 ms RTT is crucial for maintaining the high availability and data mobility features of VPLEX Metro, as it affects the ability to perform real-time data mirroring and failover between clusters1.

By ensuring that the RTT between VPLEX Metro clusters does not exceed 5 ms, organizations can achieve the desired level of performance and reliability from their VPLEX Metro deployment.

When a director fails and is removed from a VPLEX cluster, the global cache size decreases. This is because each director contributes to the total global cache available in the VPLEX cluster. Here’s the explanation:

Global Cache: The global cache in a VPLEX system is a shared resource that is used by all directors in the cluster to cache data for improved performance1.

Director Contribution: Each director within the VPLEX cluster has its own local cache, which collectively forms the global cache.When a director is operational, its cache is part of the global cache pool1.

Director Failure: If a director fails, its cache is no longer available to the cluster.As a result, the total size of the global cache is reduced by the amount that was contributed by the failed director1.

Removal from Cluster: When the failed director is physically removed from the cluster, its cache is permanently removed from the global cache pool, resulting in a decrease in the total global cache size1.

Impact on Performance: The reduction in global cache size may impact the performance of the VPLEX system, as there is less cache available for data storage and retrieval operations1.

System Architecture: VPLEX architecture allows for multiple director failures without loss of access to data down to a single director, but the global cache size will decrease with each director failure1.

By understanding the role of each director’s cache in contributing to the global cache, administrators can anticipate the effects of director failures on the overall performance of the VPLEX system.

In VPLEX, a valid target for device data migration is a device with no existing virtual volume. This is because the migration process involves moving data from a source device to a target device, and having an existing virtual volume on the target device could lead to data conflicts or loss.

Migration Process: The migration process in VPLEX is designed to move data from one storage device to another.This is typically done to upgrade storage, balance loads, or for other maintenance reasons1.

Target Device Requirements: The target device for migration should be a clean slate with no existing virtual volumes.This ensures that the data from the source device can be migrated without any issues1.

Device with Existing Virtual Volume: If a device already has a virtual volume, it is not a suitable target for migration because the existing data could be overwritten or corrupted during the migration process1.

Extent and Distributed Device: While extents and distributed devices are components within the VPLEX architecture, they are not the end targets for device data migration.The migration target needs to be a device that can be mapped to a virtual volume after the migration is complete1.

Migration Commands: VPLEX provides specific CLI commands to perform device data migration, ensuring that the process is controlled and that data integrity is maintained throughout the migration1.

By selecting a device with no existing virtual volume as the target for data migration, VPLEX administrators can ensure a smooth and error-free migration process, maintaining the integrity and availability of the data.

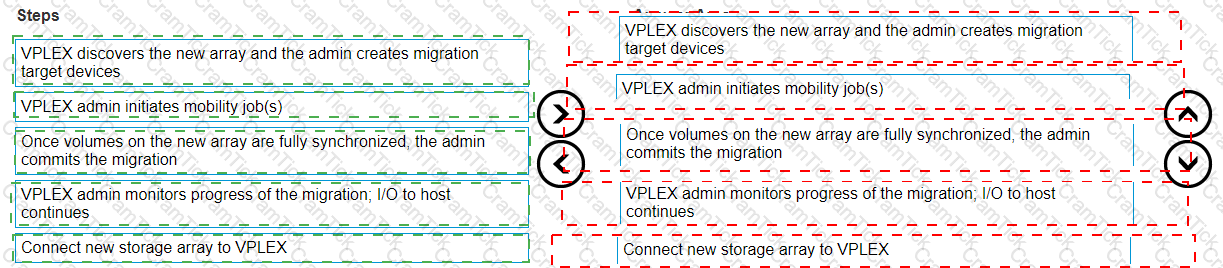

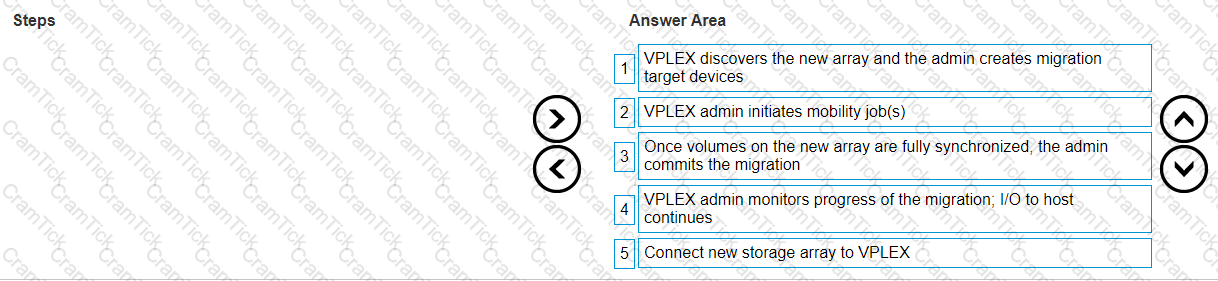

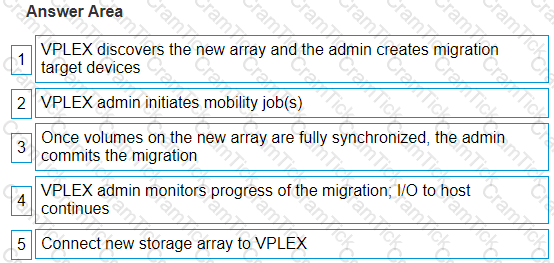

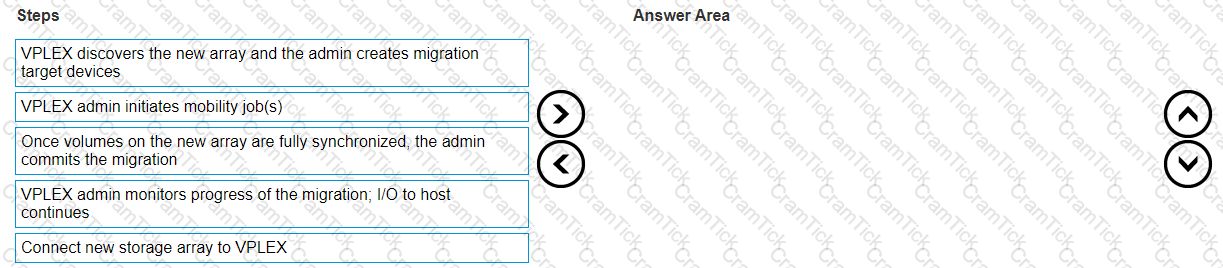

The correct order of steps to migrate from an old array to a new one without disruption using VPLEX is:

VPLEX discovers the new array and the admin creates migration target devices.

VPLEX admin initiates mobility job(s).

Once volumes on the new array are fully synchronized, the admin commits the migration.

VPLEX admin monitors progress of the migration; I/O to host continues.

Connect new storage array to VPLEX.

Discovery and Creation: The initial step involves VPLEX identifying the presence of a new storage array within its environment. Following this discovery, a system administrator is responsible for setting up migration target devices on this newly recognized array.

Initiation of Mobility Jobs: Subsequently, a system administrator must initiate mobility jobs through the VPLEX management interface, which facilitates data movement from the existing source storage to the target devices on the new array.

Synchronization and Commitment: After initiating mobility jobs, data synchronization between source and target arrays begins automatically. Once synchronization reaches completion, indicating that both arrays have identical data sets, an administrator must commit to finalizing this stage of migration.

Monitoring Migration Progress: Throughout this process, it’s crucial for an administrator to monitor ongoing operations ensuring that input/output operations continue uninterrupted for hosts accessing data during transition phases.

Connecting New Array: The final step involves integrating the newly populated storage array into production by connecting it with VPLEX systems thus completing migration.

A VPLEX RAID-0 device is a configuration where data is striped across multiple storage volumes to improve performance. Here’s a detailed explanation:

RAID-0 Definition: RAID-0 is a disk array configuration that involves striping data across multiple disks without redundancy.This increases performance because I/O operations can be performed concurrently on all disks1.

Device Stripes Data: In the context of VPLEX, a device refers to a logical unit that is created from physical storage volumes.When a VPLEX device is configured as RAID-0, it stripes data across the underlying storage volumes1.

Top-Level Device: The term ‘top-level device’ refers to the logical device that is presented to hosts and applications.In VPLEX, this top-level device is the virtual volume that is created from one or more RAID-configured devices1.

Striping Beneath Top-Level Device: The striping occurs beneath the top-level device, meaning that it is handled within the VPLEX system and is transparent to the host.The host sees a single logical unit, while the VPLEX system manages the distribution of data across the physical volumes1.

Performance Considerations: RAID-0 devices provide better performance since data is retrieved from several storage volumes at the same time. However, RAID-0 devices do not include a mirror to provide data redundancy.They are used for non-critical data that requires high speed and low cost of implementation1.

By configuring a VPLEX device as RAID-0, administrators can leverage the performance benefits of striping for applications that require high throughput and do not need the redundancy provided by other RAID levels.

A VPLEX device is a logical construct that represents storage in the VPLEX environment. The statement that applies to a VPLEX device is:

Application of a RAID Topology: A VPLEX device can have a RAID topology applied to one or more extents.This means that the VPLEX system can take multiple extents, which are segments of storage from an underlying array, and organize them into a RAID configuration for redundancy and performance purposes1.

Extent Definition: An extent in VPLEX is a contiguous range of block addresses presented to VPLEX from a storage volume.It is the basic unit of storage that VPLEX manages1.

Device Composition: A VPLEX device is composed of one or more extents.When these extents are combined and a RAID topology is applied, it creates a VPLEX device that can be presented as a virtual volume to hosts1.

RAID Topologies: VPLEX supports various RAID configurations, such as RAID-1 (mirroring) and RAID-C (concatenation), allowing for flexibility in how data is protected and accessed1.

VPLEX Virtualization: The VPLEX system virtualizes the storage from underlying arrays, allowing for the creation of these devices without being tied to the physical RAID configurations of the arrays themselves1.

By understanding the role of RAID topologies and extents in the creation of VPLEX devices, storage administrators can effectively manage and provision storage in a VPLEX environment.

The Unisphere Performance Monitor Dashboard is used to monitor VPLEX performance parameters. This dashboard is part of the Unisphere for VPLEX management suite and provides a graphical interface for monitoring various performance metrics.

Unisphere for VPLEX: Unisphere for VPLEX is the management interface for VPLEX systems.It provides administrators with tools to configure, manage, and monitor VPLEX environments1.

Performance Monitoring: The Performance Monitor Dashboard within Unisphere allows administrators to view real-time and historical performance data.This includes metrics such as I/O rates, latency, and throughput1.

Dashboard Features: The dashboard offers various features such as performance charts, threshold alerts, and detailed reports that help in identifying performance trends and potential issues1.

Accessibility: The dashboard is accessible through the Unisphere web interface, making it convenient for administrators to monitor the VPLEX system from any location1.

Usage: To use the Performance Monitor Dashboard, administrators log into Unisphere for VPLEX, navigate to the performance section, and can then view and analyze the performance data presented in the dashboard1.

By using the Unisphere Performance Monitor Dashboard, administrators can effectively monitor VPLEX performance parameters, ensuring the system operates efficiently and meets performance requirements.

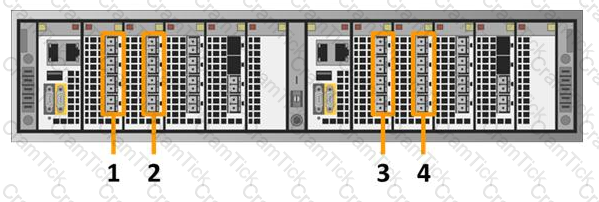

The image provided appears to be a diagram or photograph of the back panel of a Dell VPLEX system. The back panel is divided into two sections, each presumably representing a director module. Each section has a set of ports highlighted and labeled with numbers 1, 2, 3, and 4. According to the question provided, which asks to identify the Director-A back-end ports from the options given (OA 1, OB 2, OC 4, OD 3), the verified answer is number 3. This can be inferred because typically in such systems, ‘A’ might refer to the first director or left side when looking at the back panel.
