D-VPX-DY-A-24 Dell VPLEX Deploy Achievement Questions and Answers

When VPLEX Metro is added to an existing HP OpenView network monitoring environment and only the remote VPLEX cluster is reporting performance statistics, the likely cause is a misconfiguration of the SNMP agent on the local VPLEX cluster management server.

SNMP Agent Configuration: The SNMP (Simple Network Management Protocol) agent on the VPLEX management server must be correctly configured to communicate with the HP OpenView monitoring system. If the local cluster’s SNMP agent is misconfigured, it may not report performance statistics correctly1.

Troubleshooting Steps: To resolve this issue, the following steps should be taken:

Verify the SNMP configuration on the local VPLEX cluster management server.

Check for any discrepancies in the SNMP version, community strings, and allowed hosts between the local and remote clusters.

Ensure that the SNMP service is running and properly configured to send traps and fetches to the HP OpenView system1.

Firewall and Network Checks: Although TCP Port 443 is important for secure communications, it is not typically used for SNMP, which usually operates over UDP ports 161 and 162. Therefore, a blockage of TCP Port 443 would not directly affect SNMP reporting1.

HP OpenView Compatibility: While HP OpenView running SNMP version 2C could potentially cause issues with performance statistic reporting, if the remote cluster is reporting correctly, it suggests that the version of SNMP is not the issue in this case1.

VPLEX Witness Configuration: The VPLEX Witness is not directly involved in the reporting of performance statistics to HP OpenView, so a misconfiguration of the VPLEX Witness’s SNMP agent would not cause this specific issue1.

In summary, the cause of the issue where only the remote VPLEX cluster is reporting performance statistics to HP OpenView is likely due to a misconfigured SNMP agent on the local VPLEX cluster management server.

When performing batched data mobility jobs using the VPlexcli, a key consideration is that each batched mobility job plan can only contain one type of data mobility jB. This means that all the migrations within a single plan must be of the same type, such as all migrations being from one storage array to another or all being within the same array.

Creating a Mobility Job Plan: When creating a batched data mobility job plan using the VPlexcli, you initiate a plan that will contain a series of individual migration jobs1.

Job Type Consistency: Within this plan, all the jobs must be of the same type to ensure consistency and predictability in the execution of the jobs. This helps in managing resources and dependencies effectively1.

Execution of the Plan: Once the plan is created and initiated, the VPlexcli will execute each job in the order they were added to the plan. The system ensures that the resources required for each job are available and that the jobs do not conflict with each other1.

Monitoring and Completion: As the jobs are executed, their progress can be monitored through the VPlexcli. Upon completion of all jobs in the plan, the system will report the status and any issues encountered during the migrations1.

Best Practices: It is recommended to follow best practices for data mobility using VPlexcli as outlined in the Dell VPLEX Deploy Achievement documents. This includes planning migrations carefully, understanding the types of jobs that can be batched together, and ensuring that the system is properly configured for the migrations1.

In summary, when performing batched data mobility jobs using the VPlexcli, it is important to remember that only one type of data mobility job is allowed per plan. This consideration is crucial for the successful execution and management of batched data mobility jobs in a VPLEX environment.

To expand a RAID-C device that has been built from extents of unequal sizes, such as a 100 GB extent and a 30 GB extent, concatenation can be used. Concatenation allows for the addition of another extent to the existing RAID-C device, thereby increasing its overall size.

Understanding RAID-C: RAID-C is a type of RAID configuration used in VPLEX that allows for concatenation, which is the process of linking multiple storage extents to create a larger logical unit1.

Adding an Extent: To expand the RAID-C device, a new extent of the desired size can be added to the existing device. This new extent is concatenated to the end of the current extents, increasing the total capacity of the RAID-C device1.

VPLEX CLI Commands: The expansion is performed using VPLEX CLI commands. The specific command to add an extent to a RAID-C device would be similar to the storage-volume expand command, which instructs the system to include the new extent in the RAID-C device1.

Resizing Back-End Storage: If necessary, the back-end storage volumes (the physical storage on the array) that correspond to the extents may need to be resized to match the new configuration1.

Verification: After the expansion, it’s important to verify that the RAID-C device reflects the new size and that all extents are properly concatenated and functioning as expected1.

In summary, a RAID-C device built from extents of unequal sizes can be expanded by using concatenation to add another extent to the device. This method allows for flexibility in managing storage capacity within a VPLEX environment.

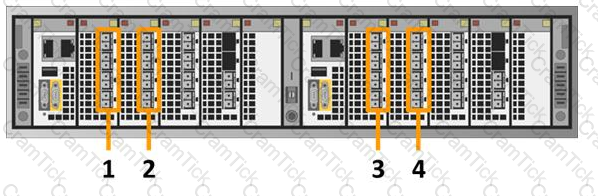

In a VPLEX system, each director module has front-end (FE) and back-end (BE) ports for connectivity. The FE ports are used to connect to hosts or out-of-fabric services such as management networks. Based on standard configurations and assuming that Director-A and Director-B are mirrored in layout, the number that highlights the Director-B front-end ports is typically 21.

Director Modules: VPLEX systems consist of director modules, each containing ports designated for specific functions. Director-B is one of these modules1.

Front-End Ports: The front-end ports on Director-B are used for host connectivity and are essential for the operation of the VPLEX system1.

Port Identification: During the installation and setup of a VPLEX system, correctly identifying and utilizing the FE ports is crucial. This includes connecting the VPLEX to the host environment and ensuring proper communication between the storage system and the hosts1.

Documentation Reference: For precise identification and configuration of the FE ports on Director-B, the Dell VPLEX Deploy Achievement documents provide detailed instructions and diagrams1.

Best Practices: It is recommended to follow the guidelines provided in the Dell VPLEX documentation for port identification and installation utilities to ensure correct setup and configuration of the VPLEX system1.

In summary, the number 2 in the exhibit corresponds to the Director-B front-end ports in a Dell VPLEX system, which are critical for host connectivity and system operation.

After a WAN outage, to verify management connectivity between MMCS-A on Cluster-1 and MMCS-A on Cluster-2, the storage administrator should use the vpn status command. This command checks the status of the VPN tunnels that facilitate secure communication between the management servers and the Cluster Witness Server.

Command Execution: The administrator should execute the vpn status command in the VPLEX CLI. This command will provide information about the state of the VPN tunnels1.

Interpreting Results: The output from the vpn status command will indicate whether the IPsec VPN tunnels are up and if the remote management servers are reachable. It will show the status of connectivity with both the management servers and the Cluster Witness Server1.

VPN Tunnel Status: The command will show the status of the VPN tunnel between the management servers, which is crucial for the clusters to communicate and operate as a metro system1.

Cluster Witness Server Connectivity: Additionally, the command will verify the VPN status between the management server and the Cluster Witness Server, ensuring that the witness can monitor the health and status of the clusters1.

Troubleshooting: If the vpn status command indicates that the remote management IP is not reachable, further troubleshooting will be required to establish connectivity. This may involve checking network configurations, firewall settings, and ensuring that the VPN services are running properly1.

In summary, the vpn status command is used to determine if the remote management IP is reachable, providing a quick and effective way to verify management connectivity between VPLEX clusters after a WAN outage.

When LUNs belonging to an ESXi cluster are encapsulated behind VPLEX, the ESXi administrator needs to be provided with the Virtual Volume Page Data (VPD) of the virtual volumes. The VPD contains metadata about the virtual volumes that allows the ESXi host to properly identify and interact with them.

Encapsulation Process: During the encapsulation process, the physical LUNs are virtualized and presented as virtual volumes through VPLEX. This process involves the VPLEX claiming the LUNs and presenting them to the ESXi hosts as new devices1.

Re-discovery of Datastore and RDM LUNs: After encapsulation, the ESXi administrator must perform a rescan of the storage adapters to discover the new virtual volumes. The VPD of the virtual volumes, which includes information such as the device identifiers and characteristics, is crucial for the ESXi host to recognize and mount the datastores and RDM LUNs2.

Importance of VPD: The VPD is essential because it provides the ESXi host with the necessary information to differentiate between the virtual volumes and other storage devices. Without the VPD, the ESXi host may not be able to properly identify the encapsulated LUNs, leading to issues with datastore accessibility1.

Best Practices: It is recommended to follow the best practices and required configurations for a vSphere Metro Storage Cluster using EMC VPLEX Storage array as outlined in VMware KB articles and Dell support documents. This ensures a smooth encapsulation process and proper functioning of the ESXi hosts with the VPLEX storage volumes1.

In summary, sharing the Virtual Volume VPD with the ESXi administrator is a critical step in ensuring that the ESXi cluster can successfully re-discover the datastore and the RDM LUNs after they have been encapsulated behind VPLEX.

The command that shows the overall VPLEX status is cluster status. This command provides a comprehensive view of the health and status of the VPLEX cluster.

Command Usage: The cluster status command is executed in the VPLEX CLI (Command Line Interface). When run, it will display the status of the VPLEX cluster, including the health of the directors, connectivity, and any issues that may be affecting the system1.

Overall Status: The output from the cluster status command includes information about the operational state of the cluster, such as the status of the storage volumes, the inter-cluster communication, and the performance metrics1.

Health Check: This command is often used as a quick health check to ensure that the VPLEX system is functioning correctly and to identify any potential issues that need to be addressed1.

Monitoring and Troubleshooting: The cluster status command is a valuable tool for monitoring the VPLEX system and for troubleshooting any problems that may arise1.

Documentation Reference: For more information on the usage of the cluster status command and other management server commands, administrators should refer to the VPLEX CLI and Administration Guides for the code level the VPLEX is running1.

In summary, the cluster status command is used to display the overall status of the VPLEX system, providing administrators with a quick and effective way to monitor the health and performance of the cluster.

After deploying the VPLEX Cluster Witness, the next step is to configure a 2-way VPN between the Witness and both VPLEX sites. This is essential for the Cluster Witness to communicate with each cluster and provide the health check heartbeats required for monitoring.

VPN Configuration: Configure the VPN to ensure secure communication between the VPLEX Cluster Witness and the management servers of both VPLEX clusters1.

Enable Cluster Witness: Once the VPN is configured, enable the VPLEX Cluster Witness on the VPLEX sites. This involves setting up the Cluster Witness to monitor the health and status of the VPLEX clusters1.

Test Connectivity: After enabling the Cluster Witness, test the connectivity between the Cluster Witness and the VPLEX clusters to ensure that the health check heartbeats are being transmitted and received correctly1.

Finalize Setup: Complete any additional setup tasks as required by the VPLEX Metro configuration, such as configuring consistency groups or completing the VPLEX Metro setup1.

Documentation Reference: For detailed instructions and best practices, refer to the Dell VPLEX Deploy Achievement documents, which provide comprehensive guidance on deploying and configuring the VPLEX Cluster Witness1.

In summary, configuring a 2-way VPN is a critical step after deploying the VPLEX Cluster Witness to ensure it can perform its monitoring role effectively within the VPLEX Metro environment.

To create a distributed device from specified local devices in a Dell VPLEX environment, the command used is ds dd create. This command is part of the VPLEX CLI and stands for “distributed storage - distributed device create”.

Identify Local Devices: Before creating a distributed device, you need to identify the local devices that will be part of the distributed device. These are typically volumes that are already provisioned and claimed by the VPLEX system1.

Use the ds dd create Command: Execute the ds dd create command in the VPLEX CLI, specifying the local devices that you want to include in the distributed device. The syntax for the command includes the names of the local devices and the name you want to assign to the distributed device1.

Command Execution: The command will initiate the creation of the distributed device, which involves pairing the specified local devices across the VPLEX clusters to create a single distributed volume that spans both clusters1.

Verification: After running the command, verify that the distributed device has been created successfully by using the ll /distributed-storage/distributed-devices/ command, which lists all the distributed devices in the system1.

Best Practices: It is important to follow the best practices for creating distributed devices as outlined in the Dell VPLEX Deploy Achievement documents. This includes ensuring that the local devices are properly configured and that the VPLEX clusters are in a healthy state before creating the distributed device1.

In summary, the ds dd create command is used to create a distributed device from specified local devices in a Dell VPLEX environment. This command is a fundamental part of managing distributed storage within VPLEX and is essential for achieving high availability and data mobility across clusters.

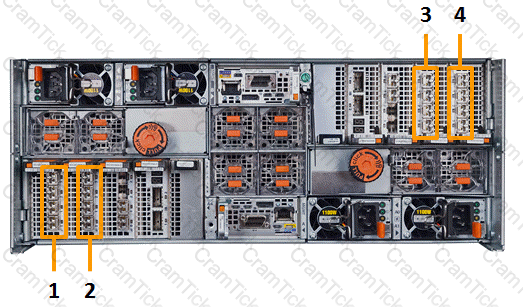

To identify the Director-B back-end ports in a VPLEX system, one must understand the standard port numbering and layout for VPLEX directors. Based on the information provided in the Dell community forum1, the back-end ports for Director-B can be identified by the following method:

Director Identification: Determine which director is Director-B. In a VPLEX system, directors are typically labeled as A or B, and each has a set of front-end and back-end ports1.

Port Numbering: The port numbering for a VPLEX director follows a specific pattern. For example, in a VS2 system, the back-end ports are typically numbered starting from 10 onwards, following the front-end ports which are numbered from 001.

Back-End Ports: Based on the standard VPLEX port numbering, the back-end ports for Director-B would be the second set of ports after the front-end ports. This is because the front-end ports are used for host connectivity, while the back-end ports connect to the storage arrays1.

Exhibit Analysis: In the exhibit provided, if the numbering follows the standard VPLEX layout, number 4 would highlight the Director-B back-end ports, assuming that number 3 highlights the front-end ports and the numbering continues sequentially1.

Verification: To verify the correct identification of the back-end ports, one can refer to the official Dell VPLEX documentation or use the VPLEX CLI to list the ports and their roles within the system1.

In summary, based on the standard layout and numbering of VPLEX systems, number 4 in the exhibit likely highlights the Director-B back-end ports. This identification is crucial for proper configuration and management of the VPLEX system.

When a storage administrator notices slow command responses after deploying VPLEX Witness and wants to investigate potential network latency or routing issues between the VPLEX Cluster Witness and the VPLEX directors, the vpn status command is used. This command checks the status of the VPN tunnels that facilitate secure communication between the management servers and the Cluster Witness Server.

Command Execution: The administrator should execute the vpn status command in the VPLEX CLI. This command will provide information about the state of the VPN tunnels1.

Interpreting Results: The output from the vpn status command will indicate whether the IPsec VPN tunnels are up and if the remote management servers are reachable. It will show the status of connectivity with both the management servers and the Cluster Witness Server1.

VPN Tunnel Status: The command will show the status of the VPN tunnel between the management servers, which is crucial for the clusters to communicate and operate as a metro system1.

Cluster Witness Server Connectivity: Additionally, the command will verify the VPN status between the management server and the Cluster Witness Server, ensuring that the witness can monitor the health and status of the clusters1.

Troubleshooting: If the vpn status command indicates that the remote management IP is not reachable, further troubleshooting will be required to establish connectivity. This may involve checking network configurations, firewall settings, and ensuring that the VPN services are running properly1.

In summary, the vpn status command is used to determine if there is an issue with network latency or routing that needs further investigation, providing a quick and effective way to verify management connectivity between VPLEX clusters after deploying VPLEX Witness.

The VPLEX VS6 improves internal cluster I/O over the VS2 by utilizing 40 Gbps InfiniBand Local COM connections. This enhancement significantly increases the internal bandwidth available for communication between directors within a VPLEX cluster.

InfiniBand Technology: InfiniBand is a high-speed networking technology that provides substantial bandwidth and low latency. By using 40 Gbps InfiniBand connections, the VS6 directors can communicate more data at faster rates compared to the older VS2 hardware1.

Increased I/O Performance: The increased bandwidth from the 40 Gbps InfiniBand connections allows for higher I/O performance, which is particularly beneficial for workloads that require fast data transfer rates and low response times1.

Scalability: The VS6’s improved internal cluster I/O capabilities also contribute to its scalability, supporting larger configurations and more volumes, which is essential for growing enterprise environments1.

Optimized for All-Flash Storage: The VS6 is optimized for all-flash storage, providing 2X IOPS at one-third the latency compared to the VS2, which is a direct result of the improved internal cluster I/O capabilities1.

Future-Ready Infrastructure: The adoption of 40 Gbps InfiniBand Local COM connections positions the VS6 as a future-ready infrastructure that can handle the increasing demands of modern data centers1.

In summary, the VPLEX VS6’s use of 40 Gbps InfiniBand Local COM connections is a key factor in its improved internal cluster I/O performance over the VS2, offering higher bandwidth and lower latency for demanding enterprise applications.

Questions no: High I/O volume type during WAN COM failure

Verified Answer:B. Logging volume

Step by Step Comprehensive Detailed Explanation with References:During a WAN COM failure in a VPLEX Metro environment, logging volumes are subjected to high levels of I/O. This is because the logging volumes are used to store write logs that ensure data integrity and consistency across distributed volumes. These logs play a critical role during recovery processes, especially when there is a communication failure between clusters.

Role of Logging Volumes: Logging volumes in VPLEX are designed to capture write operations that cannot be immediately mirrored across the clusters due to network issues or WAN COM failures1.

WAN COM Failure: When a WAN COM failure occurs, the VPLEX system continues to write to the local logging volumes to ensure no data loss. Once the WAN COM link is restored, the logs are used to synchronize the data across the clusters1.

High I/O Levels: The high levels of I/O on the logging volumes during a WAN COM failure are due to the accumulation of write operations that need to be logged until the link is restored and the data can be synchronized1.

Recovery Process: After the WAN COM link is restored, the VPLEX system uses the data in the logging volumes to rebuild and synchronize the distributed volumes, ensuring data consistency and integrity1.

Best Practices: EMC best practices recommend monitoring the health and performance of logging volumes, especially during WAN COM failures, to ensure they can handle the increased I/O load and maintain system performance1.

In summary, logging volumes experience high levels of I/O only during a WAN COM failure as they are responsible for capturing and storing write operations until the communication between clusters can be re-established and data synchronization can occur.

Advanced provisioning in Dell VPLEX systems allows for more granular control over storage volumes by enabling the division of storage volumes into multiple extents. This capability is particularly useful for optimizing storage utilization and performance.

Division into Extents: Advanced provisioning allows administrators to divide a larger storage volume into smaller, more manageable extents. This can help in aligning storage allocation with application requirements and improving performance by distributing I/O loads1.

Flexibility: By dividing storage volumes into extents, administrators have the flexibility to manage storage more efficiently, such as allocating different extents to different virtual volumes or applications as needed1.

Efficient Storage Utilization: This approach can lead to more efficient utilization of storage resources, as extents can be allocated and de-allocated dynamically based on changing needs1.

Provisioning Steps: While advanced provisioning offers this flexibility, it does not require each provisioning step to be executed simultaneously. Instead, it allows for a more tailored approach to storage management1.

Third-Party Arrays: Advanced provisioning is not limited to storage volumes from third-party arrays; it can be used with storage volumes from a variety of sources, including those directly managed by VPLEX1.

In summary, the consideration when using Advanced provisioning in Dell VPLEX systems is that it allows the user to divide storage volumes into extents, providing greater flexibility and efficiency in storage management.
