220-1101 CompTIA A+ Certification Exam: Core 1 Questions and Answers

PCle (Peripheral Component Interconnect Express) is a type of expansion slot that connects network interface cards (NICs) and other devices to the motherboard. PCle slots have different sizes and speeds, such as x1, x4, x8, x16, and x32. PCle slots are faster and more versatile than older types of expansion slots, such as AGP (Accelerated Graphics Port) and IDE (Integrated Drive Electronics).

References: The Official CompTIA A+ Core 1 Student Guide (Exam 220-1101) eBook, page 2-13.

The correct answer is D. Identify the problem.

The first troubleshooting step that the technician should perform is to identify the problem. This means that the technician should gather information from the user and the system, and analyze the symptoms and the error messages to determine the nature and the scope of the issue. Identifying the problem can help to define the expected outcome, establish a theory of probable cause, and plan a course of action.

The other options are not the first troubleshooting steps, but they are part of the troubleshooting process that should be performed after identifying the problem. Establishing a plan of action (option A) means that the technician should devise a strategy to resolve the issue, based on the theory of probable cause and the available resources. Testing the theory (option C) means that the technician should verify if the theory of probable cause is correct, by performing tests or experiments on the system or its components. Documenting the findings (option B) means that the technician should record and report the results of each troubleshooting step, as well as the final solution and outcome.

For more information about troubleshooting steps and best practices, you can refer to the following web search results: [Troubleshooting Steps for Beginners], [Troubleshooting Methodology], [How to Troubleshoot Like an Expert].

802.11 ax is a wireless networking protocol that utilizes the 5.0GHz frequency and has the best speed and reception among the options given. 802.11 ax offers higher data rates, lower latency, increased capacity, and improved power efficiency than previous protocols. It is also known as Wi-Fi 6 or High Efficiency Wireless (HEW). 802.11a also uses the 5.0GHz frequency, but it is an older protocol that has lower speed and reception than 802.11 ax. 802.11b/g/n use the 2.4GHz frequency, which is more crowded and prone to interference than the 5.0GHz frequency. 802.11n can use both frequencies, but it is also slower and less efficient than 802.11 ax. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 82)

The first step that a technician should do is A. Reseat the webcam.

Reseating the webcam means unplugging and plugging back the webcam into the laptop’s USB port. This can help to ensure that the webcam is properly connected and recognized by the laptop. Reseating the webcam is a simple and quick troubleshooting technique that can solve many common issues, such as loose or faulty connections, power or bandwidth problems, or driver or software conflicts.

Reseating the webcam is the first step that a technician should do, because it follows the principle of starting with the easiest and most obvious solution before moving on to more complex and time-consuming ones. Reseating the webcam can also help to isolate the problem and eliminate other possible causes.

The other options are not the first steps that a technician should do, because they are more disruptive or less effective. Restarting the computer and running system diagnostics (option B) may be helpful if the problem is caused by a software or hardware error, but it may also cause data loss or interruption of other tasks. Reinstalling the webcam software and drivers (option C) may be necessary if the problem is caused by a corrupted or outdated software or driver, but it may also introduce compatibility or configuration issues. Researching new webcam firmware (option D) may be useful if the problem is caused by a firmware bug or vulnerability, but it may also pose security or stability risks.

For more information about troubleshooting external webcams, you can refer to the following web search results: [How to Fix Webcam Problems on Your Laptop], [How to Troubleshoot Webcam Issues on Windows 10], [How to Fix Common Webcam Problems].

The best way to connect the devices is A. Enable pairing.

Pairing is a process that allows two Bluetooth devices, such as a smartphone and a headset, to communicate with each other wirelessly. Pairing creates a secure connection between the devices and allows them to exchange data and audio signals. To pair the devices, the user needs to enable Bluetooth on both devices, make them discoverable, and select the desired device from the list of available devices. The user may also need to enter a PIN code or confirm a passkey to complete the pairing process .

The other options are not the best ways to connect the devices. A hotspot is a feature that allows a smartphone to share its cellular data connection with other devices via Wi-Fi, Bluetooth, or USB. A hotspot can provide internet access to other devices, but it does not allow them to communicate with each other directly. NFC stands for Near Field Communication, which is a technology that allows two devices to exchange data by bringing them close together (usually within 4 cm). NFC can be used to initiate pairing between two Bluetooth devices, but it cannot establish a connection by itself. Synchronization is a process that allows two devices to update and match their data, such as contacts, calendars, photos, or music. Synchronization can be done via Wi-Fi, Bluetooth, USB, or cloud services, but it requires an existing connection between the devices.

The best way to meet the user’s requirement is C. Connect everything to a compatible docking station.

A docking station is a device that allows a laptop to connect to multiple peripherals and accessories with a single connection. A docking station usually has ports for USB, HDMI, audio, Ethernet, and power, as well as slots for expansion cards. A docking station can enhance the functionality and convenience of a laptop by providing a desktop-like experience1. A compatible docking station is one that matches the laptop’s model, brand, and connector type2.

A port replicator is a simpler device that only replicates the ports of the laptop, such as USB and HDMI, without providing additional features or power. A port replicator can also allow a laptop to connect to multiple peripherals and accessories with a single connection, but it does not offer the same benefits as a docking station1.

Directly connecting all accessories to the laptop would not meet the user’s requirement, as it would be cumbersome and time-consuming to pack up and leave if needed. The user would have to disconnect and reconnect multiple cables every time they want to use or move the laptop. This option would also limit the number of accessories that can be connected, as the laptop may not have enough ports for all of them.

Providing the user with a second laptop would not meet the user’s requirement, as it would be expensive and impractical. The user would have to transfer data and settings between the two laptops, and keep them both updated and secure. This option would also create confusion and redundancy, as the user would have two identical devices.

Providing the user with a USB hub would not meet the user’s requirement, as it would only allow the user to connect more USB devices to the laptop. A USB hub is a device that splits one USB port into multiple ports, but it does not support other types of connections, such as HDMI or audio. A USB hub would also require an external power source or drain the laptop’s battery faster. This option would not help the user connect the HDMI external monitor or the 3.5mm headset.

A physical firewall is a hardware device that filters and blocks unwanted or malicious traffic from entering or leaving a network. A physical firewall can be configured with rules and policies to allow or deny traffic based on various criteria, such as source and destination IP addresses, ports, protocols, applications, etc. A physical firewall can also provide logging and monitoring capabilities to detect and prevent network attacks12.

A physical firewall is the most appropriate tool for a technician to use to mitigate threats to web clusters, which are groups of web servers that work together to provide high availability and scalability for web applications. Web clusters are often exposed to the internet and face various types of threats, such as denial-of-service (DoS) attacks, brute force attacks, SQL injection attacks, cross-site scripting (XSS) attacks, etc. A physical firewall can protect the web clusters’ public-facing interface by filtering and blocking the unwanted or malicious traffic before it reaches the web servers, thus reducing the risk of compromise or downtime34.

The other options are not as effective or relevant as a physical firewall for mitigating threats to web clusters. Device encryption is a process of transforming data into an unreadable form using a secret key, which can prevent unauthorized access to the data if the device is lost or stolen. However, device encryption does not prevent network attacks or filter traffic, and it may not apply to web clusters that use shared storage or cloud services. Intrusion detection system (IDS) is a software or hardware tool that monitors network traffic and alerts the administrator of any suspicious or malicious activity. However, IDS does not block or filter traffic, and it may not be able to prevent or stop an attack in progress. IDS is often used in conjunction with a firewall, not as a replacement. Antivirus/anti-malware is a software tool that scans and removes viruses, worms, trojans, spyware, ransomware, and other malicious software from a device. However, antivirus/anti-malware does not filter or block network traffic, and it may not be able to detect or prevent some web-based attacks, such as XSS or SQL injection. Antivirus/anti-malware is also often used in conjunction with a firewall, not as a replacement.

References:

CompTIA A+ Core 1 (220-1101) Certification Study Guide, Chapter 5: Networking, Section 5.4: Network Devices, Page 233

CompTIA A+ Core 1 (220-1101) and Core 2 (220-1102) Exam Cram, Chapter 5: Networking, Section 5.4: Network Devices, Page 197

CompTIA A+ Core 1 (220-1101) and Core 2 (220-1102) Pearson uCertify Course and Labs and Textbook Bundle, Chapter 5: Networking, Section 5.4: Network Devices, Page 234

CompTIA A+ Core 1 (220-1101) and Core 2 (220-1102) Cert Guide, Chapter 5: Networking, Section 5.4: Network Devices, Page 205

CompTIA A+ Core 1 (220-1101) Certification Study Guide, Chapter 9: Security, Section 9.3: Device Security, Page 419

CompTIA A+ Core 1 (220-1101) Certification Study Guide, Chapter 9: Security, Section 9.4: Network Security, Page 431

CompTIA A+ Core 1 (220-1101) Certification Study Guide, Chapter 9: Security, Section 9.5: Malware and Threats, Page 443

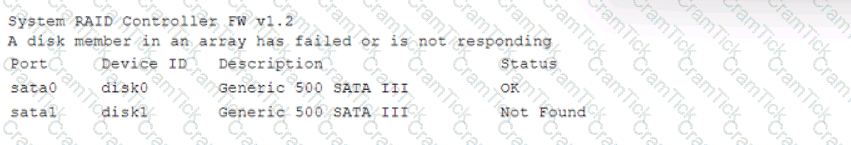

SAS (Serial Attached SCSI) is an interface type that supports high-speed data transfer and high-performance hard drives, such as 15,000rpm drives. SAS drives are commonly used in servers that require fast access and reliability. IDE (Integrated Drive Electronics), eSATA (external SATA), and SATA (Serial ATA) are not suitable for 15,000rpm drives, as they have lower speed and performance.

The correct answer is B. Replace the bad drive.

A clicking noise coming from a hard drive is a sign of a mechanical failure, which can cause data loss or corruption. Replacing the bad drive as soon as possible is the best way to prevent further damage and restore the RAID array to a healthy state. Reinstalling the drive, resetting the RAID software, or running a chkdek on the drive will not fix the underlying hardware problem and may even worsen the situation. Therefore, option B is the correct answer.

References:

CompTIA A+ Core 1 (220-1101) Certification Study Guide, page 131: “Clicking noises indicate that the hard drive is failing mechanically.”

RAID configuration on Linux - Amazon Elastic Compute Cloud, section “Replace a failed volume in a RAID 0 array”: “If one of the volumes in your RAID 0 array fails, you must replace it as soon as possible to avoid data loss.”

The most likely reason for this issue is A. The webcam is not on a level surface.

A webcam is a device that captures and transmits video and audio signals over the internet. A webcam can be integrated or external, depending on whether it is built-in or attached to the computer. A webcam can be used for various purposes, such as videoconferencing, streaming, or recording.

An integrated webcam is a webcam that is embedded in the monitor or the bezel of the laptop. An integrated webcam usually has a fixed position and angle, and it can be adjusted by tilting or rotating the laptop screen. An integrated webcam may have advantages such as convenience, portability, and compatibility, but it may also have disadvantages such as low quality, limited features, or vulnerability to damage.

An external webcam is a webcam that is connected to the computer via a cable or a wireless connection. An external webcam usually has a clip or a stand that allows it to be placed on a level surface or attached to the monitor or the laptop. An external webcam may have advantages such as high quality, advanced features, or flexibility, but it may also have disadvantages such as inconvenience, cost, or compatibility issues.

In this scenario, an integrated webcam on a user’s laptop broke, so a technician installed a temporary, external webcam. Since the external webcam installation, other users can only see part of the user’s face during videoconferences. This could indicate that the external webcam is not properly positioned or aligned to capture the user’s full face. The most likely cause of this issue is that the webcam is not on a level surface, and it is either too high or too low, or too far or too close to the user.

To resolve this issue, the user should adjust the position and angle of the external webcam until it captures their full face clearly and accurately. The user should also check the settings and features of the external webcam, such as zoom, focus, resolution, or brightness, and modify them if necessary. The user should also test the video and audio quality of the external webcam before joining a videoconference .

The other options are not the most likely causes of this issue, because they are not related to the partial face problem. A webcam driver should be updated (option B) if the webcam is not recognized or functioning properly by the computer. A webcam driver is a software component that enables the communication and interaction between the webcam and the operating system. A webcam is plugged into the wrong USB port (option C) if the webcam does not receive enough power or bandwidth from the computer. A USB port is a physical interface that allows data and power transmission between devices. A webcam is not compatible with the OS (option D) if the webcam does not work with the operating system installed on the computer. An operating system is a software program that manages the hardware and software resources of the computer.

For more information about webcams and how to use them effectively, you can refer to the following web search results: [What Is a Webcam?], [Integrated vs External Webcams: Which One Is Better?], [How to Set Up Your Webcam for Video Calls], [How to Look Good on Video Calls], [What Is a Device Driver?], [What Is a USB Port?], [What Is an Operating System?].

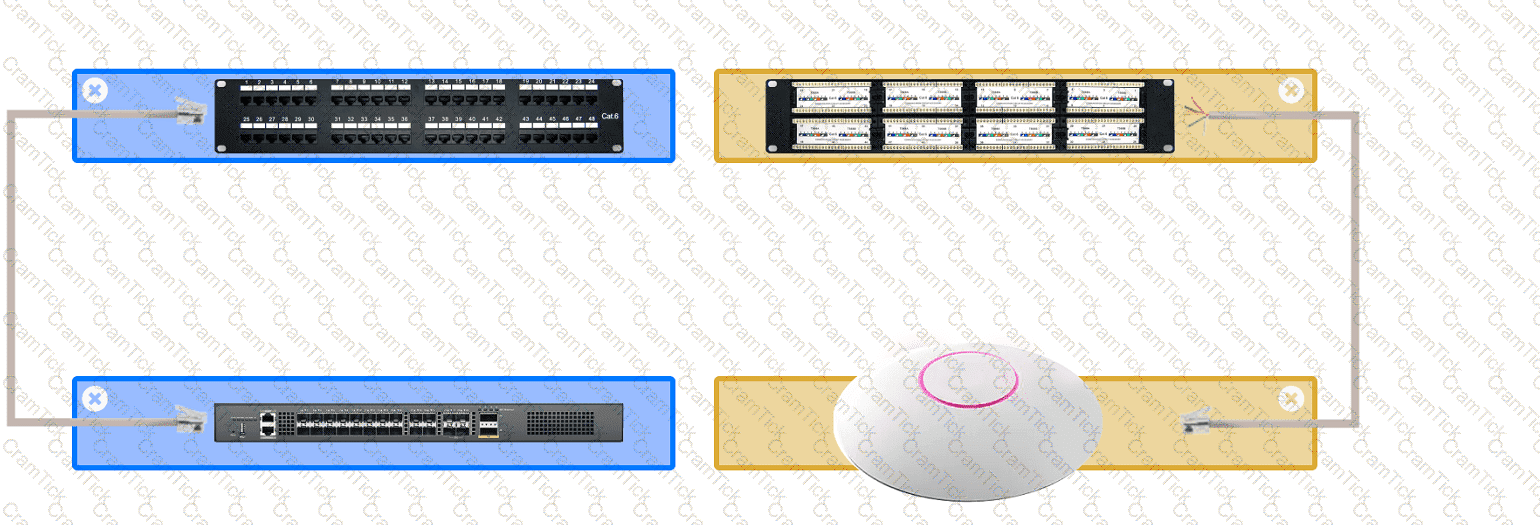

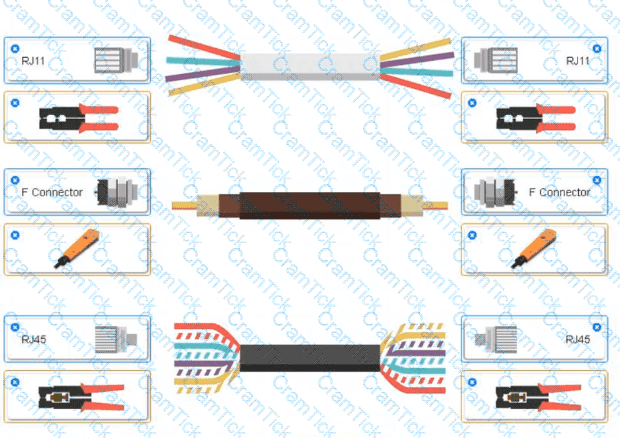

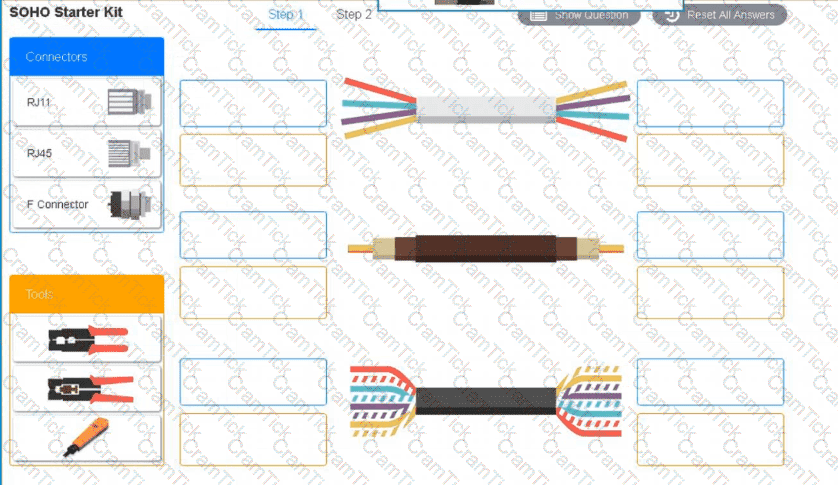

A patch panel is a device that connects multiple network cables in an organized and convenient way. A patch panel has a number of ports that correspond to different cables, such as Ethernet, coaxial, or fiber-optic cables. A patch panel can help simplify the wiring and management of a network, as well as provide flexibility and scalability for adding or changing network devices.

A punchdown tool is a tool that can be used to terminate network cables into a patch panel. A punchdown tool has a blade that cuts and pushes the wires into the slots or contacts of the patch panel. A punchdown tool can help create a secure and reliable connection between the network cables and the patch panel.

The scenarios that best illustrate a need for VDI are A and D.

VDI can provide several benefits for different use cases, such as:

Enhancing security and compliance by centralizing and encrypting data and applications on the server, rather than on the endpoint devices. This can prevent data loss, theft, or leakage, as well as reduce the risk of malware or unauthorized access. This is especially important for organizations that deal with sensitive or regulated information, such as banks, healthcare providers, or government agencies123.

Improving flexibility and mobility by allowing users to access their desktops and applications from any device, location, or network. This can enable remote work, bring your own device (BYOD) policies, or disaster recovery scenarios. This is especially useful for organizations that have distributed or mobile workforce, such as IT engineers, consultants, or sales representatives123.

Reducing costs and complexity by simplifying the management and maintenance of desktops and applications. This can lower the hardware, software, and energy expenses, as well as the IT staff workload. This is especially beneficial for organizations that have large or diverse desktop environments, such as schools, call centers, or manufacturing plants123.

Based on these benefits, the scenarios that best illustrate a need for VDI are:

A. An IT engineer who is designing and showcasing organization user experiences for multiple clients. This scenario requires flexibility and mobility, as the IT engineer needs to access different desktop environments and applications from various devices and locations. VDI can enable the IT engineer to create and switch between multiple virtual desktops on the same server, and to access them from any client device with an internet connection1.

D. A bank that has security concerns regarding employee activity. This scenario requires security and compliance, as the bank needs to protect its data and applications from internal and external threats. VDI can enhance the security of the bank’s desktop environment by storing and encrypting all data and applications on the server, rather than on the endpoint devices. VDI can also provide granular control and monitoring of user access and activity2.

The scenarios that do not illustrate a need for VDI are:

B. A company that needs to store IOPB worth of data. This scenario does not require VDI, as VDI is not a storage solution but a desktop virtualization solution. VDI can help reduce the storage requirements of endpoint devices by storing data on the server, but it does not provide storage capacity or performance for large-scale data processing or analysis. The company may need a different type of cloud service, such as storage as a service (SaaS) or big data as a service (BDaaS), to store and manage its massive amount of data4.

C. A manufacturing plant that has high turnover. This scenario does not require VDI, as VDI is not a human resource solution but a desktop virtualization solution. VDI can help reduce the costs and complexity of managing desktops and applications for a large number of users, but it does not address the root causes of high turnover, such as low wages, poor working conditions, or lack of training. The manufacturing plant may need to improve its human resource policies and practices to retain its employees.

E. A payment processor that is planning on implementing virtual currency. This scenario does not require VDI, as VDI is not a payment solution but a desktop virtualization solution. VDI can help improve the security and flexibility of accessing desktops and applications over the internet, but it does not provide the functionality or compatibility for processing virtual currency transactions. The payment processor may need a different type of cloud service, such as blockchain as a service (BaaS) or cryptocurrency as a service (CaaS), to implement and manage its virtual currency platform.

F. An application developer who needs to configure network settings for an application. This scenario does not require VDI, as VDI is not a development solution but a desktop virtualization solution. VDI can help provide different desktop environments and applications for testing purposes, but it does not provide the tools or resources for developing or configuring applications. The application developer may need a different type of cloud service, such as platform as a service (PaaS) or software development as a service (SDaaS), to create and deploy applications.

The correct answer is D. PAN.

A PAN, or Personal Area Network, is a type of network that connects devices within a short range, usually less than 10 meters, and is used by an individual. A PAN can be wireless or wired, and it can enable data transmission between devices without requiring an internet connection. A PAN can also be connected to a LAN or a higher level network, where one device acts as a gateway.

A Bluetooth hotspot is an example of a wireless PAN, where a device such as a smartphone or a laptop can create a network with other Bluetooth-enabled devices nearby. A Bluetooth hotspot can allow devices to share files, access the internet, or use peripherals such as printers or speakers.

A SAN, or Storage Area Network, is a type of network that connects storage devices such as hard disks, tape drives, or optical drives to servers. A SAN provides high-speed data transfer and access to large amounts of data. A SAN is usually used in data centers or enterprises that need to store and manage huge volumes of data.

A WAN, or Wide Area Network, is a type of network that connects devices over a large geographical area, such as across cities, countries, or continents. A WAN can use different technologies and media to transmit data, such as fiber-optic cables, satellite links, or radio waves. A WAN can also consist of multiple LANs or other types of networks. The internet is the largest example of a WAN.

A LAN, or Local Area Network, is a type of network that connects devices within a limited area, such as within a building or a campus. A LAN can use wired or wireless technologies to transmit data, such as Ethernet cables, Wi-Fi routers, or switches. A LAN can enable devices to share resources, such as printers, scanners, or files.

For more information about the types of networks and their differences, you can refer to the following web search results: 11 Types of Networks: Understanding the Differences, Types of Computer Networks, Types of network - Introduction to networks.

The most likely cause of the issue is that the laptop has a swollen battery, which is a condition where the battery expands due to gas buildup inside the cells. A swollen battery can cause physical damage to the laptop, such as pushing against the track pad or keyboard and preventing them from functioning properly. The technician should inspect the battery and replace it if it is swollen. A damaged digitizer is not the cause of the issue, as the digitizer is a component that converts touch input into digital signals, and it does not affect the track pad or keyboard. Distended capacitors are not the cause either, as capacitors are electronic components that store electric charge, and they do not affect the track pad or keyboard. A failed accelerometer is not the cause as well, as an accelerometer is a sensor that measures acceleration, and it does not affect the track pad or keyboard. References: https://www.comptia.org/blog/what-is-a-laptop-battery

The transmit power settings of the access point determine how strong the Wi-Fi signal is. If the transmit power is too low, the Wi-Fi network will have slow connection speeds and poor coverage. If the transmit power is too high, the Wi-Fi network will interfere with other nearby networks and devices, causing congestion and performance issues. Therefore, the technician should check the transmit power settings first and adjust them to an optimal level for the office environment.

References:

•8 Reasons Why Your Internet is Slow (and How to Fix It), section “You have weak Wi-Fi signals”.

•6 Things Slowing Down Your Wi-Fi (And What to Do About Them) - How-To Geek, section “Channel Congestion Dings Wi-Fi Performance”.

Cloud-based backup is the best way to protect the data of a virtual machine, as it allows the data to be stored in a remote location that is accessible from anywhere. Cloud-based backup also provides scalability, security, and reliability for data protection3. References: [Cloud Backup]

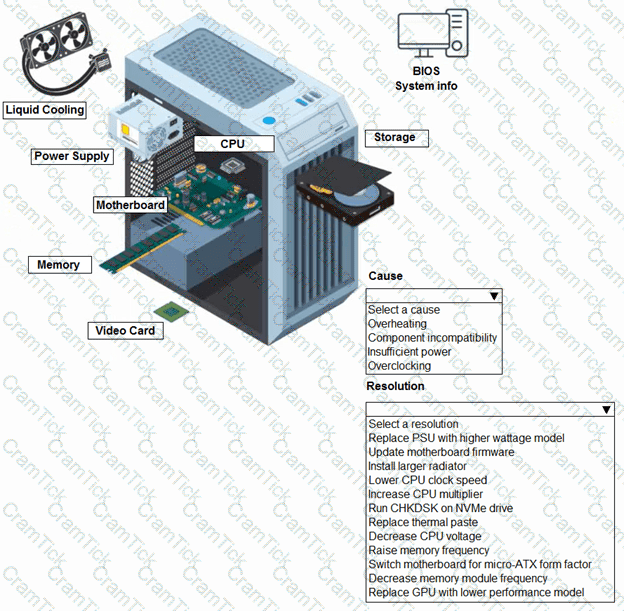

Thermal paste is a substance that fills in any gaps between a CPU and its heat sink, which is a device that dissipates heat from the CPU. Without adequate thermal paste, the CPU may overheat and cause the system to shut down automatically to prevent damage. This is especially likely when running 4K video or games, which are more demanding and generate more heat. The technician should check if the CPU heat sink was attached properly and apply enough thermal paste to ensure good contact and heat transfer. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-series-comb ined-content-guide (page 28)

The most likely issue is C. Tray settings.

Tray settings are the configuration options that tell the printer what type and size of paper is loaded in each tray. If the tray settings do not match the actual paper loaded, it can cause paper jams, misalignment, or incorrect printing. For example, if the printer expects letter-sized paper (8.5 x 11 inches) but the tray contains legal-sized paper (8.5 x 14 inches), the printer may try to pull more paper than it needs, resulting in a jam.

To fix this issue, the team should check and adjust the tray settings according to the paper they are using. They should also make sure that the paper is loaded correctly and not overfilled or mixed with different sizes or types of paper. Some printers have a manual feed option that allows users to select the paper size and type before printing, which can prevent paper jams from occurring.

References:

•Fix Paper Jam Errors | HP® Support, section “Paper jams”.

•Common Causes of Paper Jams and How to Fix Them - 1ink.com, section “Make Sure You’re Loading the Paper Correctly”.

•How to Fix a Paper Jam in a Printer - Computer Hope, section “Paper tray is overloaded or not loaded correctly”.

The correct answer is D. 5,400rpm HDD.

A 5,400rpm HDD (Hard Disk Drive) is a type of storage device that uses spinning magnetic disks to store data. A 5,400rpm HDD is the least expensive per gigabyte among the options given, as it has a lower rotational speed and performance than other types of HDDs or SSDs (Solid State Drives). A 5,400rpm HDD is suitable for archiving a large number of photos that are not accessed frequently, as it can offer high capacity and reliability at a low cost.

the average cost per gigabyte of a 5,400rpm HDD is around $0.02 to $0.0312, while the average cost per gigabyte of the other options are:

NVMe SSD: $0.10 to $0.1534

SCSI RAID: $0.20 to $0.305

15,000rpm SAS: $0.30 to $0.40

Therefore, a 5,400rpm HDD is the cheapest option among the four.

The correct answer is D. UDP.

UDP (User Datagram Protocol) is a connectionless protocol that does not establish a connection before sending or receiving data. UDP simply sends datagrams to the destination without checking if the receiver is ready or not. UDP does not guarantee reliable delivery, error correction, or in-order arrival of the data. UDP is faster and more efficient than connection-oriented protocols for applications that do not require reliability, such as streaming audio or video1

A. SSH (Secure Shell) is not a correct answer. SSH is a connection-oriented protocol that uses TCP (Transmission Control Protocol) as its transport layer. SSH establishes a secure and encrypted connection between two network endpoints before exchanging data. SSH provides authentication, confidentiality, and integrity for remote login and command execution2

B. TCP (Transmission Control Protocol) is not a correct answer. TCP is a connection-oriented protocol that establishes a connection before sending or receiving data. TCP ensures reliable delivery, error correction, and in-order arrival of the data. TCP is slower and more complex than connectionless protocols, but it provides more reliability and quality of service for applications that require it, such as web browsing or email1

C. HTTPS (Hypertext Transfer Protocol Secure) is not a correct answer. HTTPS is a connection-oriented protocol that uses TCP as its transport layer and SSL/TLS as its security layer. HTTPS establishes a secure and encrypted connection between a web browser and a web server before exchanging data. HTTPS provides authentication, confidentiality, and integrity for web transactions, such as online banking or shopping1

VRAM (Video Random Access Memory) is a special-purpose memory type used by graphics controllers to store image data that is displayed on the screen. VRAM is faster and more expensive than regular RAM, and it allows the graphics controller to access the image data directly without involving the CPU or the system memory. VRAM can improve the performance and quality of graphics-intensive applications, such as video editing, gaming, and 3D rendering.

References:

•Ram Flashcards | Quizlet, question “Which of the following is a special-purpose memory type used by graphics controllers?”.

•Nvidia Unveils Big Accelerator Memory: Solid-State Storage for GPUs, paragraph 4.

•US5801706A - Special purpose memory for graphics and display apparatus …, abstract.

The most likely answer is E. Reseat the laptop in the docking station.

The IPv4 address of 169.254.0.9 indicates that the laptop is using an Automatic Private IP Address (APIPA), which means that it could not obtain a valid IP address from the DHCP server on the network1. This could be caused by a physical or logical problem with the network adapter, the cable, the docking station, or the network itself2.

One of the possible solutions is to reseat the laptop in the docking station, which means to remove it and insert it again, making sure that it is properly aligned and connected. This can help fix any loose or faulty connections between the laptop and the docking station, and between the docking station and the network cable3. Reseating the laptop can also trigger a new DHCP request and renew the IP address4.

Other possible solutions include resetting the network adapter, replacing the network cable, rebooting the DHCP server, or restarting the laptop in safe mode. However, these are less likely to be effective than reseating the laptop, as they involve more steps and may not address the root cause of the problem234. Replacing the laptop is an extreme and unnecessary measure, as there is no evidence that the laptop itself is faulty.

The correct answer is B. Duplex.

Duplex printing is the process of printing on both sides of a sheet of paper automatically or manually. Duplex printing can save paper, reduce clutter, and create professional-looking documents. To print on both sides of the paper, the printer must support duplex printing or the user must manually reinsert the pages to print the second side.

Orientation is the direction in which the paper is printed, either portrait (vertical) or landscape (horizontal). Orientation does not affect the ability to print on both sides of the paper.

Quality is the resolution or sharpness of the printed image, measured in dots per inch (dpi). Quality does not affect the ability to print on both sides of the paper.

Print tray is the part of the printer that holds and feeds the paper into the printer. Print tray does not affect the ability to print on both sides of the paper.

To enable duplex printing on a Windows PC, follow these steps1:

Open the document for printing, then select File > Print.

In Settings, select Manually Print on Both Sides, then Print.

Follow the instructions on the screen to flip and reinsert the pages.

To enable duplex printing on a Mac, follow these steps2:

Open the document for printing, then select File > Print.

In Layout, select Two-Sided, then Long-Edge binding or Short-Edge binding.

Click Print.

References:

Print on both sides of the paper (duplex printing) in Word

How to Print Double-Sided on a Windows PC or Mac Computer

A USB (universal serial bus) connection is the most suitable option for a headset that can be physically connected to a laptop for online conference calls. A USB connection is a digital interface that can transfer both power and data between devices using a standard cable. A USB headset can plug into any available USB port on the laptop and communicate with the audio and microphone drivers without requiring additional software or hardware. A USB headset can also offer enhanced features, such as inline controls, noise cancellation, surround sound, or LED lighting, depending on the model and manufacturer.

Other connections, such as Bluetooth, DVI, or Thunderbolt, are not appropriate for a headset that can be physically connected to a laptop. Bluetooth is a wireless technology that uses radio waves to pair devices over a short distance, and it requires a battery or a charger for the headset. DVI (digital visual interface) is a video interface that can transmit digital or analog signals between a display device and a video source, and it is not compatible with audio or microphone devices. Thunderbolt is a high-speed interface that can support multiple protocols, such as DisplayPort, USB, or PCI Express, and it requires a special cable and port that may not be available on all laptops.

References:

How to set up and use a headset on Windows 10 | Windows Central1

How to Connect a Headset to a Computer2

USB - Wikipedia

The technician should replace the patch cable that connects the desktop to the network switch or outlet. The patch cable may be damaged or incompatible with the upgraded network infrastructure, which can cause slow network speeds. According to the CompTIA Core1 objectives, one of the common symptoms of a bad cable is slow transfer speeds. A research paper on network performance also states that cable quality and length can affect network speed.

Systems can be provisioned according to demand. This is the essence of rapid elasticity, which is one of the essential characteristics of cloud computing. Rapid elasticity means that cloud services can be scaled up or down quickly and automatically, depending on the changing needs of the customers. This provides flexibility, efficiency, and cost-effectiveness for both the customers and the providers. According to the CompTIA Core1 objectives, one of the benefits of cloud computing is rapid elasticity. A research paper on cloud elasticity also defines it as the ability to dynamically adjust the amount of resources allocated to a service in response to its workload variation.

RFID stands for Radio Frequency Identification, and it is a technology that uses electromagnetic fields to identify and track objects that have RFID tags attached to them. RFID tags are small devices that store information and can be read by RFID readers. RFID is most likely used to control door access because it allows for contactless and convenient authentication of authorized personnel. For example, an employee can use an RFID card or key fob to unlock a door by holding it near an RFID reader installed on the door. The reader will scan the tag and verify its ID number with the access control system, which will grant or deny access based on the predefined rules and permissions. RFID is a common and widely used type of door access control system, as it offers security, efficiency, and flexibility.

References:

Some additional references for the answer are:

IP Door Access Control - Kintronics

Door Access Control: A Complete Guide | Swiftlane

Best Door Access Control System: How It Works & Features - ButterflyMX

A load balancer is a network device or service that distributes incoming network traffic across multiple servers, based on various criteria, such as availability, capacity, performance, or location. A load balancer can ensure that the servers’ resources will be utilized efficiently, as well as improve reliability, scalability, and security. A load balancer can be hardware-based or software-based, or a combination of both. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 79)

The most likely reason for the issue is that the webcam is not on a level surface, which causes the camera angle to be distorted. The user should adjust the position of the webcam so that it is aligned with the laptop screen and captures the user’s face fully. The other options are not relevant to this issue, as they would not affect the camera angle or visibility of the user’s face. Verified References: How to Position Your Webcam Correctly.

OLED (Organic Light Emitting Diode) displays have lower power consumption than LCD (Liquid Crystal Display) displays because they do not require a backlight to produce light. Each pixel in an OLED display can emit its own light, which also allows for higher contrast and finer grayscale levels. However, OLED displays are more prone to color degradation over time than LCD displays, which use filters to create colors. Verified References: OLED vs LCD: How to choose the right display for your phone.

The most likely issue that the technician will encounter is A. Corrupt job in print spooler.

A corrupt job in the print spooler is a common problem that can cause a printer to stop printing or print slowly. The print spooler is a service that manages the print queue, which is a list of documents that are waiting to be printed. Sometimes, a document in the print queue can become corrupted or incompatible with the printer, and prevent other documents from being printed. This can happen due to various reasons, such as power outage, network interruption, driver mismatch, virus infection, etc12.

To troubleshoot and resolve this issue, the technician can use the diagnostic tool in the printer’s administrator menu, which is a feature that allows the technician to access and configure various settings and options of the printer. The diagnostic tool can help the technician identify and delete the corrupt job in the print spooler, and restart the print service. The technician can also use the diagnostic tool to check the printer’s status, error messages, firmware updates, network settings, and other information that can help with the troubleshooting process34.

The other options are less likely to be encountered by the technician, as they are not related to the printer’s heavy use or the diagnostic tool. Insufficient space in the printer is an issue that can occur when the printer’s memory or storage is full, and it can cause the printer to print slowly or incompletely. However, this issue can be easily resolved by clearing the printer’s memory or storage, or adding more memory or storage to the printer12. Network connectivity issues are problems that can affect the communication between the printer and the network, and they can cause the printer to be offline or unreachable. However, these issues can be resolved by checking and fixing the physical or wireless connection, the network configuration, the firewall settings, and the printer’s IP address12. Improperly installed drivers are issues that can affect the compatibility and functionality of the printer, and they can cause the printer to print incorrectly or not at all. However, these issues can be resolved by updating, reinstalling, or rolling back the printer’s drivers, or by using the correct drivers for the printer’s model and operating system12.

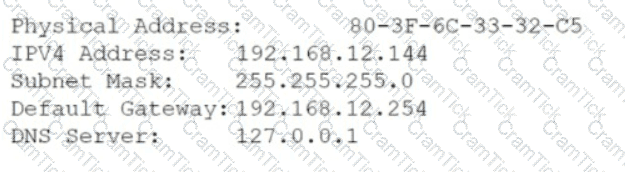

The technician is unable to access the company portal website, but other websites work fine. This suggests an issue with resolving the specific URL of the company portal, which is a function of DNS.

Here's why other options are not the most likely cause:

DHCP reservations: This is not relevant as the issue persists even when the technician tries a different workstation, indicating a problem beyond individual device configuration.

Static IP addresses: Similar to DHCP reservations, static IPs are not likely the cause as both affected workstations are experiencing the issue.

Default gateway: While the default gateway is necessary for internet access, other websites are working, making it less likely to be the root cause.

References:

CompTIA A+ Certification Core 1 220-1101 Study Guide, Chapter 4: Networking, Section 4.2 Addressing and Naming

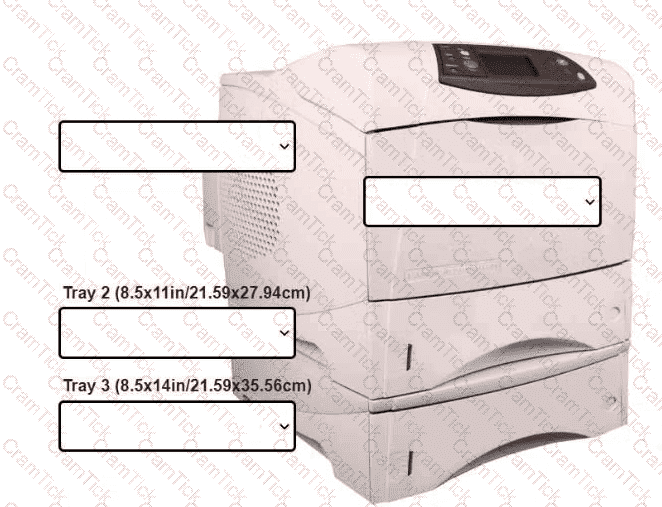

The most likely issue is C. Tray settings.

Tray settings are the configuration options that tell the printer what size and type of paper is loaded in each tray. If the tray settings do not match the actual paper size and type, the printer may not be able to feed the paper correctly and cause paper jams.

In this scenario, the team that is having issues prints legal-sized documents, which are 8.5 x 14 inches, while the other teams print letter-sized documents, which are 8.5 x 11 inches. If the printer’s tray settings are set to letter size by default, the printer may not recognize the legal-sized paper and try to pull it as if it were letter-sized paper. This can result in paper jams or misaligned printing.

To fix this issue, the team should check and adjust the tray settings on the printer to match the paper size and type they are using. They can also use a separate tray for legal-sized paper and another tray for letter-sized paper, and make sure to select the correct tray when printing.

The other options are less likely to cause the issue, because:

•Worn rollers are the rubber parts that grip and move the paper through the printer. They can wear out over time and lose their traction, causing paper jams or misfeeds. However, worn rollers would affect all teams and all paper sizes, not just one team and one paper size.

•Page orientation is the direction of the paper, either portrait or landscape. It can affect how the document is printed on the paper, but not how the paper is fed into the printer. Page orientation can be changed in the print settings or in the document itself, but it would not cause paper jams unless the paper size is also incorrect.

•Multipage misfeed is when more than one sheet of paper is pulled into the printer at once, causing a jam. This can happen if the paper is too thin, too thick, or too slippery, or if there is too much or too little paper in the tray. However, multipage misfeed would also affect all teams and all paper sizes, not just one team and one paper size.

For more information and tips on how to prevent and fix paper jams, you can visit these links:

•Fix Paper Jam Errors | HP® Support

•Common Causes of Paper Jams and How to Fix Them - 1ink.com

three beeps and a black screen indicate a memory error of some sort123. This means that the RAM may not be properly installed or connected to the motherboard. Reseating the RAM means removing each stick and re-inserting it, making sure it clicks into place. This can sometimes solve the problem by ensuring a good contact between the RAM and the motherboard.

Replacing the power supply, reattaching the hard drive, or flashing the BIOS are unlikely to fix this issue, since they are not related to the memory error. The power supply provides power to the whole system, the hard drive stores data, and the BIOS is the firmware that controls the boot process. None of these components would cause three beeps and a black screen if they were faulty.

A serial interface is a common way to connect to the console port of a switch using a rollover cable and a terminal emulator program. This allows the network technician to configure and troubleshoot the switch. Bluetooth, near-field communication, and port replicator are not used for console connections.

When experiencing issues accessing a USB key for a firmware update, particularly in relation to system board UEFI updates, the Secure Boot feature should be considered. Secure Boot is a security standard designed to ensure that a computer boots using only software that is trusted by the PC manufacturer. If Secure Boot is enabled, it might prevent the system from recognizing or booting from the USB key if the firmware update or the USB drive is not recognized as a trusted source. Disabling Secure Boot temporarily can allow the firmware update to proceed.

References:

CompTIA A+ Core 1 (220-1101) Exam Objectives, specifically the sections on UEFI/BIOS settings and configurations, including the role and configuration of Secure Boot in system security.

Understanding of UEFI/BIOS security features and their impact on system boot processes, particularly the function of Secure Boot in validating firmware and software integrity during the boot process.

Utilizing a grounding strap is the safest way to replace RAM on a server that has a redundant power supply. This is because the grounding strap prevents electrostatic discharge (ESD) when handling the RAM, which can cause damage to the RAM and the server. Therefore, it is important to always use a grounding strap when handling RAM or other sensitive components.

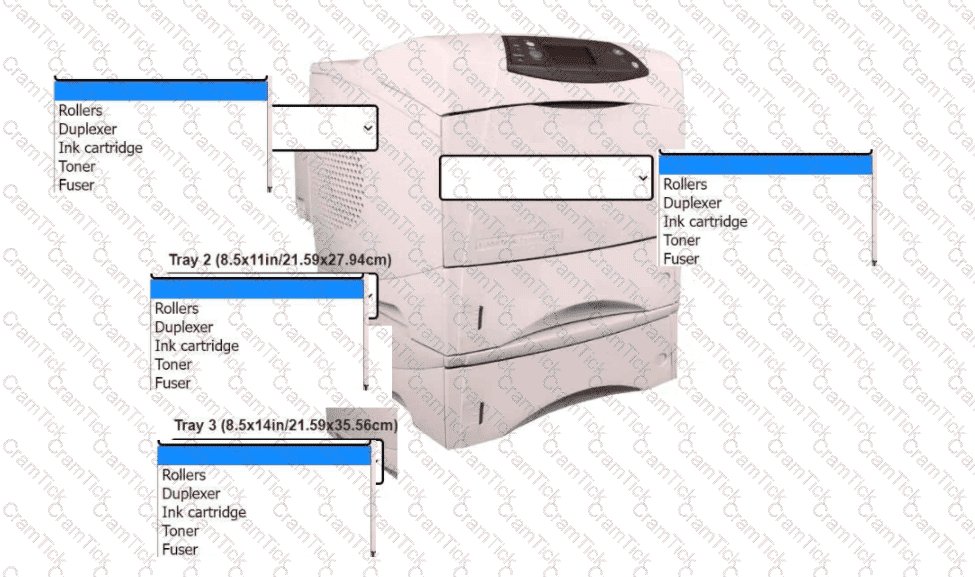

If paper gets stuck at the last stage of printing, the rollers responsible for moving the paper through the printer are likely worn out or dirty.

Why Not B (Tray assembly): The tray assembly manages paper loading, not feeding during the print process.

Why Not C (Toner): Toner is unrelated to paper jams.

Why Not D (Printhead): Printheads manage ink/toner distribution, not paper movement.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 4.6, printer troubleshooting​.

For setting up a private network, the IP address range should be one that is reserved for private use. The range 172.16.0.0 to 172.31.255.255 falls within the set of IP addresses designated for private networks according to RFC 1918. This range is not routable on the public internet, making it ideal for a private network setup on a retail router.

References:

CompTIA A+ Core 1 Exam Objectives Section 2.5: Given a scenario, install and configure basic wired/wireless SOHO networks.

A maintenance kit includes components like rollers and other parts that tend to wear out over time, which are common causes of printer jamming. Replacing toner, ink cartridges, or ribbons would not directly address paper jams. This troubleshooting step aligns with the CompTIA A+ Core 1 objective regarding maintaining printers for optimal performance.

A digitizer is the component in a two-in-one laptop that enables finger-based or stylus input on the screen. It is responsible for converting touch inputs into digital signals that the device can interpret.

Why Digitizer?

A digitizer is integrated into the screen assembly and works to detect and process inputs such as taps, swipes, or pinches.

This is a standard feature in modern touchscreens, enabling functionality for both finger-based and stylus-based interactions.

Incorrect Options:

A. Fingerprint Scanner: Used for biometric authentication, not for touch input on screens.

C. Stylus: An accessory that interacts with the digitizer but does not provide the input functionality itself.

D. Inverter: Used in older displays to power backlights, especially in LCD screens with CCFL technology, and has no role in touch input.

CompTIA A+ Exam Objectives References:

220-1101 (Core 1), Section 1.2 and 1.3: Covers mobile device components, including digitizers and input methods​.

Once the technician has determined that the power supply is likely to be defective, they should establish a plan of action to resolve the problem. This may include replacing the power supply or further testing to confirm that it is indeed defective. After establishing a plan of action, the technician should implement the solution and verify that it has resolved the issue.

Upgrading a power supply to add a GPU typically requires more wattage to accommodate the additional power demands. Although the current power supply is 380W, adding a GPU with a six-pin power connector suggests a mid-range graphics card, which would likely need a total system power supply in the range of 450W to ensure adequate power for all components, providing a good balance between capacity and safety margins.

References:

CompTIA A+ Core 1 Exam Objectives Section 3.5: Given a scenario, install or replace the appropriate power supply.

The IPv4 address (192.168.10.5) and the gateway address (192.168.1.1) are on different subnets. With a netmask of 255.255.255.0, the network part of the IPv4 address is 192.168.10.x, while the network part of the gateway address is 192.168.1.x. For the workstation to correctly route traffic to the gateway, both must be on the same subnet. The correct gateway address should be within the same subnet as the IPv4 address, such as 192.168.10.1.

An MX (Mail Exchange) record in DNS specifies the mail server responsible for accepting email messages on behalf of a domain. It is a vital component of the email delivery process, directing email to the correct server based on the domain part of the email address. Without properly configured MX records, a domain's email system cannot function correctly.

CompTIA 6-Step Troubleshooting Process:

1. Identify the problem.

2. Establish a theory of probably cause. (Question the obvious)

3. Test the theory to determine cause.

4. Establish a plan of action to resolve the problem and implement the solution.

5. Verify full system functionality and if applicable implement preventative measures.

6. Document findings, actions, and outcomes.

Writing a knowledge base article in the ticketing software would help document the root cause of the application error and the steps taken to resolve it, which can help other technicians resolve similar issues in the future. This is an example of knowledge management best practices. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition, Chapter 6

Secure Shell (SSH) is a protocol used to securely access and manage devices over a network. It provides a secure channel over an unsecured network in a client-server architecture, enabling technicians to perform troubleshooting and management tasks remotely with encryption to ensure the security of the data transmitted. FTP and TFTP are used for file transfers and do not inherently provide the same level of security or direct device management capabilities. RDP is used for remote desktop connections but is not as universally applicable for various devices as SSH.

References:

CompTIA A+ Core 1 Exam Objectives Section 2.1: Compare and contrast Transmission Control Protocol (TCP) and User Datagram Protocol (UDP) ports, protocols, and their purposes.

The degraded status on Server 2 indicates a RAID-5 issue, typically due to a failed or failing drive. In RAID-5 configurations, when one drive fails, the system can still operate but with reduced performance as parity data is used to rebuild missing data on-the-fly.

Recommended Replacement Drive:To minimize performance degradation, the replacement drive should be:

SAS HDD with the same specifications (64KB stripe size, no read-ahead, and write-back policy).

Matching the configuration exactly ensures seamless integration and optimizes recovery speed in the RAID-5 array.

In RAID-5, degraded performance is expected when one drive fails, as parity data needs to rebuild missing information during each read/write process. Replacing the failed drive restores the RAID array to optimal status, reducing the load on existing drives and returning the system to normal read/write performance. The write-back policy and disabled disk cache settings are designed to reduce latency and increase efficiency, essential for handling real-time applications.

A user reports poor performance on the

application server.

INSTRUCTIONS

Click on Server 1 and Server 2 and review

the information presented in each chart to

determine which drives need to be replaced.

Select the appropriate replacement drive

that should be used, for the least

performance degradation to the server.

A computer server with many black boxes Description automatically generated with medium confidence

A screen shot of a computer Description automatically generated

A screen shot of a computer Description automatically generated

A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer Description automatically generated

A computer screen shot of a computer Description automatically generated

A screenshot of a computer Description automatically generated

A screenshot of a computer Description automatically generated

If the smartphone is showing a 5G symbol, it is connected to a cellular network rather than Wi-Fi. Enabling Autoconnect ensures the device automatically connects to the company Wi-Fi when in range, resolving the issue.

Why Not B (VPN): VPN is used for secure remote access and does not resolve Wi-Fi connection issues.

Why Not C (Encryption): Encryption settings are related to data security, not network connectivity.

Why Not D (WPS): WPS (Wi-Fi Protected Setup) is used to easily connect devices to Wi-Fi, but it is not required for this issue.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.4, wireless network troubleshooting​.

The ATX 3.0 16-pin connector provides power to high-end graphics cards, and a poor connection could lead to power issues and burning smells.

After successfully resolving a log-on issue by resetting the password, the next step should be to document the findings. This documentation is crucial for maintaining a record of the problem and the solution, which can be useful for future reference if similar issues arise. It also ensures that any changes made to the system or user account are recorded, which is essential for maintaining the integrity and security of IT systems. This step is in line with the CompTIA A+ best practice methodology for resolving problems, as outlined in the CompTIA A+ Core 2 (220-1102) Exam Objectives, particularly in section 4.0 "Operational Procedures", which emphasizes the importance of documentation in managing and configuring security settings and operational procedures​​.

To connect a mobile phone to a car, you need to pair them using Bluetooth, which is a wireless technology that allows secure local networks between devices1. If one phone can connect to the car but another cannot, it means that the first phone has Bluetooth enabled and paired with the car, while the second phone does not. Therefore, the user should check the Bluetooth settings on the second phone and make sure it is turned on and discoverable21.

The issue described in the question is most likely due to an incorrect configuration of the printer's duplex settings. To enable automatic duplex printing, the technician needs to read the printer's installation manual to understand how to configure the printer's duplex settings correctly. Once the settings are configured, the printer should be able to print on both sides of the paper automatically.

To fix the issue of a newly installed printer capable of automatically printing on both sides of the paper but only printing on both sides manually, the technician should read the installation manual and configure duplex settings. Duplex printing settings can be configured in the printer driver software, which can be accessed through the printer settings in the Control Panel. Installing the most recent firmware upgrade available for the printer, contacting the vendor for a hardware replacement, or reinstalling the printer software and drivers and restarting the printer will not resolve the issue.

The most appropriate solution for the technician to consider in this situation is Application virtualization. Application virtualization is a technology that allows applications to run in a virtual environment, which isolates them from the underlying operating system and other applications. This ensures that the application deployment will not affect other legacy applications on the end users’ computers1.

M.2 is a form factor for solid-state drives (SSDs) that enables direct attachment to the motherboard without the need for cables. Thunderbolt is a high-speed interface that supports data transfer, video output, and charging. eSATA is an external interface for connecting SATA devices. SCSI is an older interface standard for connecting hard drives, printers, and other peripherals.

Installing a hard drive directly on the motherboard without using cables is usually done with an M.2 slot. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 5

Since the hard drive appears to be functioning normally, the technician should investigate other potential causes of the issue. This could include checking the BIOS settings, verifying the connections to the hard drive, and testing the RAM. Once these steps have been completed, the technician can then take the necessary steps to resolve the issue.

Step by Step Detailed Comprehensive Explanation with All CompTIA References:

Analysis of the Problem:

Switching to the 5GHz frequency improves speed but decreases range and penetration through walls compared to 2.4GHz.

Users experience degraded performance likely due to poor coverage at the 5GHz range.

Option Evaluation:

A. Select a different channel: Useful for interference resolution but not coverage improvement. Incorrect.

B. Switch the Wi-Fi back to 2.4GHz frequency: This downgrades the network speed, which isn't a preferred solution. Incorrect.

C. Upgrade the wireless drivers on the users' devices: Unlikely to resolve coverage issues. Incorrect.

D. Add more access points for better coverage: Improves coverage in areas where 5GHz struggles. Correct.

Since the issue of the network connection dropping has been replicated on a known-good workstation using the same network cable, it suggests that the problem may not be with the individual workstations or the cable. The next logical step is to check for external interference, such as electrical or wireless interference that could be disrupting the network connection.

C. Validate the environment for external interference: External factors, such as nearby electronic devices or poor cabling, can cause intermittent network drops. Checking for interference would be a prudent next step.

Why the other options are incorrect:

A. Add new network hardware to reduce congestion: There’s no evidence that network congestion is the issue, and adding new hardware without identifying the cause is premature.

B. Assign a static IP to the impacted workstations: The issue appears to be related to the physical network connection or environment, not IP addressing.

D. Check the network logs for evidence of port flapping: Port flapping occurs when a network port rapidly switches between up and down states. While checking logs could provide information, external interference is a more likely culprit given the symptoms.

This issue is part of the Networking Troubleshooting domain in the CompTIA A+ Core 1 exam​.

It is common for companies to place a data cap on the devices they provide to their employees, to control costs. If a user has exceeded the data cap, the phone may no longer allow internet browsing over a cellular connection. This is usually because the cellular data usage has exceeded the allotted amount for the particular plan the device is on, and the service provider has temporarily suspended the data connection.

It is unlikely that the child accidentally connected to a neighbor's WLAN because this would not affect the cellular data connection. Similarly, it is unlikely that the company's group policy has disabled the device, as this would likely affect all devices under the same policy. If the device's plan has been unpaid, the service provider would likely temporarily suspend all services, not just the cellular data connection.

To allow multiple users to print to networked printers:

Printer shares enable users to access printers shared on the network.

Print servers manage print jobs and provide centralized control of printing.

Why Not B (DHCP server): DHCP is unrelated to print management.

Why Not D (Printer subnet): Subnets group devices but don’t manage printing.

Why Not E (SMB configuration): SMB is for file sharing, not specifically print management.

Why Not F (Printer Wi-Fi settings): These settings are irrelevant since the printers use Ethernet.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 4.6, printer configuration​.

When a user consistently receives an error requesting A4 paper for print jobs, and no other users are experiencing similar issues, it indicates a possible misconfiguration in the user's printer settings. By setting the printer defaults in the Control Panel to use letter-sized paper, which is more common in some regions, this ensures that the user's print jobs are aligned with the available paper size in the office printer. This approach addresses the root cause of the issue by ensuring that the default settings match the paper size used in the office, eliminating the need for the user to adjust settings for each print job.

References: Adjusting printer default settings is a standard procedure for resolving paper size mismatch errors, as documented in printer setup and troubleshooting guides.

A private cloud deployment model provides the company with complete control over how the data is managed. This is because a private cloud is managed solely by the organization and resides on-premises or in a data center. Therefore, a private cloud deployment model is the best option for this scenario.

NFC (Near Field Communication) is the technology used for contactless payment features on mobile payment devices. If a mobile payment device is having issues with its contactless payment feature and is not detecting payment options, it is most likely due to an issue with the NFC functionality of the device.

The contactless payment feature on a mobile payment device uses NFC (Near Field Communication) to detect payment options. If the device is not detecting payment options, the issue may be related to a problem with the NFC feature. References: https://www.techopedia.com/definition/31790/near-field-communication-nfc

If a user is unable to connect a laptop to a projector or videoconferencing system and sees the error message "No source found," the next step should be to check the display settings on the computer and set them to extend/duplicate. This will ensure that the laptop's display is being output to the external device. References: CompTIA A+ Certification Exam Guide, pg. 514

The digitizer is the component that converts the touch input into electrical signals that are processed by the tablet. If the digitizer is damaged or malfunctioning, it may not register the touch input correctly or at all. The technician can test the digitizer using a diagnostic tool or by replacing it with a known good one. Updating the device drivers, replacing the damaged screen protector, or performing a factory reset are unlikely to fix the issue, as they do not address the hardware problem.

The earliest PoE switches from a few years ago generated 15 Watts per port (IEEE 802.3af). Today, most use the PoE+ standard (IEEE 802.3at), which generates up to 30 Watts per port. That's plenty for most devices that people want to connect

https://intellinetnetwork.eu/pages/what-is-a-poe-injector

The quickest way to resolve the issue is to install a Power over Ethernet (PoE) injector to provide power to the IP phone. An unmanaged switch does not provide PoE, so an injector is needed to power the phone.

Using the device as a Wi-Fi hotspot, a failing battery, and too many open applications are the most likely causes of the cell phone getting hot. These actions require the phone to use more power and processing, causing it to heat up.

White lines running through text and graphics in printouts from an inkjet printer are commonly caused by clogged printheads. When the printhead nozzles are clogged, they cannot deliver ink properly to the paper, resulting in white lines where ink should have been deposited. Worn-out rollers, faulty ink cartridges, and poor-quality paper can cause other printing issues but are less likely to cause white lines in the printed output.

References:

CompTIA A+ Core 1 Exam Objectives Section 3.7: Given a scenario, install and replace printer consumables.

Outdated drivers: Device functionality issues after an OS upgrade are often caused by incompatible or outdated drivers.

Disabled settings: Some features may be disabled during the upgrade process, requiring re-enablement.

Why Not A (Incorrect configuration): This is unlikely given the issues arose only after the upgrade.

Why Not B (OS and device incompatibility): Upgrades check for compatibility before installation.

Why Not D (Full storage): Storage issues typically prevent installation, not device functionality.

Why Not F (Corrupted registry entries): While possible, this is less common than the selected answers.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 3.5, troubleshooting OS upgrades​.

A valid public IP address must fall outside the private IP address ranges:

10.0.0.0 to 10.255.255.255

172.16.0.0 to 172.31.255.255

192.168.0.0 to 192.168.255.255

66.157.195.20 is outside these ranges, making it a public IP address.

Why Not A, C, D: These IPs fall within private IP address ranges.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.6, IP addressing​.

Satellite internet is most commonly used in remote areas where wired infrastructure (e.g., fiber or cable) is unavailable. It relies on satellite communication, making it suitable for isolated locations.

Why Not A (Fiber): Fiber requires physical infrastructure, which is rarely available in remote areas.

Why Not B (Cable): Cable internet relies on coaxial infrastructure, which is often unavailable in remote locations.

Why Not D (DSL): DSL depends on existing telephone lines, which may not reach remote areas.

Why Not E (Cellular): Cellular can work in remote areas, but satellite is often the only option for extremely isolated locations.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.7, internet connection types​.

A router is a device that connects one or more networks, such as a home or small office network, to the internet. It allows multiple devices to share a single internet connection and provides network address translation (NAT) to enable communication between the devices on the local network and the internet. A hub, Ethernet gateway, or wireless access point does not provide this functionality.

A router is the most likely device to be used to connect one or more devices to the internet in a SOHO. A router can provide network address translation (NAT), firewall protection, and other features that are important for securing and managing a network. References: CompTIA A+ Certification Exam Guide, pg. 355

VDI is a technology that allows a company to provide desktop environments to third-party developers while still maintaining control over the corporate network. VDI creates virtual desktops on a remote server, and each user gets their own desktop environment that is isolated from the other users. This allows the company to maintain control over the corporate network, as the virtual desktops are not directly connected to the corporate network.

This is because high-end graphics cards, processors, and multiple hard drives require a significant amount of power to operate. A power supply with insufficient wattage could cause stability issues or even damage the components.

The CompTIA A+ Core1 certification guide emphasizes the importance of selecting an appropriate power supply for a computer build. In addition to wattage, other factors to consider when selecting a power supply include efficiency, modularity, and the number and type of connectors required to power the components. However, of the options listed, the wattage rating is the most critical consideration.

Therefore, the technician should ensure that the power supply they select has a wattage rating that is sufficient to power all the components in the gaming computer. It is always a good practice to select a power supply with a wattage rating that exceeds the estimated power usage of t

To adjust the VLAN configuration, the technician needs to configure the switch. VLANs are configured on switches to segment network traffic logically, even if the devices are connected to the same physical network. By adjusting the VLAN settings on the switch, the technician can ensure that the sales department has access to the marketing department's network resources.

C. Switch: VLANs are configured on switches to logically separate or combine network segments.

Why the other options are incorrect:

A. Network card: A network card is a hardware component that connects a device to a network, but it does not configure VLANs.

B. Patch panel: A patch panel is used to organize and manage network cables but does not play a role in VLAN configuration.

D. Server: A server may host resources, but VLANs are managed at the switch level.

E. Hub: A hub is a basic networking device that simply forwards traffic; it cannot be used to configure VLANs.

This falls under the Networking domain in the CompTIA A+ Core 1 exam​.

NVMe (Non-Volatile Memory Express) drives are high-speed solid-state drives that utilize the PCIe (Peripheral Component Interconnect Express) interface to connect to the motherboard. Before purchasing an NVMe drive, the user should confirm that the PC has an available M.2 slot for the drive and that the PC has a PCIe interface for the M.2 slot.

SATA (Serial ATA) is an older interface for hard drives and is not compatible with NVMe drives. SAS (Serial Attached SCSI) is a newer interface for hard drives and is typically used for enterprise-level storage systems. SCSI (Small Computer System Interface) is a parallel interface for hard drives that is primarily used in high-end workstations and servers. DRAM (Dynamic Random Access Memory) is a type of memory commonly used in computers, but it is not relevant to the storage of data on a hard drive.

The minimum cable category that could be used to support a 10Gbps throughput is Cat 6a. Cat 6a cable is required with 10 Gigabit Ethernet for reliable performance with cable lengths up to 100 metres. However, lower-specification cables can often be successfully used, particularly with the shorter cable lengths required in a typical home123.

When a user connects a laptop to a projector and the image displayed is very fuzzy (blurred) but the brightness level is satisfactory, the first setting to adjust on the projector is the focus. The focus control adjusts the clarity and sharpness of the projected image. Incorrect focus settings can lead to a fuzzy or blurred image even when the brightness is adequate. Adjusting the focus should help in making the image clear and sharp.

References:

CompTIA A+ Core 1 (220-1101) Exam Objectives, particularly sections related to configuring and troubleshooting display devices, including projectors and their common settings like focus, aspect ratio, keystone, and resolution.

Basic understanding of how projectors work and the common adjustments that can be made to improve image quality, with focus being a primary control for addressing issues of image clarity.

Utilizing a grounding strap is the safest way to replace RAM on a server that has a redundant power supply. This ensures that no static electricity is transferred to any of the server components, which could cause permanent damage. The other options are not the correct methods for replacing RAM. Unplugging one power cable is not recommended, as it could cause the server to go offline and disrupt any services that are running. Verifying the RAM temperature is not necessary and does not provide any additional safety measures, and replacing the RAM while the server is running is not recommended, as it could cause system instability.

802.11ac is the 802.11 standard that supports both 5GHz and 2.4GHz channel frequencies. 802.11ac is the latest wireless networking standard that operates in both the 5GHz and 2.4GHz frequency bands. It provides higher wireless network speeds and better reliability compared to previous standards, such as 802.11a, 802.11b, and 802.11g. The 802.11a standard operates exclusively in the 5GHz band, while the 802.11b and 802.11g standards operate exclusively in the 2.4GHz band.

An IDE hard drive uses a Molex connector for power. This 4-pin connector is a standard for older drives.

Why Not A (F type): F type connectors are used for coaxial cables in video and internet applications.

Why Not B (SC): SC connectors are for fiber optic cables.

Why Not D (Lightning): Lightning connectors are for Apple devices.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 3.1, cable types and connectors​.

Enabling secure boot will verify the digital signature of the bootloader and operating system, ensuring that the system only boots from trusted and authorised sources. This can prevent booting from an unauthorised live CD or other external media.

The best way to prevent booting from a live Linux CD on a computer in a shared space on campus is to enable secure boot. Secure boot is a feature that ensures that the system only runs software that is signed by an authorized party. This means that the system will not boot from any unauthorized media, including live Linux CDs.

Secure Boot is a feature that ensures that the system only runs software that is signed by an authorized party. This means that the system will not boot from any unauthorized media, including live Linux CDs. Secure Boot is an important security feature designed to prevent malicious software from loading when your PC starts up (boots)1.

Booting from a live Linux CD is a process that allows you to run a Linux operating system from a CD or DVD without installing it on your hard drive. This can be useful for testing or troubleshooting purposes. To boot from a live Linux CD, you need to insert the CD or DVD into your computer’s CD/DVD drive and restart your computer. Most systems are set up to automatically boot from the CD/DVD drive, but if your system is not set up this way, you may need to change a system setting to boot from a Linux CD/DVD23.

If the touch-screen features on a Windows device have stopped working, a technician should check the Tablet/PC settings. The Tablet/PC settings contain options for configuring the touch-screen features on a Windows device. By checking the Tablet/PC settings, the technician can ensure that the touch-screen features are enabled and configured correctly.

If the touch-screen features on a Windows device have stopped working, a technician should check the Tablet/PC settings. The touch-screen settings may have been disabled or there may be a driver issue that needs to be resolved. References: CompTIA A+ Certification Exam Guide, pg. 536

To enable devices to connect to the internet after installing a new router at a small office, the technician should configure DHCP (Dynamic Host Configuration Protocol) on the router. DHCP is a network protocol that automatically assigns IP addresses and other network configuration parameters to devices on a network. By configuring DHCP on the router, the technician can ensure that all devices on the network are assigned a valid IP address that allows them to connect to the internet.

If all devices have a 169.254.x.x IP address, this suggests that the router is not assigning IP addresses to the devices using DHCP (Dynamic Host Configuration Protocol). Configuring the DHCP settings on the router can enable the devices to receive IP addresses automatically and access the internet. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition, Chapter 14

A technician is working on a help desk ticket for a user who wants the filament replaced in a 3-D printer. To remove the old filament and load the new one, the technician should preheat the nozzle to melting temperature. After the nozzle is heated, the technician should withdraw the filament and remove the spool. Then, cut a sharp angle on the end of the new strand, and push it along until resistance is felt.

The first step to troubleshoot this issue is to check if the website that hosts the random number generator is HTTPS enabled. This means that the website supports secure communication using SSL certificates and encryption. If the website is not HTTPS enabled, it may not be compatible with the SSL redirection implemented by the IT department. SSL redirection is a technique that automatically redirects HTTP requests to HTTPS, ensuring that the data exchanged between the web browser and the website is protected. However, some websites may not have SSL certificates or may have expired or invalid ones, which can cause errors or warnings when trying to access them via HTTPS. Therefore, the technician should check the website’s URL and see if it starts with https:// or http://. If it is the latter, the technician should try to manually change it to https:// and see if the website loads correctly. If it does not, the technician should contact the website owner or administrator and ask them to enable HTTPS or update their SSL certificates.

References:

Some additional references for the answer are:

How To Fix HTTP and HTTPS Redirect Issue | Sitechecker

Nginx SSL Certificate and HTTPS Redirect Errors | DigitalOcean

ERR_TOO_MANY_REDIRECTS · Cloudflare SSL/TLS docs

How to Fix SSL Redirect Loop | Hostinger Help Center

If the printed text is not adhering properly to the paper on a laser printer that has had repairs previously for scanning issues, the fuser should be replaced to resolve this issue. The fuser is a component of the printer that uses heat and pressure to fuse the toner onto the paper. If the fuser is not functioning properly, the toner may not adhere properly to the paper.

A sandbox environment is designed to isolate and contain software or programs, preventing them from interacting with other parts of the system or network. This isolation can be used to safely run untested or untrusted programs or code without risking the integrity of the host system or network. Setting up a virtual machine within a sandbox environment ensures that the VM has no communication with other devices over the network, providing a controlled and secure environment for testing or development purposes.

References:

CompTIA A+ Core 1 (220-1101) Exam Objectives, particularly the sections on virtualization and cloud computing, which may cover the concept of sandboxing as a form of virtualization used for security and testing.

Understanding of virtualization technologies and security practices, including the use of sandbox environments to contain and limit the potential impact of untrusted or experimental software.

An inverter failure commonly causes dim screens as it fails to power the backlight, which is crucial for visibility. The LCD glass, IPS panel, and digitizer relate to touch and image display, not brightness. According to CompTIA A+ Core 1 objectives, understanding mobile device display issues, including inverter-related problems, is essential for effective troubleshooting.

To make sure that the new operating system on the USB drive loads automatically, the user must configure the boot options in the BIOS/UEFI. Boot options determine the sequence of devices the computer will attempt to boot from when powered on. Setting the USB drive as the first boot option ensures that the system will load from the USB before trying other devices.

D. Boot options: The user should configure the boot sequence to prioritize the USB drive, so the system boots from it automatically.

Why the other options are incorrect:

A. BIOS password: A BIOS password is used to restrict access to the BIOS settings, not to control boot order.

B. Trusted Platform Module (TPM): TPM is a security feature used for cryptographic operations and securing hardware, not for controlling boot options.

C. USB permissions: This refers to access permissions for USB devices but does not affect booting from a USB drive.

This concept is part of the Hardware domain in the CompTIA A+ Core 1 exam, specifically regarding BIOS configuration​.

Port 20 is used for FTP data transfer (along with port 21 for control), so enabling this port is required. Ports 23, 53, and 68 are unrelated to FTP functionality, as they correspond to Telnet, DNS, and DHCP respectively. CompTIA A+ Core 1 objectives outline the importance of knowing standard port numbers for network services.

A firewall implements ACLs (Access Control Lists) to filter traffic and enforce policies based on rules such as IP address, port, or protocol.

Why Not A (Managed switch): A managed switch supports VLANs and QoS but does not enforce ACLs at the network perimeter.

Why Not B (Gateway): Gateways connect networks and translate protocols but don’t typically implement ACLs.

Why Not C (Repeater): Repeaters extend signal range but don’t enforce policies.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.2, firewall concepts​.

The "Ease of Access" settings in Windows are designed to help make the computer more accessible to users with various needs. Among these settings, there are options to adjust mouse and cursor functionality, including the visibility and behavior of the cursor. Adjusting these settings can resolve issues related to cursor trails, making it a suitable first step in troubleshooting this specific problem.

When a computer frequently freezes and requires hard restarts, the first step a technician should take, especially when hardware components have not been recently changed, is to read the event logs. Event logs can provide critical insights into what is causing the system to freeze, including errors and warnings that precede the freeze. This information is essential for diagnosing software or operating system issues that might be causing instability. Checking the temperature or updating drivers might be subsequent steps based on findings from the event logs.

References:CompTIA A+ Core 1 (220-1101) troubleshooting section, which emphasizes the importance of using system logs to diagnose issues.

A loopback plug allows a technician to verify that the cable functions as expected by looping the signal back for testing. While a punchdown tool installs cables in a panel, it does not test functionality, and Wi-Fi analyzers and toner probes serve other network diagnostics. This is in line with CompTIA A+ Core 1 objectives for validating cable installation and connectivity.

Given the network information for the server “InternalToolCentral” with an IP address of “192.130.230.5” and a subnet mask of “255.255.255.0”, the gateway address should be within the same network range. However, the gateway address is listed as “192.130.230.1”, which is correct and within the same subnet. Therefore, the issue is not with the gateway settings.

The DNS servers are listed as “8.8.8.8” and “4.2.2.1”, which are public DNS servers and should be able to resolve domain names correctly if they are reachable.

The open ports listed include 25 (SMTP), 80 (HTTP), 110 (POP3), 443 (HTTPS), and 3306 (MySQL), which are standard ports for their respective services.

Considering the provided options and the network settings, the most likely explanation for users being unable to access resources on the file server is: A. Applicable ports have been closed during routine hardening. This could prevent users from connecting to the necessary services on the file server.

References:

Networking best practices and troubleshooting steps as covered in the CompTIA A+ certification materials.

Understanding of network configurations and services related to file server accessibility.

Containers are lightweight, isolated environments perfect for deploying and running microservices in a cloud or virtualized infrastructure.

Routers are designed to connect multiple networks and direct packets to their intended destinations across network segments. This makes them essential for directing packets to networks outside of the LAN, such as the internet or other remote networks.

References:

CompTIA A+ Core 1 Exam Objectives Section 2.2: Compare and contrast common networking hardware.

Configuring scanning to a Secure Message Block (SMB) share specifically designated for executive access ensures that the scanned confidential documents are stored securely on a network drive with restricted access. SMB is a network file sharing protocol that allows applications on a computer to read and write to files and request services from server programs in a computer network. By setting up an SMB share with executive access, the data is centralized, making it easier to manage permissions and security settings. This method also utilizes the existing network infrastructure, allowing for scalability and integration with other security measures like encryption and authentication protocols.

References:

CompTIA A+ Certification Exam Core 1 and Core 2 Objectives Documents

When a device is experiencing slow file transfers to an external USB drive and the physical connections are confirmed to be correct, the next step is to update the device drivers. Outdated or corrupt drivers can cause suboptimal performance and slow transfer speeds. Updating the drivers can resolve these issues and improve the device's communication with the USB drive, leading to faster file transfers.

References:

CompTIA A+ Core 1 Exam Objectives Section 5.0: Hardware and Network Troubleshooting.

If a desktop PC shuts down suddenly and there is a burning smell coming from the area where it is connected to the wall socket, the first step should be to check that the power cable is not damaged. A damaged power cable can cause electrical shorts or overheating, leading to sudden shutdowns and a burning smell. Inspecting the power cable for fraying, cuts, or other damage can help identify if it is the source of the problem.

References:

CompTIA A+ Core 1 (220-1101) Exam Objectives, specifically the sections on troubleshooting hardware components and power-related issues, which would include assessing external factors such as the condition of power cables.

Basic electrical safety and troubleshooting principles, emphasizing the importance of checking power connections and cables when faced with symptoms of electrical issues.

If users are only able to save a small number of pictures on the microSD cards before running out of space, it suggests a formatting issue. Improper or incomplete formatting can lead to the card not utilizing its full storage capacity, resulting in significantly less available space for storing pictures. Formatting the microSD cards correctly would ensure the file system on the cards is set up properly, allowing the devices to use the full capacity of the cards for storage. Compatibility, UHD storage capability, and camera storage settings are less likely to be the issue in this scenario.

References: The necessity of proper formatting for storage devices is a fundamental aspect of managing digital storage, as outlined in the basic principles of digital storage and file systems.

The digitizer is responsible for detecting touch input, so if the phone is not responding to touch, it is likely the digitizer is malfunctioning.

Punch-down blocks are commonly used to terminate and manage cabling for telephone systems and Ethernet networks (e.g., Cat 5, Cat 6). These blocks allow for efficient organization and connection of wires.

Why Not B (Fiber): Fiber cables use specialized connectors (e.g., SC, LC) and are not terminated with punch-down blocks.

Why Not C (HDMI): HDMI cables are pre-terminated and not designed for punch-down termination.

Why Not E (Coaxial): Coaxial cables use screw-type or compression connectors, not punch-down blocks.

Why Not F (USB): USB cables are also pre-terminated with proprietary connectors.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 3.1, cable termination techniques​.

The technician has identified the symptoms (slow performance and random pop-ups) and must now establish a theory of probable cause, such as malware or spyware infection. This step aligns with the CompTIA troubleshooting methodology.

Why Not A (Establish a knowledge base): This is irrelevant at this stage; knowledge bases are used for reference and documentation.

Why Not C (Establish a new theory and consider escalating): The technician has not yet created or tested a theory, making escalation premature.

Why Not D (Establish a plan of action): Planning an action occurs after determining the cause of the problem.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 3.1, troubleshooting methodology​​.

After resolving the immediate issue (reactivating server credentials), verifying system functionality ensures the solution works as intended and the user can now access the shared drive. This step is a part of the CompTIA troubleshooting methodology:

Identify the problem.

Establish a theory of probable cause.

Test the theory to determine the cause.

Establish a plan of action.

Implement the solution.

Verify full system functionality.

Document findings, actions, and outcomes.

Why Not B (Document the findings): Documentation comes after verifying the system works.

Why Not A (Escalate the issue): Escalation is unnecessary since the problem was resolved.

Why Not C (Perform backups): Performing backups is unrelated to verifying credential functionality.

CompTIA A+ Exam Reference: Core 2 (220-1102), Section 3.1, troubleshooting methodology​​.

Configuring the monitor as an "extended" display will allow the laptop and monitor to show different content. By default, laptops mirror displays, so this setting change enables dual display functionality. This is covered under CompTIA Core 1 exam objectives for managing display configurations and settings​.

If a color laser printer's image quality decreases after being serviced for dust removal, it's likely that the servicing process affected the printer's calibration. Calibration ensures that color reproduction is accurate, and if disturbed, can lead to a decrease in image quality. It's important to check and recalibrate the printer to restore its ability to accurately reproduce colors and maintain high image quality.

References:

CompTIA A+ Core 1 (220-1101) Exam Objectives, particularly the sections dealing with printer maintenance, troubleshooting, and the importance of calibration in maintaining image quality in laser printers.

Knowledge of printer maintenance procedures and their impact on printer performance, with a focus on how calibration affects color accuracy and overall image quality.

802.1X is a network authentication protocol commonly used in enterprise environments. If the user cannot connect to the office wireless network but can connect at home, the issue is likely related to the 802.1X certificate required for authentication. Installing or updating the certificate will resolve the issue.

Why Not B (Check the wireless router settings): If other users can connect to the network, this step is unnecessary.

Why Not C (Update the wireless driver): Driver updates might resolve connectivity issues but are unrelated to 802.1X certificate authentication.

Why Not D (Disable the Windows firewall): The firewall does not affect 802.1X authentication.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.6, wireless network authentication​.

Vertical or horizontal lines—Marks that appear in the same place (referred to as repetitive defects) are often due to dirty feed rollers (note that there are rollers in the toner cartridge and fuser unit too) or a damaged or dirty photosensitive drum.

Vertical streaks on a laser printer output are usually caused by a damaged or worn-out drum, which is responsible for transferring toner to the paper. If the drum is damaged, toner may accumulate on certain parts of the drum, leading to streaks on the printed output. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition, Chapter 15

It is designed to protect an organization's network infrastructure and data from unauthorized access, while allowing legitimate traffic to pass through. Firewalls can be configured to enforce security policies that block certain types of traffic, limit access to specific network resources, and prevent attacks such as malware and phishing.

A firewall is a network security system that monitors and controls incoming and outgoing network traffic based on predetermined security rules. It establishes a barrier between a trusted internal network and an untrusted external network, such as the Internet. Firewalls are used to implement network security policies for an environment by controlling access to the network and protecting it from unauthorized access.

A firewall is used to implement network security policies. It monitors incoming and outgoing traffic based on predetermined security rules and can block traffic that does not meet the defined criteria. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Chapter 6, page 243)

After the issue has been identified and the backup of the system has been made, the next step is to establish a theory of probable cause. This involves researching the issue to determine the root cause of the problem. This can involve researching internally (e.g. referring to the system logs) or externally (e.g. searching online). Once the probable cause has been identified, the technician can then move on to the next step of designing a plan of action to resolve the issue and implementing the solution.

A hotspot provides a redundant internet connection using cellular data. This ensures connectivity for the meeting even if the primary ISP connection fails.

Why Not A (Wireless access point): A wireless access point expands Wi-Fi connectivity but does not provide internet redundancy.

Why Not B (Near-field communication): NFC is used for short-range communication, not internet connectivity.

Why Not D (Bluetooth): Bluetooth is for short-range device pairing and cannot serve as a backup internet connection.

CompTIA A+ Exam Reference: Core 1 (220-1101), Section 2.7, internet connection types and redundancy​.

A hybrid cloud is a cloud computing environment that combines on-premises, private cloud, and public cloud resources. This configuration allows organizations to deploy workloads and data in a way that optimizes performance, security, and cost management.

Key Characteristics of a Hybrid Cloud:

Combines private cloud (on-premises or dedicated servers) and public cloud (resources accessed over the internet).

Allows for the movement of data and applications between private and public clouds.

Supports scenarios where certain data must remain on-premises for security or compliance reasons, while other workloads utilize the scalability of public cloud resources.

Comparison to Other Options:

A. Private Cloud: A private cloud is a dedicated environment for a single organization, either on-premises or hosted by a service provider. It does not include any public cloud integration, as seen in a hybrid model.

C. Community Cloud: This model is shared among several organizations with similar requirements, typically for collaborative projects, and does not blend public and private infrastructure.

D. Public Cloud: Resources are entirely hosted on a cloud provider’s infrastructure and are shared among multiple customers, lacking the private, dedicated resources of a hybrid setup.

CompTIA A+ Exam Objectives References:

220-1101 (Core 1), Section 4.1 outlines various cloud-computing models, including private, public, hybrid, and community clouds.

Hybrid cloud is explicitly described as an environment that mixes private and public resources to deliver flexible and scalable solutions​.

When two devices on the same network are assigned the same IP address, it can lead to intermittent connectivity issues as the network switches between the two devices. This situation, known as an IP address conflict, can disrupt the normal operation of the network, leading to connectivity problems that appear sporadic or intermittent. Resolving duplicate IP addresses typically involves ensuring DHCP is correctly configured or manually setting unique static IP addresses for devices prone to conflicts.

Electromagnetic interference (EMI) is unwanted noise or interference in an electrical path or circuit caused by an outside source. Hence shielded Cat 6 is better

If a technician determines that the root cause of sporadic network connectivity issues is EMI, the most cost-effective cable medium that can be used without sacrificing system performance is shielded Cat 6 cable. Shielded cables protect against electromagnetic interference (EMI) and radio frequency interference (RFI). References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Page 548)

https://spryzensecurity.medium.com/what-is-troubleshooting-methodology-40cec6b6494

The technician should ask the user additional clarifying questions regarding the issue. This will help to identify any other potential causes of the issue, such as software configuration or compatibility issues, before attempting any further troubleshooting steps.

When a user connects a smartphone to a laptop, they create a Personal Area Network (PAN). A PAN is a type of network used for communication between devices in close proximity to each other, typically within a range of a few meters or less. This type of network is commonly used for wireless communication between personal devices, such as connecting a smartphone to a laptop for file sharing or internet access. References: CompTIA A+ Certification Exam Objectives - 220-1001: 1.1 Explain common connectors and their uses.

Verify that the OS supports hot swapping the RAM. Before replacing the RAM on an entry-level server with hot-swappable components, the technician should verify that the operating system supports hot swapping of RAM.

The appropriate connection types for connecting an external keyboard to an Android tablet are USB-C and Bluetooth123.

Lightning Connector: Apple introduced this brand-new connector back in 2012. It is over 80% smaller than the 30-pin connector and is reversible.

https://www.cablewholesale.com/support/technical_articles/what s_your_port.php#:~:text=Lightning%20Connector%3A%20Apple%20introduced%20this,pin%20connector%20and%20is%20reversible.

A sandbox environment is an isolated testing environment where code can be written and tested without impacting other infrastructure. This provides a safe and controlled environment for experimentation and development. References: CompTIA A+ Certification Exam Core 2 Exam Objectives - 5.5 Compare and contrast common workstation security best practices

The company should buy Coaxial cables to be used with F-type connectors.

If a laser printer is producing output with duplicate images (also known as ghost images), it could be due to an issue with the toner drums and rollers. The first step to eliminate the ghost images would be to clean the toner drums and rollers to remove any excess toner that may be causing the issue.

Ghost images are a common issue in laser printers where an image or text from a previous page appears faintly on subsequent pages. The cause of this issue is usually due to toner residue on the drum or rollers, which can be removed by cleaning the toner drums and rollers. References: Study Guide Section 4.6 - Printer technologies

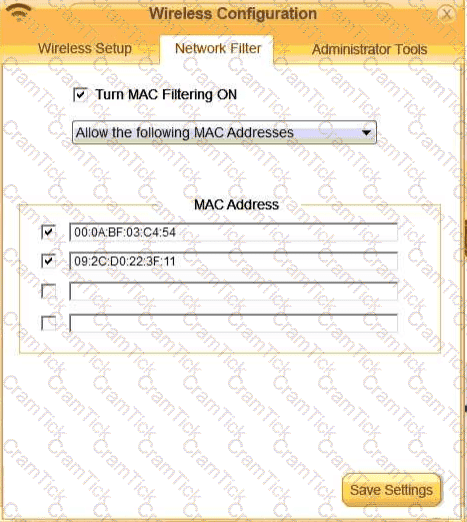

The technician should check the MAC filtering list next as the new router may have a different MAC address than the old router. References: CompTIA A+ Certification Exam Guide, Exam 220-1001, Page 332

An uninterruptible power supply (UPS) can help ensure maximum uptime for customers' virtual machines by providing a backup power source in case of a power outage or other power-related issues. A line conditioner and AC voltage regulator are designed to stabilize the power supply, but do not provide backup power. Cloud storage backup is a way to backup data, but does not directly impact uptime. References: CompTIA A+ Certification Exam: Core 1 - Page 159

A Virtual Private Network (VPN) is a secure method for connecting a remote user's laptop to a corporate server. VPNs use encryption to protect data transmitted over the internet.

The 2. band is subdivided into up to 14 channels, spaced at 5 MHz intervals from 2412 MHz up to 2484 MHz. Wi-Fi requires bandwidth of approximately 20 MHz, not 5 MHz. Consequently, a site designer needs to choose the channels that do not overlap. On a WLAN where only the first 11 channels are available, channels 1, 6, and 11 can be selected as non-overlapping. Note: In the Americas, regulations permit the use of channels 1-11 only, while in Europe, channels 1-13 are permitted. In Japan, all 14 channels are permitted.

http://www.221021.com/Hardware/input-output-devices/32310.html

1. Identify the problem.

Gather information from the user, identify user changes, and, if applicable, perform backups before making changes.

Inquire regarding environmental or infrastructure changes.

2. Establish a theory of probable cause (question the obvious).

If necessary, conduct external or internal research based on symptoms.

3. Test the theory to determine the cause.

Once the theory is confirmed, determine the next steps to resolve the problem.

If the theory is not confirmed, re-establish a new theory or escalate.

4. Establish a plan of action to resolve the problem and implement the solution.

Refer to the vendor's instructions for guidance.

5. Verify full system functionality and, if applicable, implement preventive measures.

6. Document the findings, actions, and outcomes.

To increase the performance of a laptop working with a large database stored on drive C, a systems administrator should increase the RAM and migrate to an SSD. Increasing the RAM will help the laptop to better handle the large database, while migrating to an SSD will improve the speed at which the laptop can access the database. Configuring RAID 1, installing a hybrid drive, upgrading to a 1GB NIC, and upgrading the power supply will not directly improve the laptop's performance when working with a large database. References: CompTIA A+ Certification Exam: Core 1 - Objective 3.1

The unexpected reboots on a graphics workstation when rendering complex 3-D models may be caused by insufficient power supply. The workstation is configured with a 115V power supply that is rated at 200W, which may not be enough when the GPU is heavily tasked. The technician should begin troubleshooting by checking the power supply.

When a user hears one beep on rebooting a machine, and then an error message is displayed, it could indicate that there is a problem with the RAM module or the boot order. The beep sound indicates that the POST process was successful, and the error message indicates that the boot process was unsuccessful. The boot order determines the sequence in which the computer looks for bootable devices. References: CompTIA A+ Certification All-in-One Exam Guide, Tenth Edition by Mike Meyers (Page 693)

The issue described in the question is most likely due to an incorrect configuration of the printer's duplex settings. To enable automatic duplex printing, the technician needs to read the printer's installation manual to understand how to configure the printer's duplex settings correctly. Once the settings are configured, the printer should be able to print on both sides of the paper automatically.

To fix the issue of a newly installed printer capable of automatically printing on both sides of the paper but only printing on both sides manually, the technician should read the installation manual and configure duplex settings. Duplex printing settings can be configured in the printer driver software, which can be accessed through the printer settings in the Control Panel. Installing the most recent firmware upgrade available for the printer, contacting the vendor for a hardware replacement, or reinstalling the printer software and drivers and restarting the printer will not resolve the issue.

PaaS (Platform as a Service) is a cloud computing model in which a provider offers a platform that allows developers to create, run, and manage applications without the complexity of building and maintaining the infrastructure. An application development environment is a valid use for PaaS. References: CompTIA A+ Certification Exam Objectives 1001, 1.7

The technician should restart the modem and run an online internet connection and speed diagnostic tool1. High latency is a common issue with satellite internet connections, and it can cause slow internet speeds2. Restarting the modem can help to resolve the issue1. The technician should also run an online internet connection and speed diagnostic tool to check the connection and speed1. Guiding the customer on how to upgrade the internet plan with the provider in order to improve latency is not likely to be the correct option2.

High latency while pinging can indicate a problem with the modem or the connection between the modem and the satellite. Restarting the modem can often resolve connectivity issues. Running an online internet connection and speed diagnostic tool can help identify any other issues with the connection. Upgrading the internet plan may not resolve latency issues and may not be necessary if the download test is performing perfectly with very good download speeds. High latency is not normal for satellite internet connections, so replacing the modem based on this one test result is premature. References: CompTIA A+ Certification Exam: Core 1 - Page 102

The most likely reason that the technician is unable to select the channel with almost no RF pollution is that it is reserved for licensed band use. Some channels are reserved for specific purposes and require a license to use. These licensed bands are typically used for critical infrastructure, public safety, or military operations, and unlicensed devices are not allowed to use them. References: CompTIA A+ Certification Exam Objectives - 220-1001: 3.3 Compare and contrast common networking hardware devices.

Client-side virtualization guest machines require isolation from other guest machines to maintain their security. Isolation ensures that each virtual machine is separated from others and runs its own operating system and applications, making it less vulnerable to attacks from other guest machines. References: CompTIA A+ Certification Exam Objectives 220-1002 - Virtualization and cloud computing - 4.1

Toner Probe Many cable testers also incorporate the function of a toner probe, which is used to identify a cable from within a bundle. This may be necessary when the cables have not been labeled properly. The tone generator is connected to the cable using an RJ45 jack and applies a continuous audio signal on the cable. The probe is used to detect the signal and follow the cable over ceilings and through ducts or identify it from within the rest of the bundle.

M.2 is a form factor for solid-state drives (SSDs) that enables direct attachment to the motherboard without the need for cables. Thunderbolt is a high-speed interface that supports data transfer, video output, and charging. eSATA is an external interface for connecting SATA devices. SCSI is an older interface standard for connecting hard drives, printers, and other peripherals.

Installing a hard drive directly on the motherboard without using cables is usually done with an M.2 slot. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 5

solution as

The pink hue is most likely caused by physical cabling issues

the output on a monitor is clear but has a pink hue, it could be due to an issue with the physical cabling connecting the monitor to the computer. The video signal may be degraded or distorted due to a damaged or loose cable. The technician should check and replace the cable if necessary to resolve the issue.

The correct answers are B. 2.4GHz penetrates solid objects more effectively. 5GHz provides faster data connections and E. 2.4GHz has a higher coverage area. 5GHz has higher bandwidth. The 2.4GHz frequency has a lower data rate compared to 5GHz, but it can penetrate solid objects more effectively and has a higher coverage area. The 5GHz frequency, on the other hand, provides faster data connections and has higher bandwidth, but it has fewer channels and lower transmit power.

Private cloud environments are designed for use by a single organization and offer the greatest control over security and access to data. They are typically used for sensitive or confidential data, such as health and criminal justice records. Public cloud environments are shared by multiple organizations and offer less control over security and access to data. Hybrid cloud environments combine public and private clouds, while community clouds are shared by multiple organizations with similar needs. References: CompTIA A+ Certification Exam: Core 1 - Page 234

https://techlibrary.hpe.com/docs/iss/proliant-gen10-uefi/s_enabling_VT-d.html

Enabling VT-d (Virtualization Technology for Directed I/O) in the server's BIOS settings is required for the hypervisor to run properly. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 11

ADF/flatbed scanner would most likely be used to obtain electronic images of a large number of printed documents. References: CompTIA A+ Certification Exam Guide, Exam 220-1001, Page 351

Dropping a smartphone can damage the digitizer, which is the component responsible for sensing touch input. This can cause issues with tapping and swiping on the screen, as well as other touchscreen-related issues. References: CompTIA A+ Certification Exam Core 1 Exam Objectives - 3.3 Given a scenario, troubleshoot mobile device issues

The technician should check the level of network utilization to determine if there is an excessive amount of traffic that may be causing the slow access to the network fileshare. This can be done using network monitoring tools to track the amount of data being transmitted on the network. References: CompTIA A+ Certification Exam Objectives 1001, 2.9

The digitizer is the component that enables input on a mobile device's touch screen. It is a transparent layer that sits over the screen and detects the location of touch inputs. OLED (Organic Light Emitting Diode) is a type of display technology. Inverter is a component used in older LCD displays to provide power to the backlight. CMOS (Complementary Metal-Oxide-Semiconductor) sensor is a type of image sensor used in digital cameras and smartphones to capture images. References: CompTIA A+ Certification Exam: Core 1 - Page 177

A redundant power supply is a device that provides two or more power supplies connected in parallel so that when one fails, the other one will take over to ensure continuous power. This is ideal for critical warehouse machines that require a reliable power source and are at risk of downtime in the event of a power failure. Installing a redundant power supply will help to reduce the chances of an unexpected power outage and keep the machine running.

The technician will need to connect the DVI port on the computer to the new display's HDMI port. To do this, a DVI to HDMI cable will be needed. This type of cable will allow the computer's DVI video signal to be transmitted to the new display's HDMI port.

A digital-to-analog converter (DAC) is used to convert a digital signal to an analog signal. An A/V switcher is used to switch between multiple audio and video sources and display them on a single monitor or display. A DisplayPort to HDMI adapter is used to convert a DisplayPort signal to an HDMI signal, but it is not necessary in this scenario as the computer has a DVI port and not a DisplayPort.

Verifying the correct type of paper is loaded is the best solution for resolving the issue of blank receipts being printed by a point-of-sale printer. Some receipt printers require a specific type of paper, and using the wrong type can result in blank receipts. References: https://www.techwalla.com/articles/what-are-the-causes-of-blank-receipts-from-a-printer

Top of Form

Verify the correct type of paper is loaded. If a point-of-sale printer is printing blank receipts, one possible cause could be that the wrong type of paper is loaded in the printer. Thermal printers require thermal paper to print properly. If regular paper is loaded instead of thermal paper, the printer will not be able to produce an image on the paper and will print blank receipts.

The tool that the technician should use to see all drives is Diskmgmt. Diskmgmt is a Windows utility that allows you to manage disk drives and partitions on your computer. It can be used to view all drives, including USB drives, that are connected to the computer12.

The clicking sound is the sound of a damaged disk in the HDD

A clicking sound from a hard disk drive typically indicates a mechanical failure, such as the read/write head hitting a physical obstruction or a problem with the disk motor. This can cause the drive to fail to initialize or not be recognized by the system during booting.

Adjusting the lens is the best solution to improve image quality in a projector. The lens can become misaligned over time or during transportation, causing the image to appear fuzzy.

NFC (Near Field Communication) is a technology used for short-range wireless communication between devices, typically used for contactless payments and authentication. In this scenario, the 13.56MHz frequency short band was implemented, and users can authenticate using their mobile devices, which requires NFC to be enabled on the device. References: CompTIA A+ Certification Exam Objectives 220-1001 - Mobile device network and device synchronization - 4.4

If a computer is not booting and the onboard speaker emits beeps, it can indicate a hardware issue. One of the most common causes of beep codes is overheating, which can occur if the processor's fan is not properly installed and running. The processor's fan is responsible for cooling the processor and preventing damage to the internal components.

The most likely cause of the issue is that the page orientation is incorrect. The printer may be set to print labels in a different orientation than the orientation of the label sheet1.

Installing an M.2 SSD will improve a workstation's overall response time for frequently used applications and data without removing the current hard drive. M.2 drives are faster and more efficient than traditional hard drives, making them a good option for increasing overall performance. References: CompTIA A+ Certification Exam Core 1 Exam Objectives - 1.5 Given a scenario, configure storage devices and use appropriate media

A router (option C) is a network device that is used to separate broadcast domains. A broadcast domain is a logical division of a computer network in which all nodes can reach each other by broadcast at the data link layer. Routers operate at the network layer of the OSI model and use routing tables to determine the best path for forwarding packets between different networks.

By separating broadcast domains, routers can help to reduce network congestion and improve performance. When a router receives a broadcast packet on one of its interfaces, it does not forward the packet to any other interfaces. This means that only devices within the same broadcast domain as the sender will receive the broadcast packet.

Mobile Device Management (MDM) is a software solution that allows companies to manage and secure mobile devices used in the corporate environment. MDM provides features such as remote data wipe, application management, and device security policies to ensure data protection and compliance with company policies. References: CompTIA A+ Certification Exam Objectives 220-1001 - Mobile device hardware and operating systems - 2.8

Opening multiple large Excel files simultaneously requires a large amount of RAM. Upgrading the RAM in the workstation should improve performance. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 9

Using a USB 3.1 flash drive with BitLocker to Go installed is the best option for complying with corporate policy for data protection when copying files to portable media. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 12

https://www.resonatenetworks.com/2020/04/29/clustering-vs-load-balancing-whats-the-difference/

A load balancer distributes network traffic evenly across multiple servers, ensuring each server is being properly utilized. This helps to prevent overloading of any individual server, which can cause downtime or slow response times for users. In this scenario, adding a load balancer would be the best way to ensure the new servers are being properly utilized. References: CompTIA A+ Certification Exam: Core 1 - Page 181

A router is a network device that connects multiple networks together and directs data packets to their intended destinations. This includes directing packets to networks outside of the local area network (LAN). Routers use routing tables to determine the best path for data packets to travel.

Hubs and switches operate within a single LAN and are not capable of routing packets to external networks.

Bridges can connect two LANs together, but they do not have the intelligence to route packets to external networks.

Therefore, only routers are capable of directing packets to networks outside of the LAN.

References:

CompTIA A+ Certification Core 1 220-1101 Study Guide, Chapter 4: Networking, Section 4.1 Networking Fundamentals

Rapid elasticity would be used by an online retailer to quickly add more web servers during peak sales times. References: CompTIA A+ Certification Exam Guide, Exam 220-1001, Page 405

Based on the given information, it seems that the projector is experiencing issues with overheating or a faulty power supply. The fact that it shuts off and cannot be turned back on until it has cooled down for 15 minutes suggests that the projector is overheating or there is a problem with the power supply. Therefore, the next logical step would be to clean the filter to ensure proper ventilation and airflow, as a dirty filter can cause overheating.

Using a USB 3.1 flash drive with BitLocker to Go installed is the best option for complying with corporate policy for data protection when copying files to portable media. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 12

The connection type that the technician should recommend is Satellite. Satellite internet is a good option for people who travel around the world and want to have connectivity while visiting remote camping locations. It works by using terminals which can give you internet access in remote locations as long as they have a line of sight to the satellite in orbit above12.

Since the customer travels to remote camping locations with limited or unreliable cellular service, the best recommendation is satellite internet connection. Satellite internet uses a dish to connect to satellites orbiting the earth, which can provide coverage anywhere in the world as long as there is a clear line of sight to the satellite. This is especially useful in remote areas where traditional terrestrial connections are not available. References: CompTIA A+ Certification Exam Objectives - 220-1001: 1.6 Given a scenario, evaluate connection type and bandwidth.

Cat 5 cable is limited to a maximum data transfer rate of 100Mbps, while Cat 5e, Cat 6, and Cat 6a cables support Gigabit Ethernet (1000Mbps) and higher speeds. Even though the LAN card is capable of Gigabit speeds, it cannot achieve that speed when using a Cat 5 cable. Upgrading to a Cat 5e or higher cable would allow the computer to achieve Gigabit speeds. References: CompTIA A+ Certification Exam: Core 1 - Page 196

https://techlibrary.hpe.com/docs/iss/proliant-gen10-uefi/s_enabling_VT-d.html

Enabling VT-d (Virtualization Technology for Directed I/O) in the server's BIOS settings is required for the hypervisor to run properly. References: CompTIA A+ Certification Exam Guide, Ninth Edition, Chapter 11

The issue of video but no audio on a projector in a conference room can be resolved by utilizing an HDMI connection between the PC and the projector. HDMI supports both video and audio signals and is commonly used to connect a PC to a projector for presentations. Changing the input on the projector to VGA, changing the output on the PC to DVI, or modifying the projector's refresh rate will not resolve the issue. References: CompTIA A+ Certification Exam: Core 1 - Objective 2.5

The correct answer is B. Use the Function key.

The explanation is that some laptops have a Function key (Fn) that can be used to toggle the track pad on or off. This can be useful if the user wants to use an external mouse instead of the track pad, or if the track pad is accidentally activated by palm movements. The user should look for a Fn key on their keyboard and a track pad icon on one of the other keys, such as F5 or F9, and press them together to enable or disable the track pad.

The best choice for the user's laptop is a 1TB NVMe SSD. NVMe (Non-Volatile Memory Express) is a high-performance storage protocol designed specifically for solid-state drives (SSDs). It is significantly faster than SATA SSDs and SAS hard drives, making it ideal for users who need fast storage for their laptop. NVMe SSDs also have lower latency and higher bandwidth than traditional hard drives, making them well-suited for data-intensive tasks such as video editing, gaming, and running multiple applications simultaneously. Additionally, NVMe offers more reliable data reliability than traditional hard drives, and is less susceptible to performance degradation over time.

Virtual memory is a software-based memory management system that allows a computer to use hard disk storage space as RAM. This can be used to increase the total RAM in a system without upgrading the hardware. To set up virtual memory, the user should go to the System Properties window and select the Advanced tab. In the Performance section, click on the Settings button, which will open the Performance Options window. Then, click on the Advanced tab and click on the Change button in the Virtual memory section. Finally, select the option to Automatically manage paging file size for all drives, and then click OK to save the changes.

A repetitive clicking noise coming from a laptop is usually a sign of a failing hard disk drive (HDD), which is a type of storage device that uses spinning platters and moving heads to read and write data. A failing HDD can also cause severe delays in input and output operations, as well as data loss or corruption. The technician should replace the HDD with a new one or upgrade it to a solid state drive (SSD), which is another type of storage device that uses flash memory and has no moving parts. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-serie s-combined-content-guide (page 24)

Enabling the audio device is the correct action to correct an audio issue where a laptop does not have any audio output from the built-in speakers and Windows Device Manager shows a down arrow for the audio device. A down arrow indicates that the audio device is disabled and needs to be enabled by right-clicking on it and selecting Enable device. Replacing the speakers, increasing the volume, or updating the driver are unlikely to solve the issue if the audio device is disabled.

A scratch on the scanning bed of a copier can cause a solid black line to appear on all copies, as the scanner cannot read the original document properly through the scratch. The scratch can also reflect light and create noise in the scanned image. The printing function is unaffected by the scratch, as it does not use the scanning bed. The technician should inspect and clean the scanning bed, and replace it if necessary. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-1-content-guide (page 16)

A faulty battery could cause a tablet to restart on its own and have intermittent issues with charging. Water damage could also cause these symptoms, but it is not the most likely cause unless there is evidence of liquid exposure. Incorrect OS version could cause compatibility or performance issues, but not charging problems. Damaged charging port could prevent the tablet from charging, but not cause it to restart randomly.

 If a technician is on site troubleshooting a customer’s laptop and needs to download a software update but the company’s proxy is blocking updates, the most appropriate action for the technician to take would be to request a traffic exemption from the company’s IT department.

High latency is what best describes what is occurring on a VoIP call when one user is unable to understand the other because the audio is breaking up. Latency is the delay between sending and receiving data over a network, and high latency can cause poor quality or interruptions in VoIP calls. External interference, no connectivity, or port flapping are not likely to cause audio breaking up, but rather complete loss of signal or connection.

Liquid cooling is a method of cooling the CPU by circulating a liquid through a closed loop that absorbs heat from the CPU and transfers it to a radiator. Liquid cooling is more effective and quieter than air cooling, which uses a fan and a heat sink. However, liquid cooling is also more expensive and complex to install. Upgrading the thermal paste, using a copper heat sink, or upgrading the CPU fan are ways to improve air cooling, but they will not lower the CPU temperature as much as liquid cooling. References: https://www.comptia.org/certifications/a#examdetails https://www.comptia.org/blog/what-is-liquid-cooling

Server message block (SMB) is the setting on the multifunction printer (MFP) that the technician should edit to best address the user’s request of making the scans viewable on the network for the entire department. SMB is a network protocol that allows file sharing and printer access among different devices on a network. The technician can configure the MFP to scan to a shared folder on the network using SMB. Scan to email is a feature that allows the MFP to send scanned documents as email attachments, which may not be viewable by everyone in the department. Secured prints is a feature that allows the MFP to print documents only after entering a PIN or password, which does not address the user’s request. Web services is a feature that allows the MFP to access online services such as cloud storage or email, which may not be viewable by everyone in the department either. Printer share is not a setting on the MFP, but a feature that allows a device to share its printer with other devices on a network

Updating the preferred roaming list (PRL) is what a user should do to resolve the issue of being unable to get personal cell phone service after traveling to another country. The PRL is a database that contains information about cell towers and frequencies that a phone can use in different areas. Updating the PRL can improve the phone’s ability to connect to local networks and avoid roaming charges. CDMA is a type of cellular technology that uses code division multiple access to transmit data over radio frequencies. MDM is an acronym for mobile device management, which is a type of software solution that allows remote management and security of mobile devices. GPS is an acronym for global positioning system, which is a satellite-based navigation system that provides location and time information

The domain name system (DNS) is the component that houses the MX record. The MX record is a type of DNS record that specifies which mail server is responsible for receiving email messages for a domain name. VLAN is an acronym for virtual local area network, which is a logical subdivision of a network that allows devices to communicate as if they were on the same physical segment. DHCP is an acronym for dynamic host configuration protocol, which is a network protocol that assigns IP addresses and other configuration parameters to devices on a network automatically. SMTP is an acronym for simple mail transfer protocol, which is a network protocol that allows sending and receiving email messages over TCP/IP networks

TPM stands for Trusted Platform Module, which is a hardware component that securely stores encryption keys and other sensitive data12. TPM can be used to enable hard drive encryption, which is a technology that encrypts the data stored on a hard drive using sophisticated mathematical functions34. Hard drive encryption protects the data from unauthorized access in case the hard drive is lost, stolen, or tampered with.

If lines appear down copied pages but printed pages sent directly to copier render as intended, it could be due to scratched scanner glass which can cause lines or streaks on copied pages.

If there are lines appearing on copied pages, but not on printed pages sent directly to the copier, the issue is most likely caused by a scratch on the scanner glass. References: https://www.pacificoffice.com/how-to-fix-lines-on-copier/

A public cloud is a cloud computing model that provides services and resources to anyone over the internet. The service that the user uploads a file to is an example of a public cloud service, as it is accessible via a web browser and a client application, allows multiple users to access the file, and is provided by a third party for a monthly fee. A hybrid cloud is a combination of public and private cloud services that share data and resources. Infrastructure as a service is a cloud computing model that provides servers, storage, networking, and software over the internet. Private cloud is a cloud computing model that provides services and resources to a specific organization or group over a private network

 The message “The amount of system memory has changed” indicates that there is a problem with the random access memory (RAM) modules in the computer. The RAM may be loose, faulty, or incompatible with the motherboard or other components. The GPU, HDD, and CPU are not directly related to system memory and would not cause this message to appear.

 The USB 2.0 port has insufficient bandwidth to support a high-definition webcam that can update 30 frames per second. USB 2.0 has a maximum theoretical bandwidth of 480 Mbps, which may not be enough for HD video streaming. The user should try using a USB 3.0 port or a Thunderbolt connector, which have higher bandwidths and can support HD webcams. The Thunderbolt connector is compatible with USB devices, so it is not the cause of the issue. The VGA cable and the STP cable are not related to the webcam, as they are used for video output and network connection respectively.

A patch panel is a mounted hardware unit containing ports used to manage cable connections. The individual pairs of a Cat 6 cable are terminated on the patch panel, which then provides a central location for cable management and organization. The patch panel is then connected to the switch using a patch cable.

The message prompting to press "OK" indicates that the printer is waiting for a user input. This suggests that there is some issue with the printer settings, and the most probable cause is that the default paper type has been changed, and the printer needs the user to confirm the paper type before proceeding with the print job. This is a common issue that can occur when the default paper type is not set correctly or has been changed without the user's knowledge.

The frequency bands that 802.11b and 802.11g operate in are 2.4GHz bands, which allow for longer range but lower speed than higher frequency bands such as 5GHz or 6GHz bands used by newer standards such as 802.11a/n/ac/ax.

The technician should verify the header panel connector is properly connected. A beep code is a diagnostic tool used by motherboards to indicate issues with hardware components. This beep code may be indicating an issue with the connection between the motherboard and the case's header panel connector. This connector is responsible for providing power to the system and any connected peripherals. Therefore, the technician should verify the connection is secure and properly connected before attempting any other troubleshooting steps.

The error message "Reboot and Select Proper Boot Device" indicates that the computer cannot find the boot device that contains the operating system12. This can happen if the hard drive that stores the operating system is damaged or failed, and the BIOS cannot detect it or read from it23. A failed hard drive can also cause other symptoms such as clicking noises, corrupted files, or slow performance4.

The power supply unit (PSU) is the component that converts AC power from the outlet to DC power for the computer. If the PSU fails, the computer will not turn on. The CPU, RAM, and GPU are not directly related to the power supply and would not prevent the computer from turning on.

The default gateway is the IP address of the router or device that connects a network to another network or the internet. In the output below, the default gateway is 172.25.1.252, as shown in the line “Default Gateway . . . . . . . . . : 172.25.1.252”. The other IP addresses are not default gateways, but either local IP addresses (172.25.1.39 and 172.25.1.4) or subnet masks (255.255.255.0).

an inverter is a device that converts DC power from the laptop’s battery or AC adapter to AC power for the backlight of the LCD panel. If the inverter is defective, the backlight will not work and the LCD panel will appear blank or very dim. The user can still see a faint image if they shine a flashlight into the LCD because the LCD itself is still working.

Primary Array:

Drag and drop two 120 GB SSD hard drives to the primary array bay.

Open the primary array and select RAID 1 as the RAID level. RAID 1 provides fault tolerance of one drive, ability to function with only one drive, easily recoverable data, high redundancy, and very fast on reads. It also does not need to be scalable and uses the minimum number of drives (two) for RAID 1.

Confirm the configuration and close the primary array.

Secondary Array:

Drag and drop two 300 GB SSD hard drives to the secondary array bay.

Open the secondary array and select RAID 0 as the RAID level. RAID 0 provides the best write performance and uses the minimum number of drives (two) for RAID 0. It also provides a total space of 600 GB (300 GB x 2), which meets the requirement.

Confirm the configuration and close the secondary array.

You have completed the configuration of the storage arrays.

The technician should ensure the input connections to the screen are secure1. The screen may not be receiving the signal from the device outputting the data if the input connections are not secure1. Swapping cables with a screen that works is not likely to be the correct option1

Automatic document feeder (ADF) is a feature that allows a multifunction printer to photocopy documents with hundreds of pages automatically without requiring manual intervention. ADF scans multiple pages from a stack of documents and feeds them into the printer one by one. SMB is a network protocol that allows file sharing and printer access among different devices on a network. PCL is a printer language that controls how data is formatted for printing. SSH is a network protocol that allows secure remote access to another device over an encrypted connection.

A sandbox is a lab environment in which virtual machines can be created, rebooted, and shut down without affecting the production network. This allows for testing and experimentation without the risk of damaging the production environment123..

A private cloud is a cloud computing model that provides services and resources to a specific organization or group over a private network. A private cloud can offer more security and control than other cloud models, as well as customized infrastructure that suits the organization’s needs. A bank would most likely choose a private cloud model to leverage cloud computing while maintaining isolation from other businesses. A public cloud is a cloud computing model that provides services and resources to anyone over the internet. A hybrid cloud is a combination of public and private cloud services that share data and resources.

A USB-C cable is the best option for installing an RS-232 serial signature pad to an ultralightweight laptop. USB-C is a universal connector that supports various protocols and devices, including serial devices. A port replicator is a device that expands the connectivity options of a laptop by providing additional ports. Wi-Fi Direct is a wireless technology that allows devices to connect directly without a router or access point. Hotspot is a feature that allows a device to share its internet connection with other devices via Wi-Fi, Bluetooth, or USB.

A hypervisor is a software layer that manages and allocates resources for virtual machines (VMs) on a physical host machine. A technician can use a hypervisor to adjust the resource allocation for a virtual workstation, such as increasing the amount of RAM assigned to it from the available pool of memory on the host machine. This can improve the performance and functionality of the virtual workstation without requiring any hardware changes or modifications. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 59)

One of the possible causes of random and incorrect characters appearing on print jobs sent to a laser printer is an outdated or corrupted driver. The driver is a software component that communicates between the operating system and the printer, and converts data into a format that the printer can understand. If the driver is outdated or corrupted, it may send incorrect or garbled data to the printer, resulting in poor print quality or errors. The technician should update the driver to the latest version from the manufacturer’s website, or uninstall and reinstall it if necessary. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 47)

The technician should research the requirements of the CAD program to see if the computer meets them or needs any upgrades or updates to run it properly. The technician should also check the Event Viewer logs to see if there are any errors or warnings related to the application or system performance that could indicate the cause of the problem or suggest a solution. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (pages 43, 47)

Calibrating the touch screen is the best action to resolve the issue of inaccurate touch input. Calibration adjusts the touch screen’s sensitivity and alignment to match the user’s touch. Resetting the mobile device could erase user data and settings and may not fix the touch screen issue. Replacing the LED screen or updating the mobile device are unnecessary and costly actions that may not solve the problem.

Asking the user about the symptoms the computer is experiencing is the first step the technician should take when a user reports that a computer has a virus on it. This step helps the technician to gather information and identify the problem before determining a plan of action to resolve it. Running antivirus software, making a backup of the user’s data, or determining a plan of action are not the first steps, but possible actions that can be taken after identifying the problem.

The best action for the salesperson to take in order to view weather forecasts while traveling and minimize the battery drain on their mobile device is to configure fewer location checks using cellular location services. This can be done by adjusting the settings for the weather application to limit how often it checks for updates and uses location services. This will help to conserve the battery on the device and keep the application from consuming too much power.

A sandbox is a virtualization solution that allows a legacy application to run in an isolated environment without affecting other applications or systems. A sandbox can emulate an older operating system or hardware configuration that is compatible with the legacy software. A hybrid cloud is a combination of public and private cloud services that share data and resources. Infrastructure as a service is a cloud computing model that provides servers, storage, networking, and software over the internet. Public cloud is a cloud computing model that provides services and resources to anyone over the internet. Private cloud is a cloud computing model that provides services and resources to a specific organization or group over a private network.

 Enabling high-accuracy mode is the most likely action to resolve the issue of unreliable GPS on a user’s phone. High-accuracy mode uses multiple sources of location data, such as Wi-Fi, cellular networks, and Bluetooth, to improve the accuracy and reliability of GPS. Replacing the battery, disabling Wi-Fi connections, or utilizing a third-party map application are unlikely to fix the GPS issue, as they are not directly related to the GPS function

A cable tester and a crimper are the best tools to execute the task of replacing all RJ45 cables in a customer environment. A cable tester can be used to check the continuity and quality of a cable, and a crimper can be used to attach RJ45 connectors to the ends of a cable. An optical fiber tester is a tool that can be used to test fiber optic cables, which are not RJ45 cables. Scissors are not a tool for replacing cables, but for cutting them. A coaxial cable is a type of cable that has a single copper conductor at its center, which is not an RJ45 cable either. A screwdriver is not a tool for replacing cables, but for fastening or loosening screws.

A DHCP reservation is a feature that allows a DHCP server to assign a specific IP address to a specific device on a network, based on its MAC address. This ensures that the device always receives the same IP address, even if it is disconnected or rebooted. A DHCP reservation is most likely applied to a printer, as it can make it easier for users to find and connect to the printer on the network, without having to change the printer settings or deal with IP address conflicts. Reference: https://www.comptia.org/training/books/a-core-1-220-1101-study-guide (page 84)

SODIMM stands for Small Outline Dual In-line Memory Module and is a type of memory module that is compatible with laptops and other small devices. SODIMMs are smaller and thinner than DIMMs (Dual In-line Memory Modules), which are typically used for desktop PCs and servers. Upgrading or adding SODIMMs can increase the amount of RAM available for a laptop, which can improve its performance and speed when running process-intensive tasks. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-se ries-combined-content-guide (page 24)

One of the possible causes of extreme slowness and application crashes on a phone is low or insufficient storage space. This can affect the performance and functionality of the phone, as well as prevent new applications from being installed or updated. The technician should check the storage space on the phone and see if there is enough free space available for the diagnostic application and other operations. The technician should also advise the customer to delete or move any unnecessary or unused files, apps, or data from the phone to free up some space. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-1-content-guide (page 10)

The screen rotation is locked. If a user’s touch-screen tablet is having an issue with screen orientation, it could be due to screen rotation being locked in device settings.

If the screen rotation is locked, the touch-screen tablet will not rotate the screen when the device is turned. This can usually be unlocked in the settings or by pressing a specific key combination. References: https://www.howtogeek.com/254132/how-to-enable-screen-rotation-on-windows-10/

When installing RAM into a server that will be used as a VM host, it is recommended to install ECC (Error-Correcting Code) RAM to help prevent errors that can cause virtual machines to crash. References: https://www.servermonkey.com/blog/ecc-vs-non-ecc-ram-what-are-the-differences.html

When installing RAM into a rackmount server that will be used as a VM host, it would be best to install ECC (Error Correcting Code) RAM which can detect and correct common types of data corruption.

The Trusted Platform Module (TPM) is a hardware component that provides cryptographic functions and secure storage for encryption keys, passwords, and certificates. BitLocker requires a TPM to be enabled and activated in the BIOS or UEFI settings of the laptop in order to use SSD-level encryption. The technician should check that the TPM is enabled and activated before trying to turn on BitLocker. Reference: https://partners.comptia.org/docs/default-source/resources/a-core-series-combined-content-guide (page 34)
